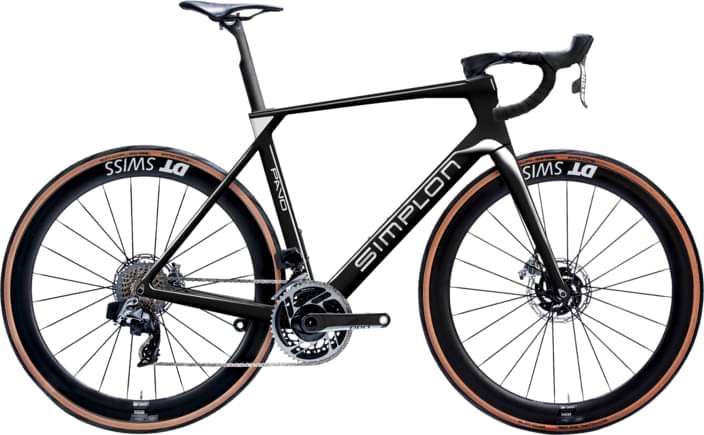

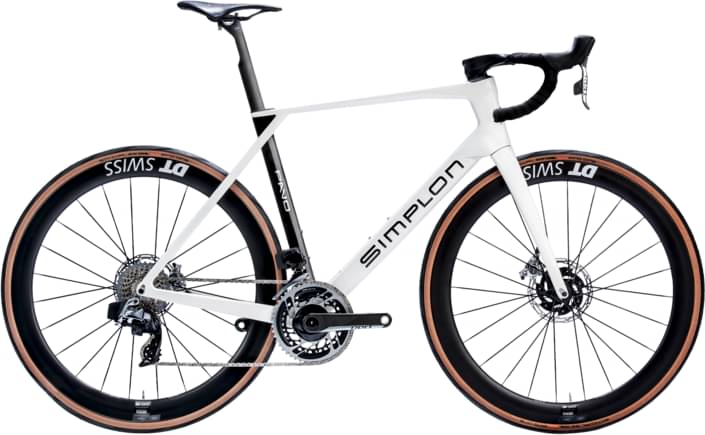

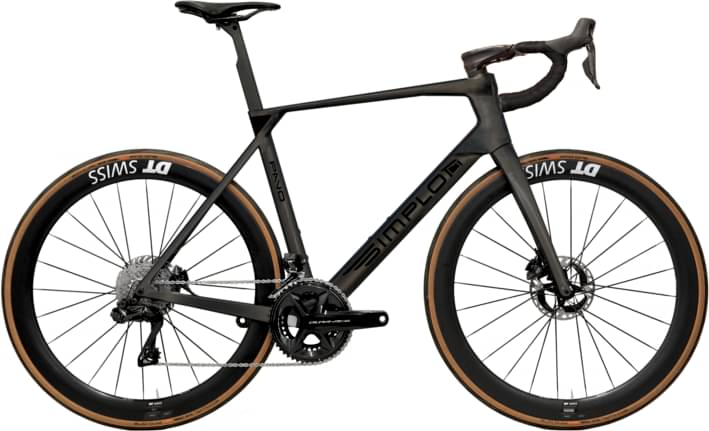

simplon Pavo 4 raw limited edition, Shimano Dura Ace DI2 2024
2024 Road
Estimate price |
13,377$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Pavo IV, Carbon Black Raw, XXS (46)
Drivetrain
Rear Derailleur
Shimano Dura Ace Disc Di2
Shift Levers
Shimano Dura Ace Disc Di2
Cassette
Cassette Shimano Dura Ace 11-34
Crank
Crankset Shimano Dura Ace 52/36, 170mm, Powermeter
Wheels
Rims
DT Swiss ARC1100-50-PRO ONE AddixRace,28-622
Brakes
Brakes
Shimano Dura Ace Disc Di2
Cockpit
Stem
No Stem selected
Handlebar
Handlebar/ Stem-Combo FSA Metron 5D ACR-90*380
Headset
Steuersatz Acros Pavo IV, V2A
Seat
Saddle
Selle Italia DIVA FLOW black
Seatpost
Sattelstütze Pavo IV
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.405 mm | 1.421 mm | 1.436 mm | 1.468 mm | 1.5 mm | 1.531 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 578 mm | 590 mm | 593 mm | 604 mm | 610 mm | 615 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 66 mm | 63 mm | 54 mm | 54 mm | 59 mm | 64 mm |
| Stack | 520 mm | 540 mm | 560 mm | 580 mm | 600 mm | 620 mm |
| Reach | 370 mm | 380 mm | 390 mm | 395 mm | 400 mm | 405 mm |
| Top Tube Length | 509 mm | 530 mm | 550 mm | 557 mm | 583 mm | 588 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 442 mm | 469 mm | 501 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 111 mm | 130 mm | 146 mm | 166 mm | 186 mm | 205 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 976 mm | 988 mm | 991 mm | 1002 mm | 1008 mm | 1013 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 725 mm | 755 mm | 780 mm | 800 mm | 820 mm | 840 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
