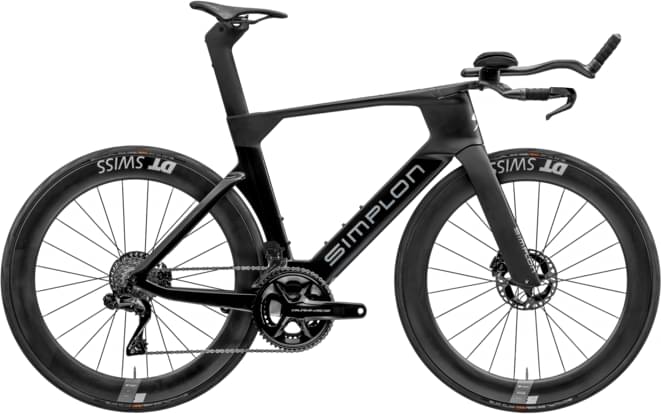

simplon Pride Tri Expert DI2 2024
2024 Road
Estimate price |
9,306$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Drivetrain
Rear Derailleur
Shimano Ultegra Disc Di2
Shift Levers
Shimano Ultegra Disc Di2
Cassette
Cassette Shimano Ultegra 11-34, 12s
Crank
Crankset Shimano Ultegra 52/36, 175mm, Powermeter
Wheels
Rims
DT Swiss ARC1100-80-PRO ONE AddixRace,28-622
Brakes
Brakes
Shimano Ultegra Disc Di2
Cockpit
Stem
No Stem selected
Handlebar
Simplon Pride TRI cockpit - Vision Metron TFA
Headset
Acros AIA-552
Seat
Saddle
w/o saddle
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 585 mm | 599 mm | 599 mm | 609 mm | 620 mm | 636 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 530 mm | 543 mm | 558 mm | 568 mm | 584 mm | 595 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 452 mm | 465 mm | 492 mm | 512 mm | 532 mm | 550 mm |
| Head Tube Angle | 71.25 ° | 71.25 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 95 mm | 110 mm | 117 mm | 138 mm | 160 mm | 180 mm |
| Chainstay Length | 403 mm | 403 mm | 403 mm | 403 mm | 403 mm | 403 mm |
| Wheelbase | 976 mm | 990 mm | 990 mm | 1000 mm | 1011 mm | 1028 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 730 mm | 744 mm | 764 mm | 783 mm | 801 mm | 820 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
