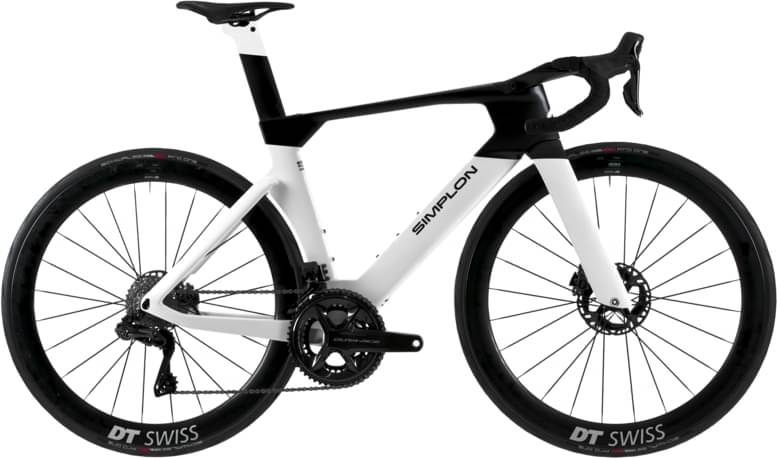

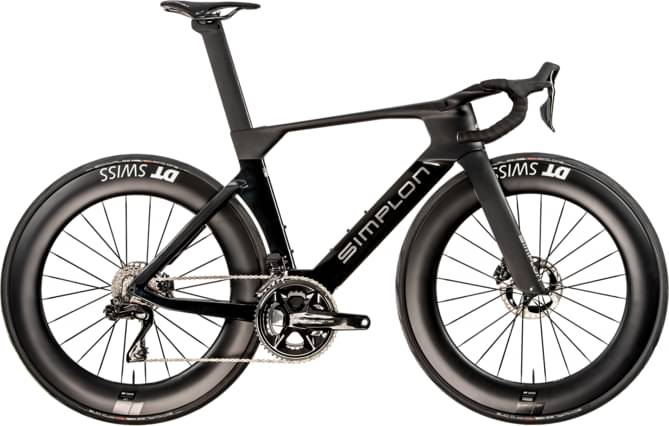

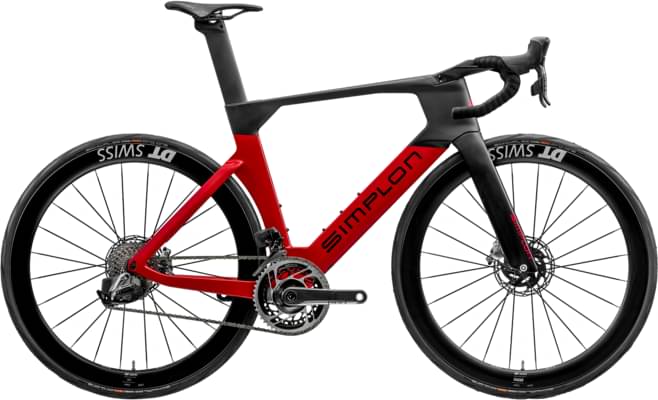

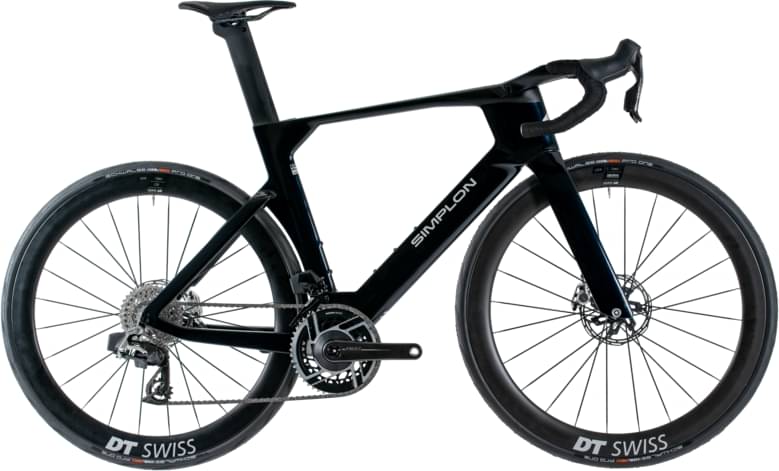

simplon Pride,Expert AXS,Force 2024
2024 Road
Estimate price |
8,724$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Force, Force eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes SRAM Force Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
PRIDE,Deep Sea/Polished Silver(Metallic),XXS(46)
Drivetrain
Rear Derailleur
SRAM Force eTAP AXS
Shift Levers
SRAM Force eTAP AXS
Cassette
Cassette SRAM Force 10-36 12-speed
Crank
powermeter SRAM Force AXS D2, 175mm, 48/35 T
Wheels
Rims
DT Swiss ERC1600-35-PRO ONE AddixRace,28-622
Brakes
Brakes
SRAM Force eTAP AXS
Cockpit
Stem
Simplon Pride II, Pro Aero Stem, Stack +55mm, Reach 105-120m
Handlebar
Simplon Pride II, Aero Roadbar, 380mm
Headset
Acros AIA-552
Seat
Saddle
w/o saddle
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 585 mm | 599 mm | 599 mm | 609 mm | 620 mm | 636 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 530 mm | 543 mm | 558 mm | 568 mm | 584 mm | 595 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 452 mm | 465 mm | 492 mm | 512 mm | 532 mm | 550 mm |
| Head Tube Angle | 71.25 ° | 71.25 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 95 mm | 110 mm | 117 mm | 138 mm | 160 mm | 180 mm |
| Chainstay Length | 403 mm | 403 mm | 403 mm | 403 mm | 403 mm | 403 mm |
| Wheelbase | 976 mm | 990 mm | 990 mm | 1000 mm | 1011 mm | 1028 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 730 mm | 744 mm | 764 mm | 783 mm | 801 mm | 820 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
