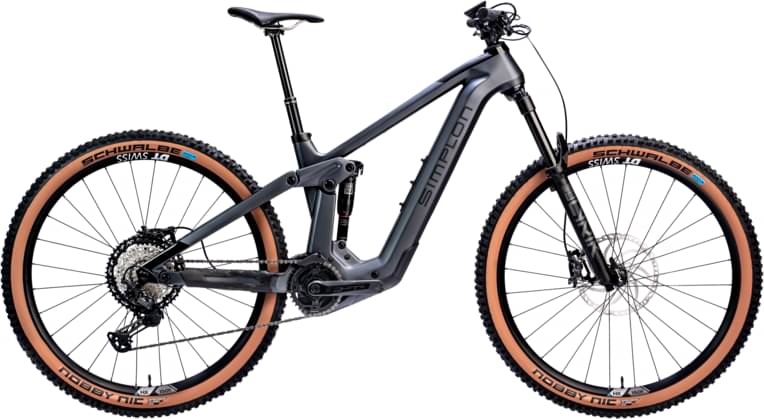

simplon Rapcon :eCX Expert AXS 2024
2024 E-bike
Estimate price |
8,142$
Weight | 21.76 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox ZEB
-
Groupset GX Eagle -
Suspension Full -
Motor Bosch mid-drive -
Battery 500 / 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

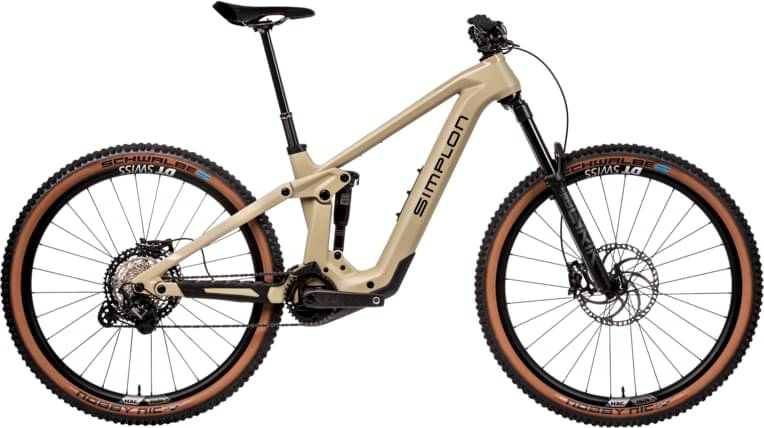

Rapcon Pmax CX, Sand Matt | Black Matt, S (37)
Suspension Fork
RockShox ZEB 29 Select+, 170mm
Rear Shock
Rockshox Superdeluxe Select+ 170mm
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Crank
FSA CK-702 Carbon crankarms, 170mm
Wheels
Rims
DT Swiss HX1501-Schwalbe Magic Mary, Super Trail, Ultra Soft
Tires
Schwalbe Magic Mary & Big Betty 29 x 2,4"
Brakes
Brakes
SRAM GX Eagle
Cockpit
Stem
Zero III 35mm x 0°
Handlebar
Simplon CARBON RISER 760
Grips
Griffe Ergon GE10 EVO
Headset
Acros AZA-639
Seat
Saddle
w/o saddle
Seatpost
BikeYoke Revive, 160mm, 31.6
Motor & Battery
Motor
BOSCH PL CX Gen4
Battery
500 / 750 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | 39cm | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.441 mm | 1.391 mm | 1.354 mm | 1.313 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 777 mm | 800 mm | 826 mm | 847 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 135 mm | 135 mm | 134 mm | 136 mm |
| Stack | 627 mm | 633 mm | 643 mm | 650 |
| Reach | 435 mm | 455 mm | 475 mm | 495 mm |
| Top Tube Length | 561 mm | 589 mm | 608 mm | 626 mm |
| Seat Tube Angle | 78.6 ° | 78.6 ° | 78.6 ° | 78.6 ° |
| Seat Tube Length | 370 mm | 395 mm | 420 mm | 445 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 105 mm | 112 mm | 123 mm | 130 mm |
| Chainstay Length | 438 mm | 441 mm | 446 mm | 450 mm |
| Wheelbase | 1214 mm | 1240 mm | 1271 mm | 1296 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 743 mm | 743 mm | 749 mm | 749 mm |
| Wheels | 29" | 29" | 29" | 29" |
