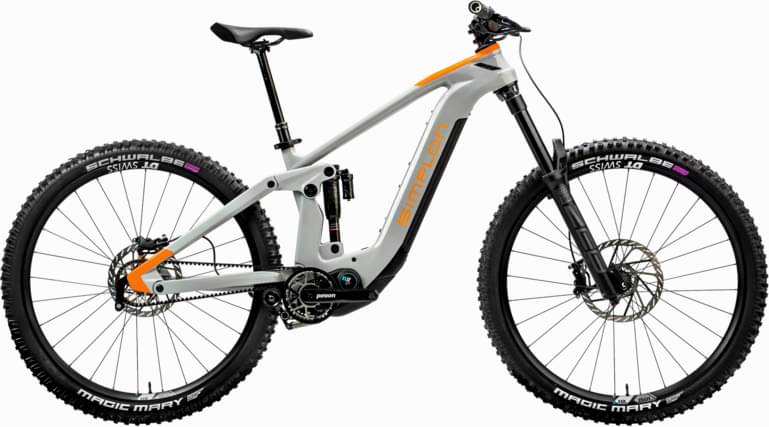

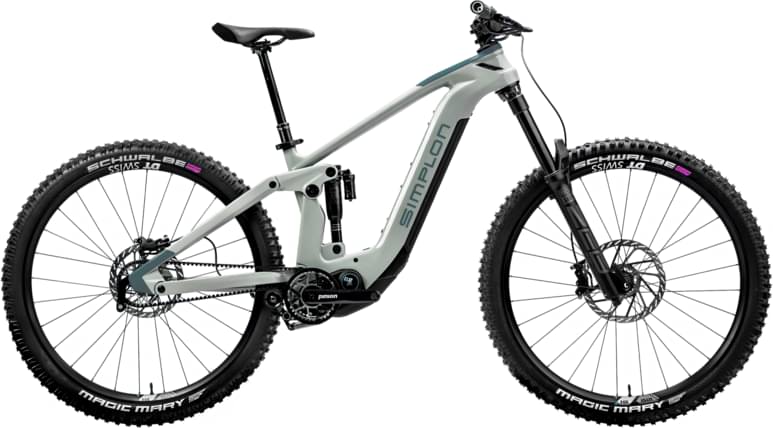

simplon Rapcon :ePinion Core 2024
2024 E-bike
Estimate price |
10,469$
Weight | 24.96 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox ZEB
-
Groupset Pinion -
Suspension Full -
Motor mid-drive -
Battery 820 / 1100 Wh -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rapcon Pinion, Moon Grey Glossy | Orange Glossy, S (39,5)
Suspension Fork
Rock Shox Zeb Base 160mm
Rear Shock
Rock Shox Deluxe Select plus 160mm Travel
Drivetrain
Shift Levers
drivetrain Gates CDX, 39-34 für Pinion E1.12
Crank
crankarms Pinion 160mm, CNC
Bottom Bracket
Pinion, press-fit
Wheels
Rims
DT Swiss HX1501 29/275-Schwalbe Magic Mary, Super Trail, Ult
Tires
Schwalbe Magic Mary & Big Betty 29/2.4x275/2.6"
Brakes
Brakes
drivetrain Gates CDX, 39-34 für Pinion E1.12
Cockpit
Stem
Zero III 45mm x 0°
Handlebar
Simplon CARBON RISER 800
Grips
Griffe Ergon GE10 EVO
Headset
Acros AZA-639
Seat
Saddle
w/o saddle
Seatpost
BikeYoke Revive, 125mm, 31.6 (Remote Seatpost only)
Motor & Battery
Motor
Pinion MGU E1.12
Battery
820 / 1100 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.481 mm | 1.391 mm | 1.354 mm | 1.354 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 764 mm | 798 mm | 823 mm | 856 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 628 mm | 633 mm | 643 mm | 670 mm |
| Reach | 424 mm | 455 mm | 475 mm | 495 mm |
| Top Tube Length | 552 mm | 584 mm | 606 mm | 627 mm |
| Seat Tube Angle | 78.7 ° | 78.7 ° | 78.7 ° | 78.7 ° |
| Seat Tube Length | 395 mm | 400 mm | 420 mm | 445 mm |
| Head Tube Angle | 64.2 ° | 64.2 ° | 64.2 ° | 64.2 ° |
| Head Tube Length | 108 mm | 108 mm | 118 mm | 126 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1210 mm | 1244 mm | 1269 mm | 1302 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 743 mm | 745 mm | 746 mm | 746 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
