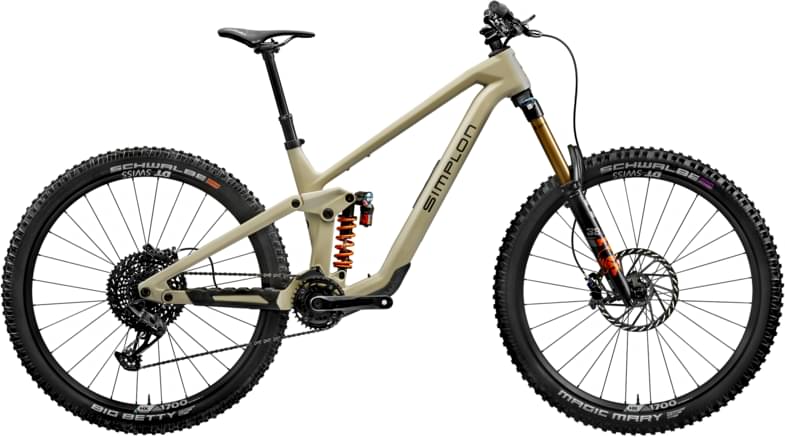

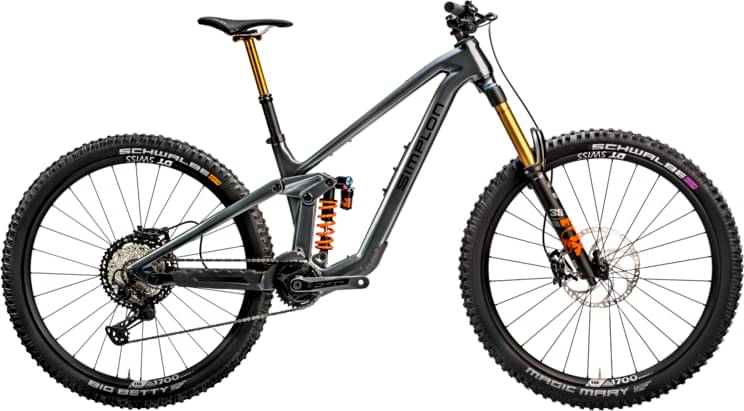

simplon Rapcon :eTQ Expert 2024
2024 E-bike
Estimate price |
9,887$
Weight | 19.29 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset XT -
Suspension Full -
Motor TQ mid-drive -
Battery 360 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rapcon Pmax TQ, Sand Matt | Black Matt, S (37)
Suspension Fork
FOX 38 FLOAT FACTORY 29" 170mm
Rear Shock
Fox Float X Factory 160mm
Drivetrain
Rear Derailleur
Shimano XT-12
Shift Levers
Shimano XT-12
Crank
FSA CK-745 für Bosch GEN4 alloy 160mm
Bottom Bracket
Bosch, press-fit
Wheels
Rims
DT Swiss HX 1700 LS -29-Schwalbe Magic Mary/Big Betty 62-622
Tires
Schwalbe Magic Mary & Big Betty 29 x 2,4"
Brakes
Brakes
Shimano XT-12
Cockpit
Stem
Zero III 35mm x 0°
Handlebar
Simplon CARBON RISER 800
Grips
Griffe Ergon GE10 EVO
Headset
Acros AZA-636
Seat
Saddle
w/o saddle
Seatpost
BikeYoke Revive, 125mm, 31.6 (Remote Seatpost only)
Motor & Battery
Motor
TQ-HPR50
Battery
360 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.408 mm | 1.364 mm | 1.328 mm | 1.293 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 770 mm | 793 mm | 818 mm | 840 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 129 mm | 130 mm | 130 mm | 132 mm |
| Stack | 621 mm | 629 mm | 639 mm | 648 mm |
| Reach | 441 mm | 461 mm | 481 mm | 501 mm |
| Top Tube Length | 569 mm | 590 mm | 604 mm | 634 mm |
| Seat Tube Angle | 78.5 ° | 78.5 ° | 78.5 ° | 78.5 ° |
| Seat Tube Length | 370 mm | 395 mm | 420 mm | 445 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 97 mm | 104 mm | 115 mm | 125 mm |
| Chainstay Length | 436 mm | 438 mm | 443 mm | 447 mm |
| Wheelbase | 1204 mm | 1229 mm | 1259 mm | 1285 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 738 mm | 738 mm | 744 mm | 744 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
