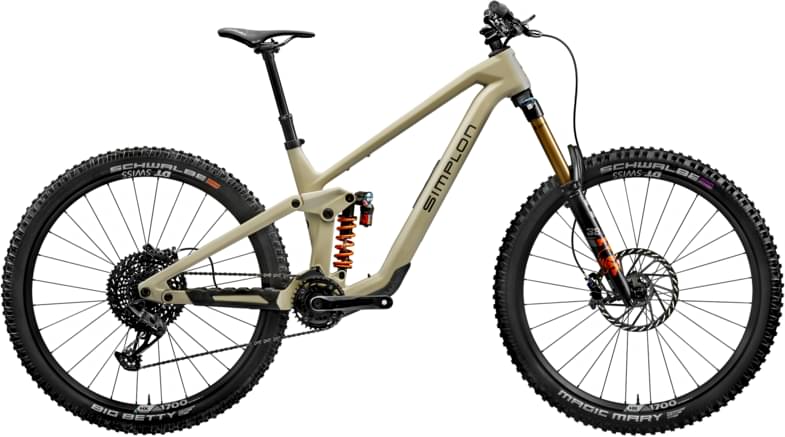

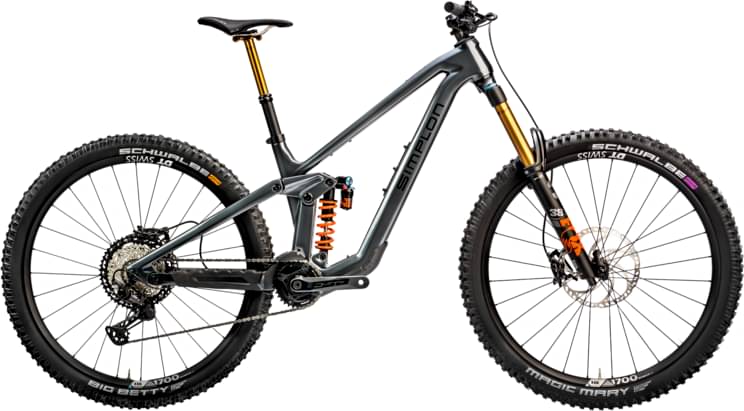

simplon Rapcon :eTQ,Ultimate AXS,X0 Transmission 2024
2024 E-bike
Estimate price |
11,632$
Weight | 19.29 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox Lyrik Select
-
Groupset X0 Eagle Transmission -
Suspension Full -
Motor TQ hub-drive -
Battery 360 Wh -
Drivetrain 1 × 12 Electronic -
Brakes SRAM X0 Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rapcon Pmax TQ, Sand Matt | Black Matt, S (37)
Suspension Fork
Rock Shox Lyrik Select Plus 160mm
Rear Shock
Rock Shox Super Deluxe Select plus 160mm Travel
Drivetrain
Rear Derailleur
SRAM X0 Eagle Transmission
Shift Levers
SRAM X0 Eagle Transmission
Crank
FSA CK-745 für Bosch GEN4 alloy 160mm
Bottom Bracket
Bosch, press-fit
Wheels
Rims
DT Swiss HXC 1501 LS-29-Schwalbe Magic Mary/Big Betty 62-622
Tires
Schwalbe Magic Mary & Big Betty 29 x 2,4"
Brakes
Brakes
SRAM X0 Eagle Transmission
Cockpit
Stem
Zero III 35mm x 0°
Handlebar
Simplon CARBON RISER 800
Grips
Griffe Ergon GE10 EVO
Headset
Acros AZA-636
Seat
Saddle
w/o saddle
Seatpost
BikeYoke Revive, 125mm, 31.6 (Remote Seatpost only)
Motor & Battery
Motor
TQ-HPR60
Battery
360 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.408 mm | 1.364 mm | 1.328 mm | 1.293 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 770 mm | 793 mm | 818 mm | 840 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 129 mm | 130 mm | 130 mm | 132 mm |
| Stack | 621 mm | 629 mm | 639 mm | 648 mm |
| Reach | 441 mm | 461 mm | 481 mm | 501 mm |
| Top Tube Length | 569 mm | 590 mm | 604 mm | 634 mm |
| Seat Tube Angle | 78.5 ° | 78.5 ° | 78.5 ° | 78.5 ° |
| Seat Tube Length | 370 mm | 395 mm | 420 mm | 445 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 97 mm | 104 mm | 115 mm | 125 mm |
| Chainstay Length | 436 mm | 438 mm | 443 mm | 447 mm |
| Wheelbase | 1204 mm | 1229 mm | 1259 mm | 1285 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 738 mm | 738 mm | 744 mm | 744 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
