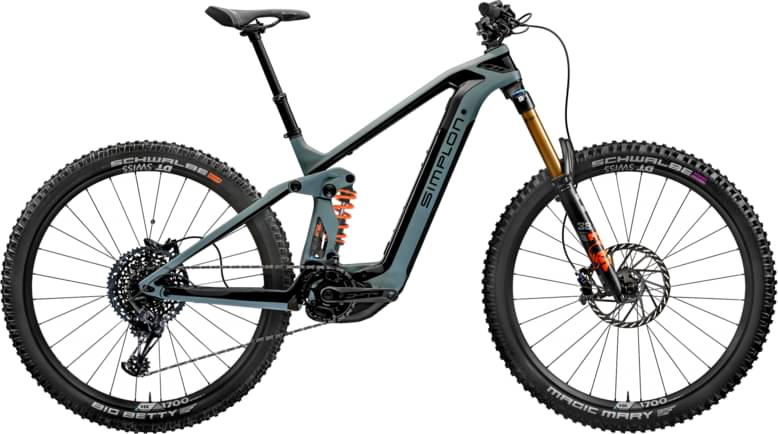

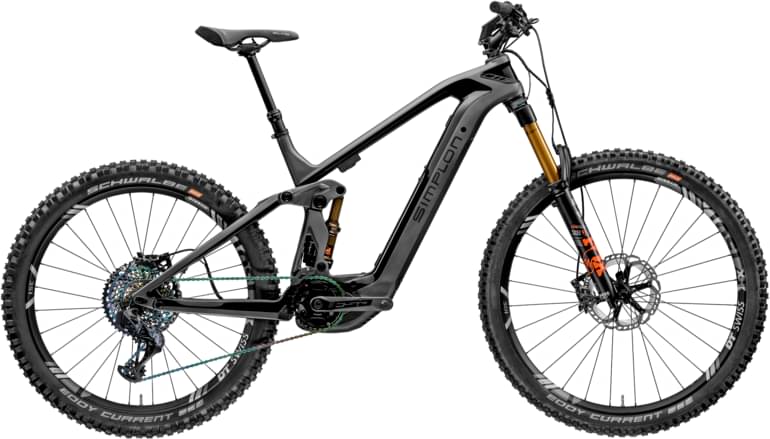

simplon Rapcon Pmax;UNI;B2;ETD;NX Eagle 2024
2024 E-bike
Estimate price |
5,816$
Weight | 22.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Groupset NX Eagle -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery 625 Wh | optional: +250 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rapcon Pmax, shady/schwarz, S (39)
Suspension Fork
34 FLOAT Rythm 150mm
Rear Shock
Rock Shox Super Deluxe SELECT+ RT, 205x60mm
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Wheels
Rims
DT Swiss H1900-Schwalbe Magic Mary 65-622
Tires
Schwalbe MAGIC MARY,Super Gravity, 29 x 2,6"
Brakes
Brakes
SRAM NX Eagle
Cockpit
Stem
Zero III 35mm x 0°
Handlebar
Simplon CARBON RISER 800
Grips
Ergon GE1 Evo
Headset
Keine Steuersatz Option
Seat
Saddle
Selle Italia, X-Bow, hidden flow hole, 145*255mm, boost
Seatpost
Kindshock RAGE-I 31.6, 150mm travel
Motor & Battery
Motor
Bosch Performance Line CX
Battery
625 Wh | optional: +250 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.438 mm | 1.384 mm | 1.323 mm | 1.272 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Front Center | 732 mm | 754 mm | 791 mm | 827 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 102 mm | 104 mm | 101 mm | 102 mm |
| Stack | 604 mm | 609 mm | 622 mm | 636 mm |
| Reach | 420 mm | 440 mm | 470 mm | 500 mm |
| Top Tube Length | 571 mm | 592 mm | 625 mm | 658 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1190 mm | 1212 mm | 1249 mm | 1285 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 760 mm | 766 mm | 766 mm | 766 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
