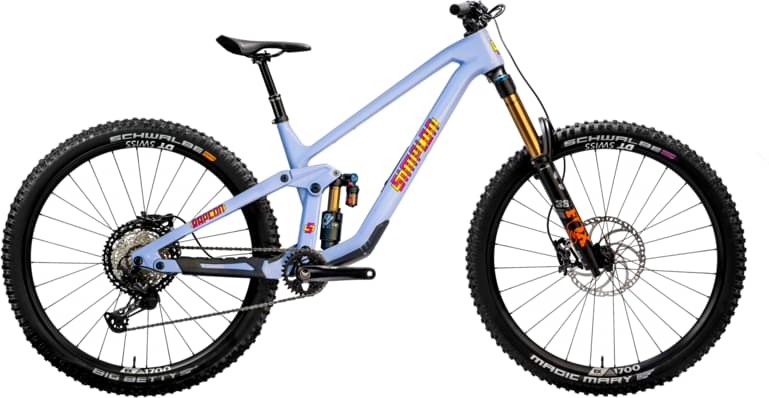

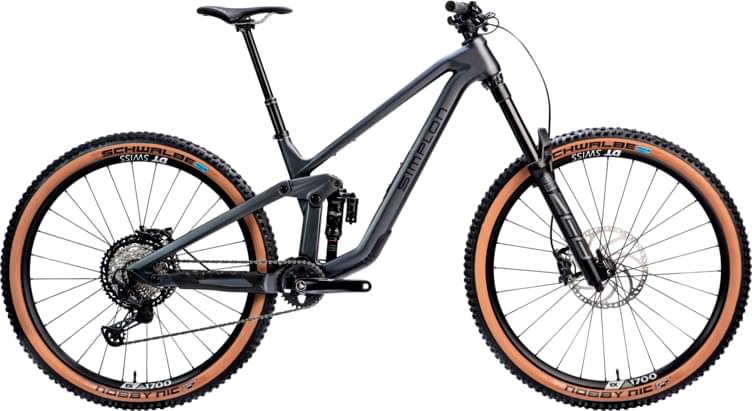

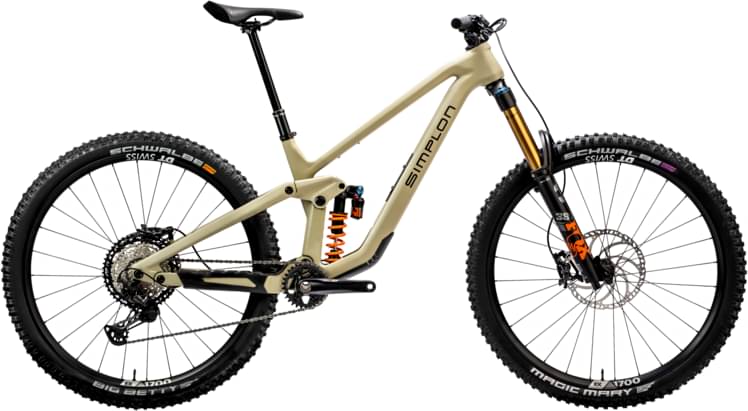

simplon Rapcon,Ultimate AXS,X0 Transmission 2024
2024 Mountain
Estimate price |
7,454$
Weight | 14.75 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 160mm -
Fork RockShox Lyrik Select
-
Groupset X0, X0 Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes SRAM X0 Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rapcon, Sand Matt | Black Matt, S (37)
Suspension Fork
Rock Shox Lyrik Select Plus 160mm
Rear Shock
Rock Shox Super Deluxe Select plus 160mm Travel
Drivetrain
Rear Derailleur
SRAM X0 Eagle Transmission
Shift Levers
SRAM X0 Eagle Transmission
Crank
crank SRAM XO Eagle,170mm,30T
Wheels
Rims
DT Swiss EX1700-Schwalbe Magic Mary /Big Betty 62-622
Tires
Schwalbe Magic Mary & Big Betty 29 x 2,4"
Brakes
Brakes
SRAM X0 Eagle Transmission
Cockpit
Stem
Zero III 35mm x 0°
Handlebar
Simplon CARBON RISER 800
Grips
Griffe Ergon GE10 EVO
Headset
Acros AZA-636
Seat
Saddle
w/o saddle
Seatpost
BikeYoke Revive, 125mm, 31.6 (Remote Seatpost only)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | SM | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.367 mm | 1.416 mm | 1.331 mm | 1.292 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 342 mm | 342 mm |
| Front Center | 793 mm | 770 mm | 818 mm | 840 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 129 mm | 129 mm | 131 mm | 132 mm |
| Stack | 629 mm | 623 mm | 639 mm | 646 mm |
| Reach | 460 mm | 440 mm | 480 mm | 500 mm |
| Top Tube Length | 567 mm | 568 mm | 610 mm | 633 mm |
| Seat Tube Angle | 78.5 ° | 78.5 ° | 78.5 ° | 78.5 ° |
| Seat Tube Length | 395 mm | 370 mm | 420 mm | 445 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 104 mm | 97 mm | 115 mm | 125 mm |
| Chainstay Length | 438 mm | 432 mm | 443 mm | 447 mm |
| Wheelbase | 1229 mm | 1200 mm | 1259 mm | 1285 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 32 mm | 32 mm |
| Standover Height | 738 mm | 738 mm | 744 mm | 744 mm |
| Wheels | 29" | 29" | 29" | 29" |
