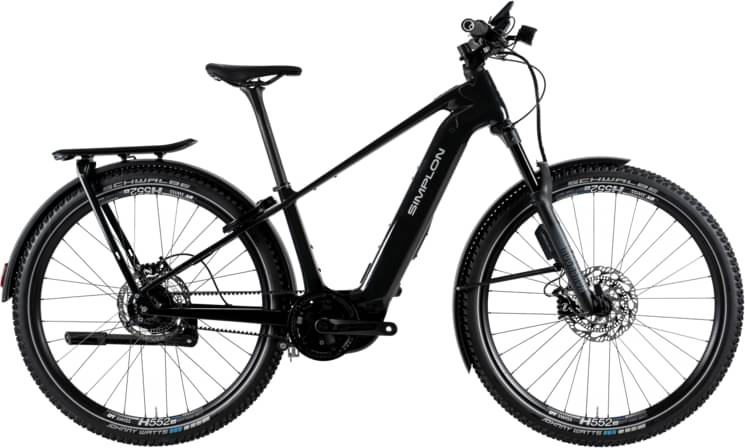

simplon Sengo :e,Premium,E14 2025
2025 E-bike
Estimate price |
10,469$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Fork RockShox Recon Gold RL
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch 600W 85Nm hub-drive -
Battery 600/800Wh (optional) | Dual Bat. +800 Wh (optional) -
Brakes Shimano XT Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SENGO :e,Cosmic Red/Black Metallic(Glossy),S(38)
Suspension Fork
Rock Shox Recon Gold 2 Position remote 120mm
Drivetrain
Shift Levers
Gear hub Rohloff E14; Gates belt drive
Crank
FSA CK-745 für Bosch GEN4 alloy 160mm
Bottom Bracket
Bosch, press-fit
Chain Guide
No Chainguard selected
Pedals
no pedal selected
Wheels
Rims
DT Swiss H552-FDT15*110-Rohloff E14-Schwalbe Johnny Watts 3
Tires
Schwalbe JOHNY WATTS 365; 29 x 2,35"
Brakes
Brakes
Shimano BRM8120;4-Kolben (pistons);203mm;203mm
Cockpit
Stem
Zero III 80mm x 12°
Handlebar
Simplon CARBON BAR 760
Grips
Griffe Ergon GE10 EVO
Headset
Acros AZX-298
Seat
Saddle
w/o saddle
Seatpost
BikeYoke Revive Three, 100mm, 31.6 (Remote Seatpost only)
Motor & Battery
Motor
BOSCH PL CX Gen5 | 85 Nm | 600 W | 340 %
Battery
600/800Wh (optional) | Dual Bat. +800 Wh (optional)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.554 mm | 1.5 mm | 1.442 mm | 1.421 mm |
| Bottom Bracket Height | 324 mm | 324 mm | 324 mm | 324 mm |
| Front Center | 721 mm | 738 mm | 760 mm | 788 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 119 mm | 115 mm | 115 mm | 115 mm |
| Stack | 637 mm | 645 mm | 649 mm | 668 mm |
| Reach | 410 mm | 430 mm | 450 mm | 470 mm |
| Top Tube Length | 593 mm | 615 mm | 636 mm | 662 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 480 mm | 530 mm |
| Head Tube Angle | 66 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 131 mm | 137 mm | 141 mm | 162 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1182 mm | 1199 mm | 1221 mm | 1249 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 735 mm | 735 mm | 735 mm | 735 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
