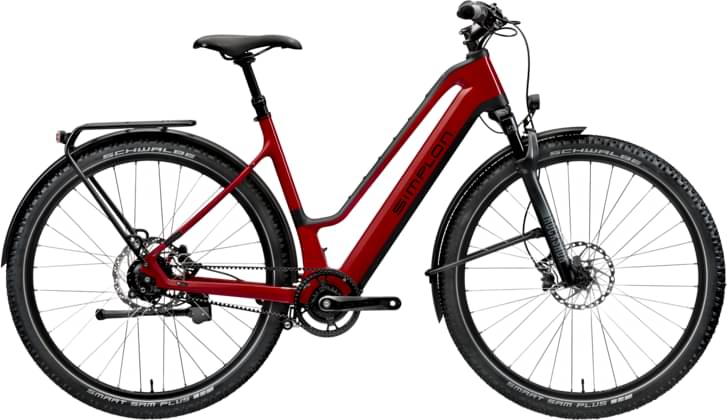

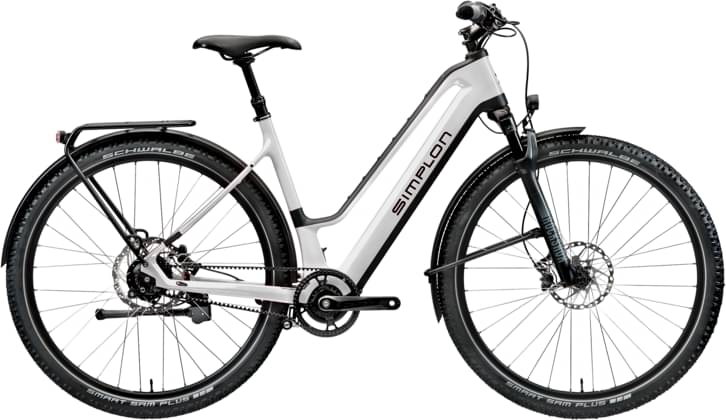

simplon Silk 365 :eLight,Mid,Essential,U6000 2025
2025 E-bike
Estimate price |
6,630$
Weight | 18.83 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 80mm -
Fork RockShox Recon Gold RL
-
Groupset CUES -
Suspension Hardtail -
Motor TQ hub-drive -
Battery 360 Wh | Range Ext. 160 Wh (optional) -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Silkcarbon TQ, Lady, Pearl White Glossy | Black Matt, XS (41
Suspension Fork
Rockshox Recon Gold RL 65mm
Drivetrain
Shift Levers
Shimano Cues 6000
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08
Pedals
Pedal-Set Simplon Grip EVO, Sandblock, sealed bearings, allo
Wheels
Rims
DT Swiss U623; Nabe Simplon by DT;Schwalbe Marathon 50-622
Tires
Schwalbe MARATHON MONDIAL 28 x 2,0"
Brakes
Brakes
Shimano Cues U8020/8020;4/4-Kolben (pistons);203mm;203mm
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon HI-BEAM
Grips
Griffe Ergon GP 10 L
Headset
Headset FSA #69, SRS, ZS56/56
Seat
Saddle
w/o saddle
Seatpost
BikeYoke Revive Three, 100mm, 31.6 (Remote Seatpost only)
Motor & Battery
Motor
TQ-HPR60
Battery
360 Wh | Range Ext. 160 Wh (optional)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.526 mm | 1.548 mm | 1.574 mm | 1.594 mm |
| Front Center | 642 mm | 652 mm | 662 mm | 672 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 90 mm | 88 mm | 73 mm | 80 mm |
| Stack | 589 mm | 610 mm | 631 mm | 652 mm |
| Reach | 386 mm | 394 mm | 401 mm | 409 mm |
| Top Tube Length | 555 mm | 580 mm | 600 mm | 615 mm |
| Seat Tube Angle | 74 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1097 mm | 1107 mm | 1117 mm | 1127 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 640 mm | 640 mm | 642 mm | 643 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
