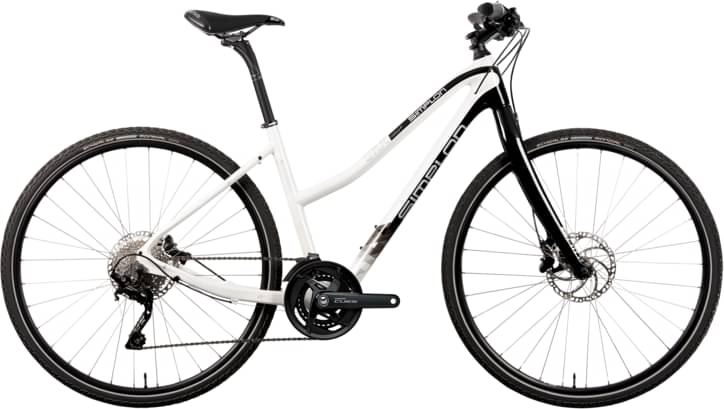

simplon Silkcarbon Lady, Shimano Cues 6000 Pure 2024
2024 Urban
Estimate price |
3,096$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset CUES -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Silkcarbon, Lady, Black Matt | Black Glossy, S (41)
Suspension Fork
Rock Shox PARAGON Gold Disc, 65mm
Drivetrain
Rear Derailleur
Shimano Cues 6000 / Crankset 46-30 / Cassette 11-39
Shift Levers
Shimano Cues 6000 / Crankset 46-30 / Cassette 11-39
Chain Guide
Horn Catena A08 48 T
Pedals
no pedal selected
Wheels
Rims
Simplon 8.5 Disc-FDT5*100-RDT5*135-Schwalbe Marathon Mondial
Tires
Schwalbe MARATHON MONDIAL Evo 28 x 1,6"
Brakes
Brakes
Shimano Cues 6000 / Crankset 46-30 / Cassette 11-39
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CARBON RISER 700 High
Grips
Griffe Ergon GP 10 L
Headset
Headset Acros AZX-200
Seat
Saddle
w/o saddle
Seatpost
Seatpost bySchulz G.2 LT 27.2x380
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.577 mm | 1.557 mm | 1.573 mm |
| Front Center | 641 mm | 646 mm | 656 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 74 mm | 74 mm |
| Stack | 612 mm | 612 mm | 626 mm |
| Reach | 388 mm | 393 mm | 398 mm |
| Top Tube Length | 575 mm | 580 mm | 590 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 410 mm | 460 mm | 510 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 125 mm | 140 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1090 mm | 1095 mm | 1106 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Standover Height | 597 mm | 598 mm | 600 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
