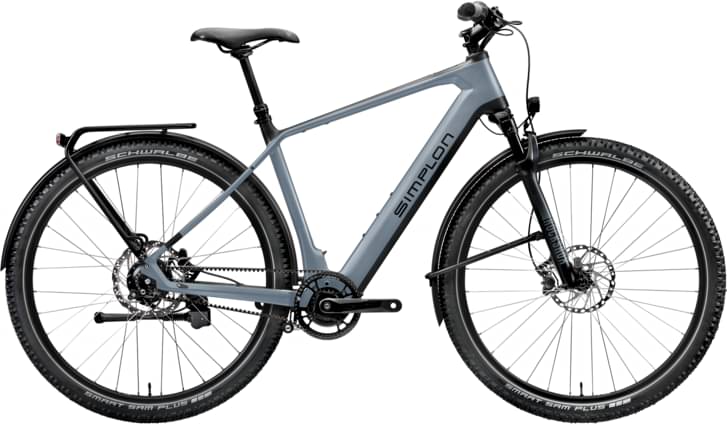

simplon Silkcarbon TQ Men, Shimano Cues 8000 2024
2024 E-bike
Estimate price |
7,444$
Weight | 16.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 65mm -
Fork RockShox Recon Gold RL
-
Groupset CUES -
Suspension Hardtail -
Motor TQ mid-drive -
Battery 360 Wh / Optional: +160 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Silkcarbon TQ, Man, Shady Grey Matt | Black Matt, S (46)
Suspension Fork
Rockshox Recon Gold RL 65mm
Drivetrain
Shift Levers
Shimano Cues 8000
Crank
FSA CK-702 Carbon crankarms, 170mm
Chain Guide
Horn Catena A08
Pedals
no pedal selected
Wheels
Rims
Simplon 8.6 Disc-Schwalbe Marathon Mondial 50-622
Tires
Schwalbe MARATHON MONDIAL 28 x 2,0"
Brakes
Brakes
Shimano Cues U8020/80000;4/2-Kolben (pistons);203mm;180mm
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CARBON RISER 700 High
Grips
Griffe Ergon GP 10 L
Headset
Headset FSA #69, SRS, ZS56/56
Seat
Saddle
w/o saddle
Seatpost
BikeYoke Revive, 125mm, 31.6 (Remote Seatpost only)
Motor & Battery
Motor
TQ HPR50
Battery
360 Wh / Optional: +160 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.548 mm | 1.574 mm | 1.575 mm | 1.572 mm |
| Front Center | 652 mm | 662 mm | 677 mm | 691 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 78 mm | 74 mm | 71 mm | 67 mm |
| Stack | 610 mm | 631 mm | 652 mm | 673 mm |
| Reach | 394 mm | 401 mm | 414 mm | 428 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1107 mm | 1117 mm | 1132 mm | 1147 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 733 mm | 781 mm | 829 mm | 877 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
