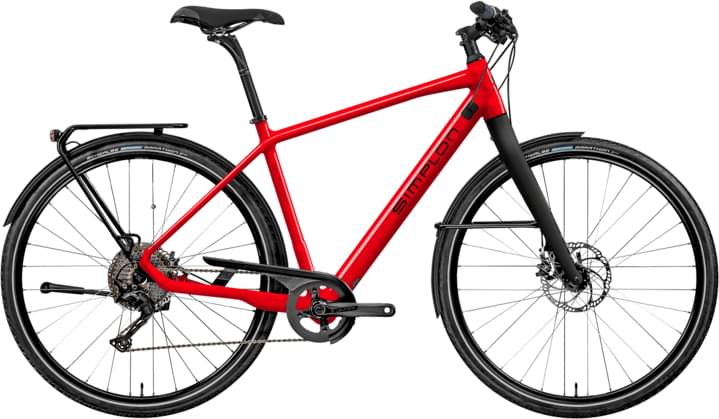

simplon Spotlight Mahle Men, ETD, Deore-30 Disc 2023
2023 E-bike
Estimate price |
4,013$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 65mm -
Fork RockShox Recon Gold RL
-
Groupset Deore -
Suspension Hardtail -
Motor MAHLE 55Nm hub-drive -
Battery Mahle EbikeMotion X20 236Wh ONE Remote -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spotlight Mahle, Men, Cosmic Red Glossy/ Black Matt, 460
Suspension Fork
Rock Shox Recon Gold crown adjust 65mm
Drivetrain
Shift Levers
Shimano Deore-30 Disc
Crank
just standard crank available
Bottom Bracket
BSA, threaded
Chain Guide
Frame mount belt guard A08,48T.
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
Mavic Allroad-Schwalbe Smart Sam 54-622
Tires
Schwalbe SMART SAM 28 x 2,1"
Brakes
Brakes
Magura CT;2-Kolben (pistons);180mm;180mm
Cockpit
Stem
Simplon ZERO II 80mm x 17°
Handlebar
Simplon CX-4 COMFORT
Grips
Simplon "SOFT PUS"
Headset
Acros AZX-220
Seat
Saddle
Selle Italia S5 GEL Superflow
Seatpost
Simplon Lite ROD 3, 27,2 x 350mm
Motor & Battery
Motor
Mahle EbikeMotion X20 236Wh ONE Remote
Battery
Mahle EbikeMotion X20 236Wh ONE Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.548 mm | 1.574 mm | 1.575 mm | 1.572 mm |
| Front Center | 652 mm | 662 mm | 677 mm | 692 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 76 mm | 73 mm | 68 mm | 66 mm |
| Stack | 610 mm | 631 mm | 652 mm | 673 mm |
| Reach | 394 mm | 401 mm | 414 mm | 428 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1107 mm | 1117 mm | 1132 mm | 1147 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 750 mm | 786 mm | 828 mm | 869 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
