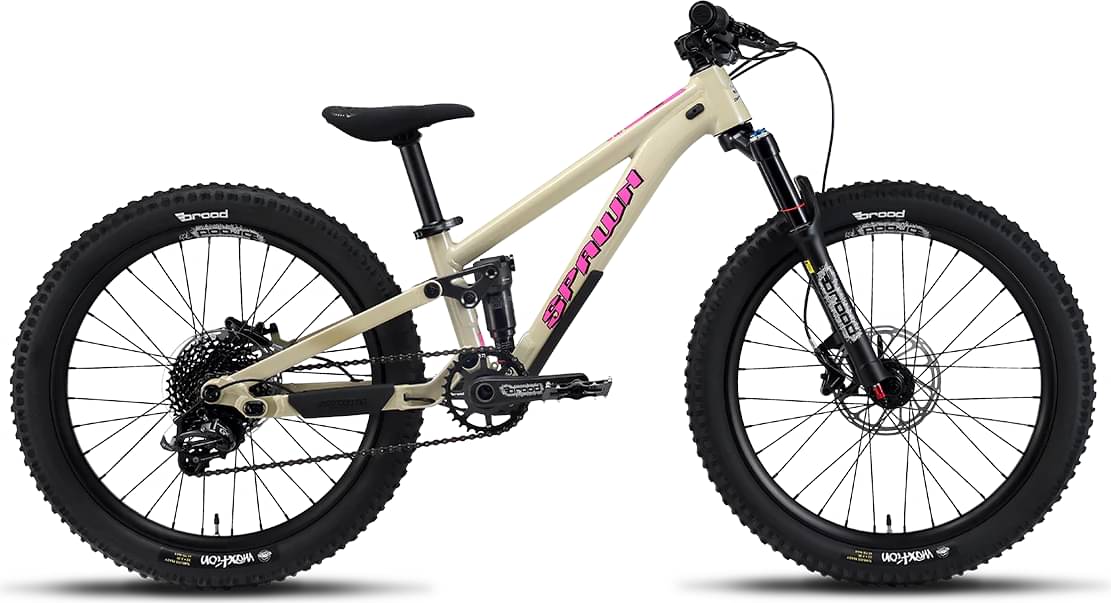

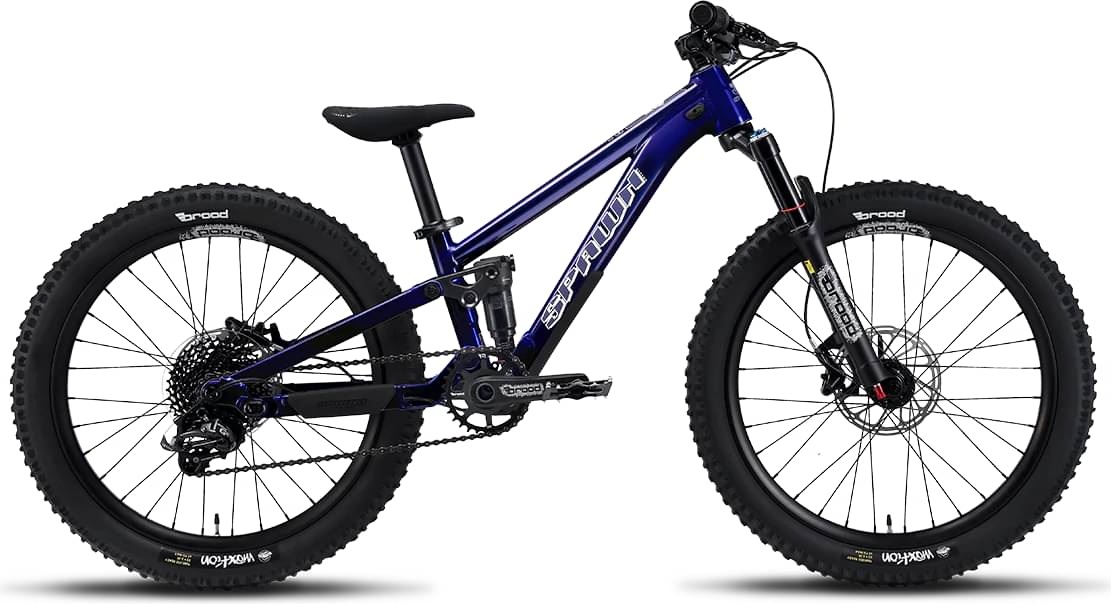

Spawn Rokk 20/22 – 22″ Build 2025
2025 Youth
Estimate price |
2,282$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Travel Rear 100mm -
Suspension Full -
Drivetrain 1 × 10 -
Brakes SRAM Level TL Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 - T6 ALLOY, HYDROFORMED & DOUBLE BUTTED TUBING
Suspension Fork
BROOD ELDORADO, 15X100 AXLE, 100MM TRAVEL
Drivetrain
Crank
BROOD NARROW WIDE, CNC ALLOY, 30T
Bottom Bracket
SEALED EXTERNAL BEARING, 68MM
Chain
KMC X10 SILVER, 3/32"
Pedals
WELLGO PLATFORM, ALLOY, 9/16"
Wheels
Front Hub
ALLOY, SEALED BEARING - 100 X 15 THRU AXLE
Rear Hub
ALLOY, SEALED BEARING - 142 X 12
Rims
BROOD TR27 22", 32HOLE TUBELESS-READY
Tires
BROOD MAXTION, 22" X 2.30" DH, TUBELESS-READY
Brakes
Brakes
Rear: SRAM LEVEL TL HYDRAULIC BRAKES-DISC
Brake Levers
SRAM LEVEL
Cockpit
Stem
FORGED ALLOY, 40MM
Handlebar
ALLOY, 585MM WIDE, 31.8 CLAMP
Grips
BROOD TENDERIDERZ LOCK-ON, 22 X 120, CRATON RUBBER
Headset
SPAWN CYCLES 1-1/8"~1.5" SEALED BEARING
Seat
Saddle
BROOD THRONE PIVOTAL
Seatpost
ALLOY PIVOTAL, 220MM, 30.9MM
Fit data
Geometry
