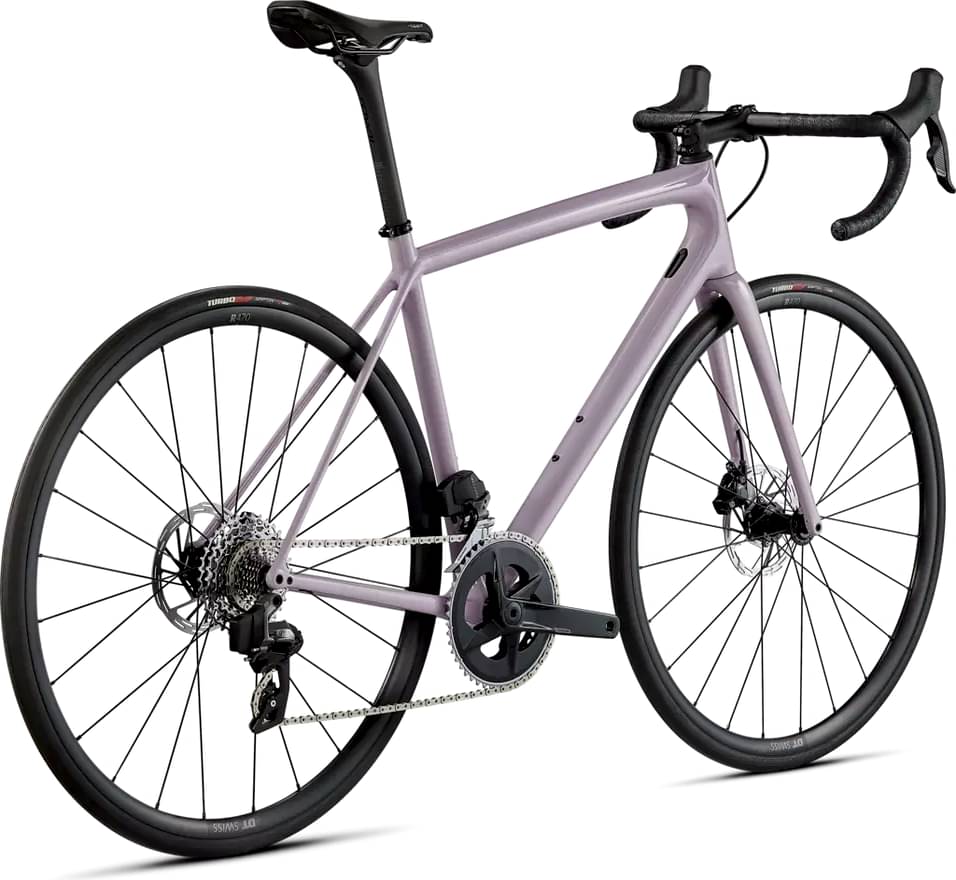

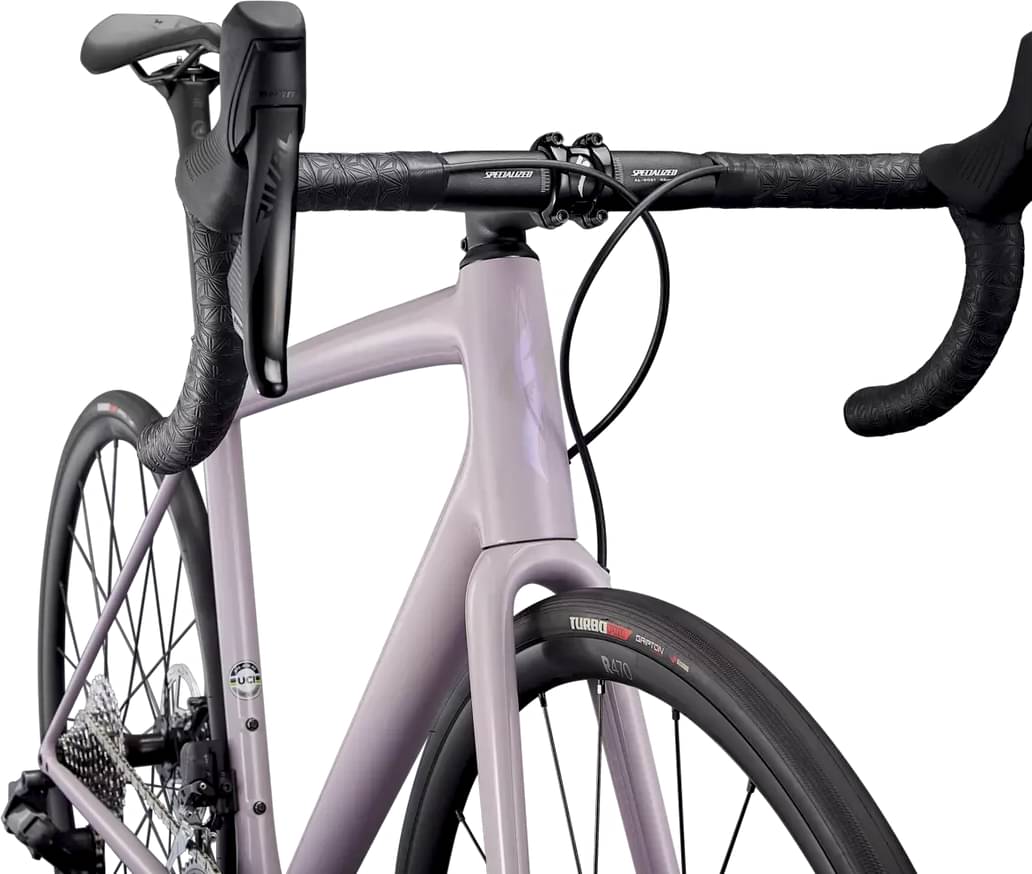

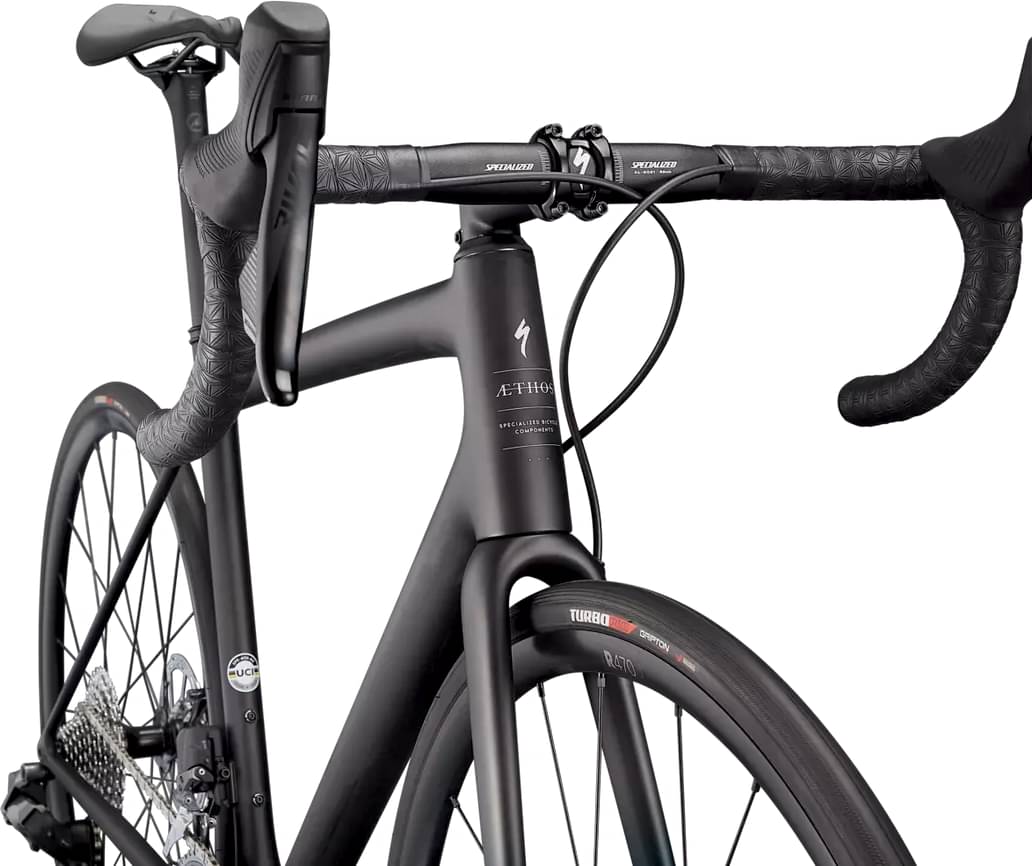

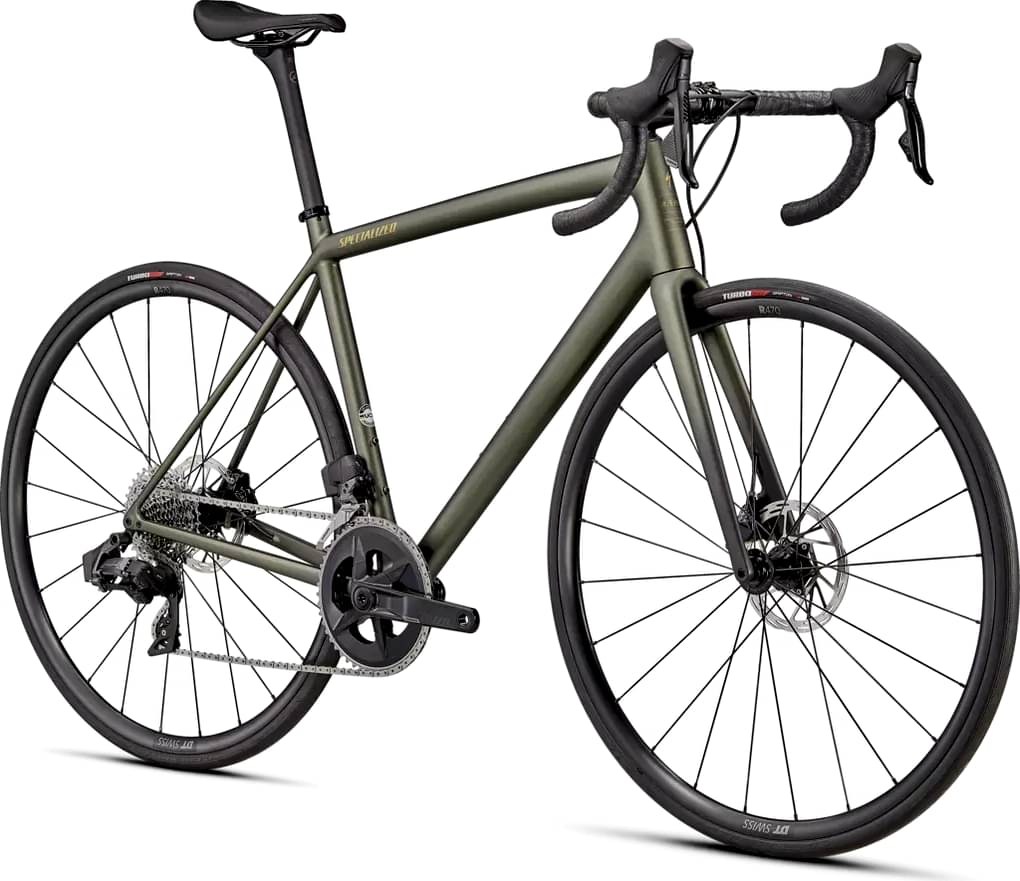

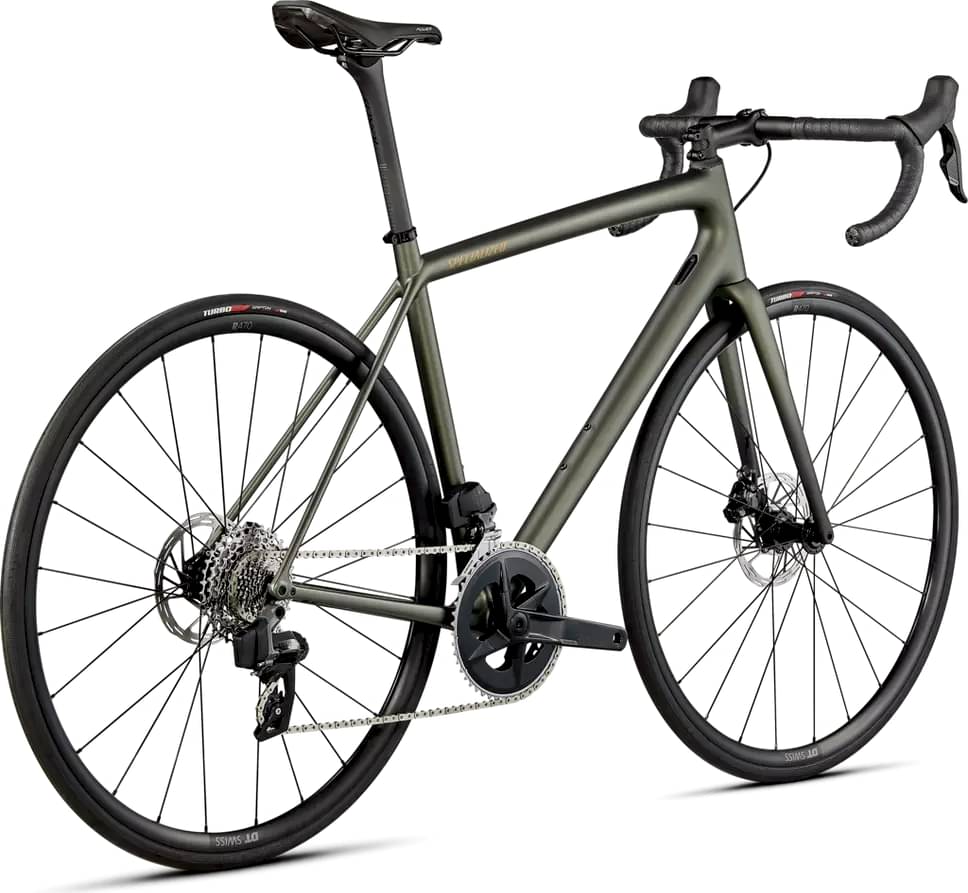

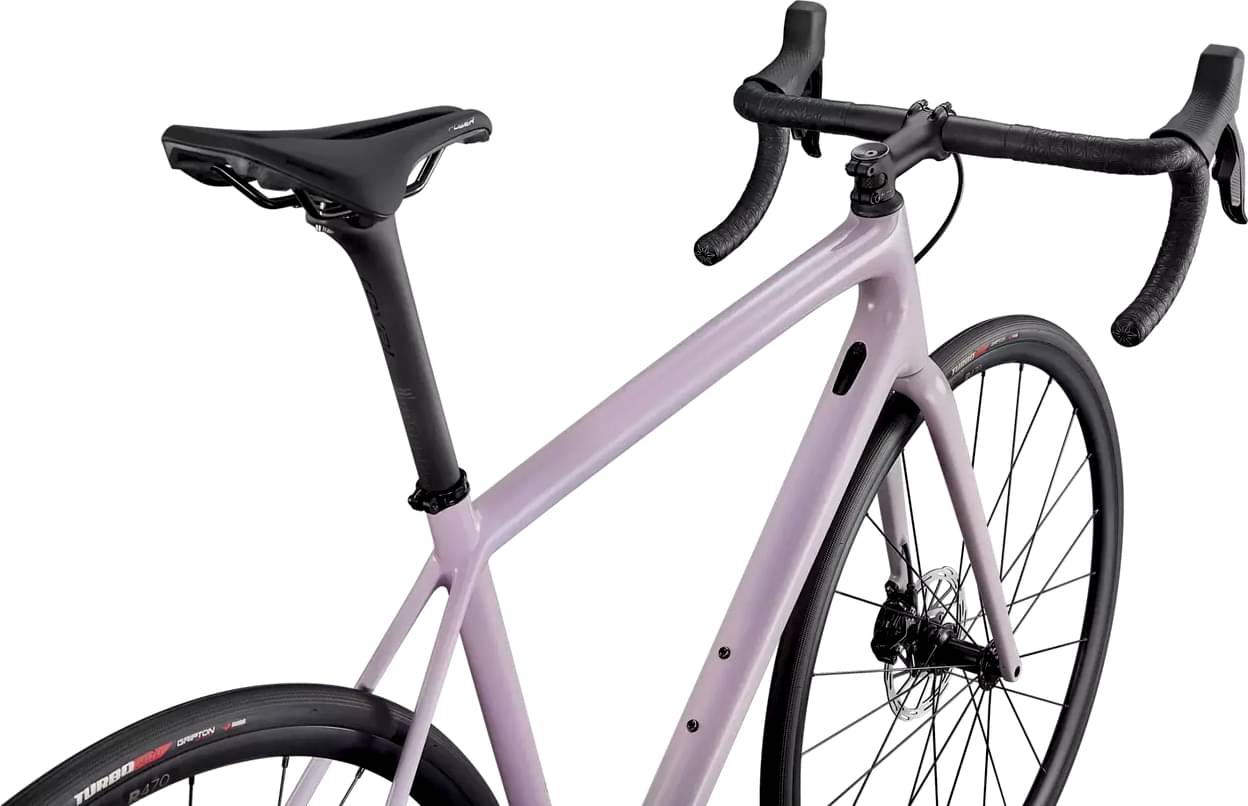

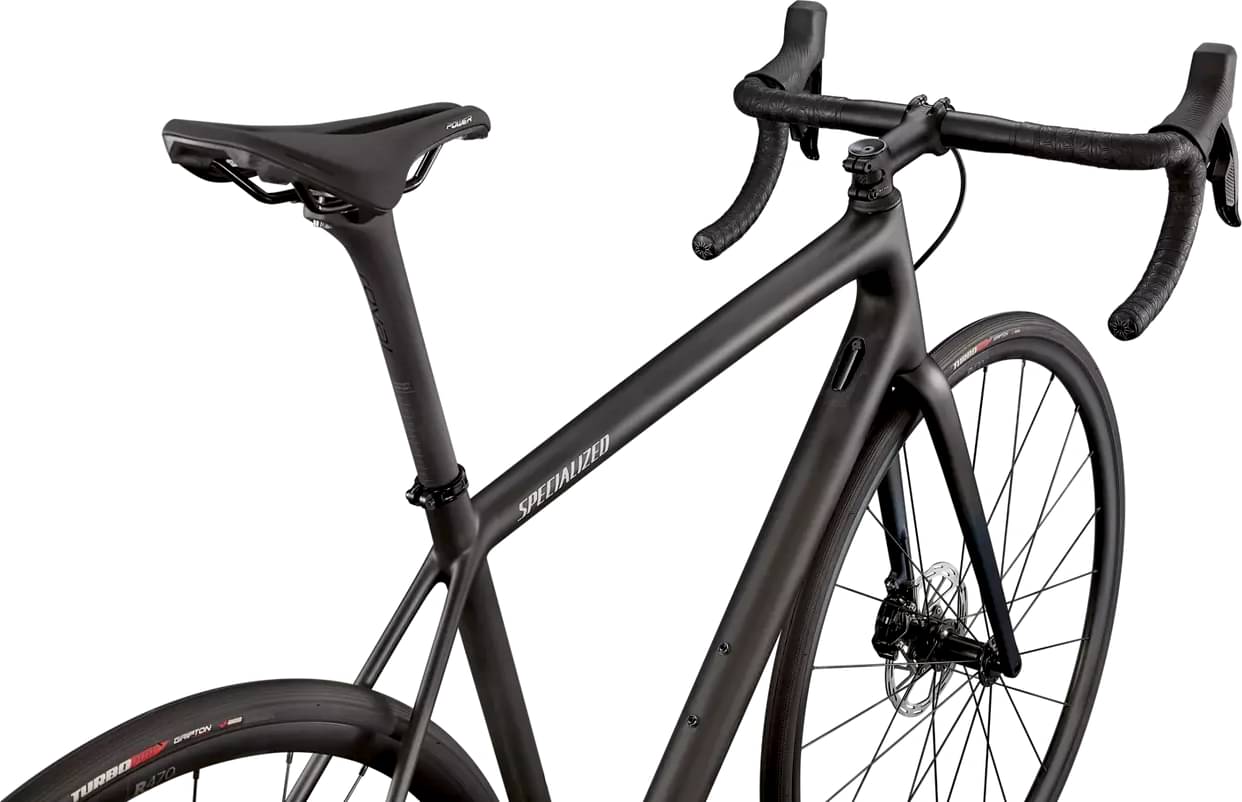

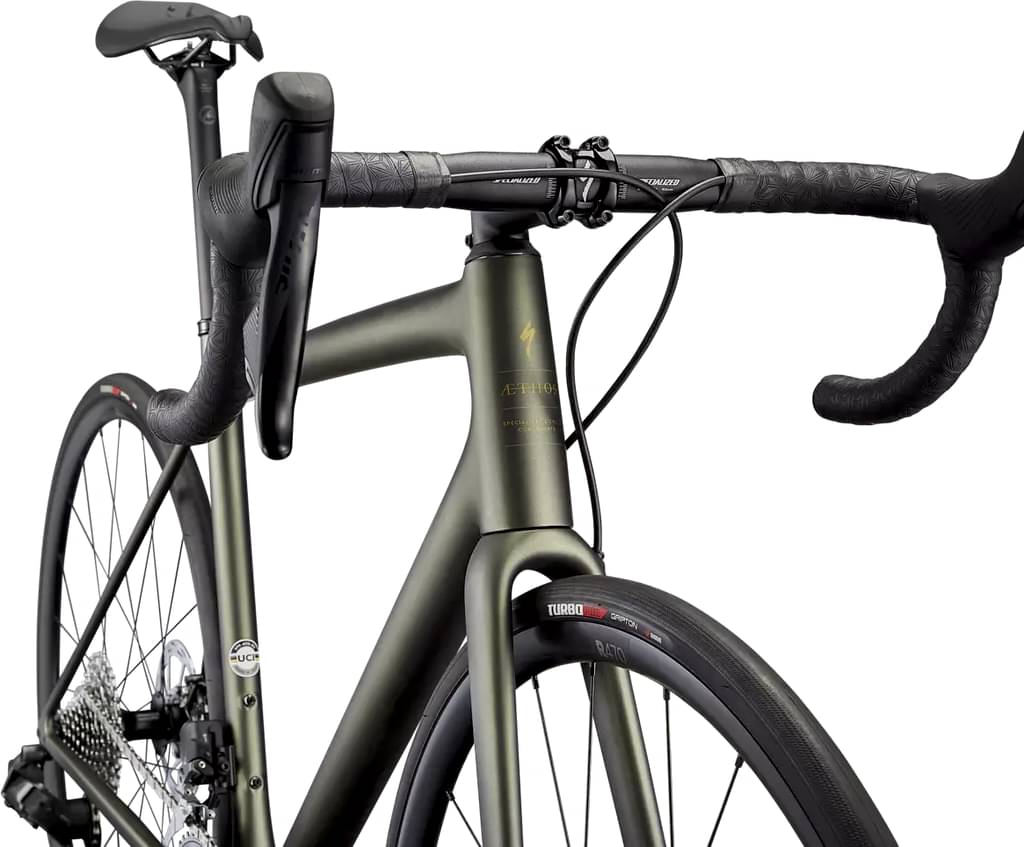

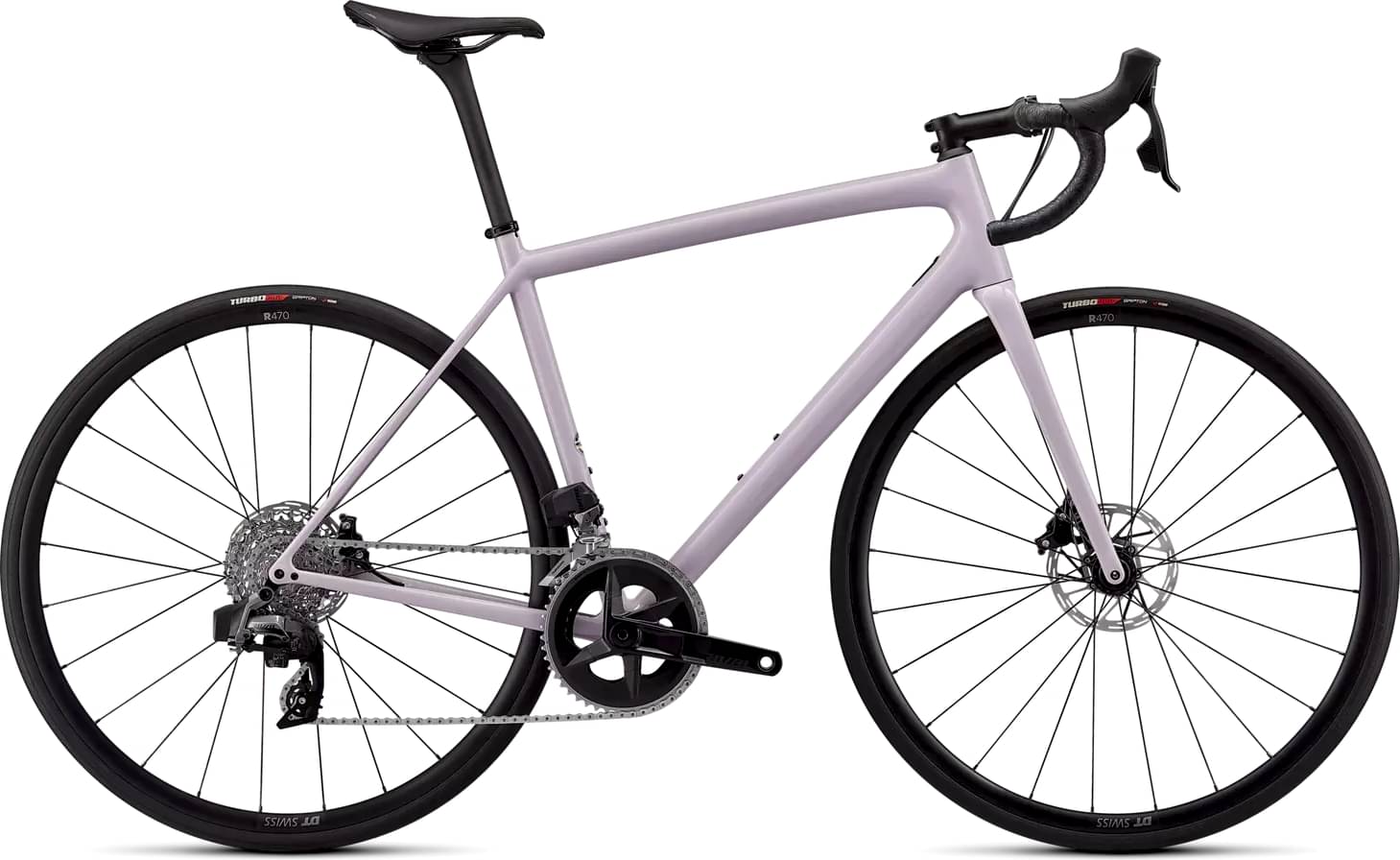

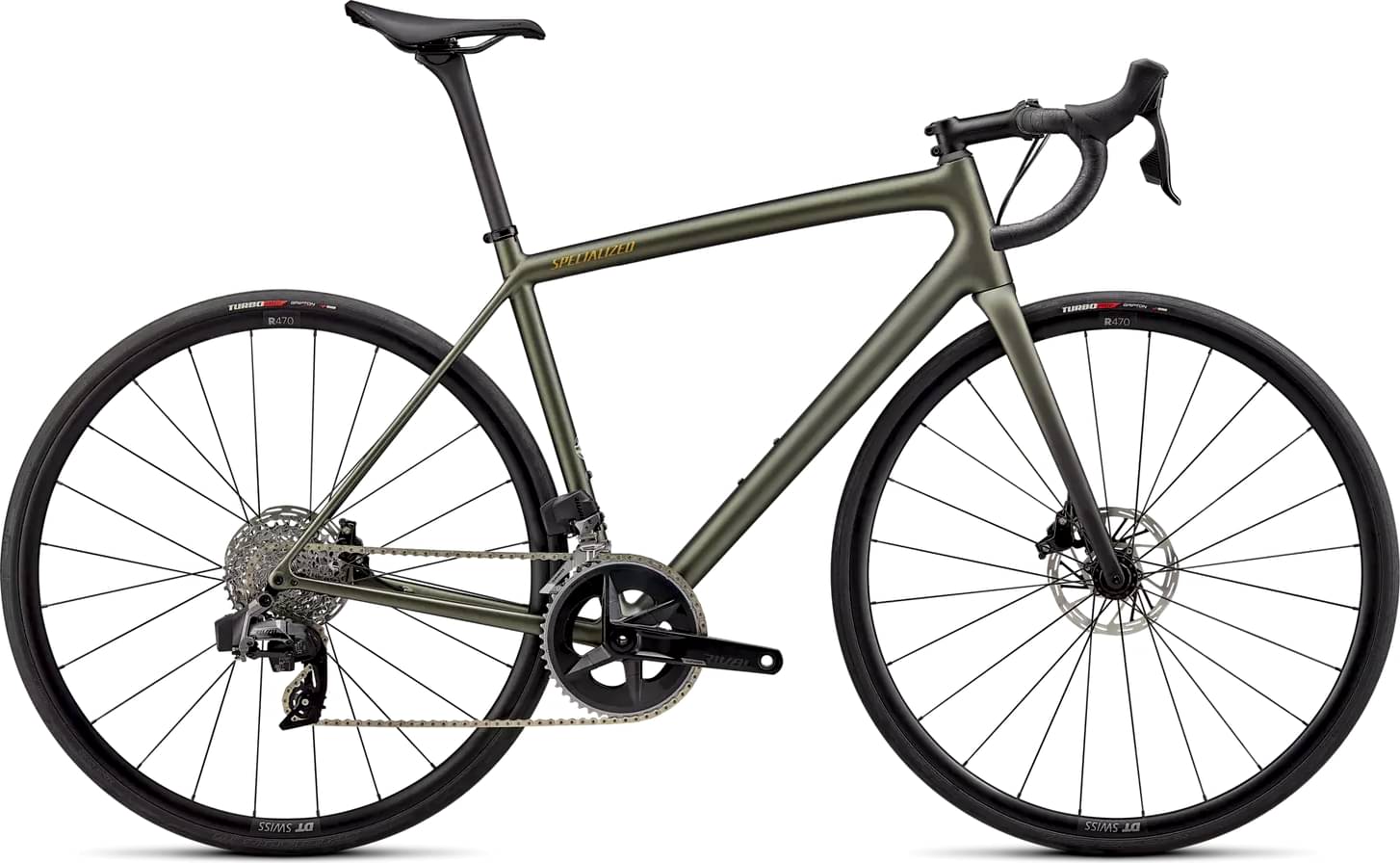

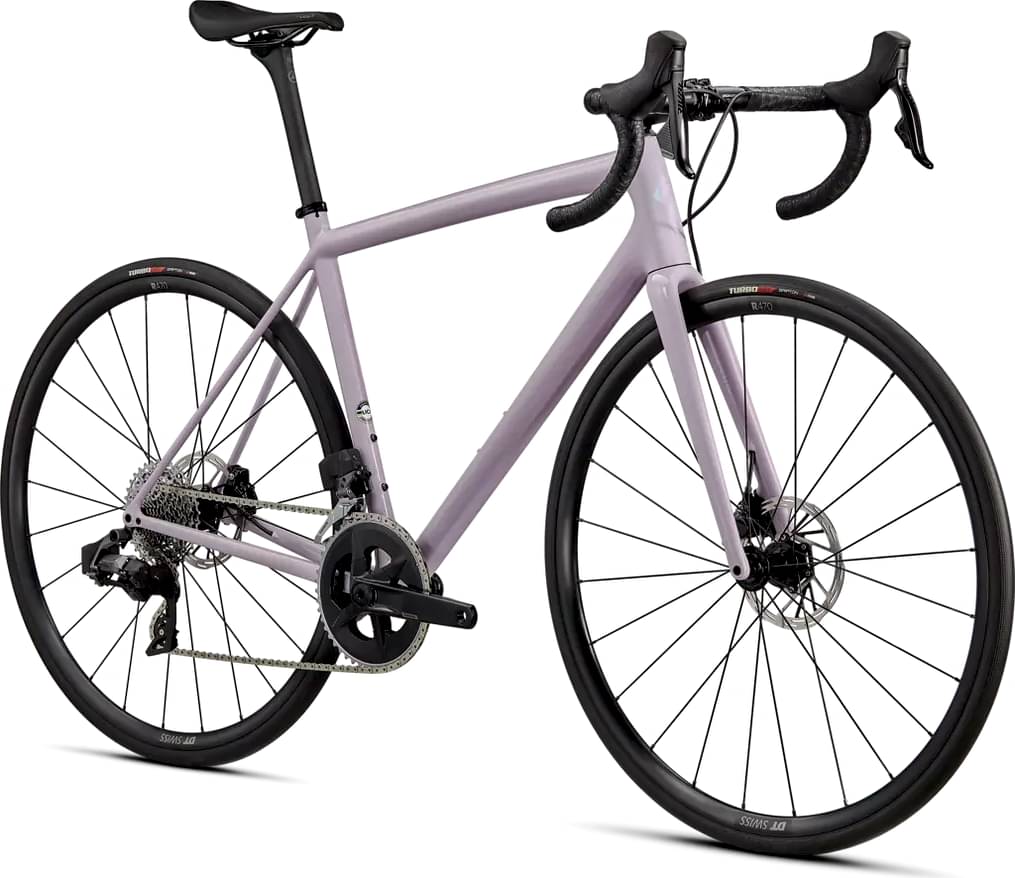

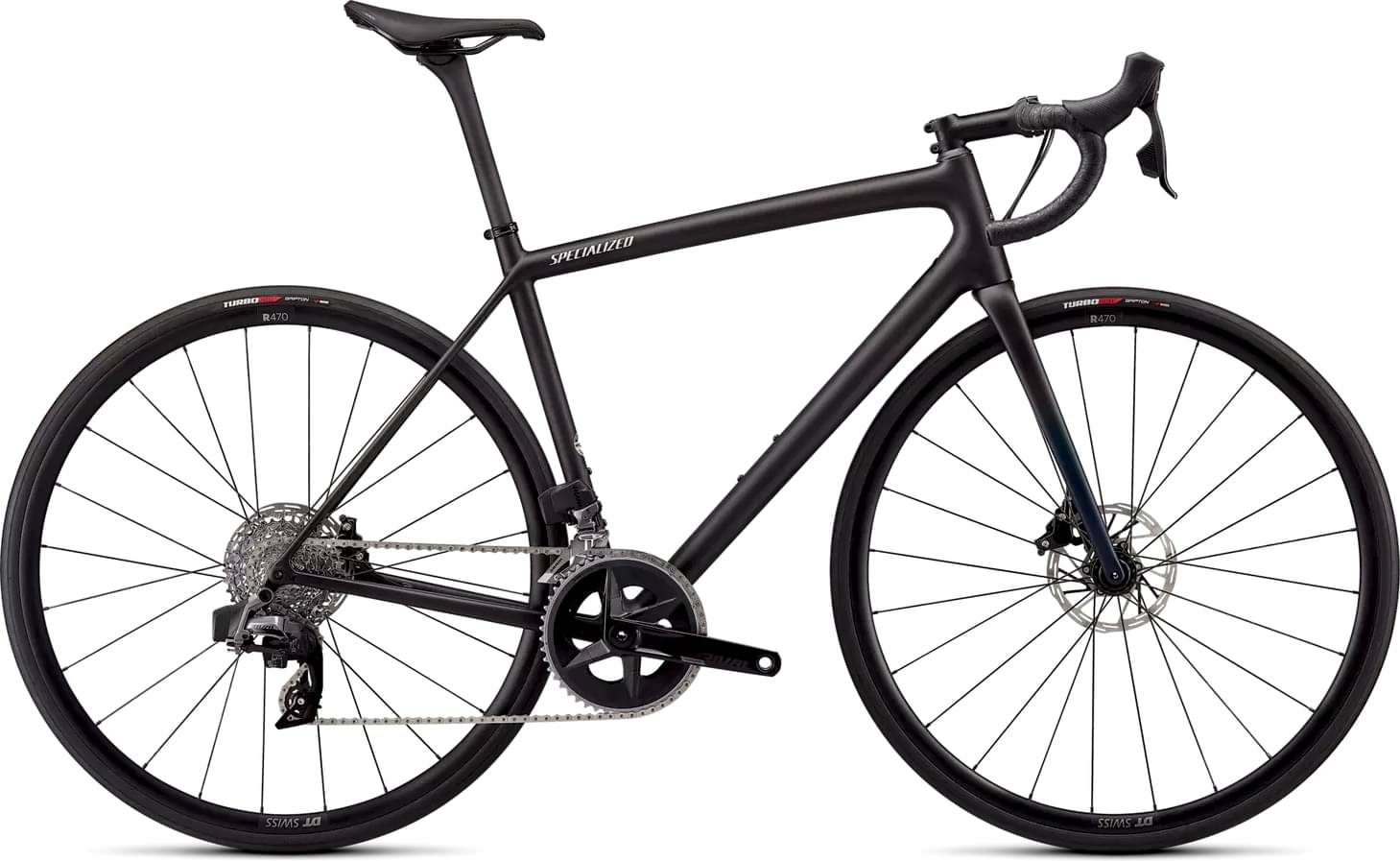

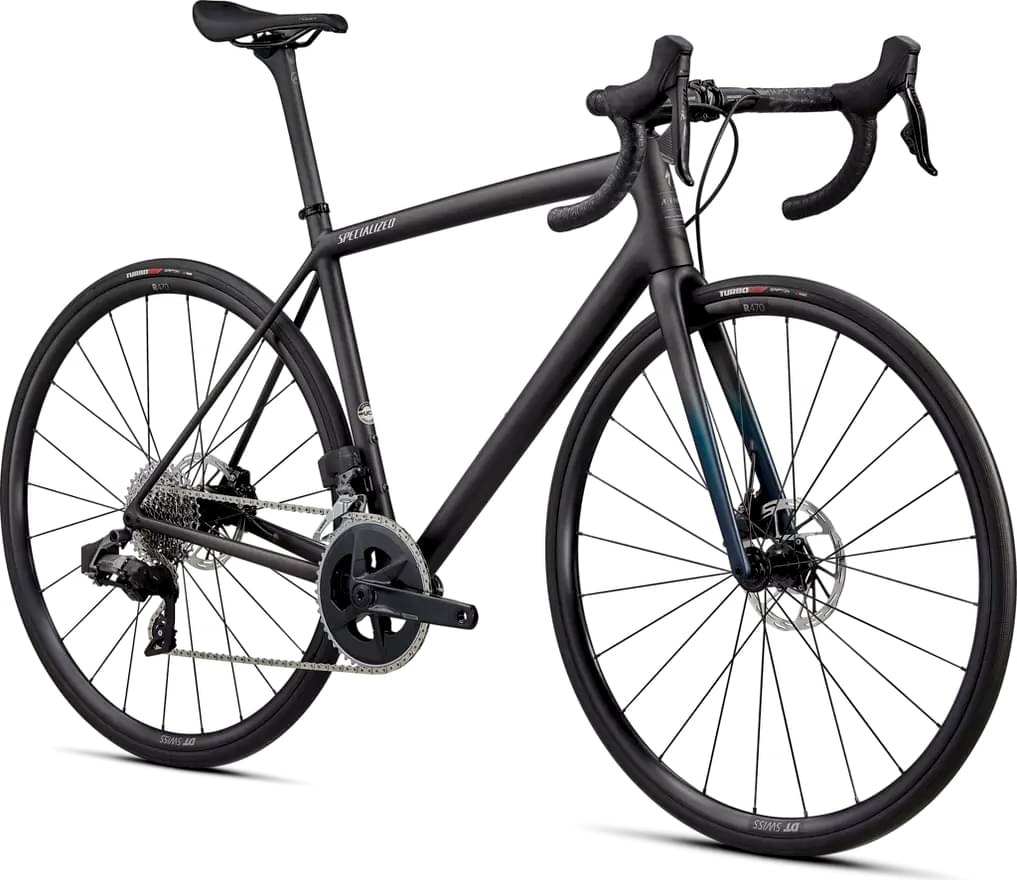

Specialized Aethos Comp – SRAM Rival eTap AXS 2022
2022 Road
Estimate price |
5,505$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED AXS, Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aethos FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc
Suspension Fork
FACT Carbon, 12x100mm thru-axle, flat-mount disc
Drivetrain
Rear Derailleur
SRAM RD RIVAL ETAP AXS D1 MAX 36T
Front Derailleur
SRAM FD RIVAL ETAP AXS D1 BRAZE WEDGE C
Shift Levers
SRAM ED RIV ETAP AXS D1 SJD REAR/RT F20
Cassette
SRAM CS XG 1250 D1 10-36
Crank
SRAM FC RIVAL D1 DUB XXX 4835
Bottom Bracket
BSA, 68mm, threaded
Chain
SRAM CN RIVAL D1 12S 110 LINK
Pedals
PEDAL, TEST RIDE PEDALS PROVIDED BY SPECIALIZED
Wheels
Front Hub
Tubeless Valve
Tires
Turbo Pro, 60 TPI, folding bead, BlackBelt protection, 700x26mm
Brakes
Brakes
SRAM Rival 1, hydraulic disc

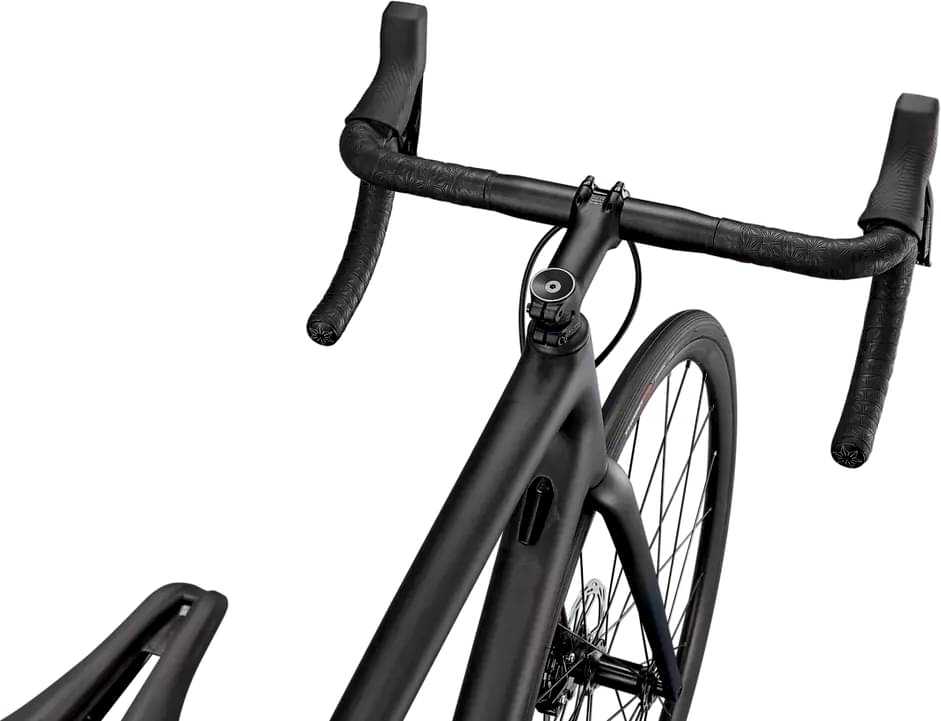

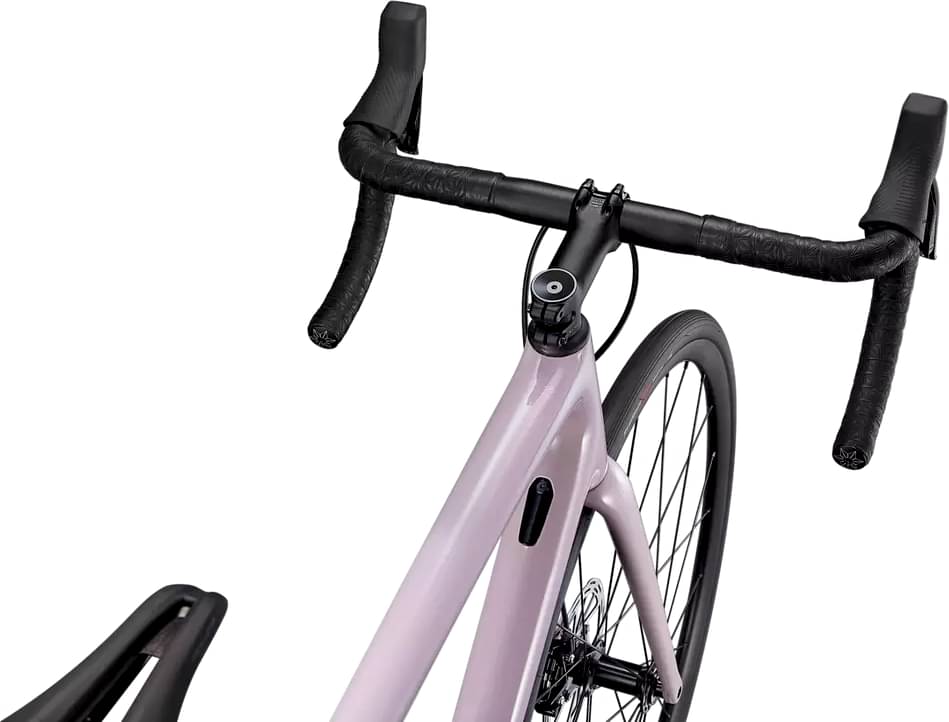

Cockpit
Stem
Specialized Pro SL, alloy, 4-bolt
Handlebar
Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp
Seat
Saddle
Body Geometry Power Sport, steel rails
Seatpost
Roval Alpinist Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.371 mm | 1.387 mm | 1.417 mm | 1.43 mm | 1.47 mm | 1.5 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 577 mm | 579 mm | 592 mm | 606 mm | 613 mm |
| Rake | 47 mm | 47 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 61 mm | 57 mm | 57 mm | 54 mm | 54 mm | 51 mm |
| Stack | 514 mm | 527 mm | 544 mm | 565 mm | 591 mm | 612 mm |
| Reach | 375 mm | 380 mm | 384 mm | 395 mm | 402 mm | 408 mm |
| Top Tube Length | 508 mm | 531 mm | 540 mm | 562 mm | 577 mm | 595 mm |
| Head Tube Angle | 71.75 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 109 mm | 120 mm | 137 mm | 157 mm | 184 mm | 204 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 973 mm | 975 mm | 978 mm | 991 mm | 1005 mm | 1012 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 705 mm | 728 mm | 748 mm | 769 mm | 796 mm | 824 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
