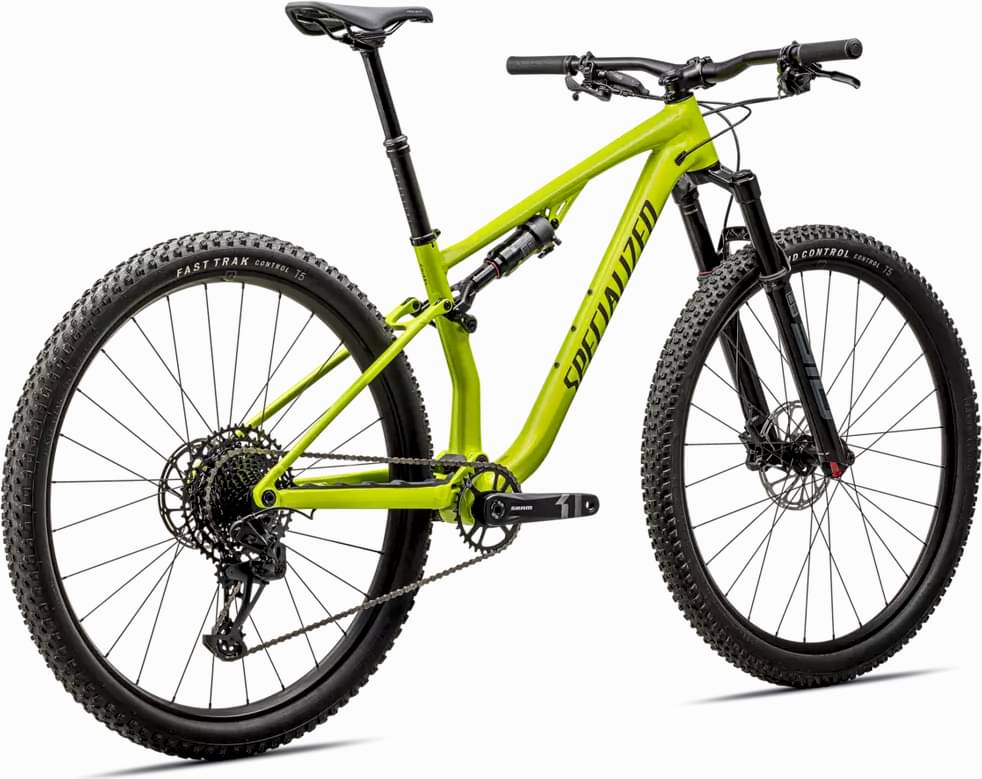

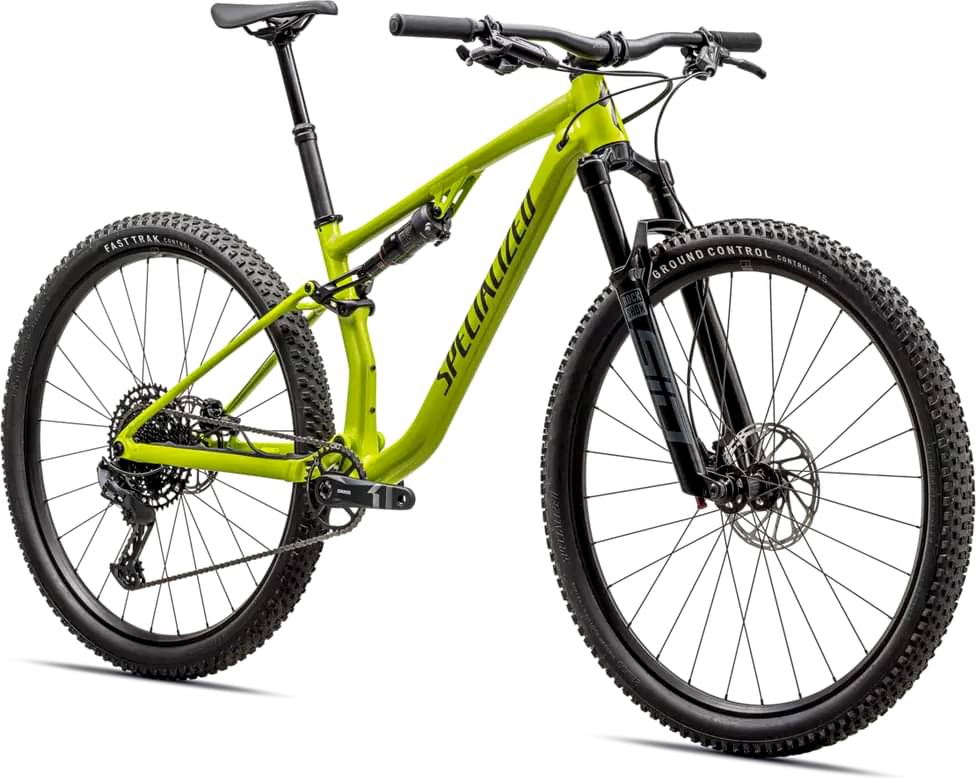

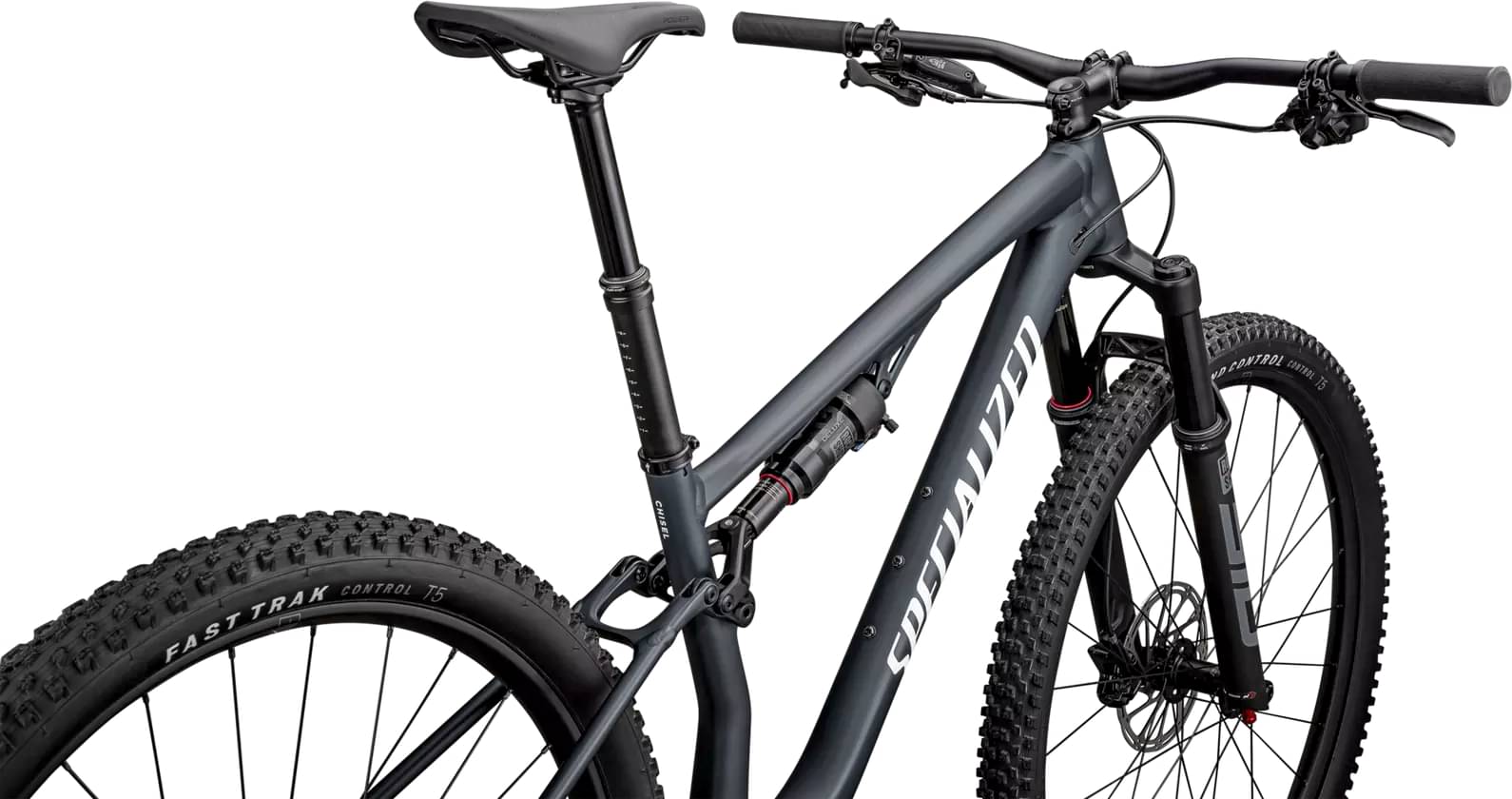

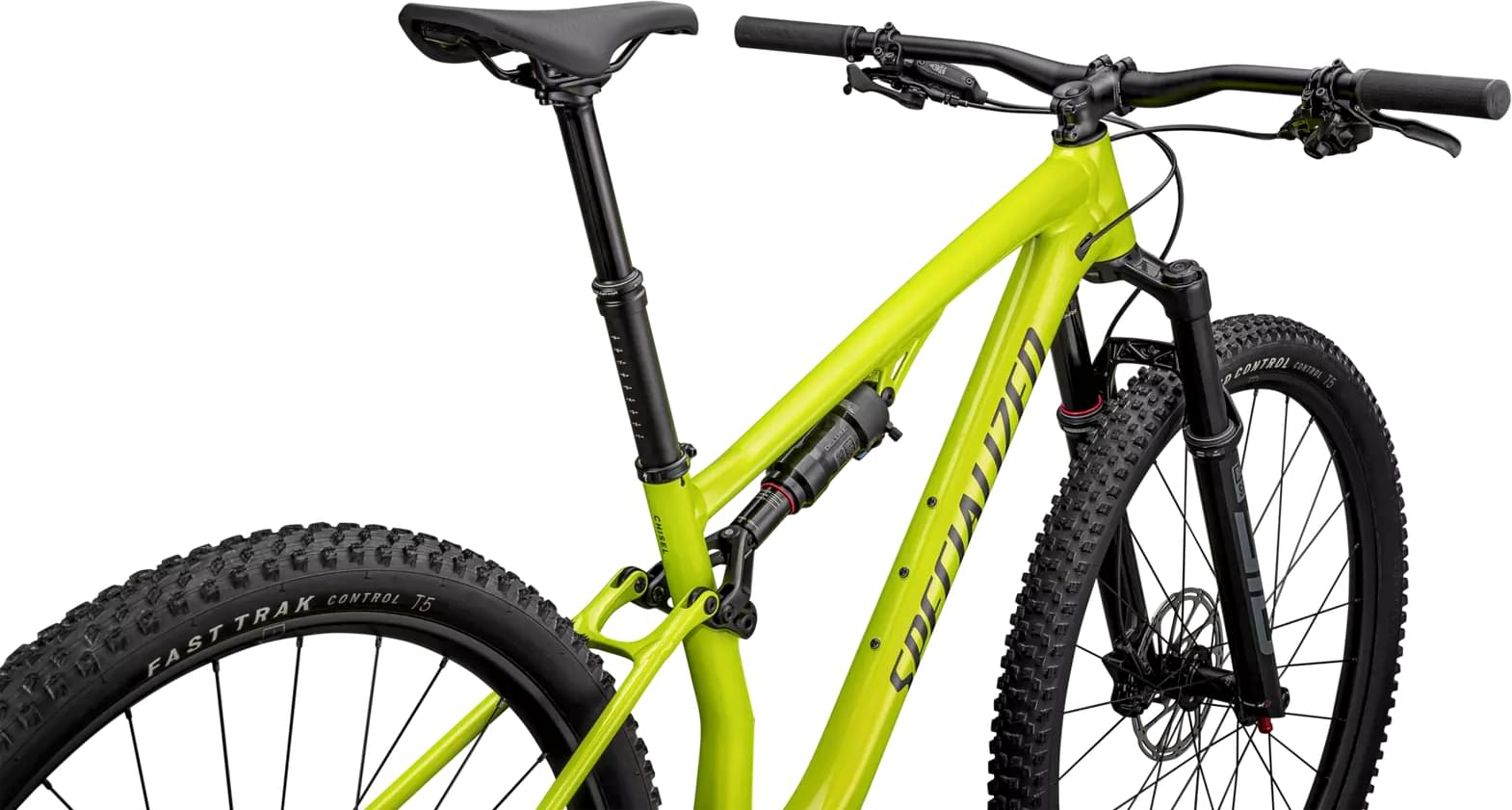

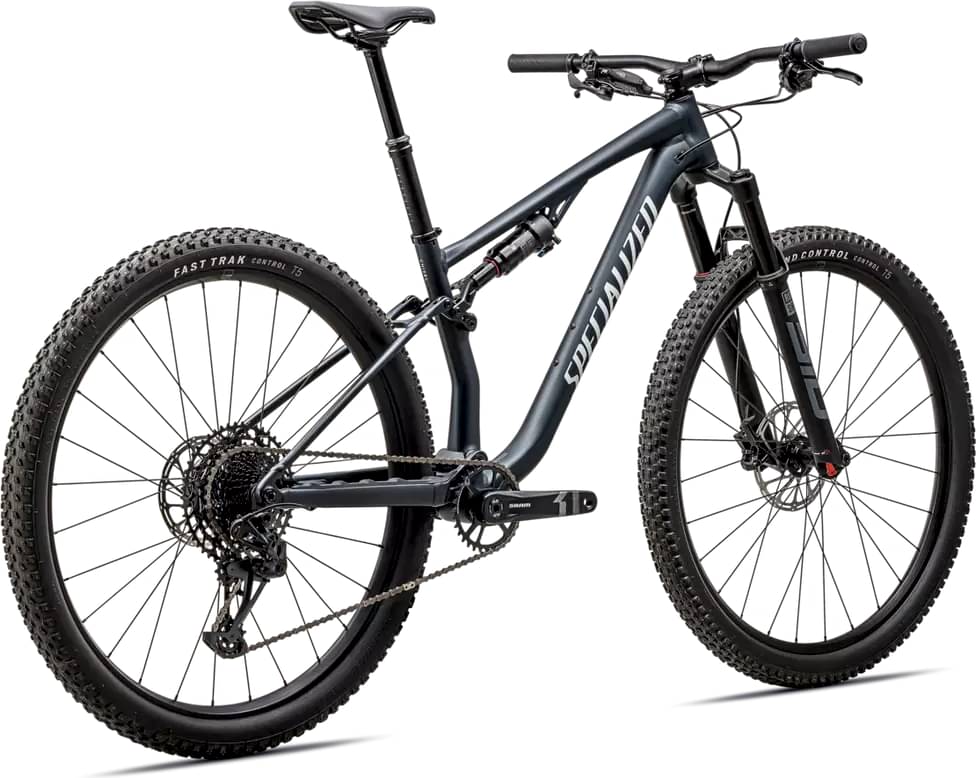

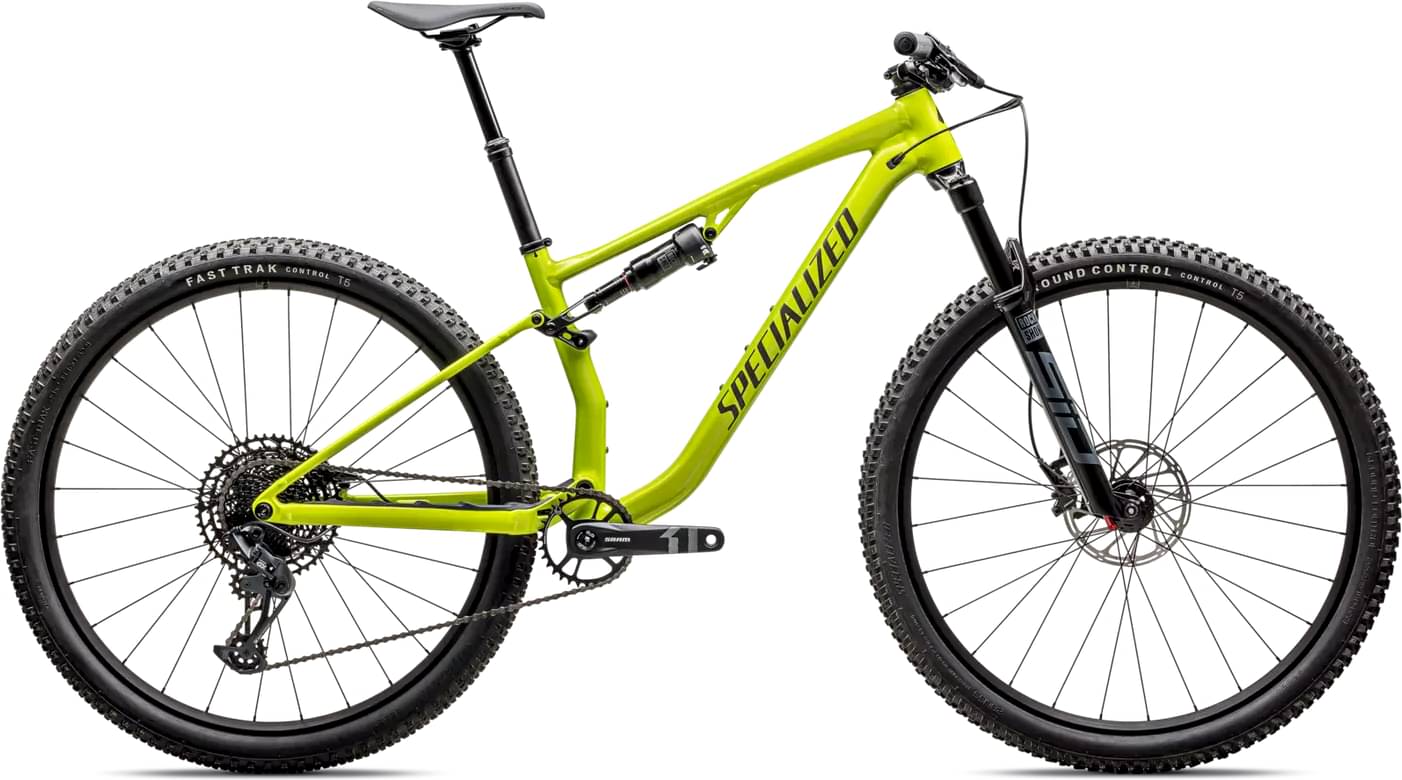

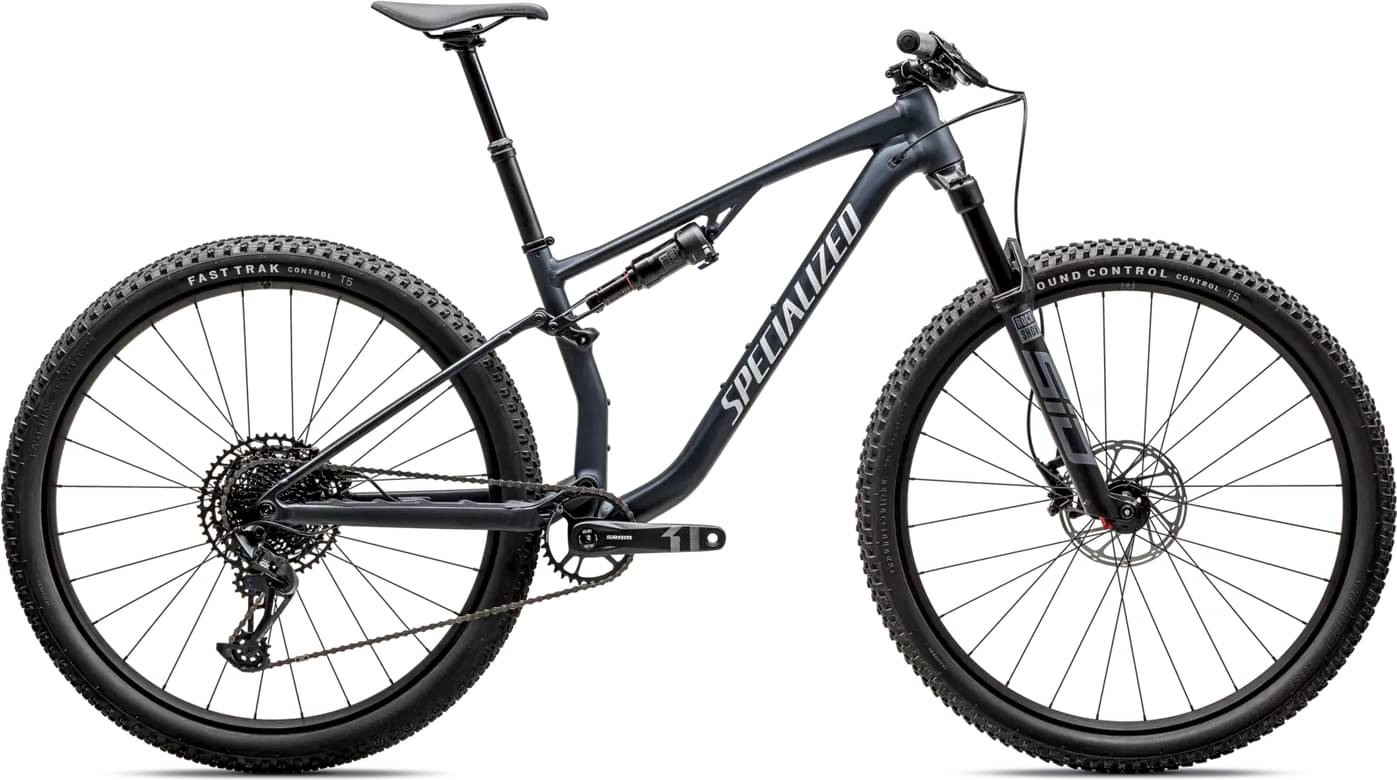

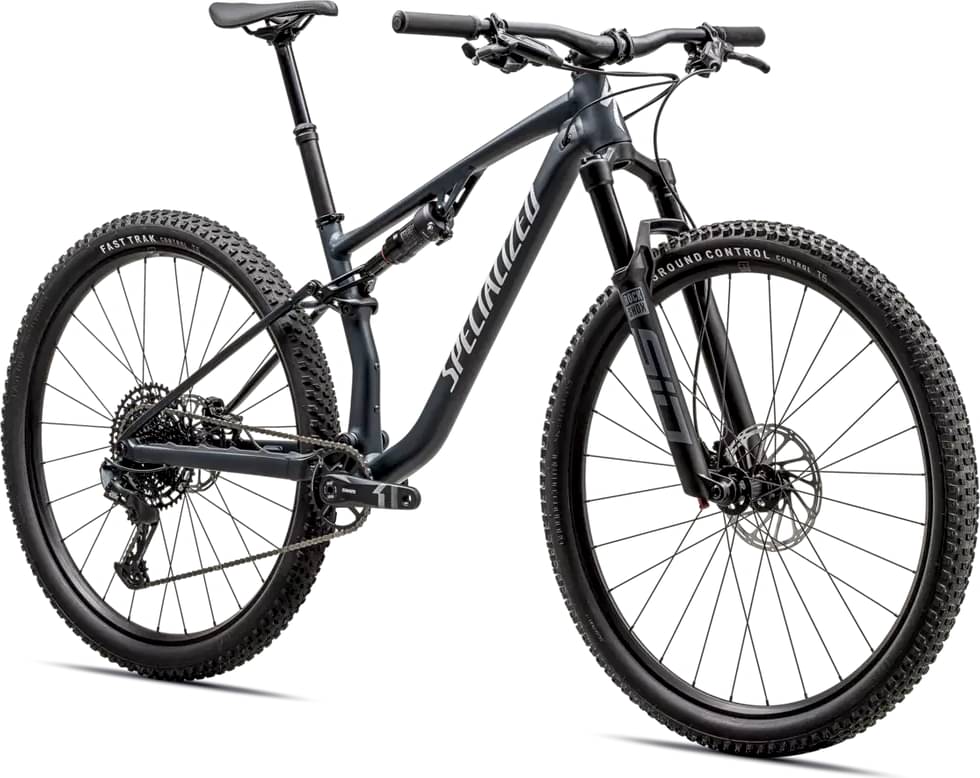

Specialized Chisel Comp 2025
2025 Mountain
Estimate price |
3,839$
Weight | 12.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 120mm -
Travel Rear 110mm -
Fork RockShox SID
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, 110mm travel, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
Suspension Fork
RockShox SID, Rush damper, 44mm offset, 15x110mm thru-axle, 120mm of travel, Maxle Stealth
Rear Shock
RockShox Deluxe Select+, Ride Dynamics Tuned, Two Position, Rebound Adjust, 190x40mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Shift Levers
SRAM GX, trigger, 12-speed
Cassette
SRAM PG-1230 Eagle, 11-50t
Crank
SRAM X1000 Eagle, DUB, 165/170/175mm, 32T
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Chain
SRAM SX Eagle, 12-speed
Wheels
Front Hub
Specialized alloy front hub, disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 28h
Rear Hub
Specialized alloy, disc, sealed cartridge bearings, 6-bolt, 12x148mm thru-axle, 28h
Rims
Specialized Alloy, Tubeless ready, 27mm inner width, disc, 28h
Spokes
Stainless, 14g
Tires
Front: Specialized Ground Control, Control Casing, T5 Compound, 29x2.35, Rear: Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35
Brakes
Brakes
Front: SRAM Level T hydraulic disc, 2-Piston Caliper, 180mm rotor, Rear: SRAM Level T hydraulic disc, 2-Piston Caliper, 160mm rotor

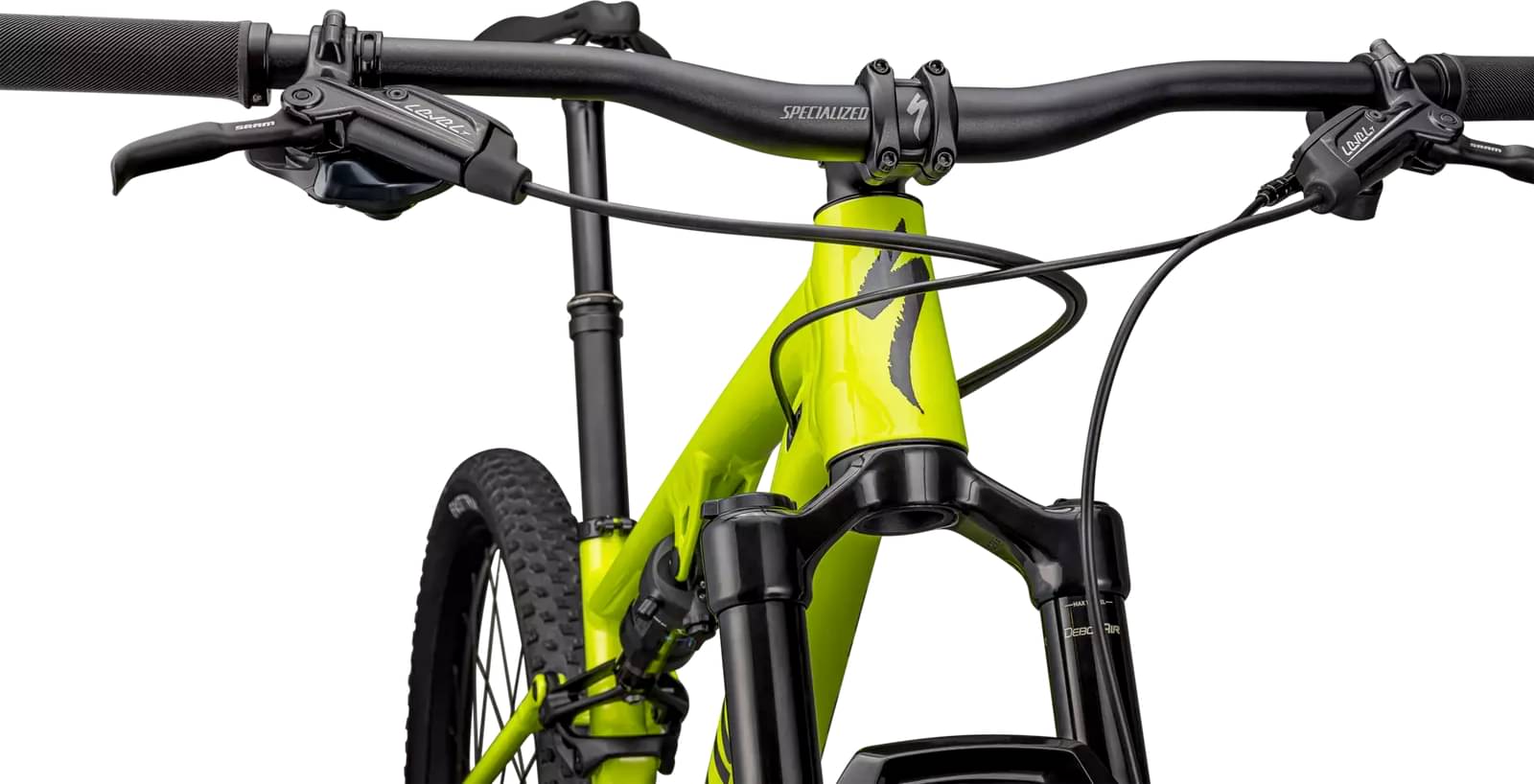

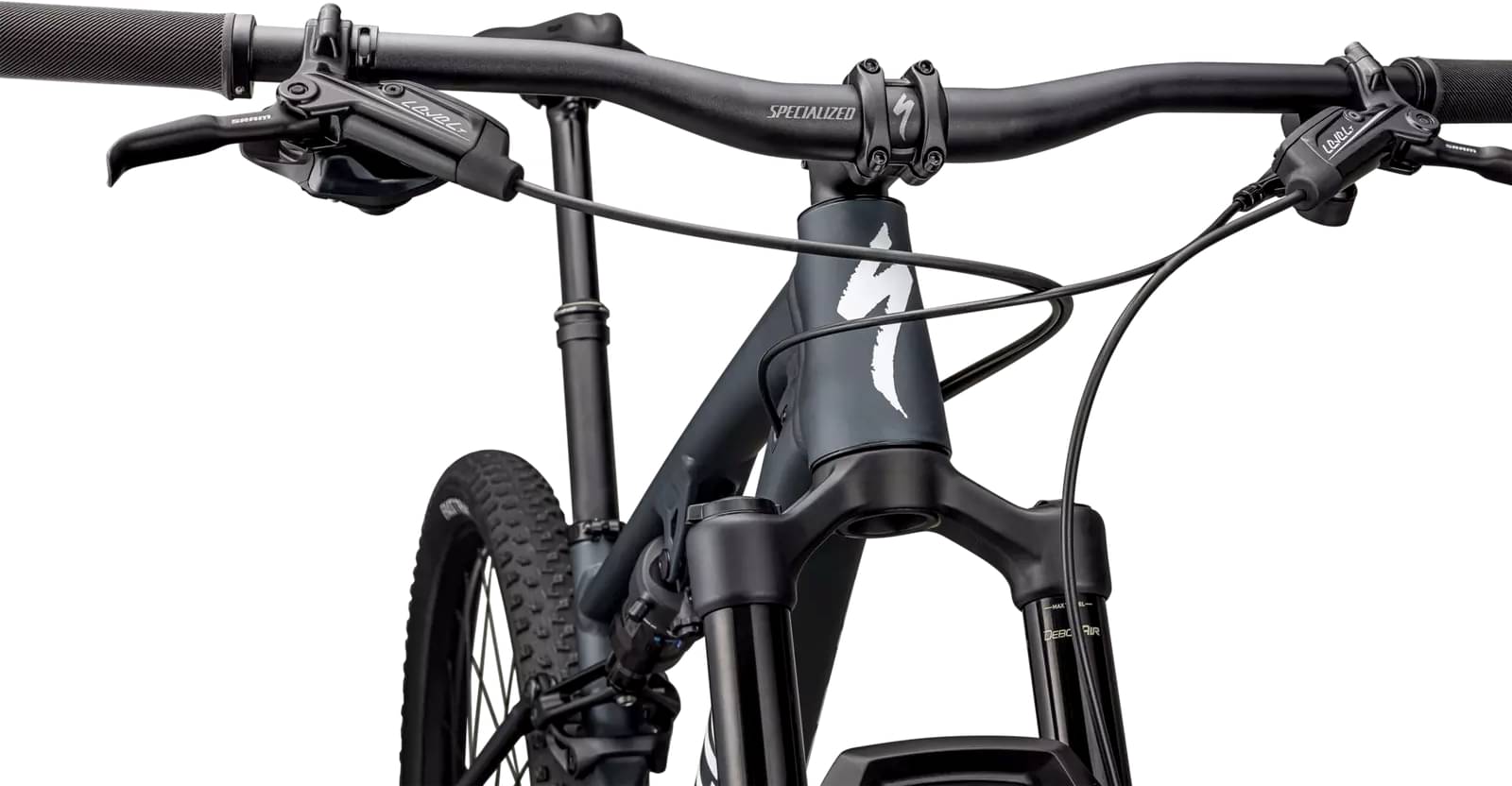

Cockpit
Stem
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
Handlebar
Specialized Alloy, 20mm rise, 31.8mm, 760mm wide
Grips
Specialized Trail Grips
Seat
Saddle
Body Geometry Power Sport, steel rails
Seatpost
TranzX Dropper, 30.9mm, XS: 100mm, SM-M: 125mm, L-XL: 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.544 mm | 1.429 mm | 1.362 mm | 1.319 mm | 1.271 mm |
| Bottom Bracket Height | 326 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 682 mm | 706 mm | 742 mm | 773 mm | 802 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 113 mm | 113 mm | 113 mm | 113 mm | 113 mm |
| Stack | 602.3 mm | 593 mm | 606 mm | 620 mm | 629 mm |
| Reach | 390 mm | 415 mm | 445 mm | 470 mm | 495 mm |
| Top Tube Length | 527 mm | 565 mm | 602 mm | 634 mm | 664 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 375 mm | 392 mm | 410 mm | 450 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 95 mm | 110 mm | 125 mm | 135 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1115 mm | 1141 mm | 1177 mm | 1208 mm | 1237 mm |
| Bottom Bracket Drop | 46 mm | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 756 mm | 777 mm | 777 mm | 787 mm | 790 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
