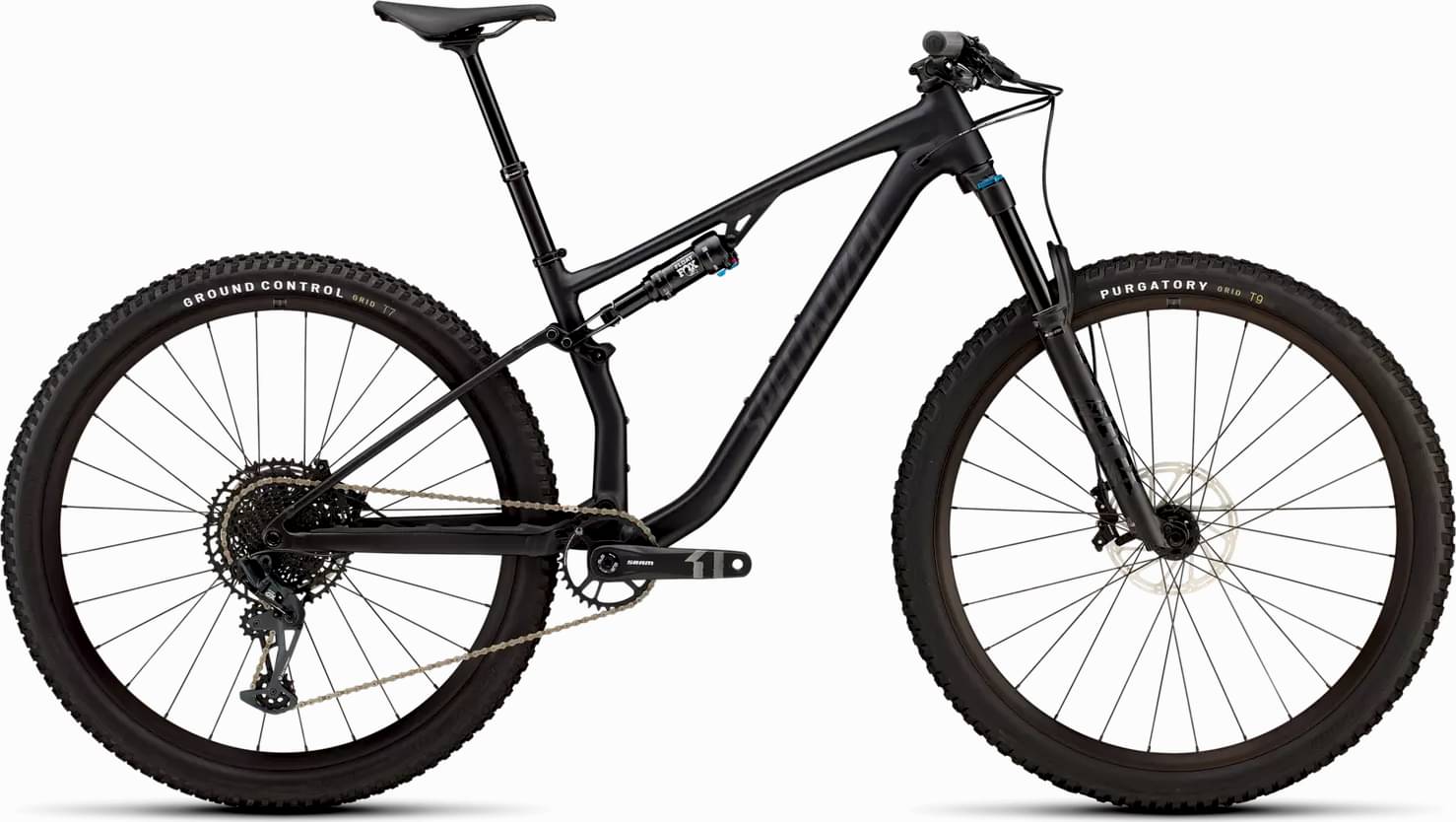

Specialized Chisel Comp EVO 2025
2025 Mountain
Estimate price |
4,188$
Weight | 13.53 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 130mm -
Travel Rear 110mm -
Fork Fox Performance Elite Float 34
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM G2 RS Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, 110mm travel, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
Suspension Fork
Fox 34 Performance Elite, Grip2 Damper, Compression adjust, 130mm travel, 44mm offset, 15x110mm
Rear Shock
Fox Float Performance, Evol LV, Ride Dynamics Tuned, 2-position compression adjust, 190x40mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Shift Levers
SRAM GX, trigger, 12-speed
Cassette
SRAM PG-1230 Eagle 11-50t
Crank
SRAM X1000 Eagle, DUB, 165/170/175mm, 32t
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Chain
SRAM SX Eagle, 12-speed
Wheels
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
Rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Spokes
DT Swiss Industry
Tires
Front: Specialized Purgatory, GRID Casing, T9 Compound, 29x2.4, Rear: Specialized Ground Control, GRID Casing, T7 Compound, 29x2.35
Brakes
Brakes
Front: SRAM G2 RS hydraulic disc, 4-Piston Caliper, 180mm rotor, Rear: SRAM G2 RS hydraulic disc, 4-Piston Caliper, 180mm rotor
Cockpit
Stem
Alloy Stem, 35mm clamp, 60mm
Handlebar
Specialized Alloy, 20mm rise, 35mm, 760mm wide
Grips
Specialized Trail Grips
Seat
Saddle
Body Geometry Power Comp, steel rails
Seatpost
X-Fusion Manic, 30.9, 125/150/170 Travel, 0mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.574 mm | 1.454 mm | 1.386 mm | 1.342 mm | 1.292 mm |
| Bottom Bracket Height | 330 mm | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 685 mm | 709 mm | 745 mm | 776 mm | 805 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 117 mm | 117 mm | 117 mm | 117 mm | 117 mm |
| Stack | 606 mm | 596 mm | 610 mm | 624 mm | 633 mm |
| Reach | 385 mm | 410 mm | 440 mm | 465 mm | 490 mm |
| Top Tube Length | 528 mm | 566 mm | 603 mm | 635 mm | 665 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 375 mm | 392 mm | 410 mm | 450 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 95 mm | 110 mm | 125 mm | 135 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1119 mm | 1145 mm | 1181 mm | 1212 mm | 1241 mm |
| Bottom Bracket Drop | 42 mm | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 762 mm | 783 mm | 783 mm | 792 mm | 795 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
