Bike details
Overview
Key information split into simple groups.

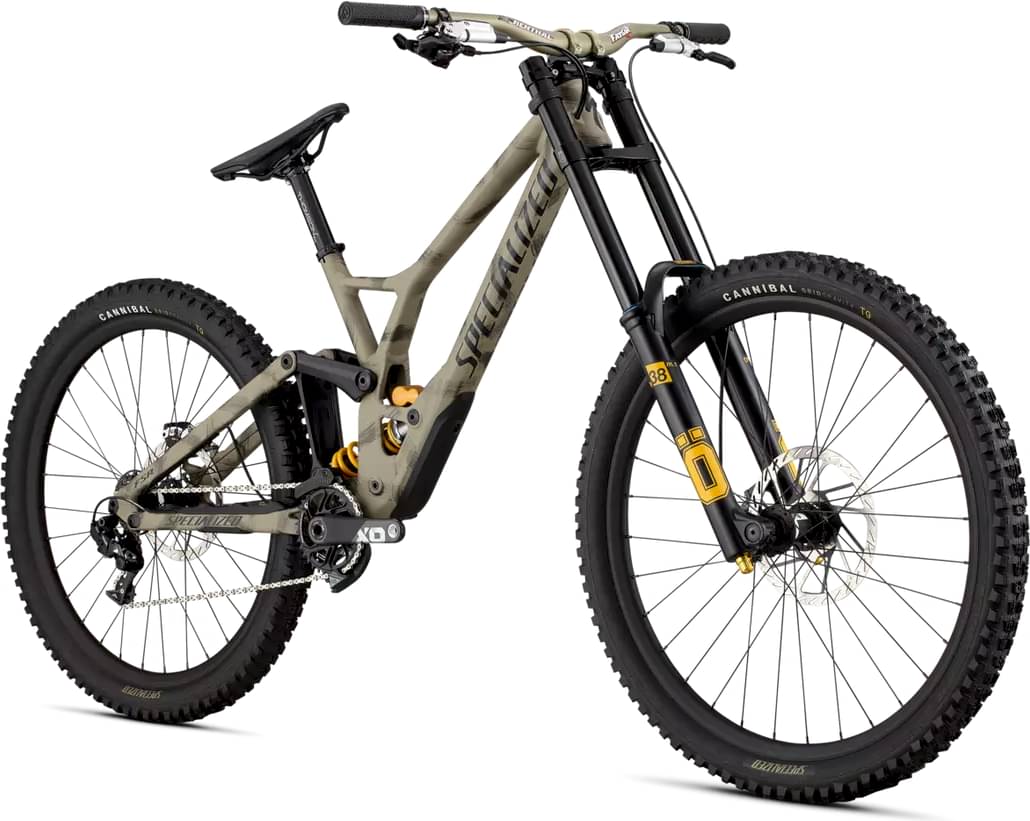

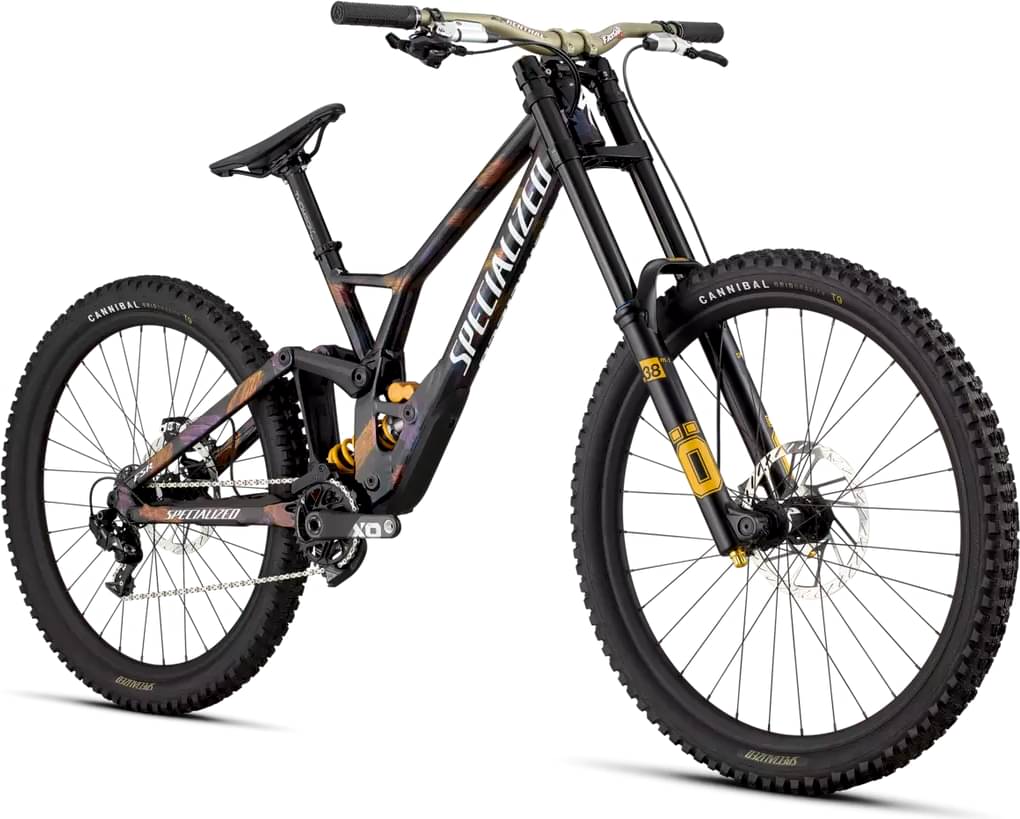

Bike summary
-
-
Frame Aluminum -
Travel Front 200mm -
Travel Rear 200mm -
Fork Öhlins DH38 M.1
-
Groupset X01 -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

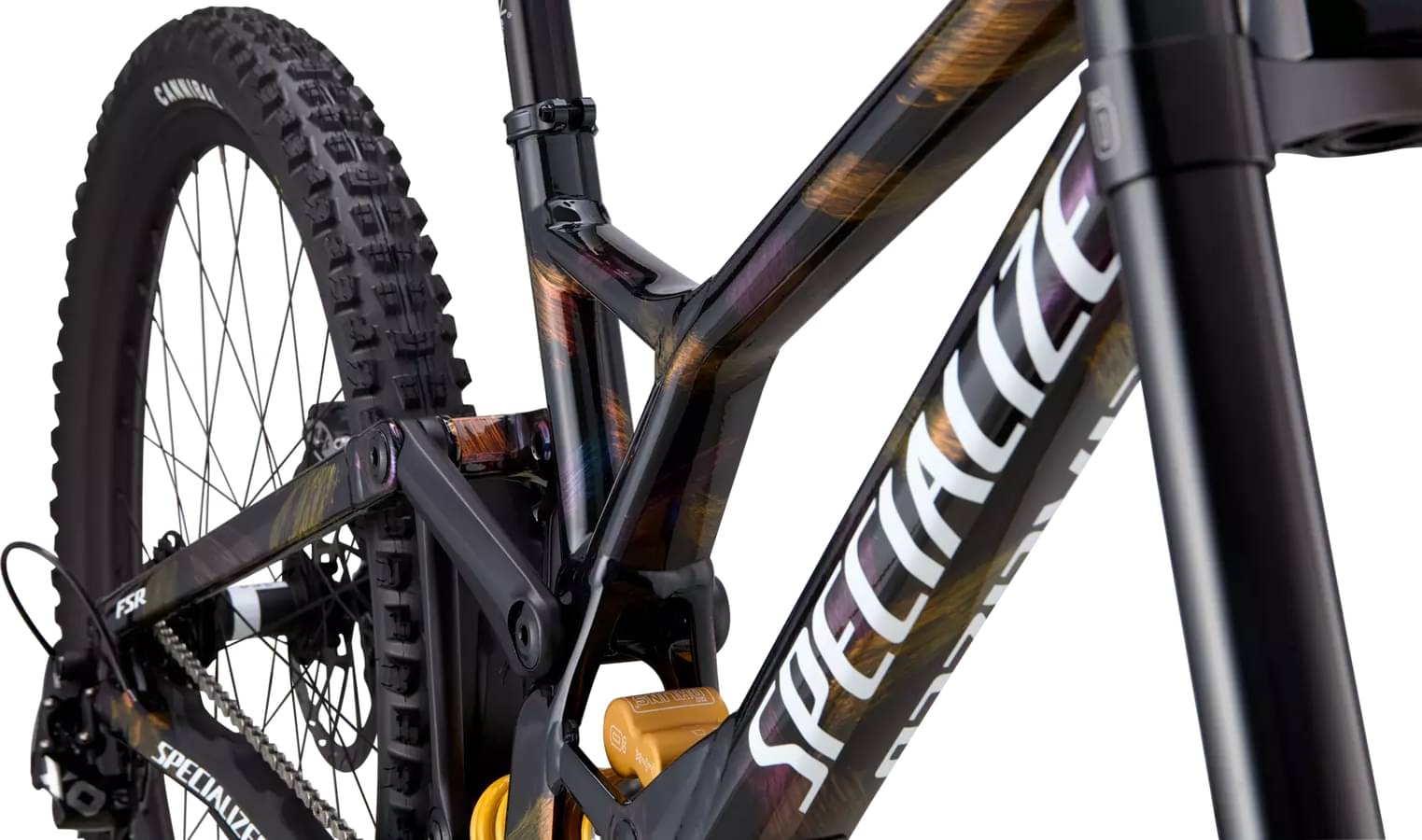

Frame
Frame
M5 alloy, Style-Specific DH Geometry, horst pivot flip chip for 27.5 or 29 rear wheel, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel
Suspension Fork
Öhlins DH38 M.1 29, TTX Twin Tube Damping, external low speed rebound adjust, external high and low speed compression adjustment, 20x110mm, 58mm offset, 200mm of travel

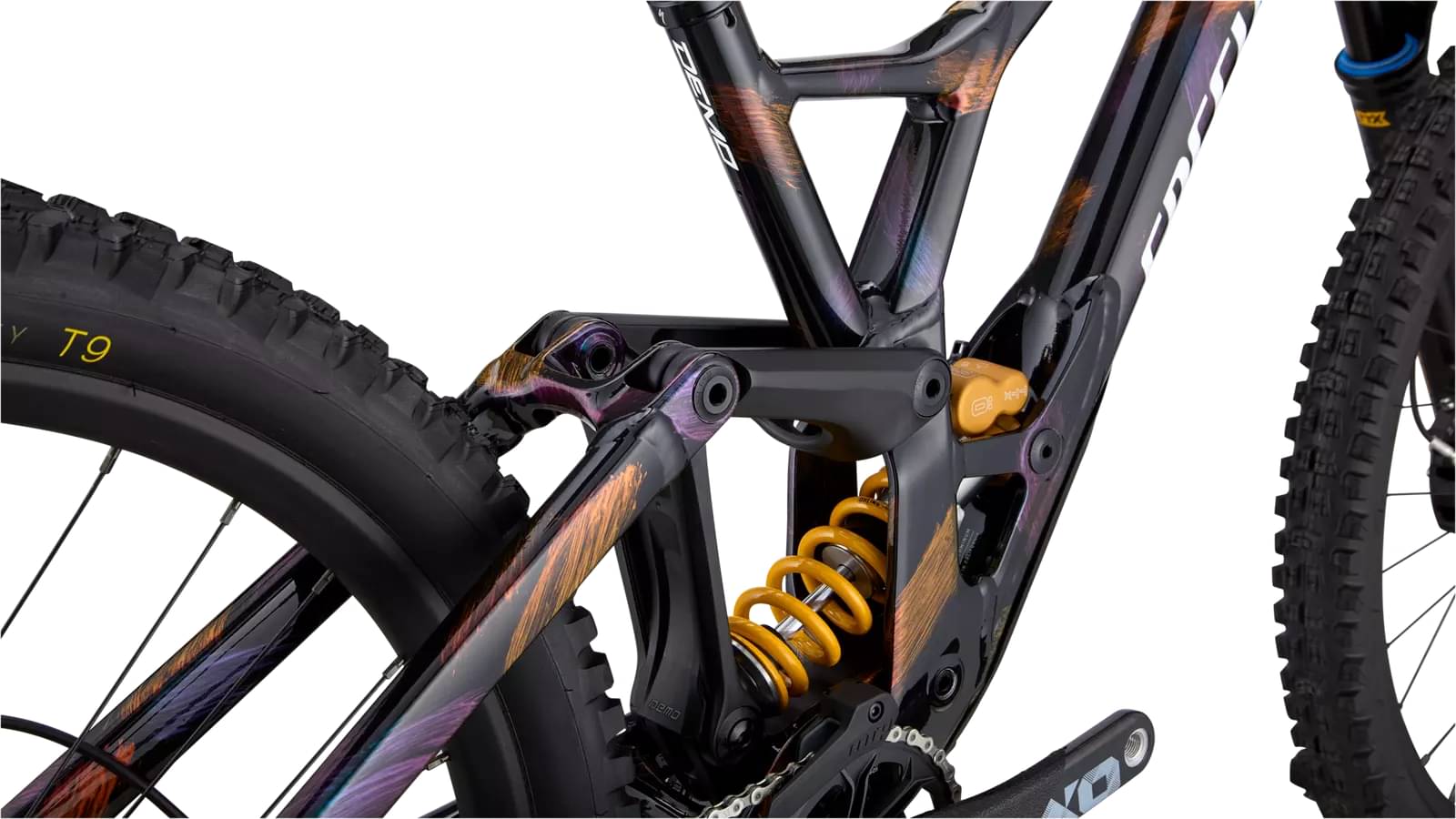

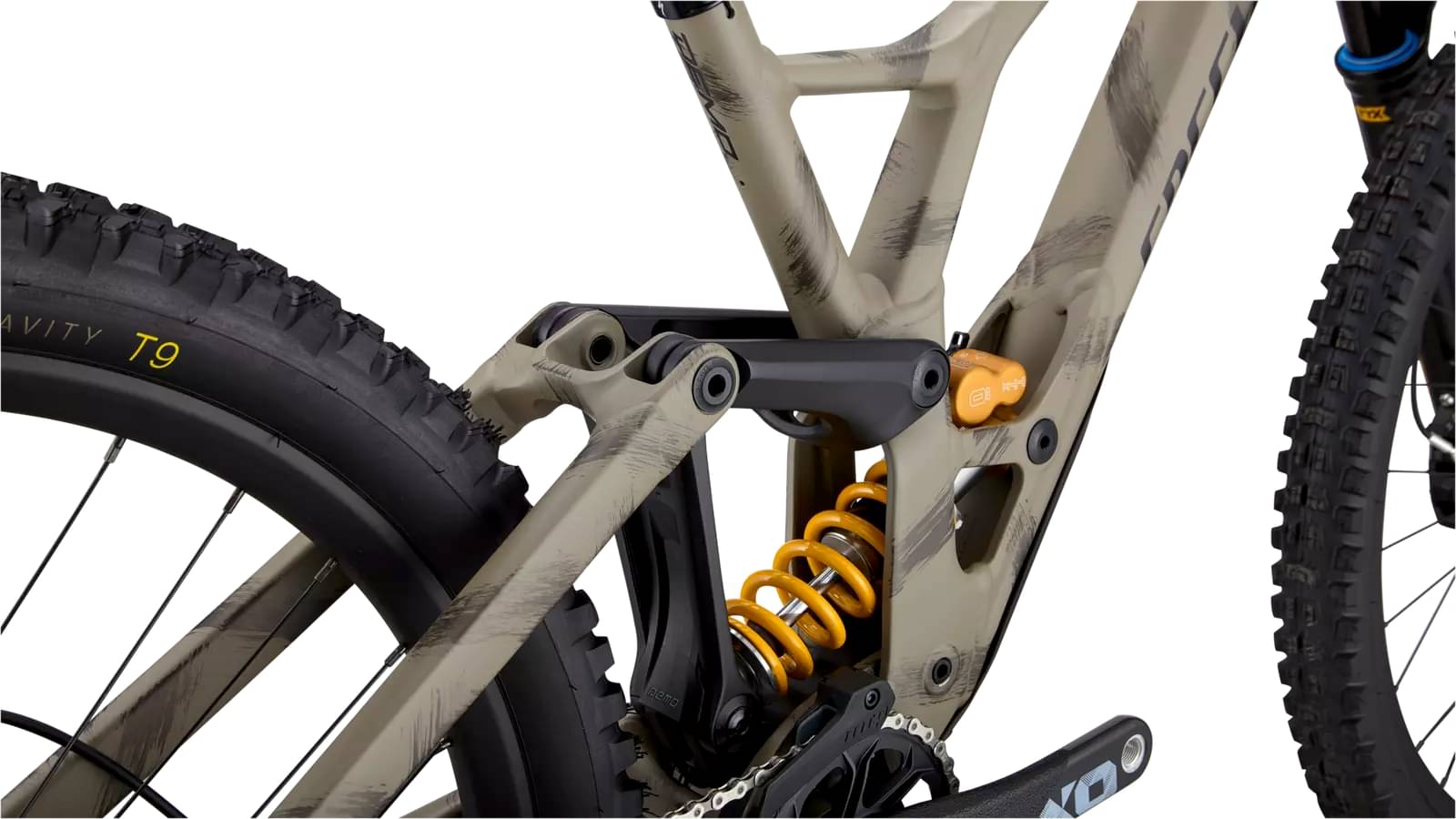

Rear Shock
Öhlins TTX22M.2 Coil, external rebound adjust, external high and low speed compression adjustment, Trunnion mount, 225x75
Drivetrain
Rear Derailleur
SRAM X01 DH, 7-speed, trigger
Shift Levers
SRAM X01 DH, trigger, 7-speed
Cassette
SRAM X01 DH, 7-speed, 10-24t
Crank
SRAM X01 DH, DUB, carbon, Direct mount ring, 165mm
Bottom Bracket
SRAM DUB, 83mm
Chain
SRAM PC1130 w/ Powerlink, 11-speed
Wheels
Front Hub
DT Swiss 350 hub, 20x110mm
Rear Hub
DT Swiss 350 hub, 12x148mm
Rims
Roval Traverse Alloy 29" / 27.5", 32h alloy rim, 28mm inner rim width
Spokes
Sapim D-Light
Tires
Front: Cannibal, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.4", Rear: Cannibal, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.4"
Brakes
Brakes
Front: SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm, Rear: SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm

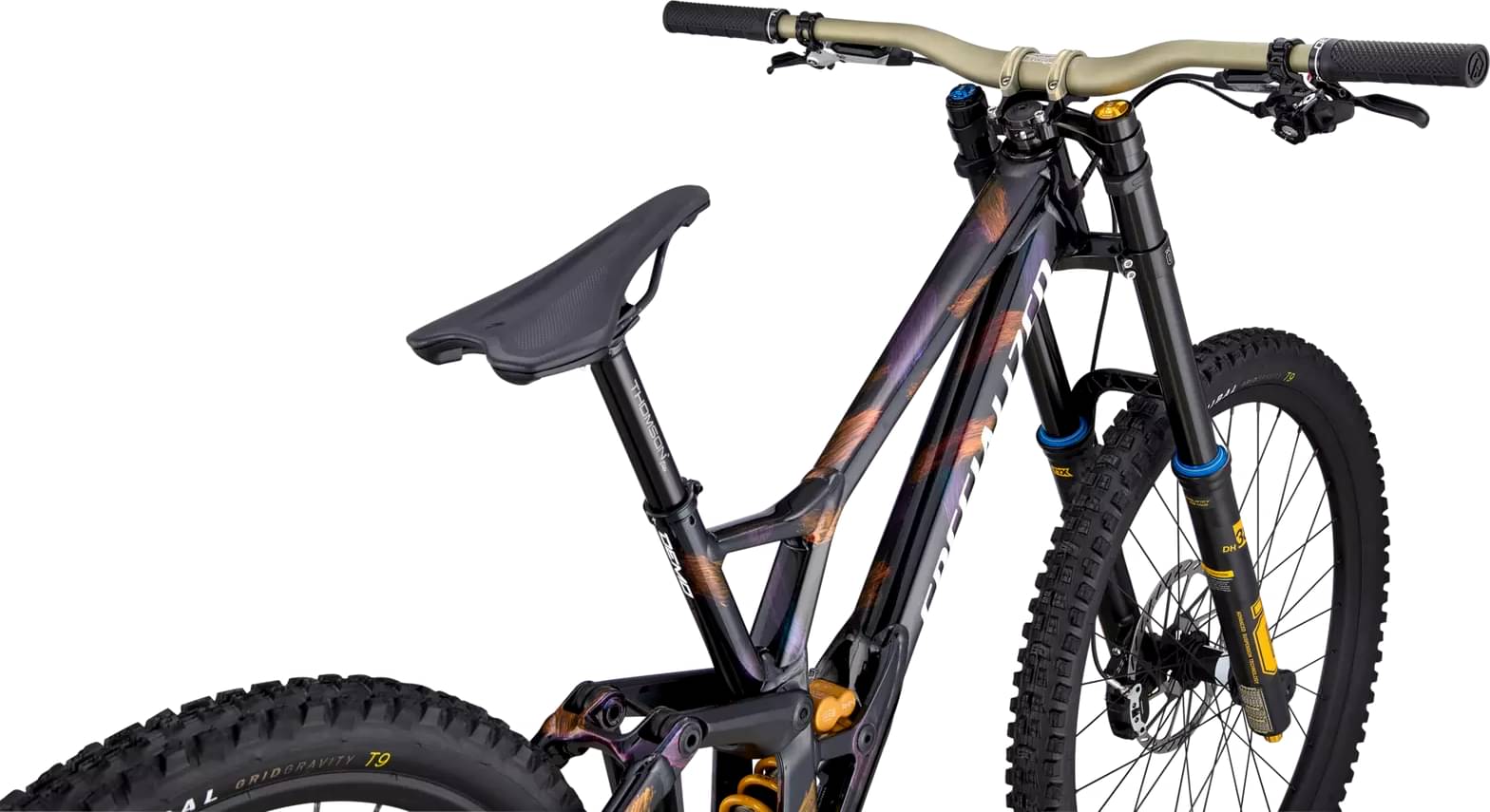

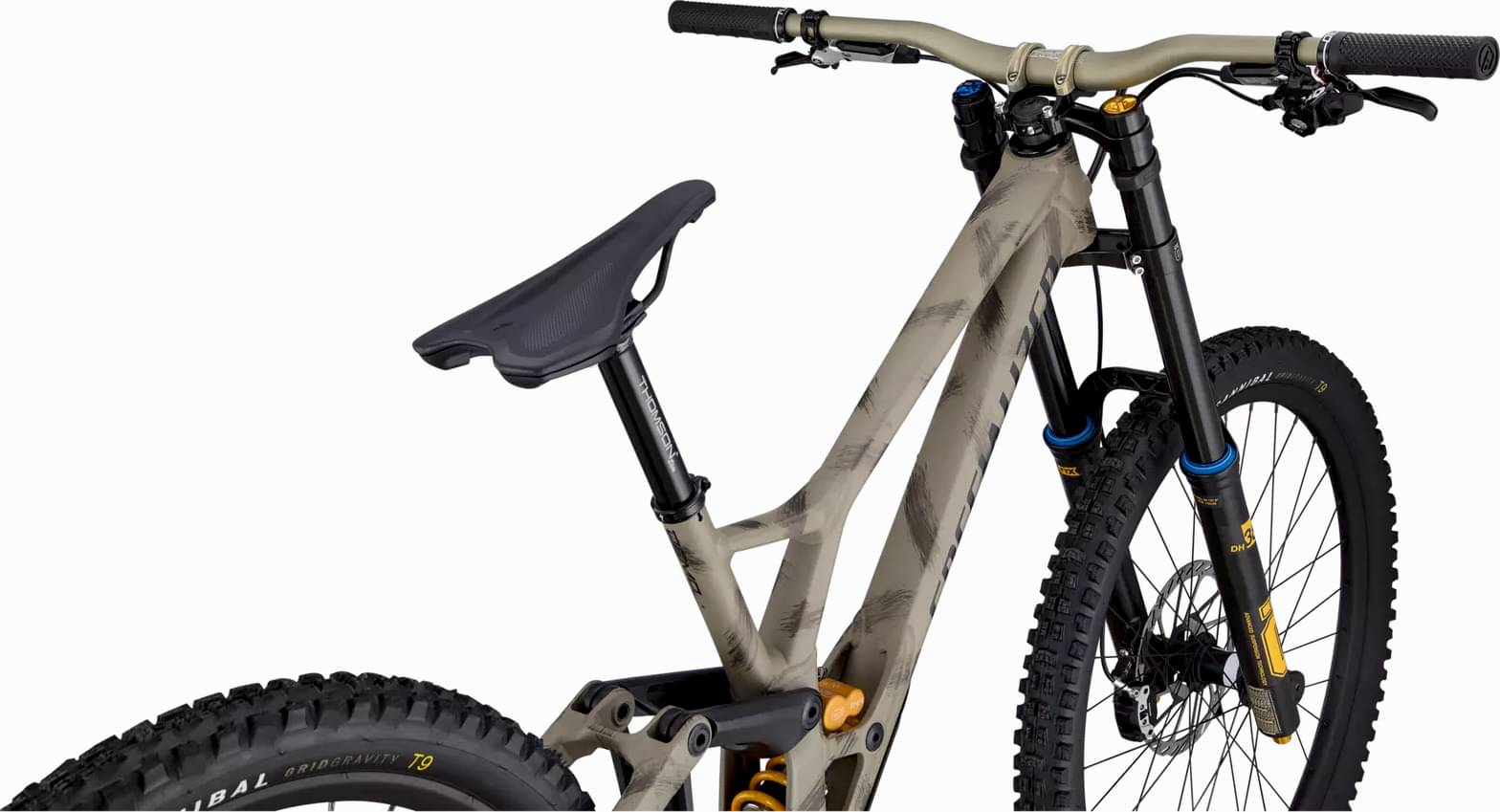

Cockpit
Stem
Renthal Integra 35mm Direct Mount Stem, 45mm length

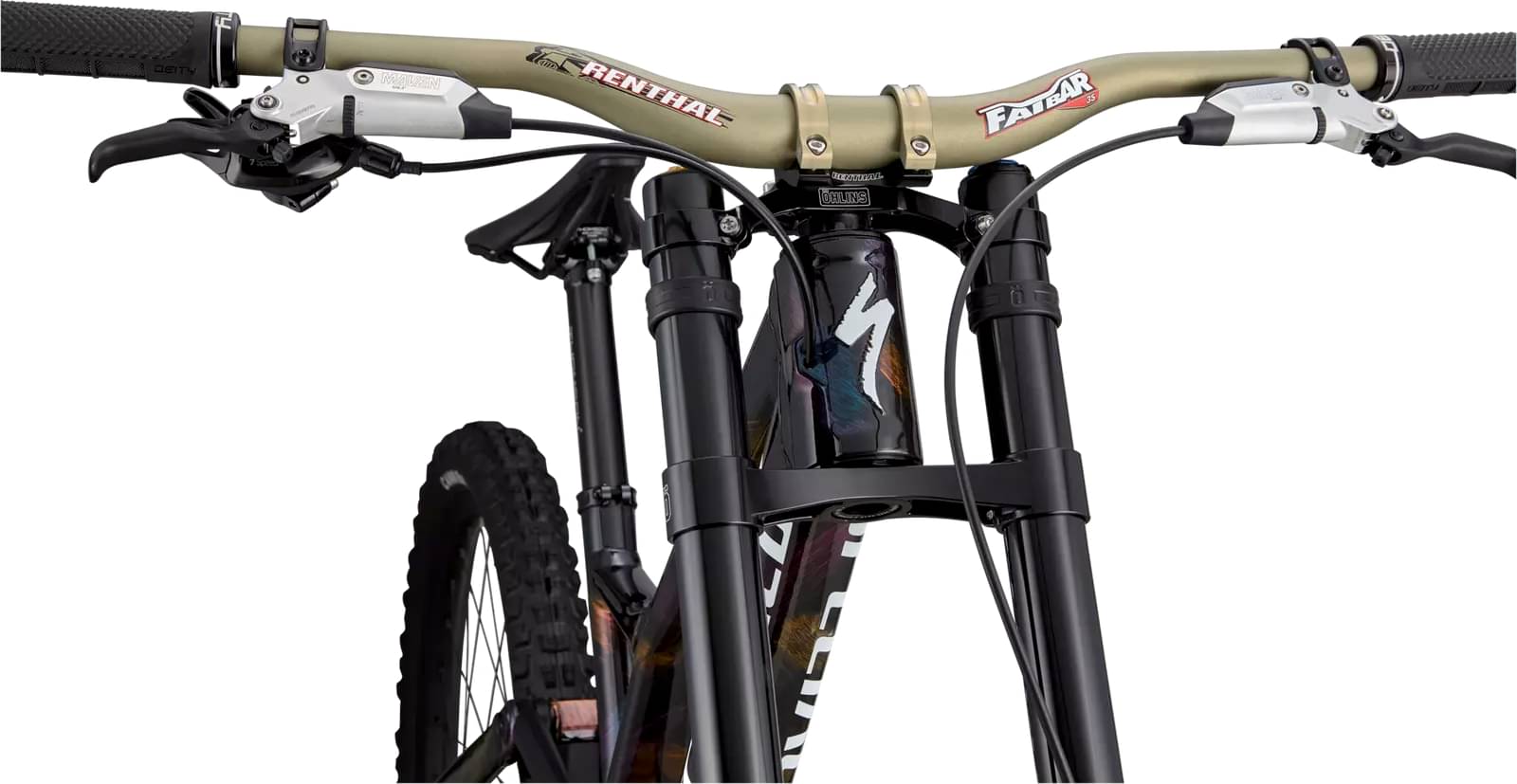

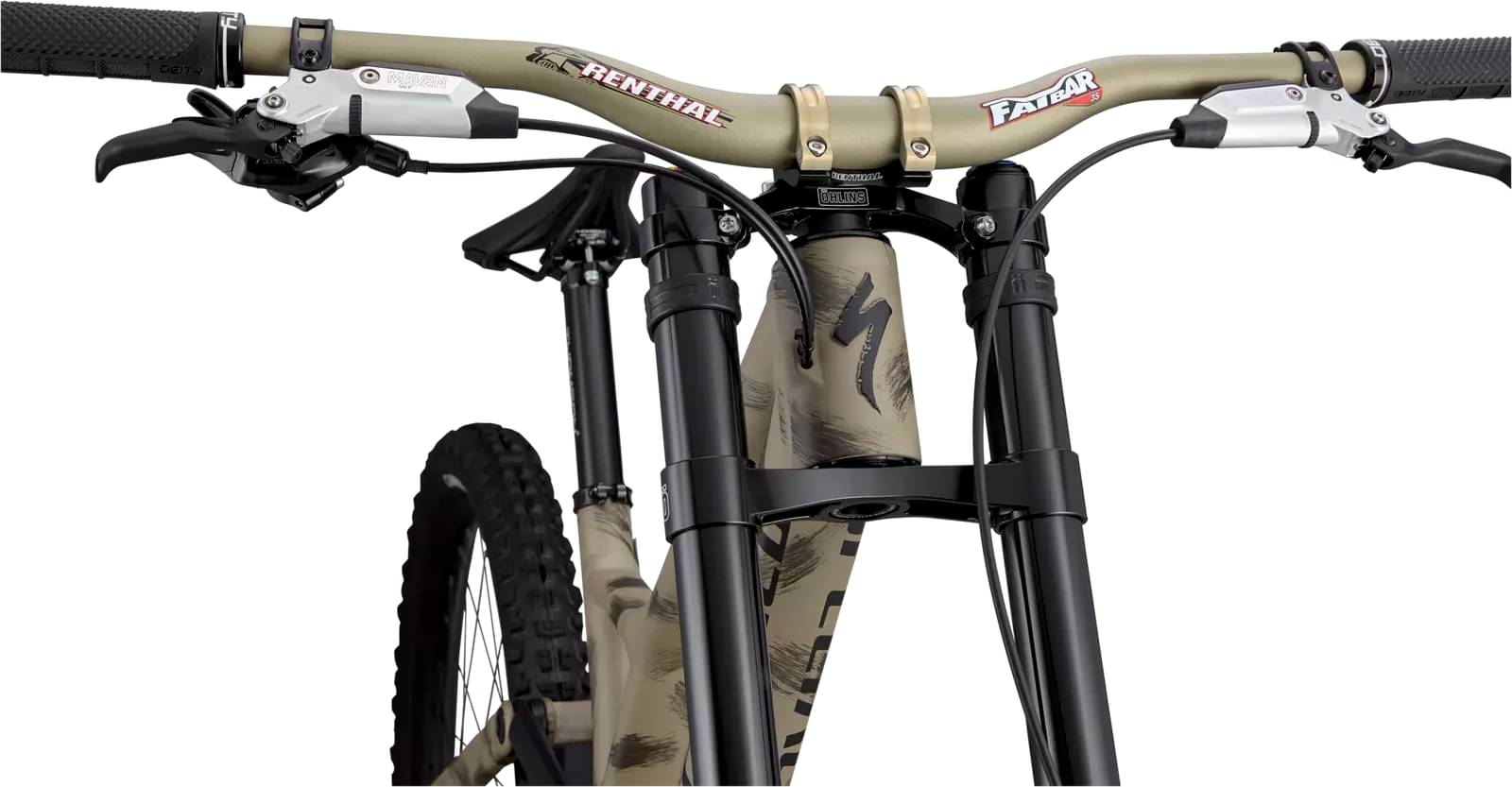

Handlebar
Renthal Fatbar 35, 5-degree upsweep, 7-degree backsweep, 30mm rise, 800mm, 35.0mm
Grips
Deity Lockjaw
Seat
Saddle
Body Geometry Henge DH, hollow titanium rails, 130mm
Seatpost
Thomson, alloy, straight, 12-degree clamp
