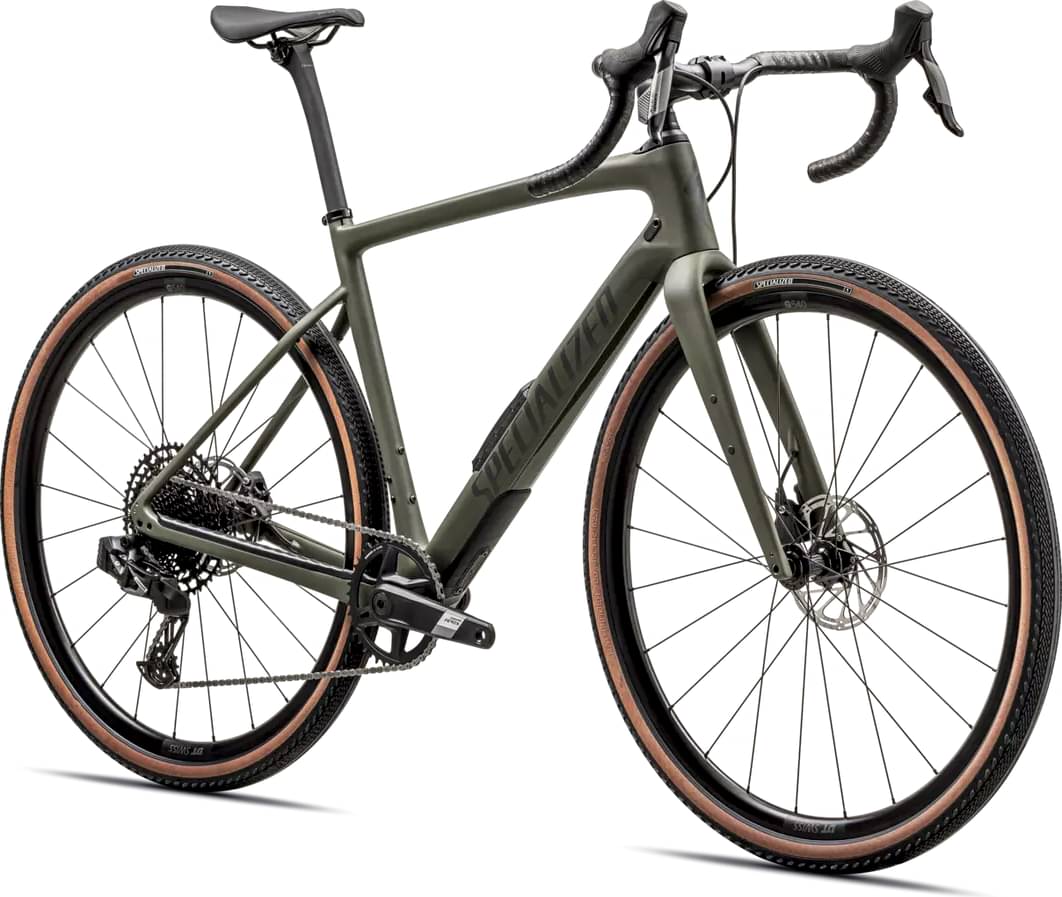

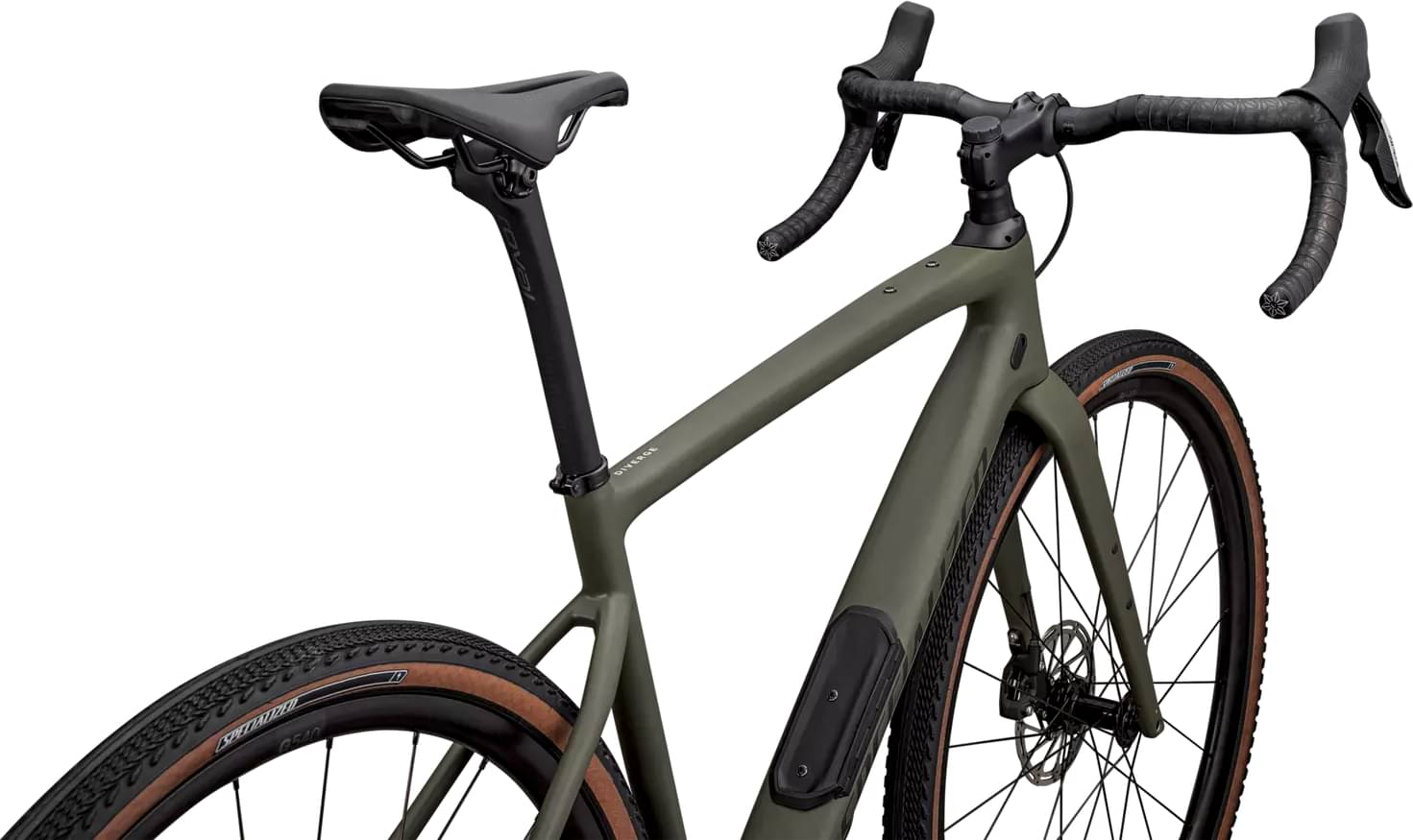

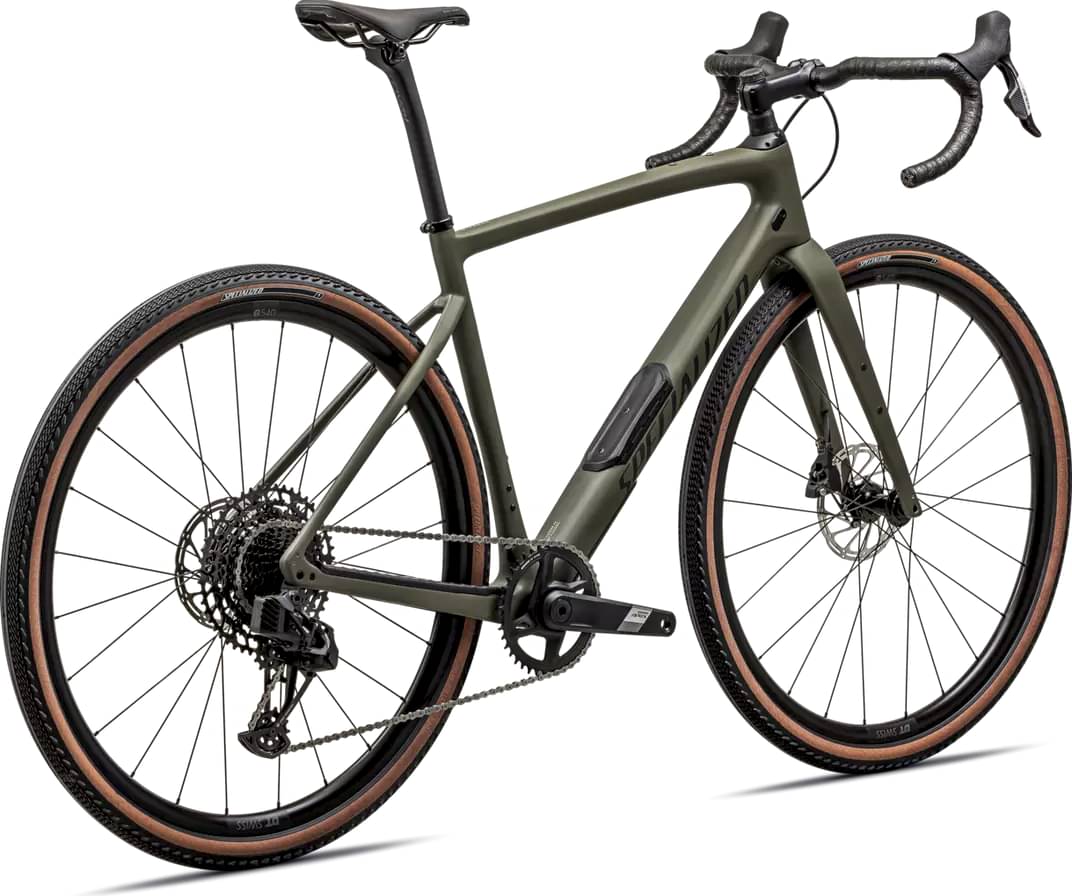

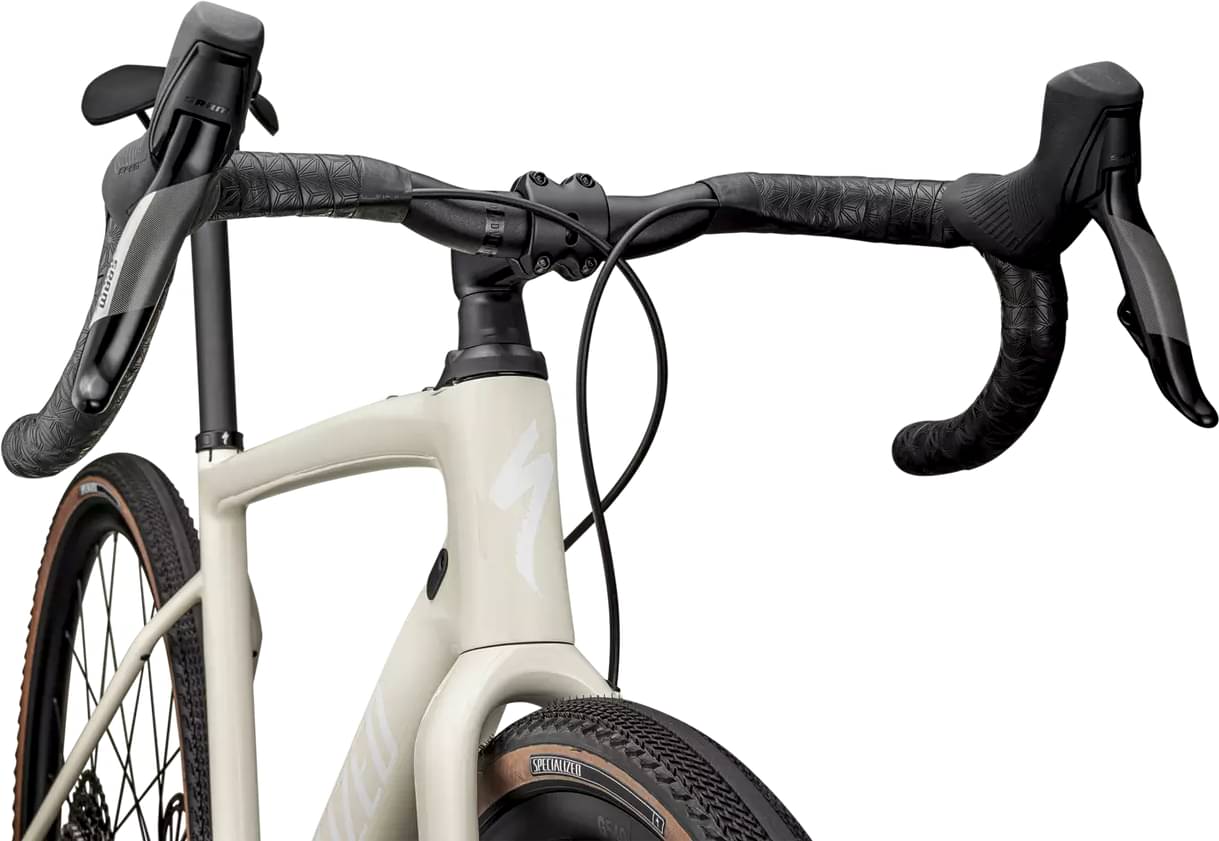

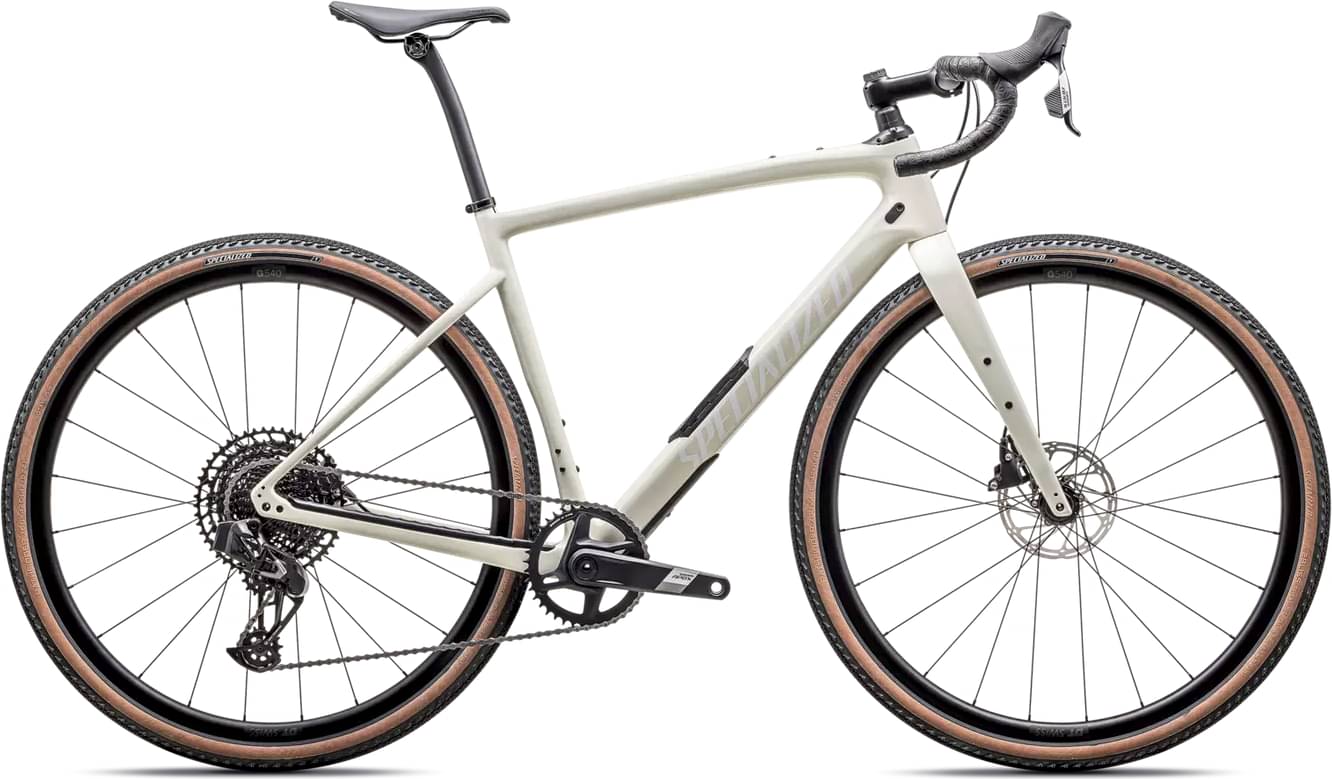

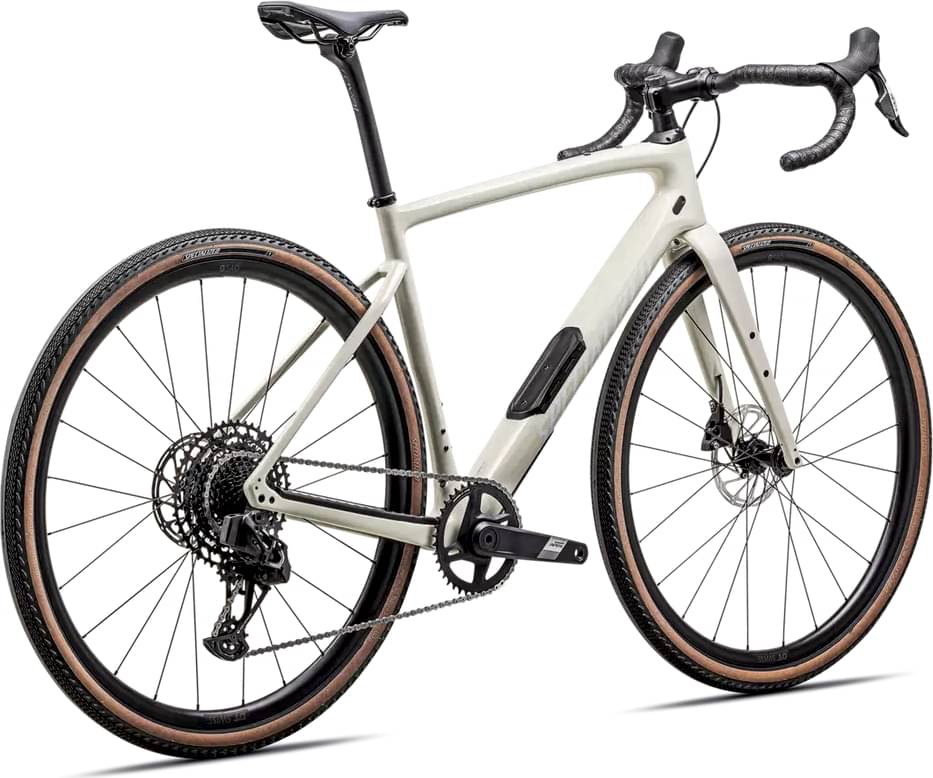

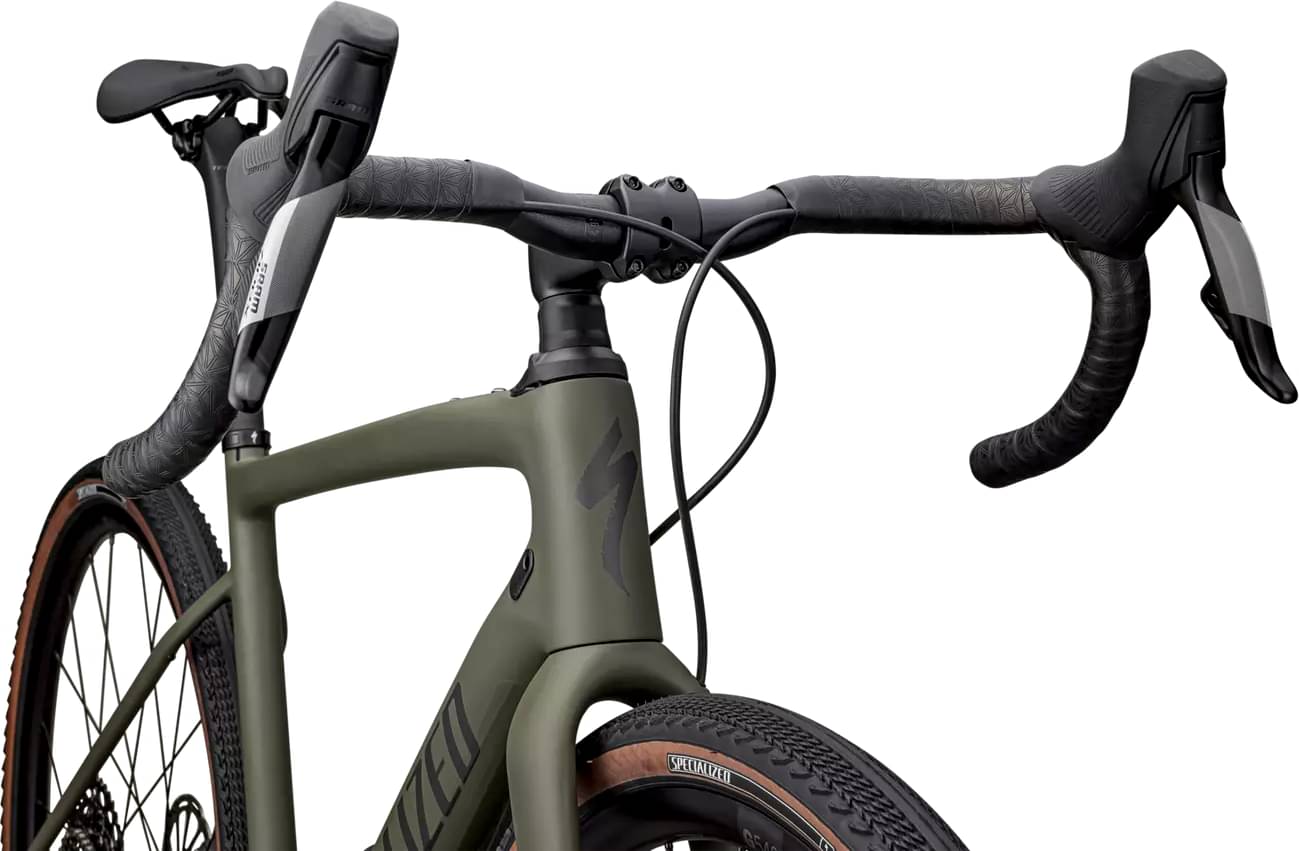

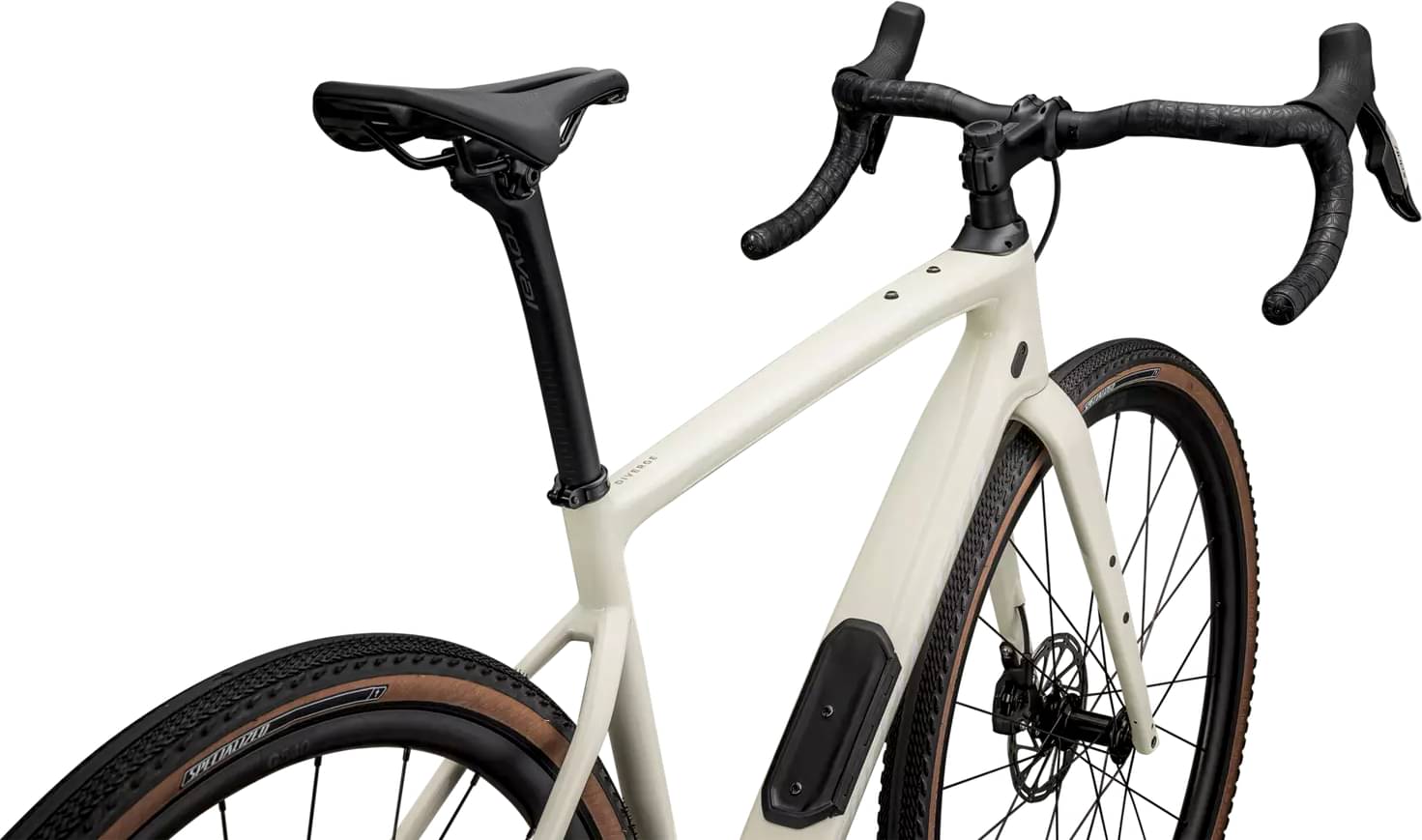

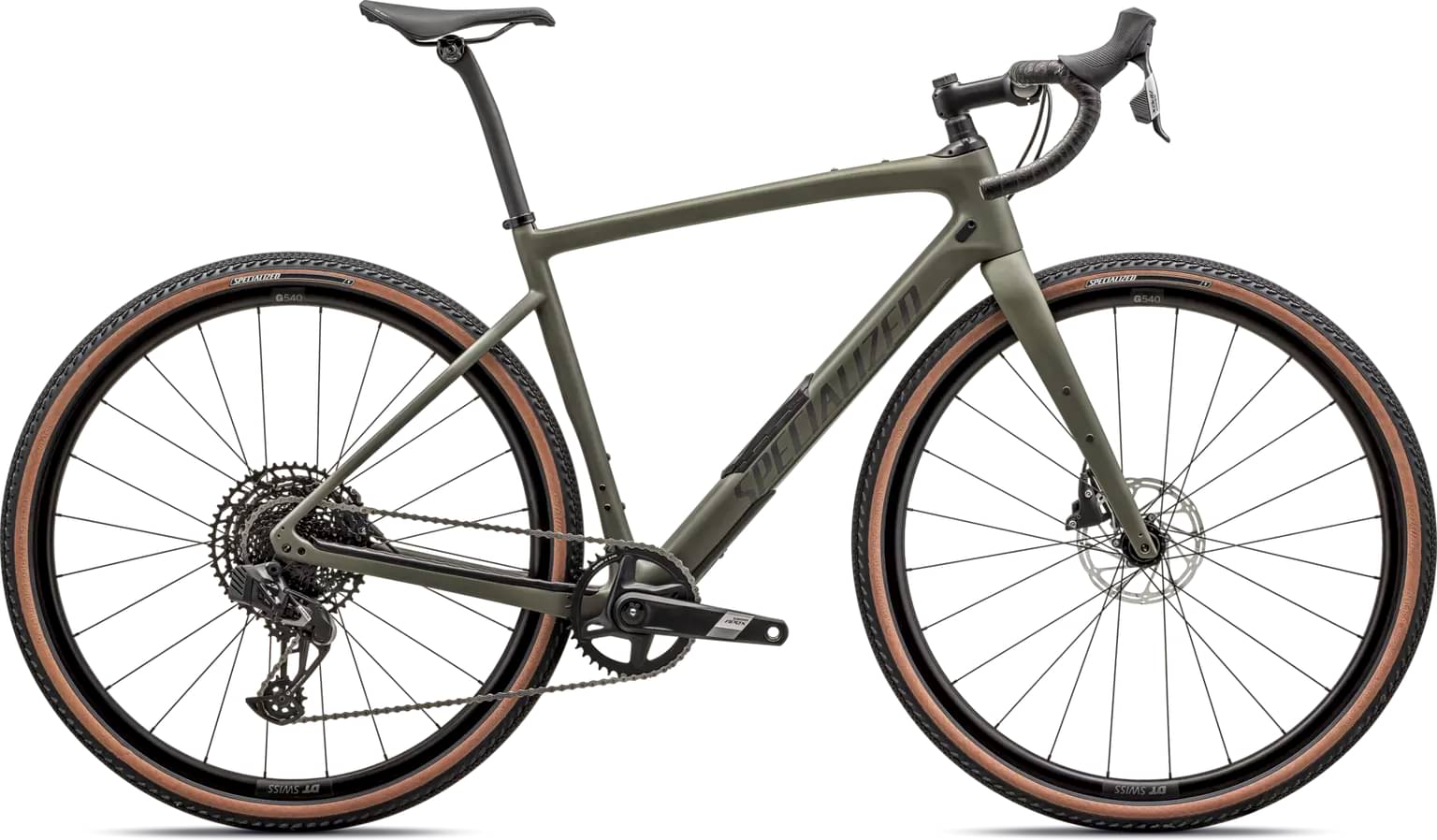

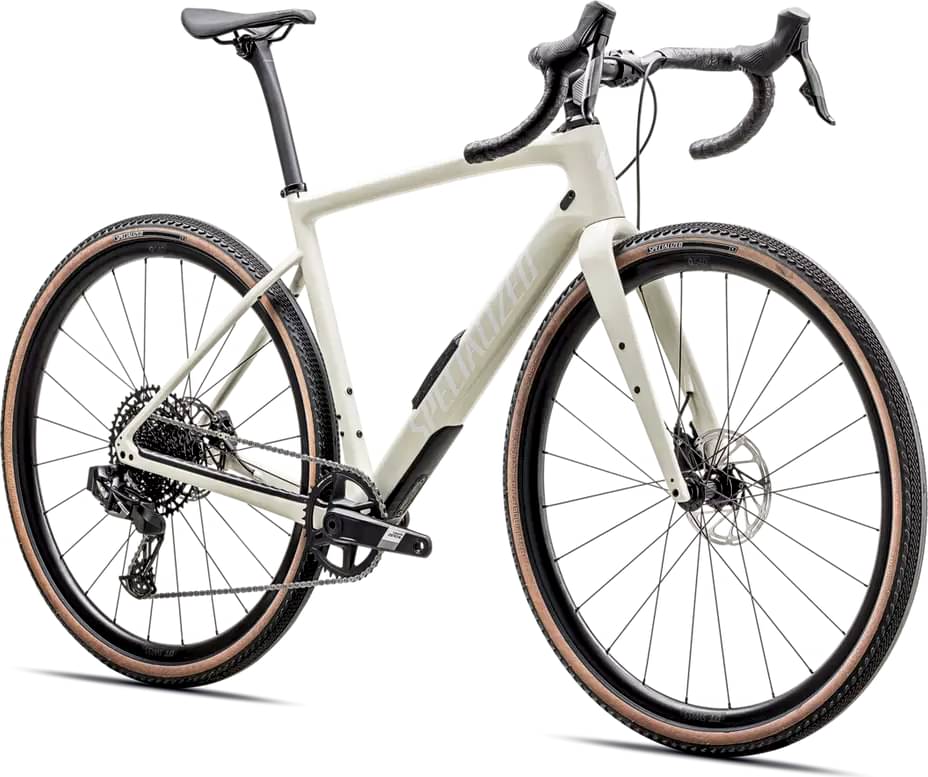

Specialized Diverge Comp 2025
2025 Road
Estimate price |
5,235$
Weight | 9.99 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 20mm -
Fork Specialized Future Shock 2.0
-
Groupset RED AXS, Apex AXS -
Suspension Hardtail -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
155cm - 164cm
52cm
161cm - 171cm
54cm
169cm - 178cm
56cm
175cm - 181cm
58cm
179cm - 189cm
61cm
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
Suspension Fork
Future Shock 2.0 w/ Smooth Boot, 12x100mm thru-axle, flat-mount disc
Drivetrain
Rear Derailleur
SRAM X1 Eagle AXS
Shift Levers
SRAM Apex eTap AXS
Cassette
SRAM PG1210, 12-Speed, 11-50t
Crank
SRAM Apex DUB Wide
Bottom Bracket
BSA, 68mm, threaded
Chain
SRAM, NX Eagle, 12-speed
Wheels
Tires
Pathfinder Pro 2BR, Tan sidewall, 700x42
Brakes
Brakes
SRAM Apex eTAP AXS, hydraulic disc
Cockpit
Stem
Future Stem, Comp
Handlebar
Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Seat
Saddle
Body Geometry Power Sport, steel rails
Seatpost
Roval Terra Carbon Seat Post, 20mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.564 mm | 1.543 mm | 1.546 mm | 1.556 mm | 1.581 mm | 1.607 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 607 mm | 614 mm | 620 mm | 630 mm | 647 mm | 663 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 70 mm | 65 mm | 60 mm | 57 mm | 57 mm | 57 mm |
| Stack | 571 mm | 577 mm | 592 mm | 610 mm | 634 mm | 659 mm |
| Reach | 365 mm | 374 mm | 383 mm | 392 mm | 401 mm | 410 mm |
| Top Tube Length | 529 mm | 542 mm | 558 mm | 573 mm | 589 mm | 605 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.25 ° | 71.75 ° | 71.75 ° | 71.75 ° |
| Head Tube Length | 99 mm | 104 mm | 116 mm | 133 mm | 159 mm | 185 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1019 mm | 1026 mm | 1032 mm | 1042 mm | 1059 mm | 1076 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 700 | 725 mm | 754 mm | 779 mm | 805 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 169 cm | 175 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 171 cm | 178 cm | 181 cm | 189 cm | 196 cm |
