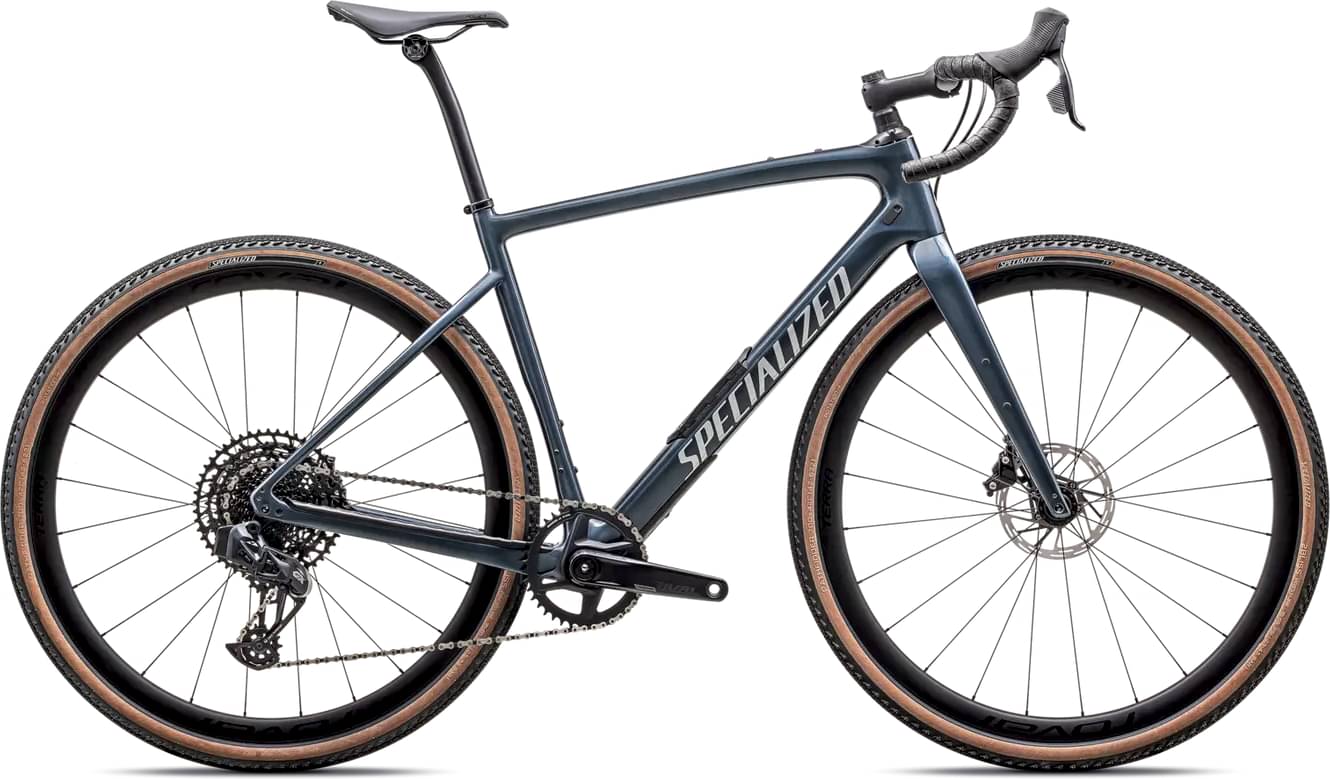

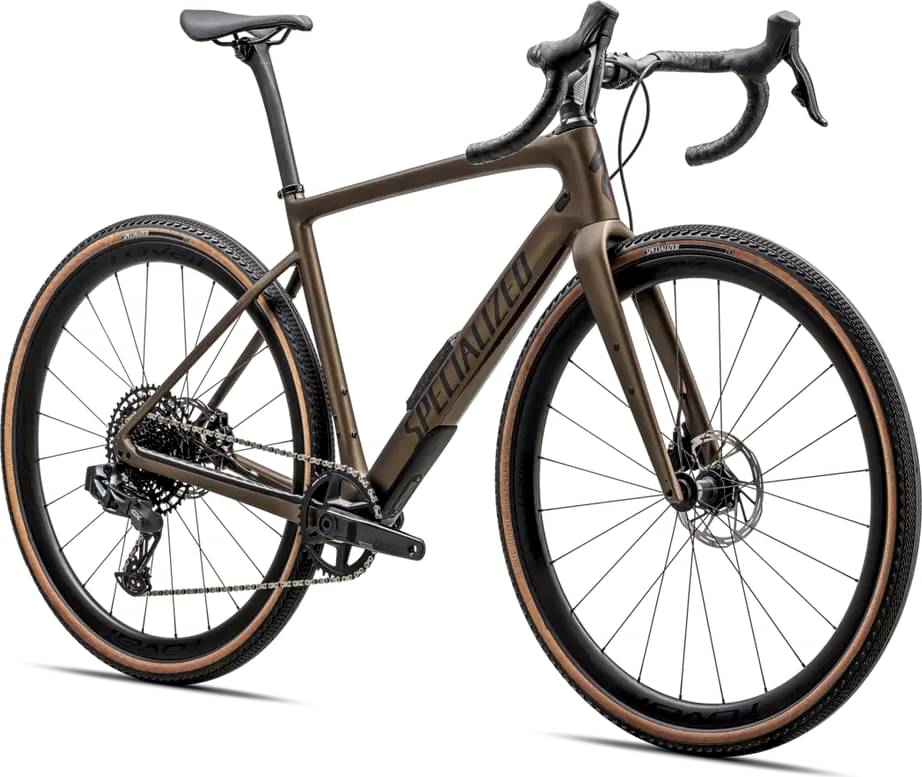

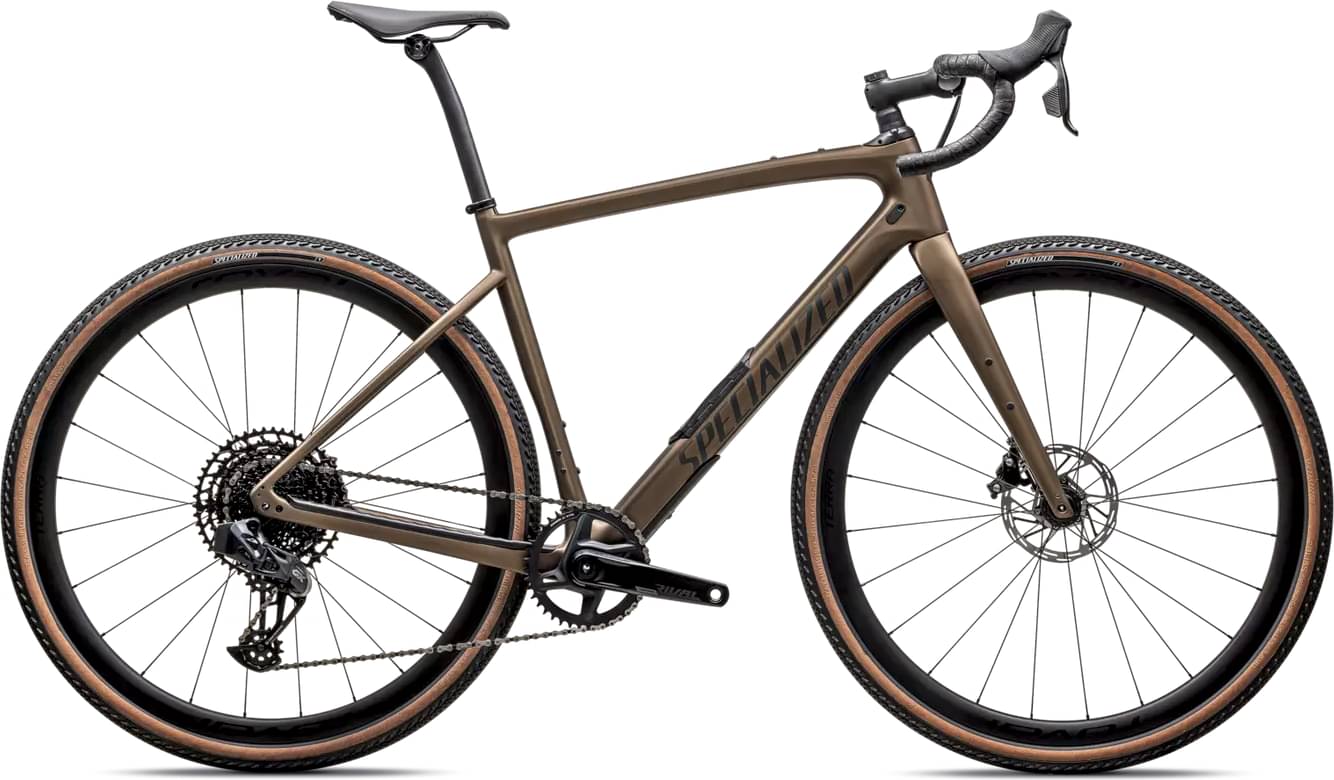

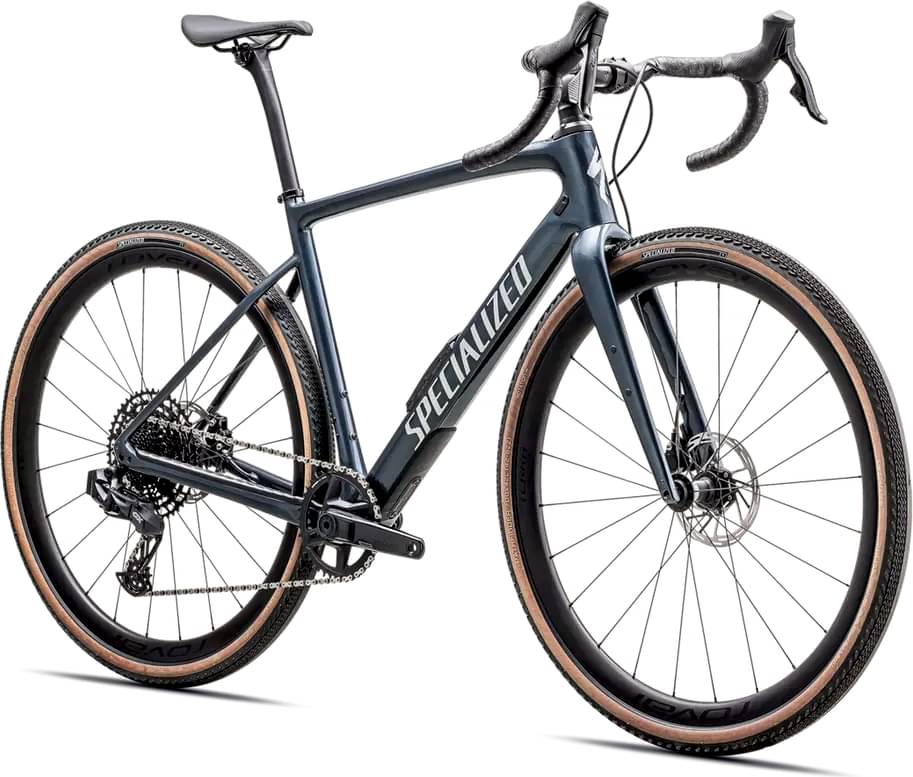

Specialized Diverge Expert Carbon 2025

Bike details

Overview

Key information split into simple groups.

Bike summary

Category
- Road
- |
- Gravel
Frame Carbon
Travel Front 20mm
Fork Specialized Future Shock 2.0
Groupset GX Eagle AXS, Rival AXS
Suspension Hardtail
Drivetrain 1 × 12 Electronic
Brakes SRAM Rival Hydraulic Disc

Sizing

Recommended size guide.

52cm
163cm - 170cm
54cm
170cm - 178cm
56cm
175cm - 180cm
58cm
180cm - 188cm
61cm
188cm - 196cm
64cm
196cm - 205cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc

Suspension Fork

Future Shock 2.0 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount

Drivetrain

Rear Derailleur

SRAM GX Eagle AXS

Shift Levers

SRAM Rival ETAP AXS

Cassette

SRAM NX Eagle, 12-speed, 11-50t

Crank

SRAM Rival 1 Wide, 40T

Bottom Bracket

SRAM DUB BSA 68

Chain

SRAM GX Eagle, 12-speed

Wheels

Rims

Front: Roval Terra C, 25mm inner width carbon rim, 32mm depth, NEW DT 370 hub, 24h, DT Swiss Comp Race spokes, Rear: Roval Terra C, 25mm inner width carbon rim, 32mm depth, NEW DT 370 Star Ratchet hub, 24h, DT Swiss Comp Race spokes

Tires

Front: Pathfinder Pro 2BR, Tan sidewall, 700x42, Rear: Pathfinder Pro 2BR, Tan sidewall, 700x42

Brakes

Front: SRAM Rival eTAP AXS, hydraulic disc, Rear: SRAM Rival eTAP AXS, hydraulic disc

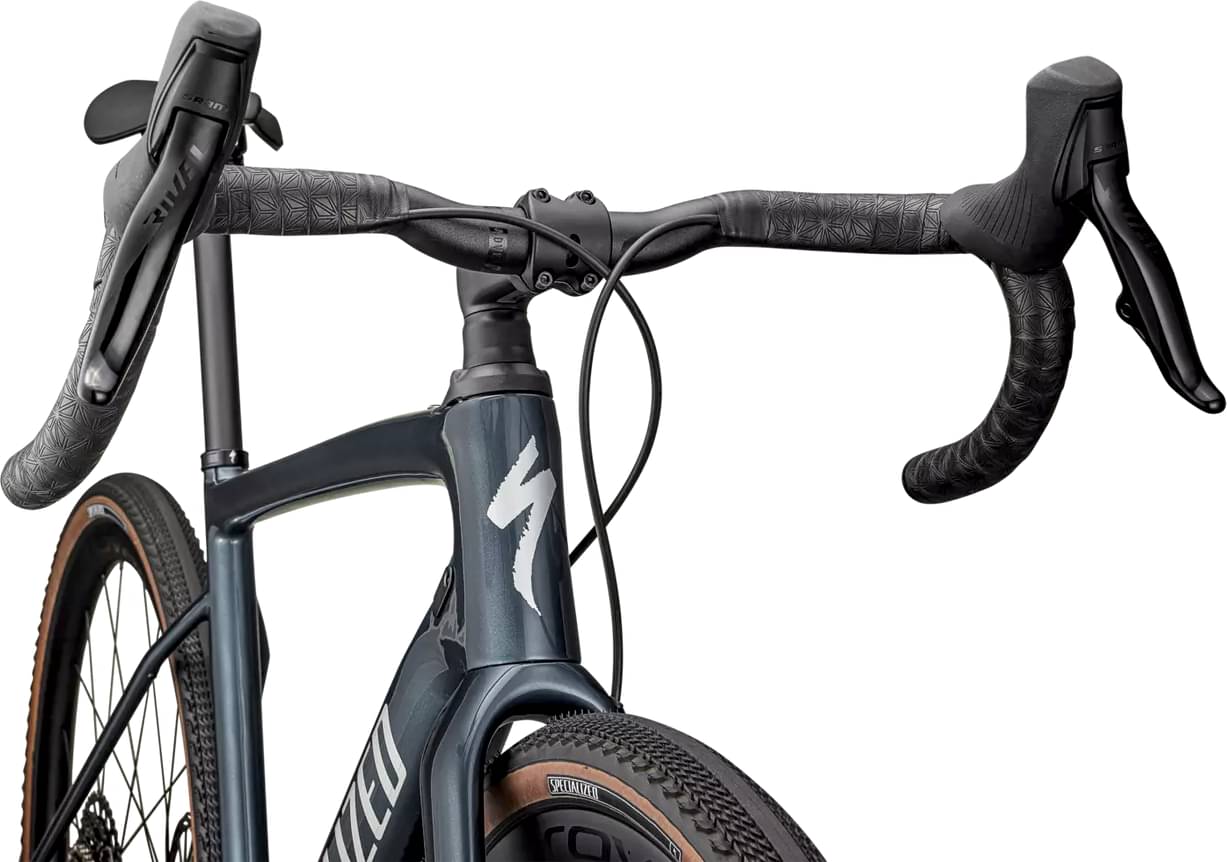

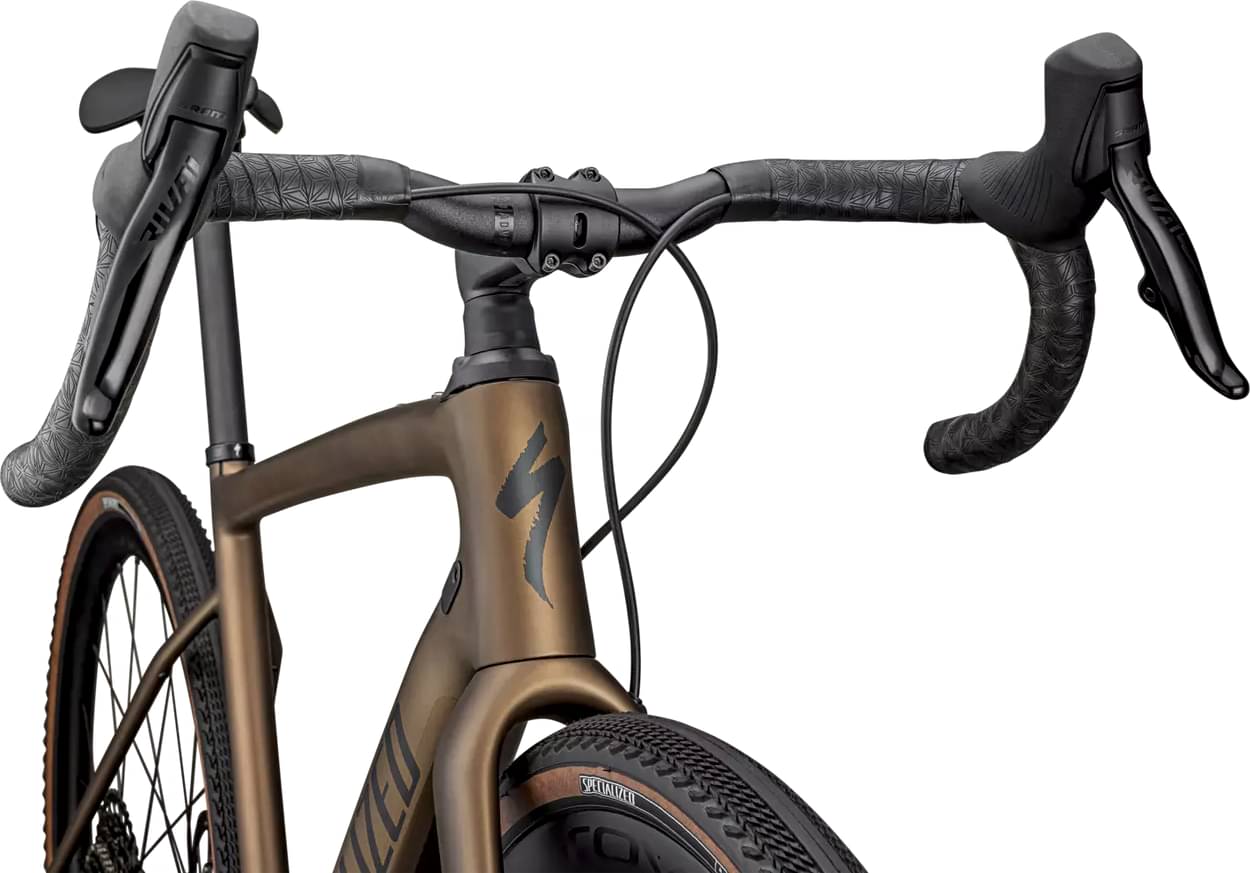

Cockpit

Stem

Future Stem, Pro

Handlebar

Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare

Seat

Saddle

Body Geometry Power Expert

Seatpost

Roval Terra Carbon Seat Post, 20mm Offset

Fit data

Geometry

Numbers for sizing and ride feel.

Size	49cm	52cm	54cm	56cm	58cm	61cm	64cm
Stack Reach Ratio	1.564 mm	1.543 mm	1.546 mm	1.556 mm	1.581 mm	1.607 mm	1.632 mm
Bottom Bracket Height	270 mm	270 mm	270 mm	270 mm	270 mm	270 mm	270 mm
Front Center	607 mm	614 mm	620 mm	630 mm	647 mm	664 mm	675 mm
Rake	55 mm	55 mm	55 mm	55 mm	55 mm	55 mm	55 mm
Trail	69 mm	66 mm	61 mm	57 mm	57 mm	57 mm	54 mm
Stack	571 mm	577 mm	592 mm	610 mm	634 mm	659 mm	684 mm
Reach	365 mm	374 mm	383 mm	392 mm	401 mm	410 mm	419 mm
Top Tube Length	529 mm	542 mm	558 mm	573 mm	589 mm	605 mm	628 mm
Seat Tube Angle	74 °	73.75 °	73.5 °	73.5 °	73.5 °	73.5 °	73 °
Seat Tube Length	470 mm	500 mm	530 mm	560 mm	590 mm	390 mm	430 mm
Head Tube Angle	70 °	70.5 °	71.25 °	71.75 °	71.75 °	71.75 °	72.25 °
Head Tube Length	99 mm	104 mm	116 mm	133 mm	159 mm	185 mm	209 mm
Chainstay Length	425 mm	425 mm	425 mm	425 mm	425 mm	425 mm	425 mm
Wheelbase	1019 mm	1026 mm	1032 mm	1042 mm	1059 mm	1076 mm	1088 mm
Bottom Bracket Drop	80 mm	80 mm	80 mm	80 mm	80 mm	80 mm	80 mm
Standover Height	700	725 mm	754 mm	779 mm	805 mm	832 mm	859 mm
Wheels	700	700	700	700	700	700	700
