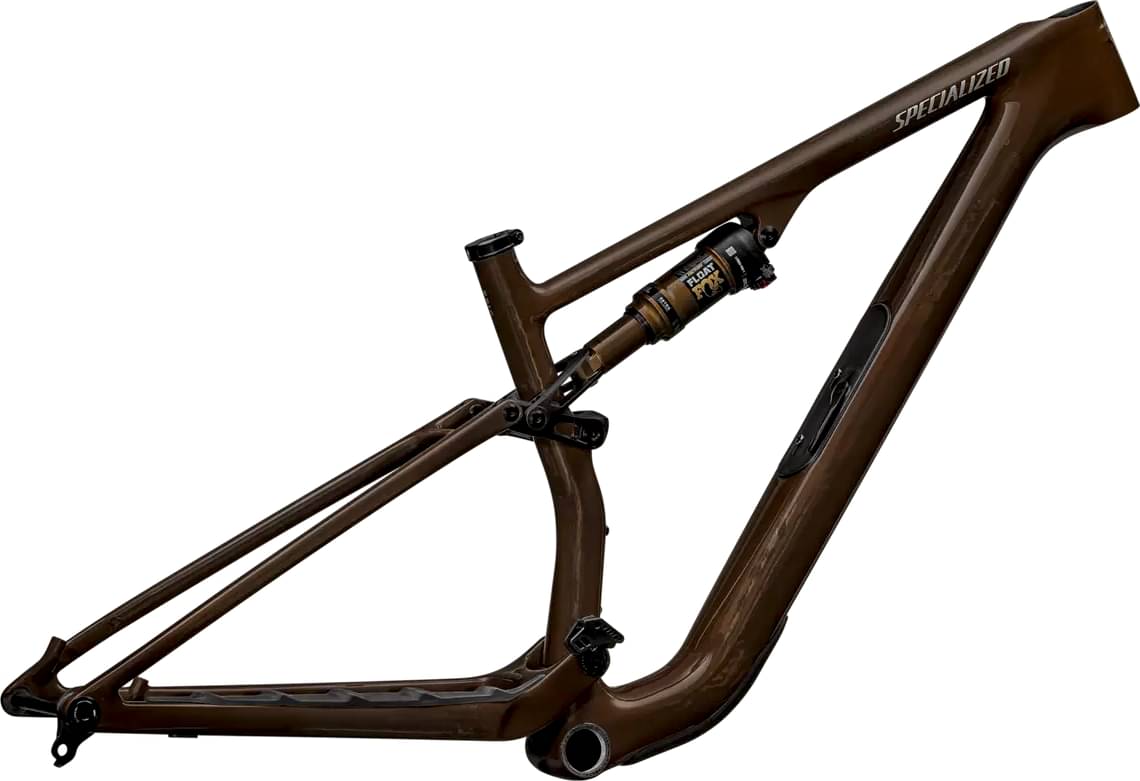

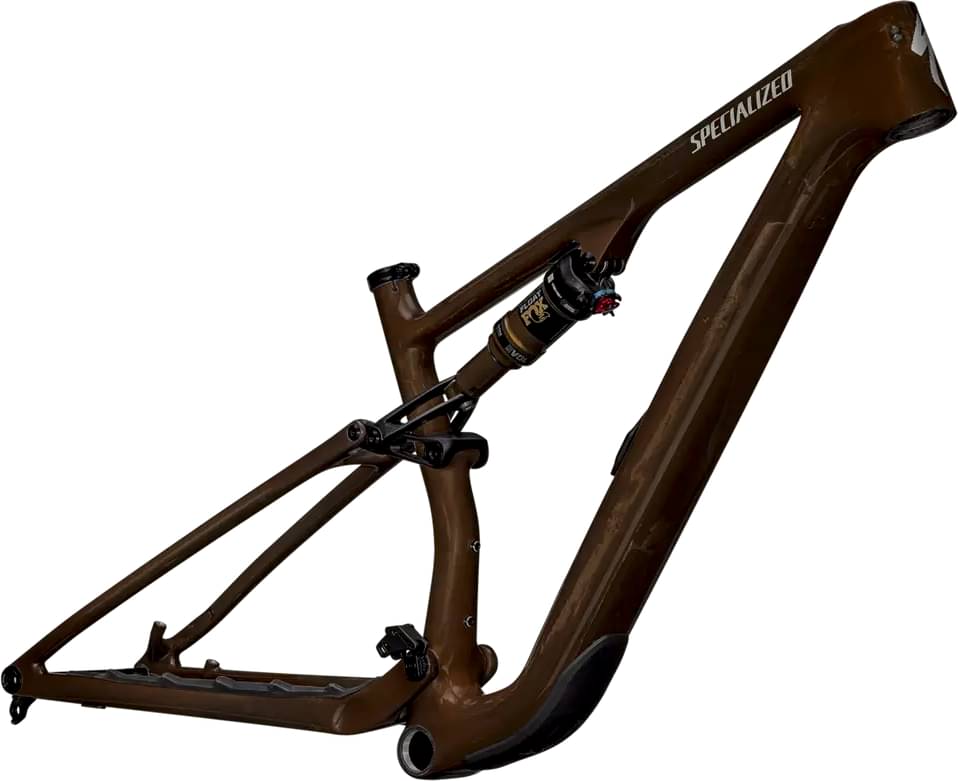

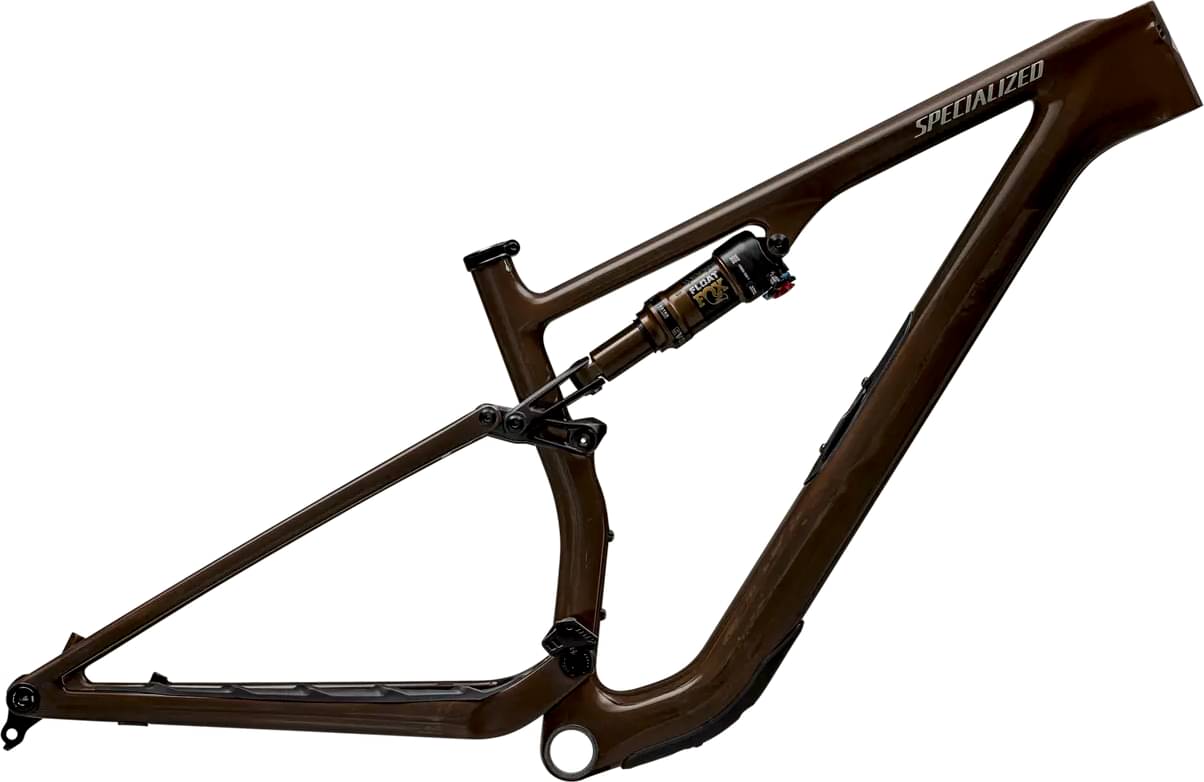

Specialized Epic 8 EVO Pro Frameset 2026
2026 Mountain
Estimate price |
3,499$
Weight | 2.21 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Travel Rear 120mm -
Suspension Full
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, SWAT downtube storage, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel
Rear Shock
Fox Float Factory, Evol LV, Ride Dynamics Tuned, 2-position compression adjust, 190x45mm
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.574 mm | 1.446 mm | 1.351 mm | 1.304 mm | 1.277 mm |
| Bottom Bracket Height | 322 mm | 327 mm | 329 mm | 331 mm | 331 mm |
| Front Center | 690 mm | 720 mm | 751 mm | 782 mm | 815 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Stack | 606 mm | 600 mm | 601 mm | 613 mm | 632 mm |
| Reach | 385 mm | 415 mm | 445 mm | 470 mm | 495 mm |
| Top Tube Length | 535 mm | 569 mm | 605 mm | 633 mm | 662 mm |
| Seat Tube Angle | 76 ° | 75.5 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 370 mm | 390 mm | 410 mm | 450 mm | 500 mm |
| Head Tube Angle | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 92 mm | 92 mm | 95 mm | 110 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1121 mm | 1151 mm | 1183 mm | 1214 mm | 1247 mm |
| Bottom Bracket Drop | 49 mm | 43 mm | 41 mm | 39 mm | 39 mm |
| Standover Height | 754 mm | 761 mm | 766 mm | 775 mm | 779 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
