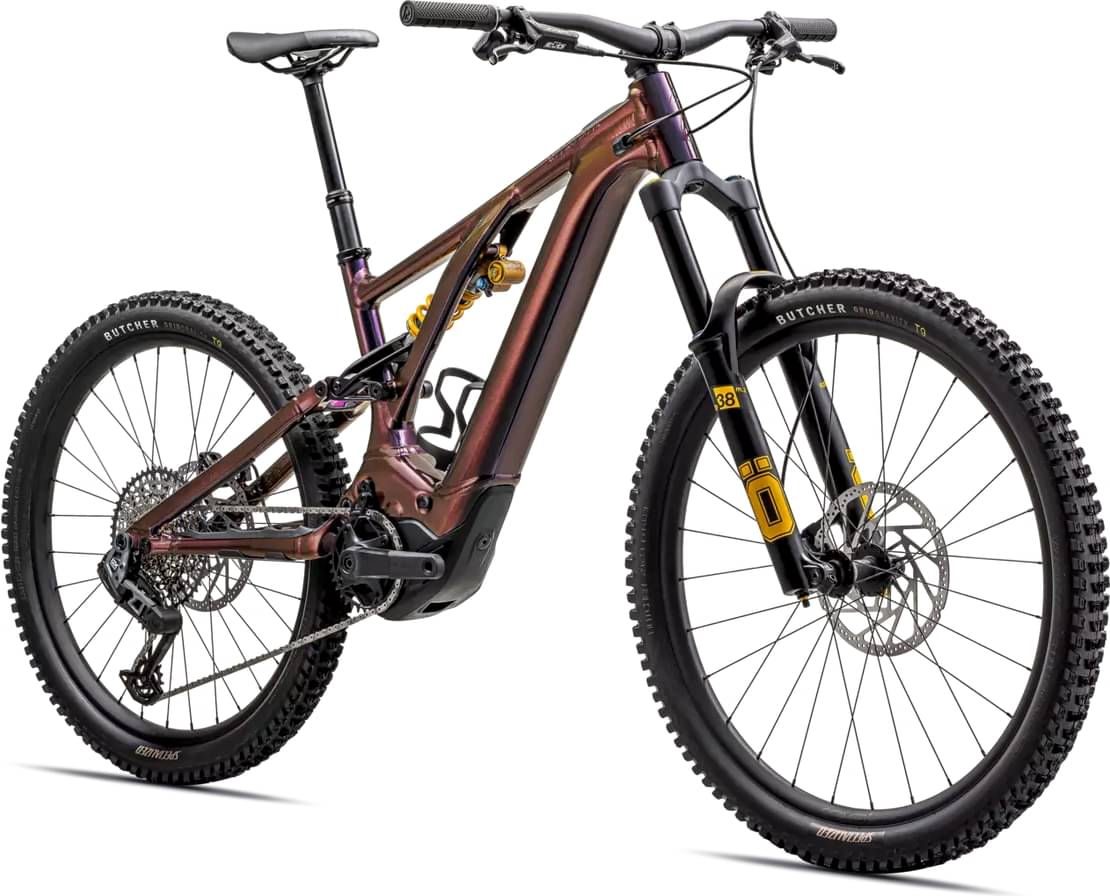

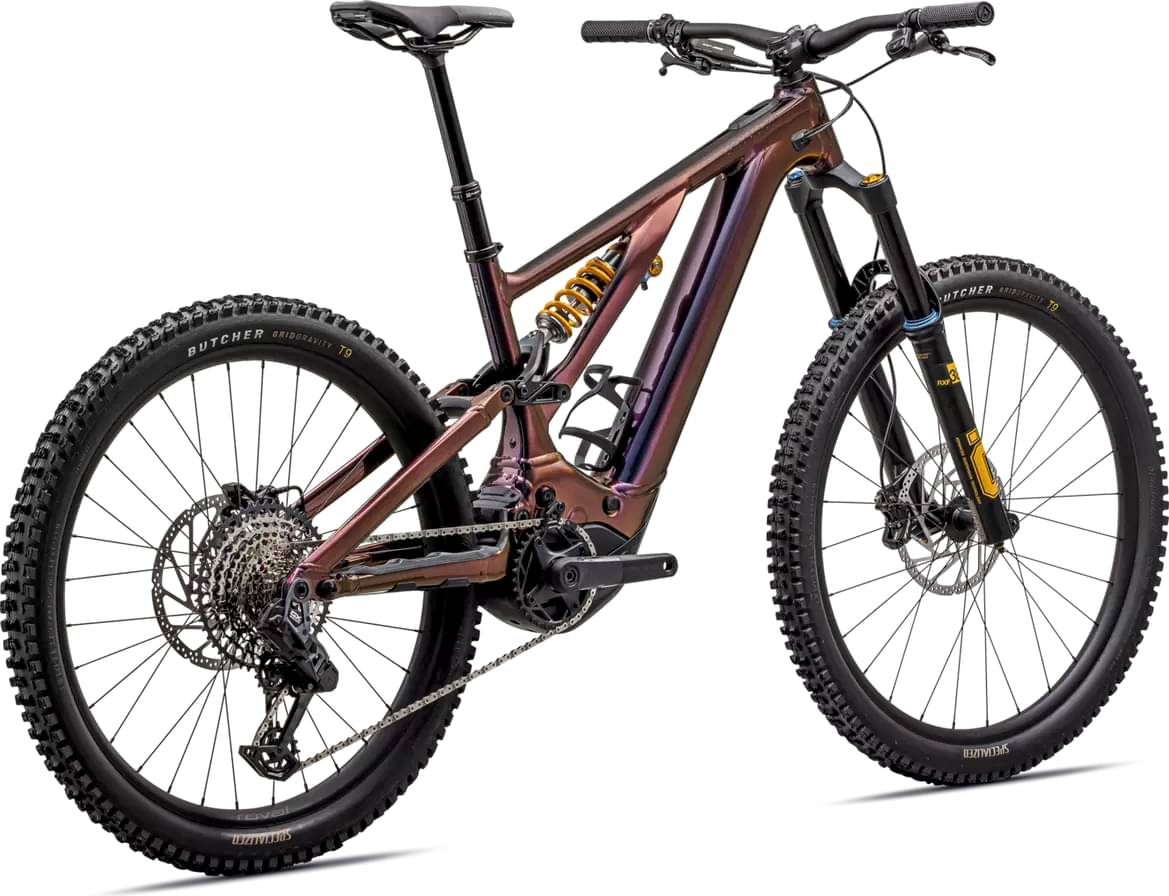

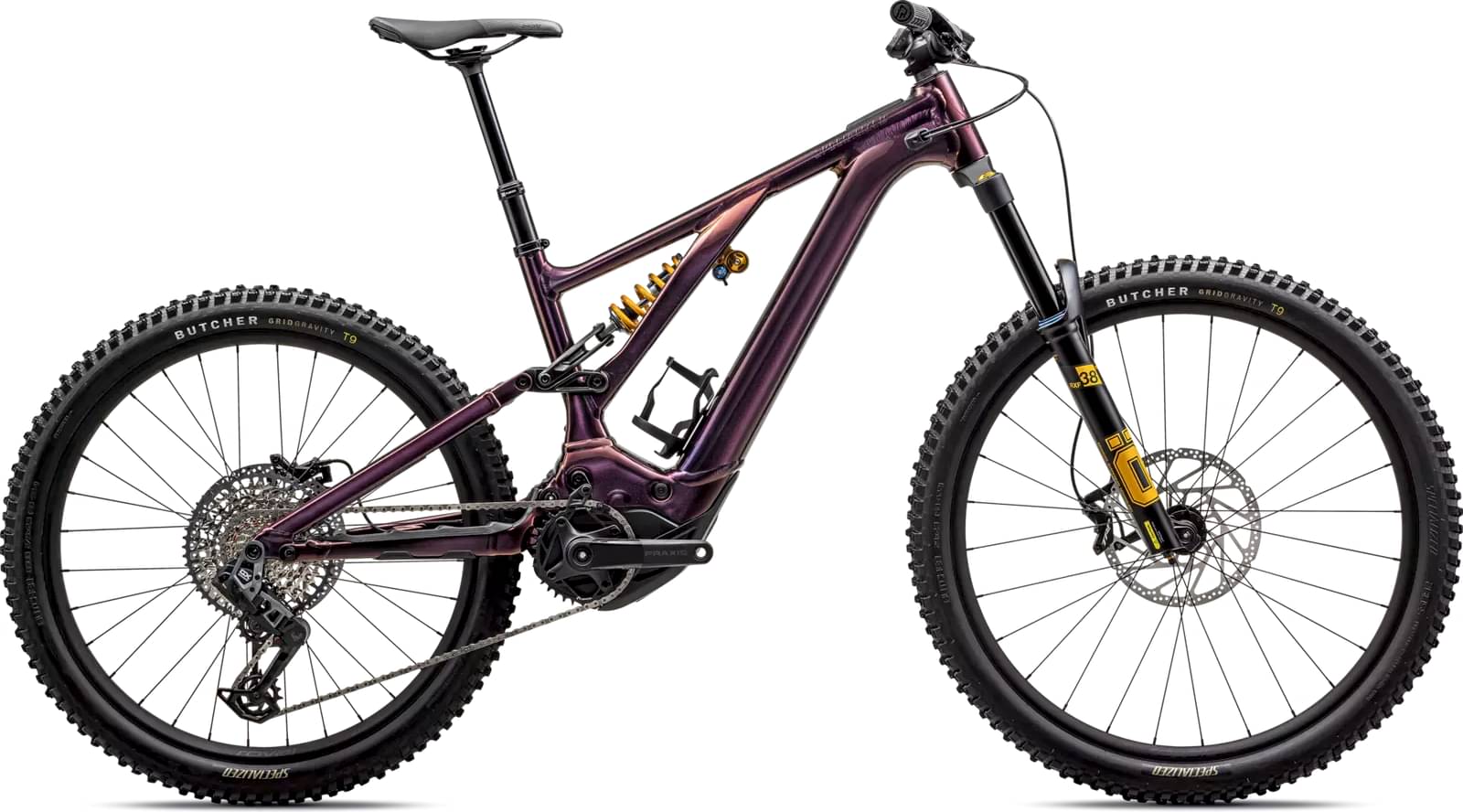

Specialized Levo Alloy LTD Öhlins Stahlfeder 2024
2024 E-bike
Estimate price |
9,405$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 150mm -
Fork Öhlins RXF38
-
Groupset GX Eagle Transmission -
Suspension Full -

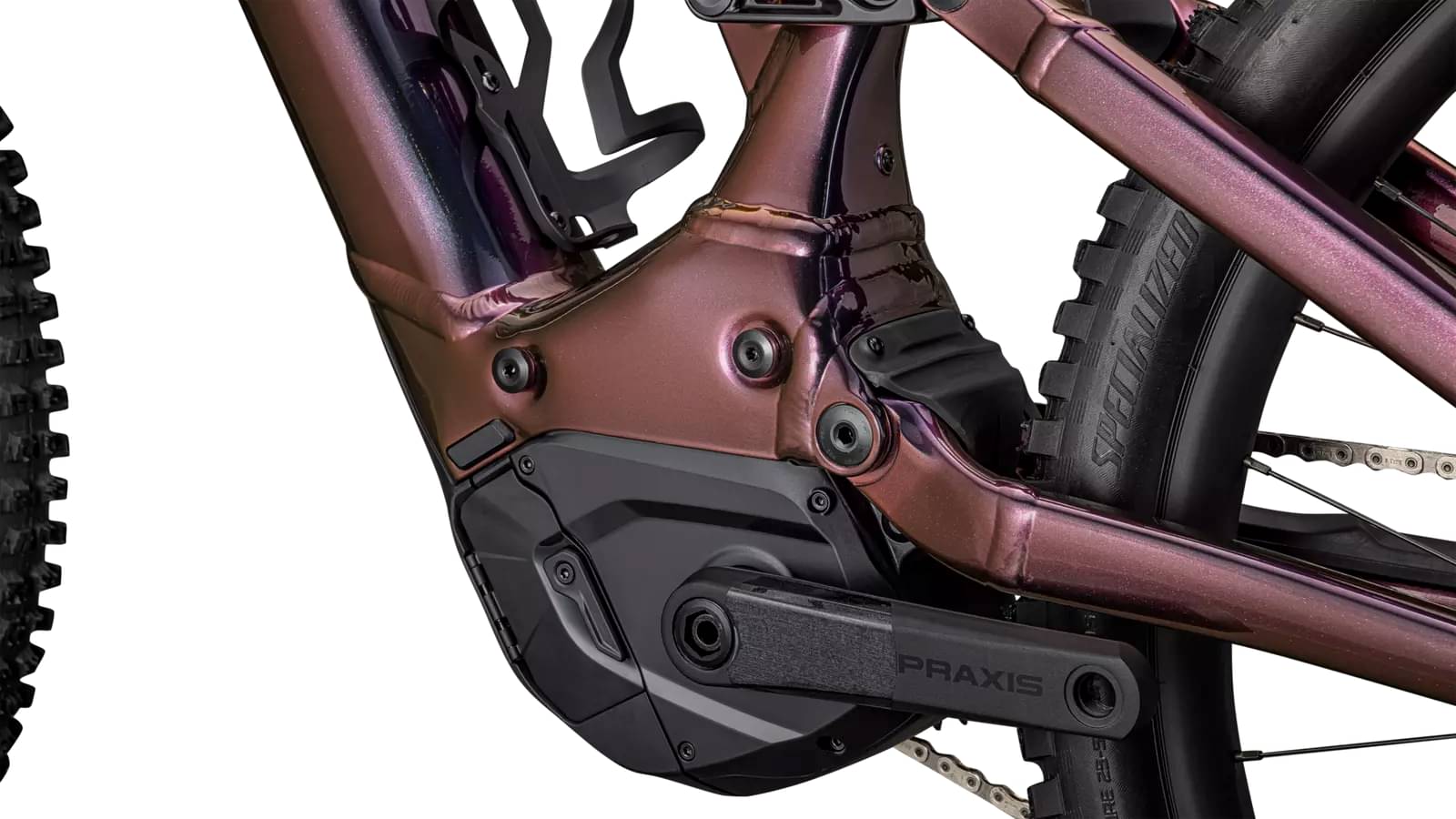

Motor Specialized mid-drive -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
S6
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized M5 premium alloy, headset adjust, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
Suspension Fork
Ohlins RXF38, 29", 160mm travel

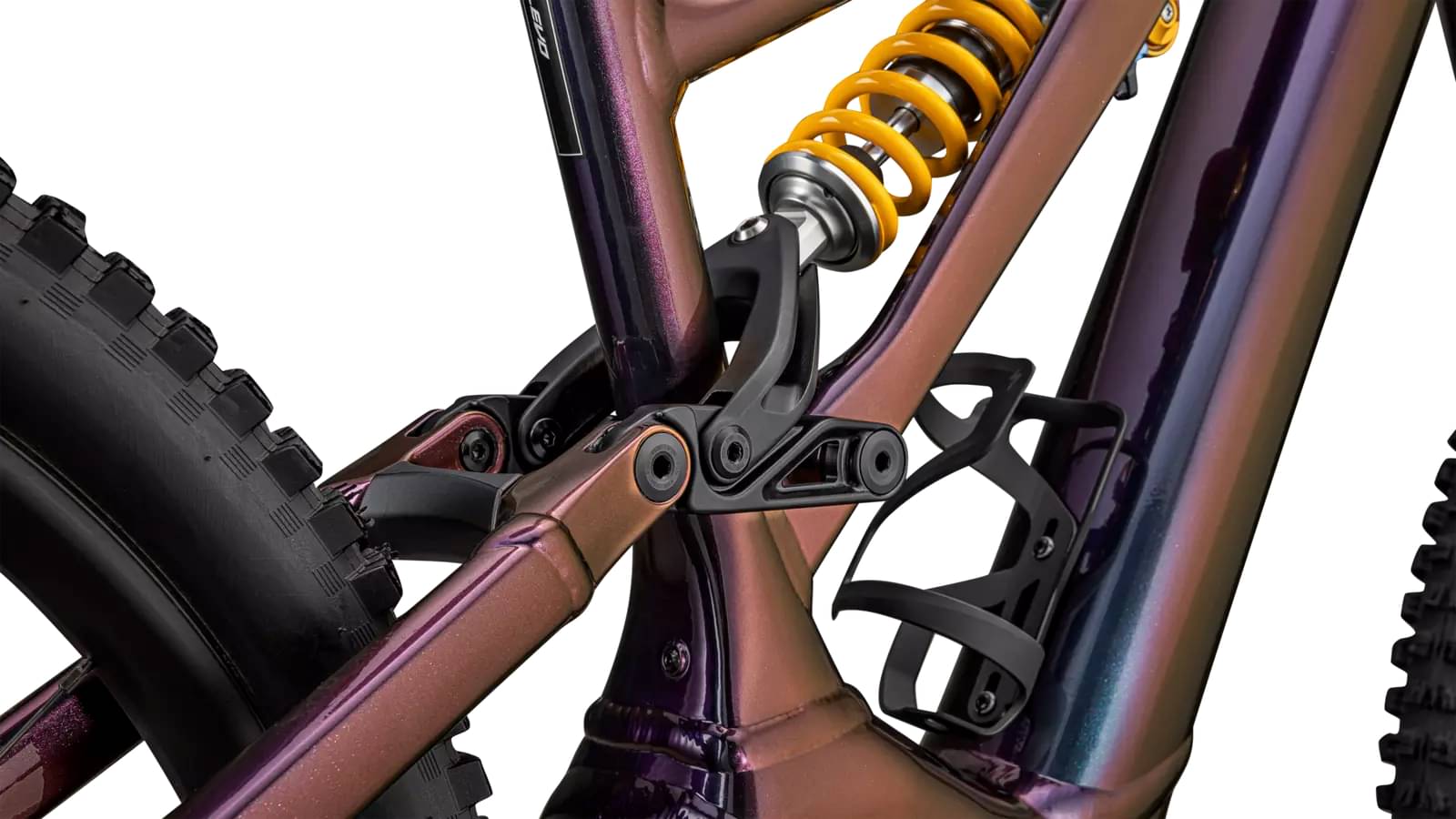

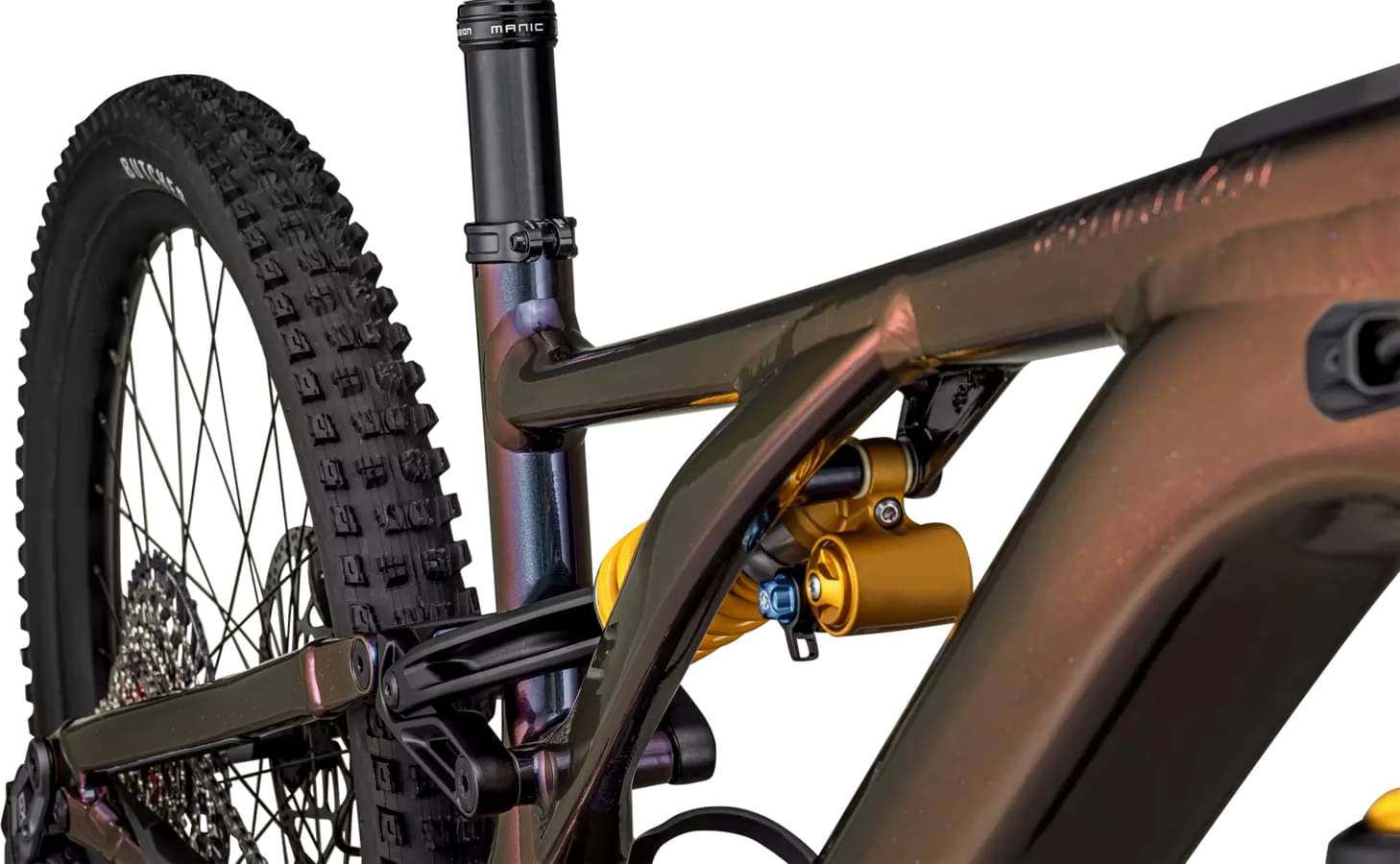

Rear Shock
Ohlins TTX coil, 210x55mm S2: 411lbs, S3: 457lbs, S4: 502lbs, S5: 548lbs, S6: 605lbs
Drivetrain
Rear Derailleur
SRAM GX Eagle Transmission Derailleur
Shift Levers
SRAM AXS POD Controller
Cassette
SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Crank
Praxis forged M30, custom offset, 160mm
Chain
SRAM GX Eagle Transmission Flattop Chain
Wheels
Rims
Roval Traverse 29 Alloy, 30mm internal width, 28h: Roval Traverse 27.5 Alloy, 30mm internal width, 32h
Spokes
Sapim Force
Tires
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Brakes
Brakes
TRP DH-R Evo brakes, 220mm rotor
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore

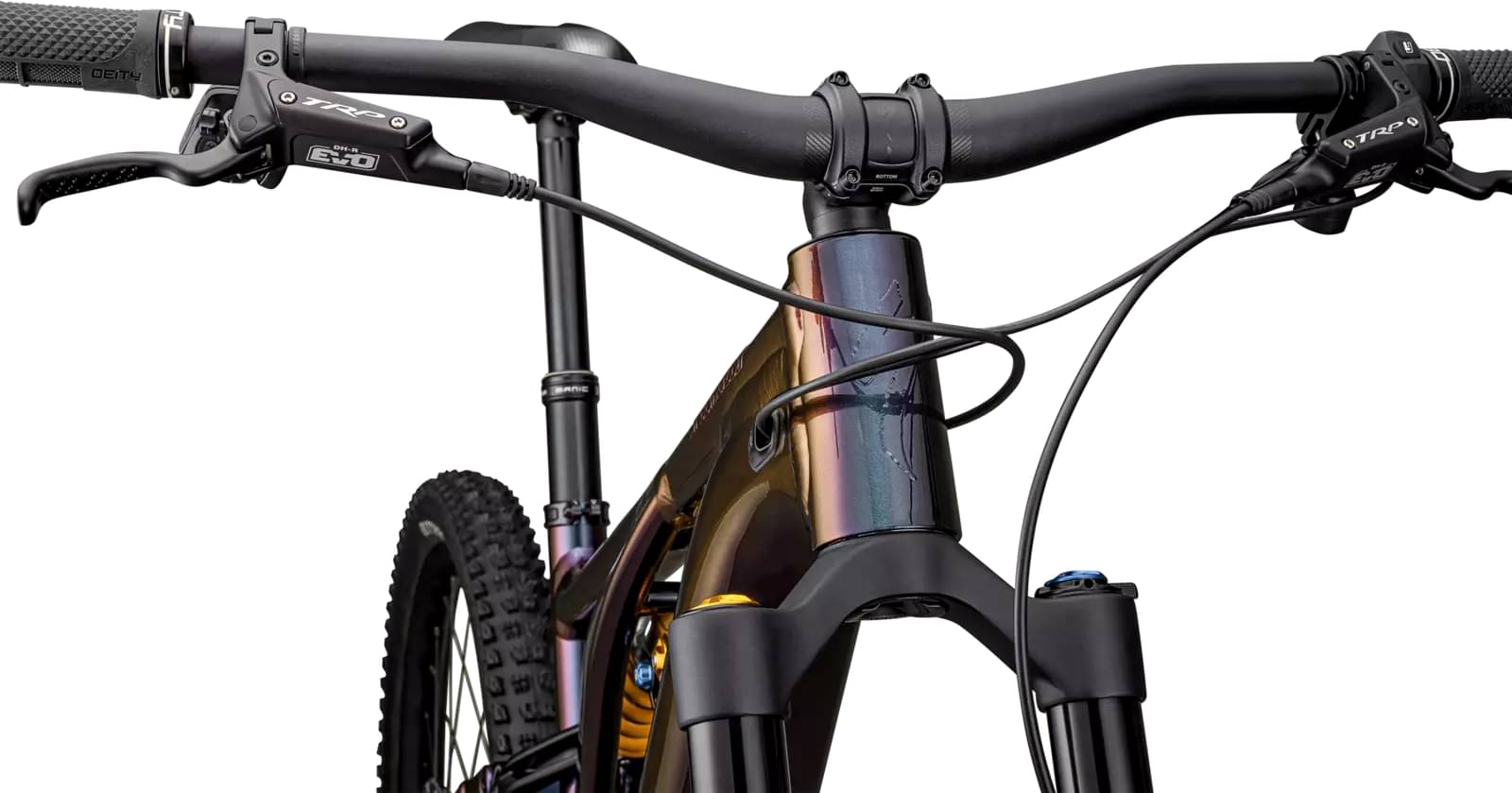

Handlebar
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Seat
Saddle
Bridge, 155/143mm, Hollow Ti-rails
Seatpost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm
Motor & Battery
Motor
Specialized 2.2 Custom RX Trail Tuned Motor
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.428 mm | 1.385 mm | 1.331 mm | 1.283 mm | 1.227 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 759 mm | 784 mm | 814 mm | 843 mm | 877 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 617 mm | 626 mm | 635 mm | 644 mm | 653 mm |
| Reach | 432 mm | 452 mm | 477 mm | 502 mm | 532 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1200 mm | 1225 mm | 1255 mm | 1284 mm | 1318 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 776 mm | 783 mm | 787 mm | 788 mm | 790 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 165 cm | 172 cm | 177 cm | 188 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 193 cm | 203 cm |
