Specialized P.4 Frameset 2023

2023 Mountain
Estimate price | 1,032$
Weight | 2.12 kg
Open compare Use advisor

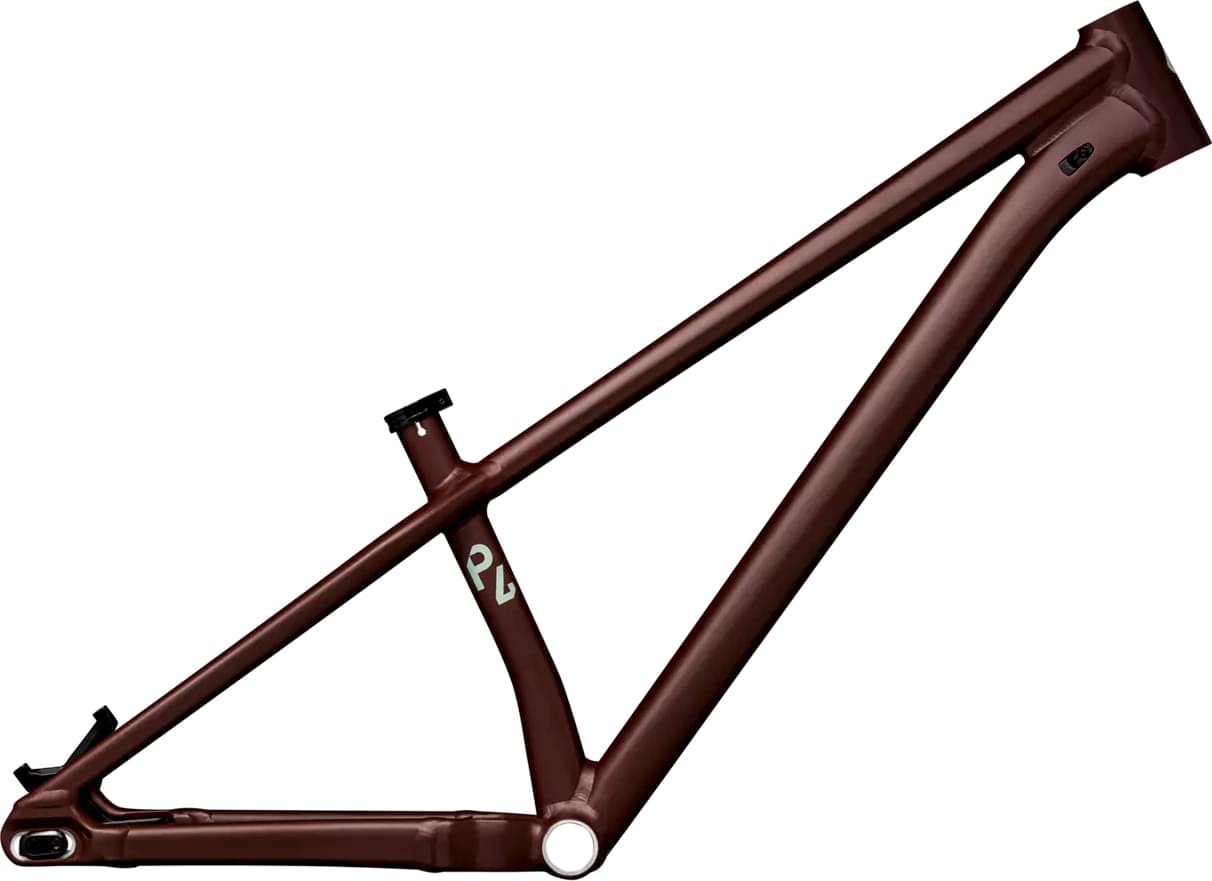

  • Specialized P.4 Frameset 2023 - Satin Rusted Red / White Sage

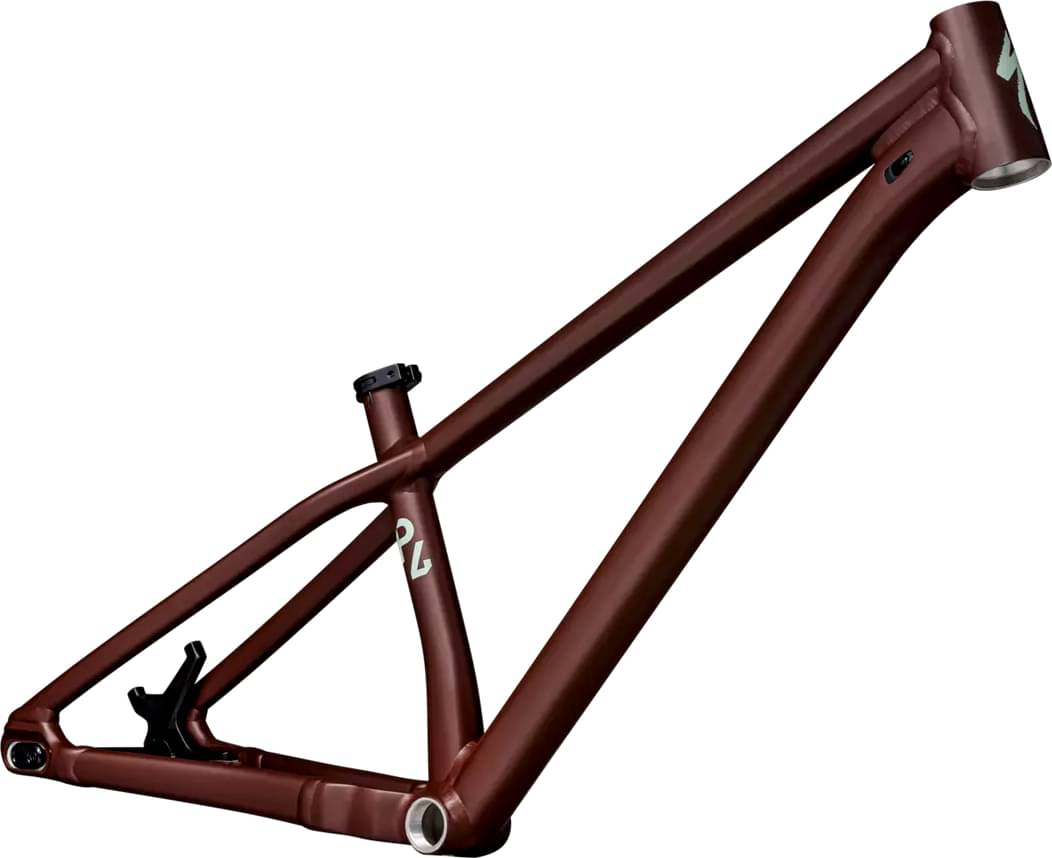

  • Specialized P.4 Frameset 2023 - Satin Rusted Red / White Sage

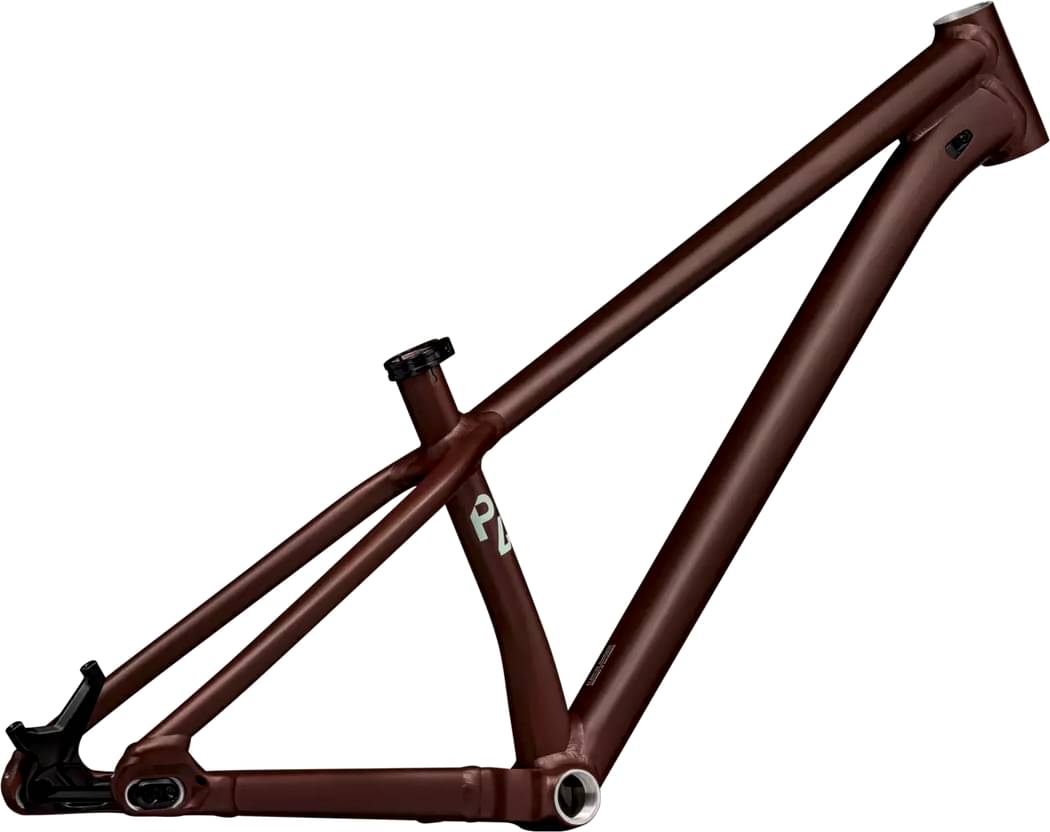

  • Specialized P.4 Frameset 2023 - Satin Rusted Red / White Sage

Bike details

Overview

Key information split into simple groups.

Frame summary

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Specialized P.4, A1 Premium Alloy, 27.5", Fully Butted Tubing, Tapered Head Tube, BSA 73mm BB Shell, 12x148TA Sliding Dropouts, Single Speed or Geared Compatible, 52mm CL, Internal cable routing, 30.9 Seat Tube, Dropper Post Compatible, 26" Wheel Compatible

Drivetrain

Bottom Bracket

BSA, 73mm, threaded

Fit data

Geometry

Numbers for sizing and ride feel.

SizeP4
Stack Reach Ratio
1.321 mm
Bottom Bracket Height
318 mm
Front Center
711 mm
Rake
44 mm
Trail
93 mm
Stack
588 mm
Reach
445 mm
Top Tube Length
636 mm
Head Tube Angle
68.5 °
Head Tube Length
120 mm
Chainstay Length
385 mm
Wheelbase
1094 mm
Bottom Bracket Drop
34 mm
Standover Height
697 mm
Wheels27"
Rider Min Height120 cm
