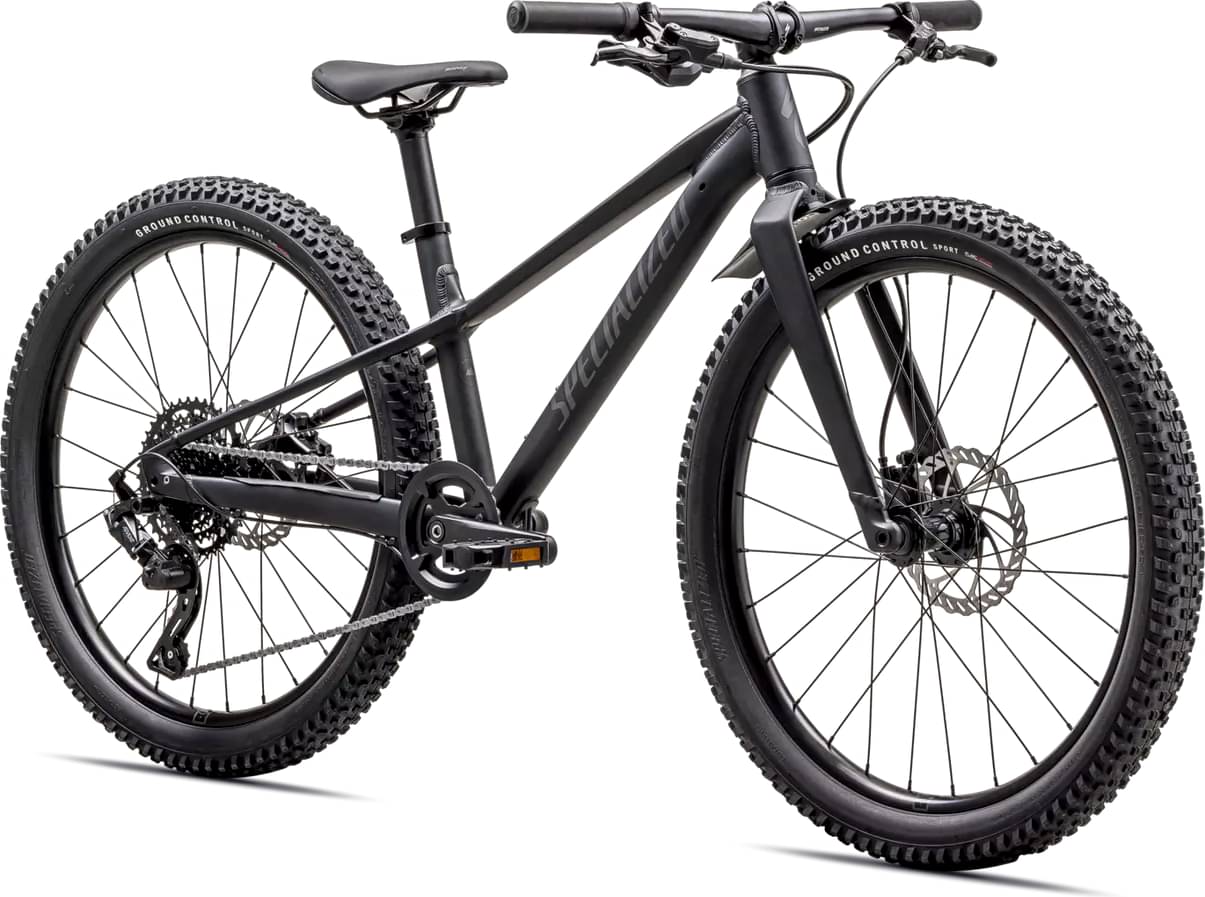

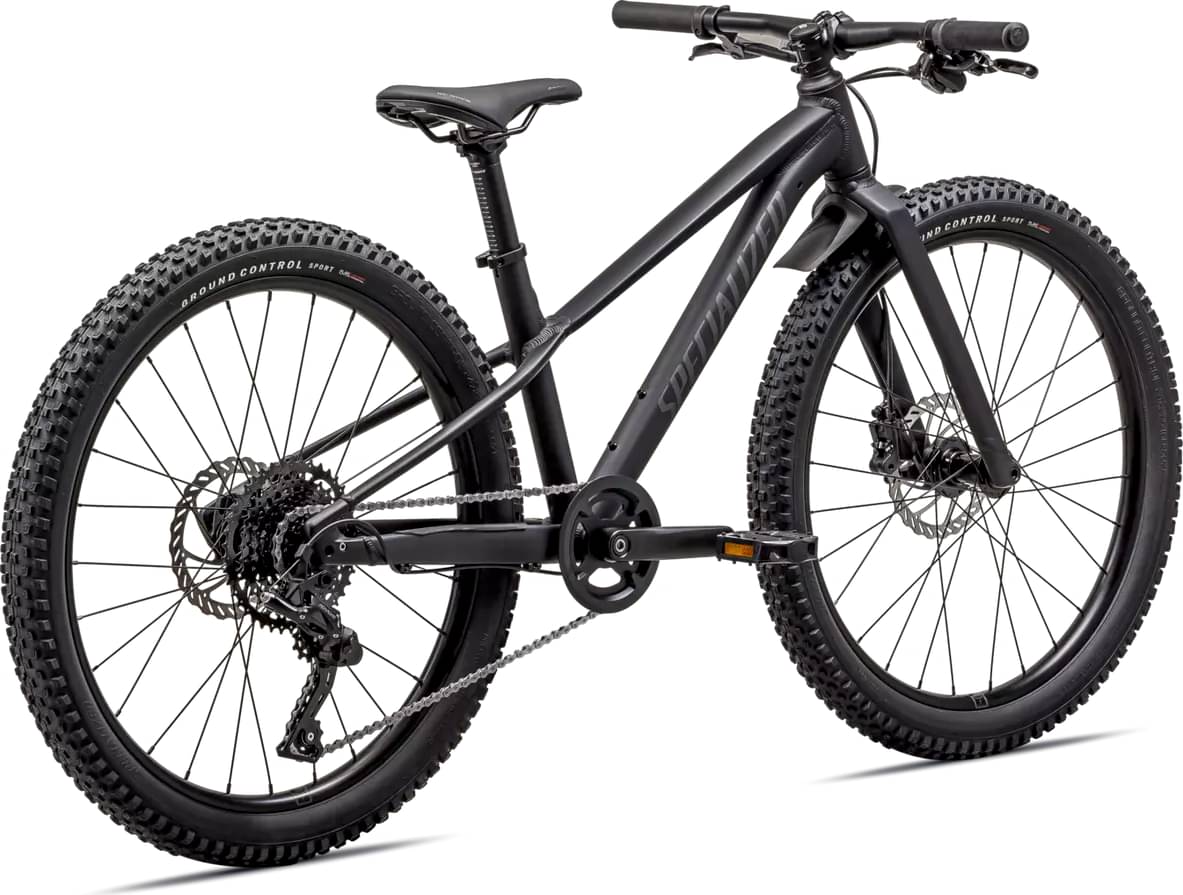

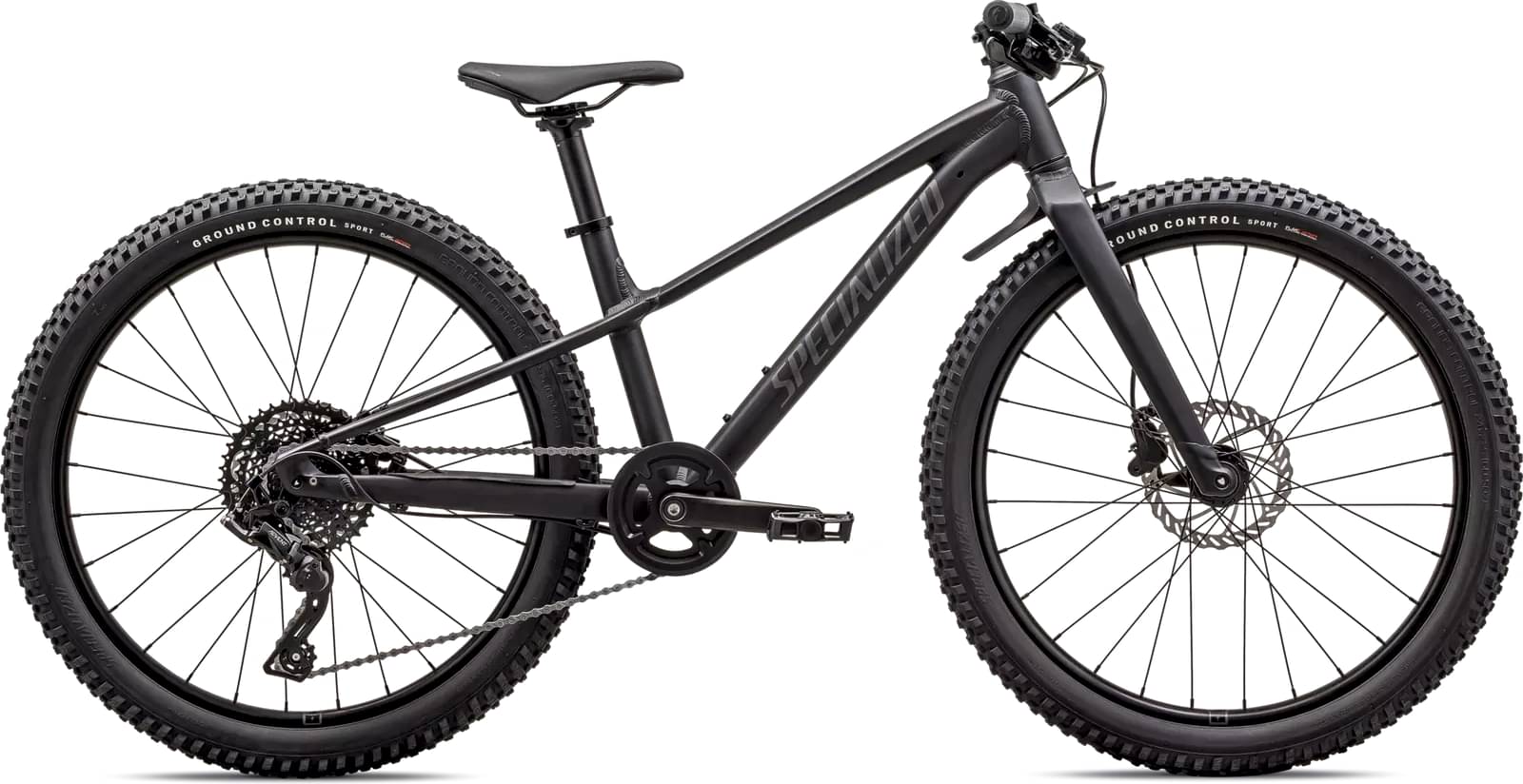

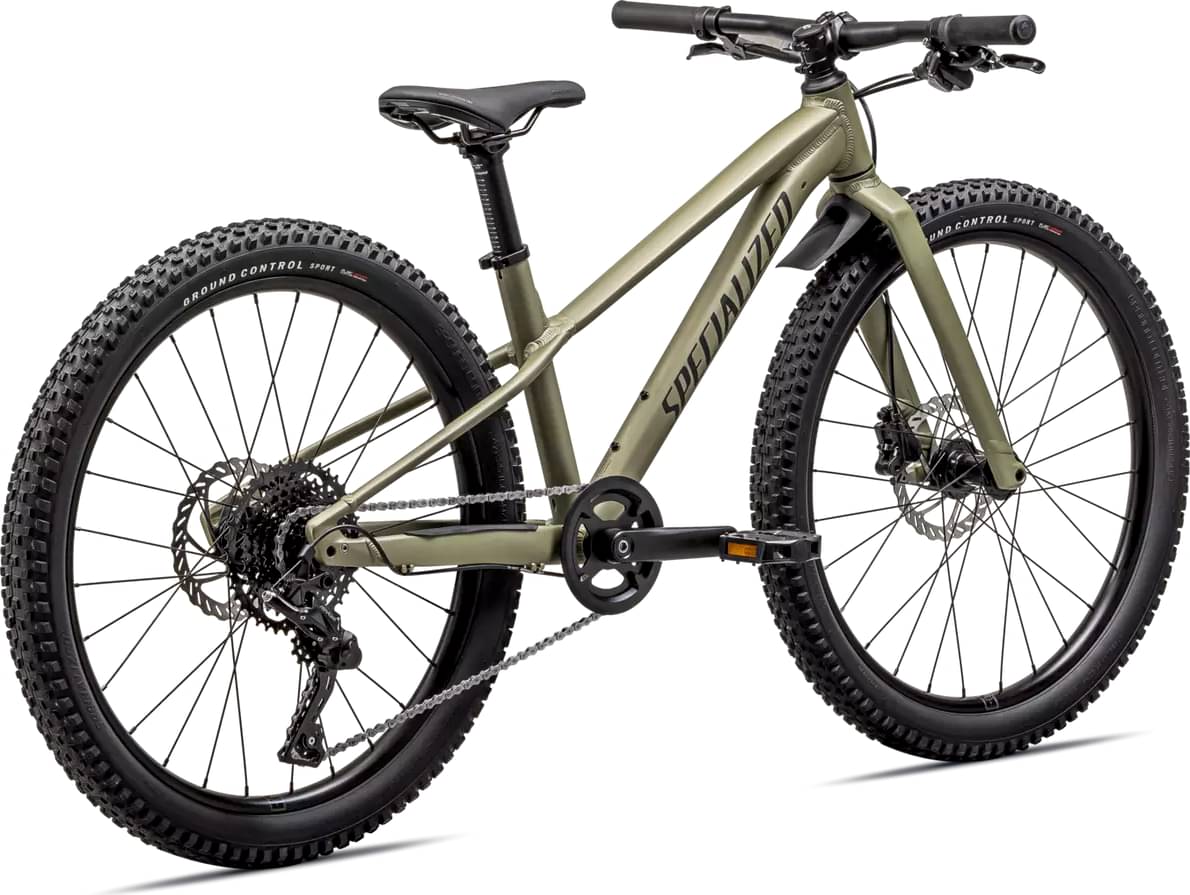

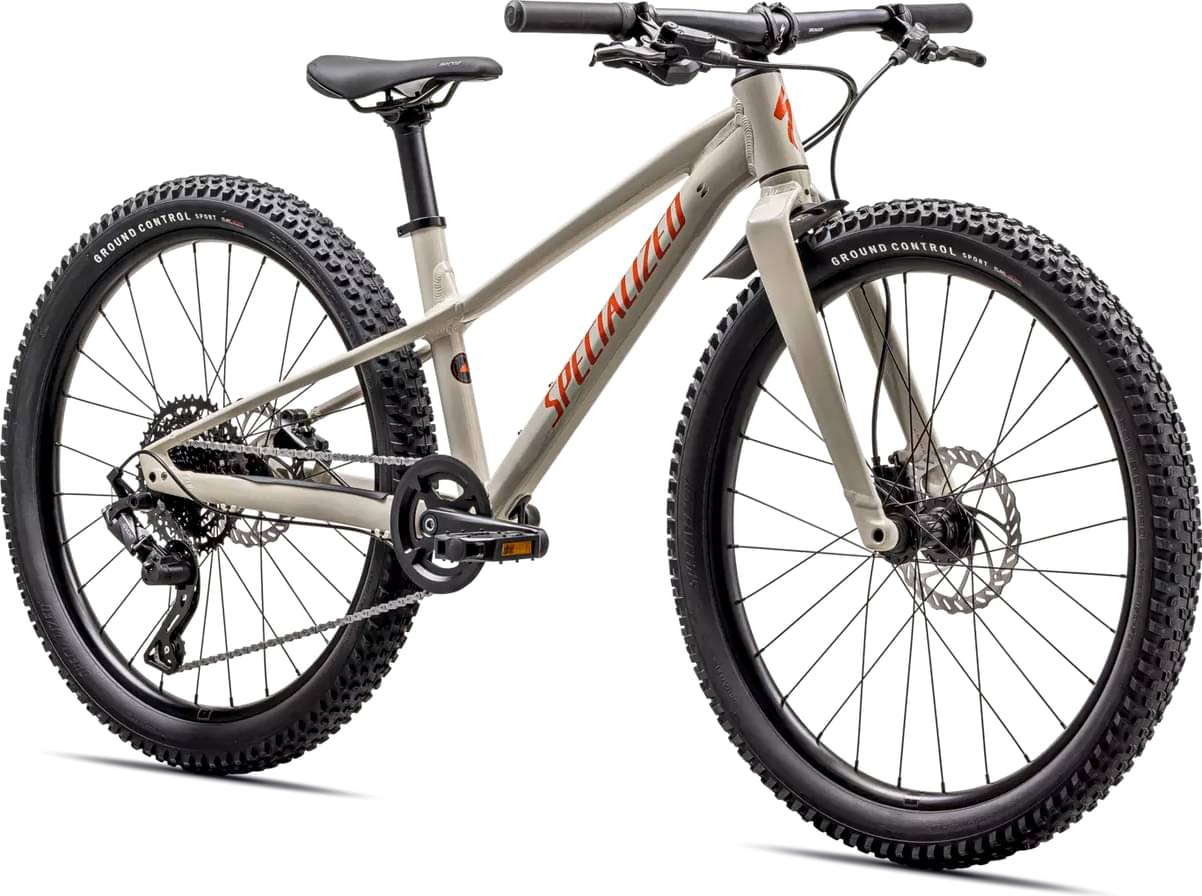

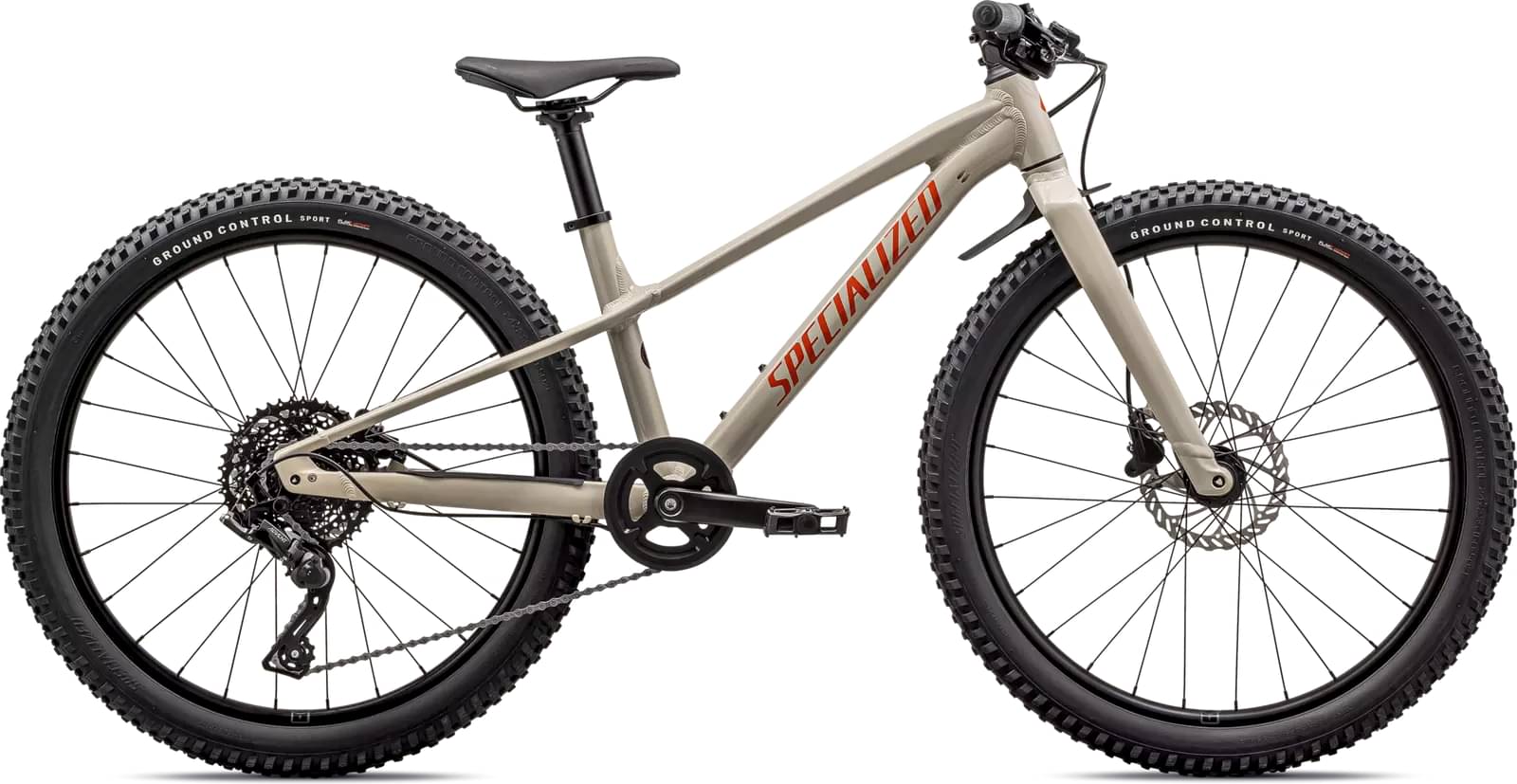

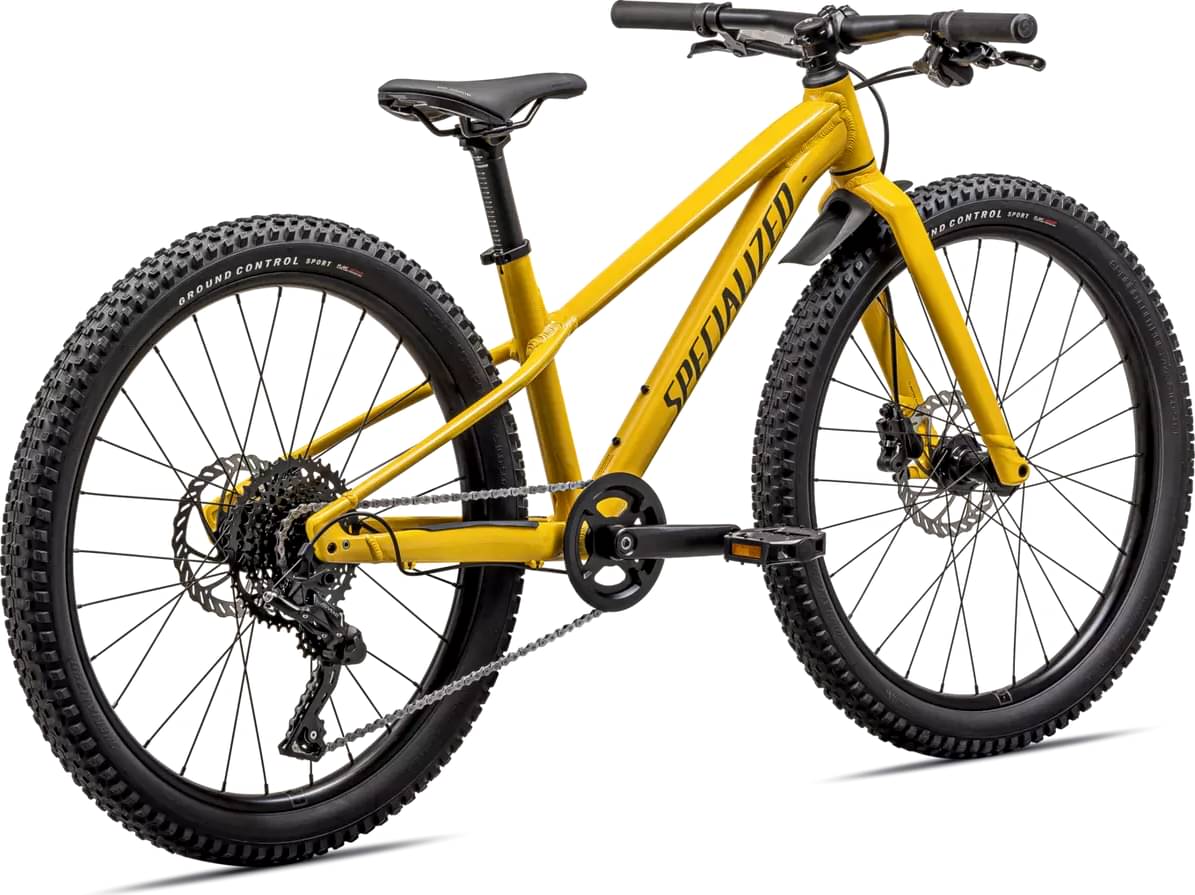

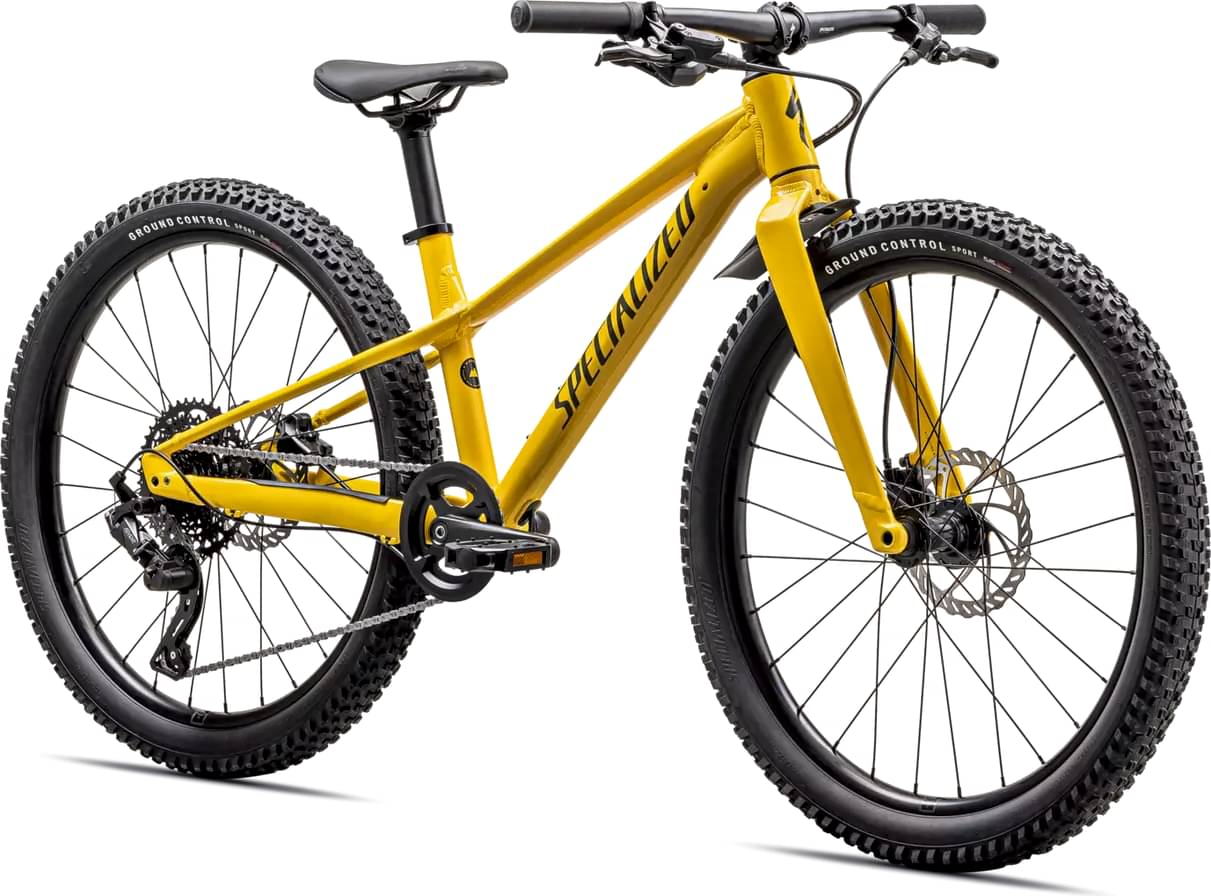

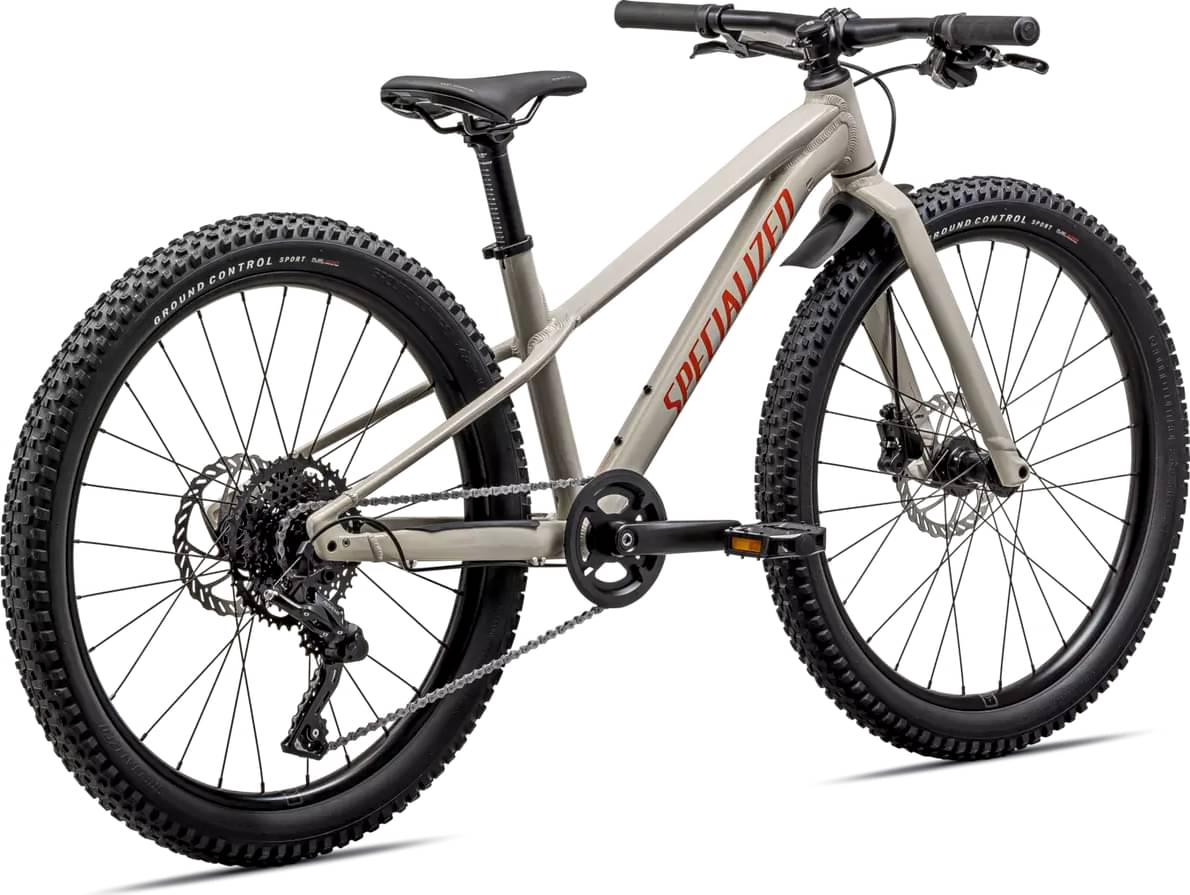

Specialized Riprock 24 2024
2024 Youth
Estimate price |
803$
Weight | 10.75 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Advent -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A1 Premium Butted Alloy, unisex frame, internal cable routing, 148mm thru-axle, 30.9mm dropper post ready, replaceable derailleur hanger compatible
Suspension Fork
A1 Premium Butted Alloy, Alloy steerer, 15x110 mm, W/Mini Fender
Drivetrain
Rear Derailleur
microSHIFT Advent, RD-M6195M, w/ clutch
Shift Levers
microSHIFT Advent Quick Trigger SL-M6190, 9-Speed, short reach triggers for easy operation
Cassette
microSHIFT Advent CS-H094, 11-42T, 9-speed
Crank
Forged Alloy, 115mm length, narrow Q-factor, w/ chainguard, 40T
Bottom Bracket
Square-tapered, 68mm
Chain
KMC X9EPT, 9-speed, anti-corrosion coating w/ reusable Missing Link™
Pedals
Nylon platform w/ reflectors
Wheels
Front Hub
Alloy, 6-Bolt, 28H, 15x110 Boost
Rear Hub
Alloy, 6-Bolt, 28H, 12x148 Boost, 11-speed compatiable
Rims
Alloy, 16mm depth, 25mm internal width, 28H
Spokes
Stainless, 14g
Tires
Front: Ground Control Sport, 24x2.35", Rear: Ground Control Sport, 24x2.35"
Brakes
Brakes
Front: Promax DSK-926, Hydraulic Disc Brake, 160mm Rotor, Adjustable Reach, Rear: Promax DSK-926, Hydraulic Disc Brake, 160mm Rotor, Adjustable Reach
Cockpit
Stem
Stout 3D-forged alloy, 31.8mm, 6-degree rise
Handlebar
Double-butted alloy, 9-degree backsweep, 31.8mm
Grips
Specialized Trail Grips, lock-on
Seat
Saddle
Kids Bridge Saddle, 130mm
Seatpost
Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 24" |
|---|---|
| Stack Reach Ratio | 1.283 mm |
| Bottom Bracket Height | 287.5 mm |
| Front Center | 565 mm |
| Rake | 42 mm |
| Trail | 83 mm |
| Stack | 449 mm |
| Reach | 350 mm |
| Top Tube Length | 479 mm |
| Seat Tube Angle | 73.5 ° |
| Seat Tube Length | 310 mm |
| Head Tube Angle | 68 ° |
| Head Tube Length | 95 mm |
| Chainstay Length | 390 mm |
| Wheelbase | 953 mm |
| Bottom Bracket Drop | 30 mm |
| Standover Height | 593 mm |
| Wheels | 24" |
