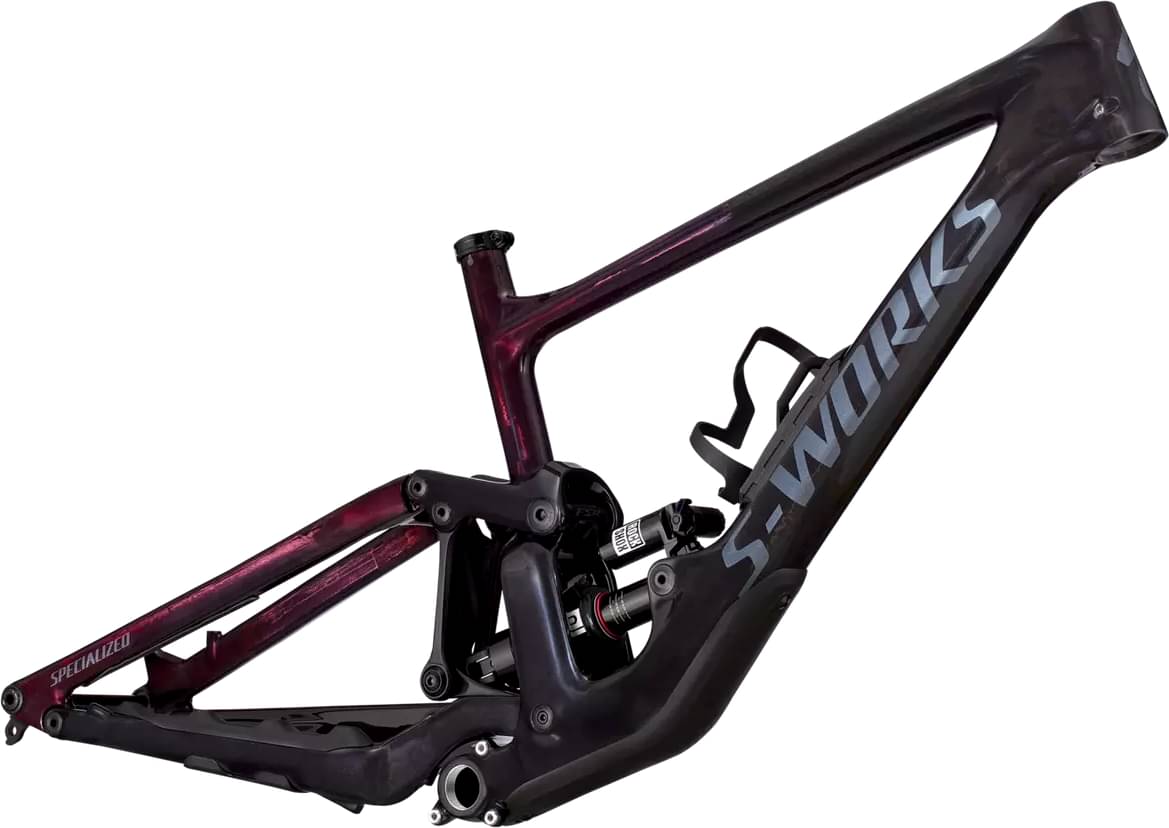

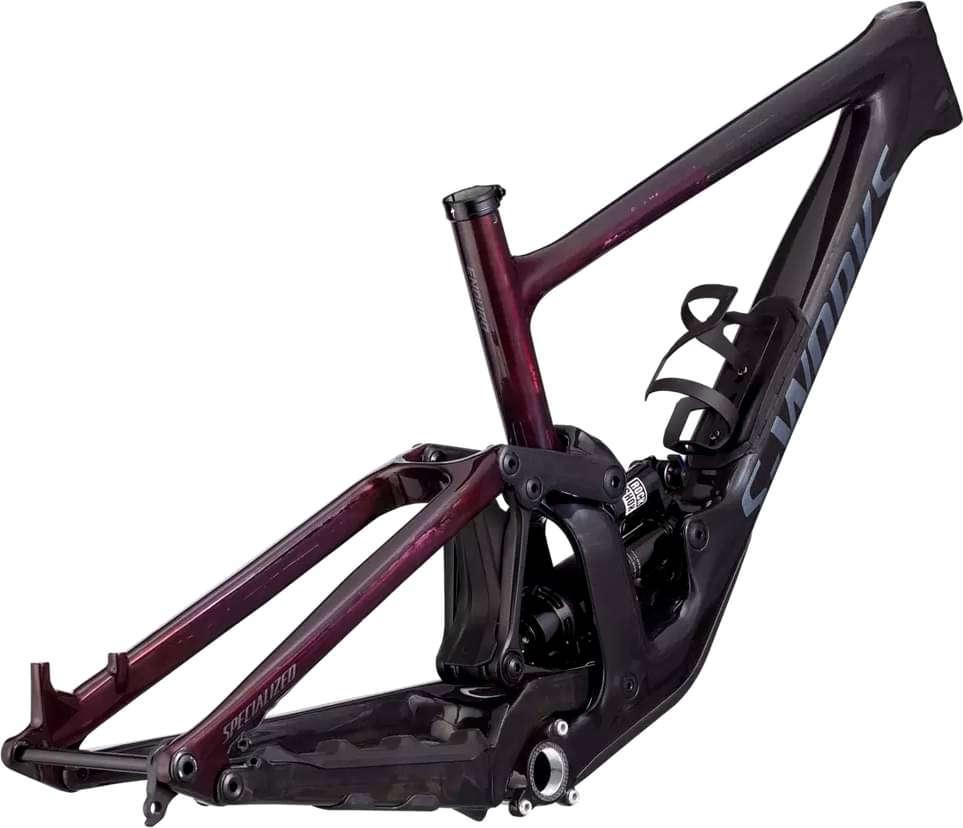

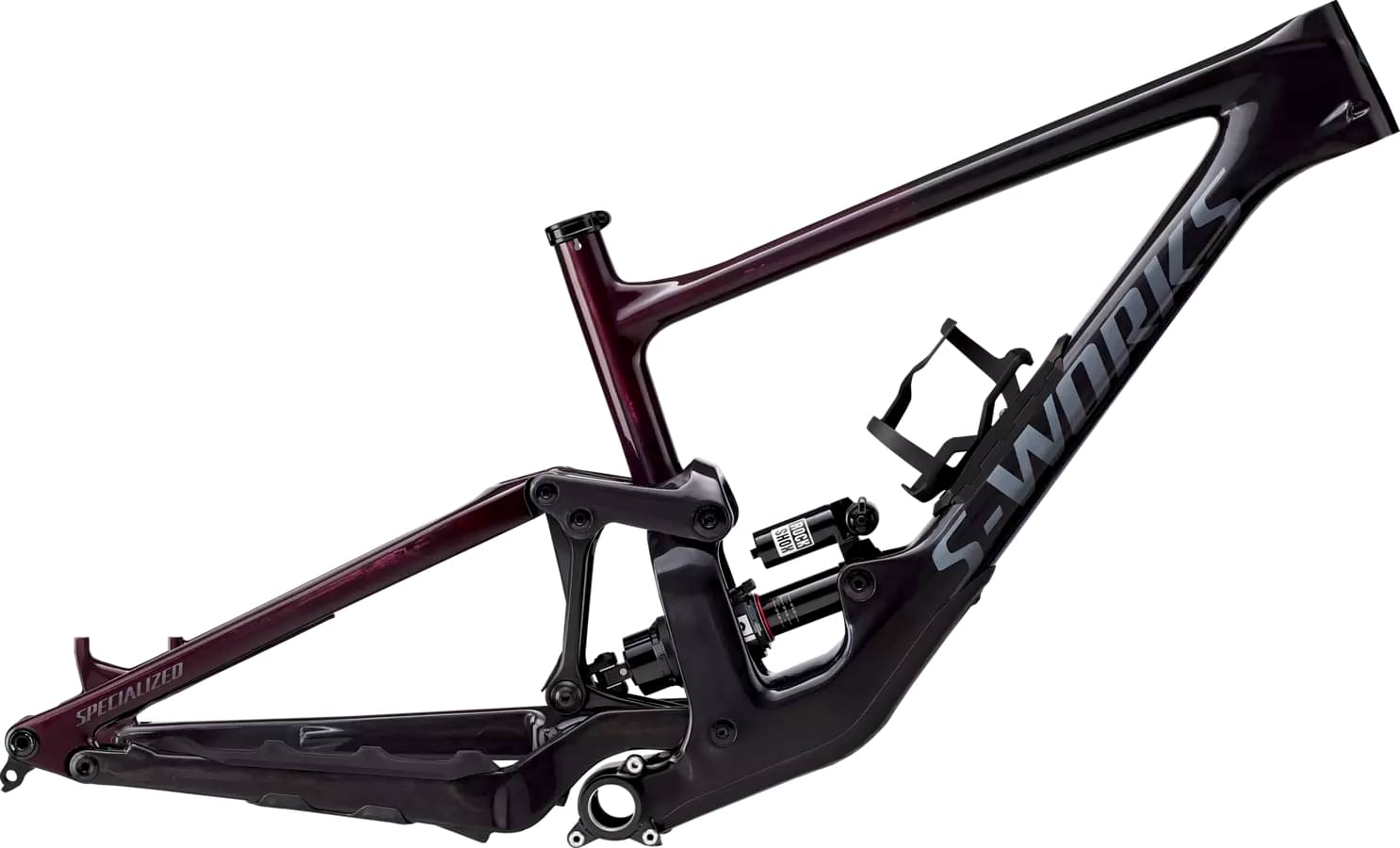

Specialized S-Works Enduro Frameset 2025
2025 Mountain
Estimate price |
5,235$
Weight | 3.82 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Travel Rear 170mm -
Suspension Full
Sizing
Recommended size guide.
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m carbon chassis and rear-end, 29 S-Sizing Enduro Race Geometry, Carbon upper and lower links, SRAM Universal Derrailuer Hanger, SWAT™ Door integration, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, 170mm of travel
Rear Shock
RockShox Vivid Ultimate, Ride Dynamics Trail Tune, adjustable hydraulic bottom out, adjustable rebound and high/low speed compression, 205x60, Trunnion
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S2 | S3 | S4 | S5 |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.336 mm | 1.292 mm | 1.249 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 777 mm | 806 mm | 833 mm | 862 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 616 mm | 620 mm | 629 mm | 638 mm |
| Reach | 437 mm | 464 mm | 487 mm | 511 mm |
| Top Tube Length | 591 mm | 619 mm | 644 mm | 670 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 420 mm | 440 mm | 465 mm |
| Head Tube Angle | 63.9 ° | 63.9 ° | 63.9 ° | 63.9 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1217 mm | 1246 mm | 1274 mm | 1302 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 165 cm | 172 cm | 177 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 193 cm |
