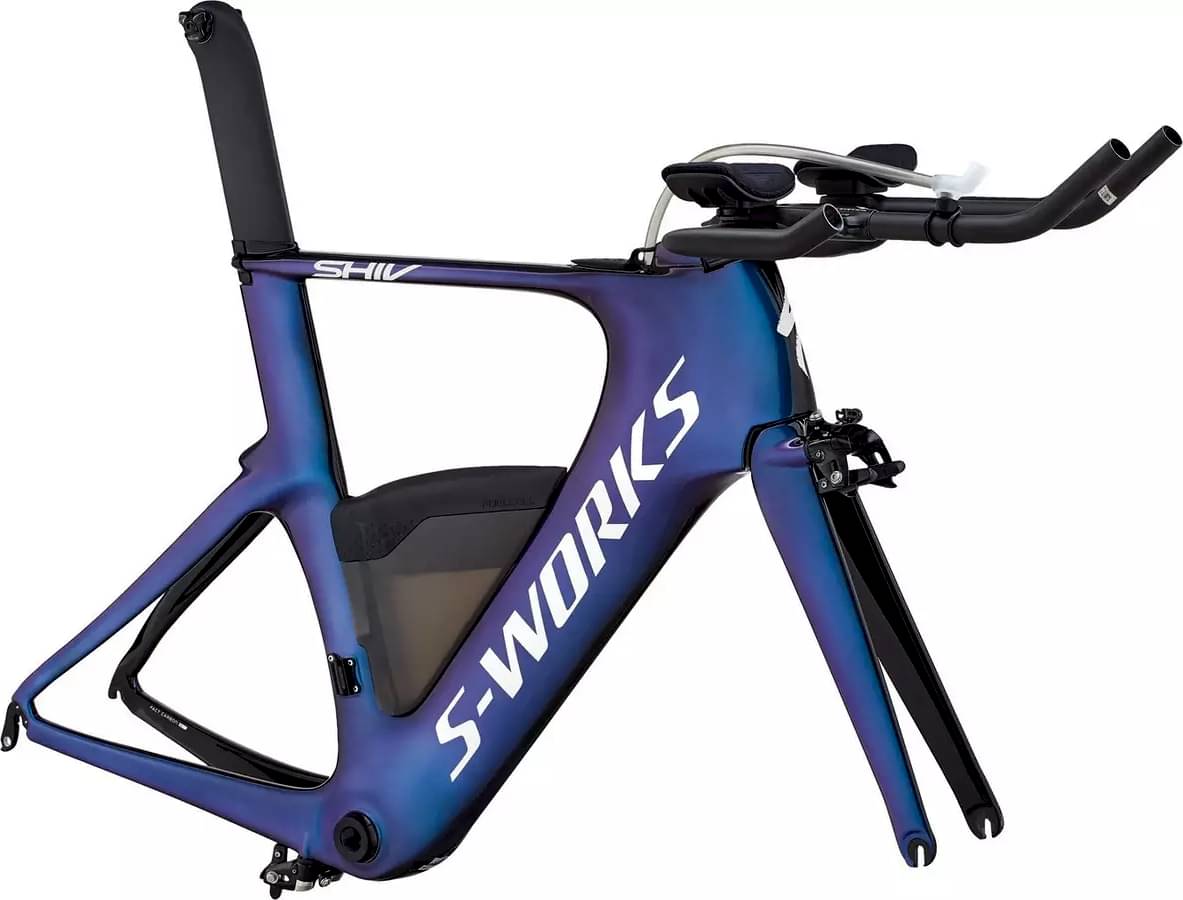

Specialized S-Works Shiv Module 2018
2018 Road
Estimate price |
4,499$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Suspension Rigid -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works FACT 11r carbon, FACT IS construction, crosswind-optimized airfoils, 1-1/8" lower bearing, OSBB, Control Tower Fit System, Fuelselage Integrated Hydration System, 130mm spacing
Suspension Fork
Specialized FACT carbon, full monocoque
Drivetrain
Bottom Bracket
OSBB, CeramicSpeed bearings
Brakes
Brakes
Front: Specialized Shiv, Rear: Specialized Shiv
Cockpit
Stem
S-Works Shiv aero stem
Handlebar
Specialized carbon aero bar
Seat
Seatpost
12.5mm Shiv seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.356 mm | 1.335 mm | 1.333 mm | 1.329 mm | 1.326 mm |
| Bottom Bracket Height | 258 mm | 258 mm | 258 mm | 258 mm | 258 mm |
| Front Center | 574 mm | 590 mm | 609 mm | 632 mm | 659 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 58 mm | 60 mm | 57 mm | 57 mm |
| Stack | 495 mm | 514 mm | 540 mm | 565 mm | 590 mm |
| Reach | 365 mm | 385 mm | 405 mm | 425 mm | 445 mm |
| Top Tube Length | 479 mm | 504 mm | 530 mm | 555 mm | 581 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 505 mm | 525 mm | 551 mm | 577 mm | 603 mm |
| Head Tube Angle | 70.25 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 99 mm | 115 mm | 139 mm | 163 mm | 189 mm |
| Chainstay Length | 395 mm | 395 mm | 395 mm | 395 mm | 395 mm |
| Wheelbase | 958 mm | 974 mm | 993 mm | 1016 mm | 1044 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 752 mm | 772 mm | 797 mm | 822 mm | 847 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
