Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works FACT 10r carbon, Az1 construction, compact race design
Suspension Fork
S-Works FACT monocoque carbon fork, full carbon legs, crown and steerer
Drivetrain
Crank
Specialized S-Works FACT Carbon crankset, integrated oversized design
Cockpit
Handlebar
S-Works Barmac Wedge carbon bar/stem combo, superlight integrated carbon design, adjustable stem angle
Headset
S-Works Mindset, 1 1/8"" integrated threadless, sealed cartridge ceramic bearings w/ stainless steel races, carbon 20mm cone w/ one 10mm and two 5mm carbon spacers
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 264 mm | 264 mm | 267 mm | 267 mm | 268 mm | 268 mm |
| Front Center | 576 mm | 576 mm | 583 mm | 591 mm | 605 mm | 612 mm |
| Rake | 45 mm | 45 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Trail | 57 mm | 62 mm | 57 mm | 56 mm | 53 mm | 56 mm |
| Top Tube Length | 511 mm | 530 mm | 541 mm | 558 mm | 575 mm | 593 mm |
| Seat Tube Angle | 74 ° | 75.5 ° | 73.5 ° | 73.25 ° | 72.5 ° | 73 ° |
| Seat Tube Length | 410 mm | 440 mm | 460 mm | 480 mm | 500 mm | 530 mm |
| Head Tube Angle | 72.25 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 155 mm | 180 mm | 205 mm |
| Chainstay Length | 398 mm | 398 mm | 398 mm | 398 mm | 400 mm | 403 mm |
| Wheelbase | 963 mm | 963 mm | 971 mm | 979 mm | 996 mm | 1006 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 69 mm | 69 mm | 67 mm | 67 mm |
| Standover Height | 719 mm | 737 mm | 756 mm | 777 mm | 799 mm | 826 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
About this model

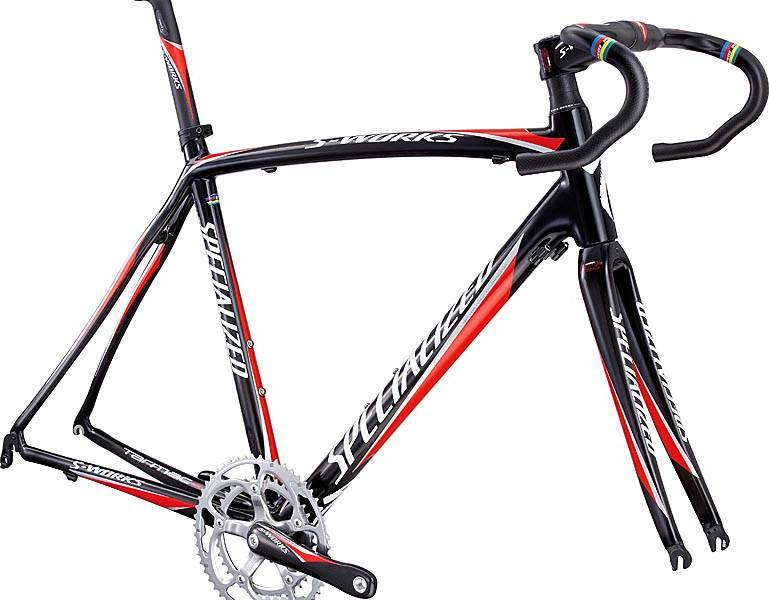

S-Works Tarmac SL Module completes the Specialized Tarmac model. Specialized launched 279 frames of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race frames
According to our math, the average price for a trustworthy Race frame is 2445$. However, you could also get a good Race frame even if you pay a lower amount than the average price. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Sizes
This frame is available in 6 sizes. They vary from 155 cm – 191 cm (5.09 ft – 6.27 ft). In short, it won’t be difficult to find the right one for you.
