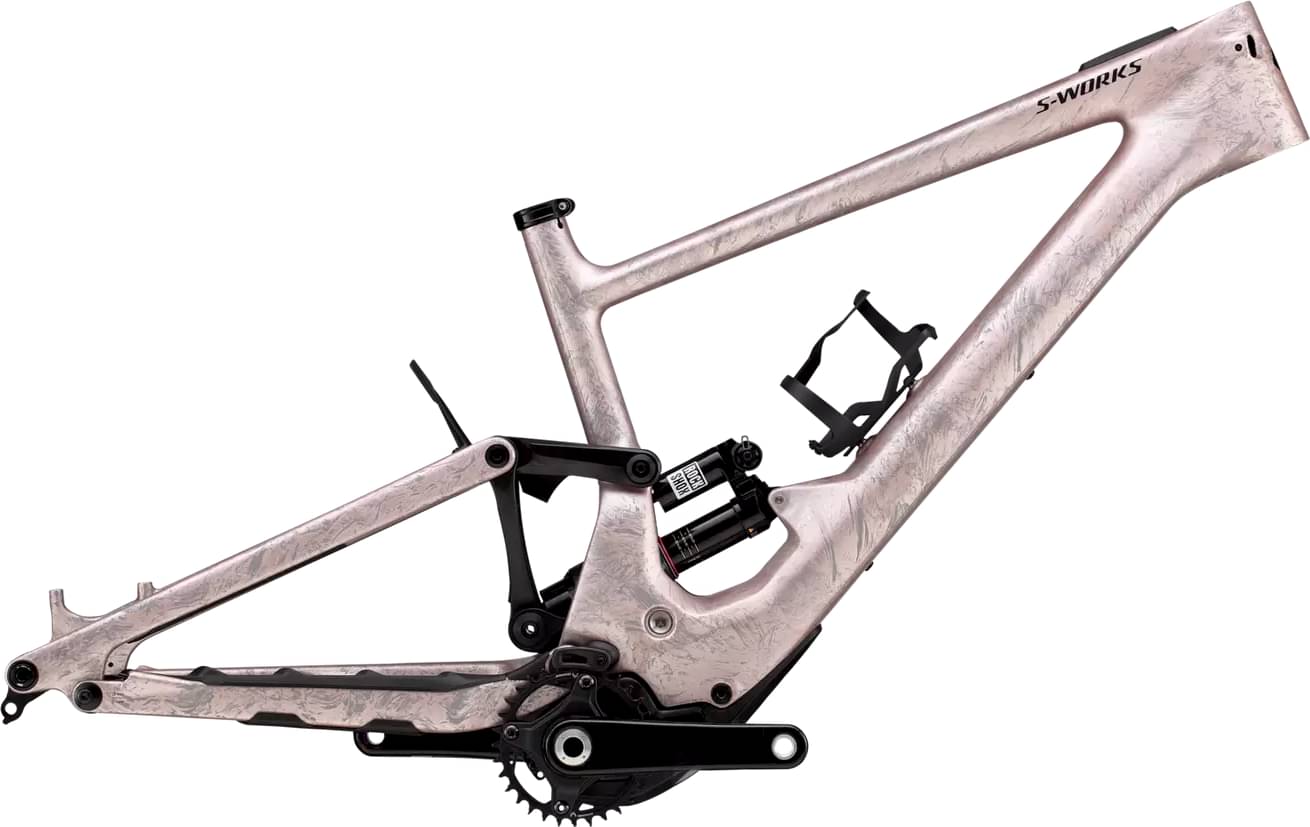

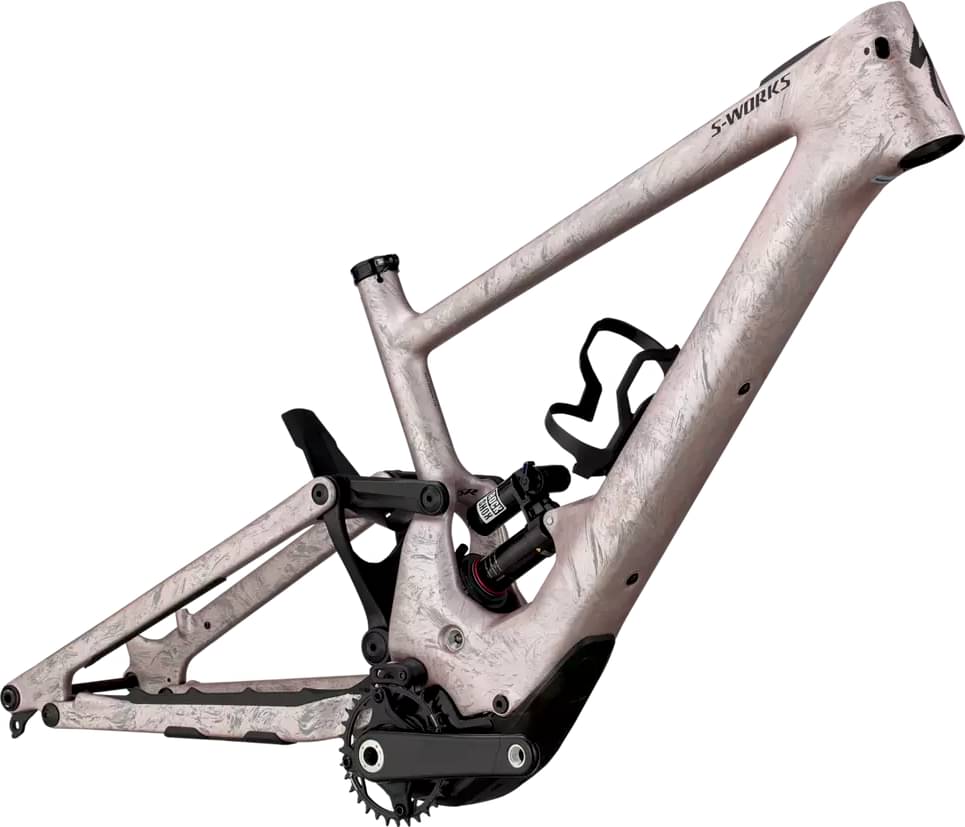

Specialized S-Works Turbo Kenevo SL 2 Frameset 2025
2025 E-bike
Estimate price |
7,562$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Rear 170mm -
Groupset SRAM -
Suspension Full -
Motor Specialized 320W 50Nm mid-drive -
Battery Specialized SL1-320, fully integrated, 320Wh
Sizing
Recommended size guide.
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m full carbon, 29", full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 170mm rear travel, geo adjust head tube, geo adjust horst pivot
Rear Shock
Rockshox Vivid Ultimate, 230x62.5mm
Drivetrain
Crank
SRAM Carbon crankset, S2/S3: 165mm, S4/S5: 170mm, 104 BCD alloy spider, SRAM alloy T-Type chainring, 32t
Motor & Battery
Motor
Specialized 1.2 SL Custom Rx Trail Tuned Motor
Battery
Specialized SL1-320, fully integrated, 320Wh
Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Charger
Custom charger, 48V System w/ SL system charger plug
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S2 | S3 | S4 | S5 |
|---|---|---|---|---|
| Stack Reach Ratio | 1.421 mm | 1.361 mm | 1.309 mm | 1.263 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 782 mm | 812 mm | 841 mm | 871 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 136 mm | 136 mm | 136 mm | 136 mm |
| Stack | 618 mm | 626 mm | 635 mm | 644 mm |
| Reach | 435 mm | 460 mm | 485 mm | 510 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 420 mm | 440 mm | 465 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1228 mm | 1258 mm | 1287 mm | 1316 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 792 mm | 802 mm | 779 mm | 779 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 165 cm | 172 cm | 177 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 193 cm |
