Specialized S-Works Turbo Kenevo SL Frameset 2 2024
2024 E-bike
Estimate price |
7,967$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Rear 170mm -
Groupset SRAM -
Suspension Full -
Motor Specialized 320W 50Nm mid-drive -
Battery Specialized SL1-320, fully integrated, 320Wh
Sizing
Recommended size guide.
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

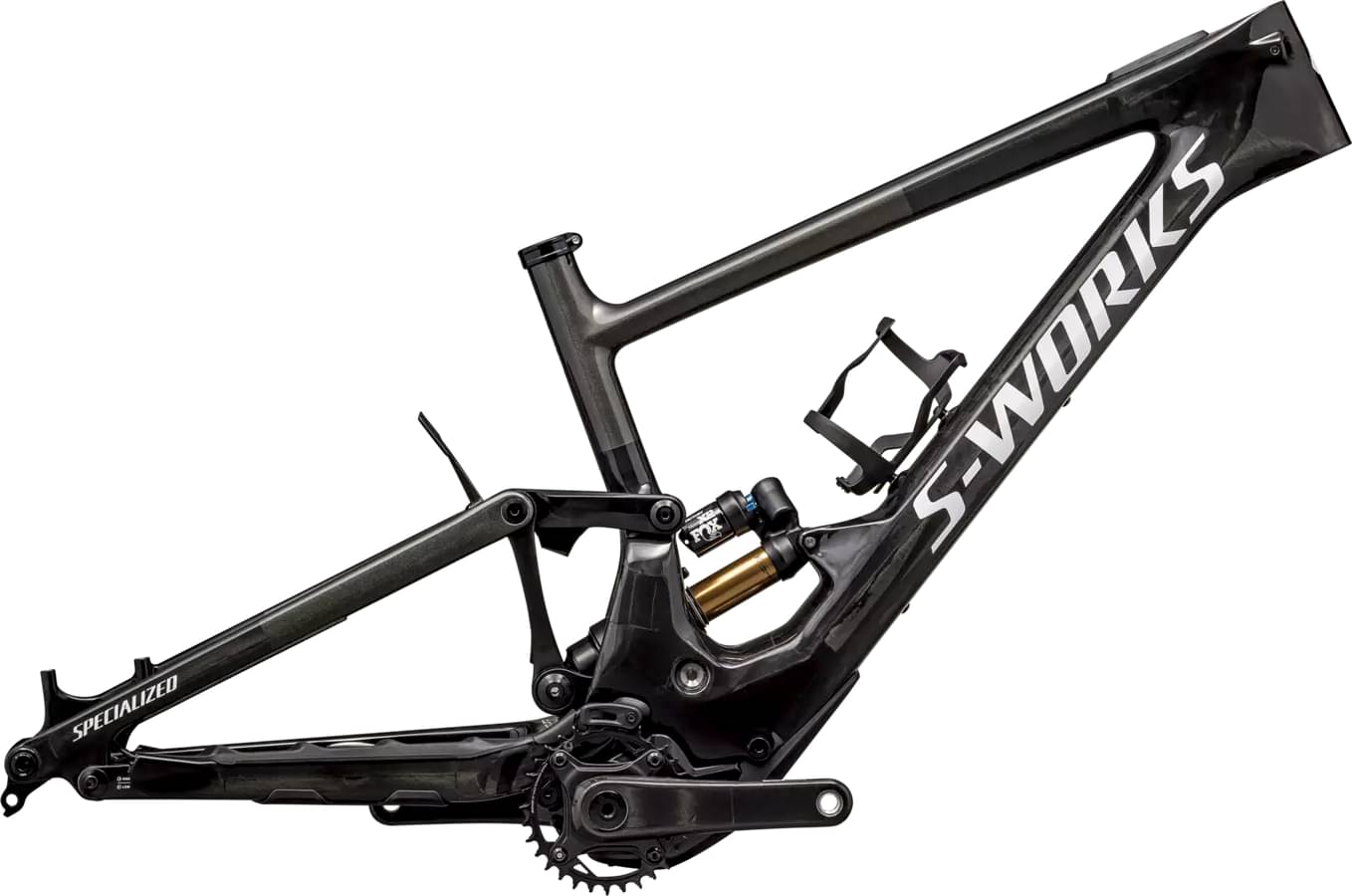

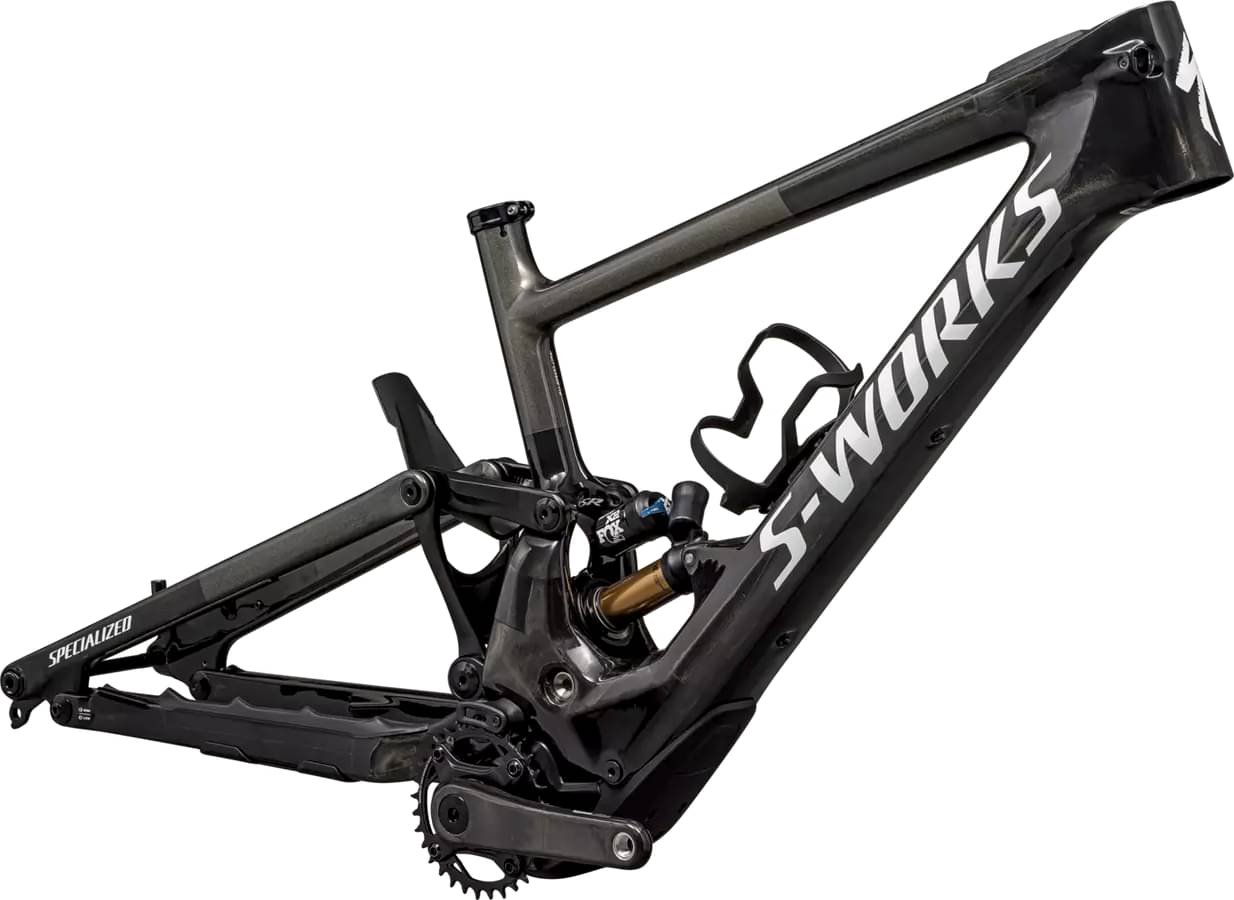

Kenevo SL frame, Fact 11m carbon, 170mm travel, 29" wheels
Rear Shock
2024, FLOAT X2, F-S, K, 2pos-Adj, Specialized, Kenevo SL, 230, 62.5, CL002, FSRF002, Rezi CM, SBC W01 White Matte/ SBC K01 Black Matte, Neutral Logo, N/M
Drivetrain
Crank
SRAM Dub carbon crank, S2/S3: 165mm, S4/S5: 170mm, New SL 1.2 spider, 104BCD w/SRAM 32t alloy ring
Motor & Battery
Motor
Specialized 1.2 SL Custom Rx Trail Tuned Motor
Battery
Specialized SL1-320, fully integrated, 320Wh
Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Charger
Custom charger, 48V System w/ SL system charger plug
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S2 | S3 | S4 | S5 |
|---|---|---|---|---|
| Stack Reach Ratio | 1.421 mm | 1.361 mm | 1.309 mm | 1.263 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 782 mm | 812 mm | 841 mm | 871 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 136 mm | 136 mm | 136 mm | 136 mm |
| Stack | 618 mm | 626 mm | 635 mm | 644 mm |
| Reach | 435 mm | 460 mm | 485 mm | 510 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 420 mm | 440 mm | 465 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1228 mm | 1258 mm | 1287 mm | 1316 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 792 mm | 802 mm | 779 mm | 779 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 165 cm | 172 cm | 177 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 193 cm |
