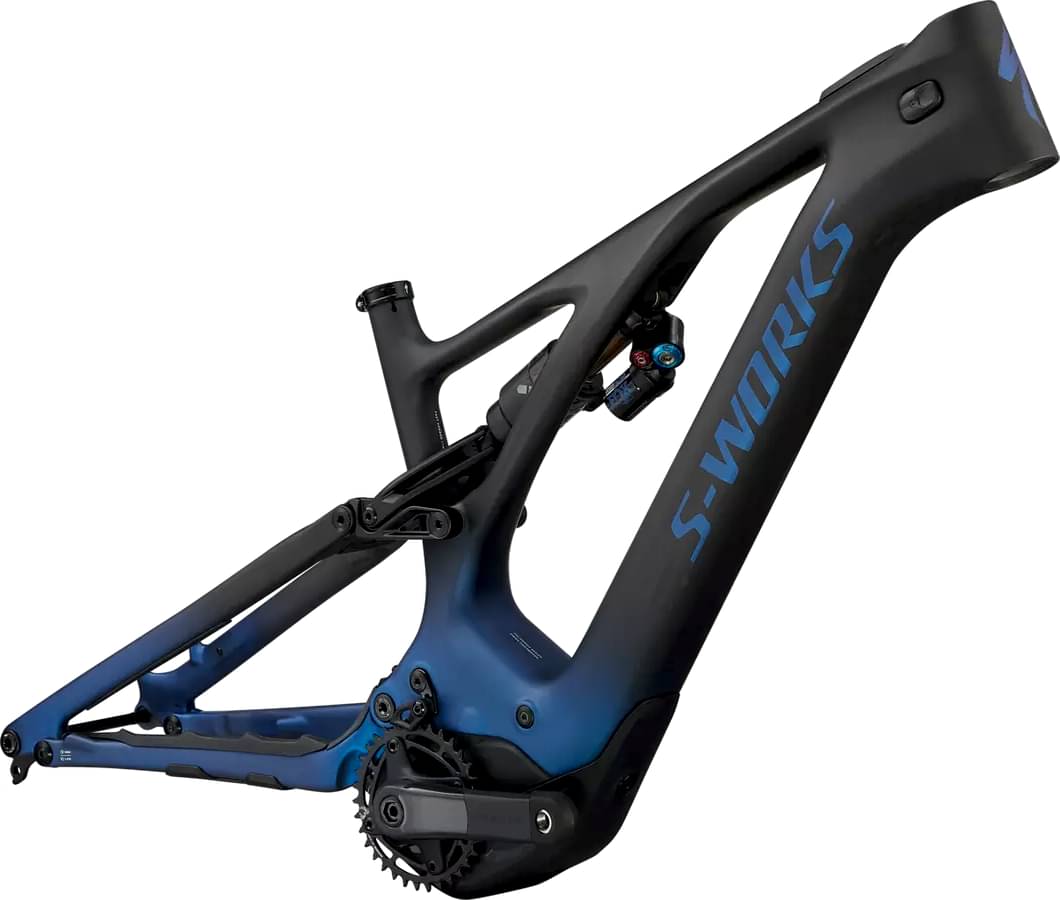

Specialized S-Works Turbo Levo 3 Frameset 2022
2022 E-bike
Estimate price |
8,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Rear 150mm -
Groupset Praxis -
Suspension Full -
Motor Specialized 565W 90Nm mid-drive -
Battery Specialized M3-700, Integrated battery, 700Wh
Sizing
Recommended size guide.
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
S6
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
Rear Shock
FOX FLOAT X2 Factory, LSC, LSR, 2-position lever, 55x210mm, Kashima
Drivetrain
Crank
Praxis Carbon/Custom Offset/ISIS Spindle Interface, 160mm, SRAM X-Sync Eagle, 104 BCD, 32T, steel
Motor & Battery
Motor
Specialized 2.2 Custom Rx Trail Tuned Motor, 90Nm Torque, 565W Power
Battery
Specialized M3-700, Integrated battery, 700Wh
Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 157 cm | 165 cm | 172 cm | 177 cm | 188 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 193 cm | 203 cm |
