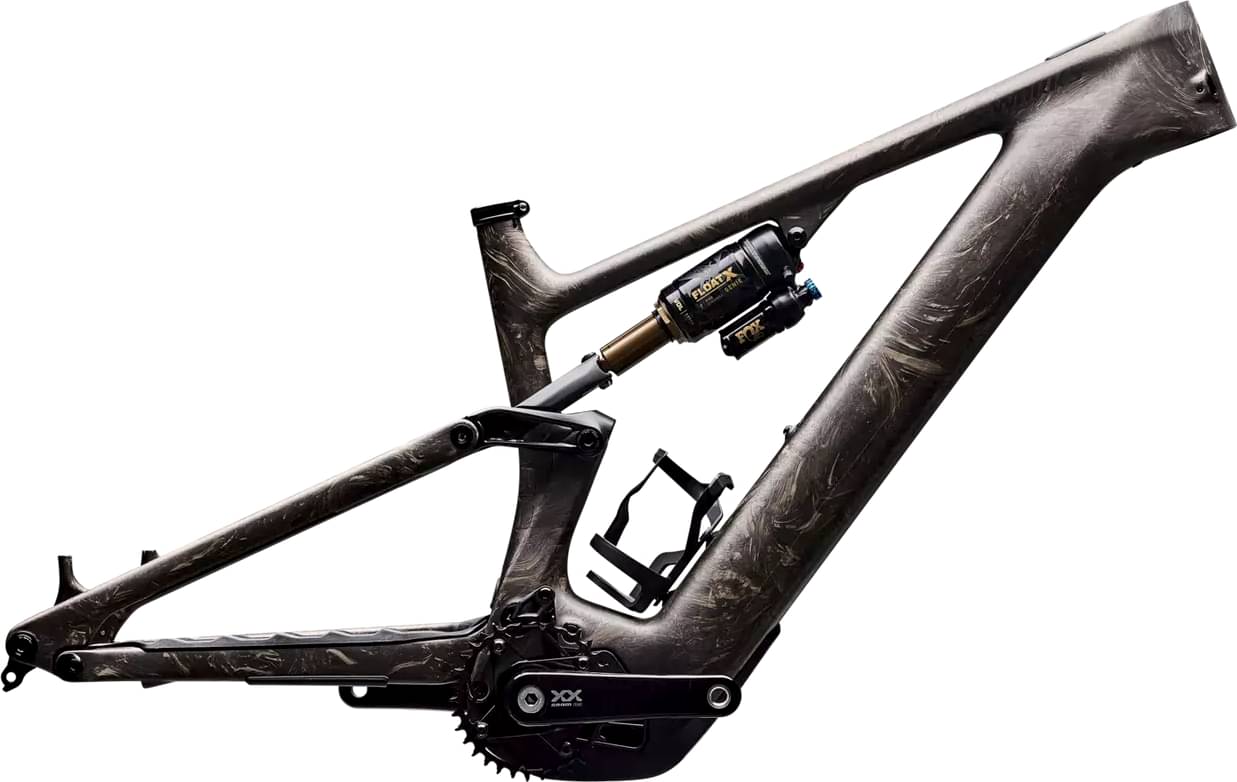

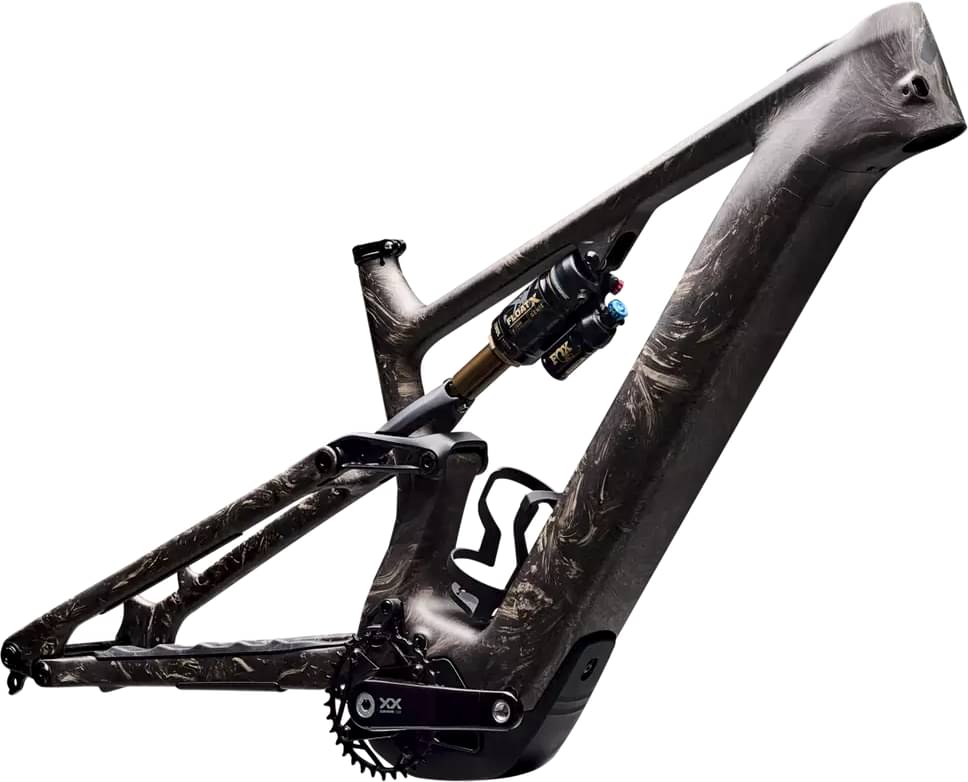

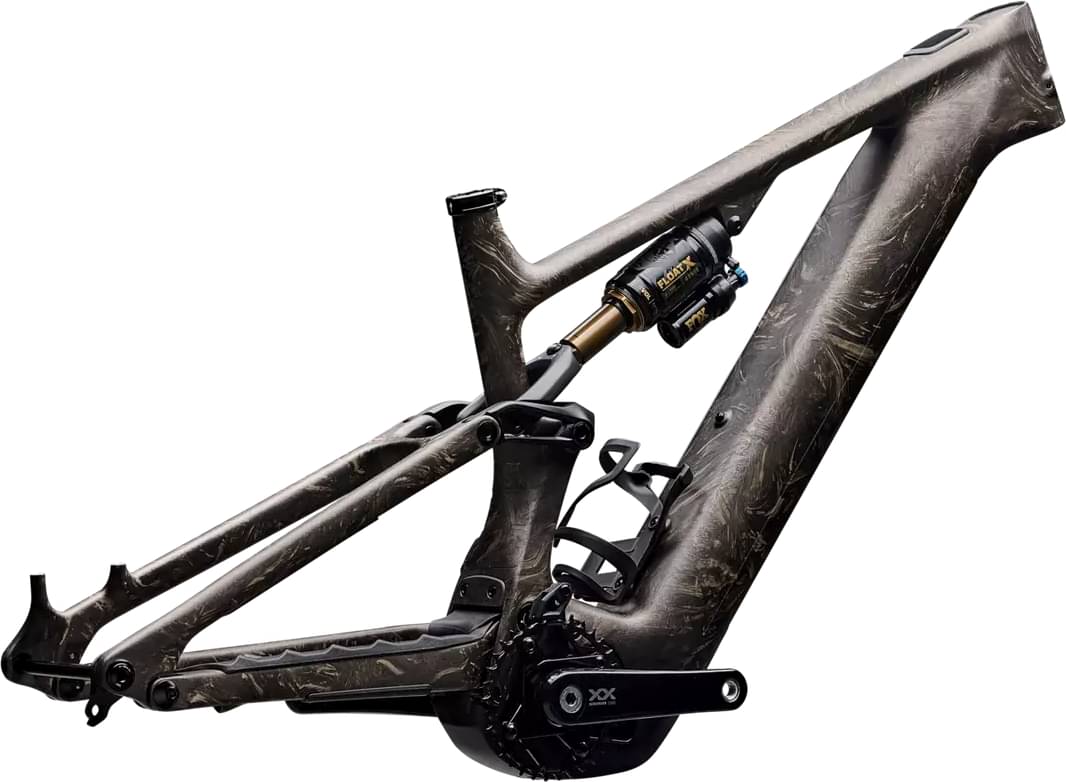

Specialized S-Works Turbo Levo 4 Frameset 2026
2026 E-bike
Estimate price |
8,724$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset XX Eagle Transmission -
Suspension Full -
Motor Specialized 720W 111Nm mid-drive -
Battery 840wh battery
Sizing
Recommended size guide.
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
S6
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m Carbon w/ Carbon Link, Geo Adj & SWAT Storage
Rear Shock
FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm
Drivetrain
Crank
SRAM XX Carbon crank, 55mm Chainline, ISIS interface, 160mm, SRAM 34t T-Type chainring, 104 BCD, steel
Motor & Battery
Motor
All New Specialized 3.1 S-Works motor, 111Nm torque, 720W power
Battery
840wh battery
Remote
All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Charger
Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.421 mm | 1.376 mm | 1.329 mm | 1.291 mm | 1.247 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 765 mm | 789 mm | 820 mm | 851 mm | 888 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 618 mm | 626 mm | 638 mm | 652 mm | 667 mm |
| Reach | 435 mm | 455 mm | 480 mm | 505 mm | 535 mm |
| Top Tube Length | 578 mm | 599 mm | 627 mm | 655 mm | 689 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 390 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 95 mm | 103 mm | 117 mm | 132 mm | 149 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1200 mm | 1223 mm | 1254 mm | 1286 mm | 1323 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm | 29 mm |
| Standover Height | 753 mm | 754 mm | 753 mm | 758 mm | 761 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 165 cm | 172 cm | 177 cm | 188 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 193 cm | 203 cm |
