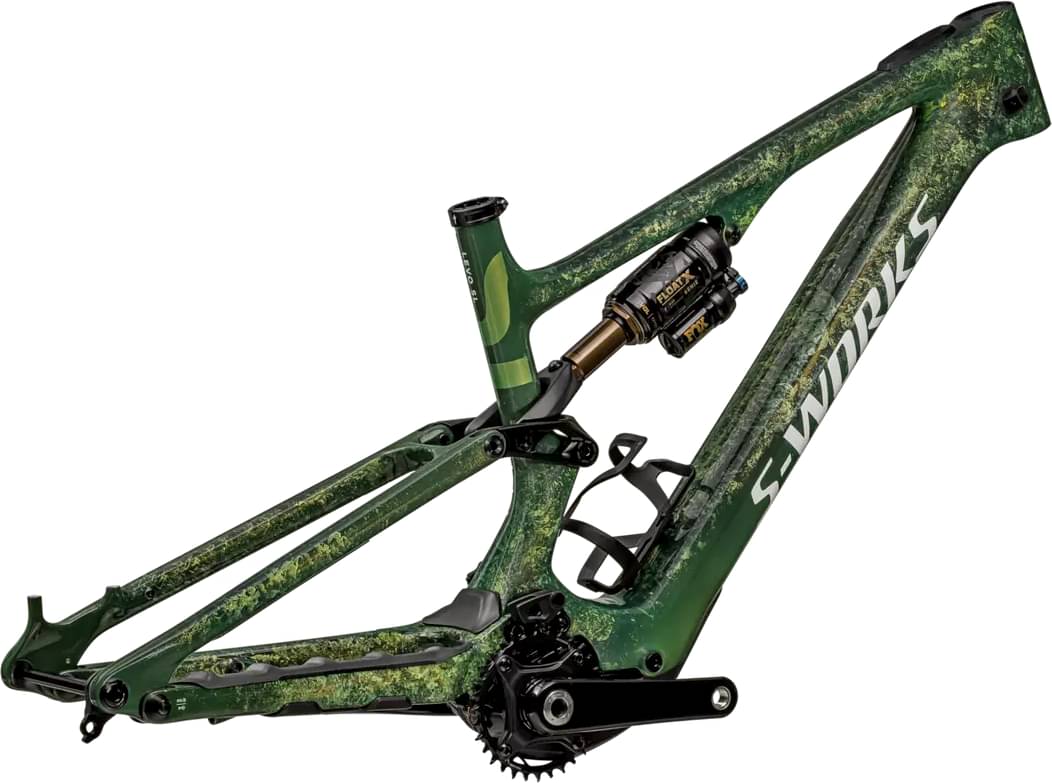

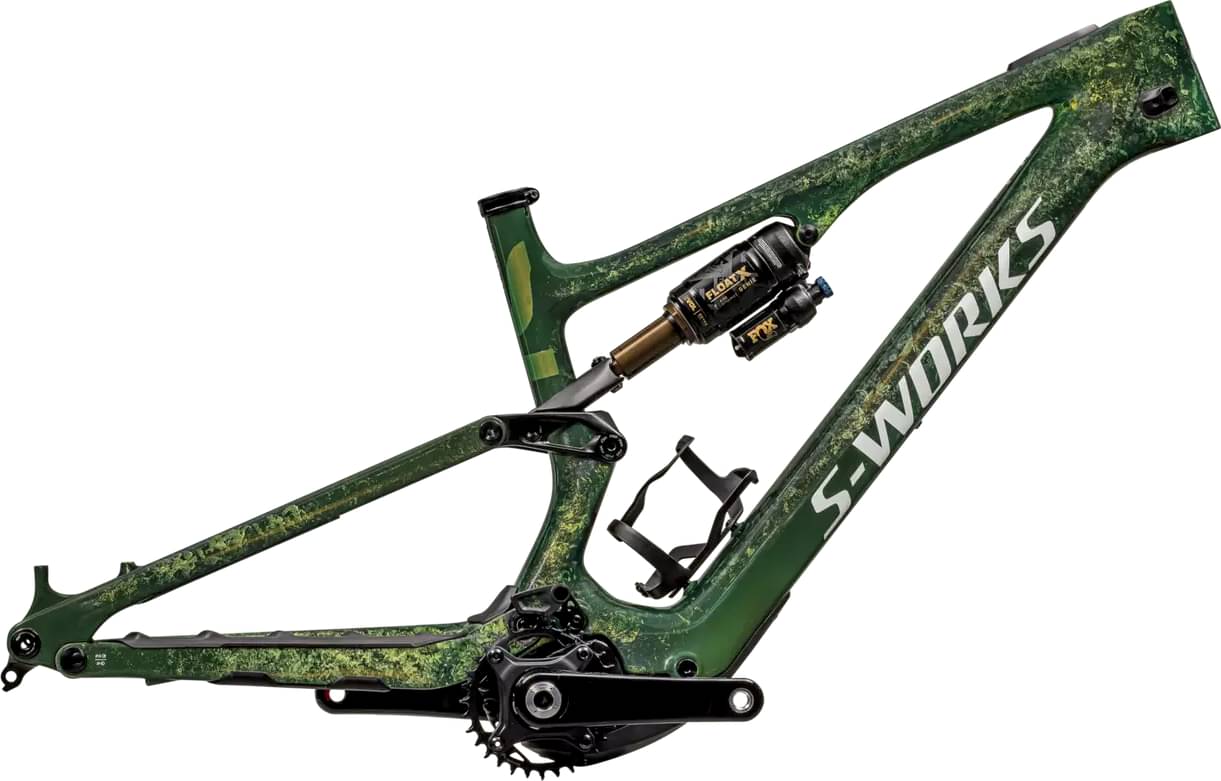

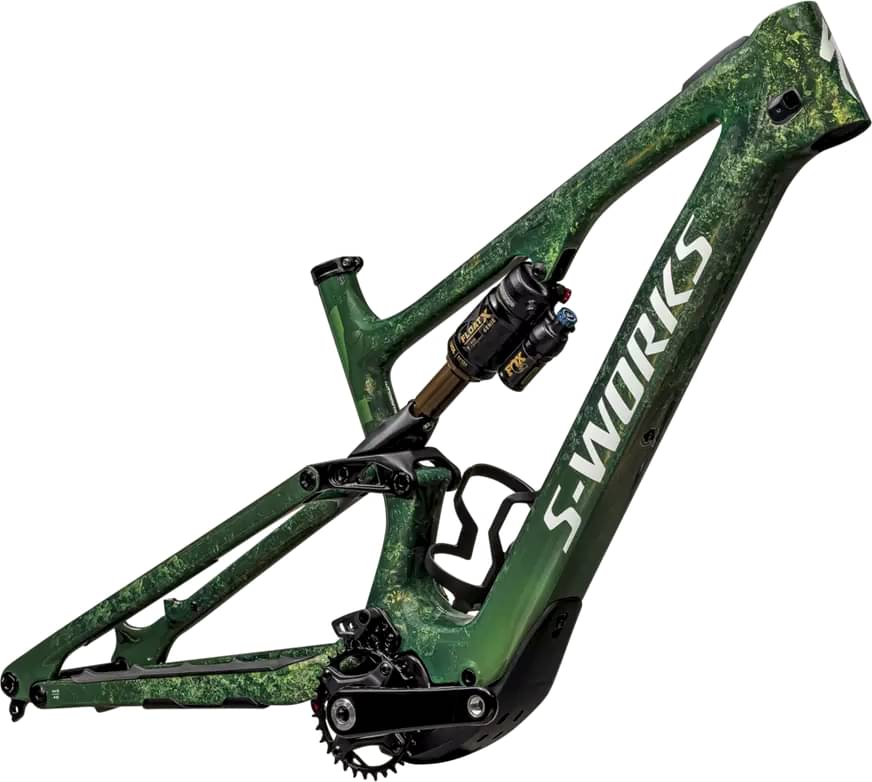

Specialized S-Works Turbo Levo SL Frameset 2025
2025 E-bike
Estimate price |
8,143$
Weight | 5.86 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Rear 150mm -
Groupset SRAM -
Suspension Full -
Motor Specialized 320W 50Nm mid-drive -
Battery Specialized SL1-320, fully integrated, 320Wh
Sizing
Recommended size guide.
S1
149cm - 160cm
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
S6
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Levo SL carbon Frame, Fact 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.
Rear Shock
FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, S2-S6:210x55mm, S1: FOX FLOAT Factory 210x52.5mm
Drivetrain
Crank
SRAM Eagle Crankset, 32T ring, Integrated Guard, 55mm Chainline, 165mm, SRAM T-type ring, 32t
Motor & Battery
Motor
Specialized 1.2 SL Custom Rx Trail Tuned Motor
Battery
Specialized SL1-320, fully integrated, 320Wh
Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Charger
Custom charger, 48V System w/ SL system charger plug
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.504 mm | 1.452 mm | 1.407 mm | 1.351 mm | 1.303 mm | 1.246 mm |
| Bottom Bracket Height | 343 mm | 348 mm | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 726 mm | 752 mm | 776 mm | 806 mm | 835 mm | 869 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 609 mm | 617 mm | 626 mm | 635 mm | 645 mm | 654 mm |
| Reach | 405 mm | 425 mm | 445 mm | 470 mm | 495 mm | 525 mm |
| Top Tube Length | 560 mm | 582 mm | 604 mm | 631 mm | 659 mm | 691 mm |
| Seat Tube Angle | 75.8 ° | 75.8 ° | 75.8 ° | 75.8 ° | 75.8 ° | 75.8 ° |
| Seat Tube Length | 385 mm | 385 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.6 ° | 64.6 ° | 64.6 ° | 64.6 ° | 64.6 ° | 64.6 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 433 mm | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1158 mm | 1184 mm | 1208 mm | 1238 mm | 1267 mm | 1301 mm |
| Bottom Bracket Drop | 34 mm | 29 mm | 29 mm | 29 mm | 29 mm | 29 mm |
| Standover Height | 727 mm | 763 mm | 766 mm | 767 mm | 773 mm | 778 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 149 cm | 157 cm | 165 cm | 172 cm | 177 cm | 188 cm |
| Rider Max Height | 160 cm | 172 cm | 180 cm | 188 cm | 193 cm | 203 cm |
