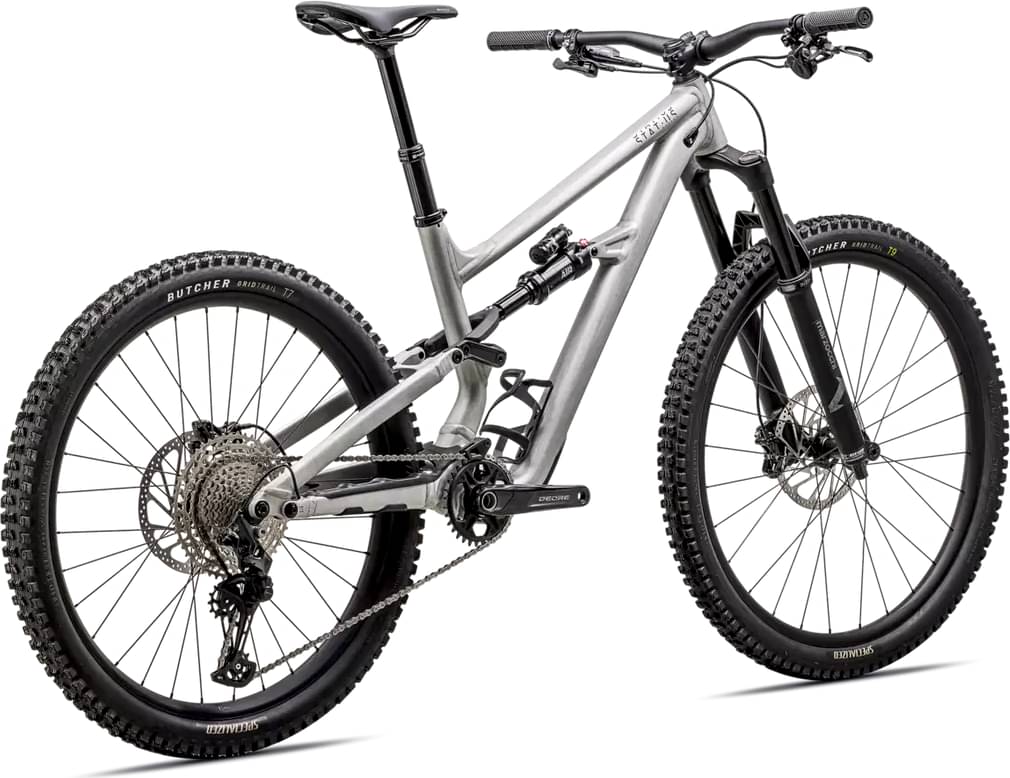

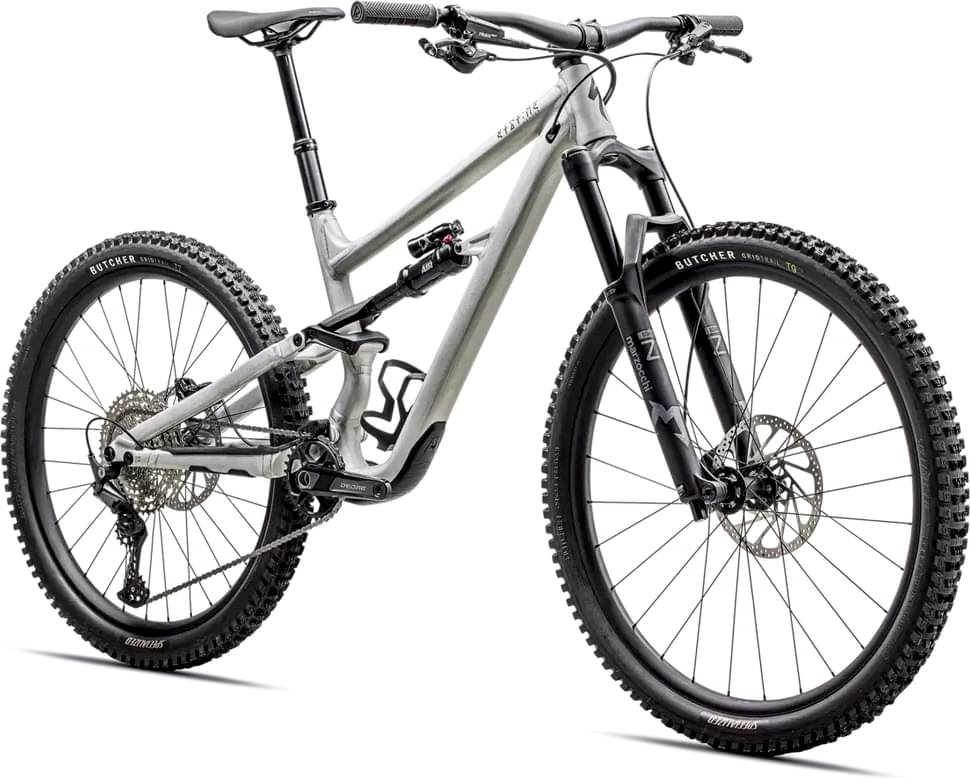

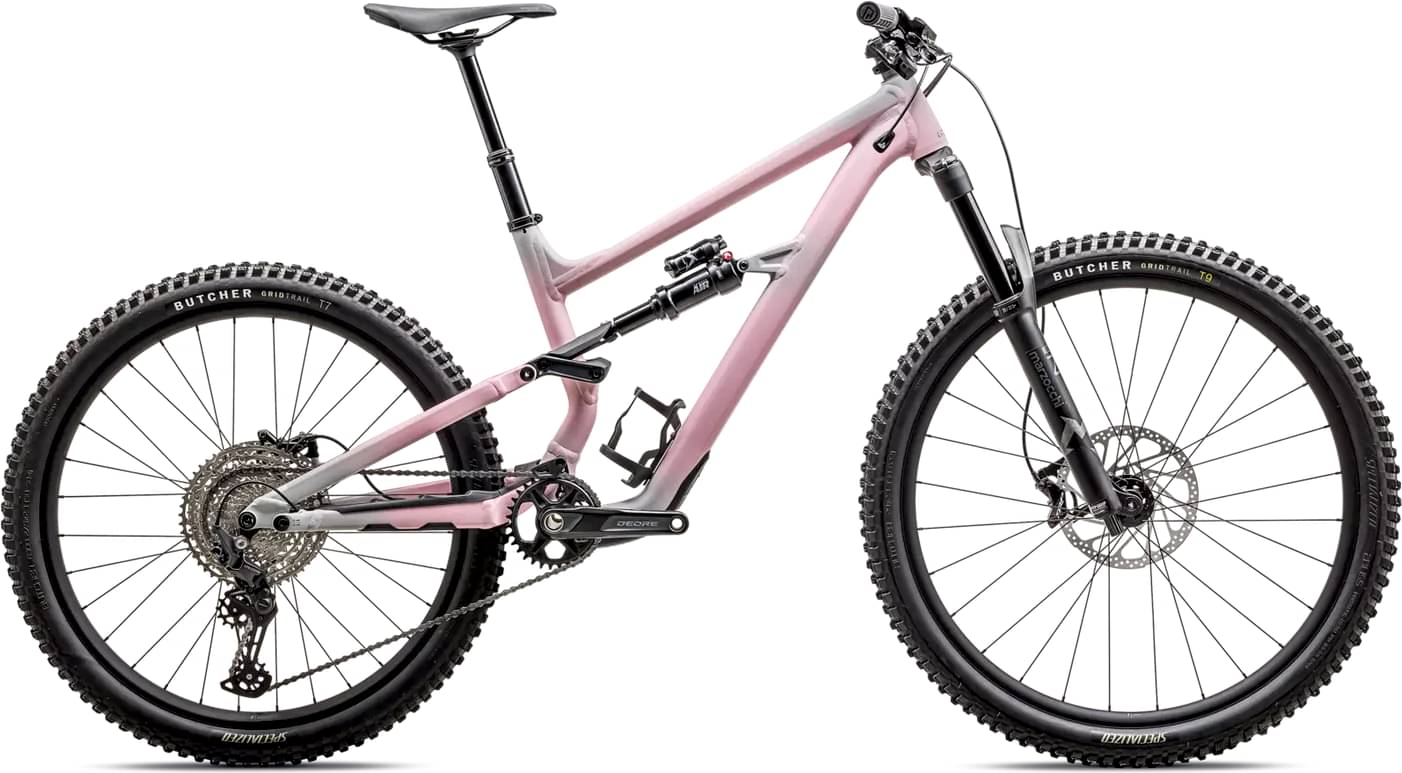

Specialized Status 140 2 2024
2024 Mountain
Estimate price |
3,686$
Weight | 15.29 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 140mm -
Fork Marzocchi Bomber Z1
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
S1
149cm - 160cm
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 140mm of travel
Suspension Fork
Marzocchi Z1, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 44mm offset, 140mm of travel

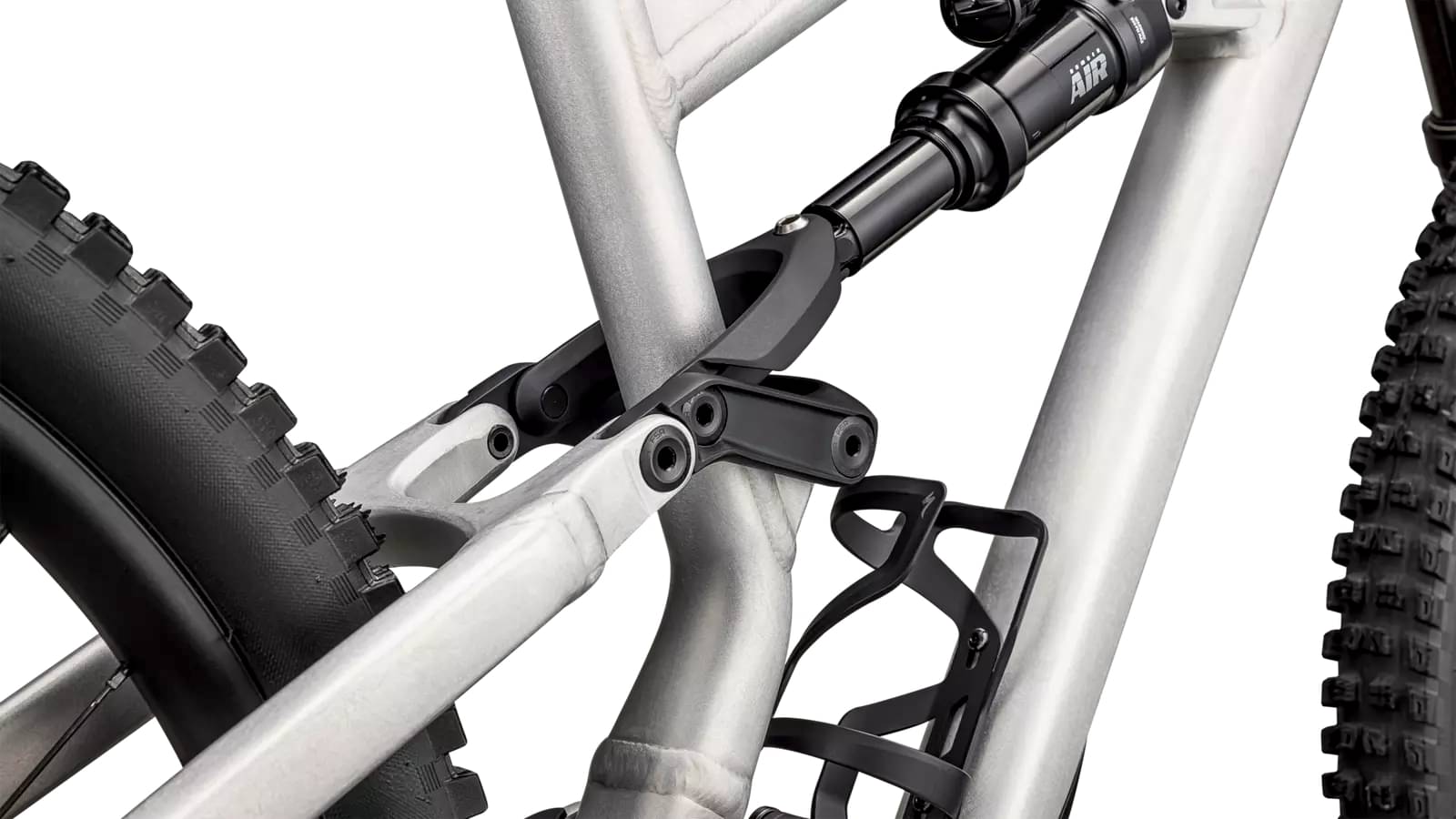

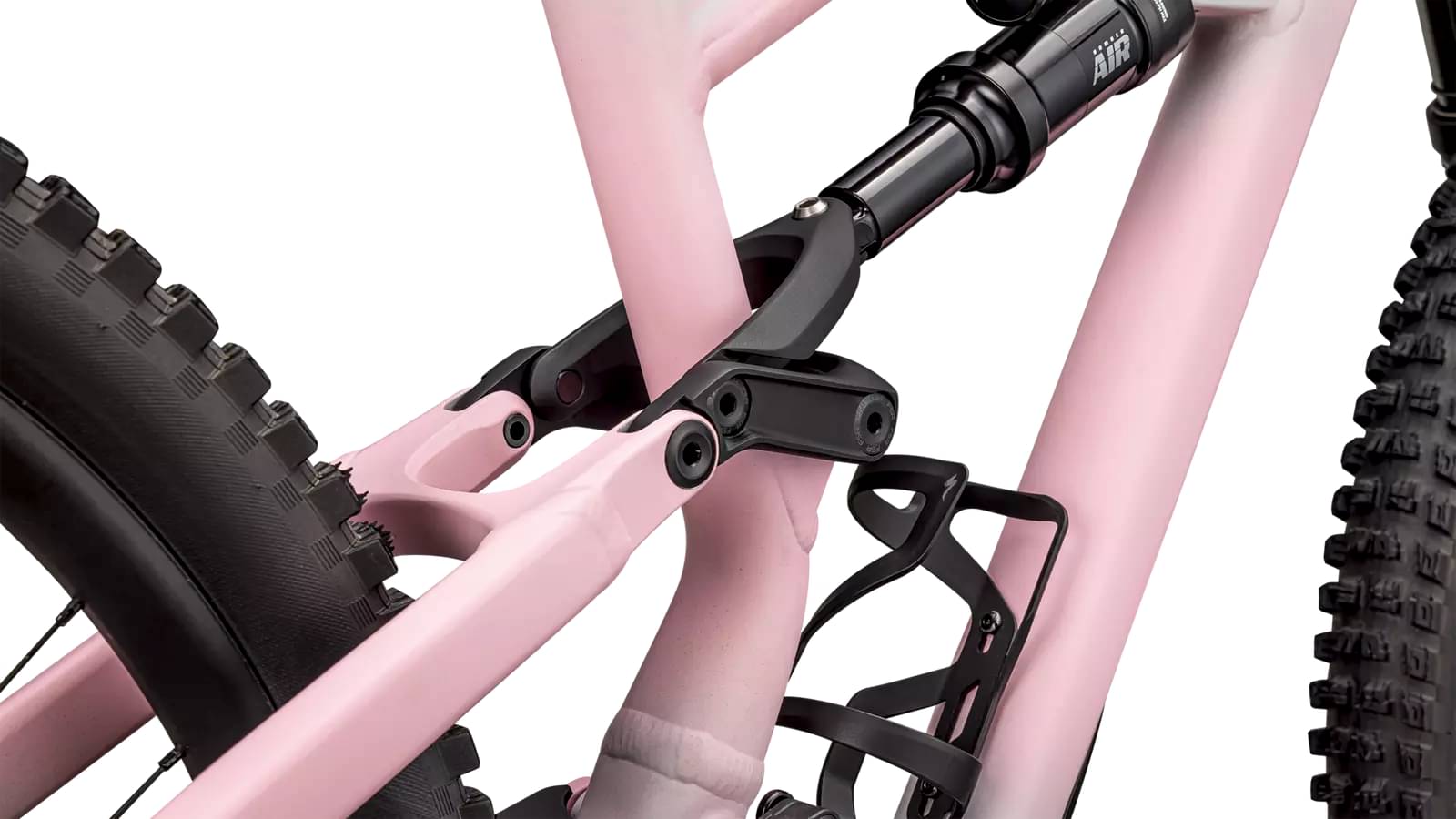

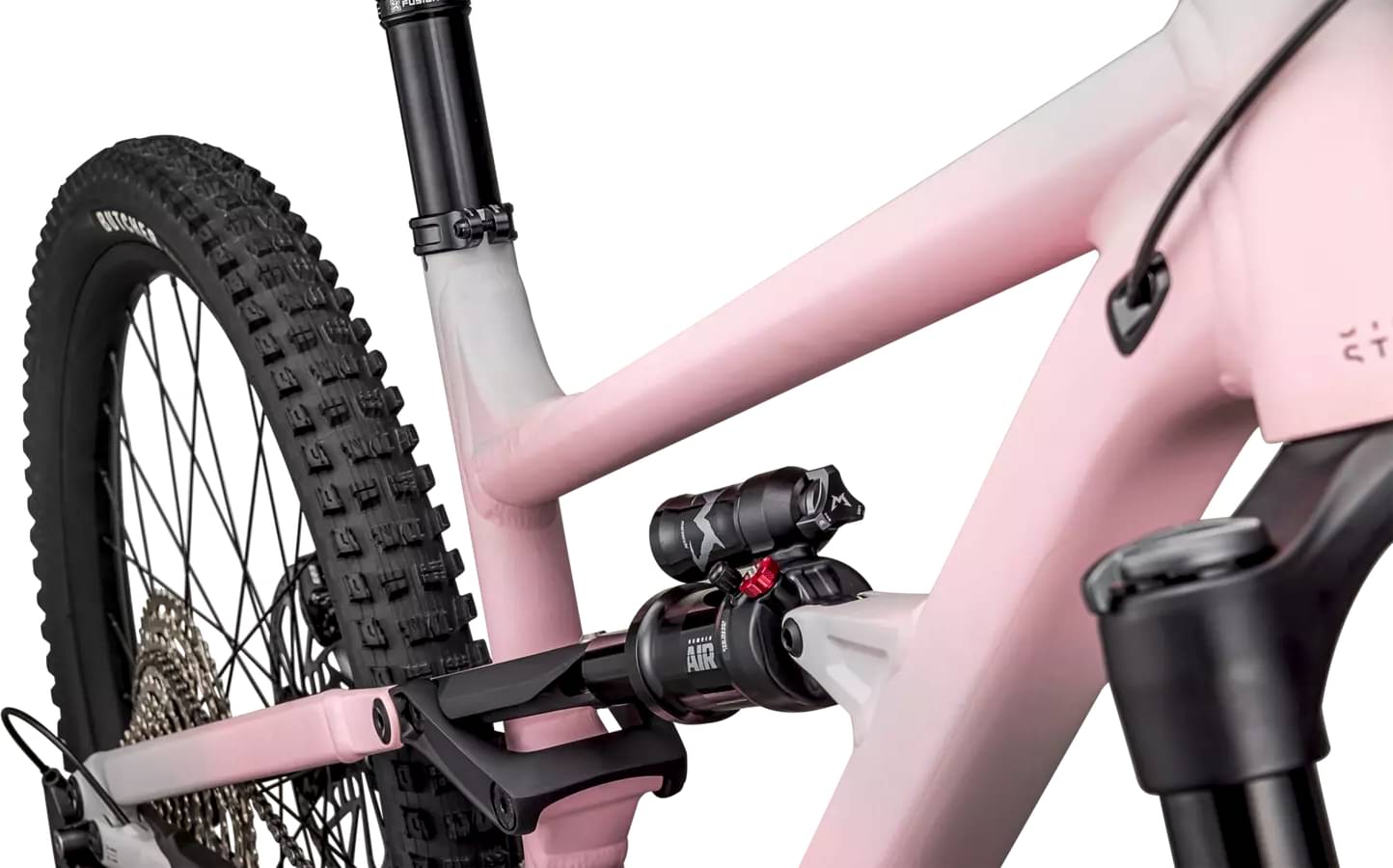

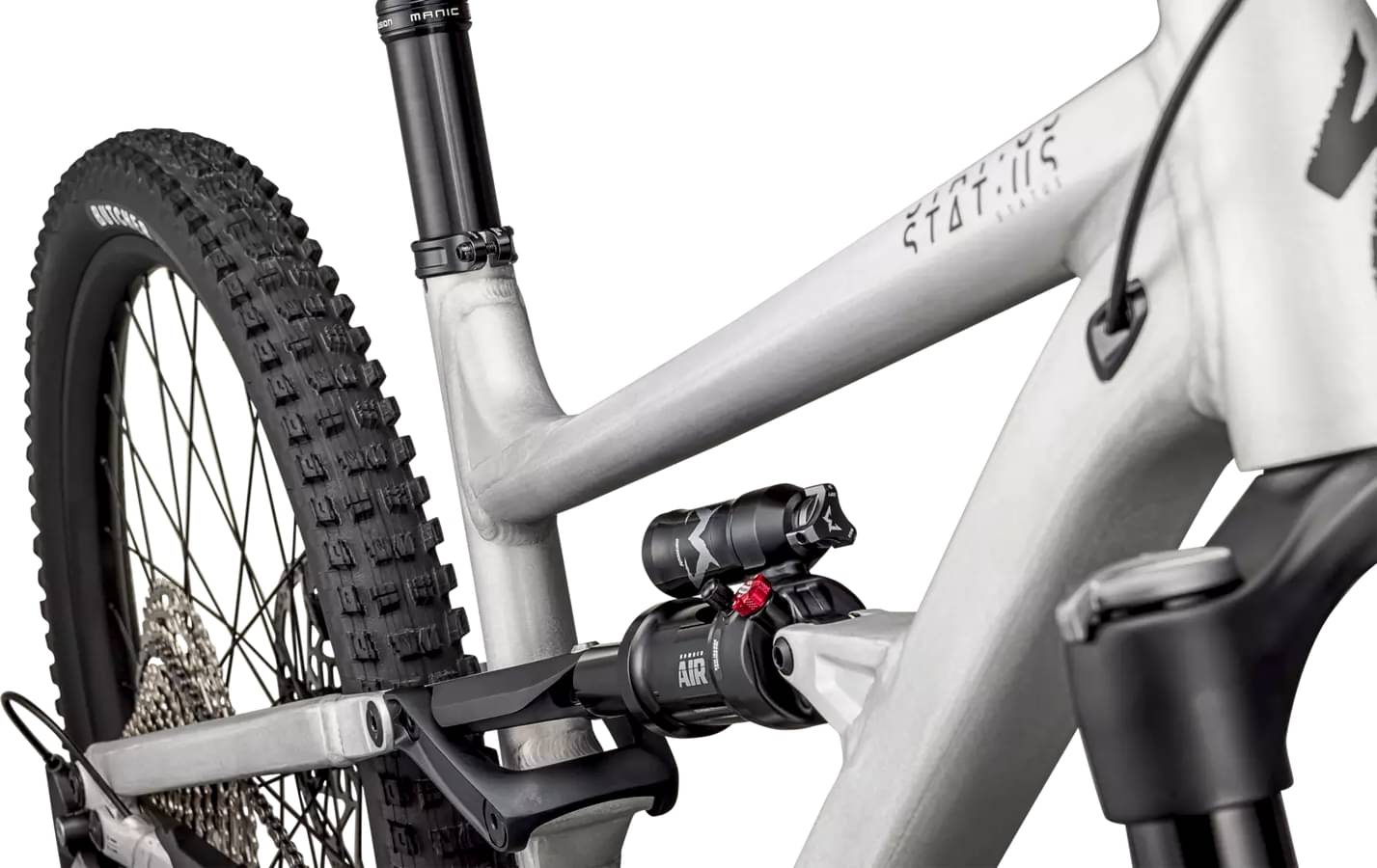

Rear Shock
Marzocchi Bomber Air, Ride Dynamics Trail Tune, 2-position non-indexed compression sweep, w/ LSR adjustment, S1:210x50mm, S2-S5:210x52.5mm
Drivetrain
Rear Derailleur
Shimano Deore, M6100, 12pd, Shadow Plus
Shift Levers
Shimano Deore, M6100, I-Spec EV, 12 speed
Cassette
Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t
Crank
Shimano Deore, M6120, 32T ring, 55mm chainline, S1:165mm, S2-S5: 170mm
Bottom Bracket
BSA, threaded
Chain
Shimano Deore M6100, 12spd
Wheels
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rims
Specialized, hookless alloy, 30mm inner width, tubeless ready
Spokes
DT Swiss Industry
Tires
Front: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3", Rear: Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3"
Brakes
Brakes
Front: TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm, Rear: TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm

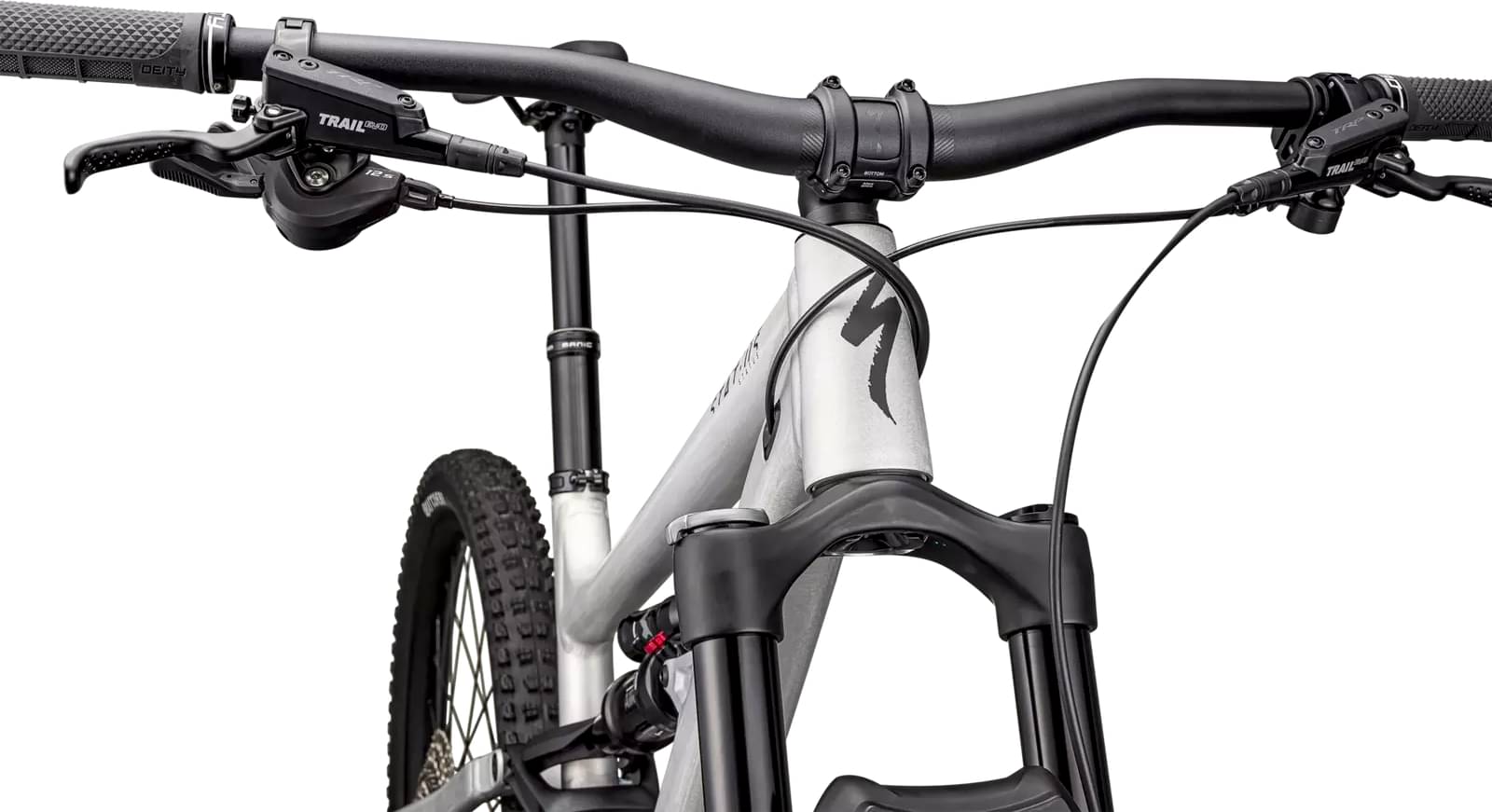

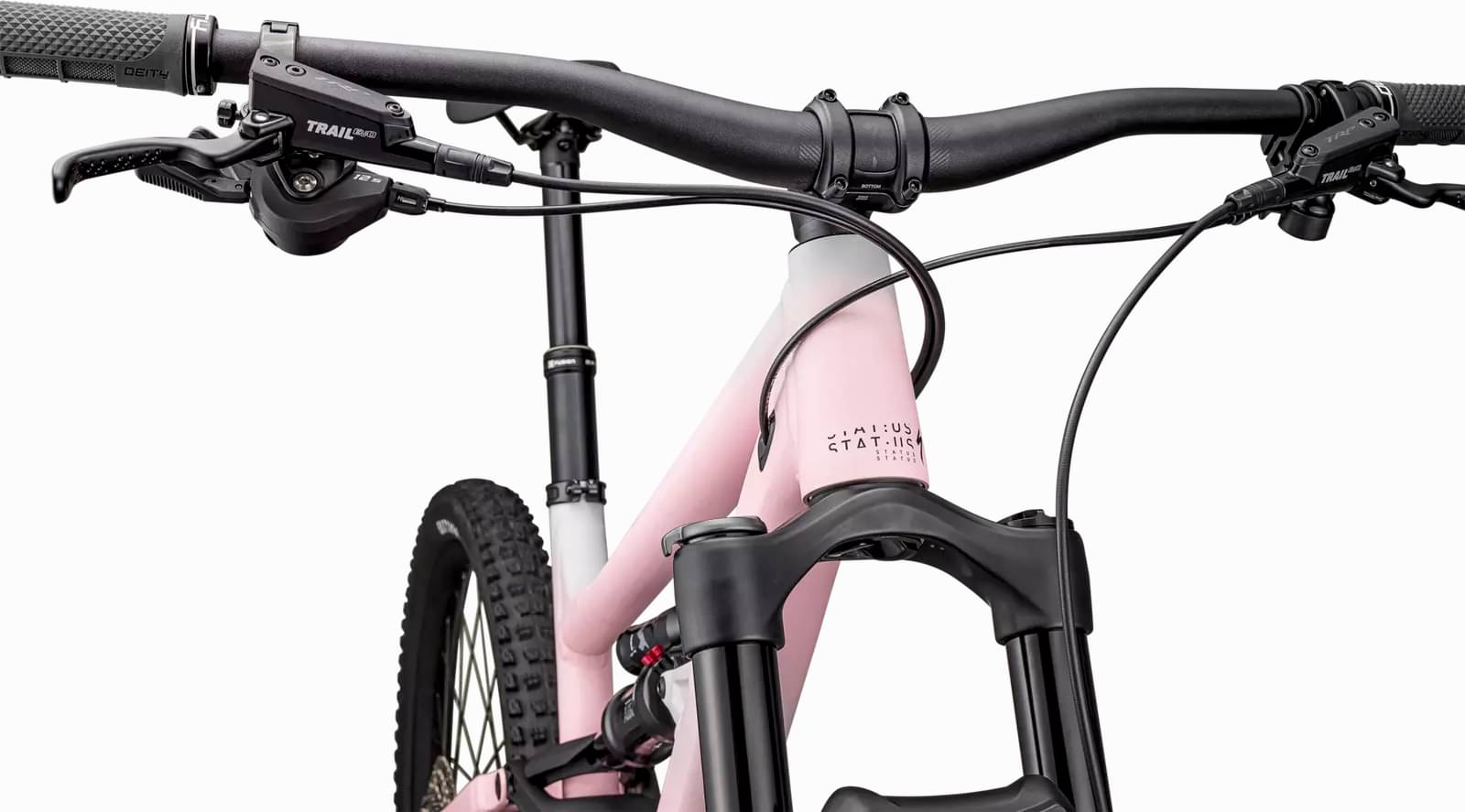

Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebar
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1: 780mm width, S2-S5: 800mm width
Grips
Deity Knuckleduster

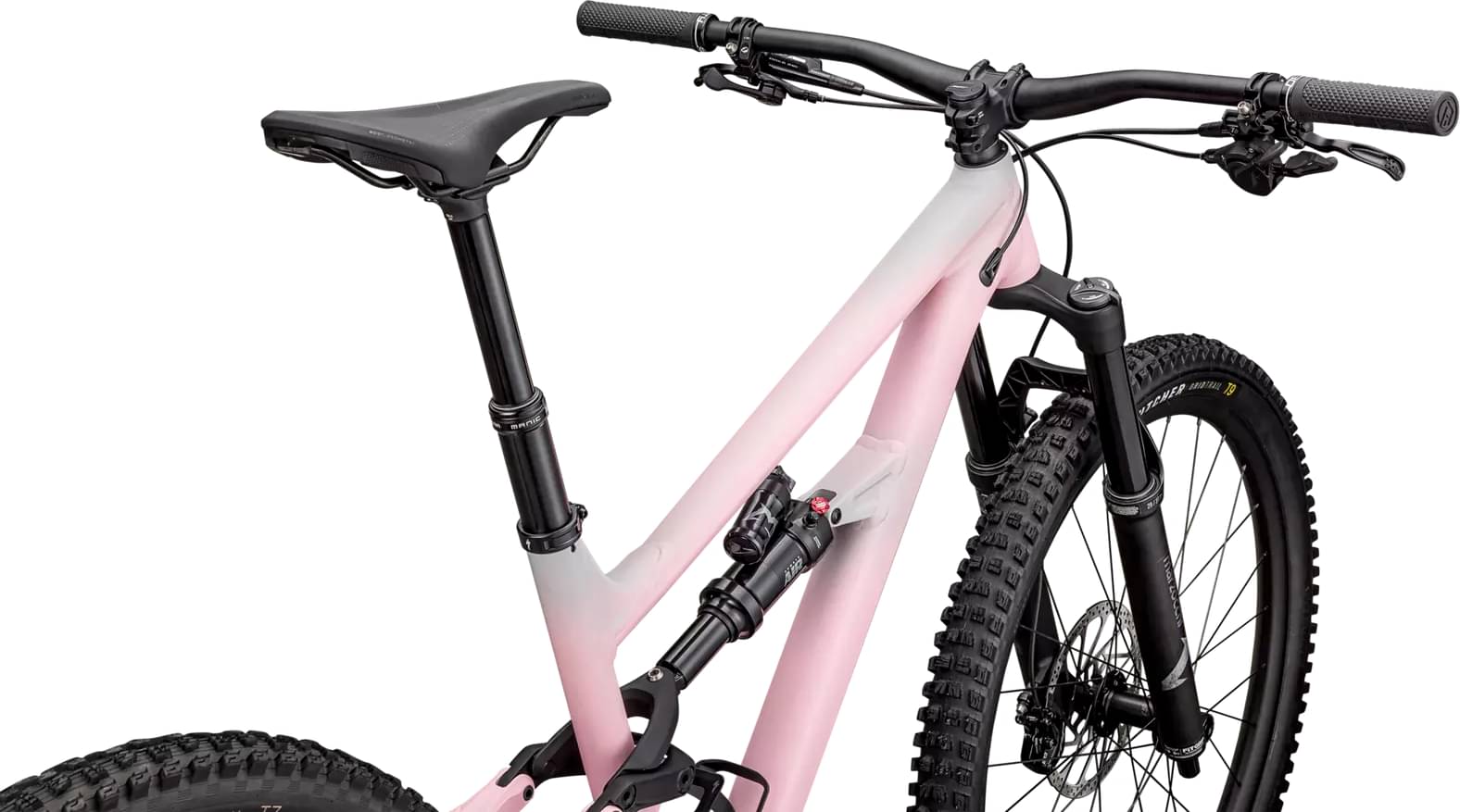

Seat
Saddle
Bridge Comp, Hollow Cr-mo rails, 143mm
Seatpost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S1 | S2 | S3 | S4 | S5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.458 mm | 1.384 mm | 1.329 mm | 1.28 mm | 1.235 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 741 mm | 768 mm | 798 mm | 827 mm | 857 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 134 mm | 134 mm | 134 mm | 134 mm | 134 mm |
| Stack | 605 mm | 609 mm | 618 mm | 627 mm | 636 mm |
| Reach | 415 mm | 440 mm | 465 mm | 490 mm | 515 mm |
| Top Tube Length | 549 mm | 590 mm | 630 mm | 671 mm | 711 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 390 mm | 400 mm | 420 mm | 440 mm | 465 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 432 mm | 432 mm |
| Wheelbase | 1168 mm | 1195 mm | 1225 mm | 1259 mm | 1288 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 735 mm | 735 mm | 739 mm | 743 mm | 747 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 149 cm | 157 cm | 165 cm | 172 cm | 177 cm |
| Rider Max Height | 160 cm | 172 cm | 180 cm | 188 cm | 193 cm |
