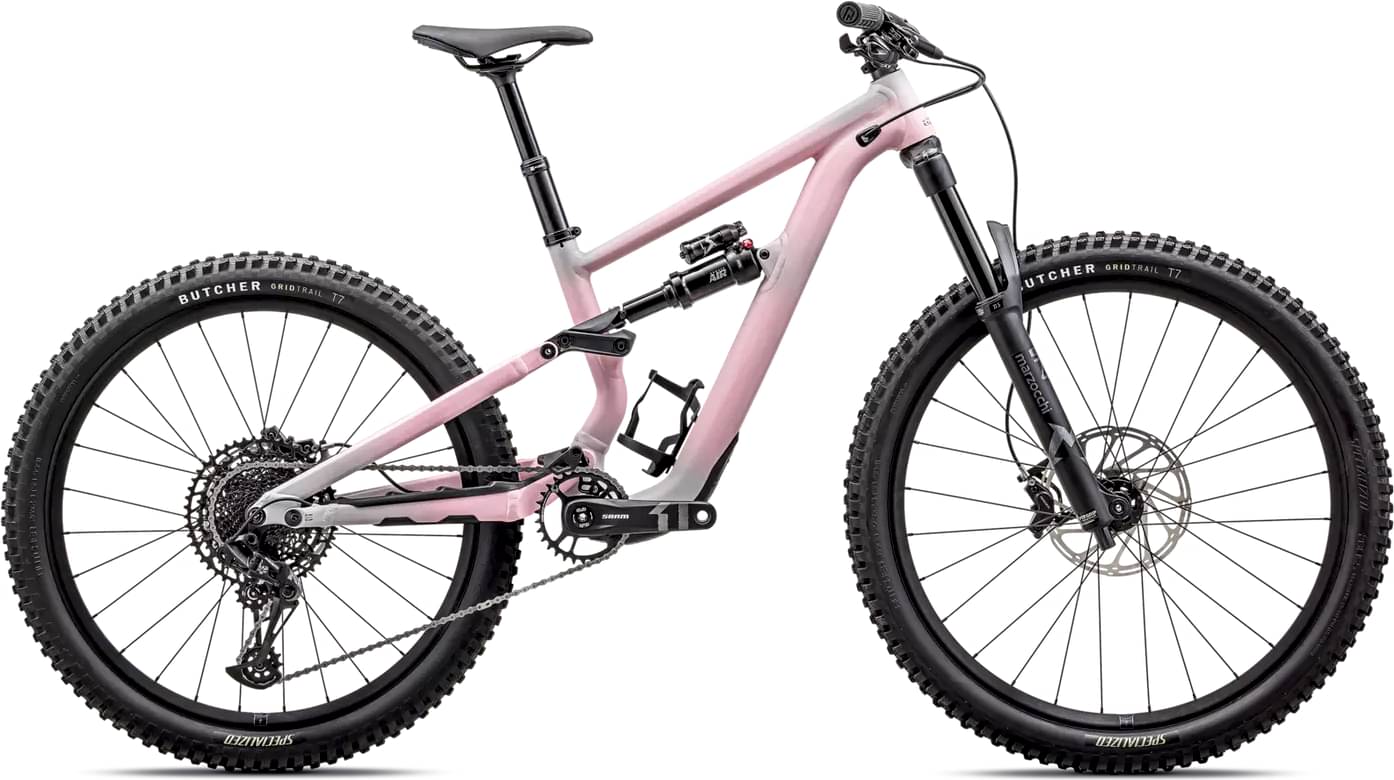

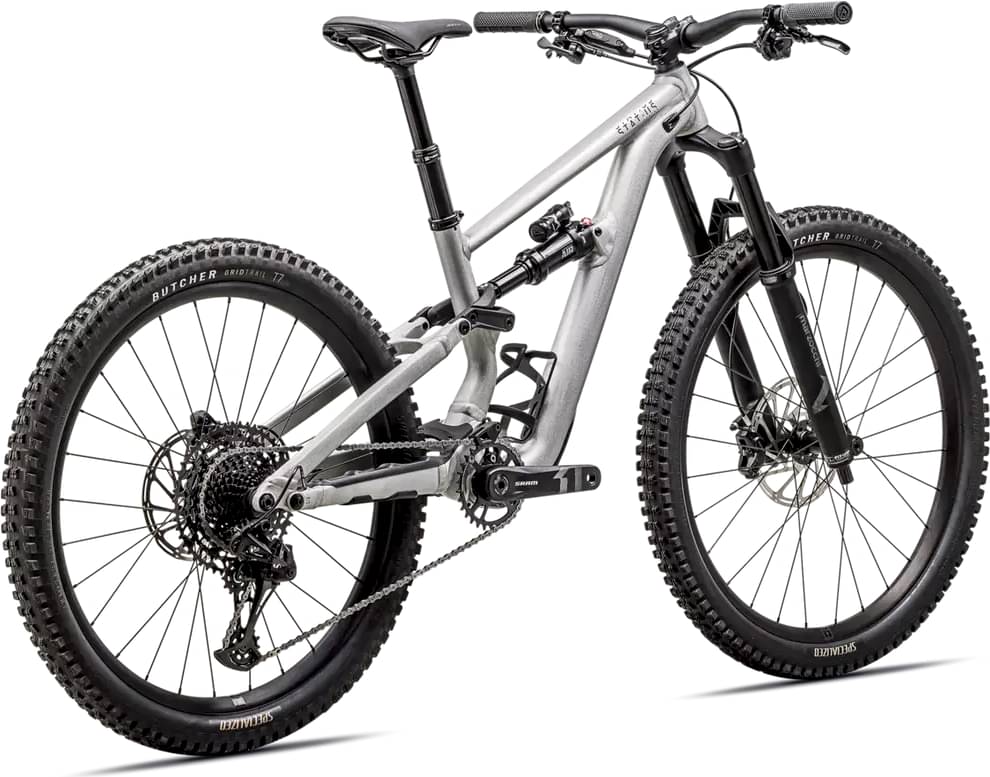

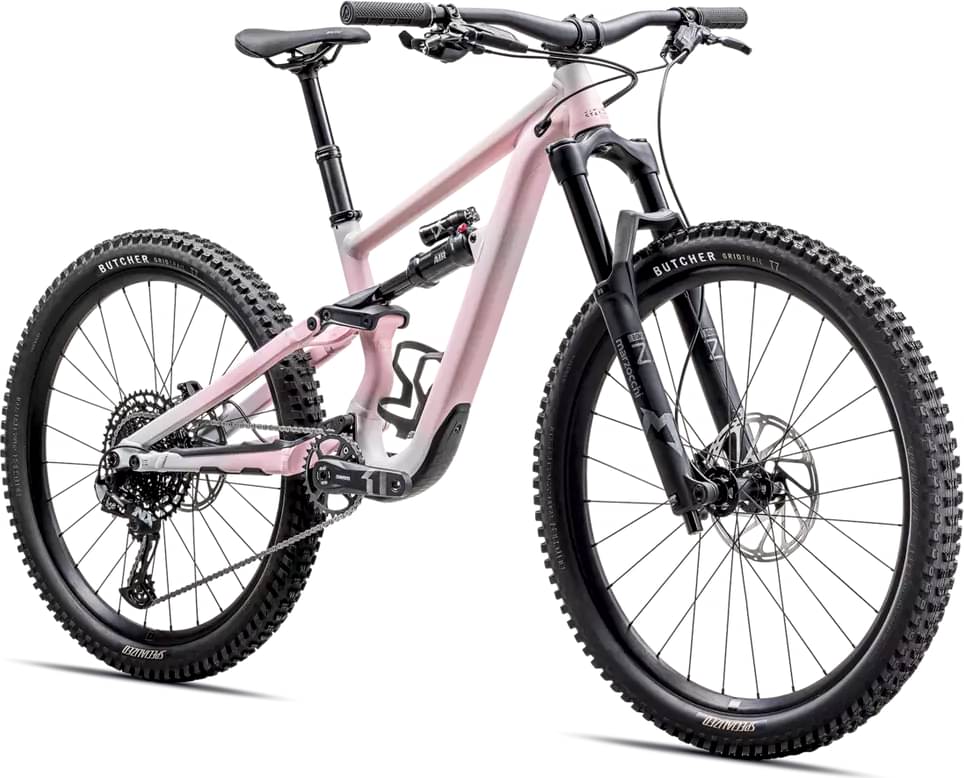

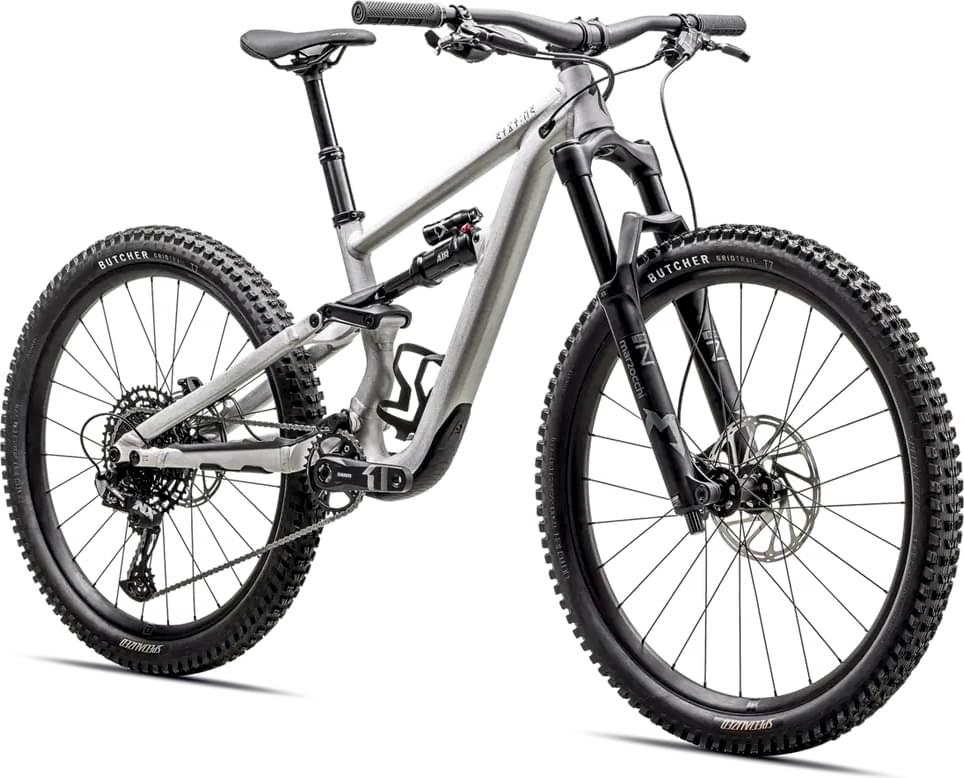

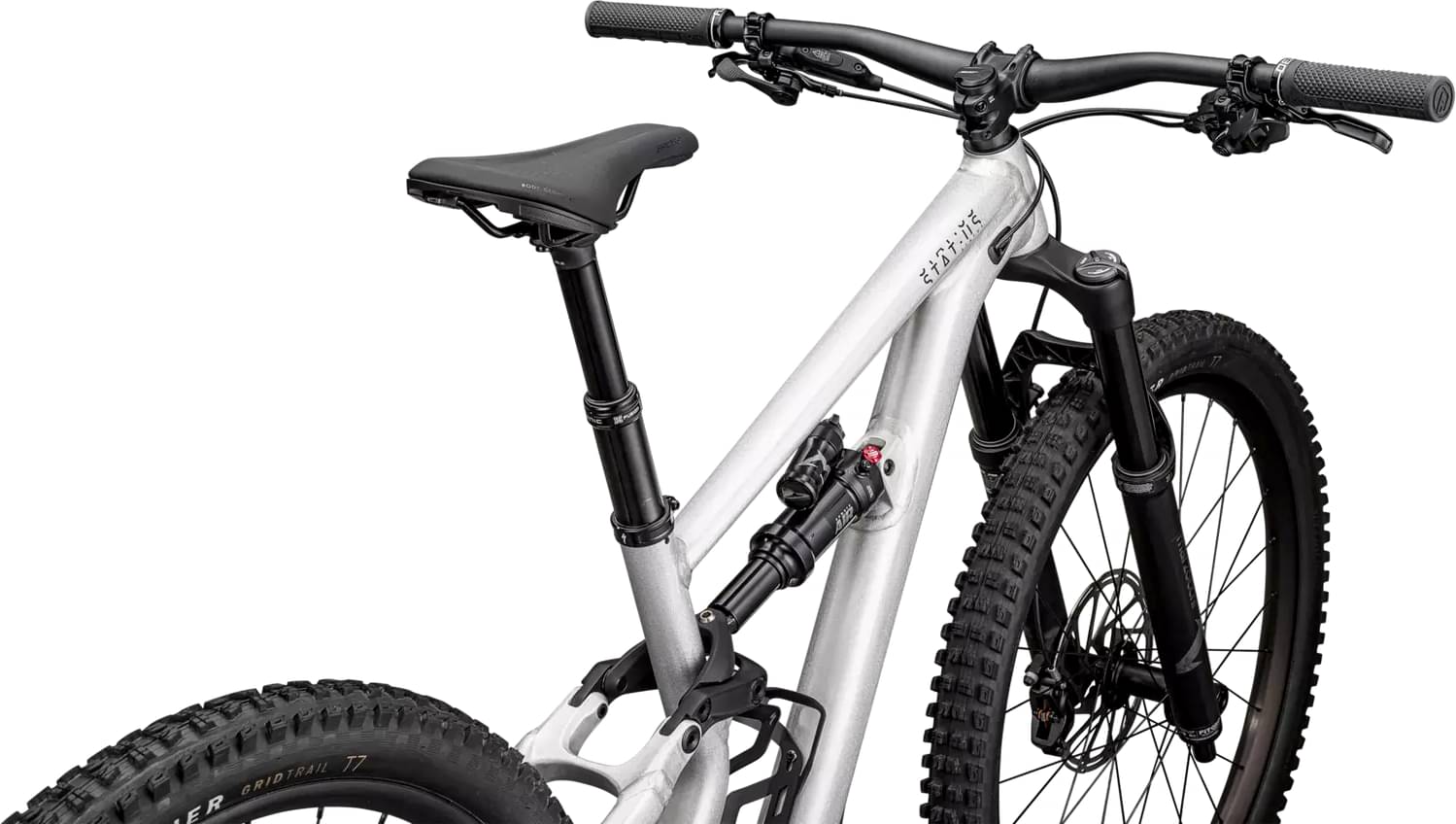

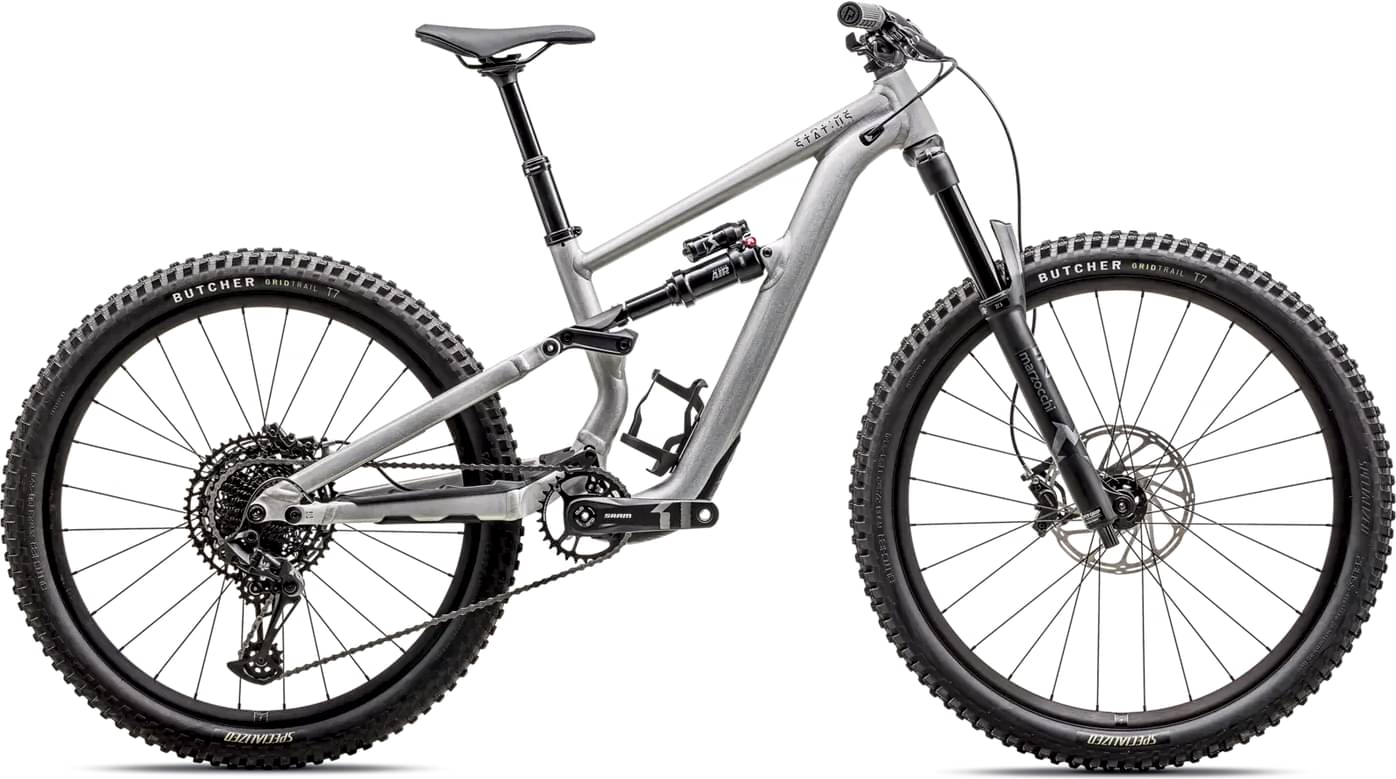

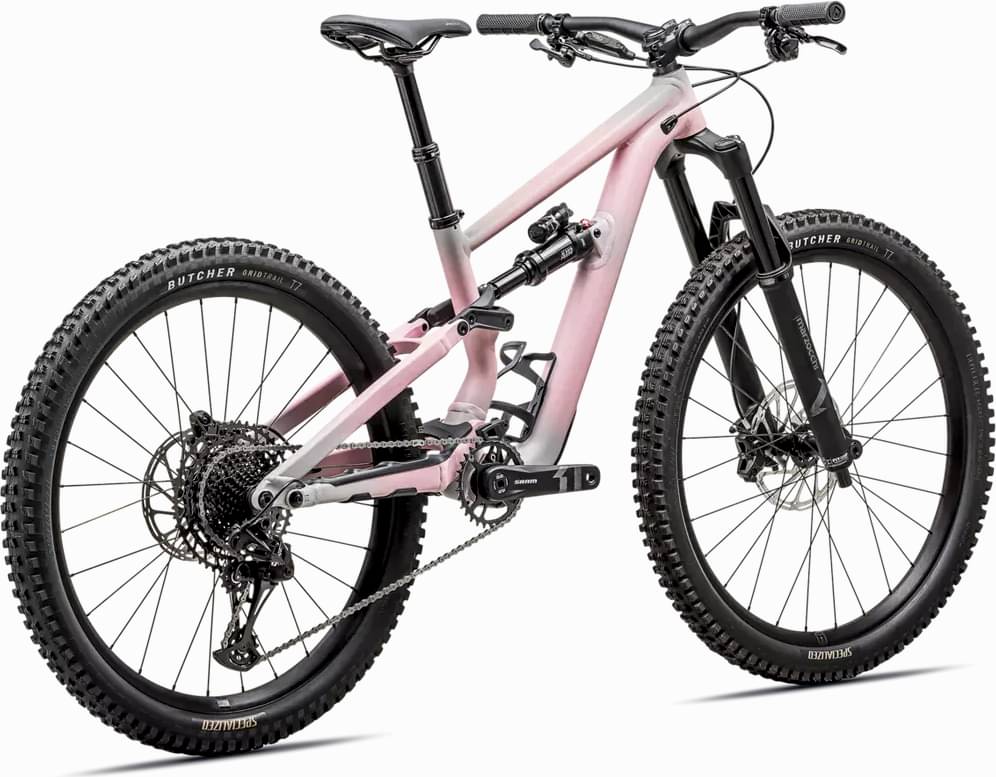

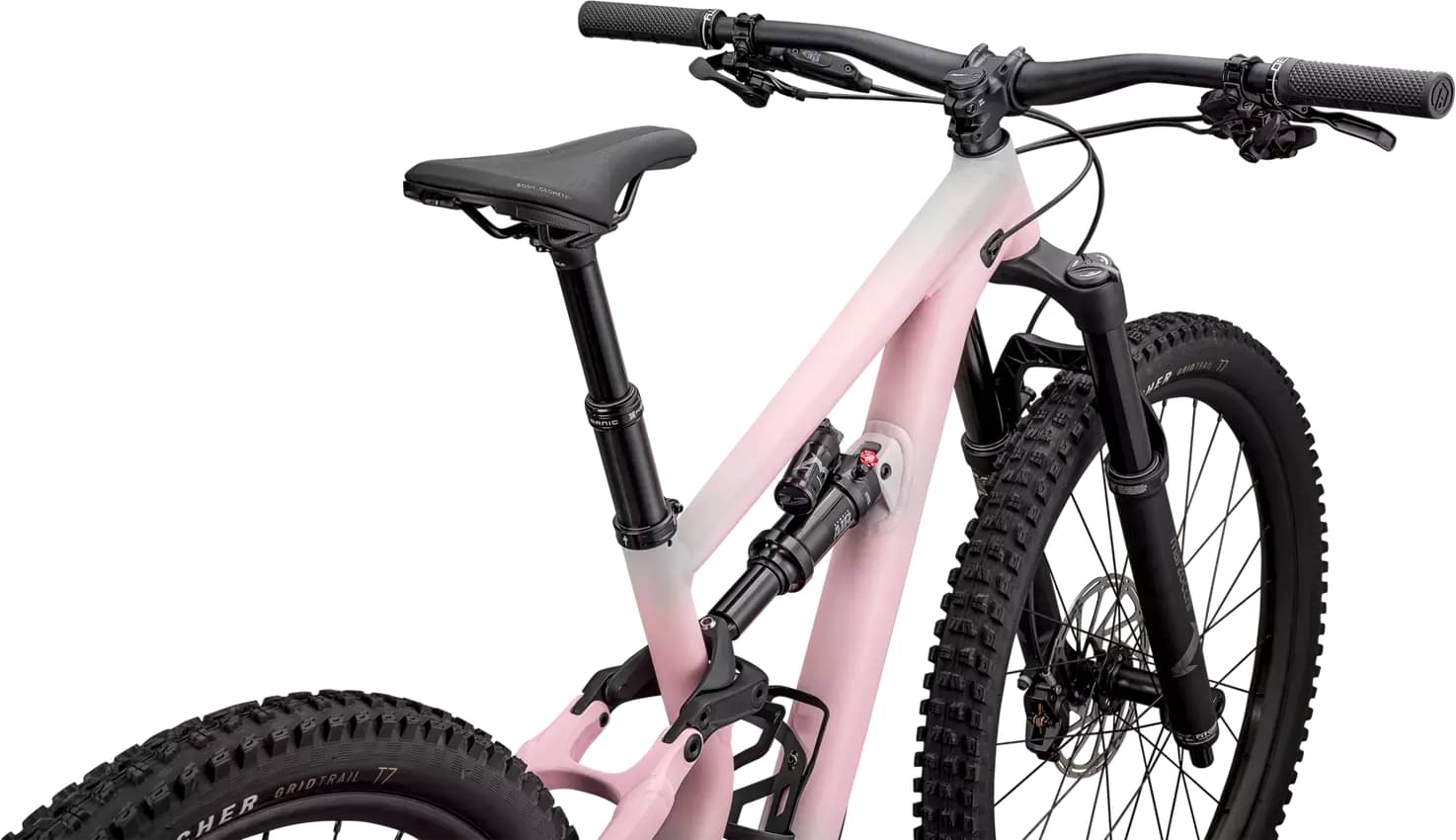

Specialized STATUS 2 140 ZERO 2025
2025 Mountain
Estimate price |
3,000$
Weight | 15.31 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 140mm -
Fork Marzocchi Bomber Z1
-
Groupset X1, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
M5 Alloy chassis and rear-end, Trail Geometry for 27.5 Front" and 26" rear wheels , horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 140mm of travel
Suspension Fork
Marzocchi Z1, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 37mm offset, 140mm of travel

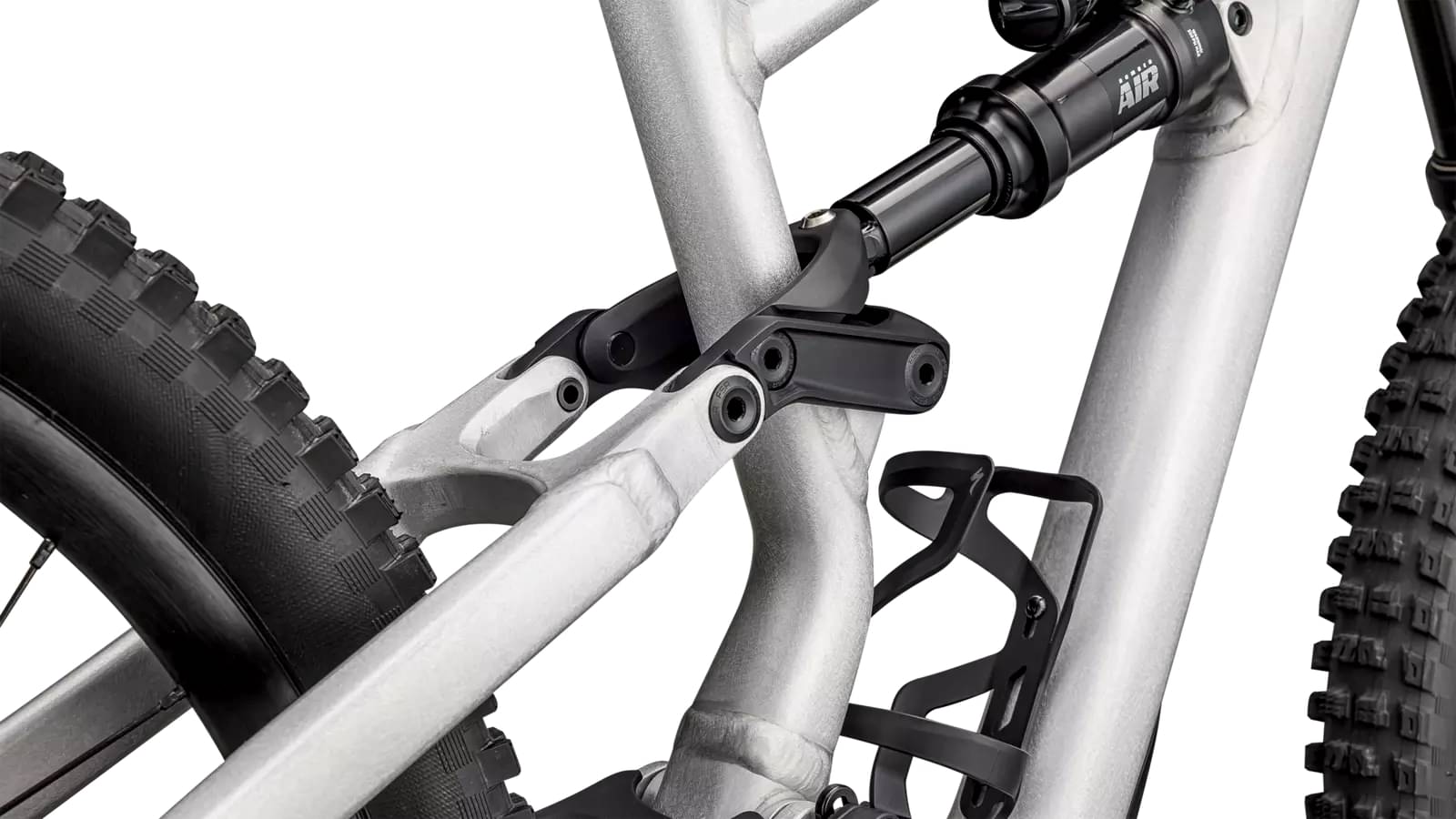

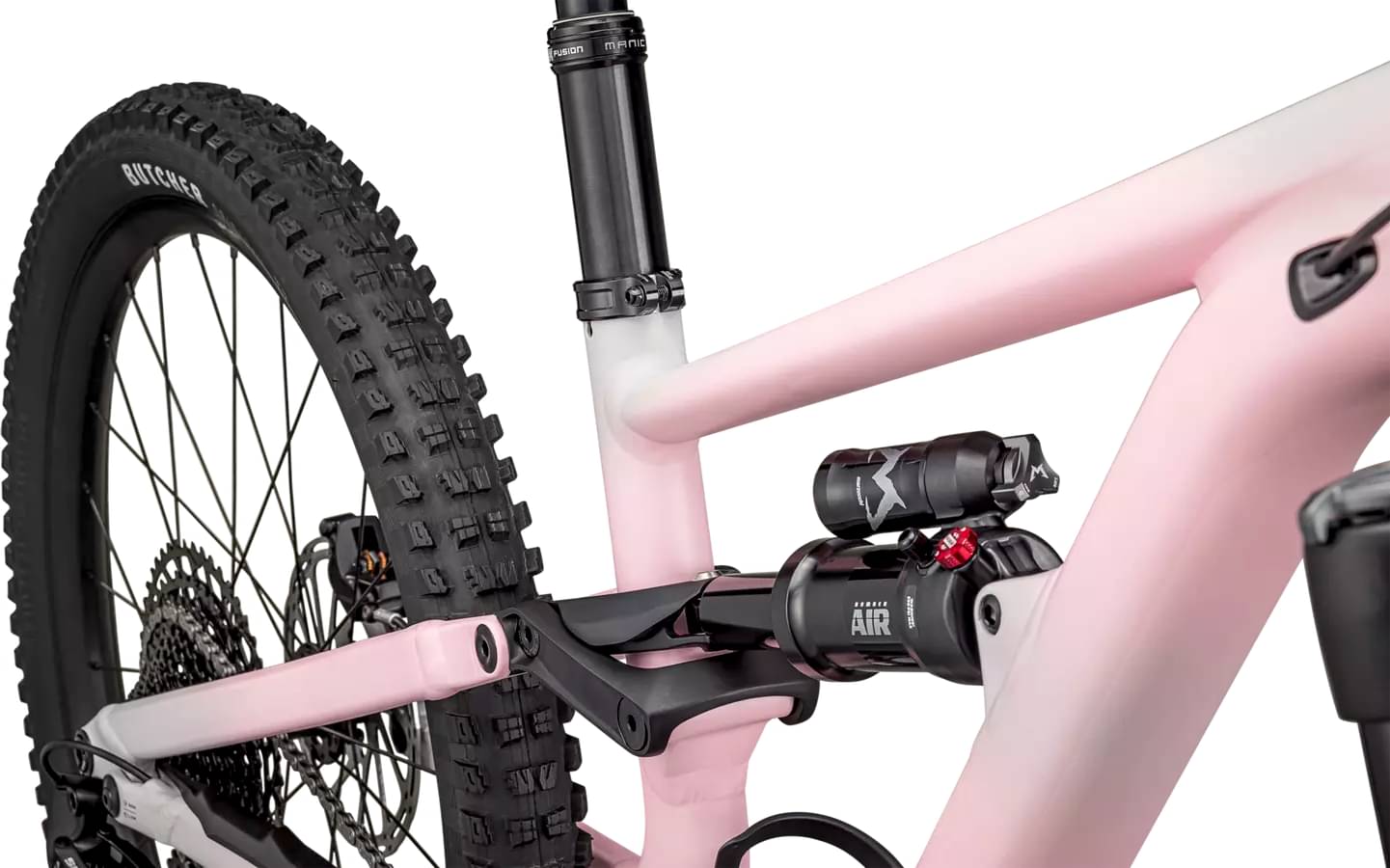

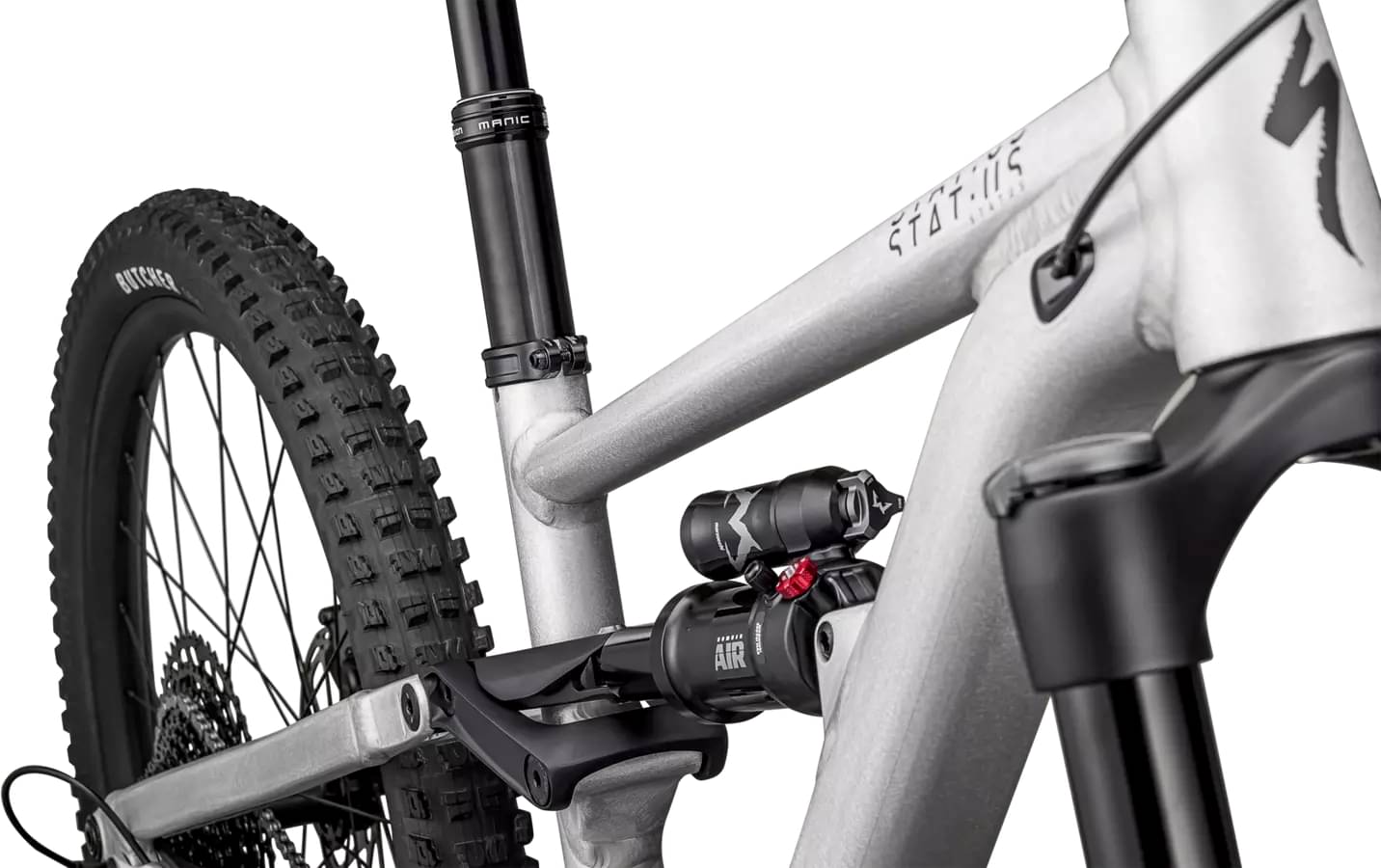

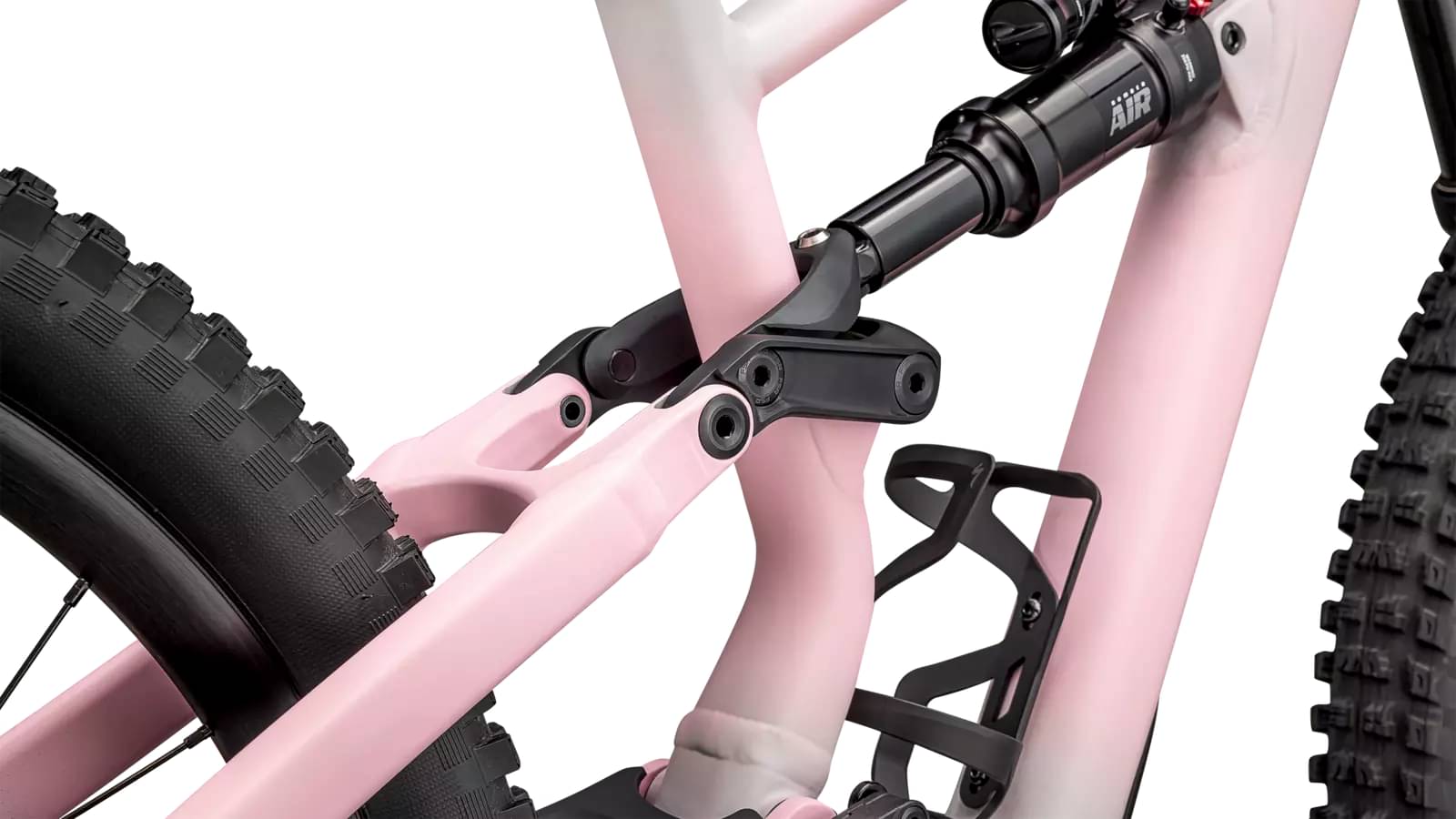

Rear Shock
Marzocchi Bomber Air, Ride Dynamics Trail Tune, 2-position non-indexed compression sweep, w/ LSR adjustment, 210x50mm
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12-speed
Shift Levers
SRAM NX Eagle, trigger, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50t
Crank
SRAM X1 Eagle, DUB,155mm, 55CL, 30T, Steel, 30T
Bottom Bracket
SRAM DUB Threaded Wide
Chain
SRAM NX Eagle, 12-speed
Wheels
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rims
Roval Traverse, hookless alloy, 30mm inner width, tubeless ready. Front: 27.5", Rear: 26"
Spokes
DT Swiss Industry
Tires
Front: Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3", Rear: Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 26x2.3"
Brakes
Brakes
Front: SRAM Code R, 4-piston caliper, hydraulic disc, 200mm, Rear: SRAM Code R, 4-piston caliper, hydraulic disc, 180mm
Cockpit

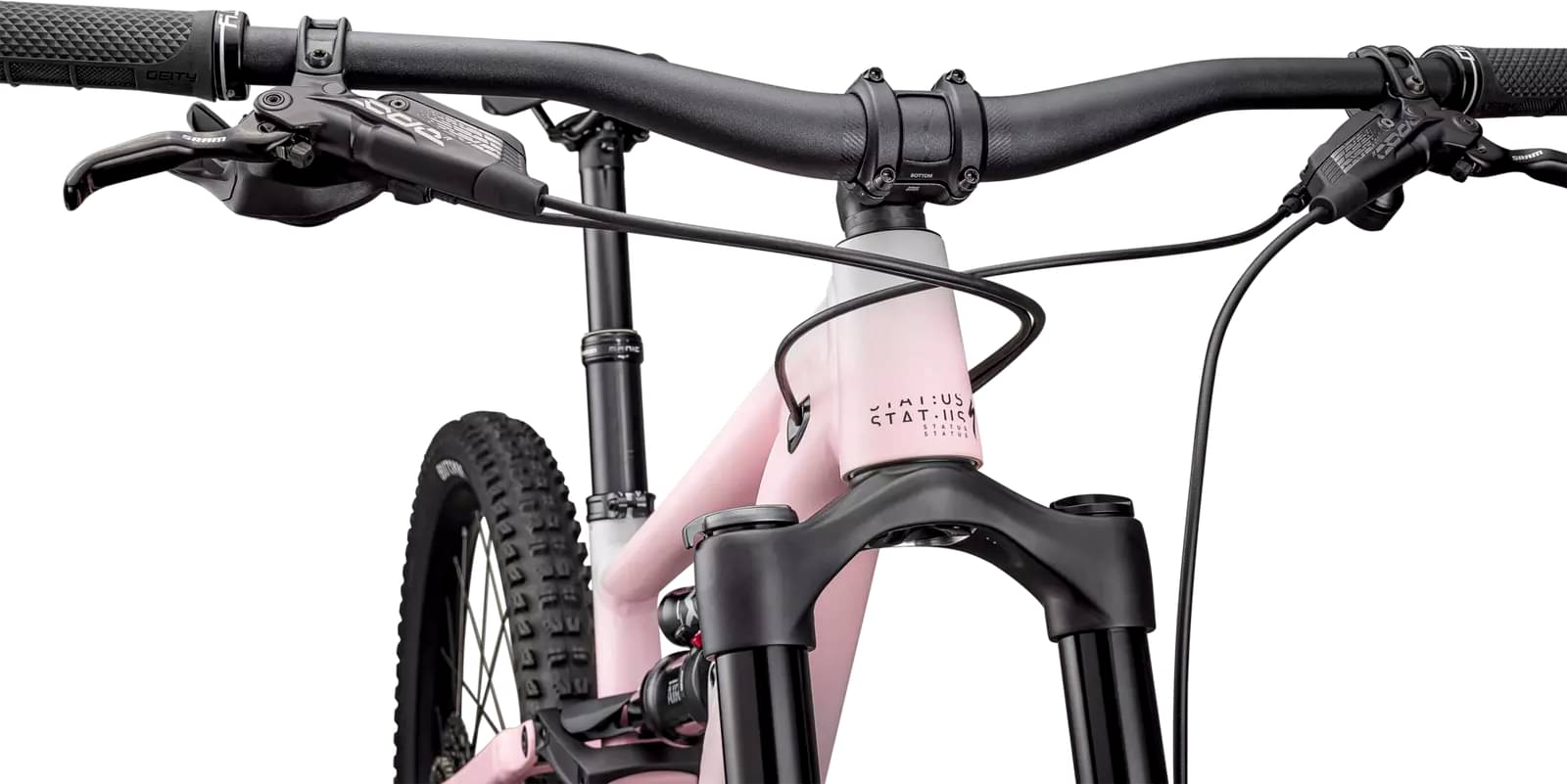

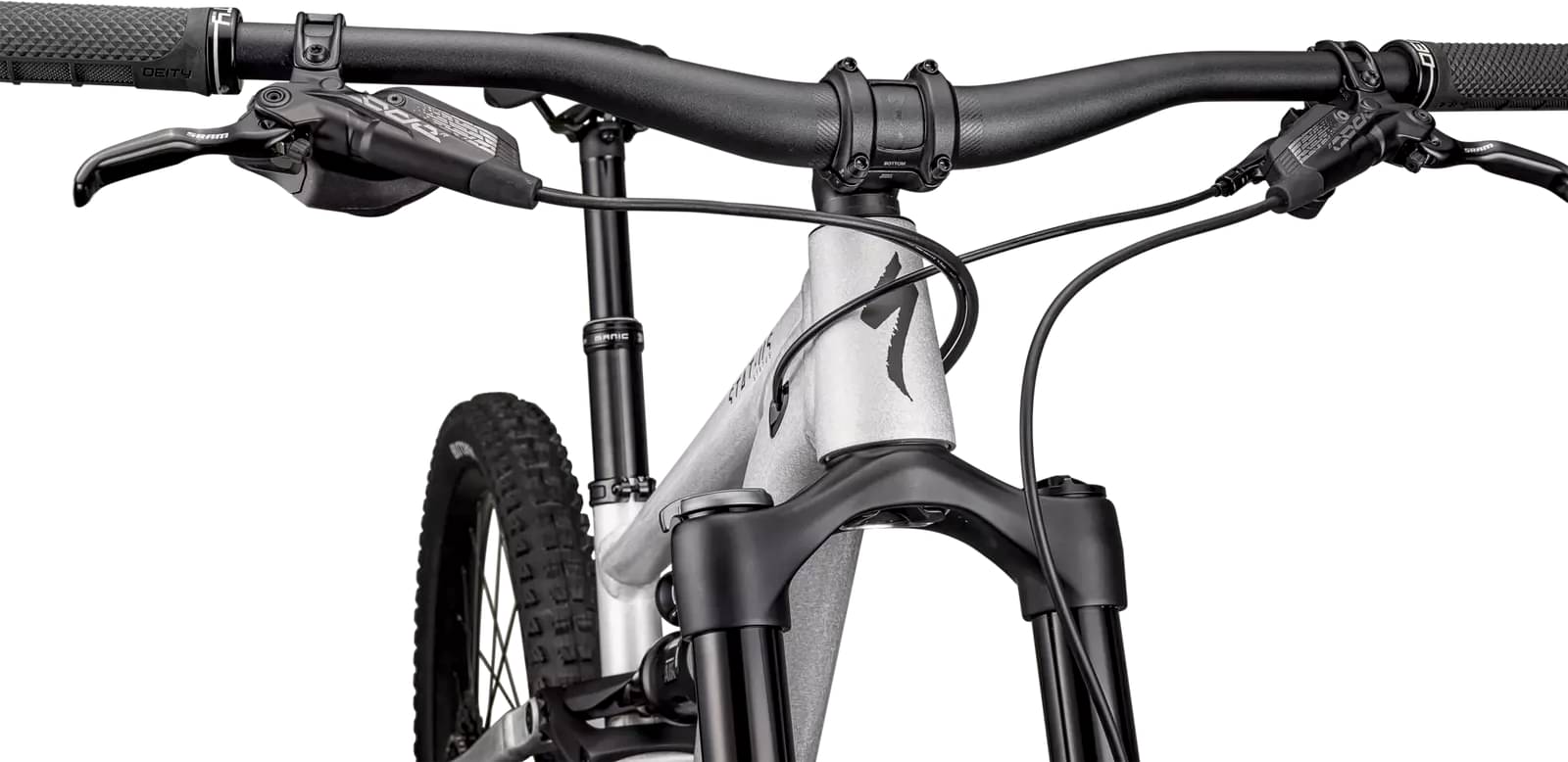

Stem
Alloy Trail Stem, 35mm bar bore
Handlebar
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Grips
Deity Grips
Seat
Saddle
Bridge Saddle, steel rails, 130mm
Seatpost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9mm, 100mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S0 |
|---|---|
| Stack Reach Ratio | 1.479 mm |
| Bottom Bracket Height | 328 mm |
| Front Center | 700 |
| Rake | 37 mm |
| Trail | 132 mm |
| Stack | 577 mm |
| Reach | 390 mm |
| Top Tube Length | 509 mm |
| Seat Tube Angle | 77 ° |
| Seat Tube Length | 370 mm |
| Head Tube Angle | 64 ° |
| Head Tube Length | 95 mm |
| Chainstay Length | 427 mm |
| Wheelbase | 1126 mm |
| Bottom Bracket Drop | 28 mm |
| Standover Height | 728 mm |
| Wheels | 27" |
