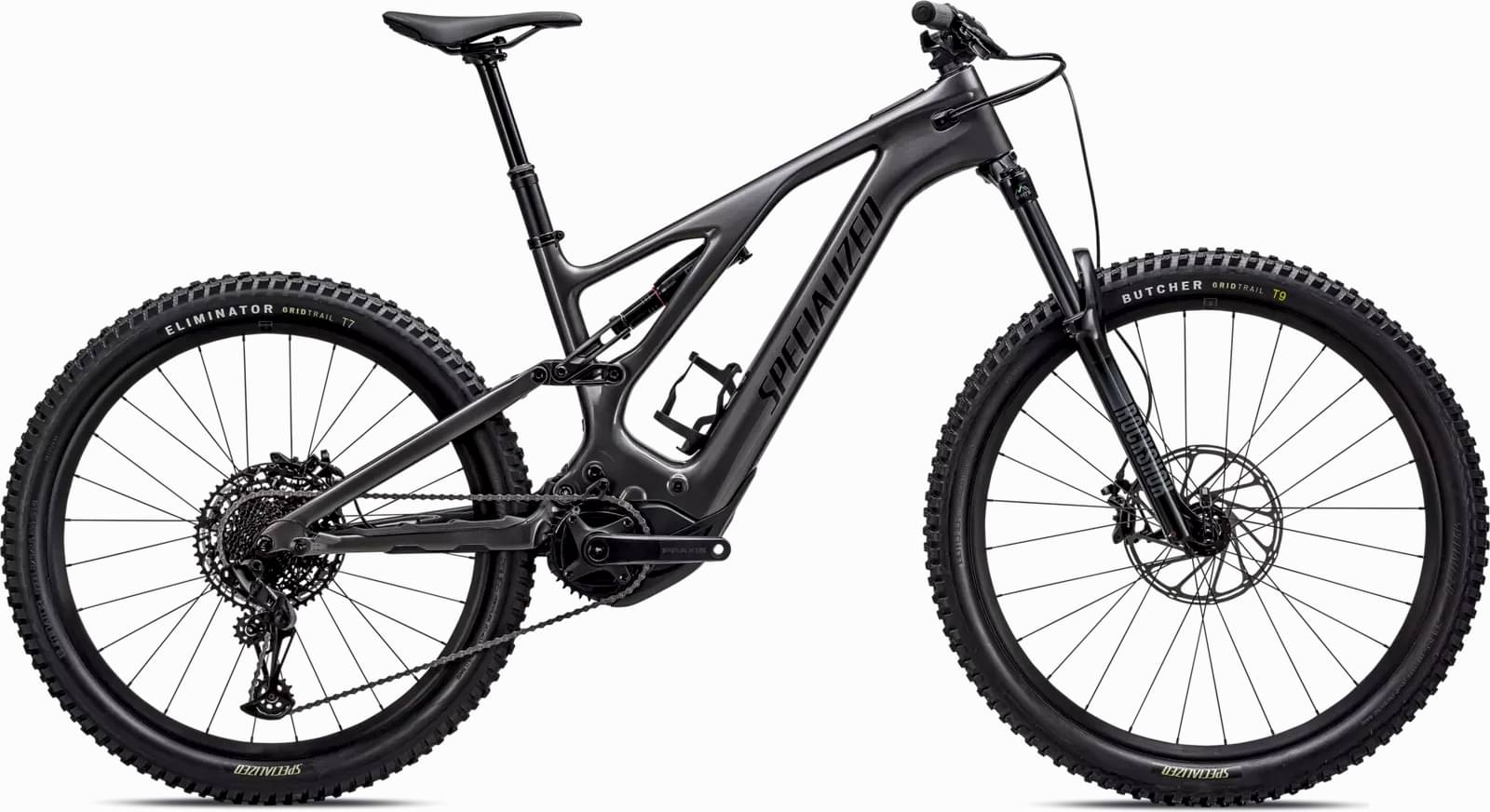

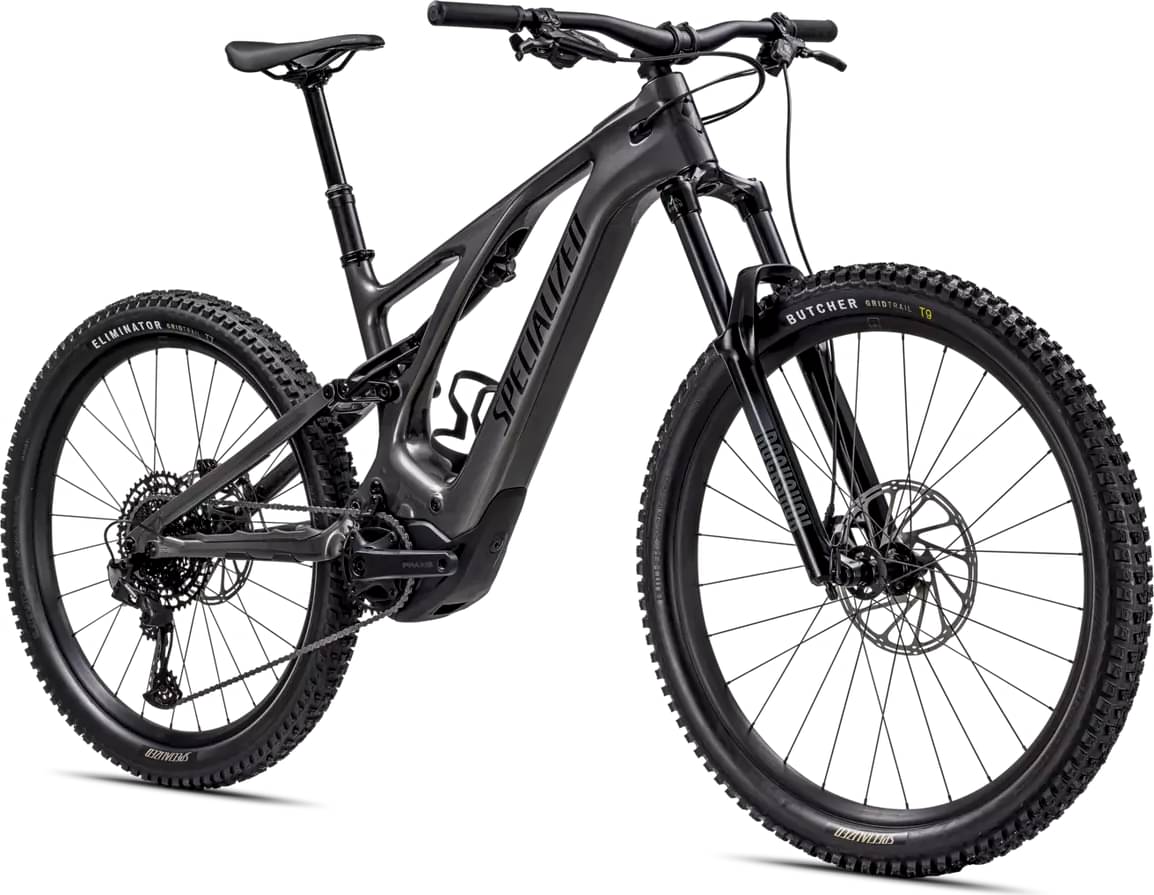

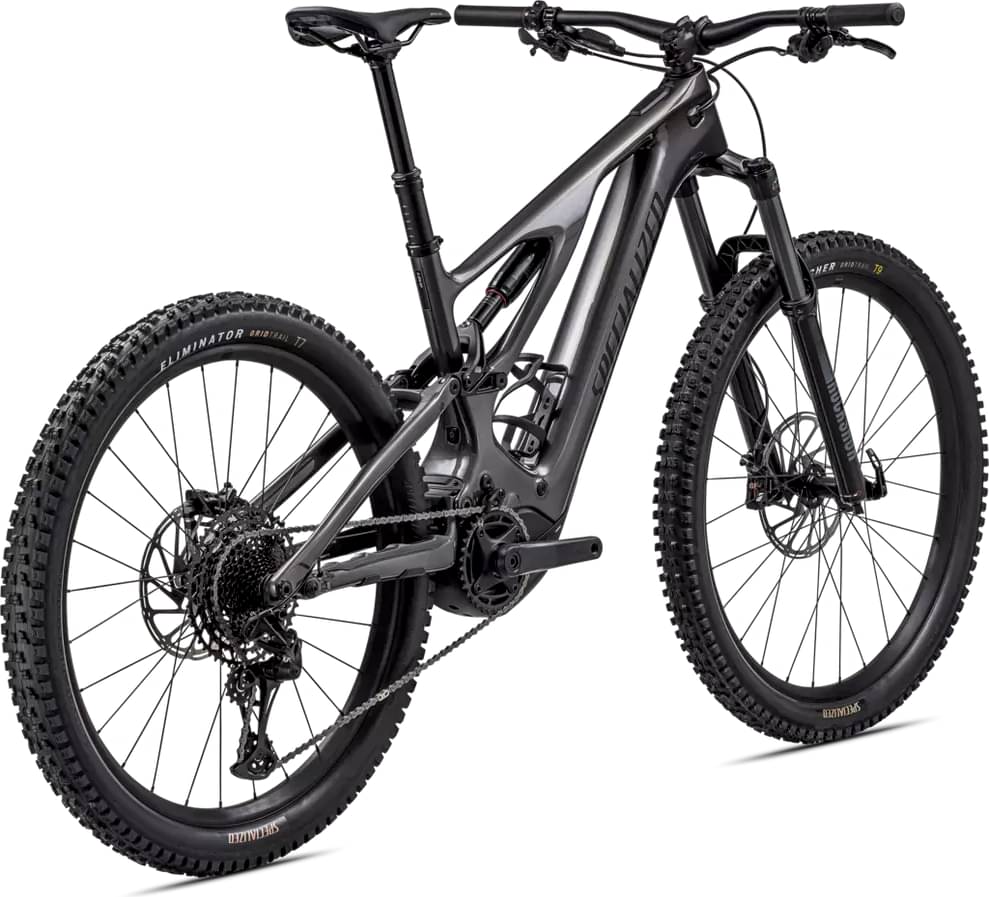

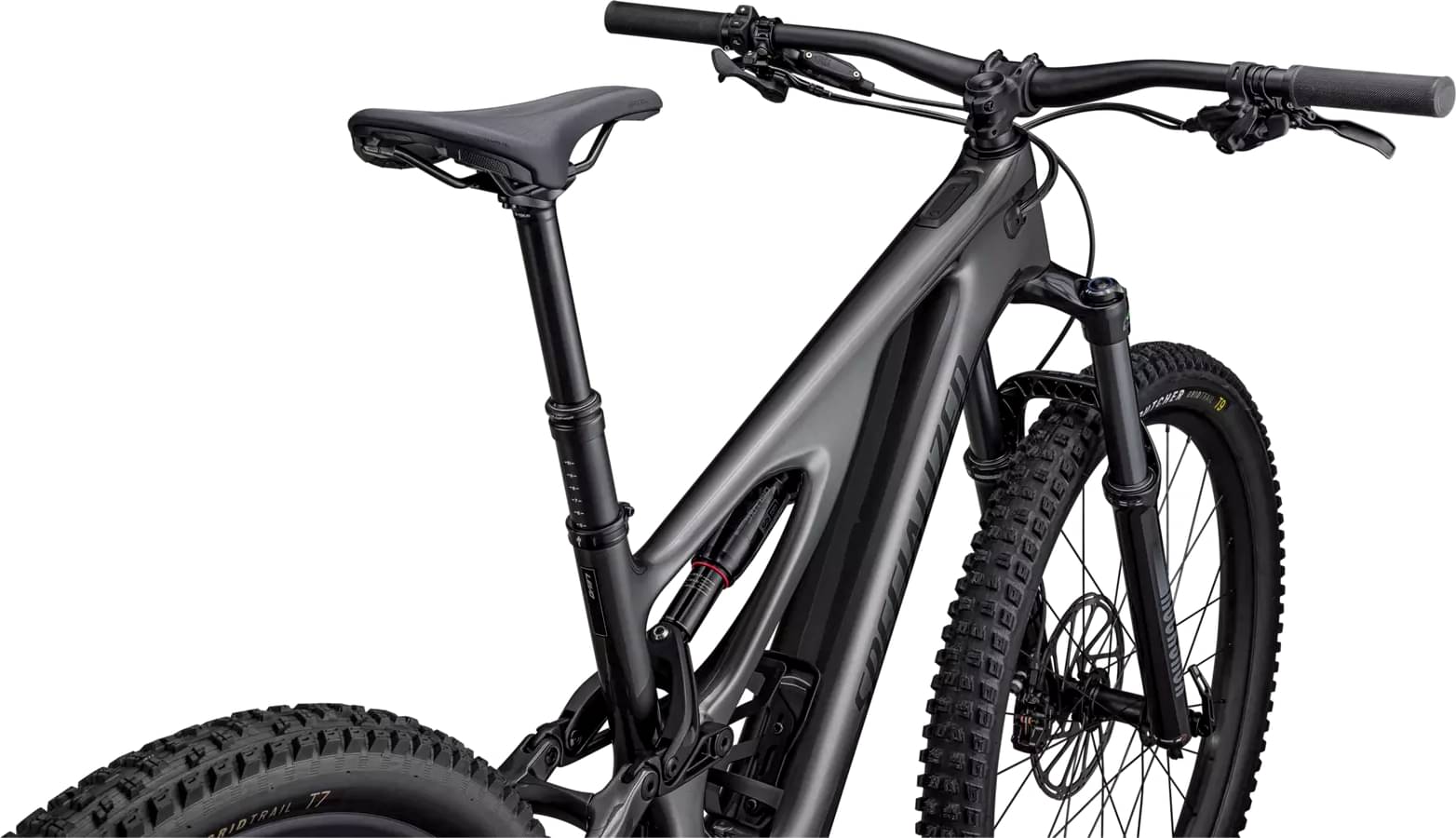

Specialized Turbo Levo 3 Carbon 2023
2023 E-bike
Estimate price |
6,799$
Weight | 23.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle -
Suspension Full -
Motor Specialized 565W 90Nm mid-drive -
Battery Specialized M3-500A, Integrated battery, 500Wh -
Drivetrain 1 × 12 -
Brakes SRAM G2 RE Hydraulic Disc
Sizing
Recommended size guide.
S1
149cm - 160cm
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
S6
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
Suspension Fork
Rockshox 35 Silver 29, Turnkey damper, S1: 150mm travel, S2-S6: 160mm travel
Rear Shock

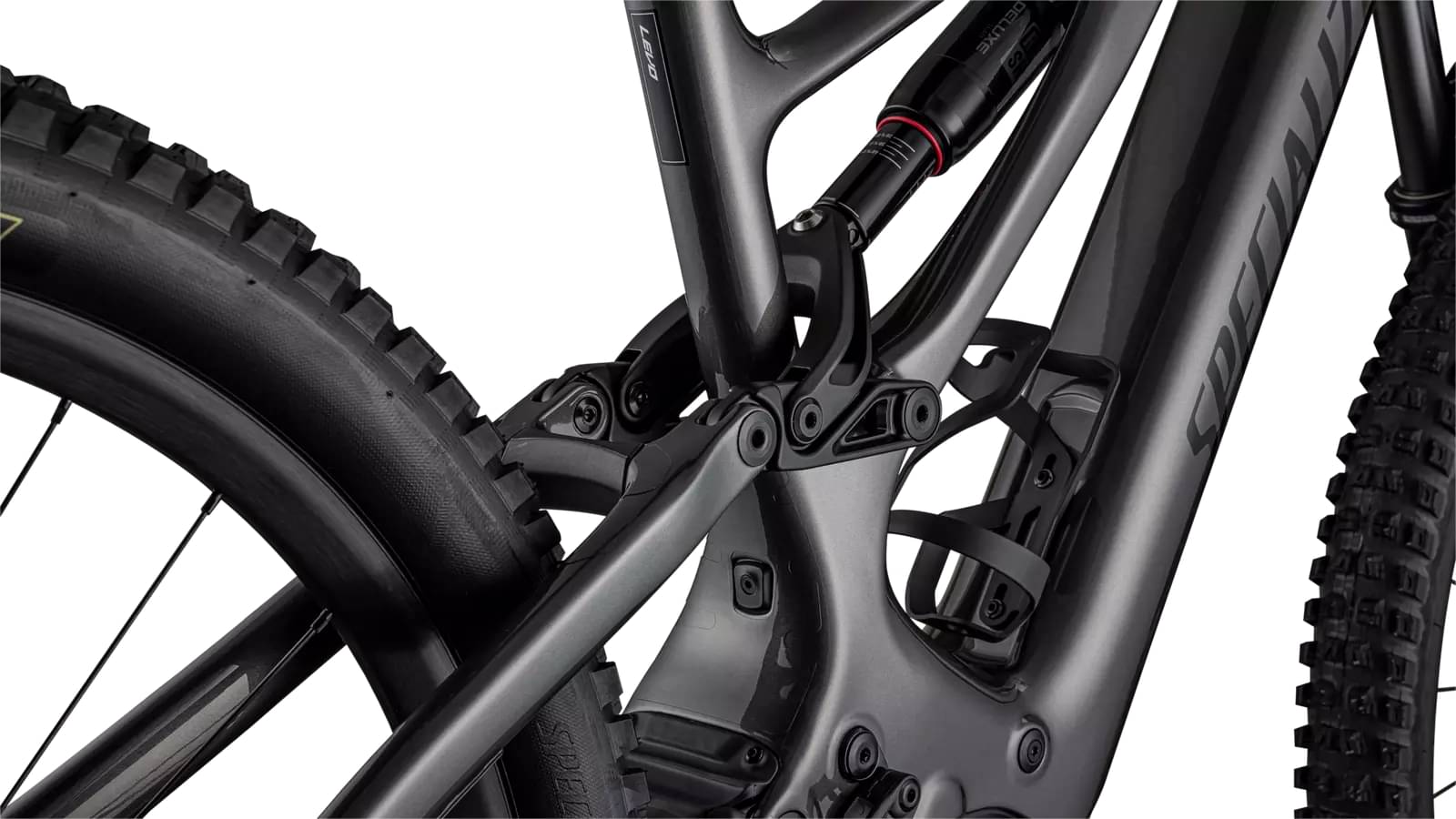

RockShox Deluxe Select R, rebound adjust, S1: 52.5x210mm, S2-S6: 55x210mm
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-speed
Shift Levers
SRAM SL SX Eagle, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50t
Crank

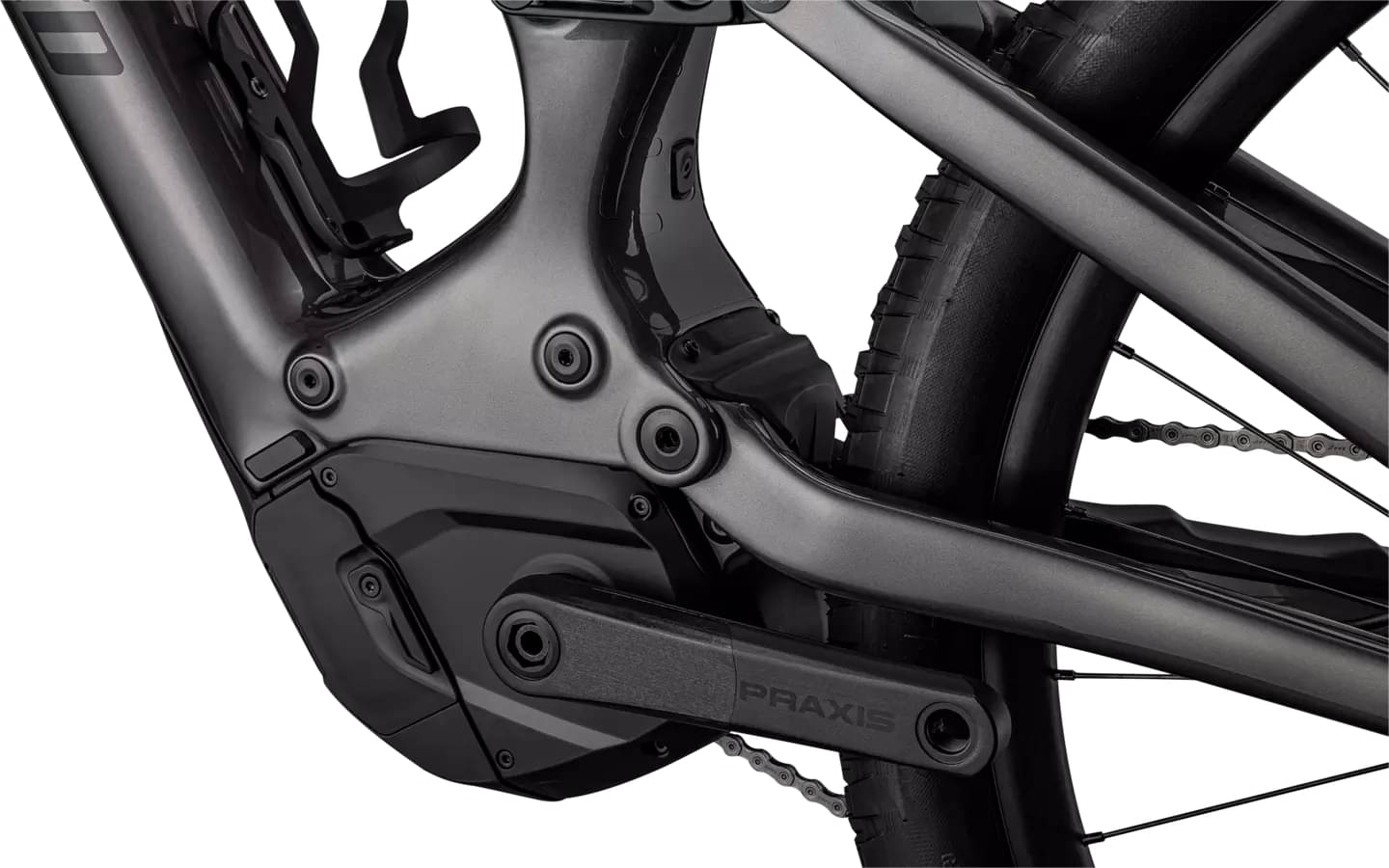

Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm, SRAM X-Sync Eagle, 104 BCD, 34T, steel
Chain
SRAM NX Eagle, 12-speed
Wheels
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
Rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Spokes
DT Swiss Industry
Tires
Front: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6", Rear: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Brakes
Brakes
Front: SRAM G2 RE, S1-S3: 200mm, S4-S6: 220mm, Rear: SRAM G2 RE, 200mm
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebar

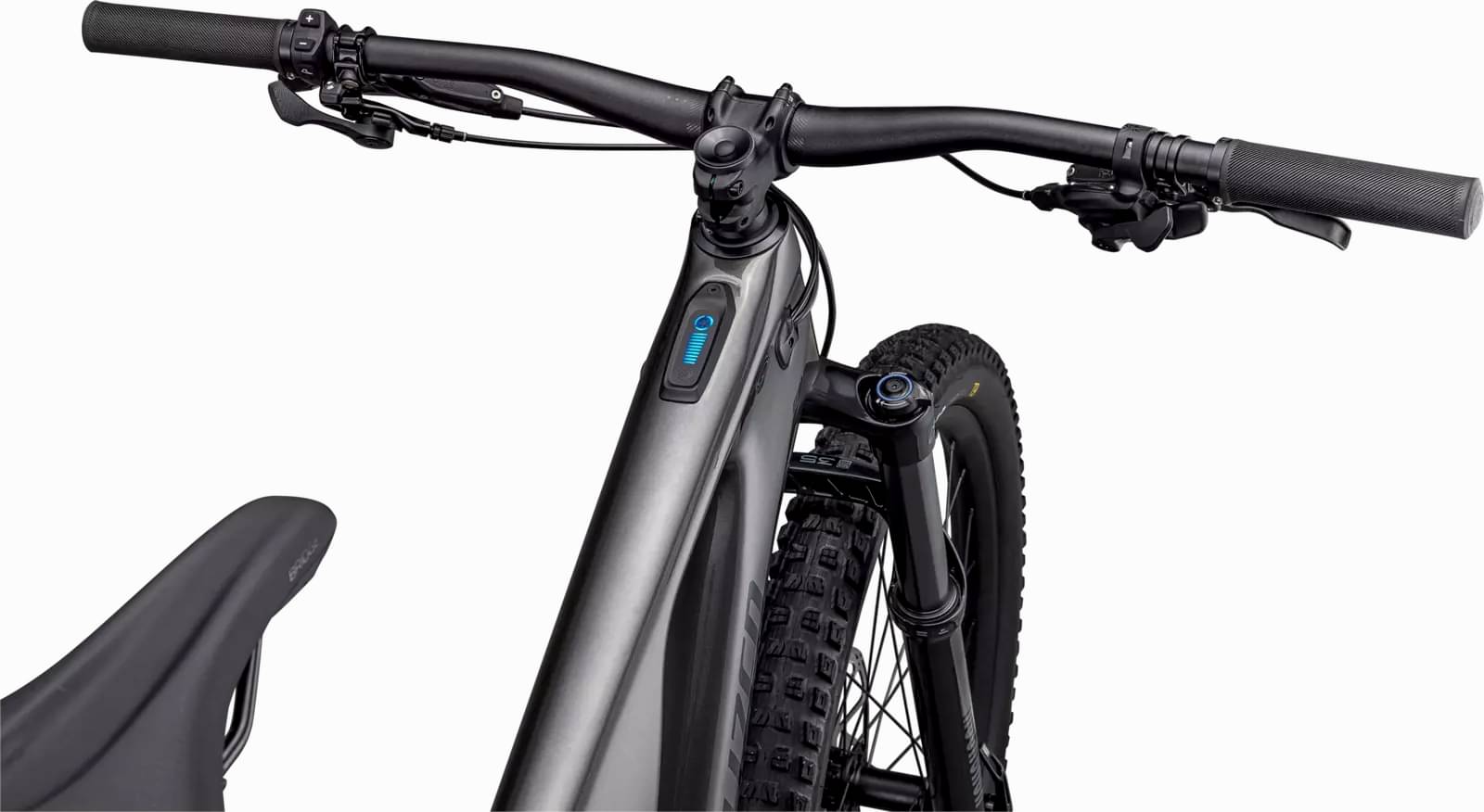

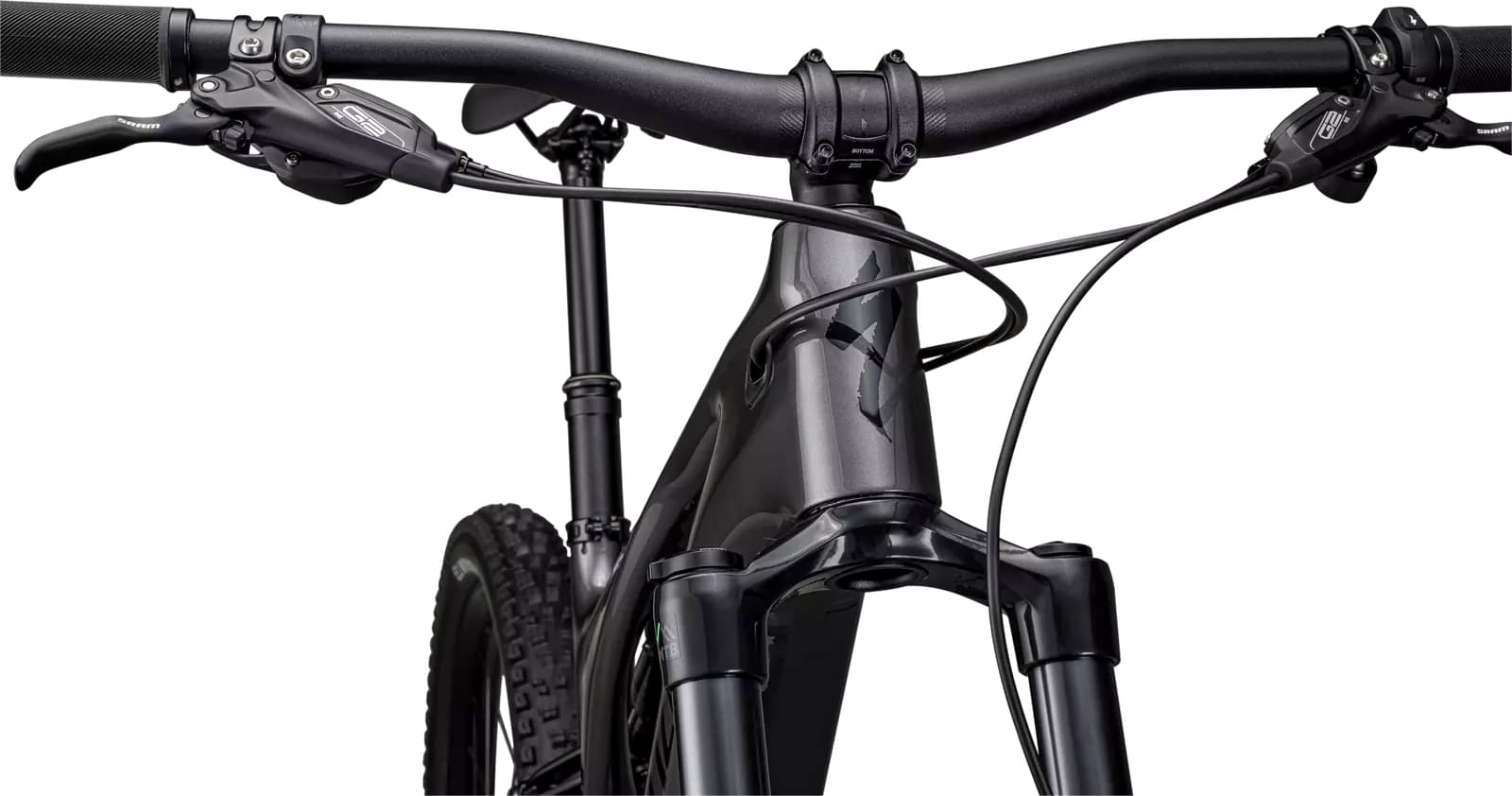

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Grips
Specialized Trail Grips
Seat
Saddle
Body Geometry Bridge Saddle, steel rails
Seatpost
TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm
Motor & Battery
Motor
Specialized 2.2 Custom Rx Trail Tuned Motor, 90Nm Torque, 565W Power
Battery
Specialized M3-500A, Integrated battery, 500Wh
Remote

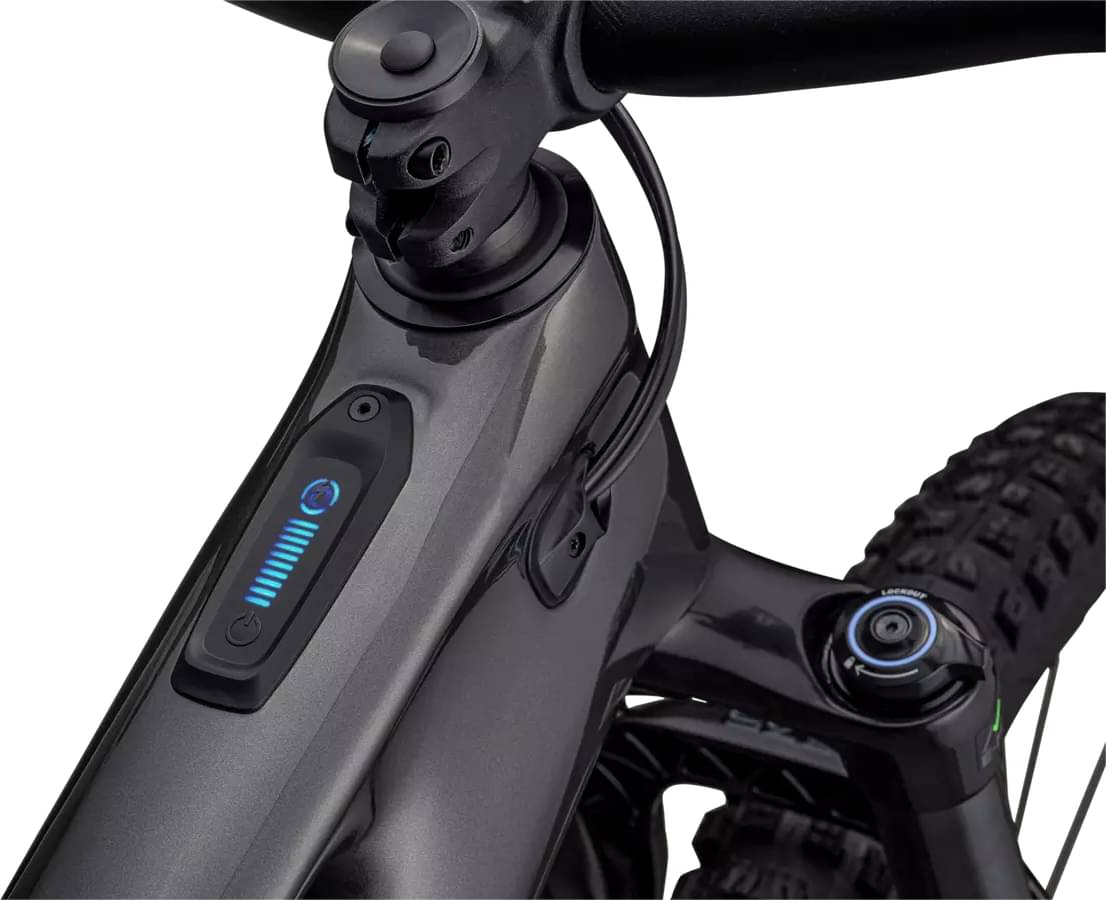

Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.468 mm | 1.428 mm | 1.385 mm | 1.331 mm | 1.283 mm | 1.227 mm |
| Bottom Bracket Height | 352 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 738 mm | 760 mm | 784 mm | 814 mm | 843 mm | 878 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Stack | 605 mm | 617 mm | 626 mm | 635 mm | 644 mm | 653 mm |
| Reach | 412 mm | 432 mm | 452 mm | 477 mm | 502 mm | 532 mm |
| Seat Tube Angle | 78 ° | 77.2 ° | 76.7 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 380 mm | 390 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1179 mm | 1200 mm | 1225 mm | 1255 mm | 1284 mm | 1318 mm |
| Bottom Bracket Drop | 25 mm | 27 mm | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 752 mm | 776 mm | 783 mm | 787 mm | 788 mm | 790 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 149 cm | 157 cm | 165 cm | 172 cm | 177 cm | 188 cm |
| Rider Max Height | 160 cm | 172 cm | 180 cm | 188 cm | 193 cm | 203 cm |
