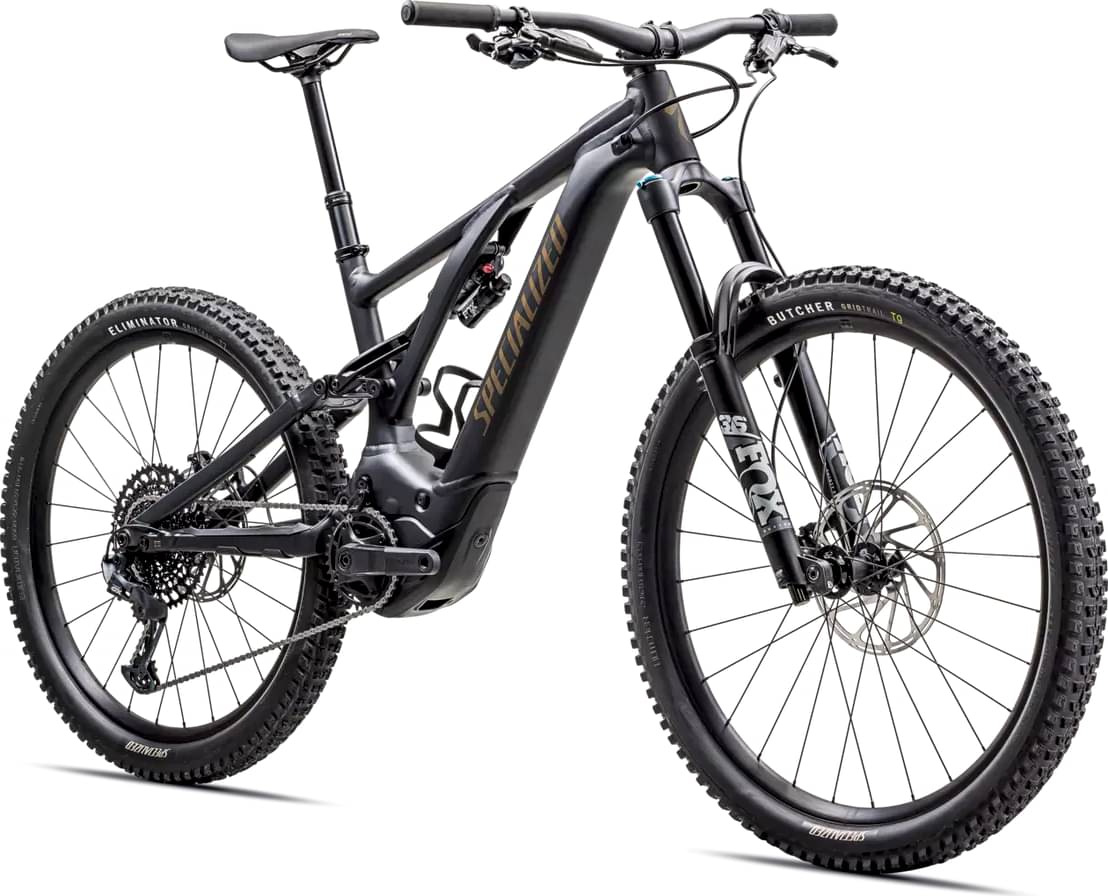

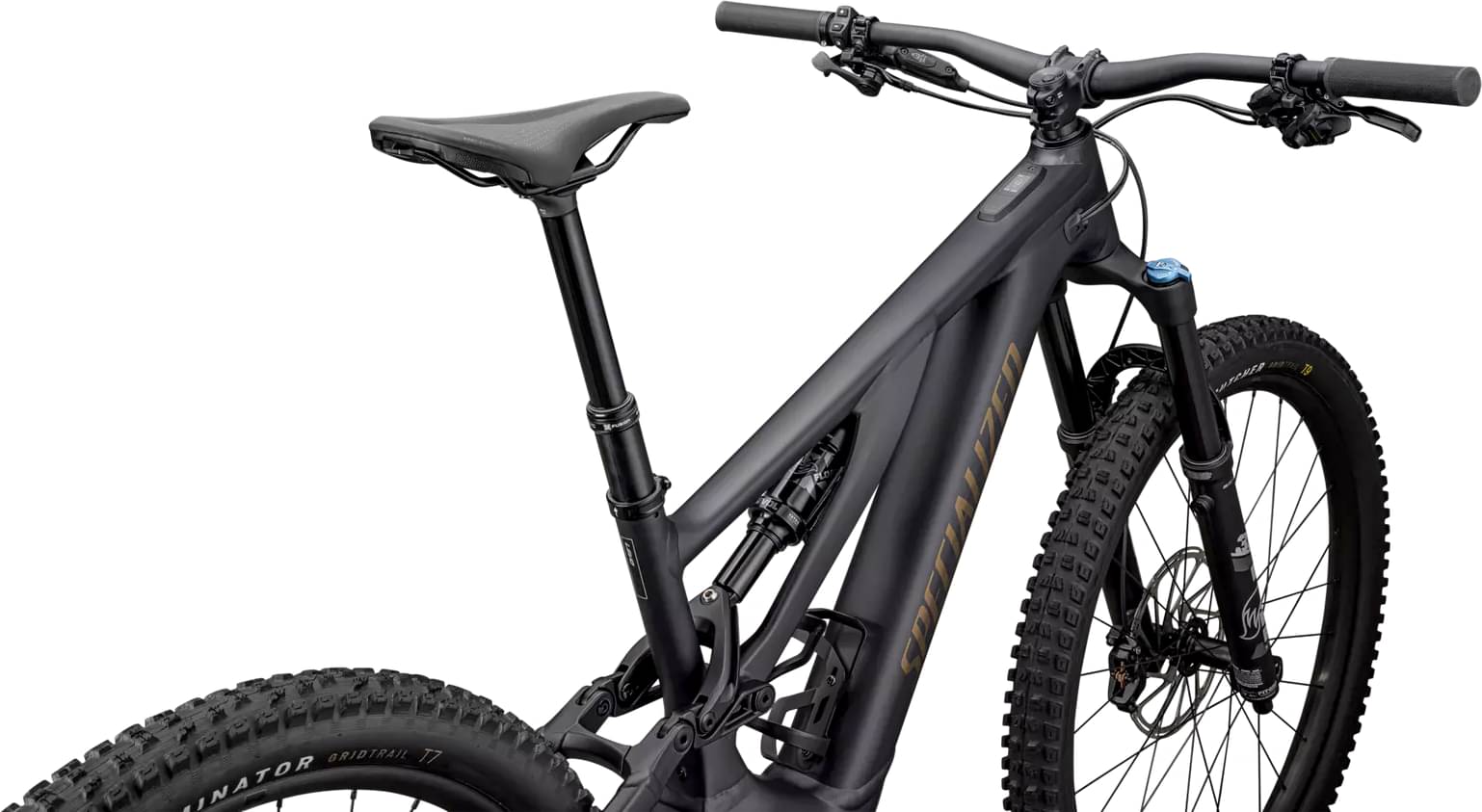

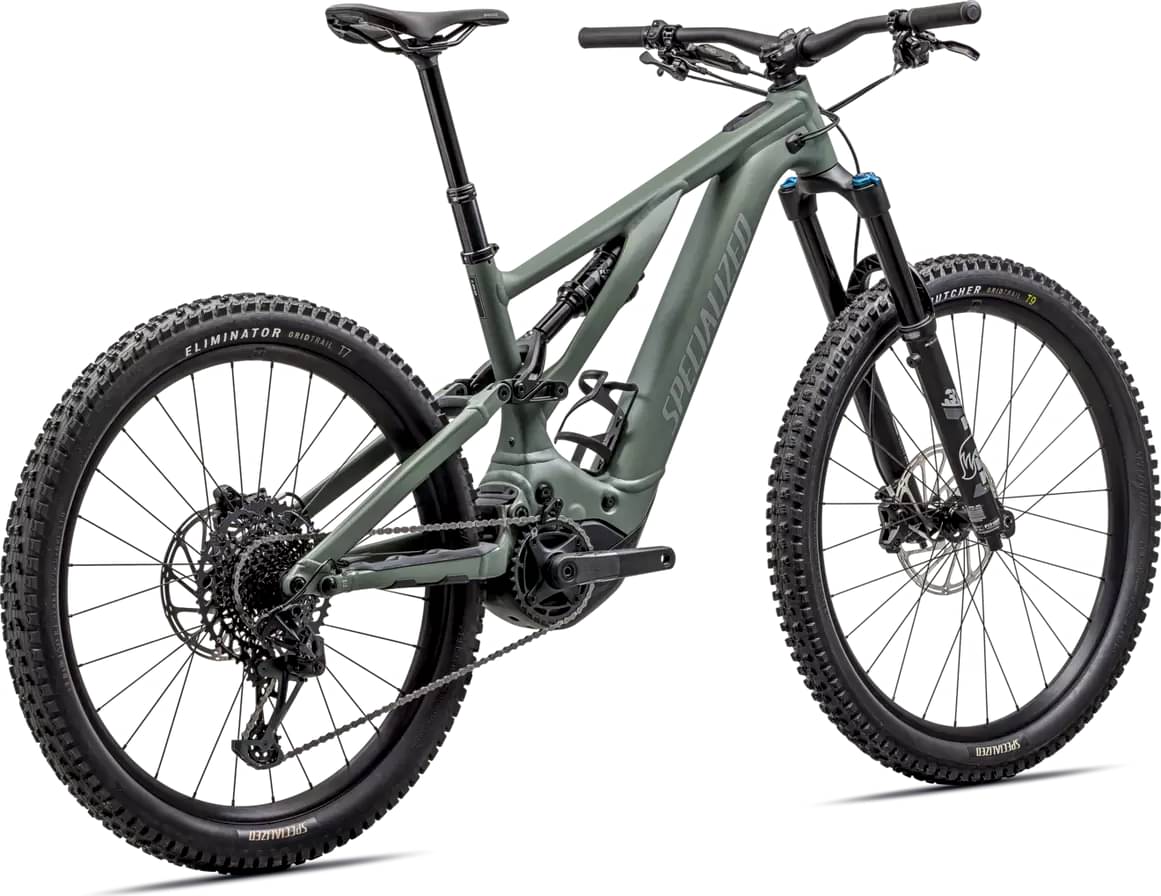

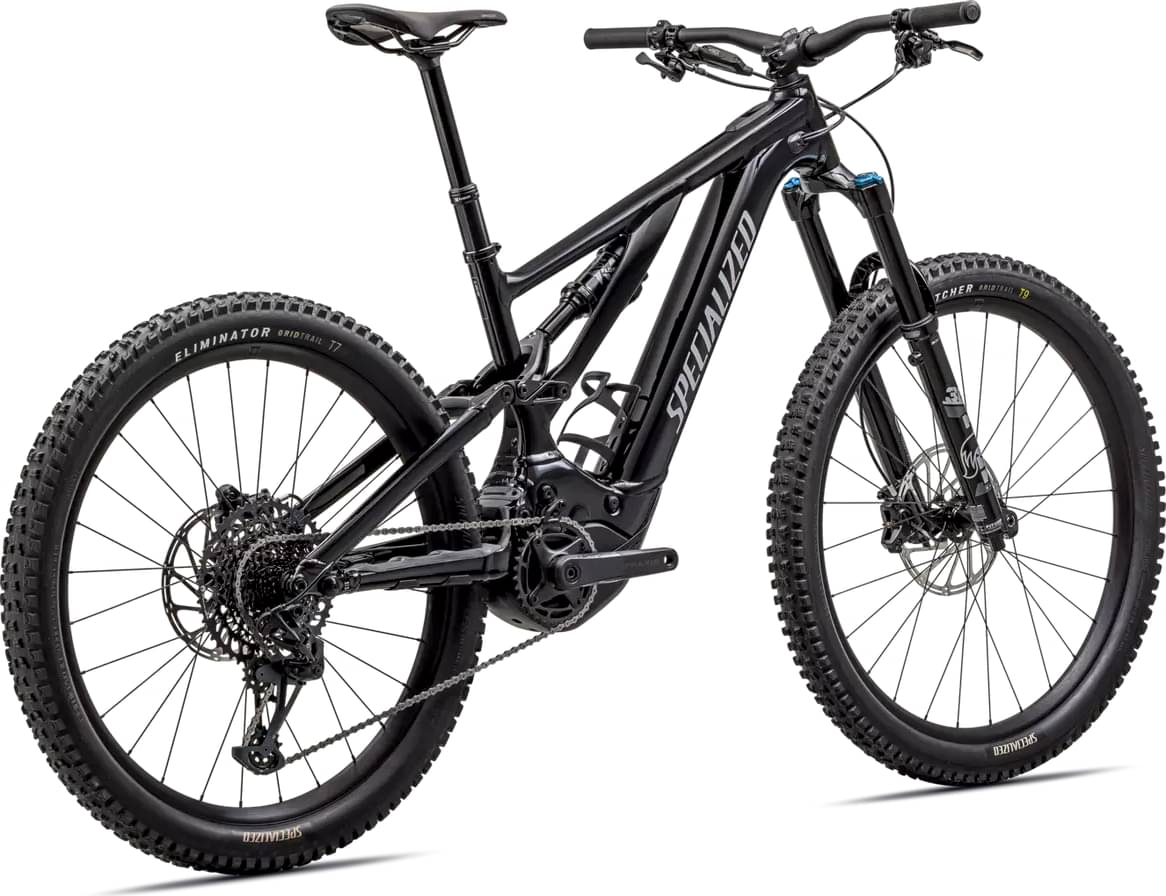

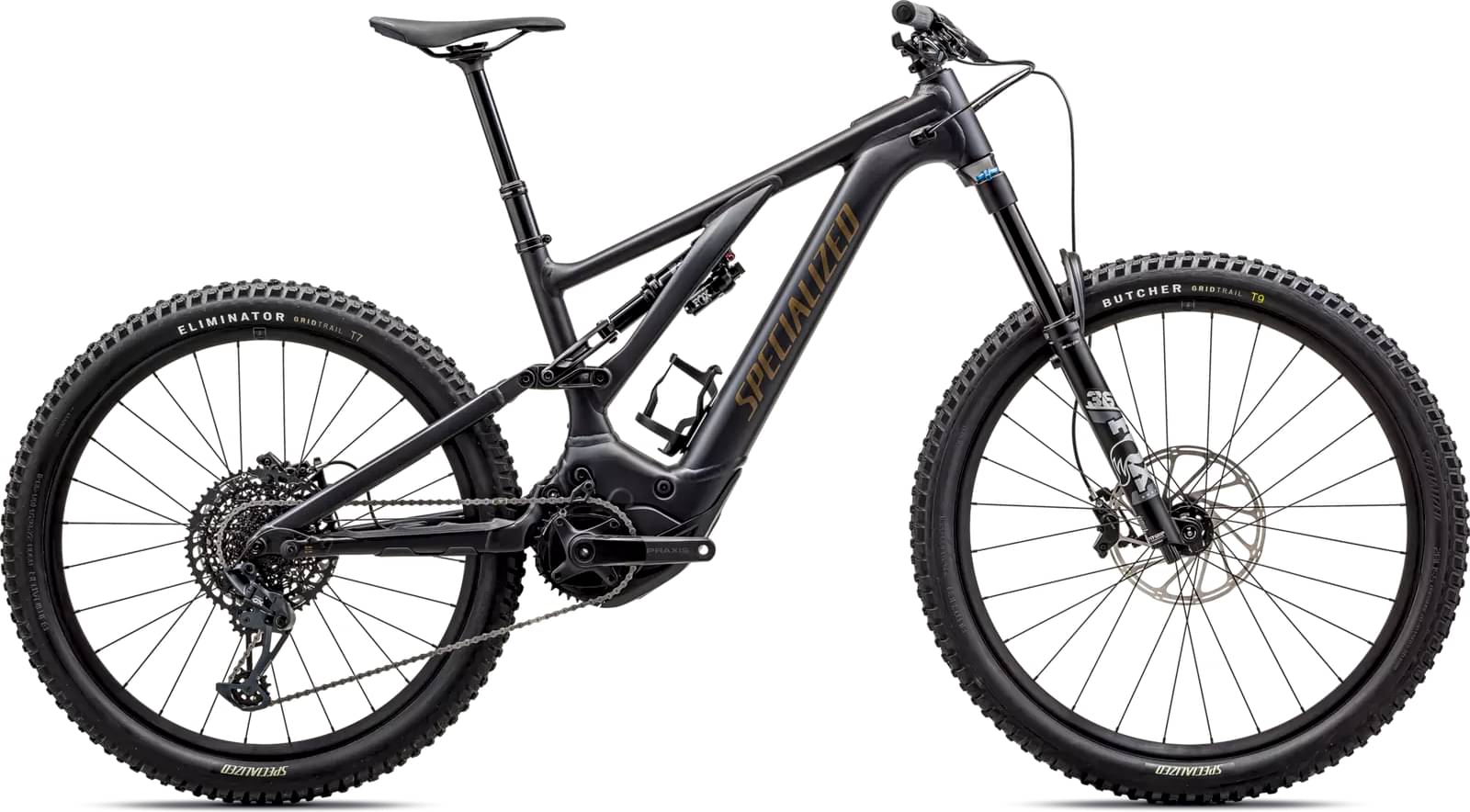

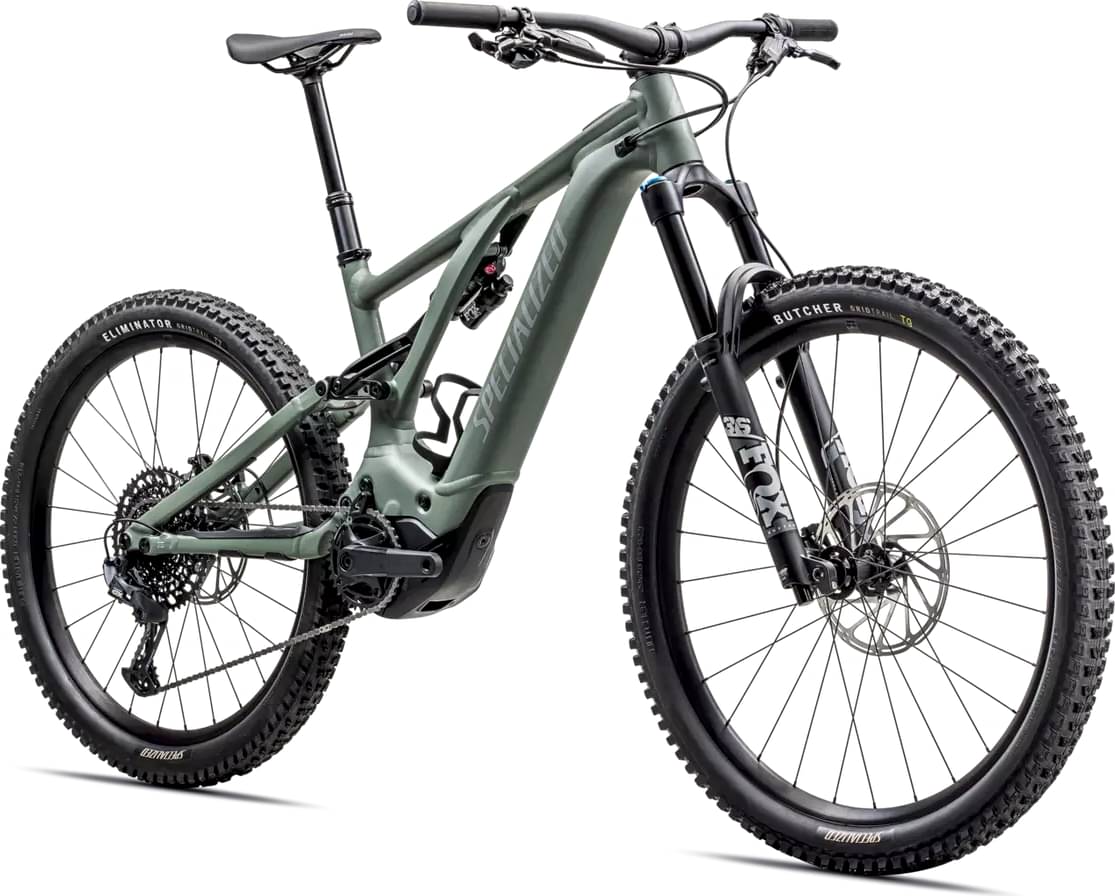

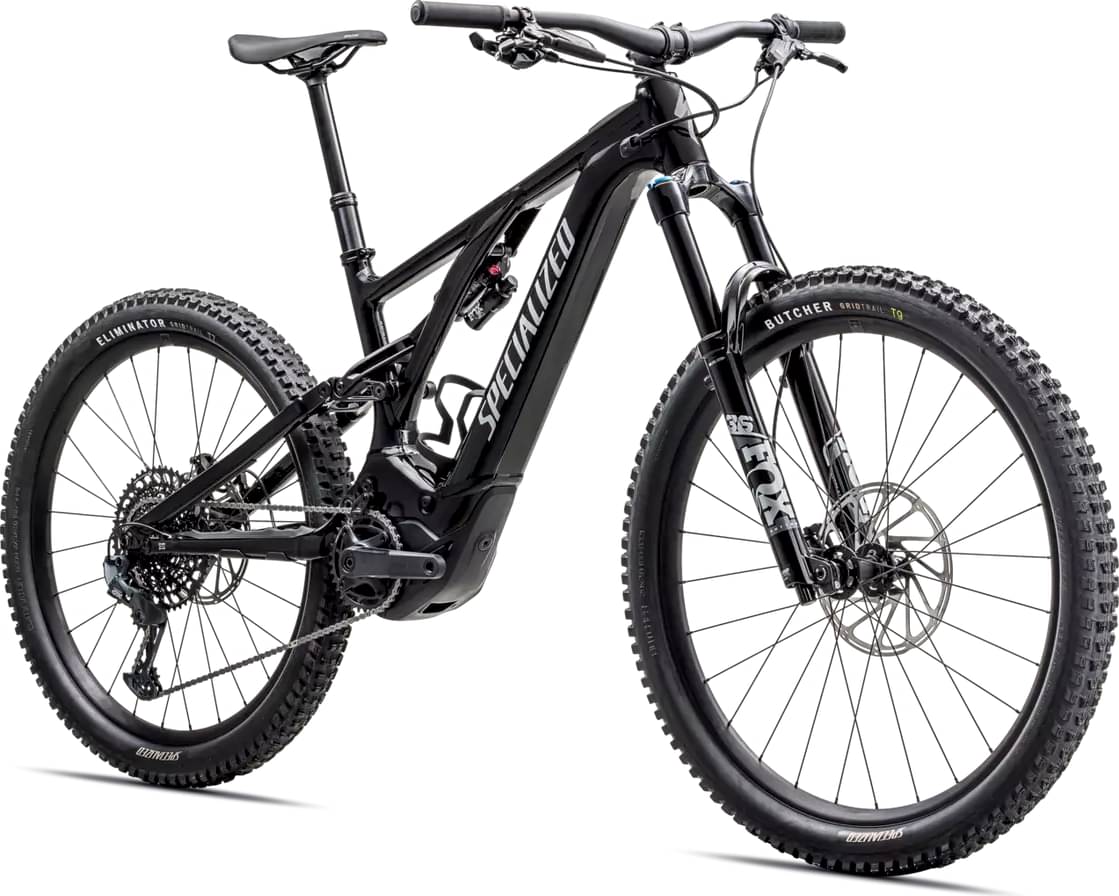

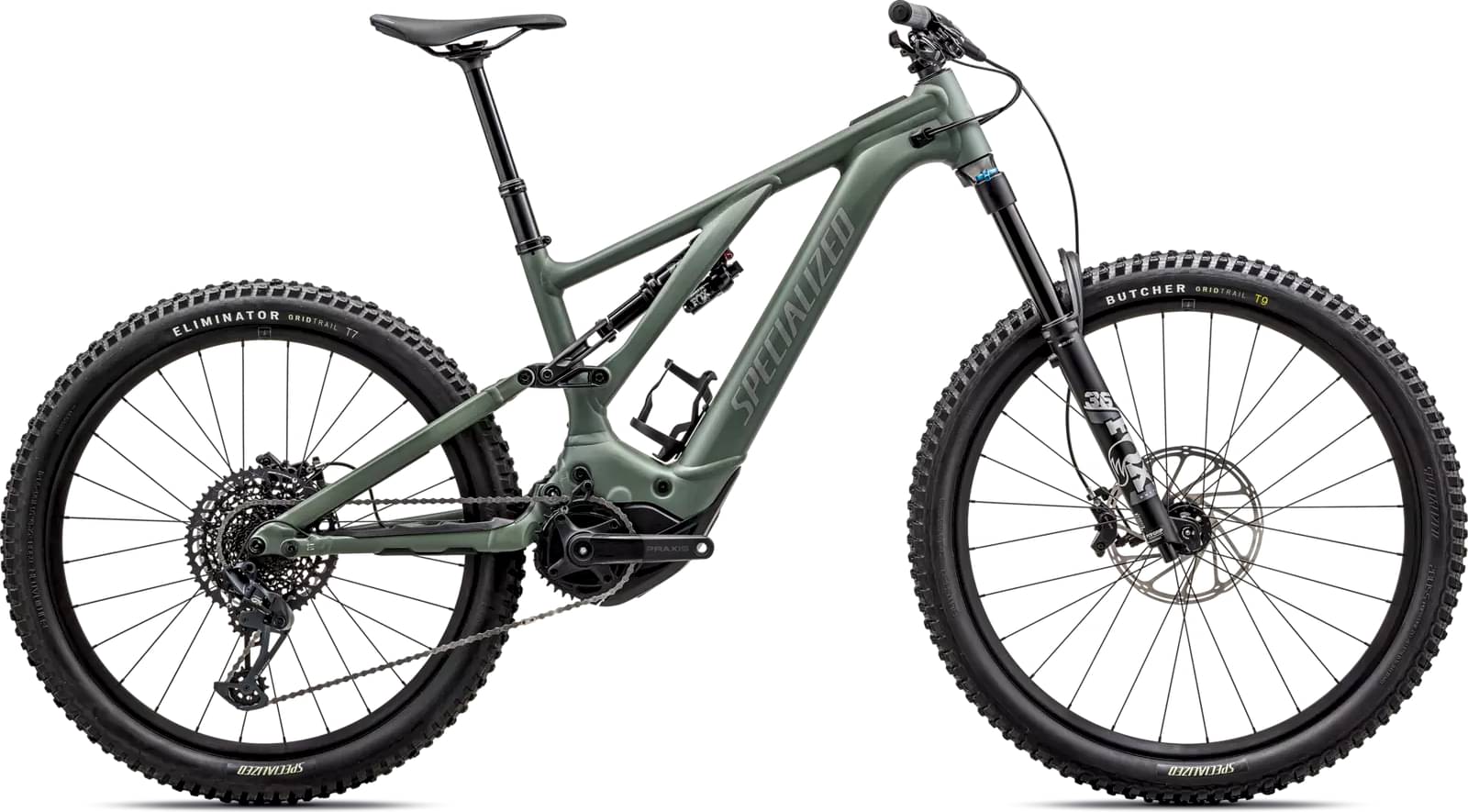

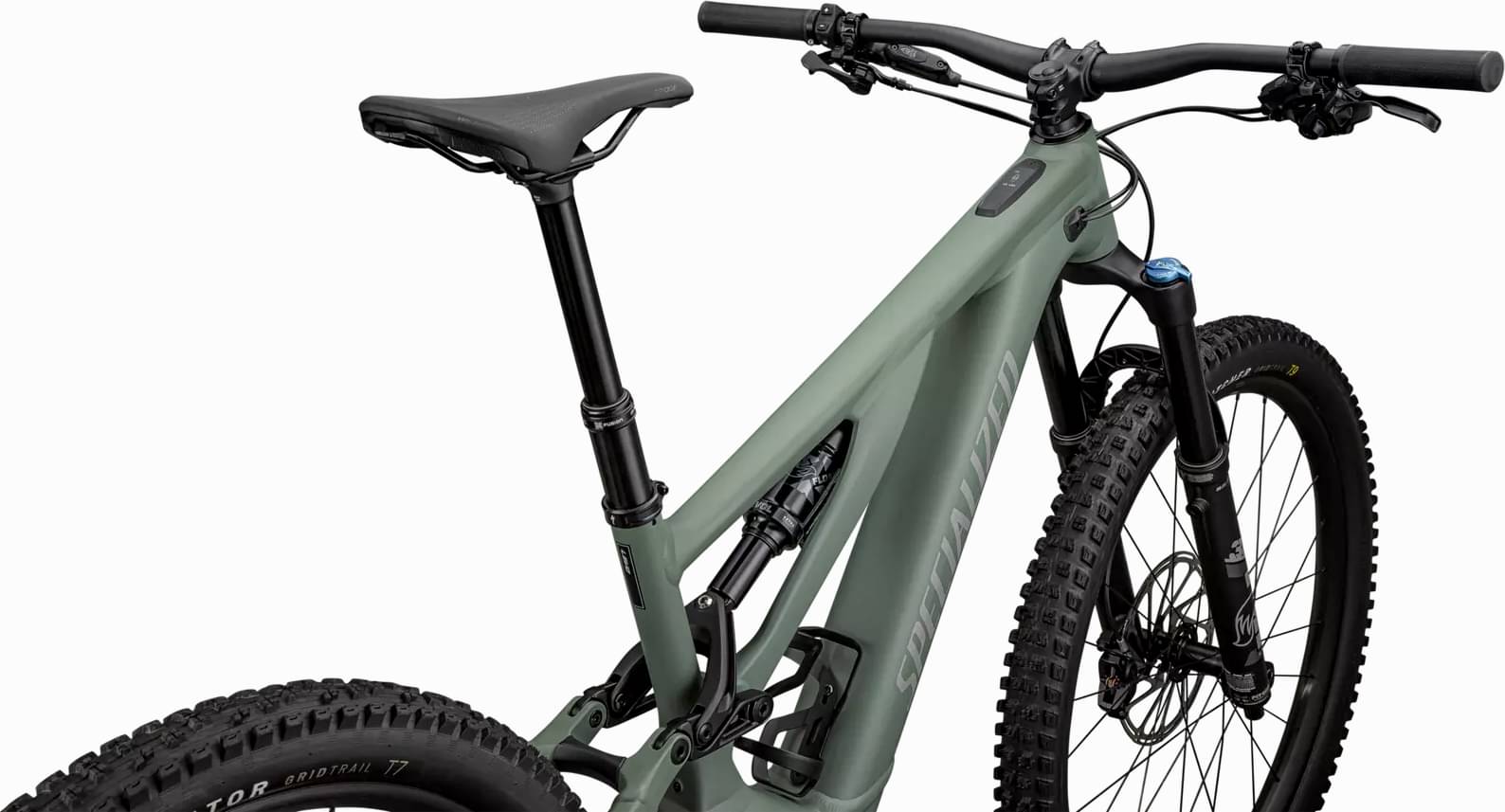

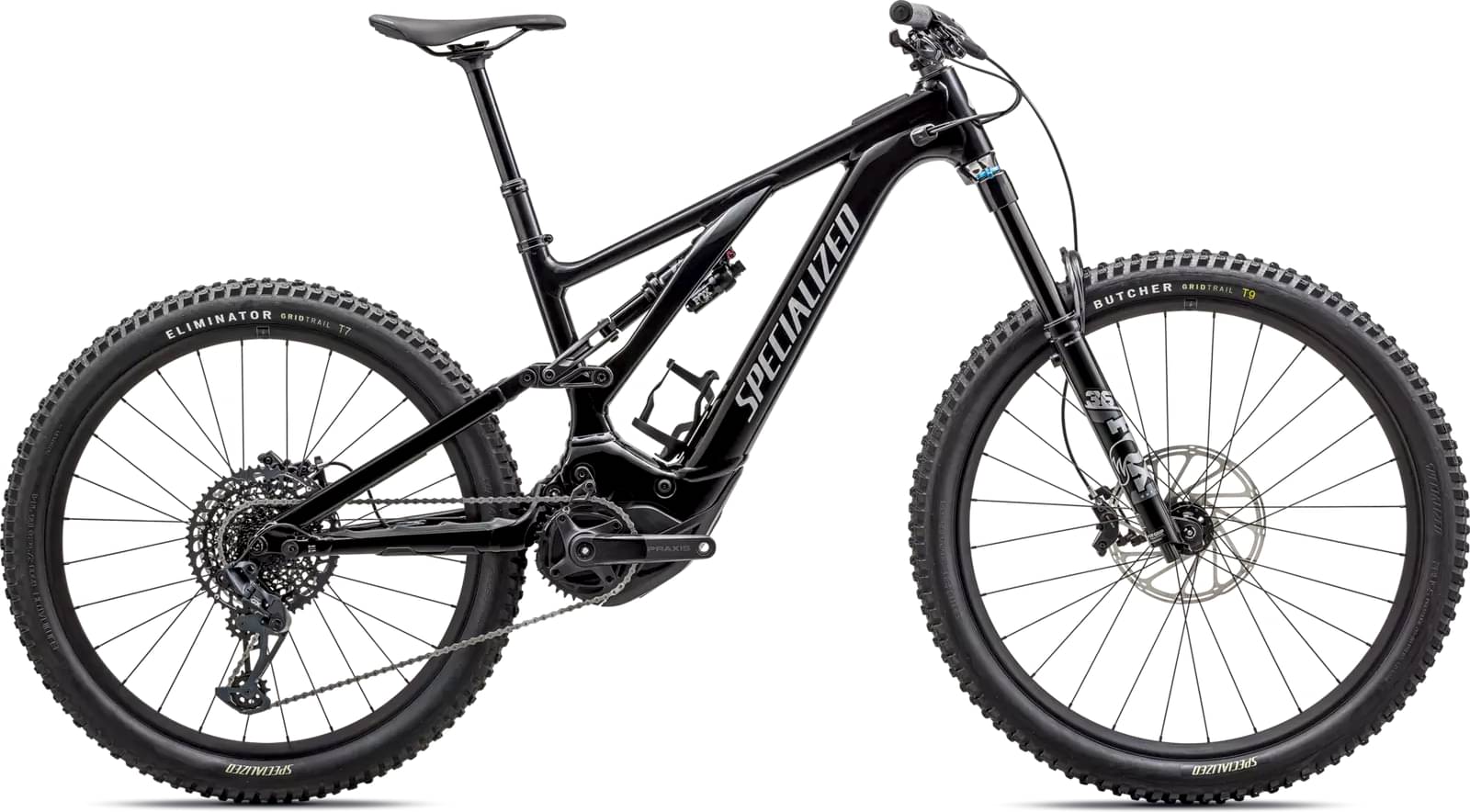

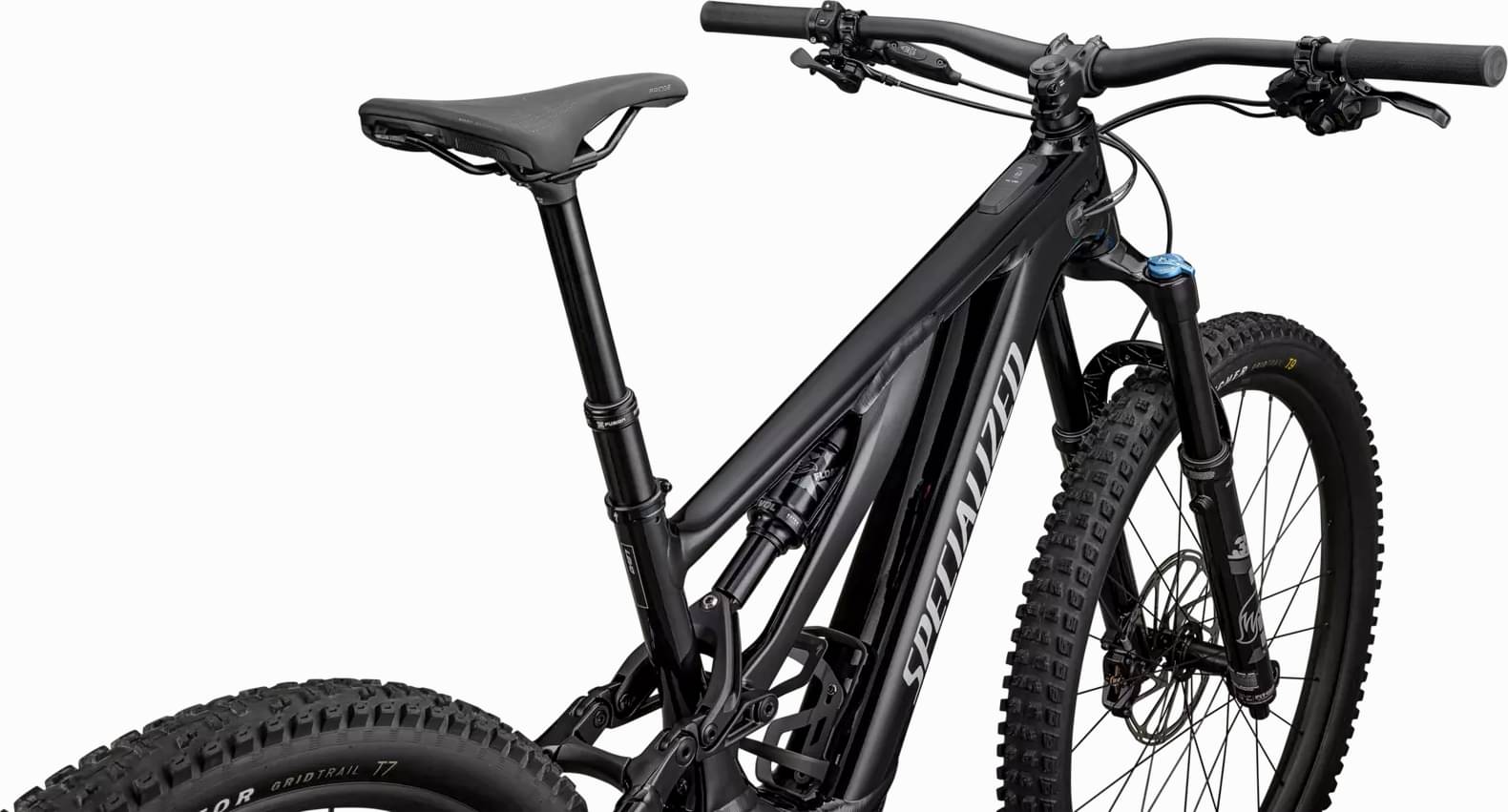

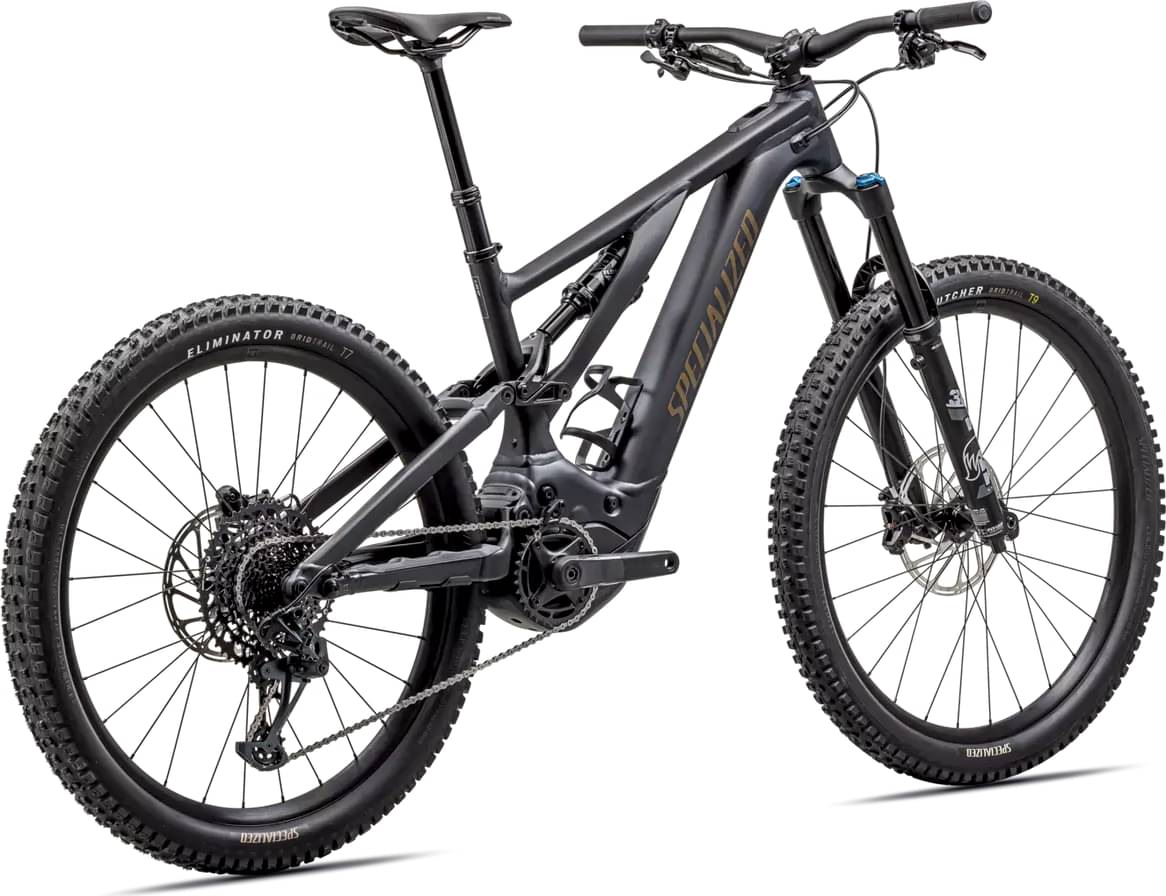

Specialized Turbo Levo 3 Comp Alloy 2024
2024 E-bike
Estimate price |
6,999$
Weight | 23.79 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Rhythm Float 36
-
Groupset GX Eagle -
Suspension Full -
Motor Specialized 565W 90Nm mid-drive -
Battery Specialized M3-700, Integrated battery, 700Wh -
Drivetrain 1 × 12 -
Brakes SRAM Code R Hydraulic Disc
Sizing
Recommended size guide.
S1
149cm - 160cm
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
S6
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized M5 premium alloy, headset adjust, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
Suspension Fork
Fox Rhythm 36, S1: 150mm travel, S2-S6: 160mm travel

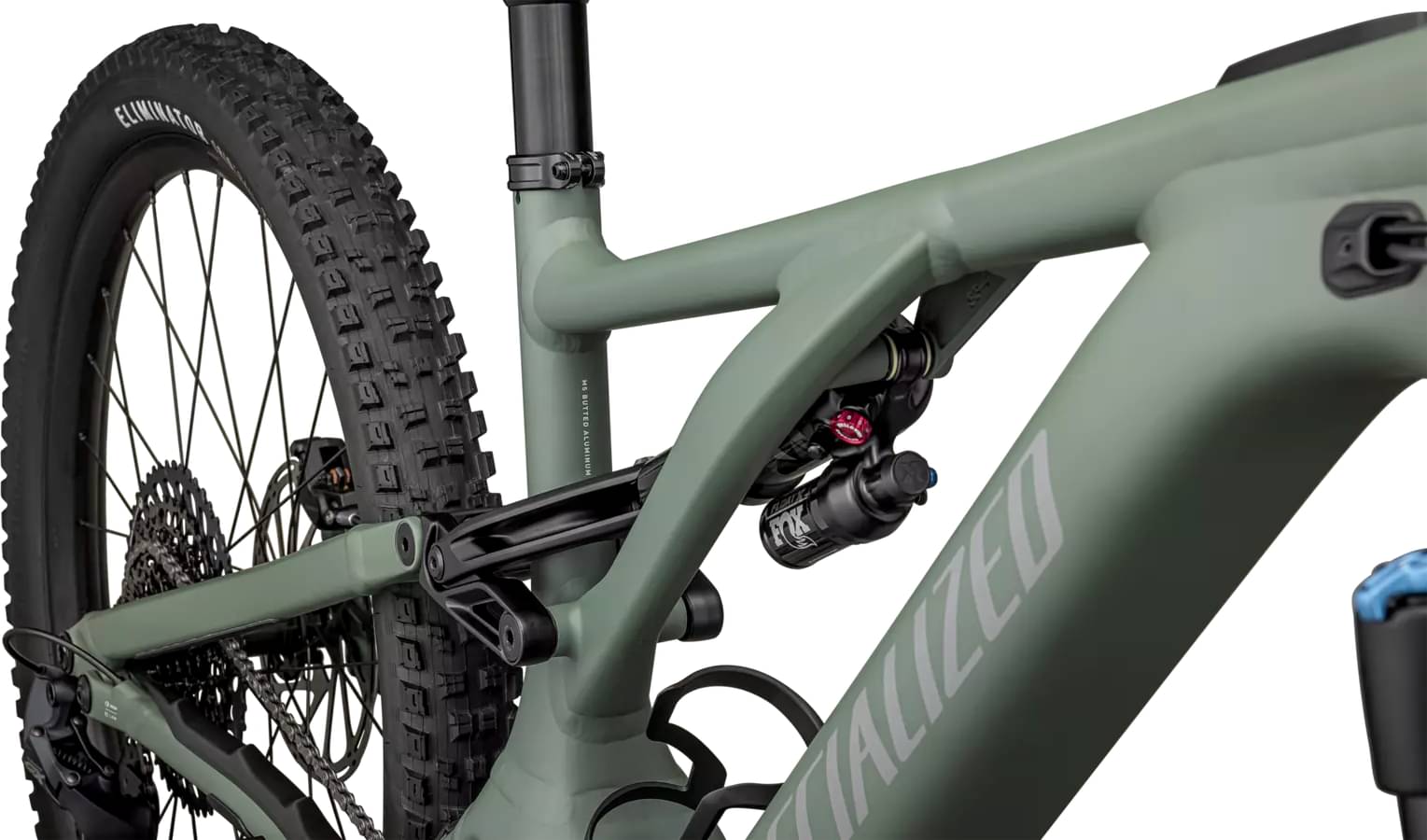

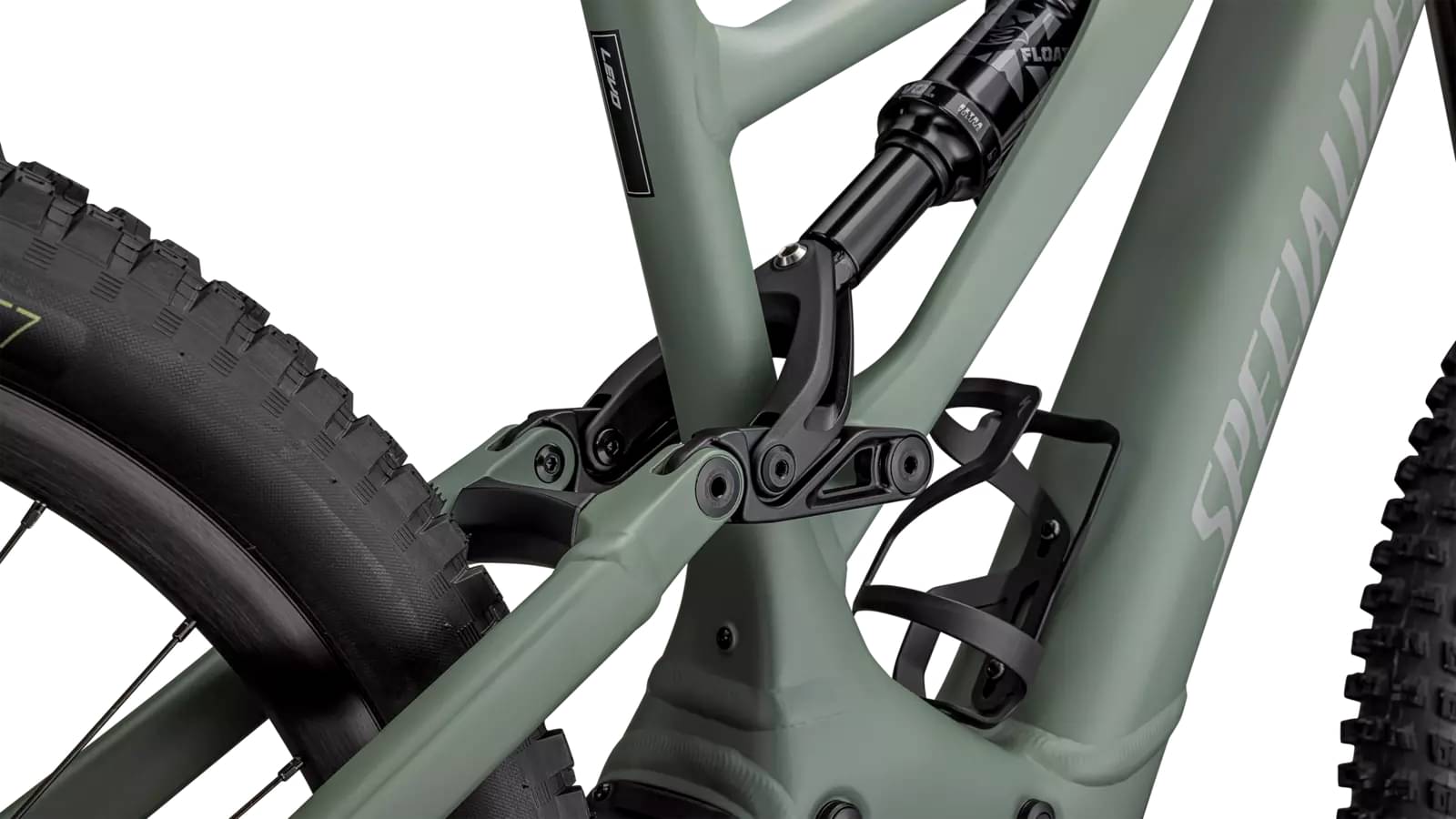

Rear Shock

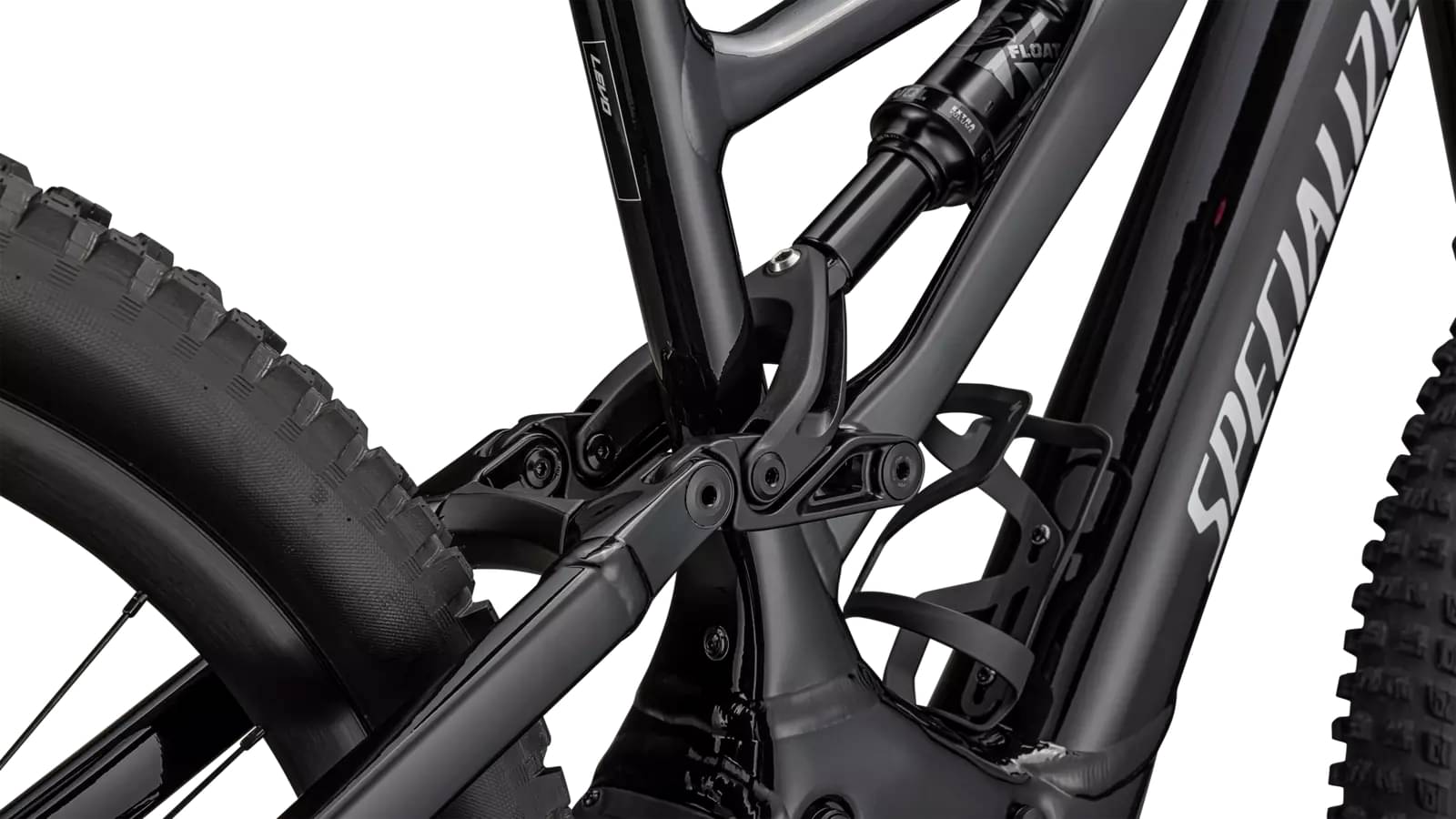

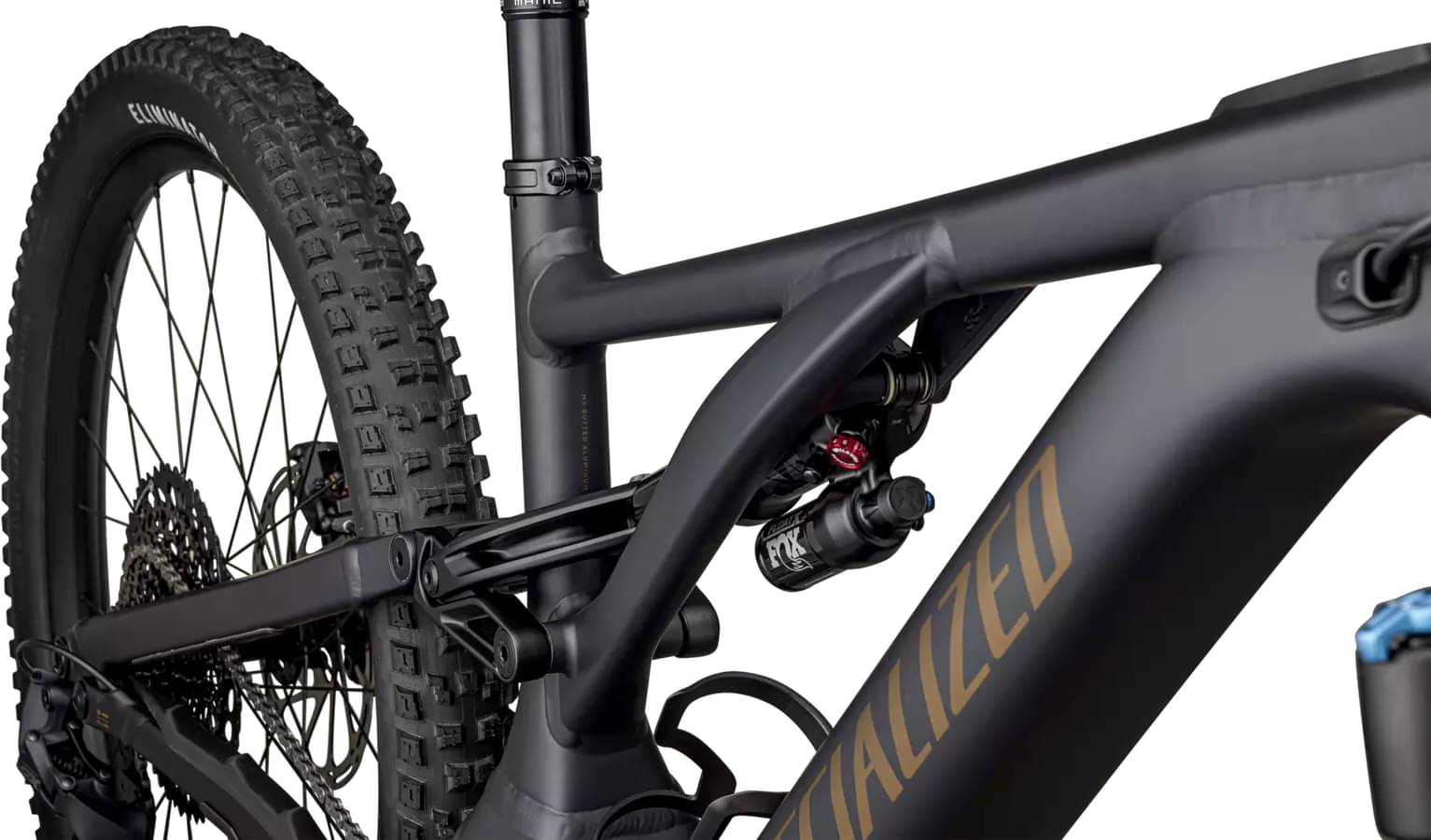

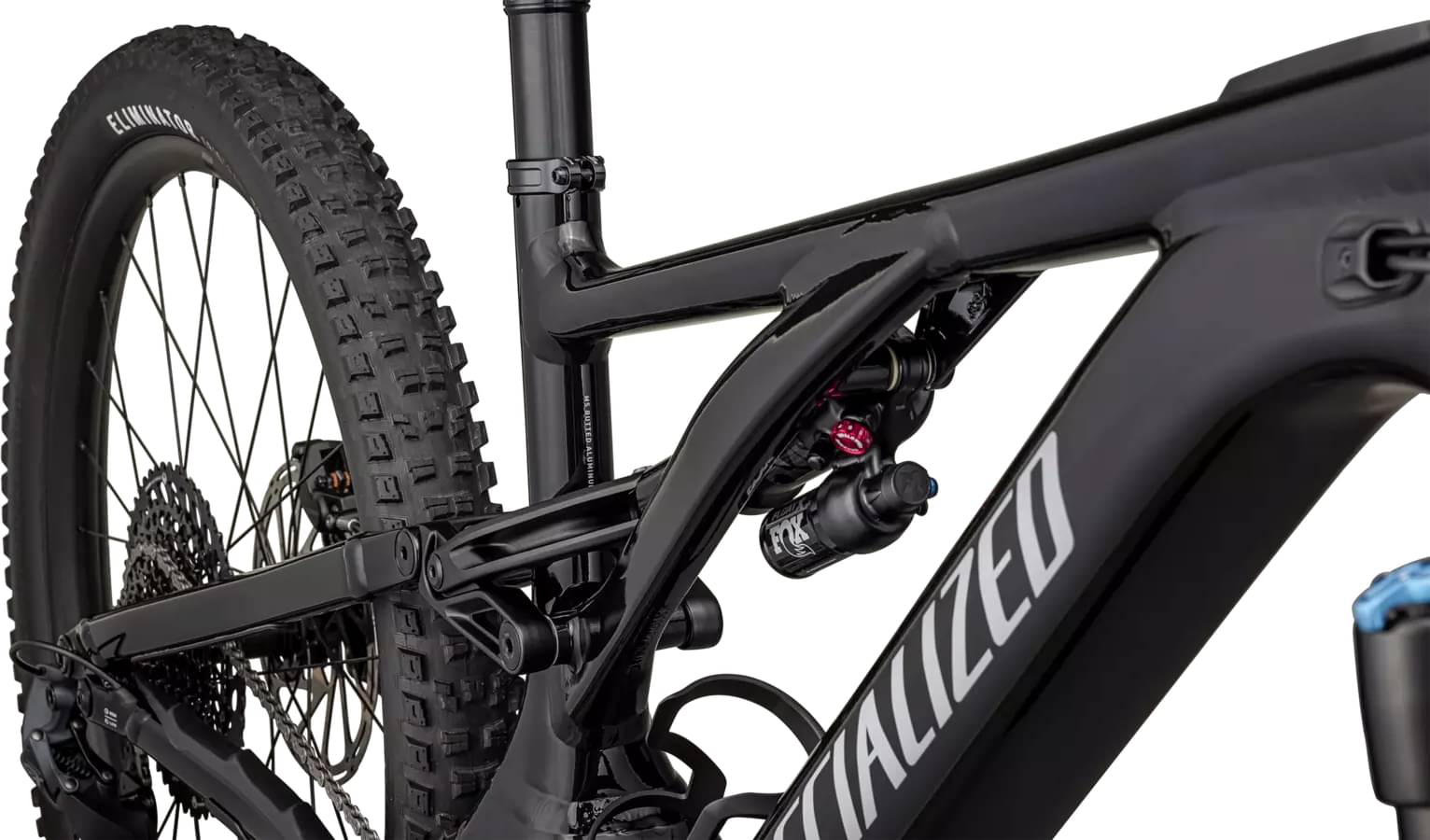

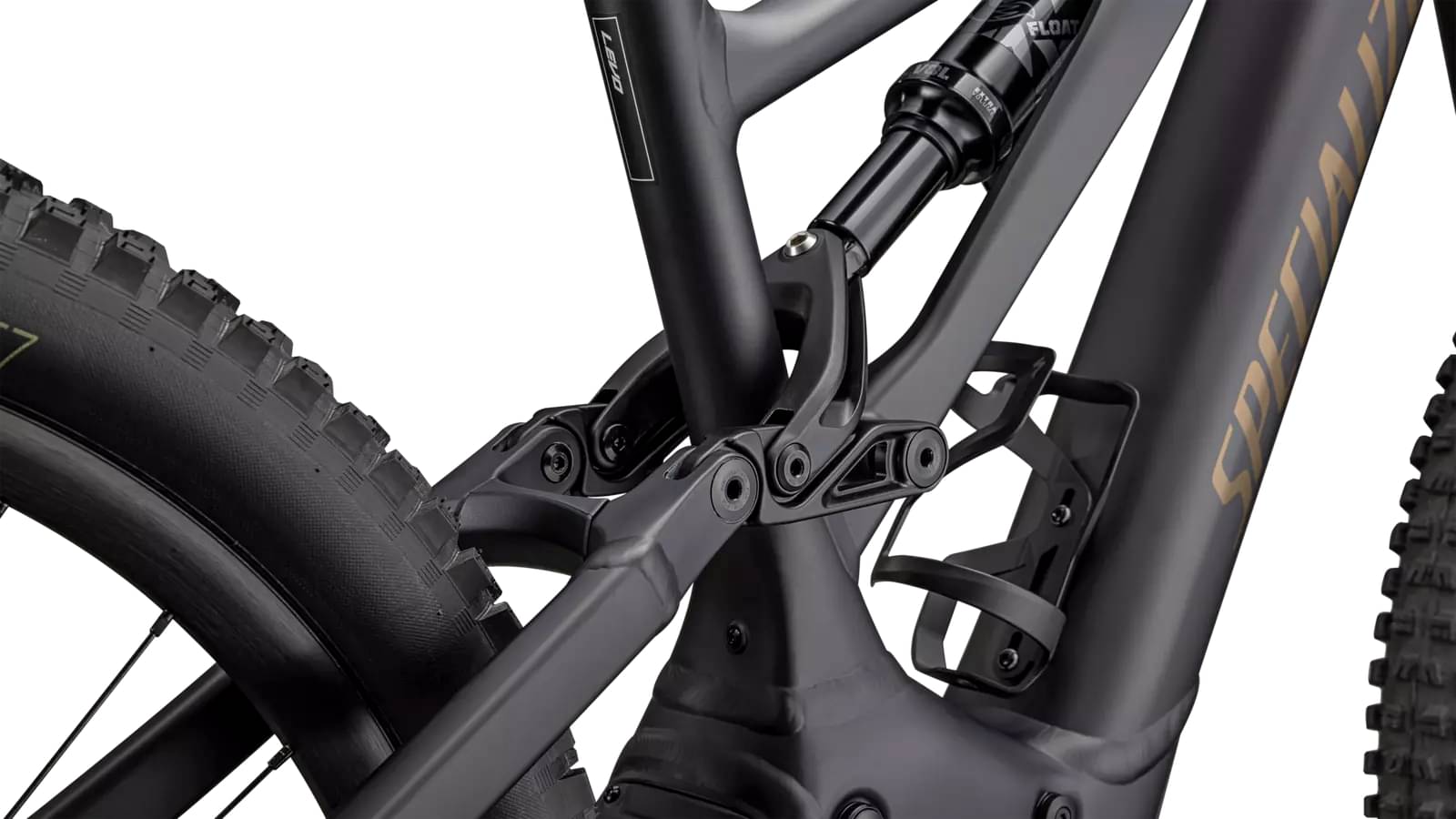

FOX FLOAT X Performance, LSR, 2-position lever, 55x210mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Shift Levers
SRAM GX Eagle, trigger, 12-speed
Cassette
SRAM XG-1275, 12-speed, 10-52t
Crank
Praxis forged M30, custom offset, 160mm, SRAM X-Sync Eagle, 104 BCD, 32T, steel
Chain
SRAM NX Eagle, 12-speed
Wheels
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
Rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Spokes
DT Swiss Industry
Tires
Front: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6", Rear: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Brakes
Brakes
Front: SRAM Code R, 4-piston caliper, hydraulic disc, S1-S3: 200mm, S4-S6: 220mm, Rear: SRAM Code R, 4-piston caliper, hydraulic disc, 200mm

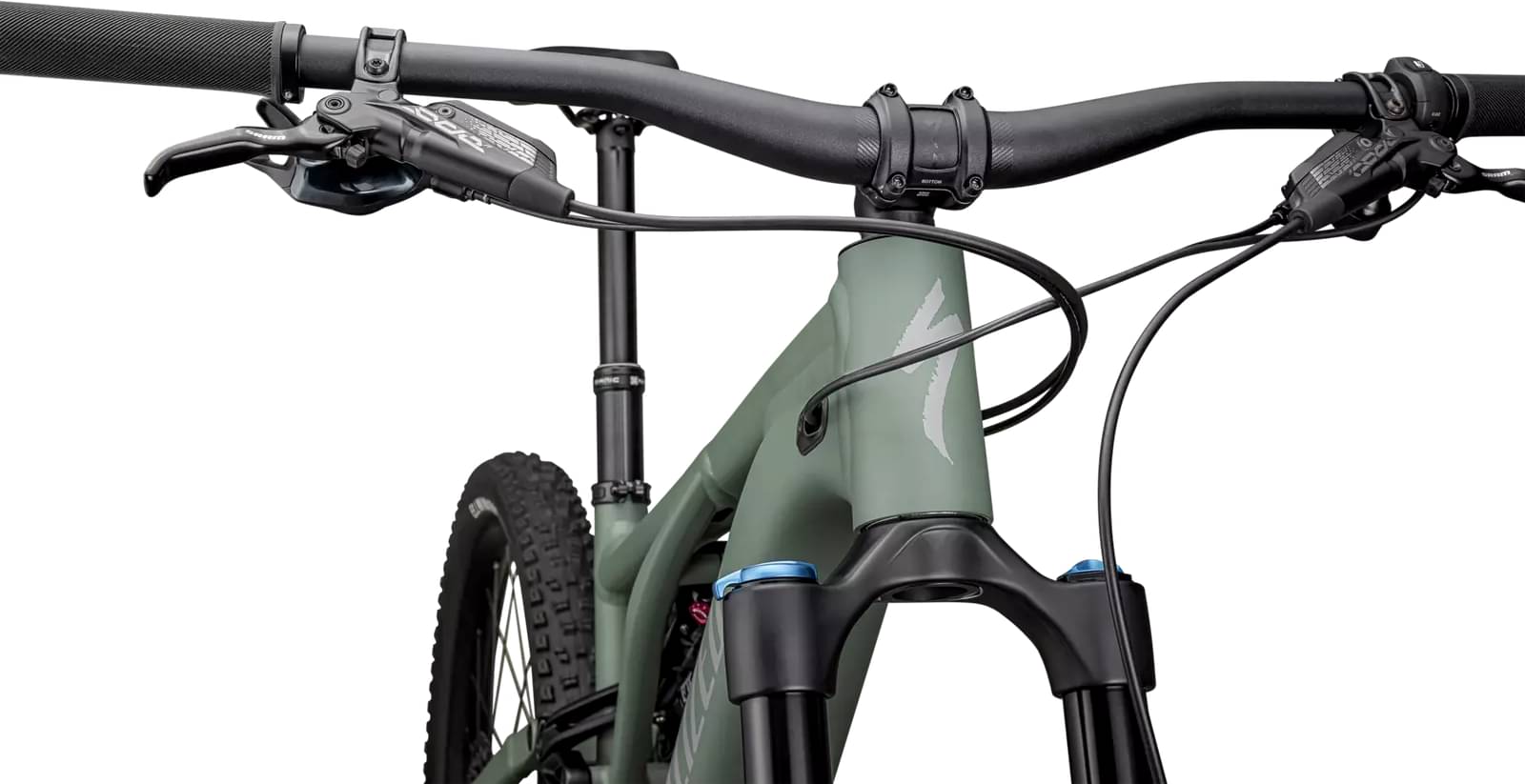

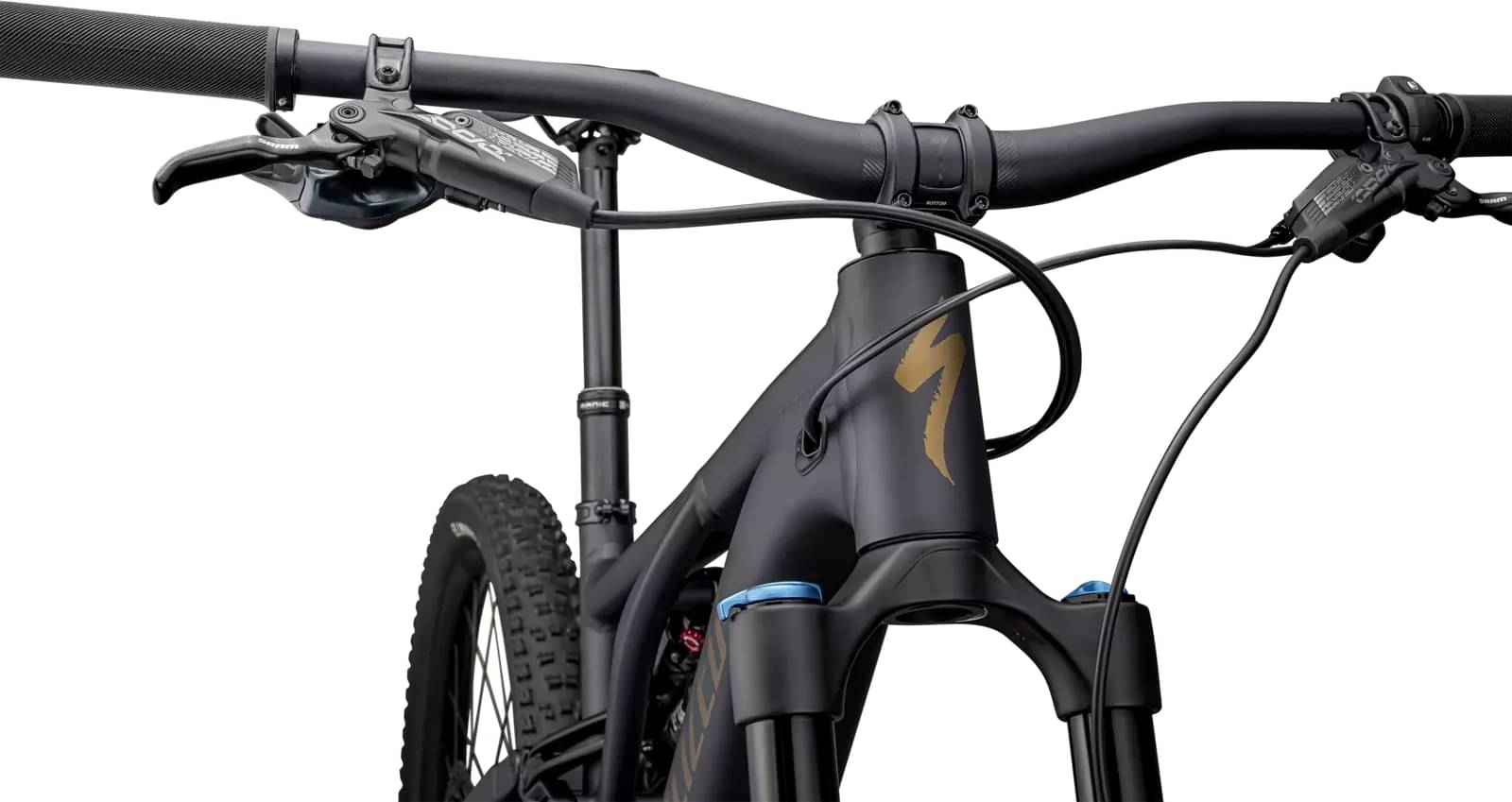

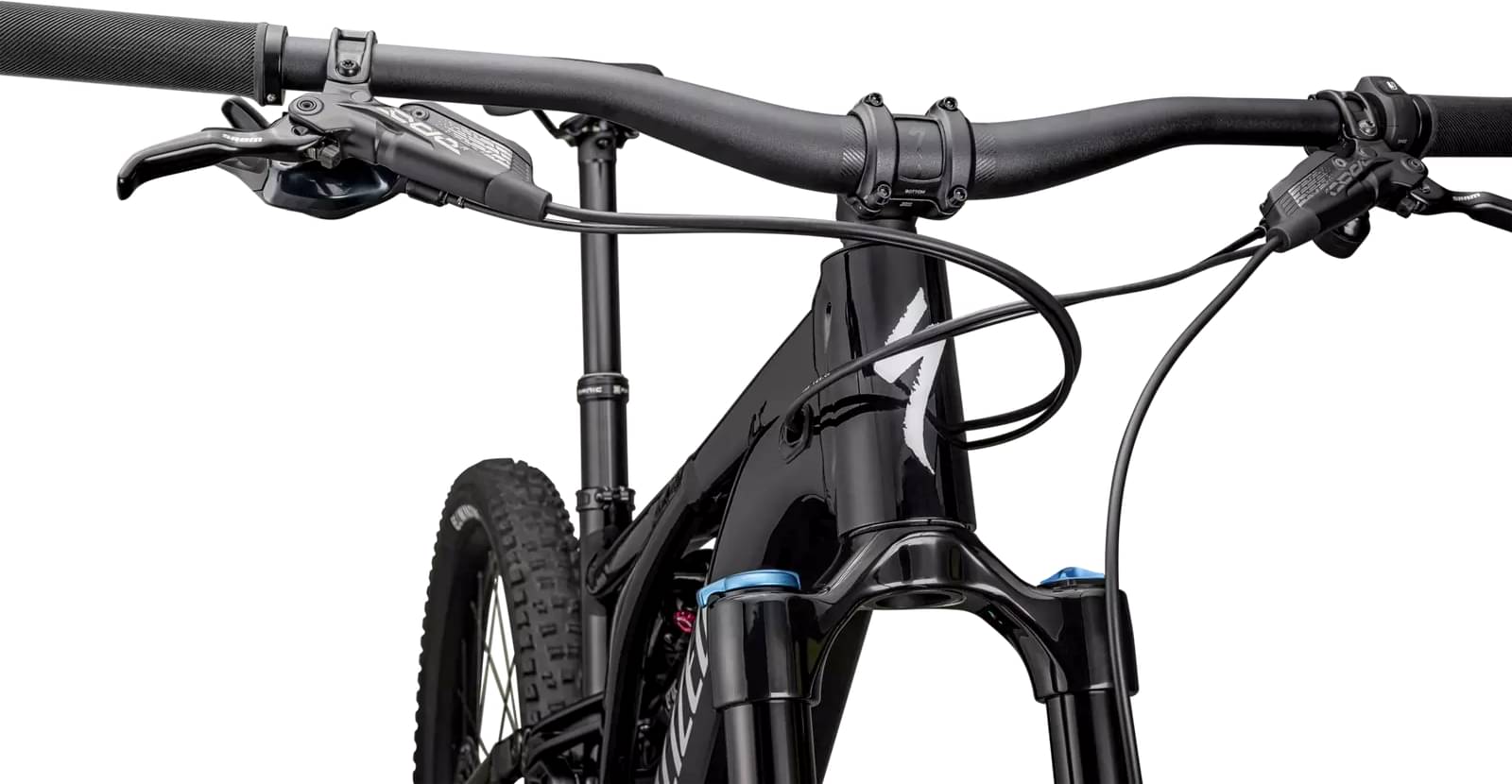

Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebar
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Grips
Specialized Trail Grips
Seat
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
Seatpost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm
Motor & Battery

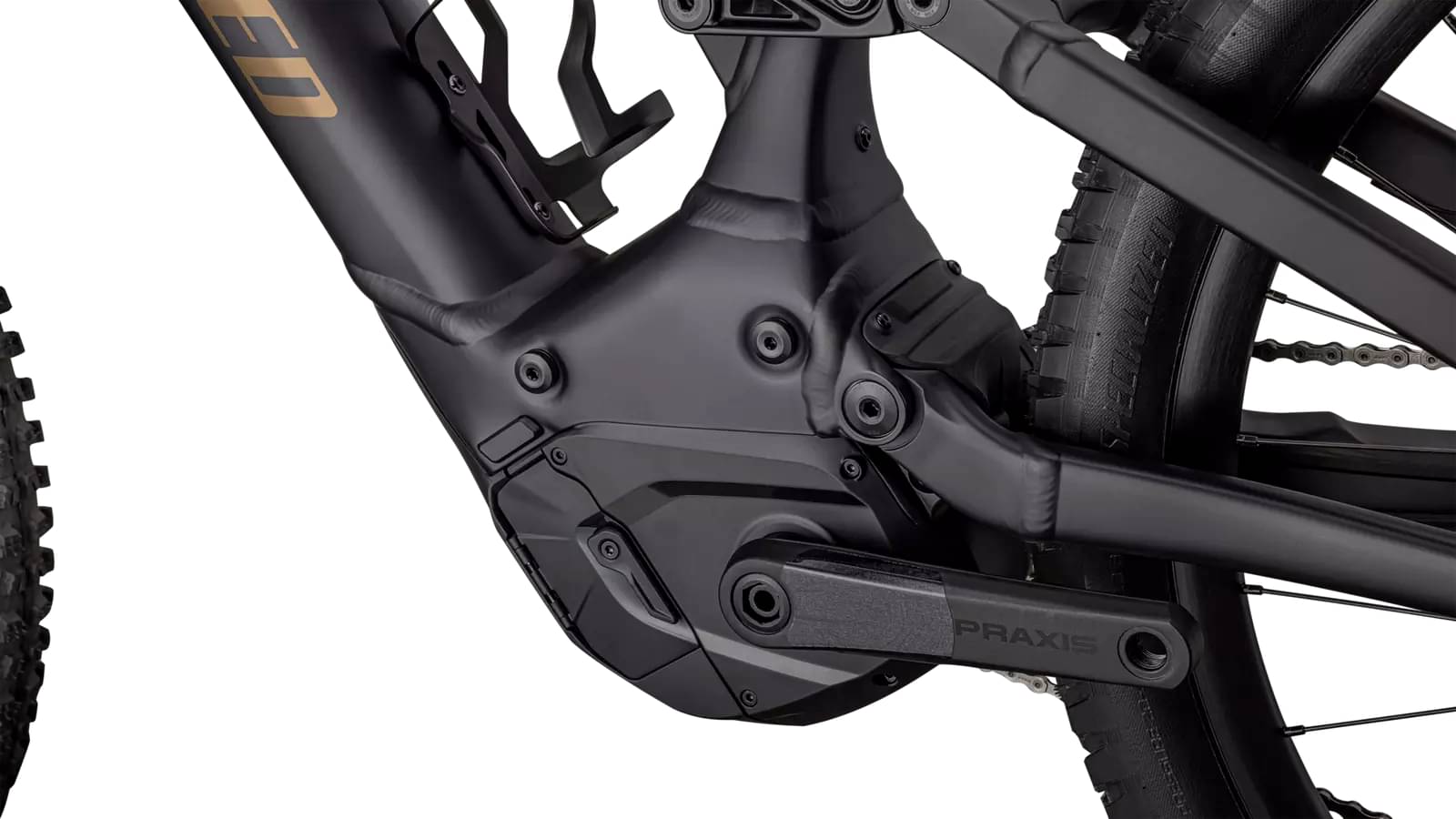

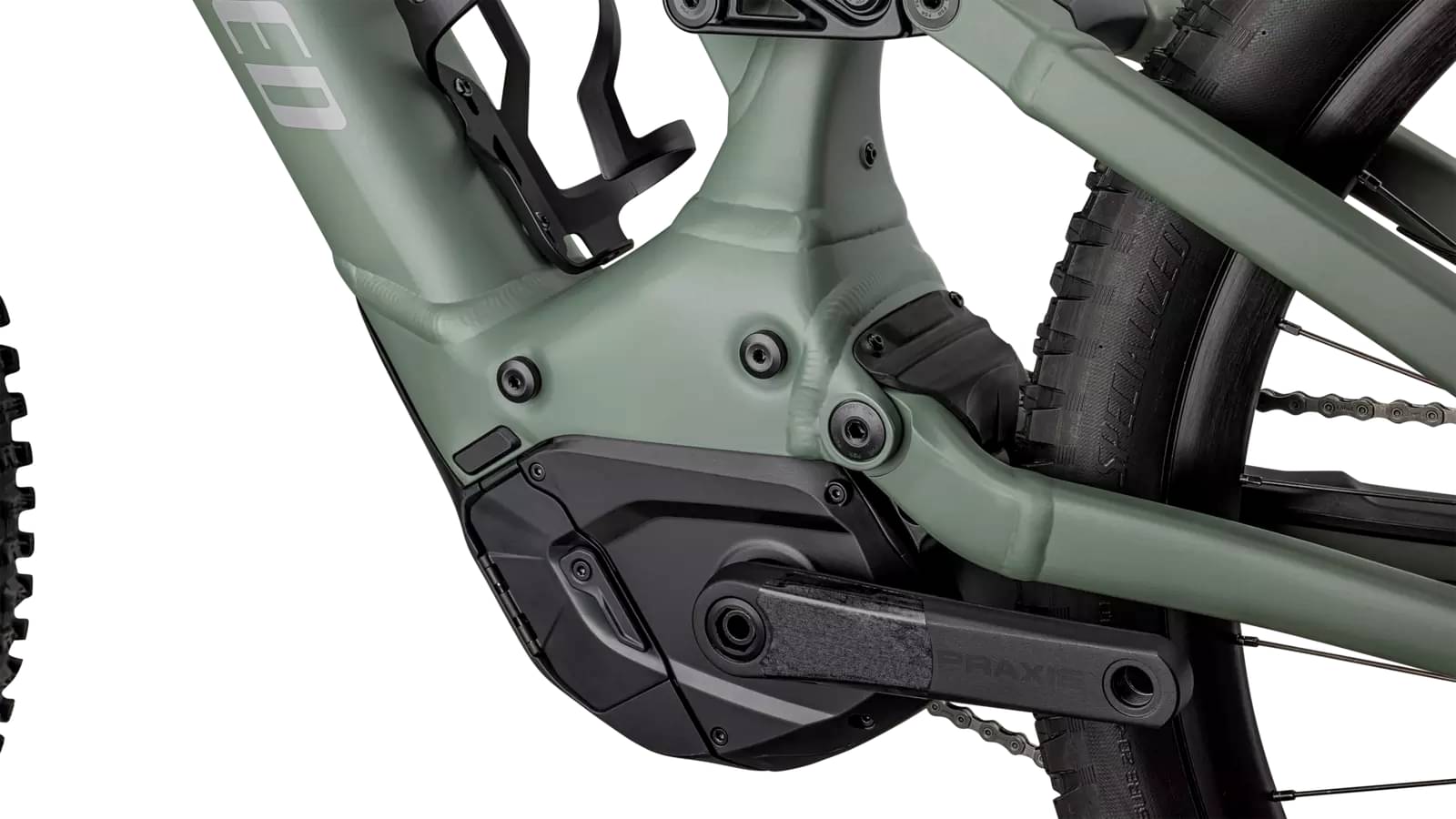

Motor

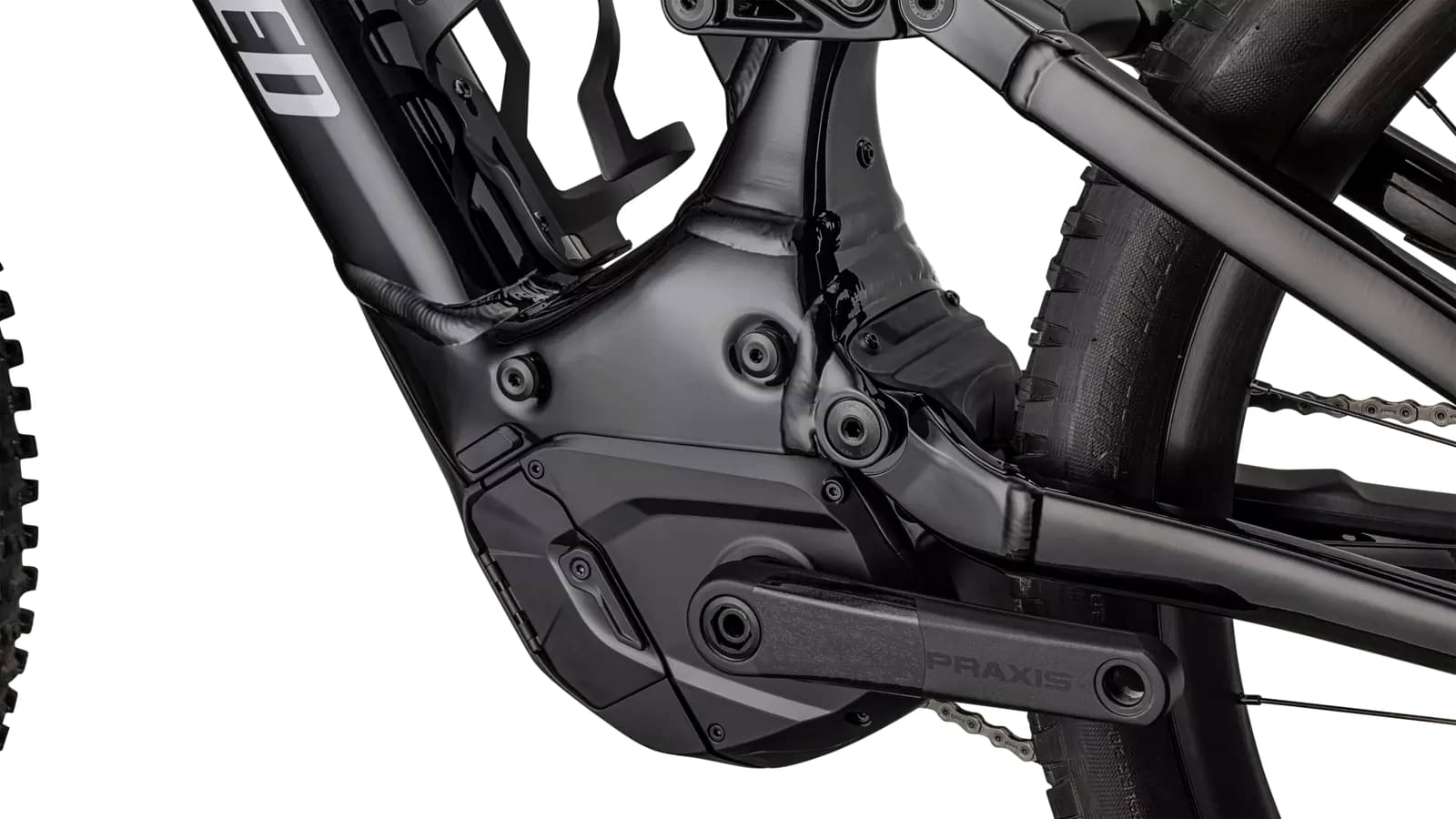

Specialized 2.2 Custom Rx Trail Tuned Motor, 90Nm Torque, 565W Power
Battery
Specialized M3-700, Integrated battery, 700Wh

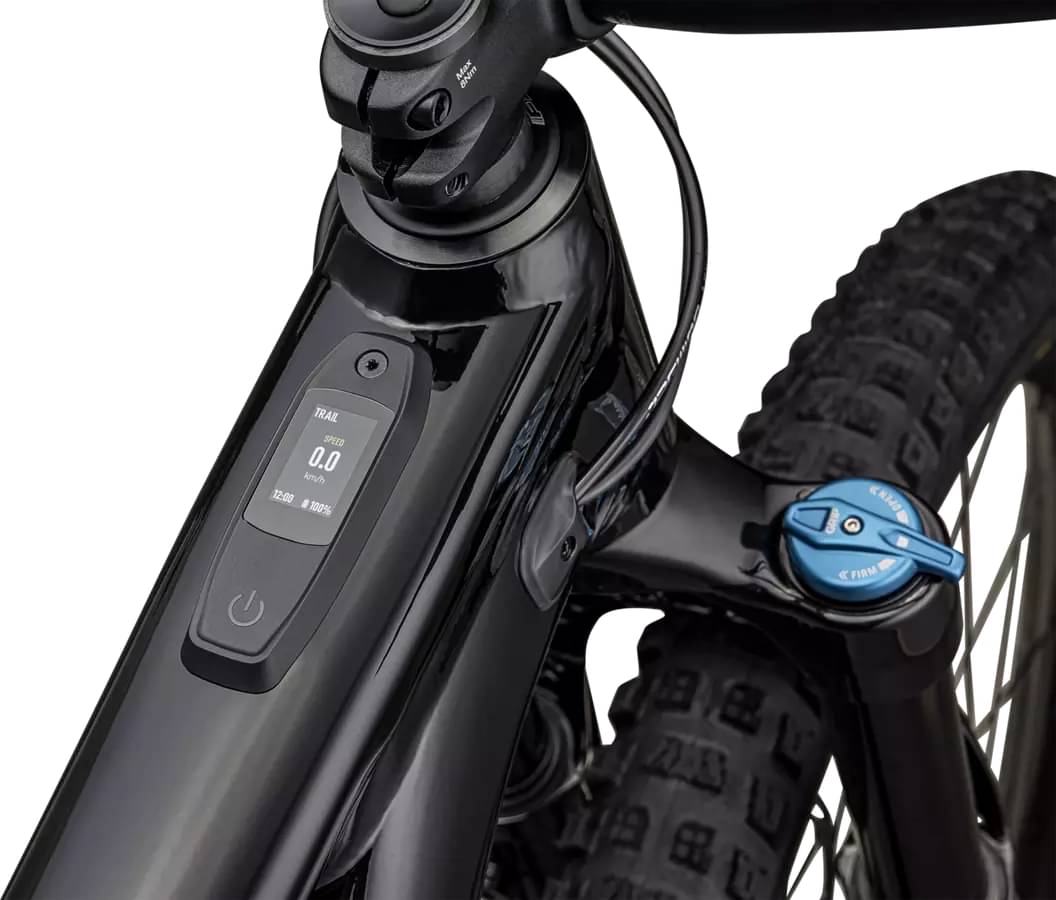

Remote

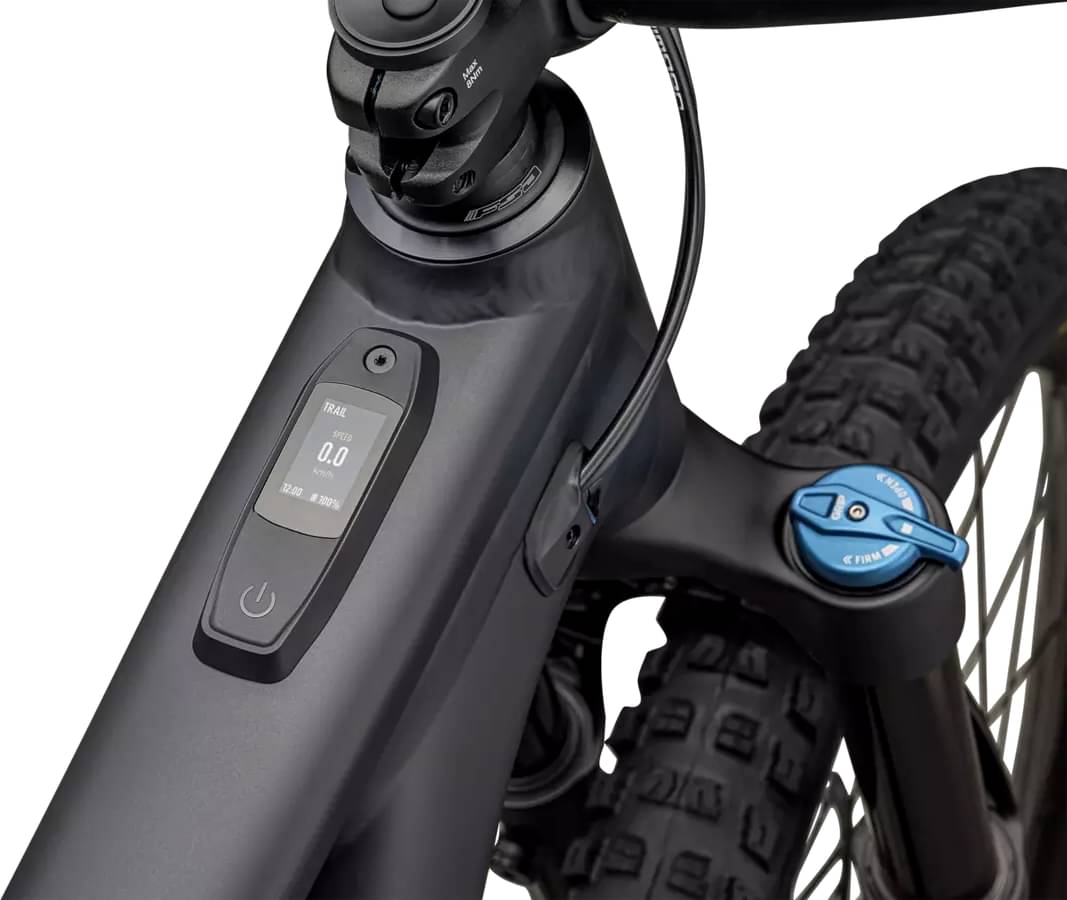

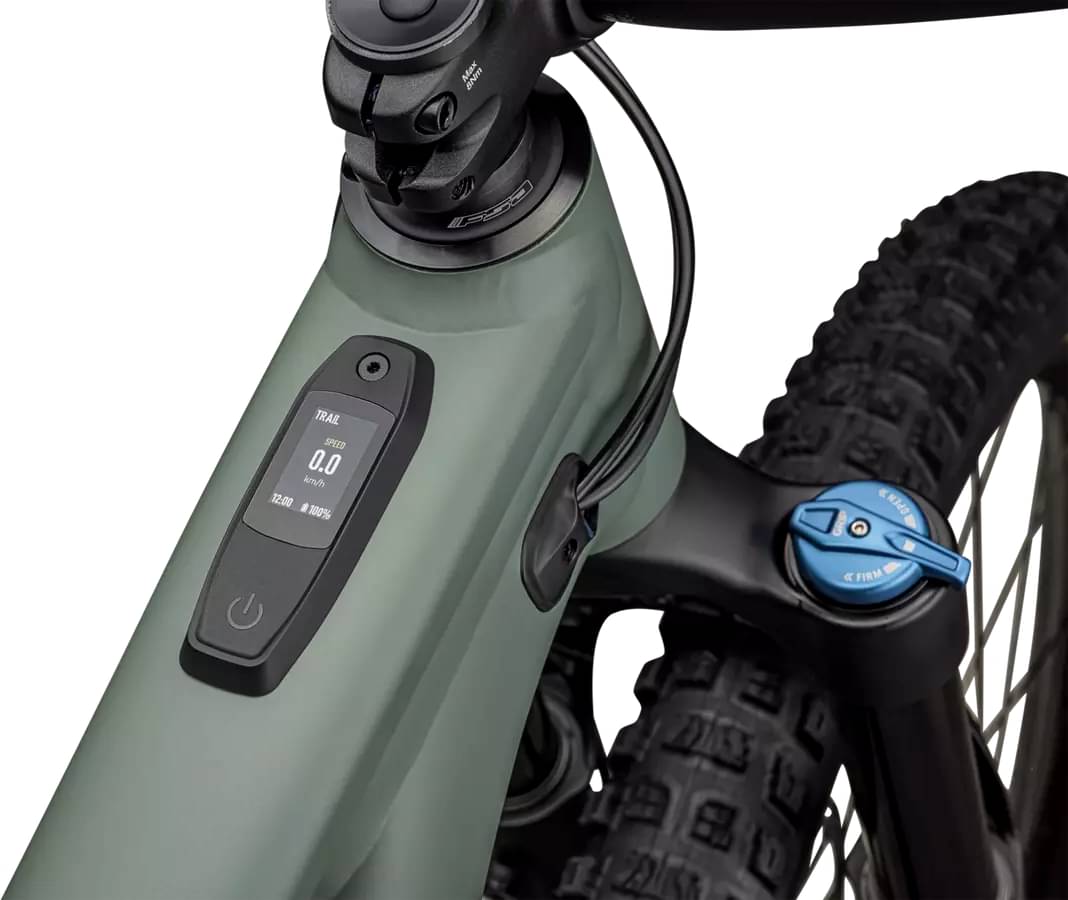

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 149 cm | 157 cm | 165 cm | 172 cm | 177 cm | 188 cm |
| Rider Max Height | 160 cm | 172 cm | 180 cm | 188 cm | 193 cm | 203 cm |
