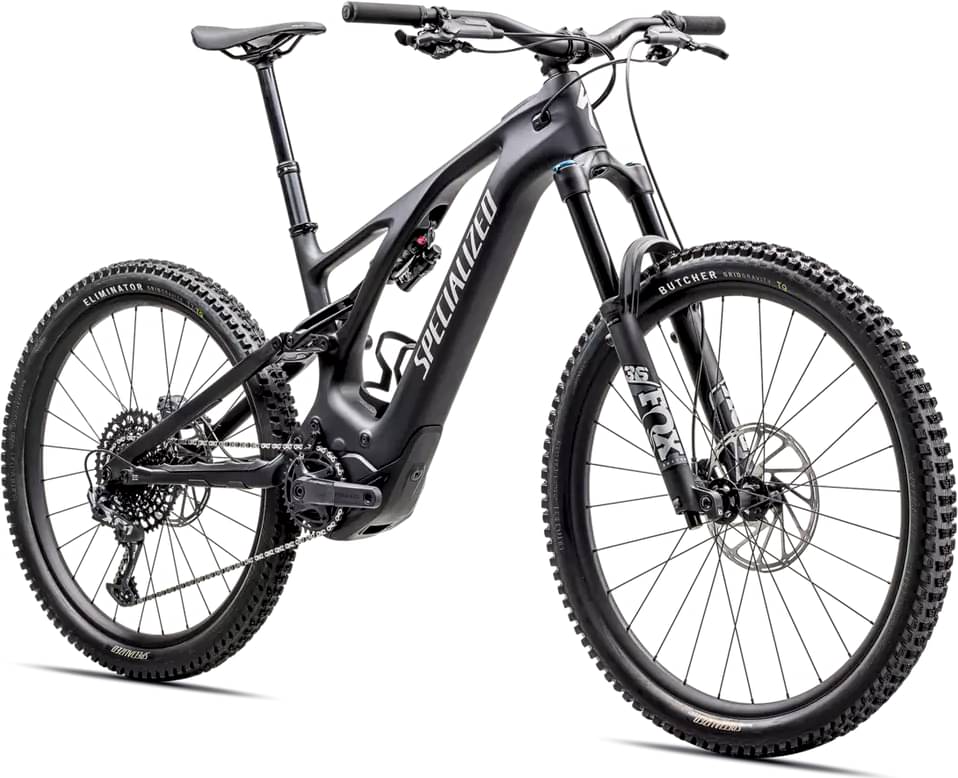

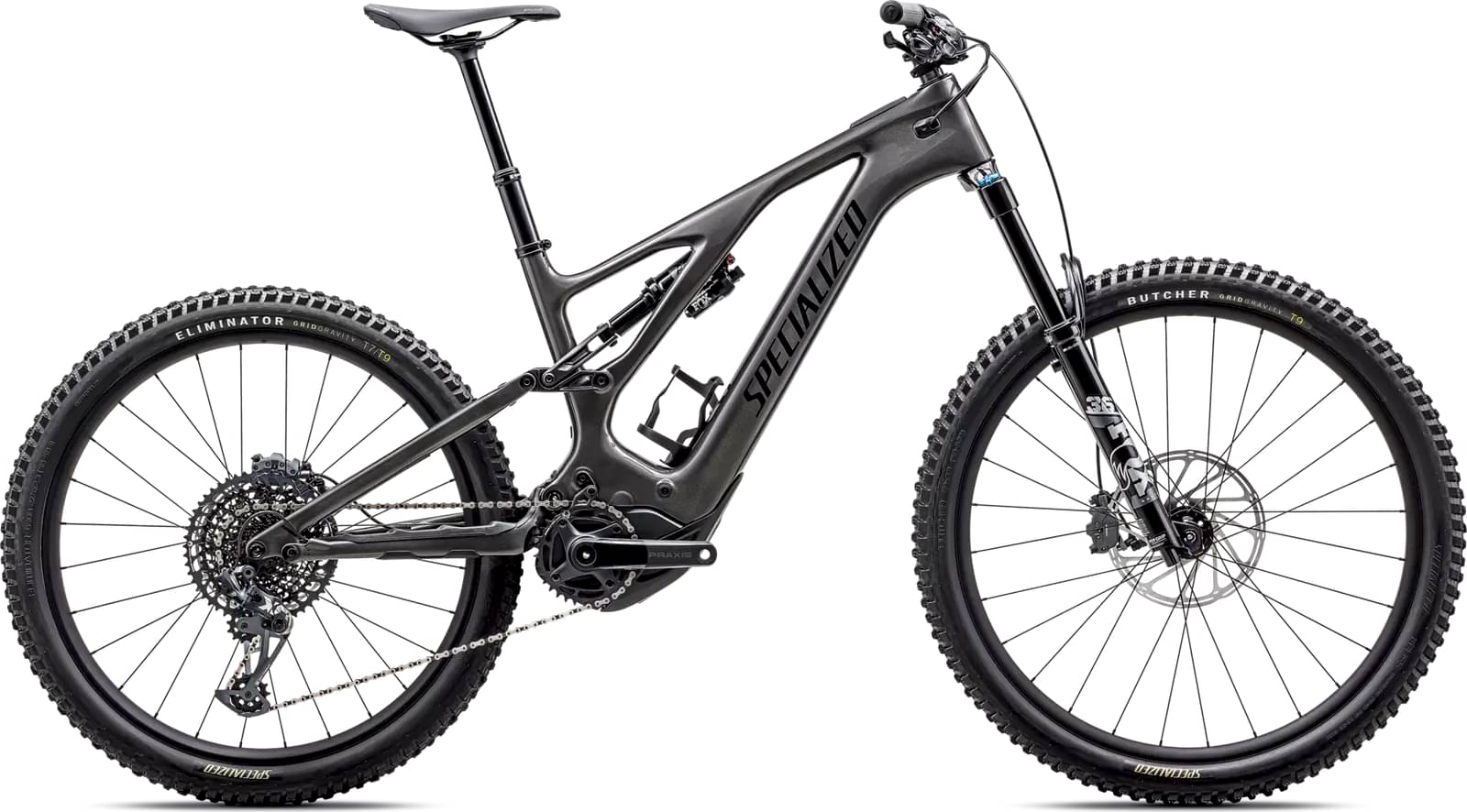

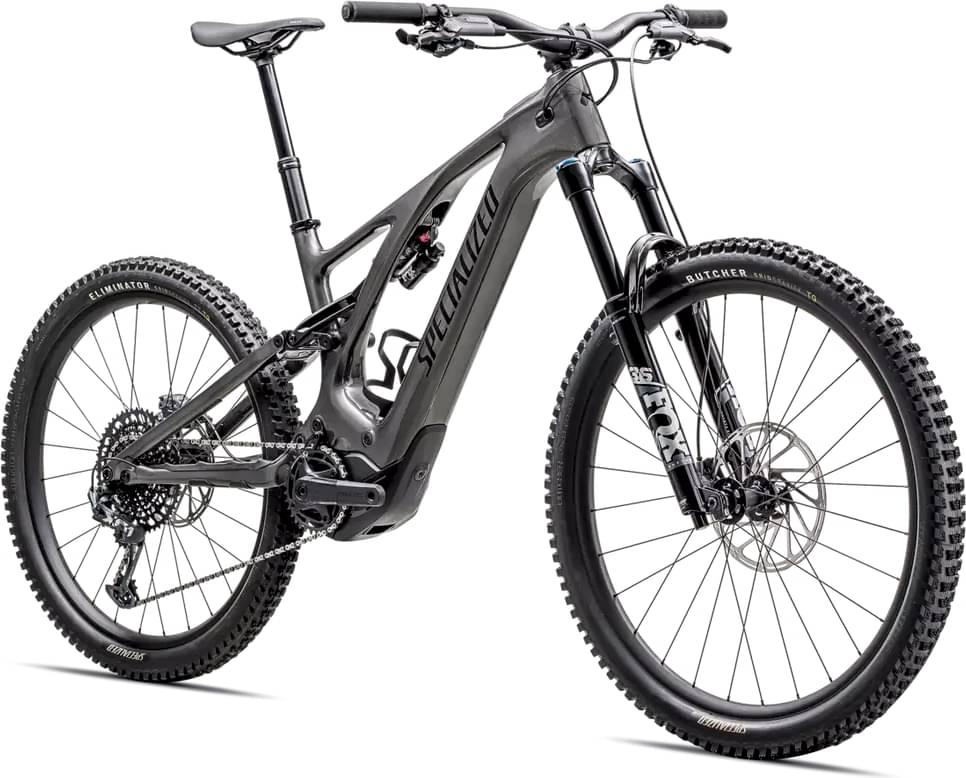

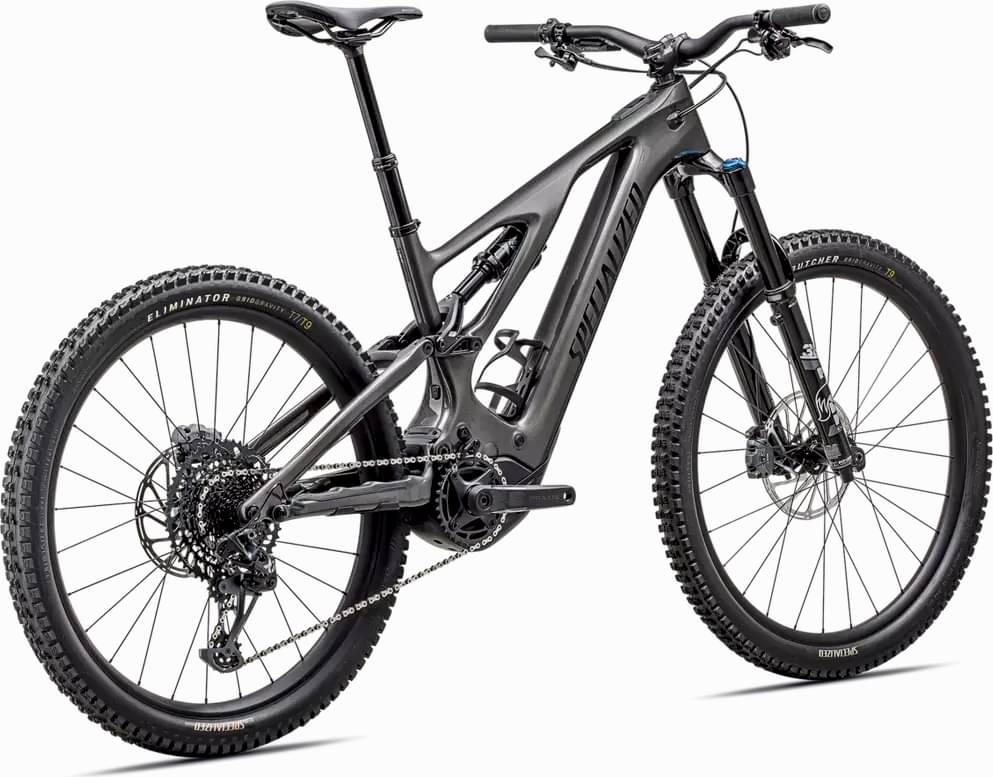

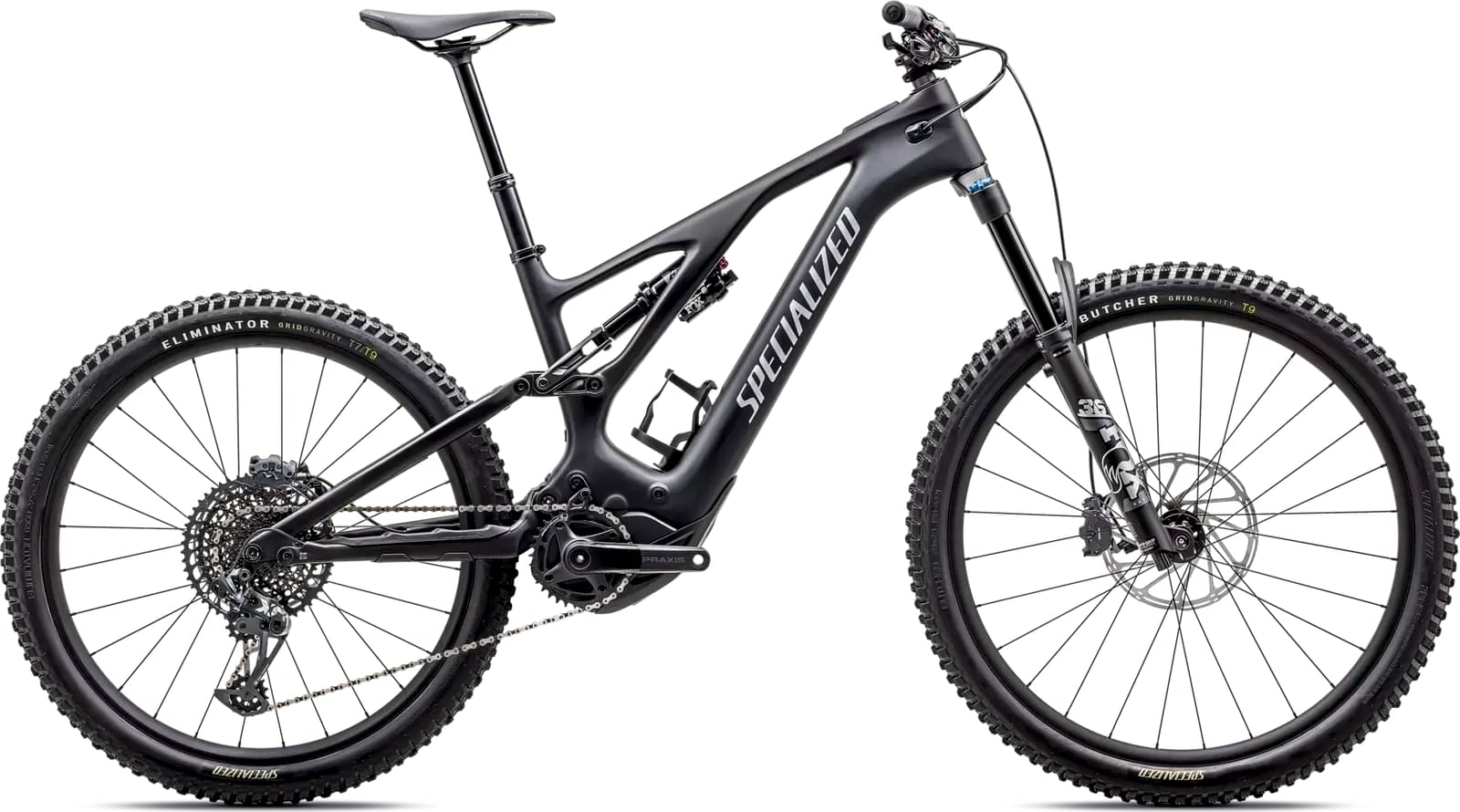

Specialized Turbo Levo 3 Comp Carbon 2025
2025 E-bike
Estimate price |
8,999$
Weight | 23.17 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Rhythm Float 36
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -

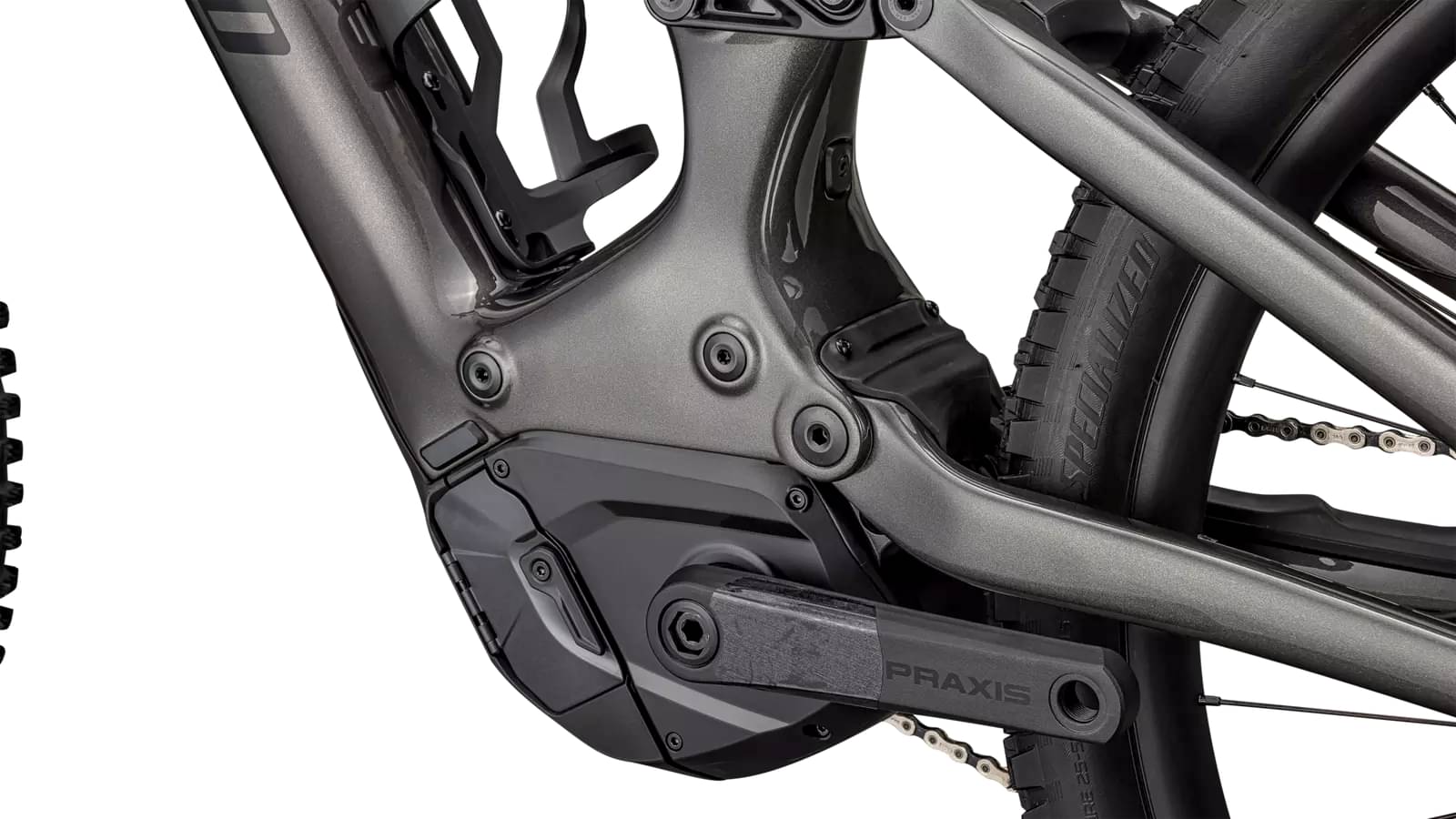

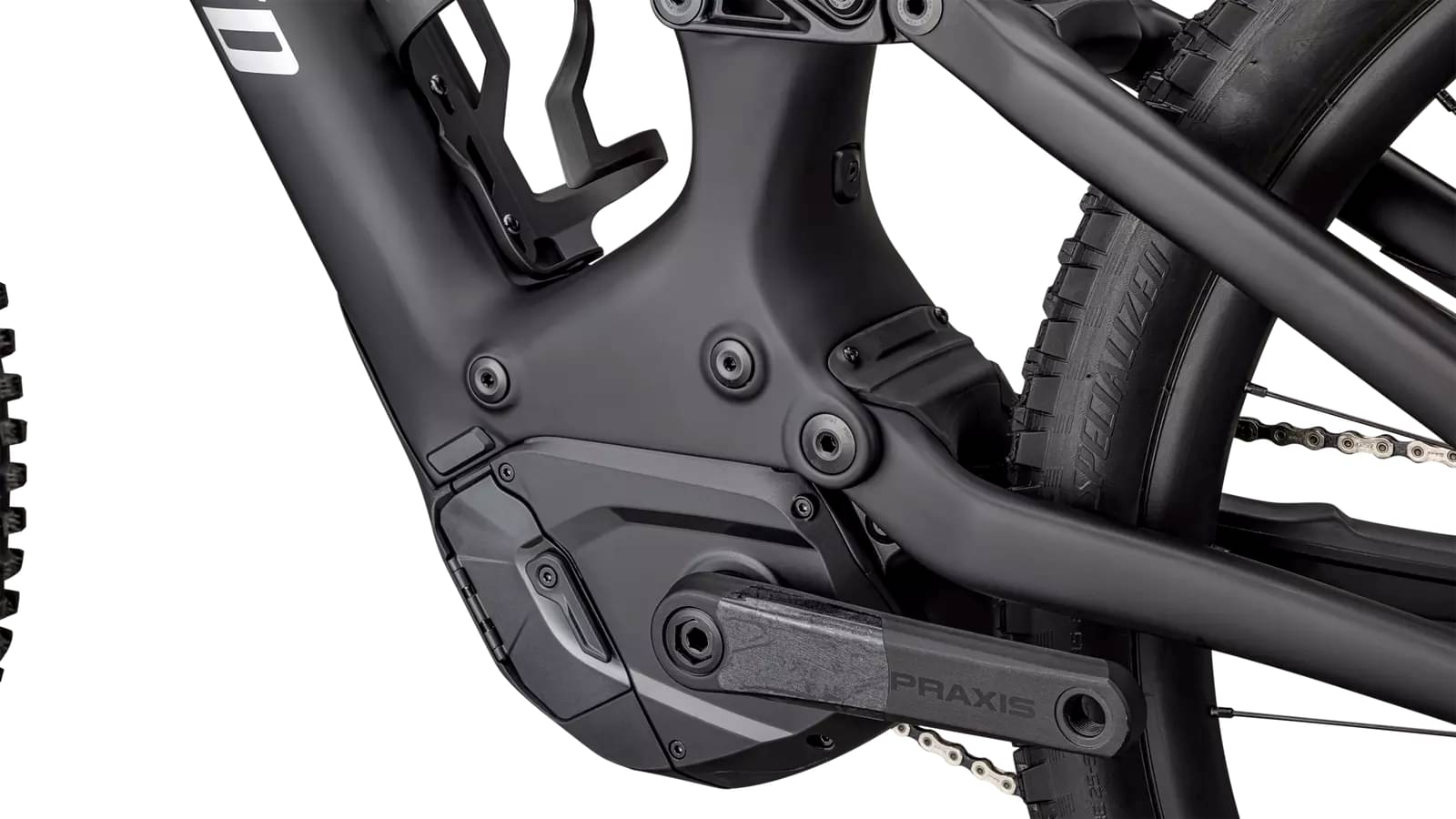

Motor Specialized 565W 90Nm mid-drive -
Battery Specialized M3-700, Integrated battery, 700Wh -
Drivetrain 1 × 12 -
Brakes SRAM Maven Bronze Hydraulic Disc
Sizing
Recommended size guide.
S1
149cm - 160cm
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
S6
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
Suspension Fork
Fox 36 Rhythm, 29", S2-S6: 160mm S1: 150mm, Grip damper

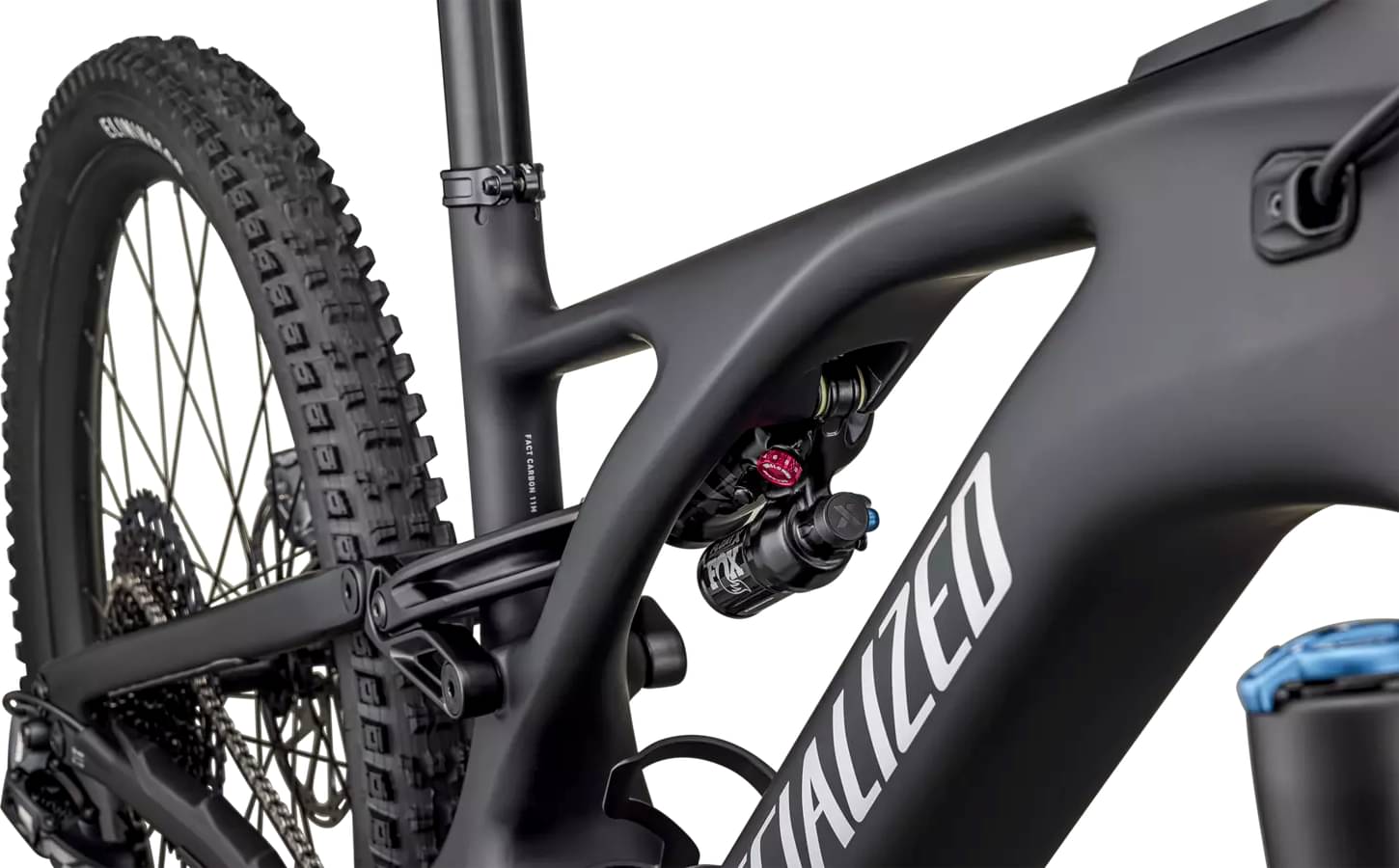

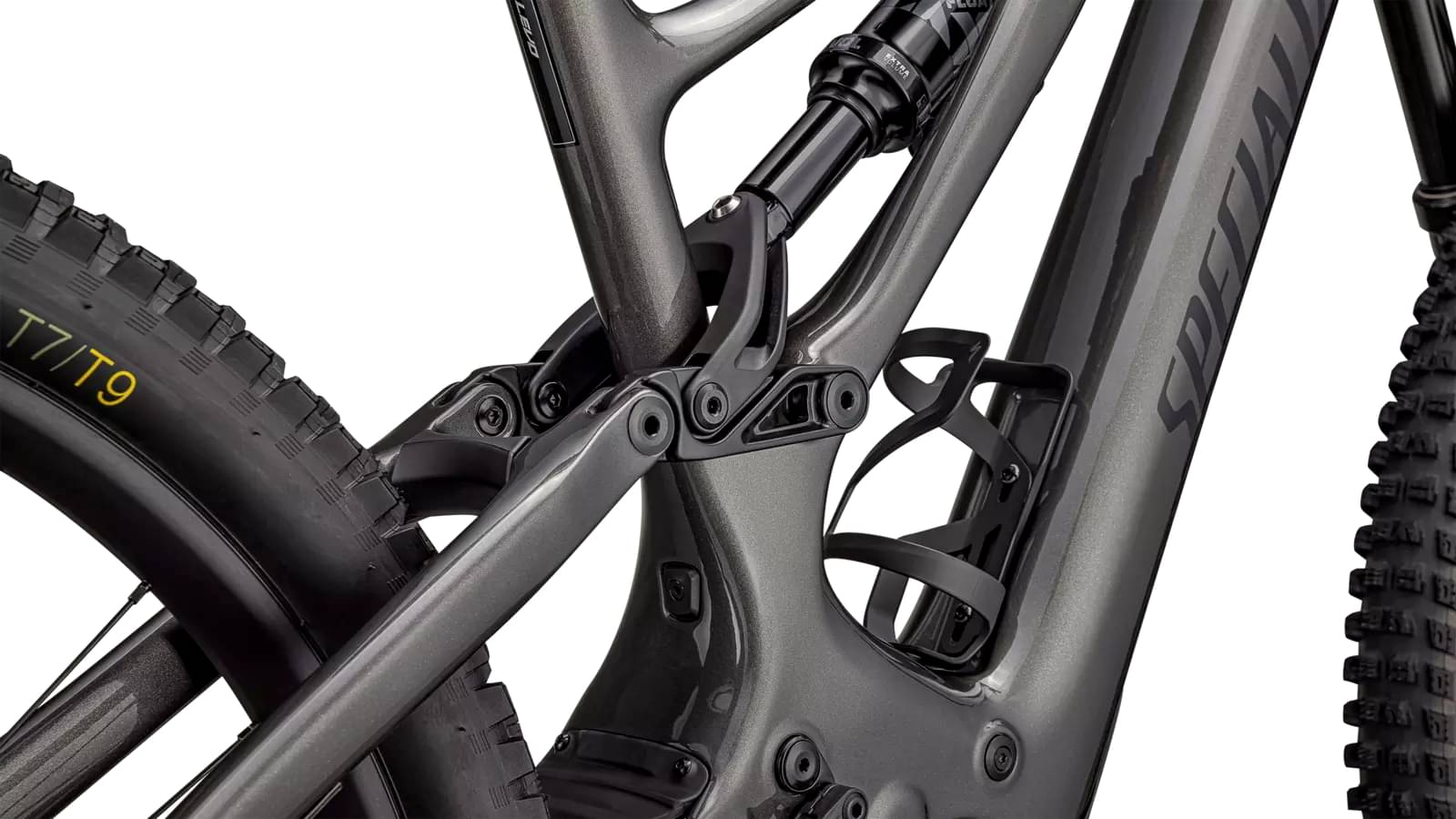

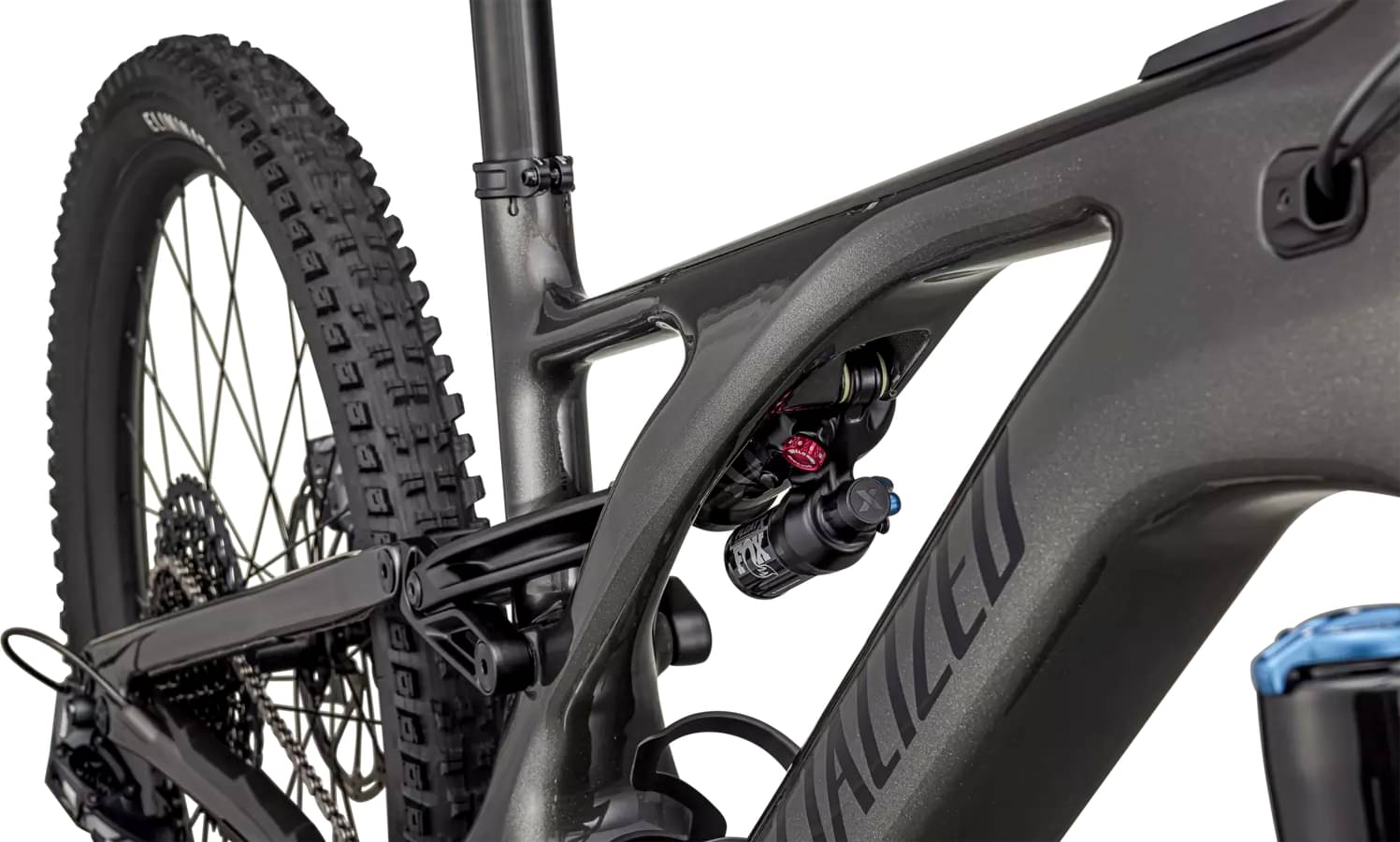

Rear Shock
Sizes S2-26: FOX FLOAT X Performance, LSR, 2-position lever, 55x210mm. Size S1: FOX FLOAT DPS Performance
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Shift Levers
SRAM GX Eagle, trigger, 12-speed, single click
Cassette
SRAM XG-1275, 12-speed, 10-52t
Crank
Praxis forged M30, custom offset, 160mm, SRAM X-Sync Eagle, 104 BCD, 32T, steel
Chain
SRAM GX Eagle, 12-speed
Wheels
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
Rims
Specialized, hookless alloy, 30mm inner width, tubeless ready
Spokes
DT Swiss Industry
Tires
Front: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3", Rear: Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 27.5x2.3"
Brakes
Brakes
Front: SRAM Maven Bronze, 220mm rotor, metallic pads, Rear: SRAM Maven Bronze, 200mm rotor, metallic pads
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore

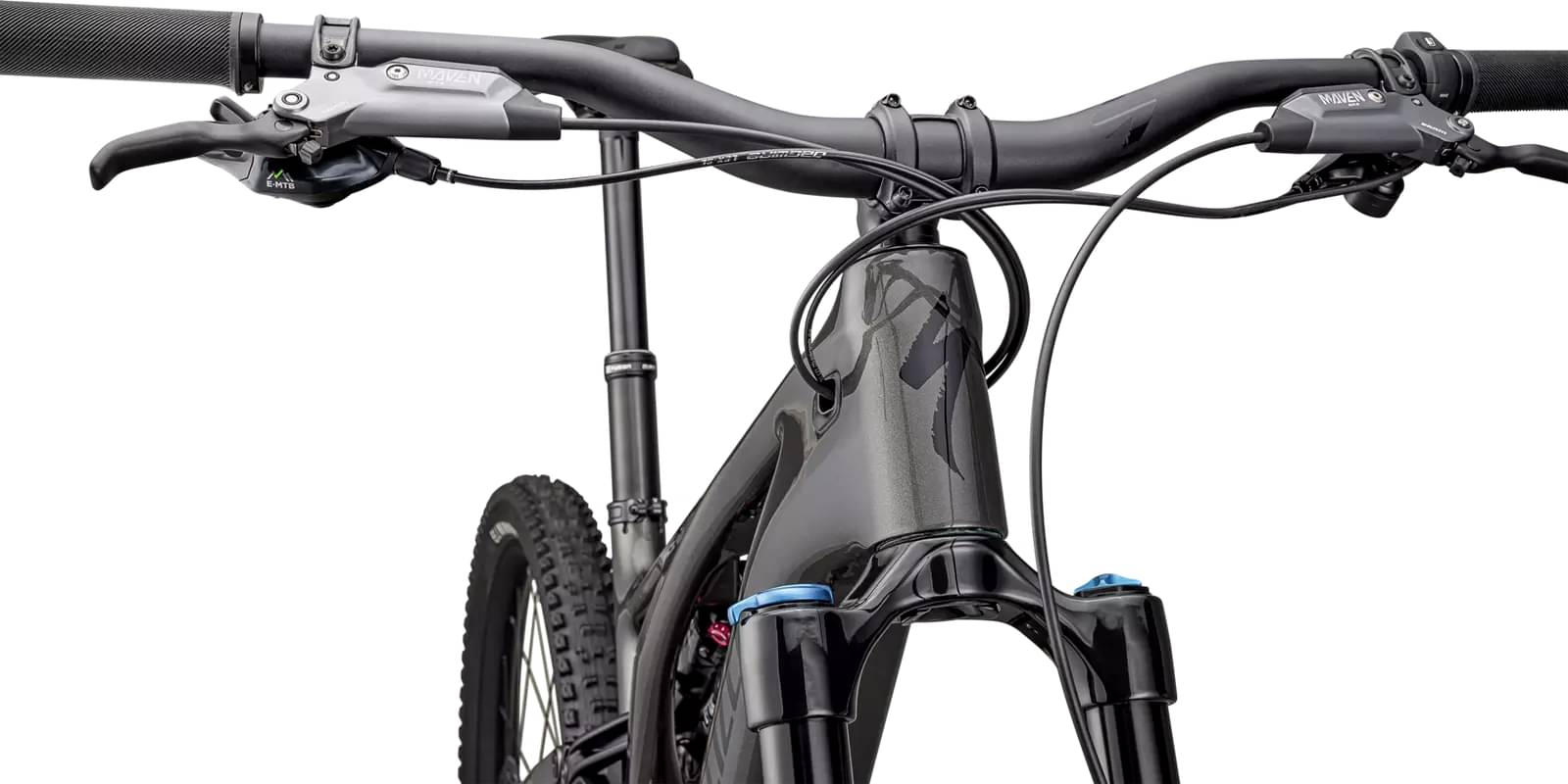

Handlebar
6061 mtn bars, 35mm diameter, 8 degree back sweep, 6 degrees up sweep, 800mm width. S1/S2: 30mm rise, S3-S6: 40mm rise
Grips
Specialized Trail Grips
Seat
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
Seatpost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm
Motor & Battery
Motor
Specialized 2.2 Custom Rx Trail Tuned Motor, 90Nm Torque, 565W Power
Battery
Specialized M3-700, Integrated battery, 700Wh

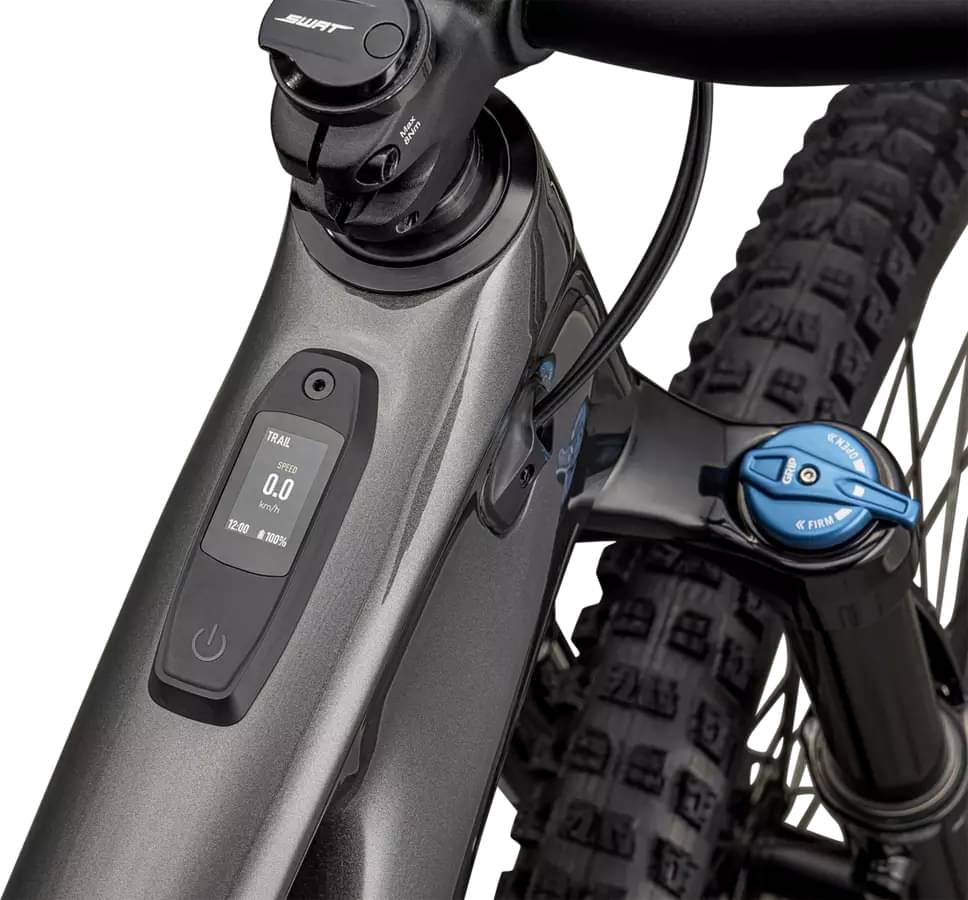

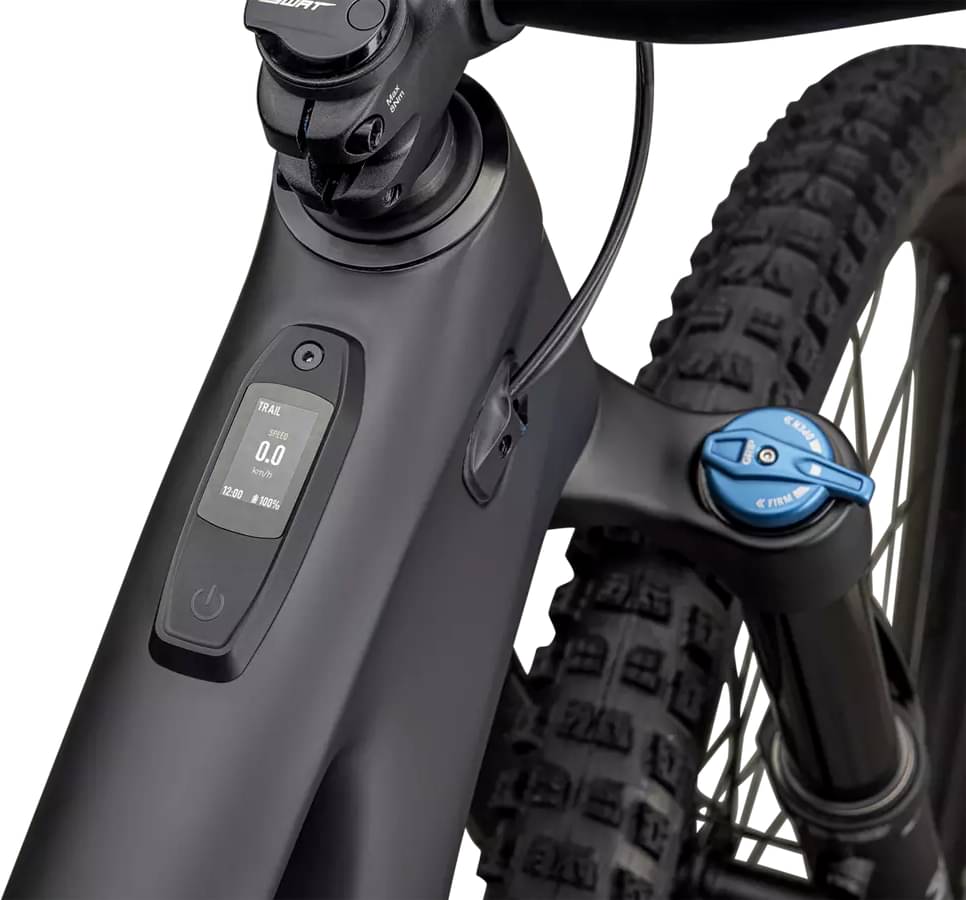

Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.468 mm | 1.428 mm | 1.385 mm | 1.331 mm | 1.283 mm | 1.227 mm |
| Bottom Bracket Height | 352 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 738 mm | 760 mm | 784 mm | 814 mm | 843 mm | 878 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Stack | 605 mm | 617 mm | 626 mm | 635 mm | 644 mm | 653 mm |
| Reach | 412 mm | 432 mm | 452 mm | 477 mm | 502 mm | 532 mm |
| Seat Tube Angle | 78 ° | 77.2 ° | 76.7 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 380 mm | 390 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1179 mm | 1200 mm | 1225 mm | 1255 mm | 1284 mm | 1318 mm |
| Bottom Bracket Drop | 25 mm | 27 mm | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 752 mm | 776 mm | 783 mm | 787 mm | 788 mm | 790 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 149 cm | 157 cm | 165 cm | 172 cm | 177 cm | 188 cm |
| Rider Max Height | 160 cm | 172 cm | 180 cm | 188 cm | 193 cm | 203 cm |
