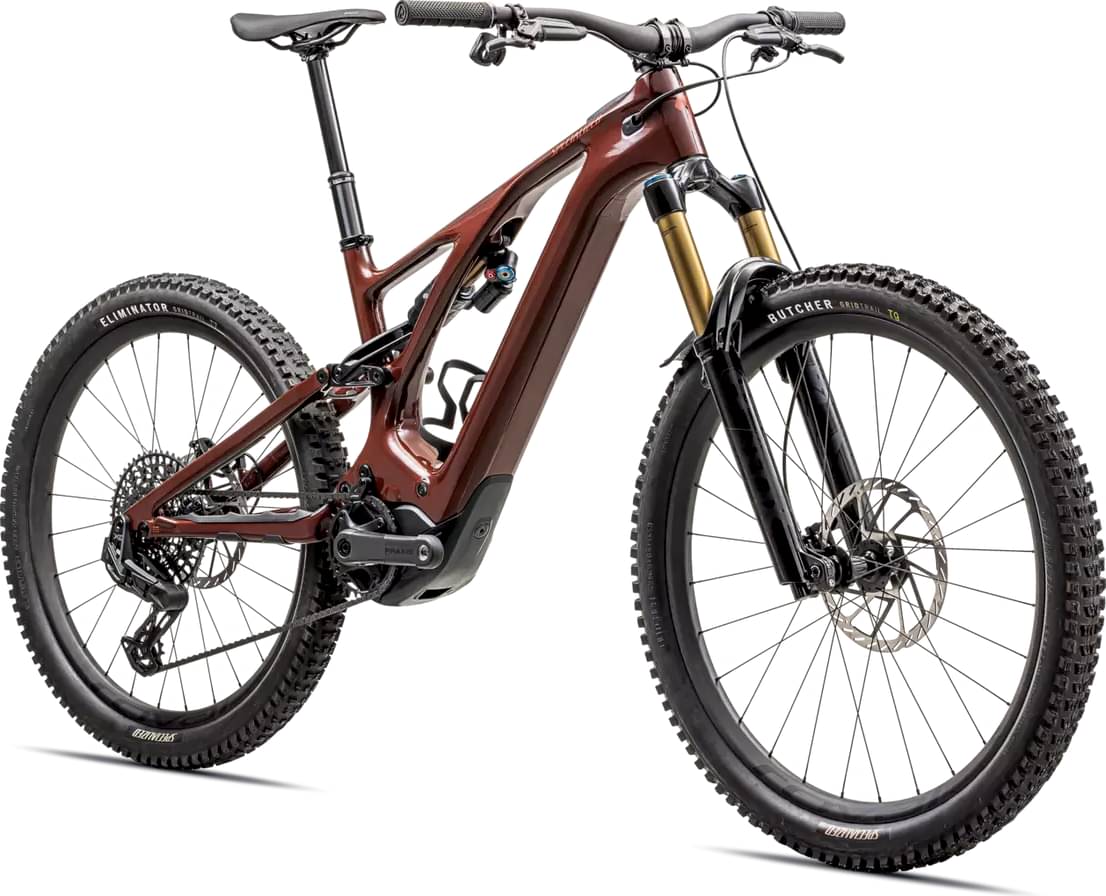

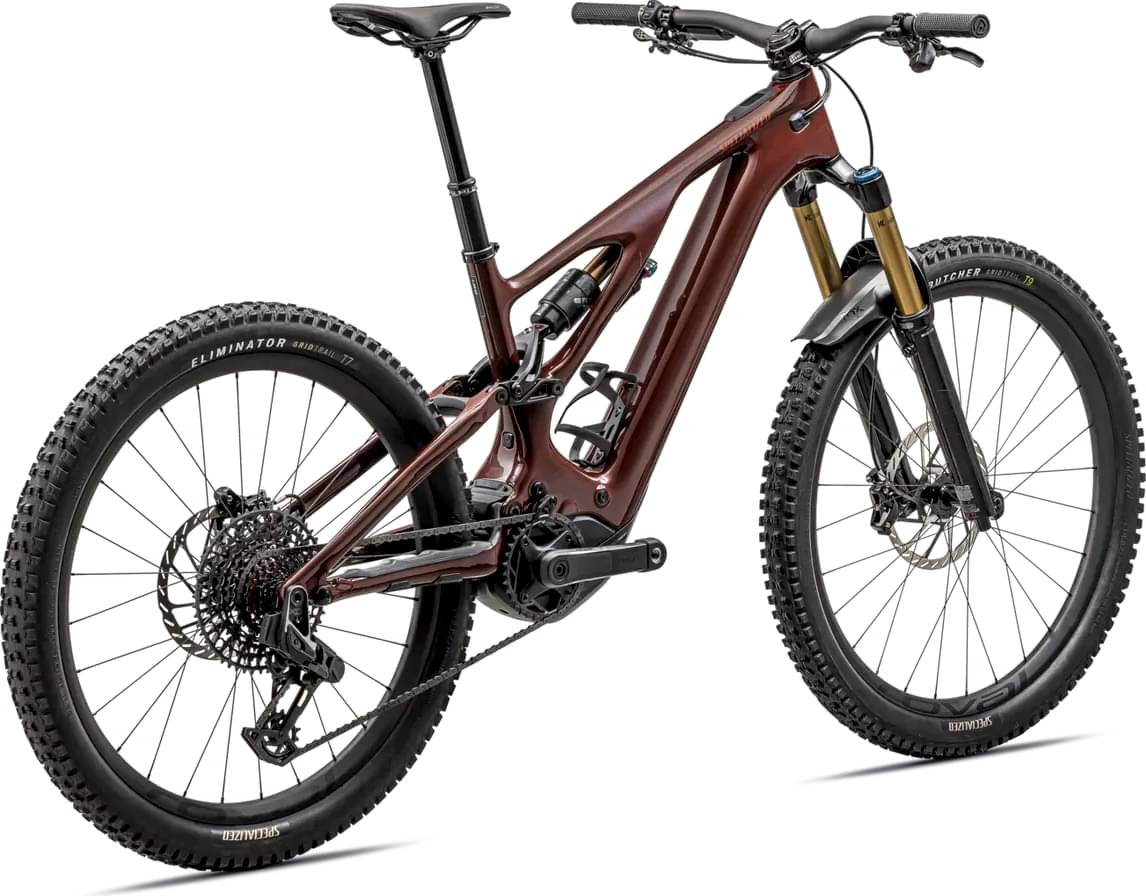

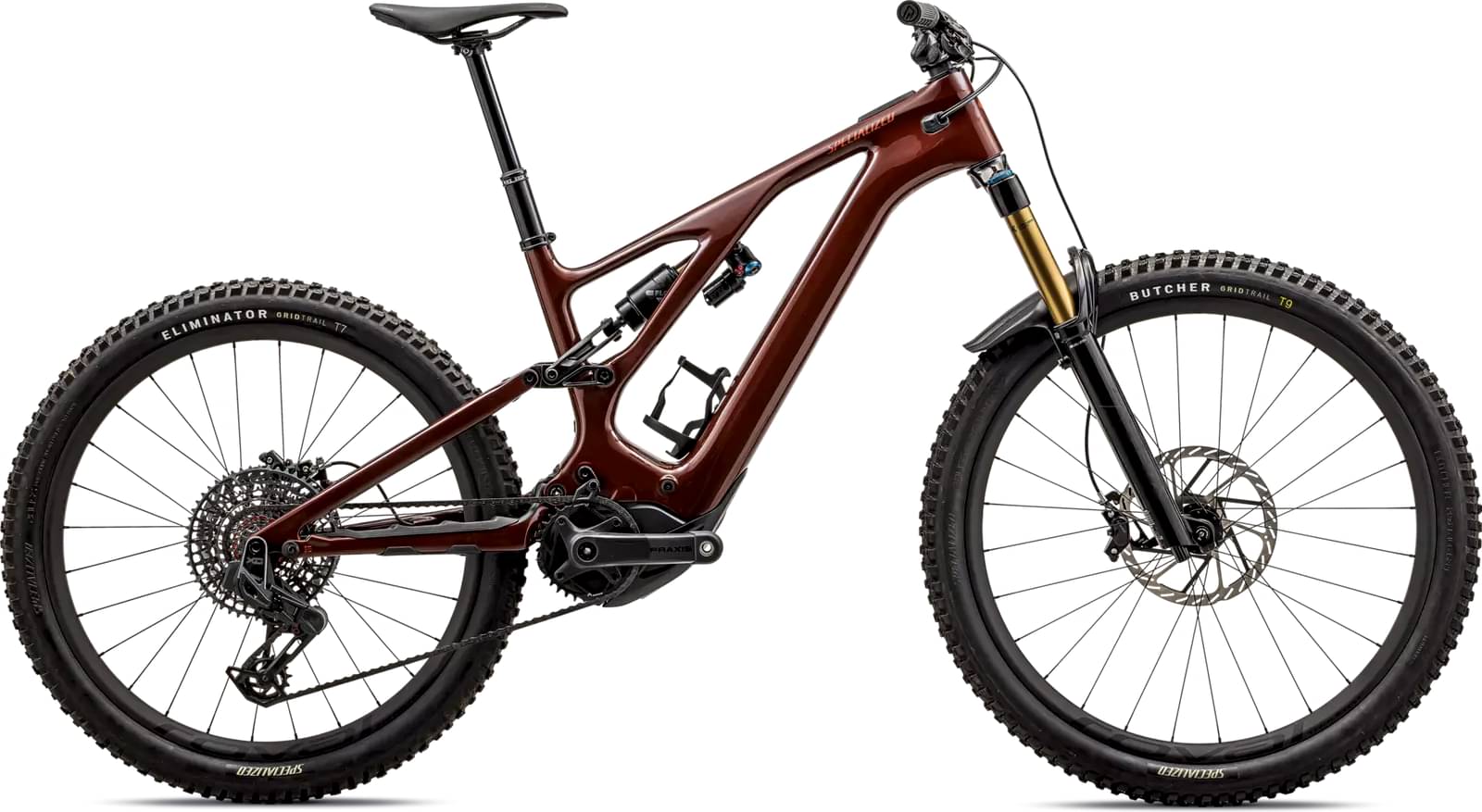

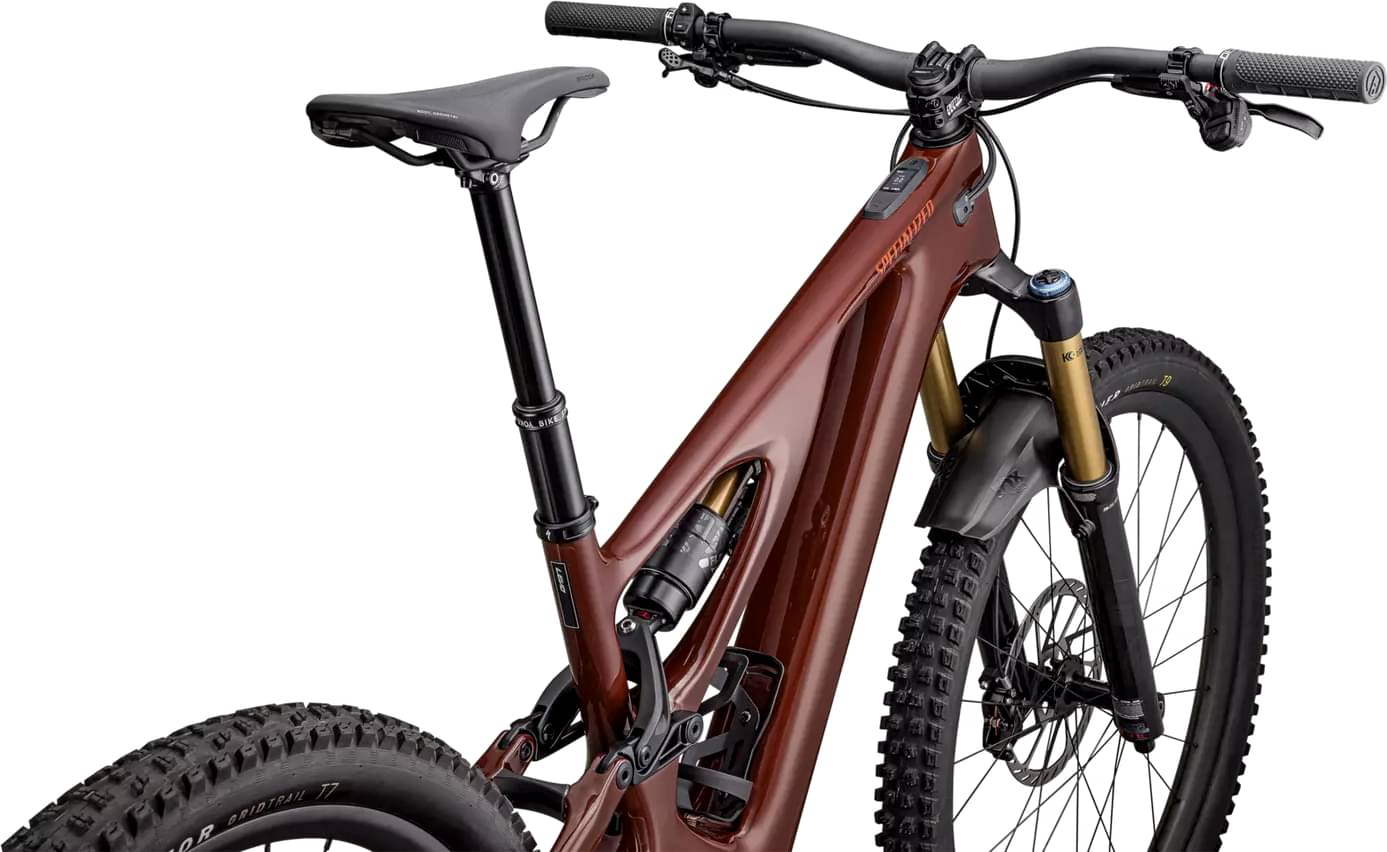

Specialized Turbo Levo 3 Pro Carbon 2023
2023 E-bike
Estimate price |
11,999$
Weight | 22.55 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 38
-
Groupset X0 Eagle Transmission, Eagle AXS -
Suspension Full -
Motor Specialized 565W 90Nm mid-drive -
Battery Specialized M3-700, Integrated battery, 700Wh -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Code Silver Stealth Hydraulic Disc
Sizing
Recommended size guide.
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
S6
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
Suspension Fork
Fox 38 Factory, Grip 2 damper, 29", 160mm travel, Kashima, 44mm offset

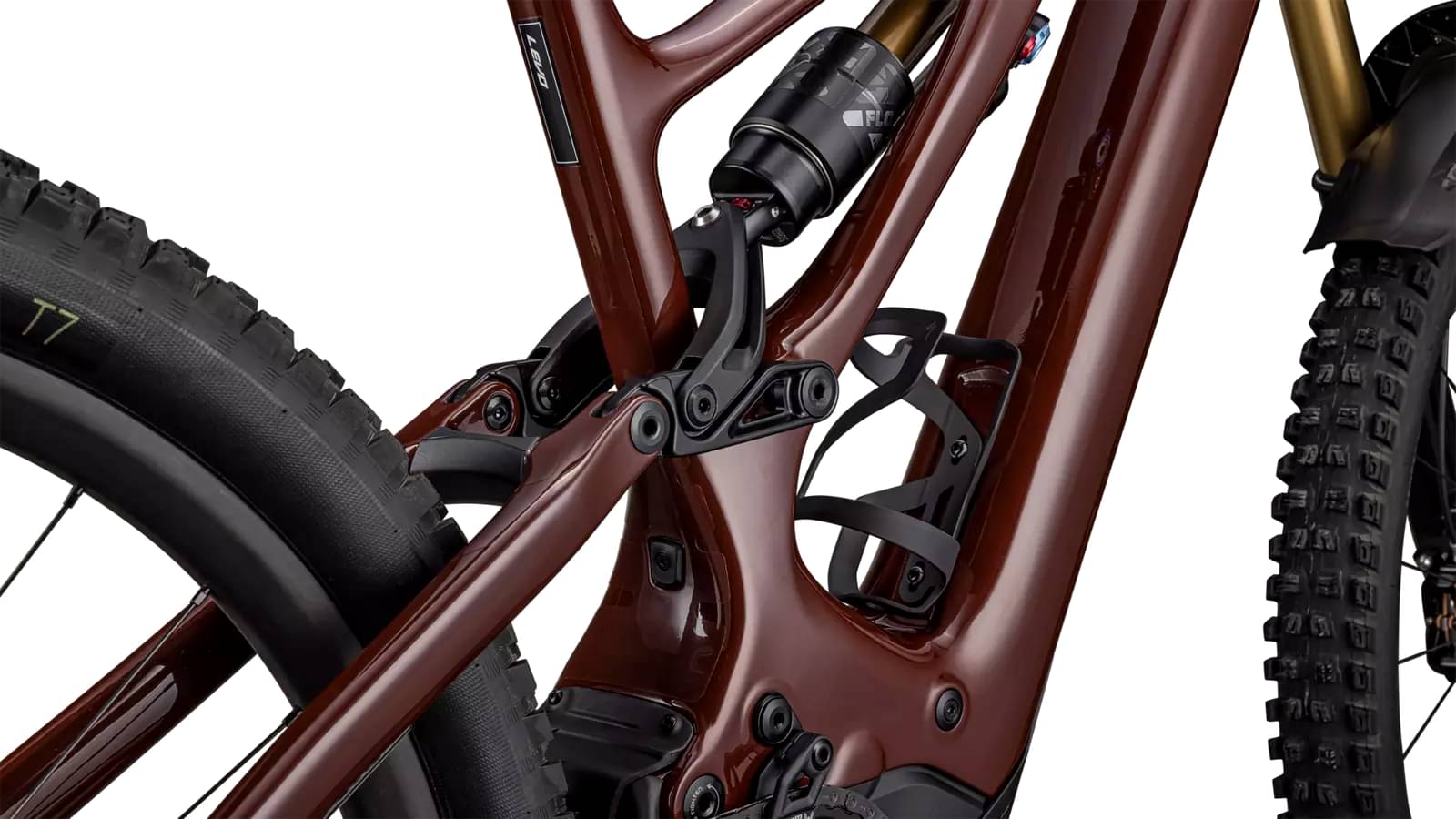

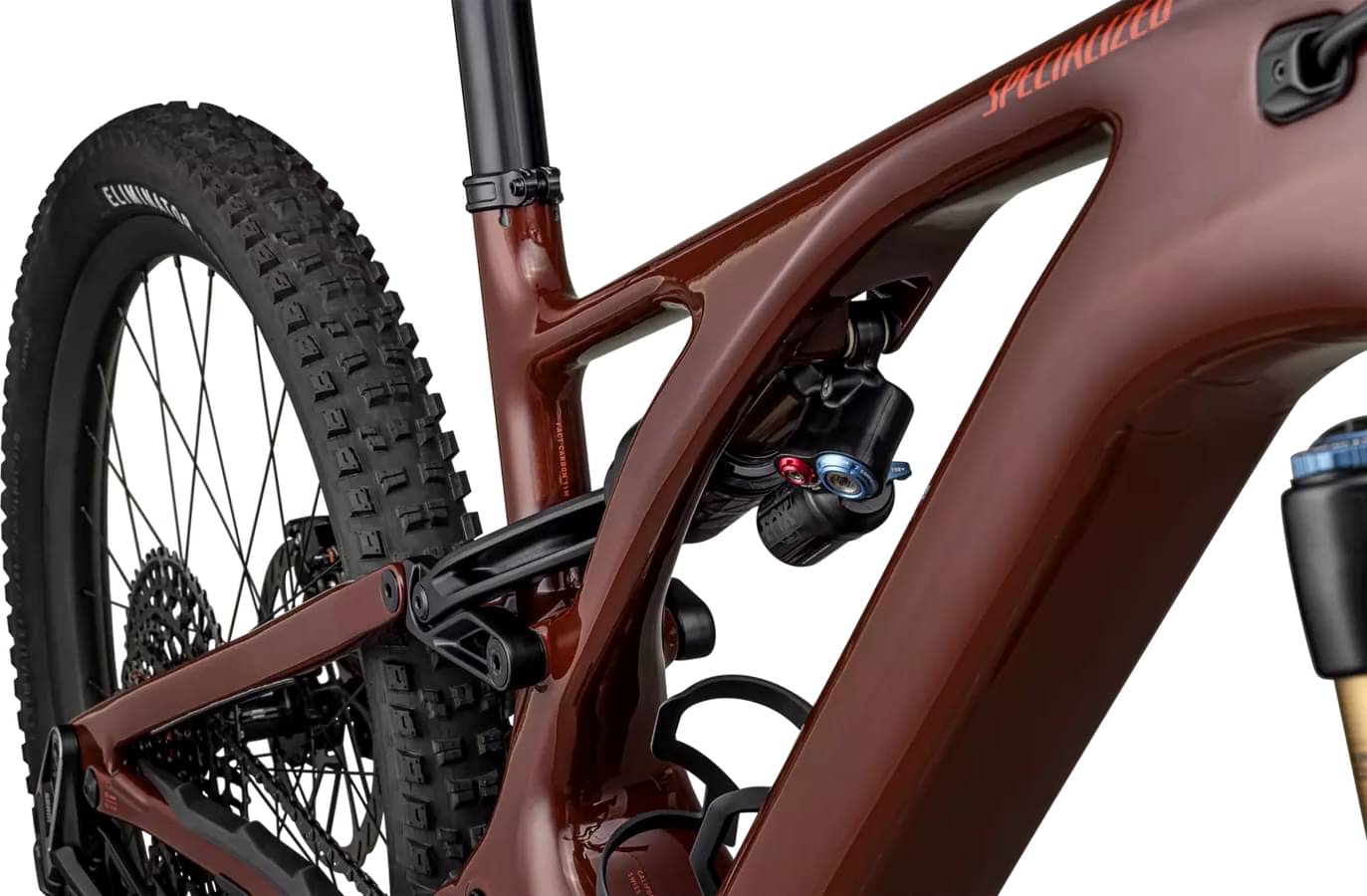

Rear Shock
Fox Float X2 Factory, Kashima, 210x55mm
Drivetrain
Rear Derailleur
SRAM X0 Eagle Transmission
Shift Levers
SRAM AXS POD Controller
Cassette
SRAM X0 Eagle Transmission Cassette, 12spd, 10-52t
Crank
Praxis Carbon/Custom Offset/ISIS Spindle Interface, 160mm, SRAM Eagle Transmission 34t Steel, 104BCD
Chain
SRAM X0 Eagle Transmission Flattop Chain
Wheels
Front Hub
DT Swiss 350, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub
DT Swiss 350, Star Ratchet, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Rims
Front: Roval Traverse Carbon 29, Rear: Roval Traverse Carbon 27.5
Tires
Front: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6", Rear: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Brakes
Brakes
Front: SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 220mm, Rear: SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm

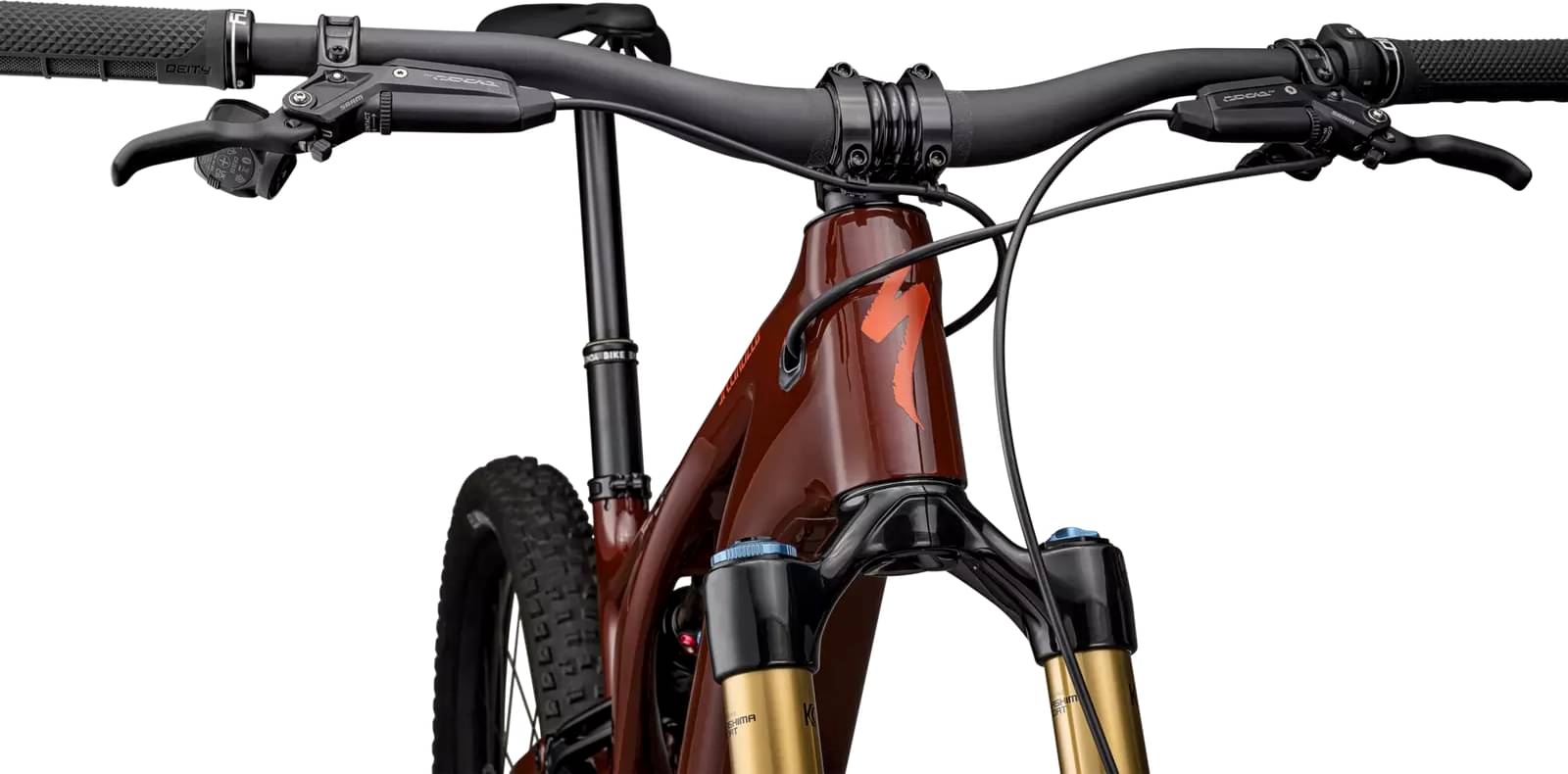

Cockpit
Stem
Deity, 35.0mm
Handlebar
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
Grips
Deity Grips
Seat
Saddle
Bridge, 155/143mm, Hollow Ti-rails
Seatpost
Bike Yoke Revive dropper Post, 34.9mm diameter, S2/S3: 160mm, S4/S5: 185mm, S6: 213mm
Motor & Battery

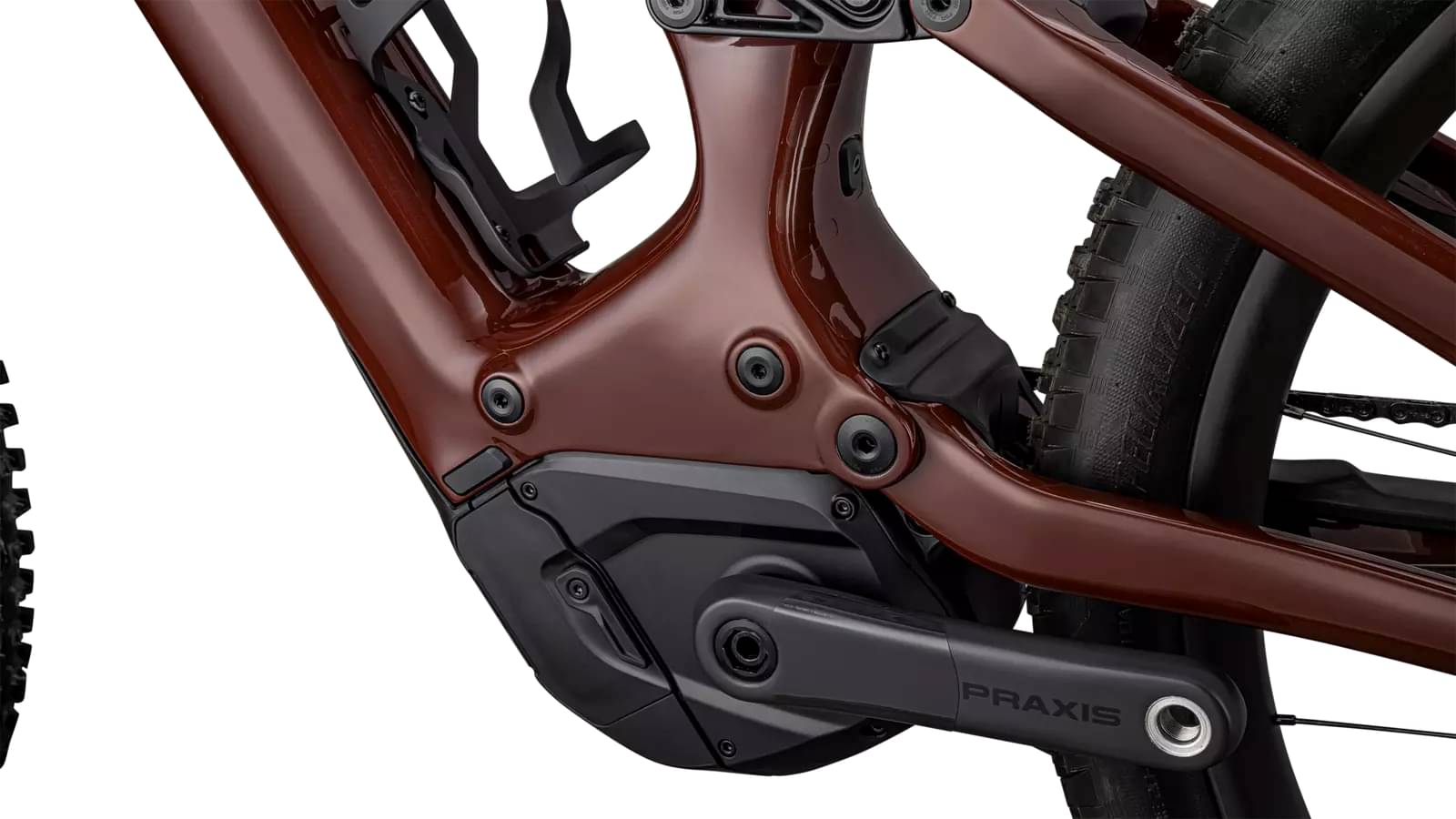

Motor
Specialized 2.2 Custom Rx Trail Tuned Motor, 90Nm Torque, 565W Power
Battery
Specialized M3-700, Integrated battery, 700Wh

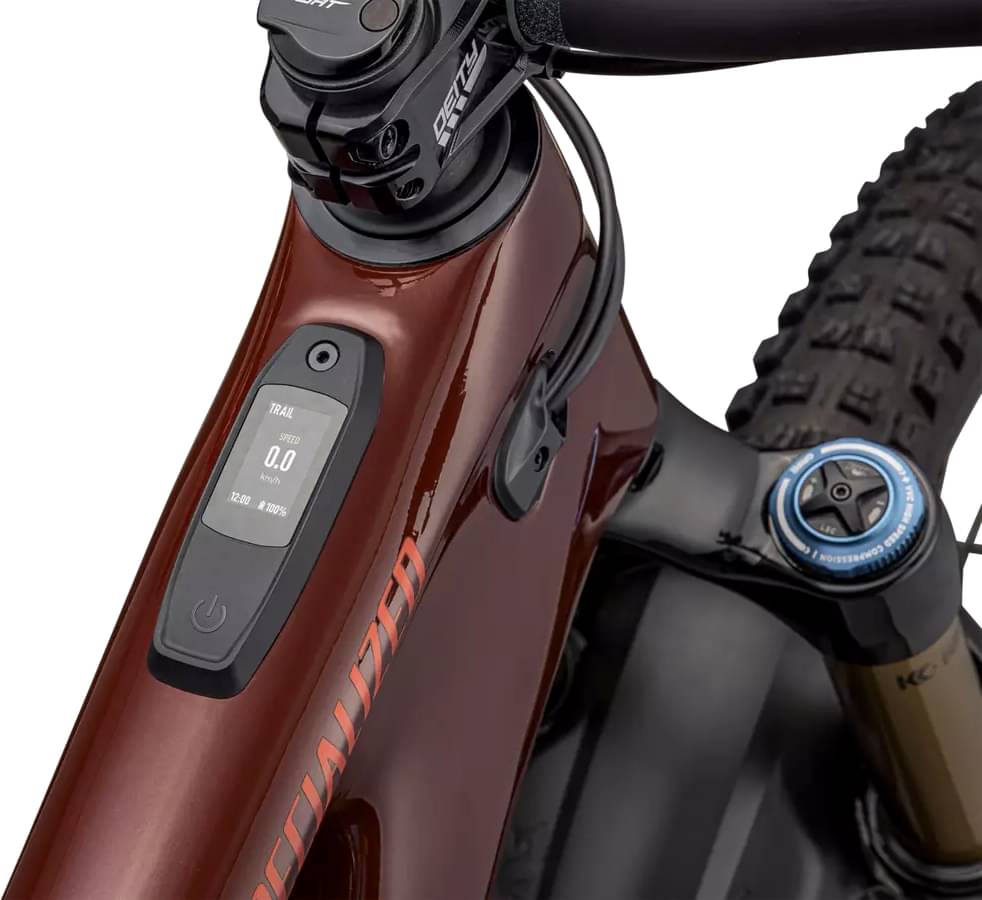

Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.428 mm | 1.385 mm | 1.331 mm | 1.283 mm | 1.227 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 760 mm | 784 mm | 814 mm | 843 mm | 878 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Stack | 617 mm | 626 mm | 635 mm | 644 mm | 653 mm |
| Reach | 432 mm | 452 mm | 477 mm | 502 mm | 532 mm |
| Seat Tube Angle | 77.2 ° | 76.7 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 390 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1200 mm | 1225 mm | 1255 mm | 1284 mm | 1318 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 776 mm | 783 mm | 787 mm | 788 mm | 790 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 165 cm | 172 cm | 177 cm | 188 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 193 cm | 203 cm |
