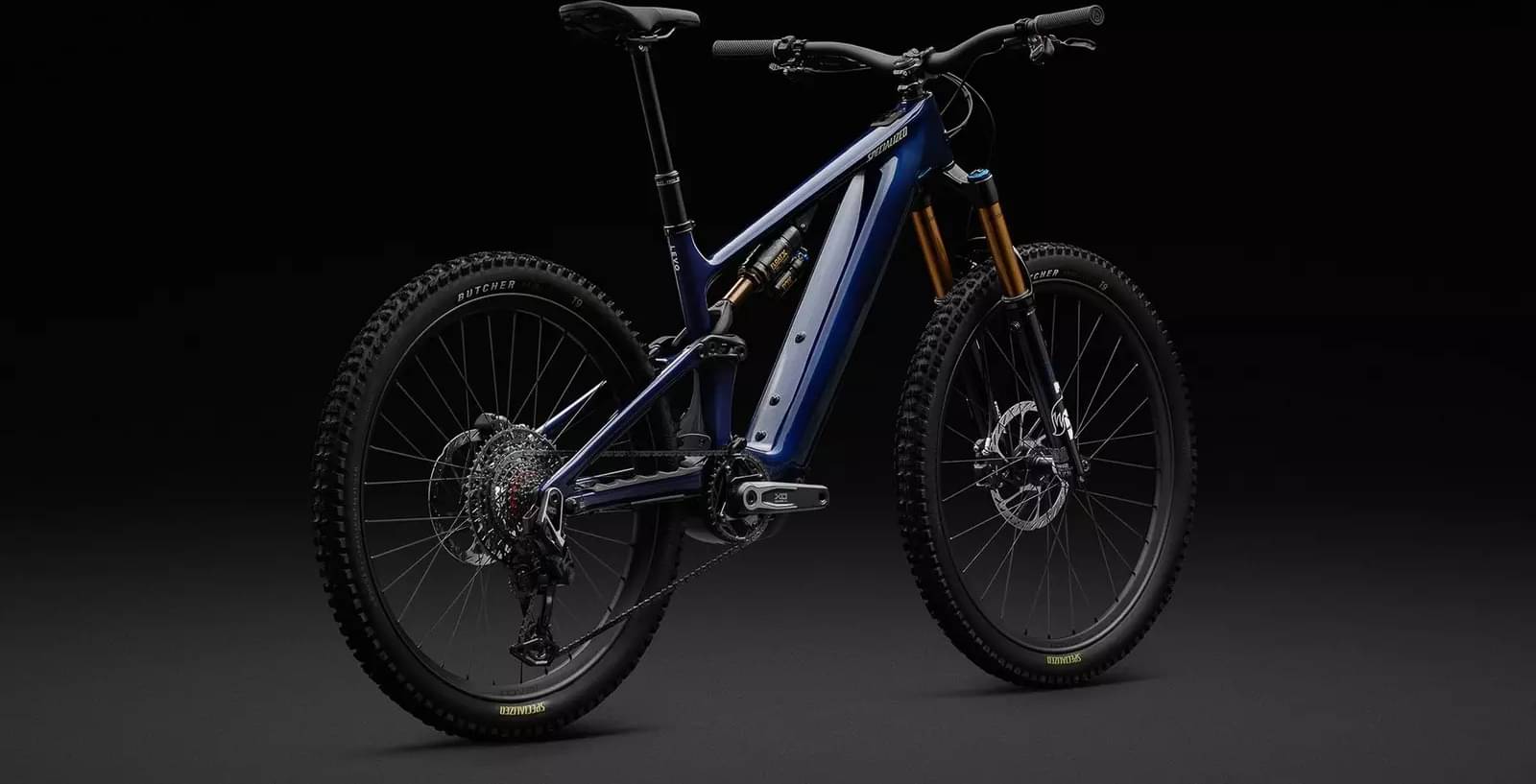

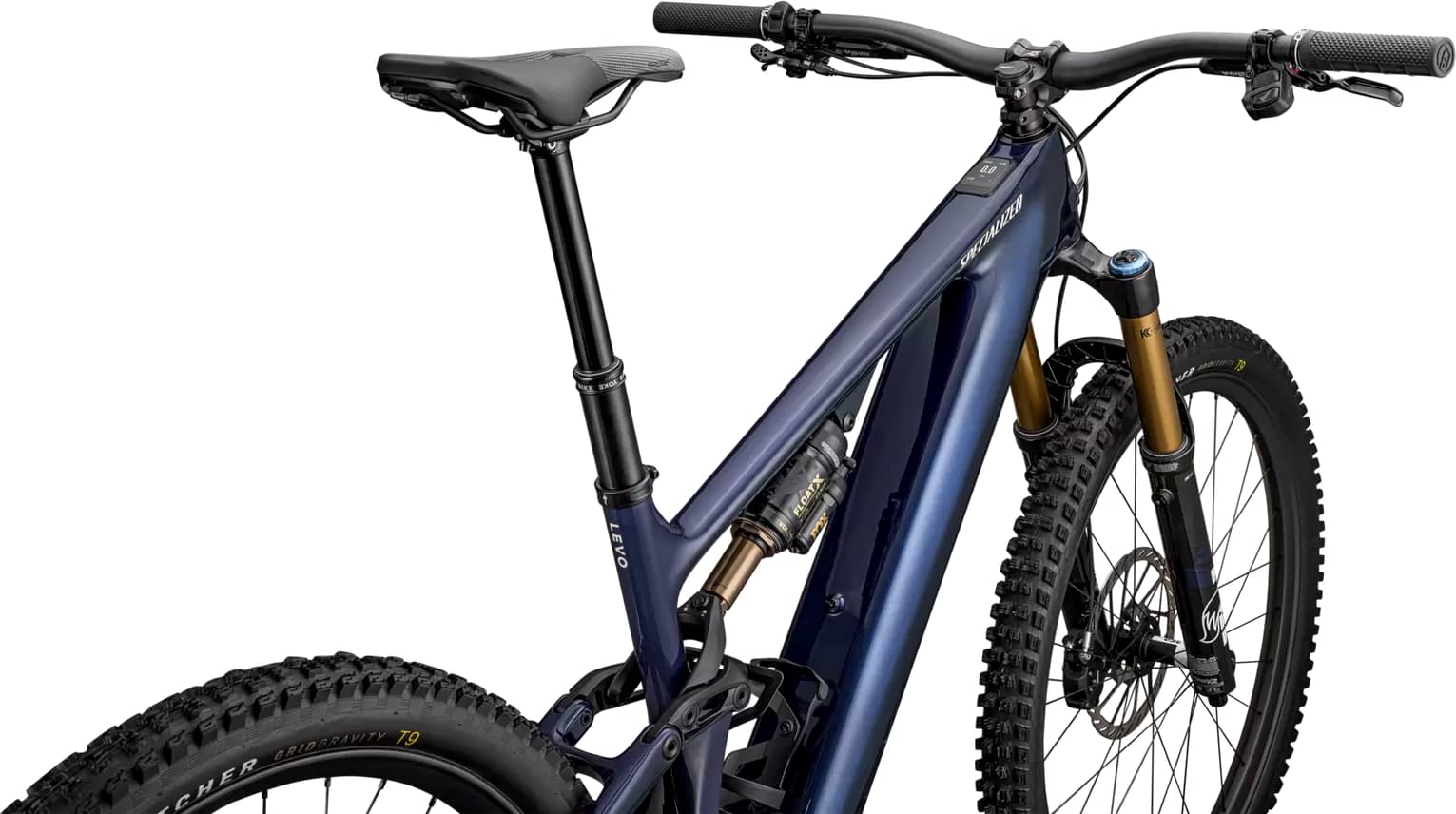

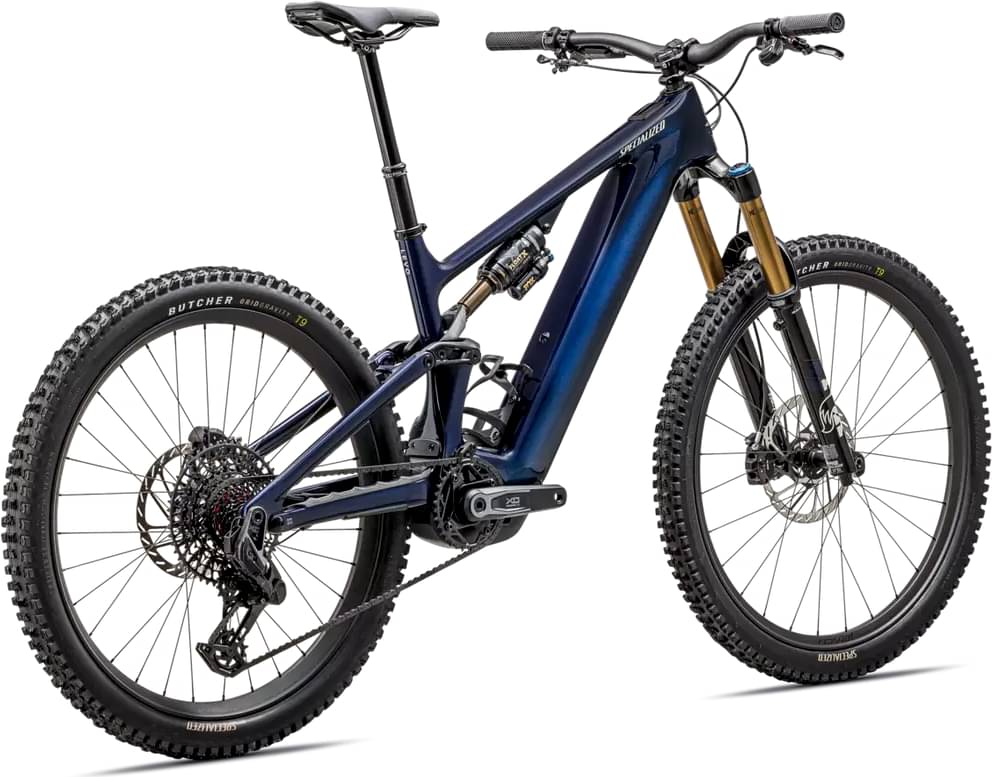

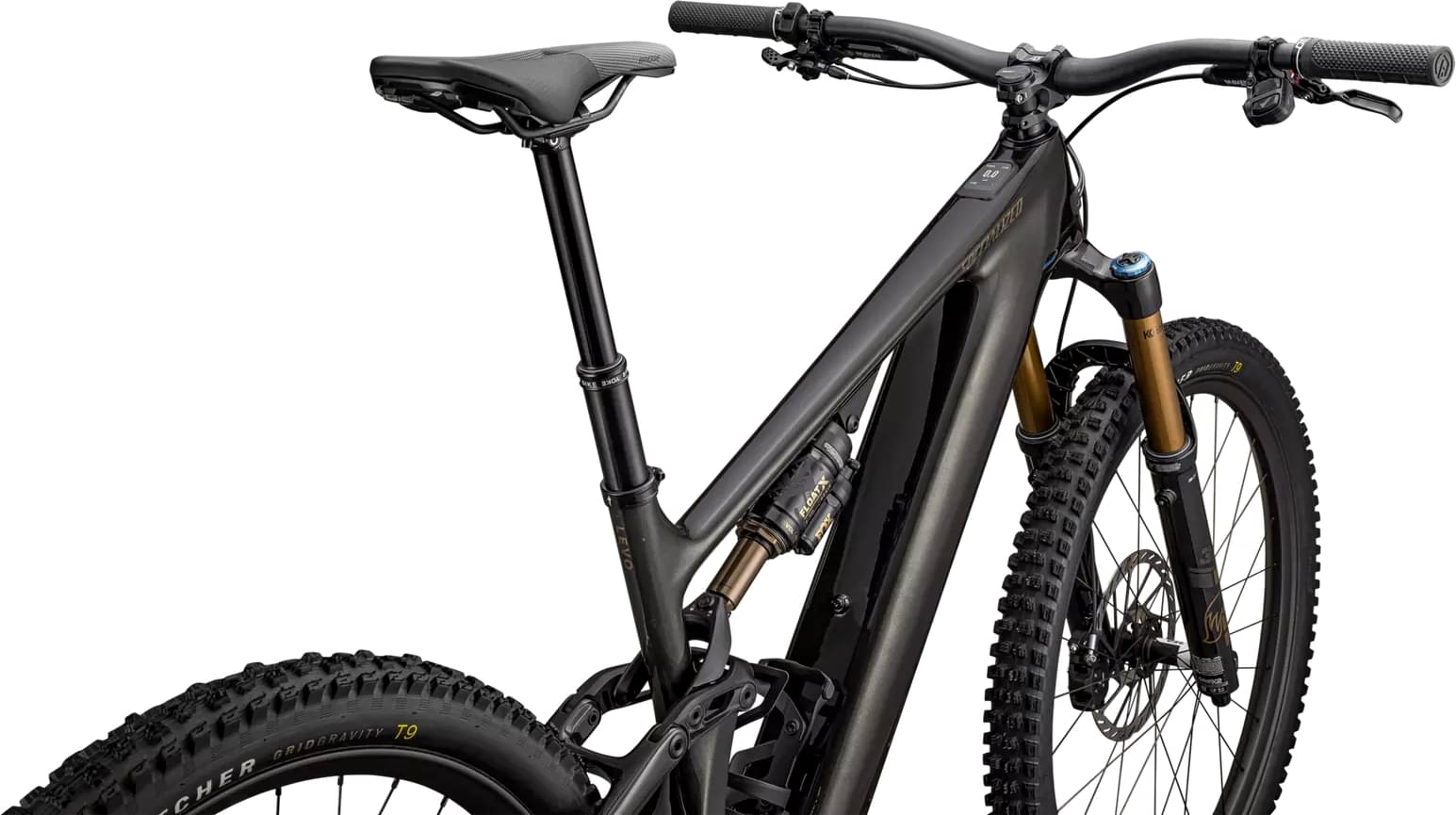

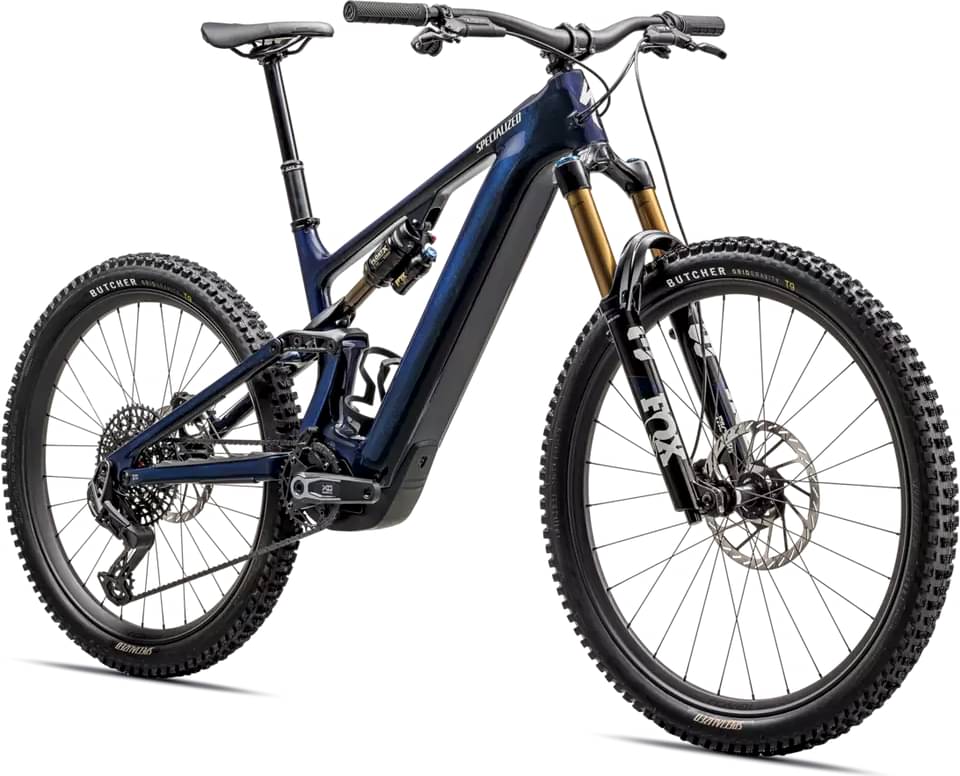

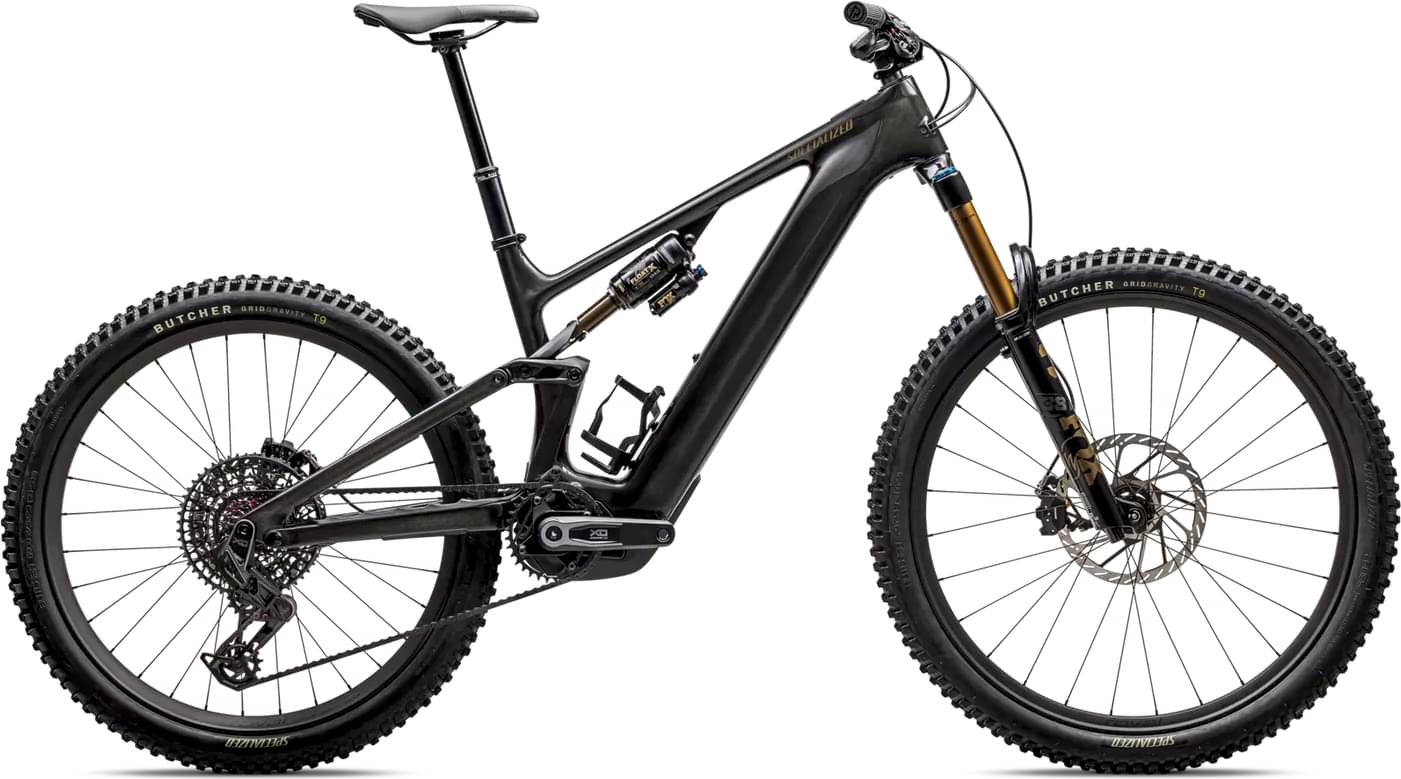

Specialized Turbo Levo 4 Pro 2026
2026 E-bike
Estimate price |
13,959$
Weight | 23.94 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Fork Fox Factory Float 38
-
Groupset X0 Eagle Transmission, Eagle AXS -
Suspension Full -
Motor Specialized 666W 101Nm mid-drive -
Battery 840Wh battery -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Maven Silver Hydraulic Disc
Sizing
Recommended size guide.
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
S6
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m Carbon, Geo Adj & SWAT Storage
Suspension Fork
FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel

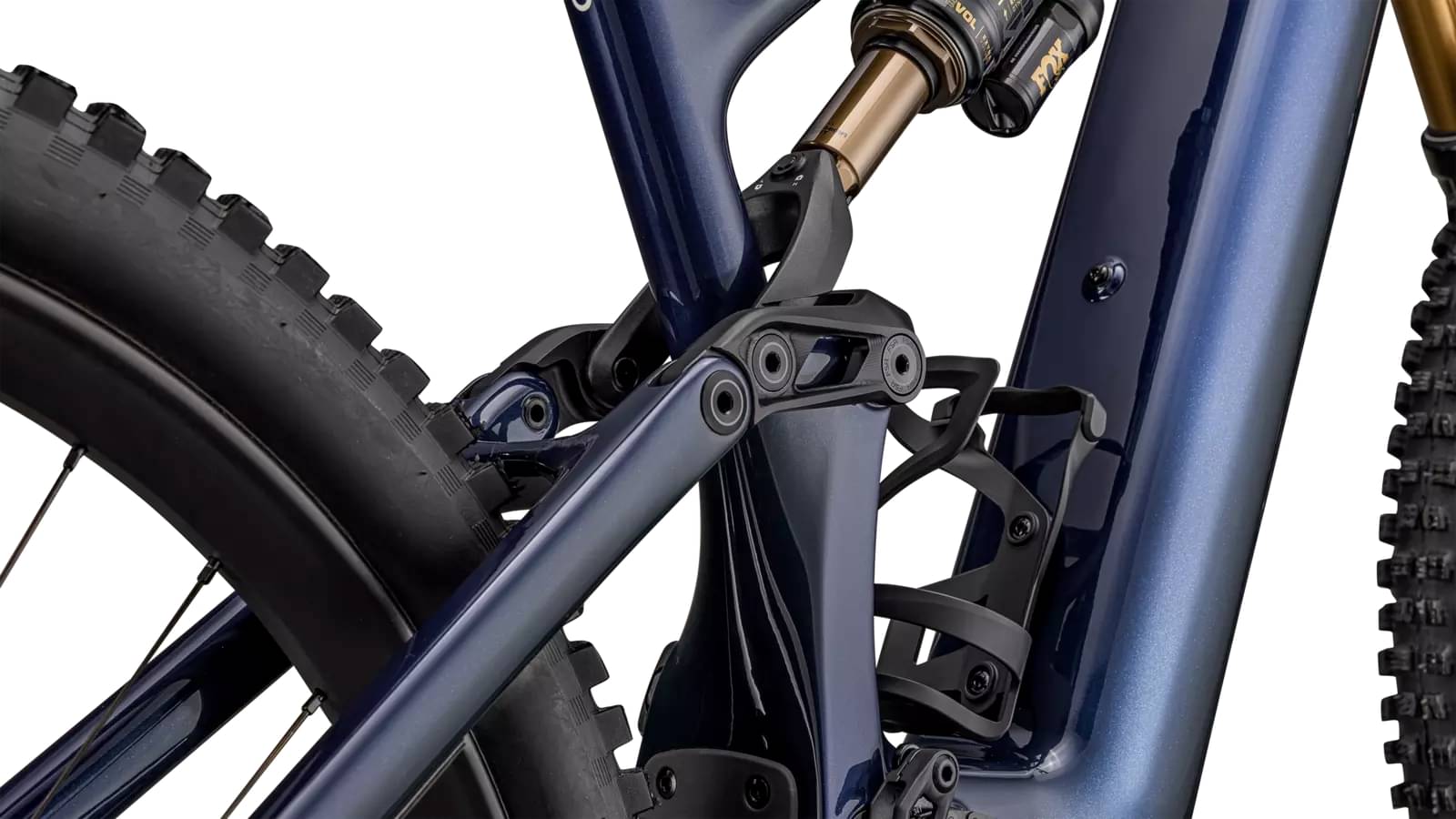

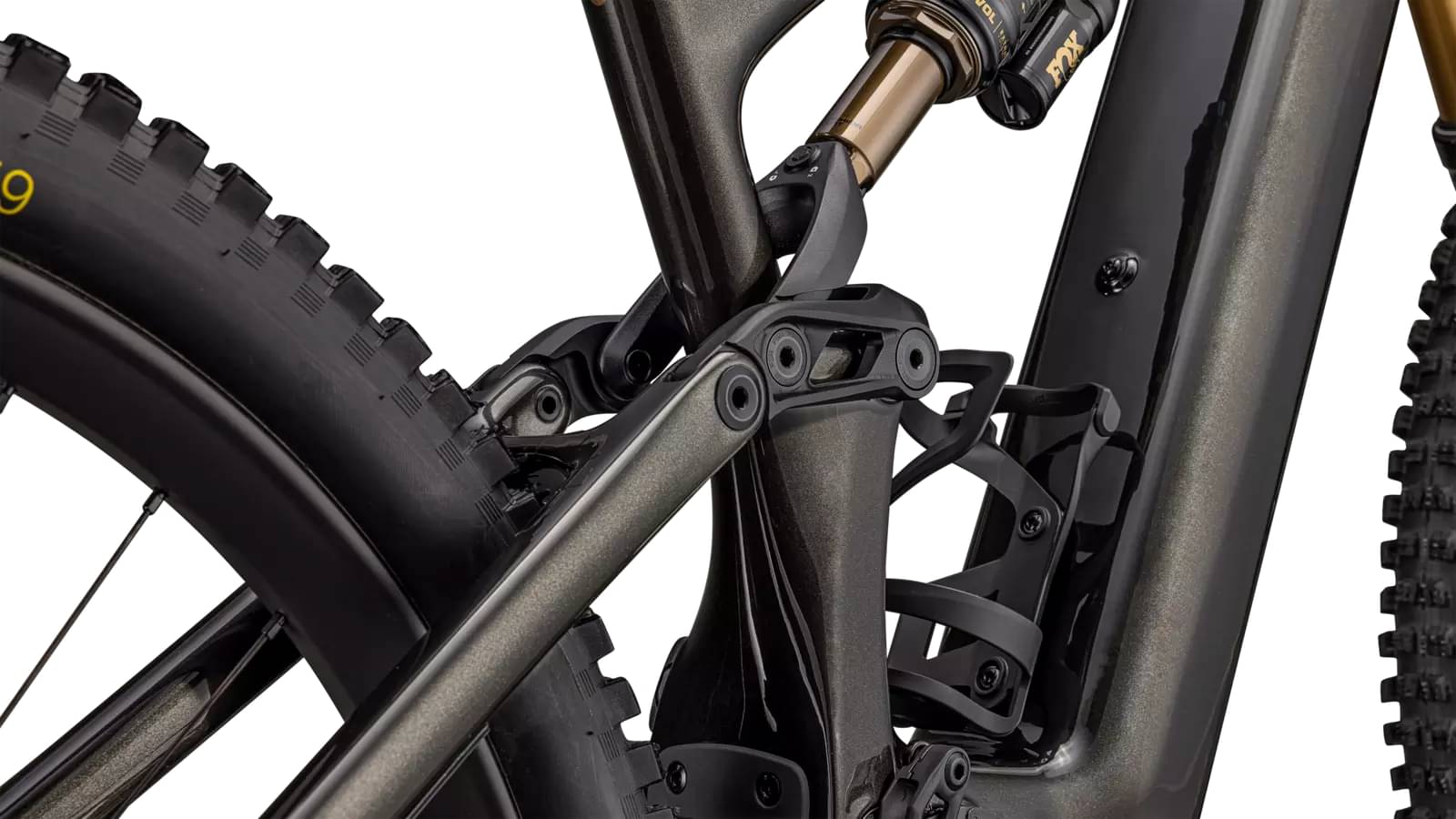

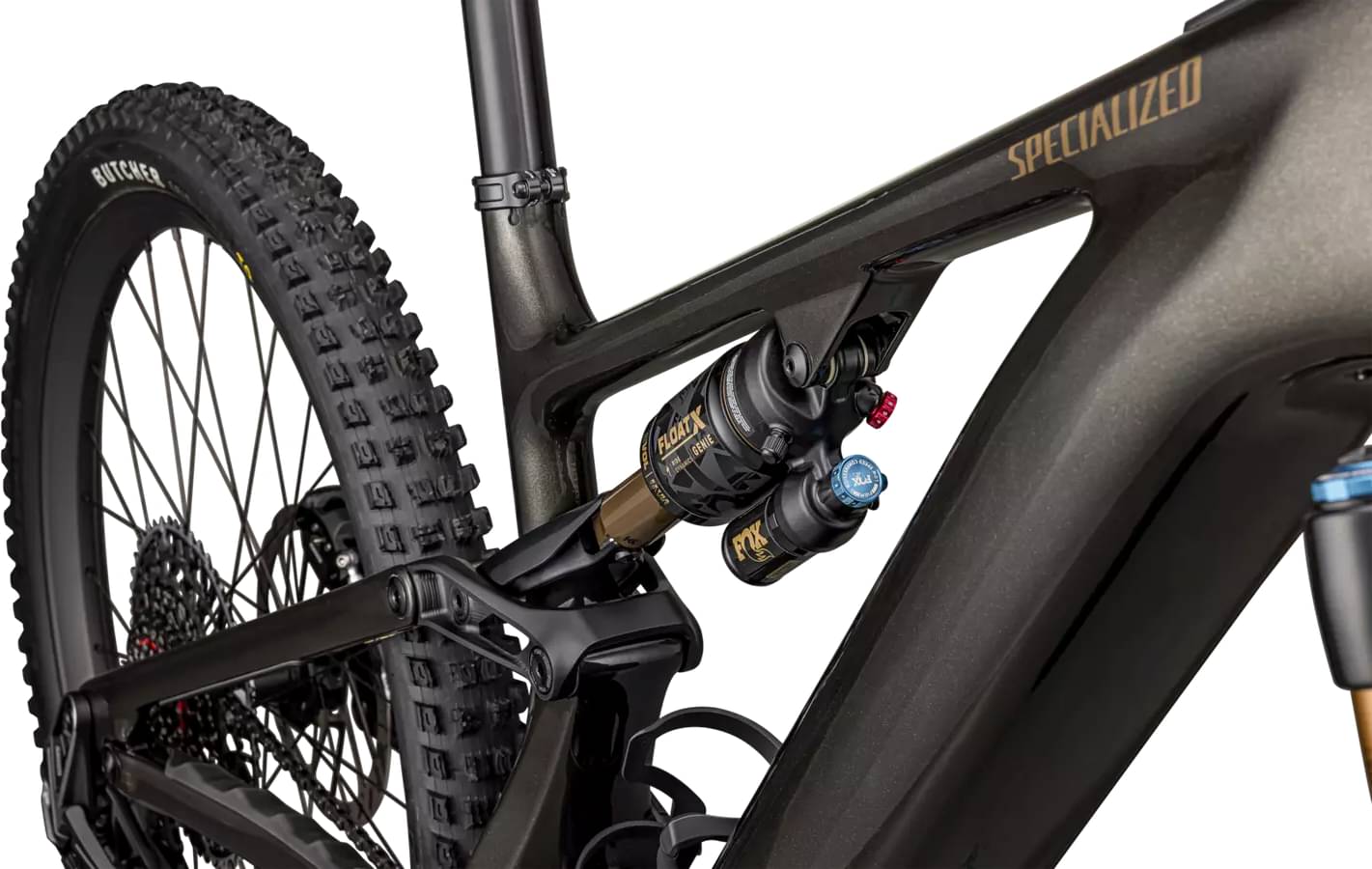

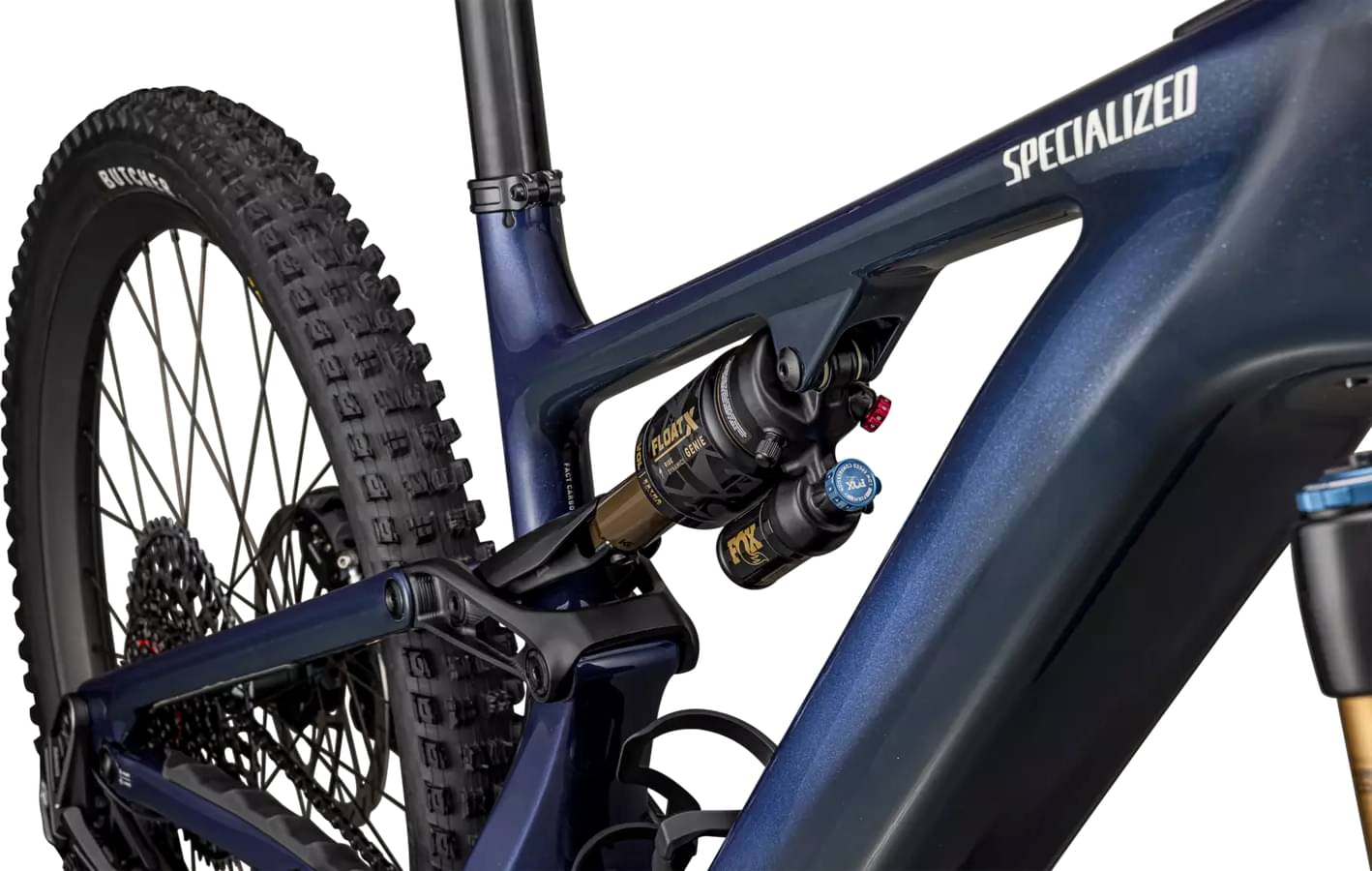

Rear Shock

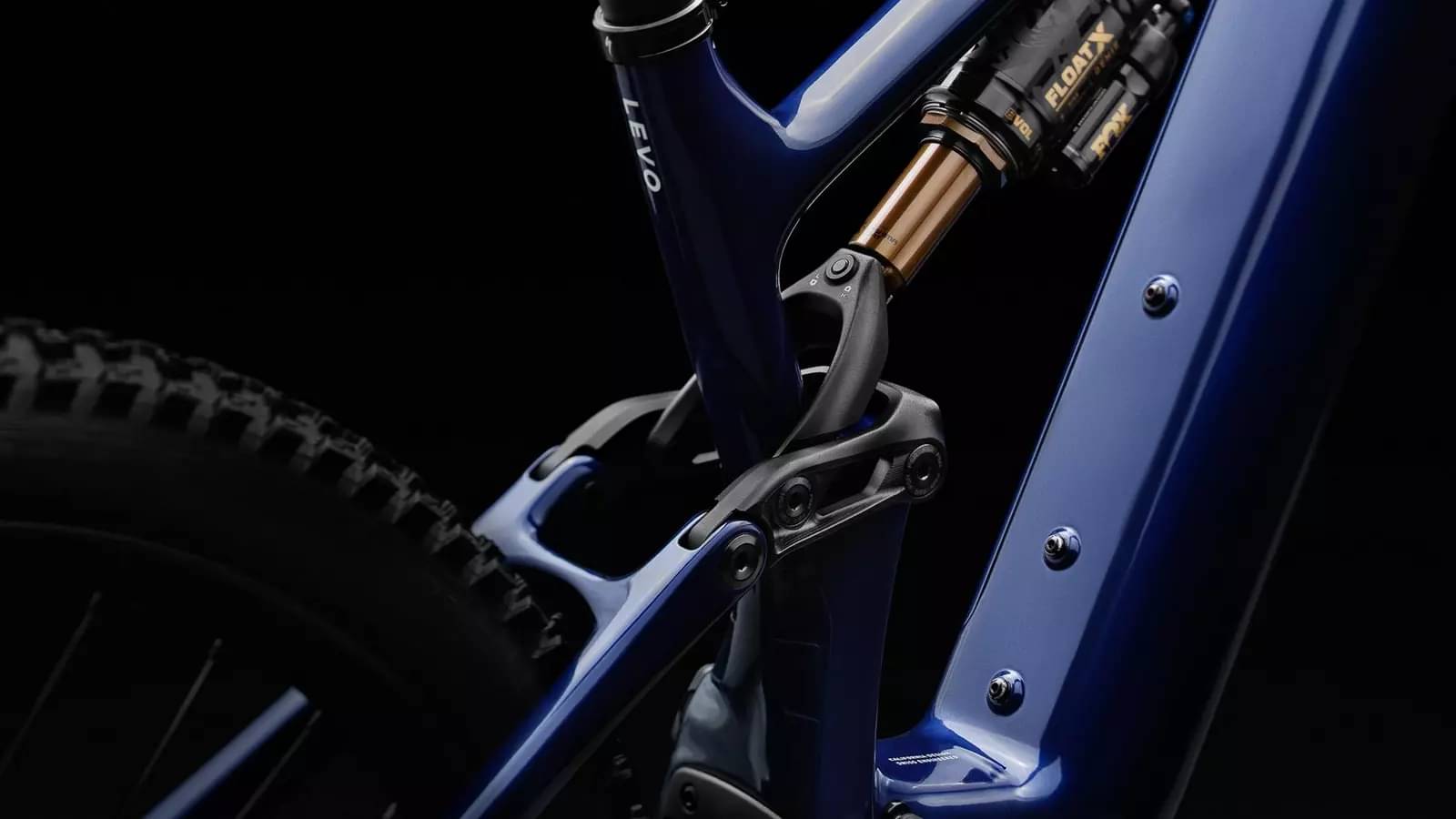

FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm
Drivetrain
Rear Derailleur
SRAM X0 Eagle Transmission, Wired SRAM AXS battery (powers AXS rear derailleur with integrated hot shoe directly off the Levo 4 main battery).
Shift Levers
SRAM AXS POD Controller
Cassette
SRAM XO 1295, 12 speed, 10-52
Crank
SRAM XO Alloy crank, ISIS interface, 55mm Chainline, 155mm, SRAM 34T T-Type chainring, 104 BCD, steel
Chain
SRAM X0
Wheels
Rims
Front: Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 15x110, 28h, Rear: Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 12x148, 32h
Tires
Front: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3", Rear: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Brakes
Brakes
Front: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor, Rear: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

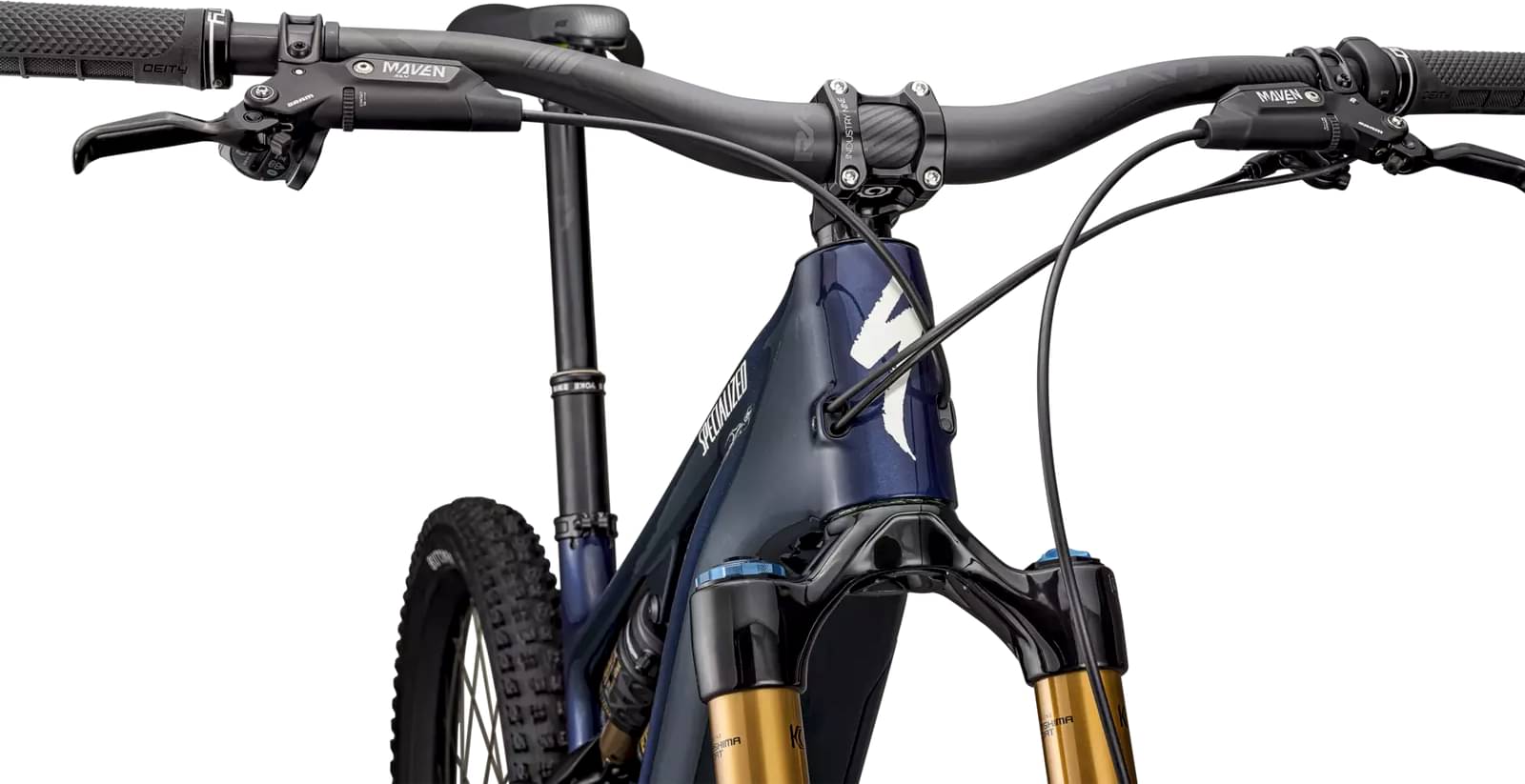

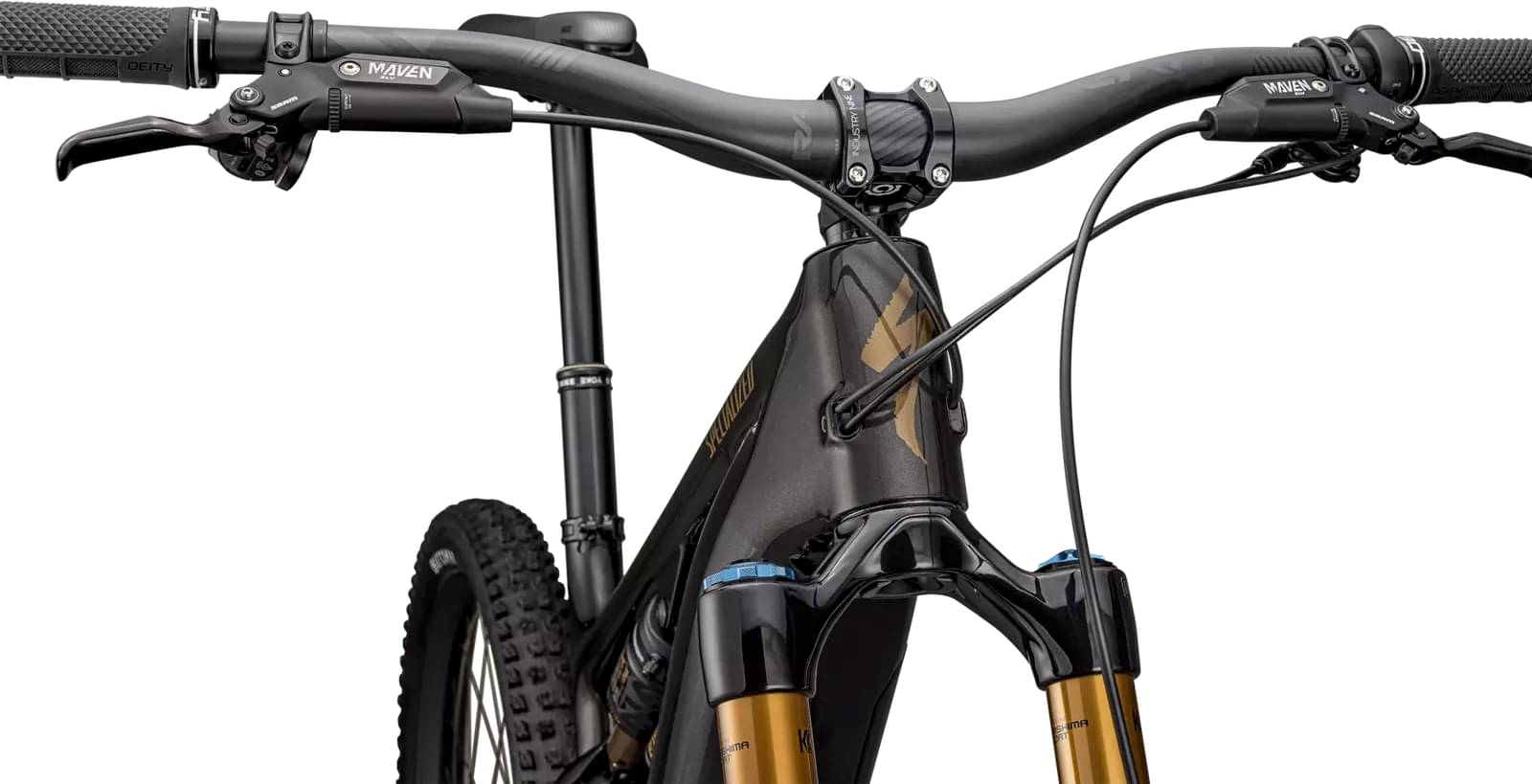

Cockpit
Stem
Industry 9 Mountain stem, 35mm clamp, 40mm length
Handlebar
RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm
Grips
Deity Lockjaw grips
Seat
Saddle
Bridge Mimic Expert, Hollow Ti rails
Seatpost
Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm
Motor & Battery

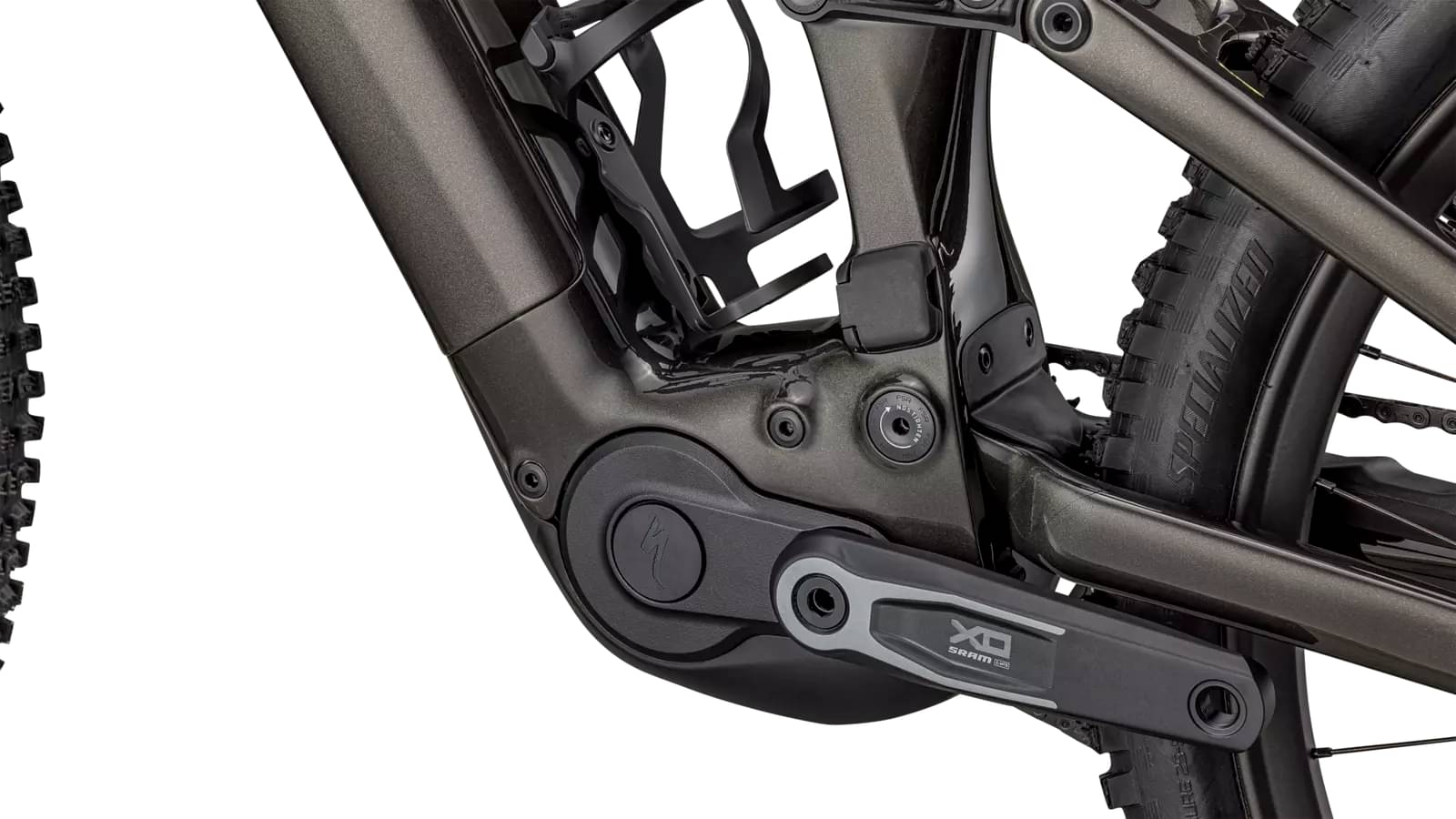

Motor

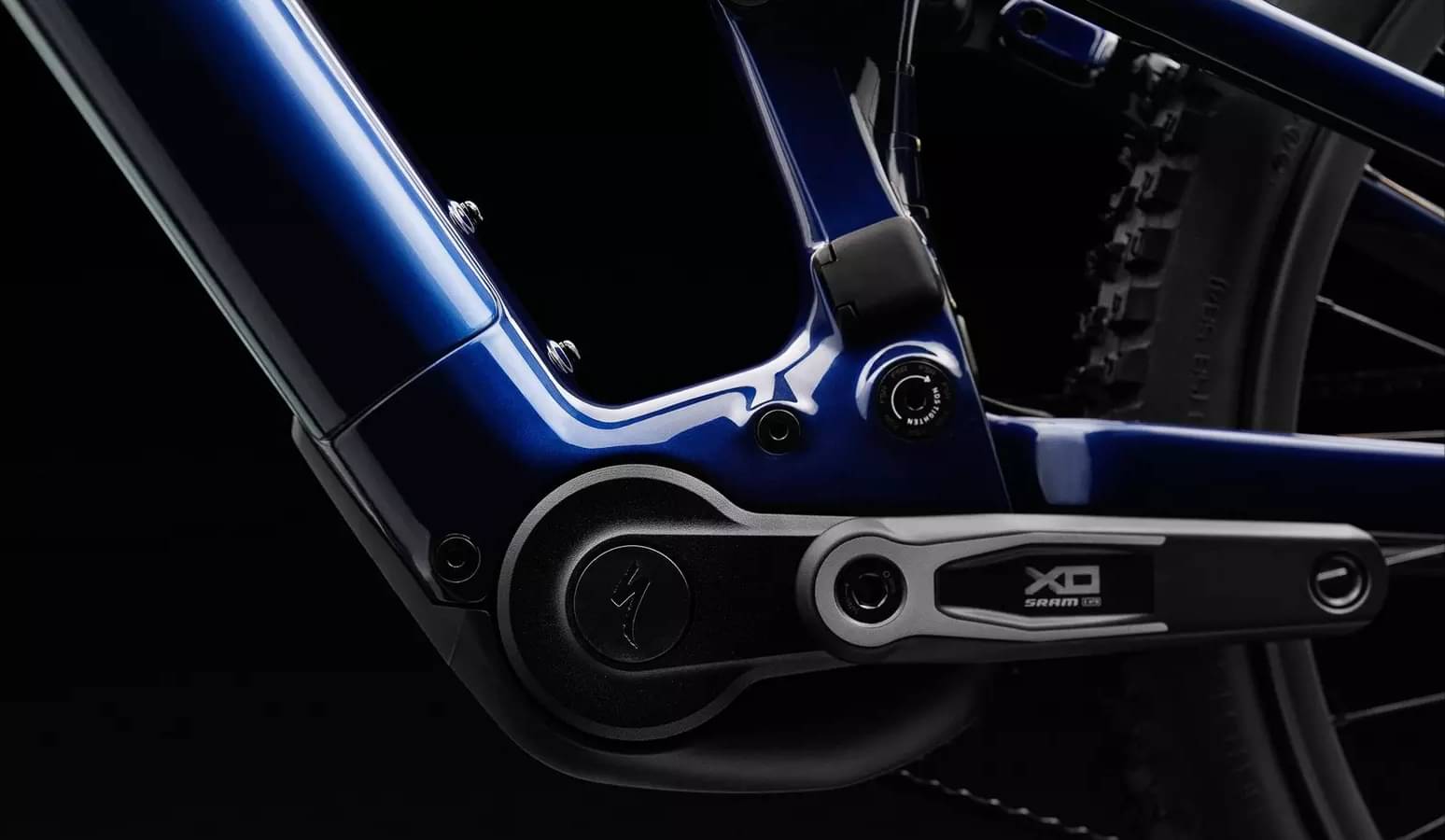

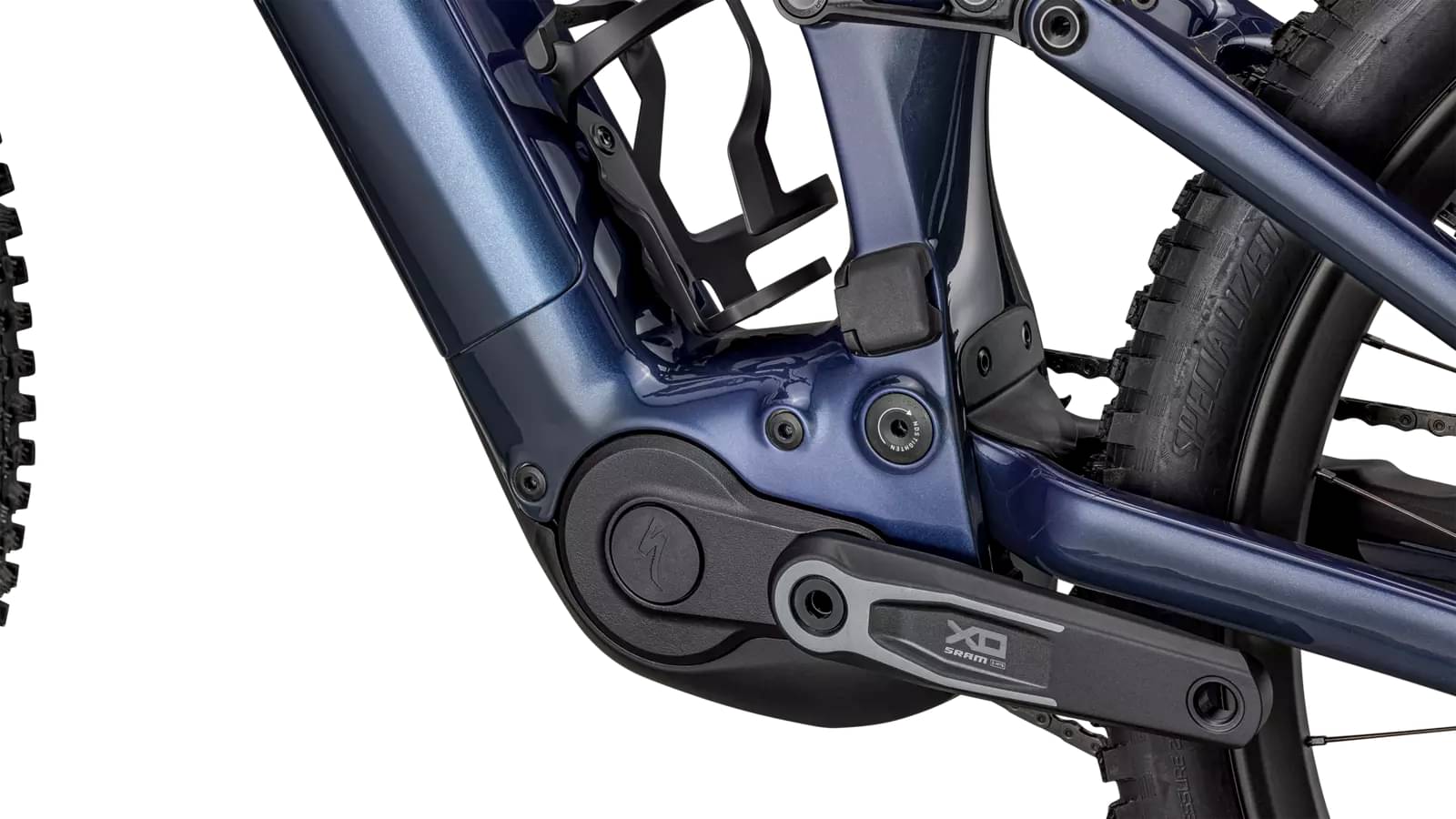

All New Specialized 3.1 Motor, 101Nm torque, 666W power
Battery
840Wh battery

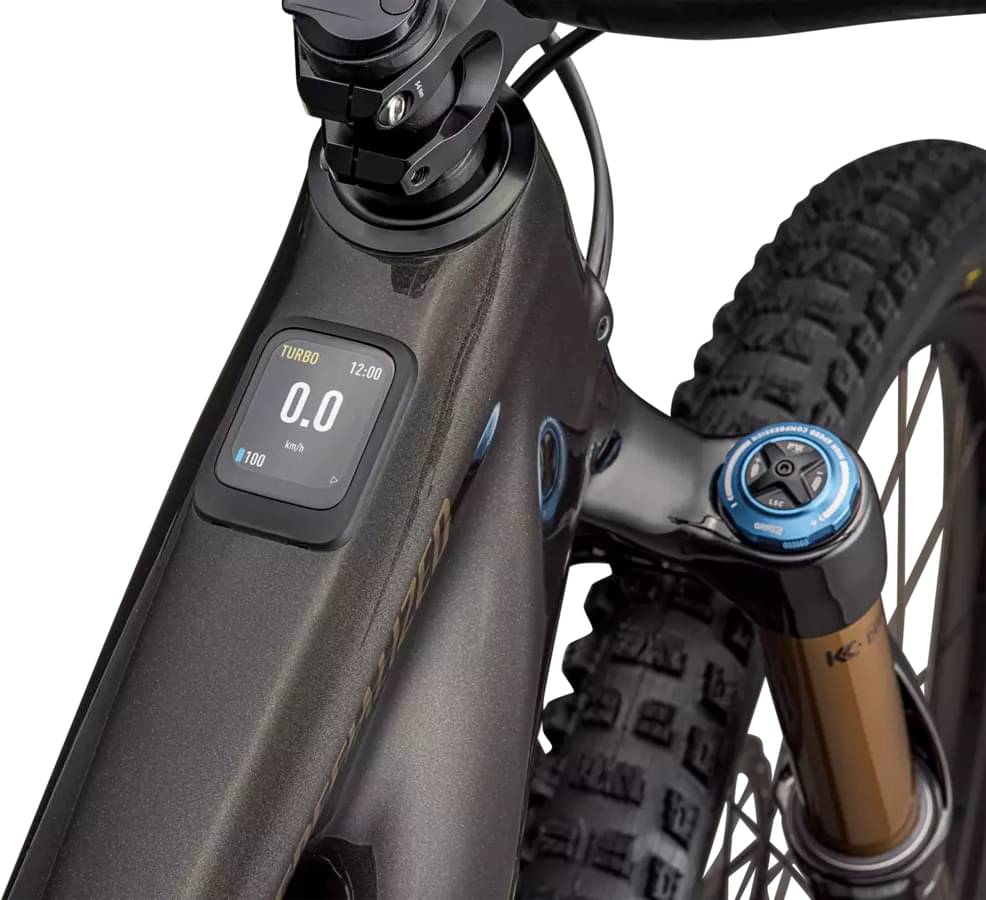

Remote

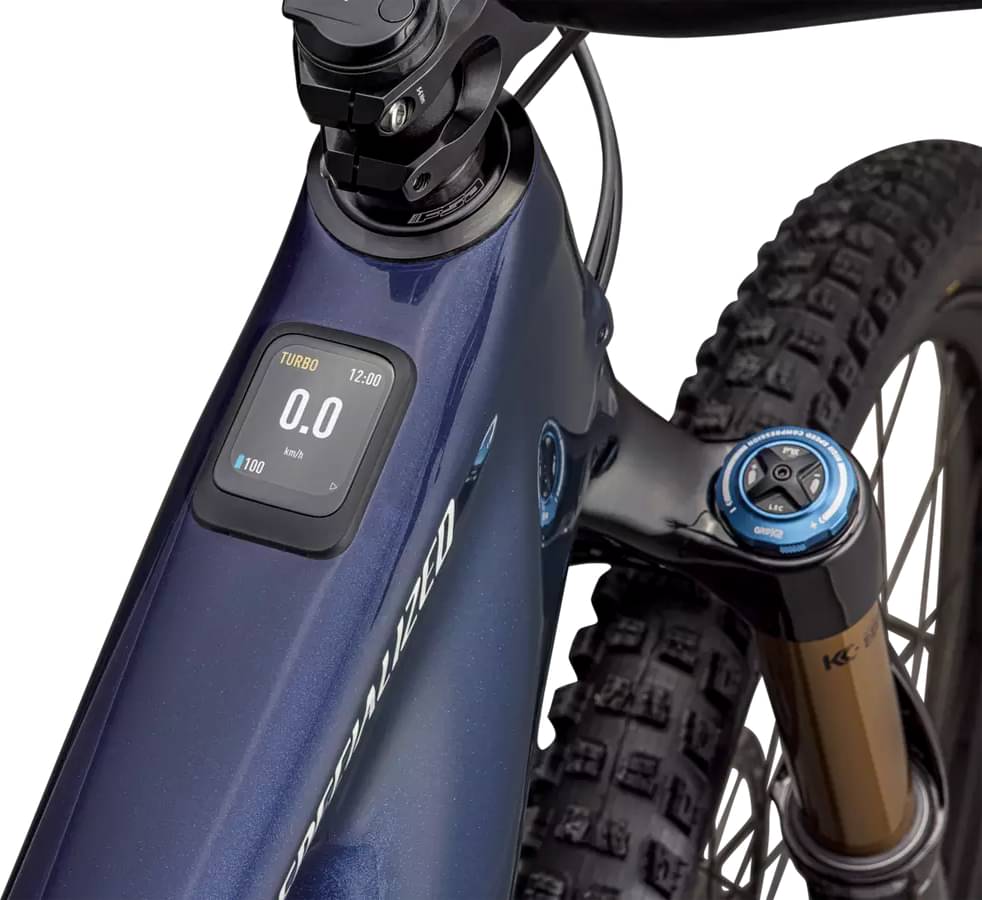

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Charger
Specialized 4amp charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.421 mm | 1.376 mm | 1.329 mm | 1.291 mm | 1.247 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 765 mm | 789 mm | 820 mm | 851 mm | 888 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 618 mm | 626 mm | 638 mm | 652 mm | 667 mm |
| Reach | 435 mm | 455 mm | 480 mm | 505 mm | 535 mm |
| Top Tube Length | 578 mm | 599 mm | 627 mm | 655 mm | 689 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 390 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 95 mm | 103 mm | 117 mm | 132 mm | 149 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1200 mm | 1223 mm | 1254 mm | 1286 mm | 1323 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm | 29 mm |
| Standover Height | 753 mm | 754 mm | 753 mm | 758 mm | 761 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 165 cm | 172 cm | 177 cm | 188 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 193 cm | 203 cm |
