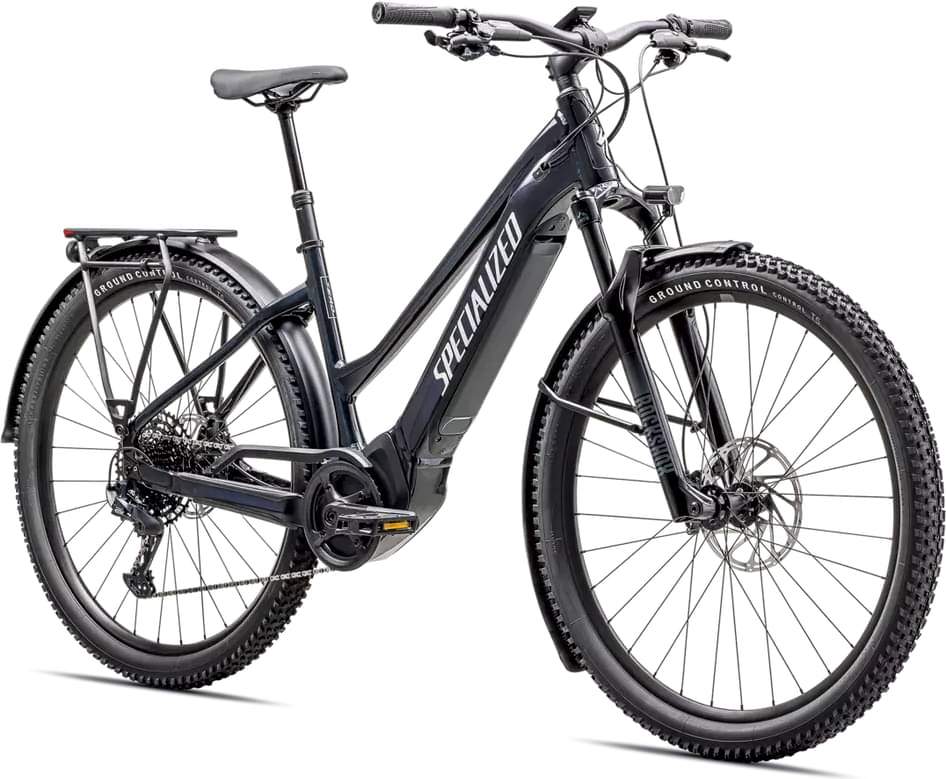

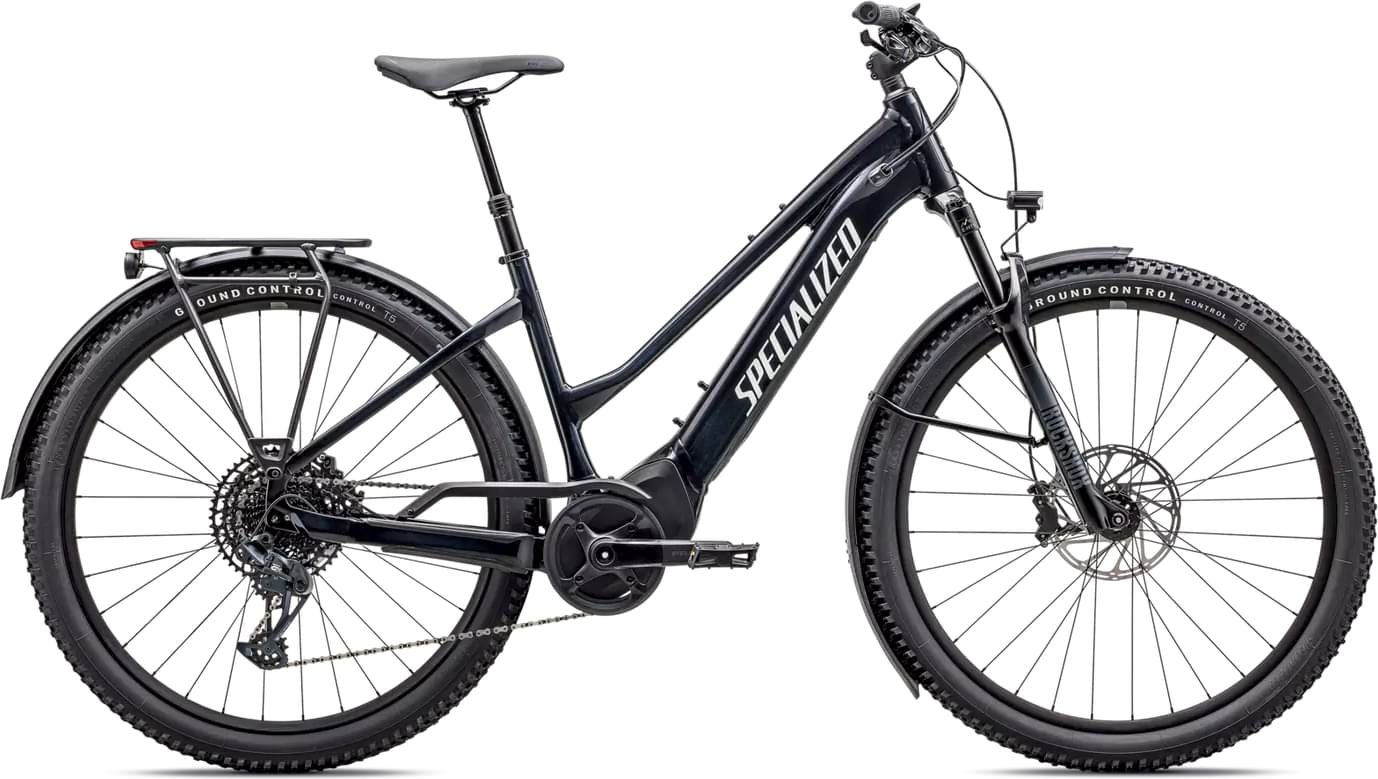

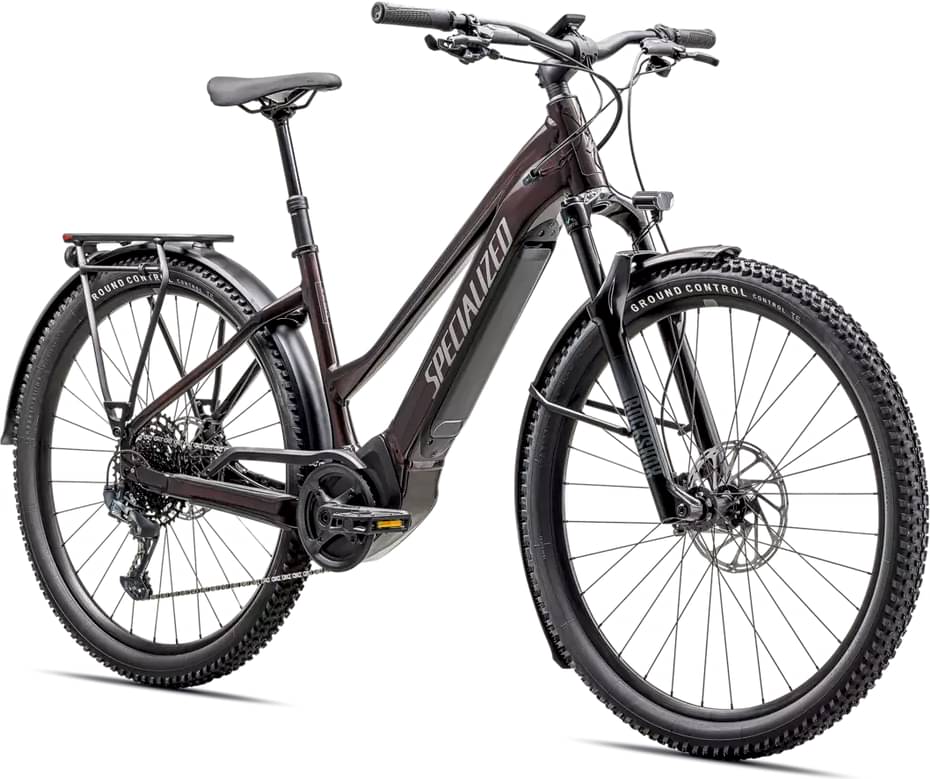

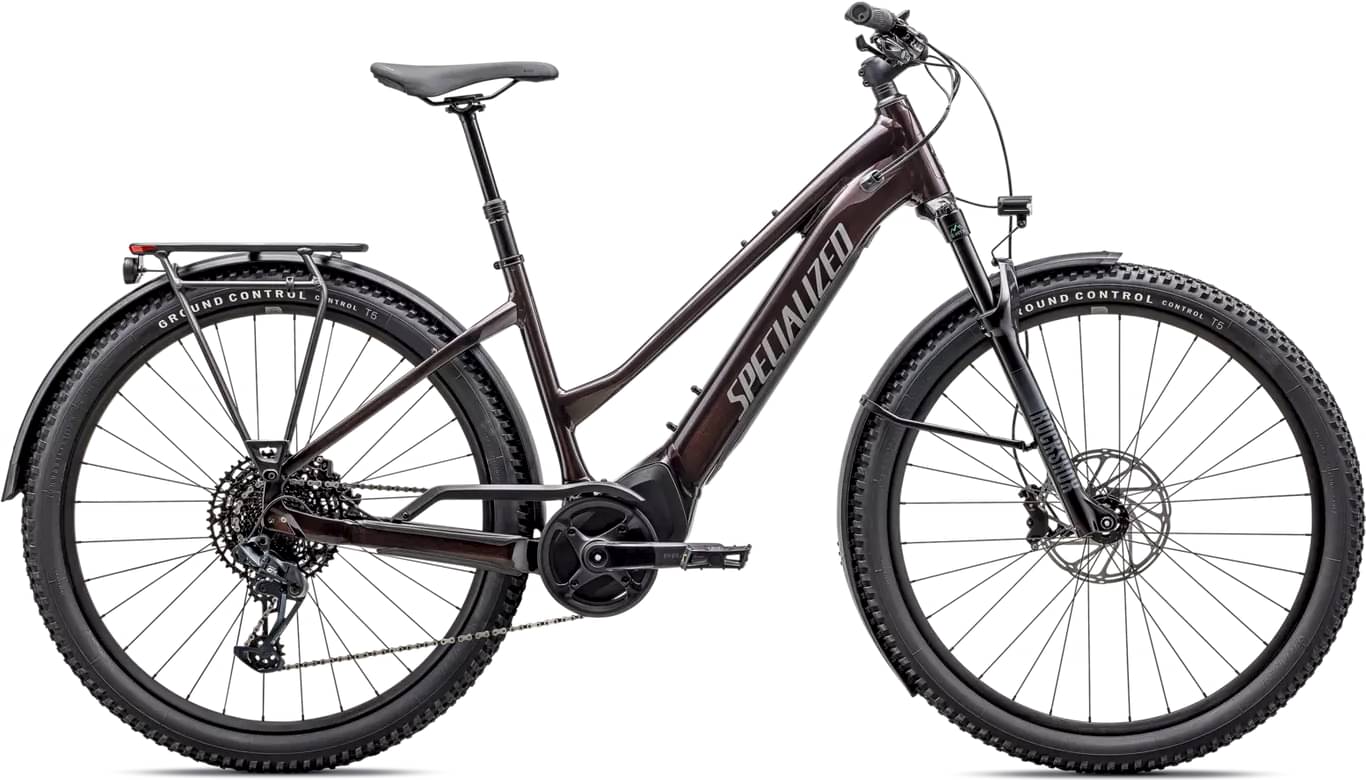

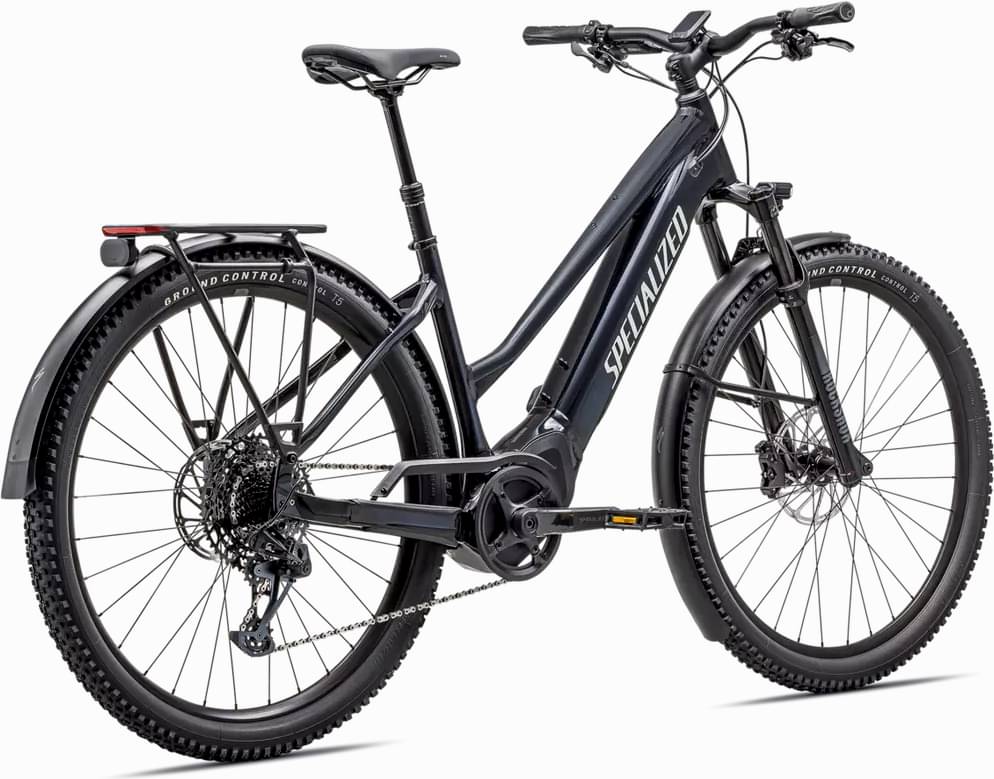

Specialized Turbo Tero 5.0 EQ Step-Through 2025
2025 E-bike
Estimate price |
5,235$
Weight | 26.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 110mm -
Fork RockShox Recon Silver RL
-
Groupset GX Eagle -
Suspension Hardtail -
Motor Specialized 250W 90Nm mid-drive -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E5 Aluminum, bottom bracket motor mount, fully integrated &lockable downtube battery, internal cable routing, lock and front rack mount
Suspension Fork
Rockshox Recon Silver RL, 110mm travel, Motion-Control
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Shift Levers
SRAM GX Eagle, trigger, 12-speed, single click
Cassette
SRAM NX Eagle, 12-speed, 11-50t
Crank
Custom Alloy Forged Crankarms, Isis, 170mm, Cl 50.73mm, BCD 104mm
Chain
SRAM GX Eagle, 12-speed
Pedals
Specialized Body Geometry Fitness, Platform, Plastic
Wheels
Rims
Stout XC 29, 25mm internal width, disc-specific
Spokes
DT Swiss Industry
Tires
Ground Control, 2Bliss Ready, 29x2.35"
Brakes
Brakes
Hydraulic Disc

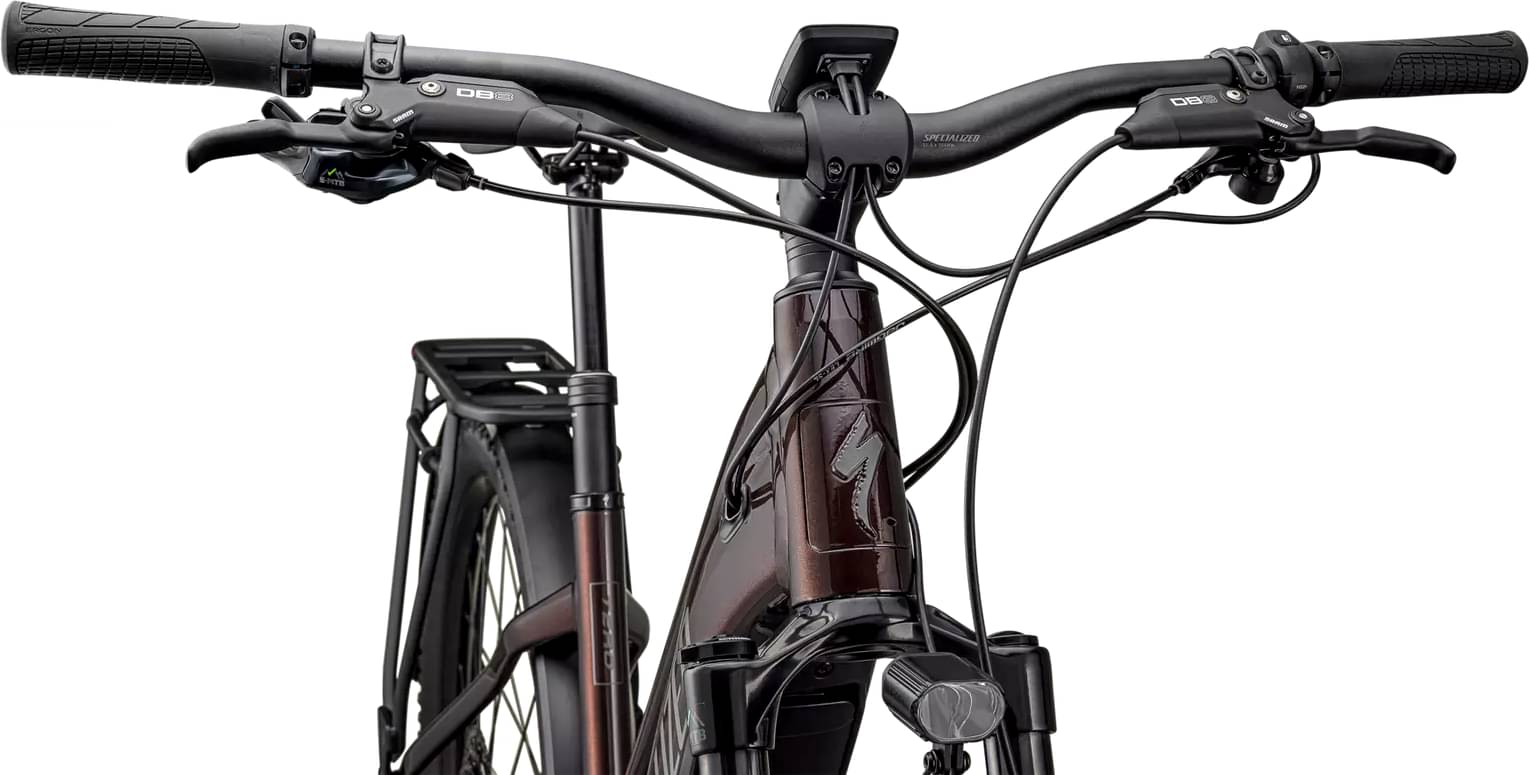

Cockpit
Stem
Specialized Stealth Stem, alloy, 14 deg, 31.8mm, integrated TCD mount S-M 60mm, L-XL 75mm

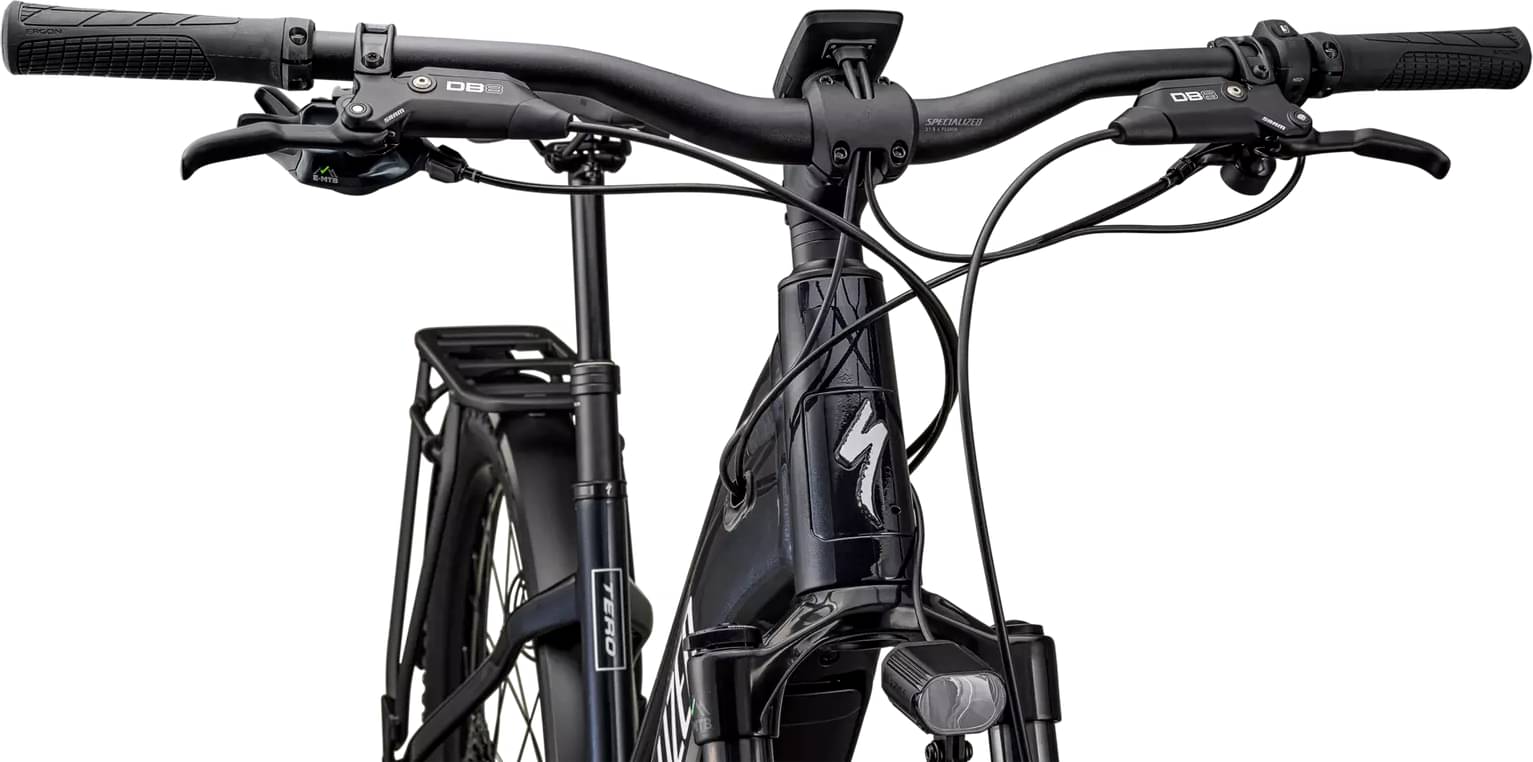

Handlebar
Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 31.8mm clamp, S 720mm, M-XL 750mm
Seat
Saddle
Bridge Sport, Steel rails, 155mm

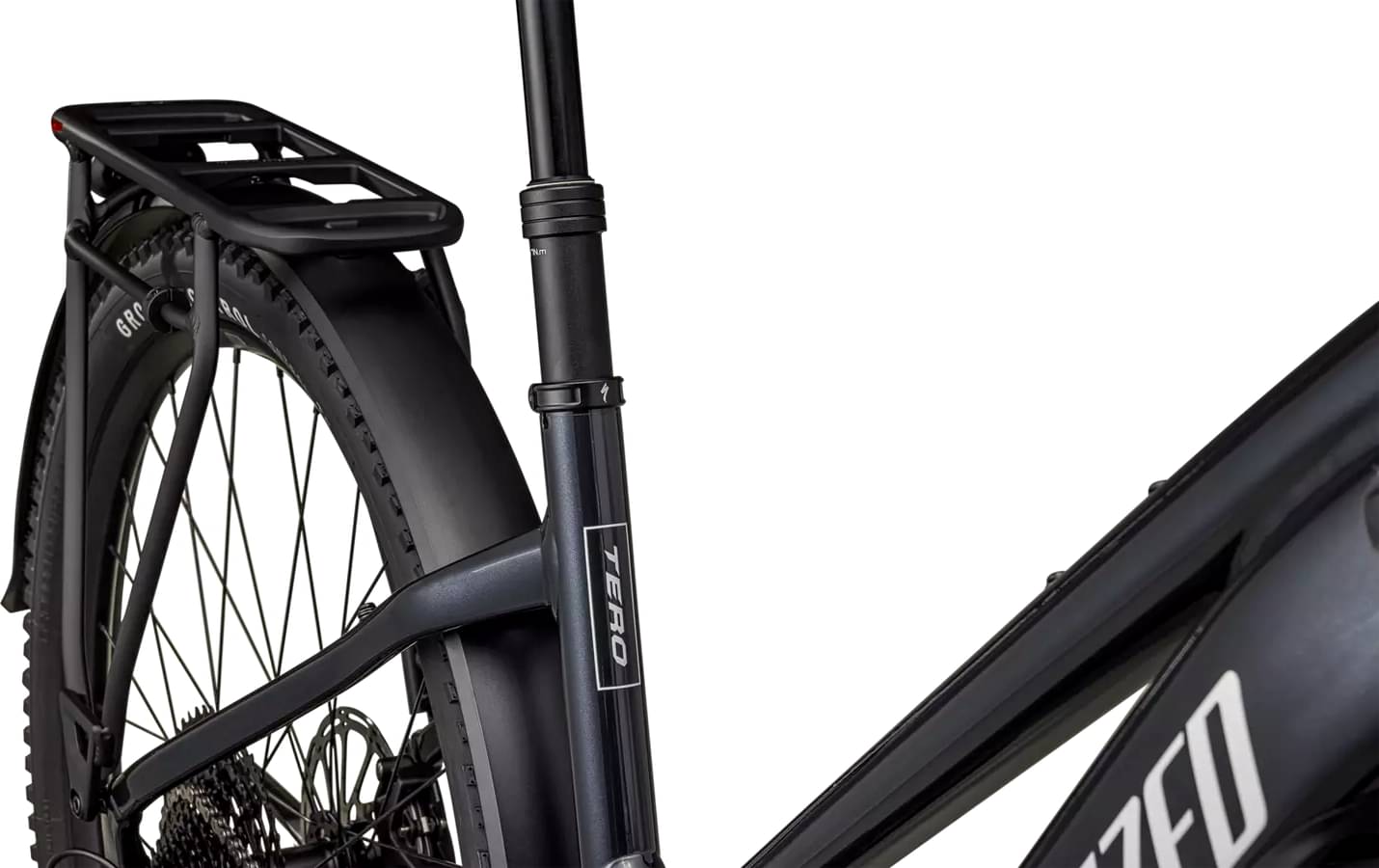

Seatpost
JD Dropper, 30.9mm, S: 100mm, M-XL: 120mm
Motor & Battery

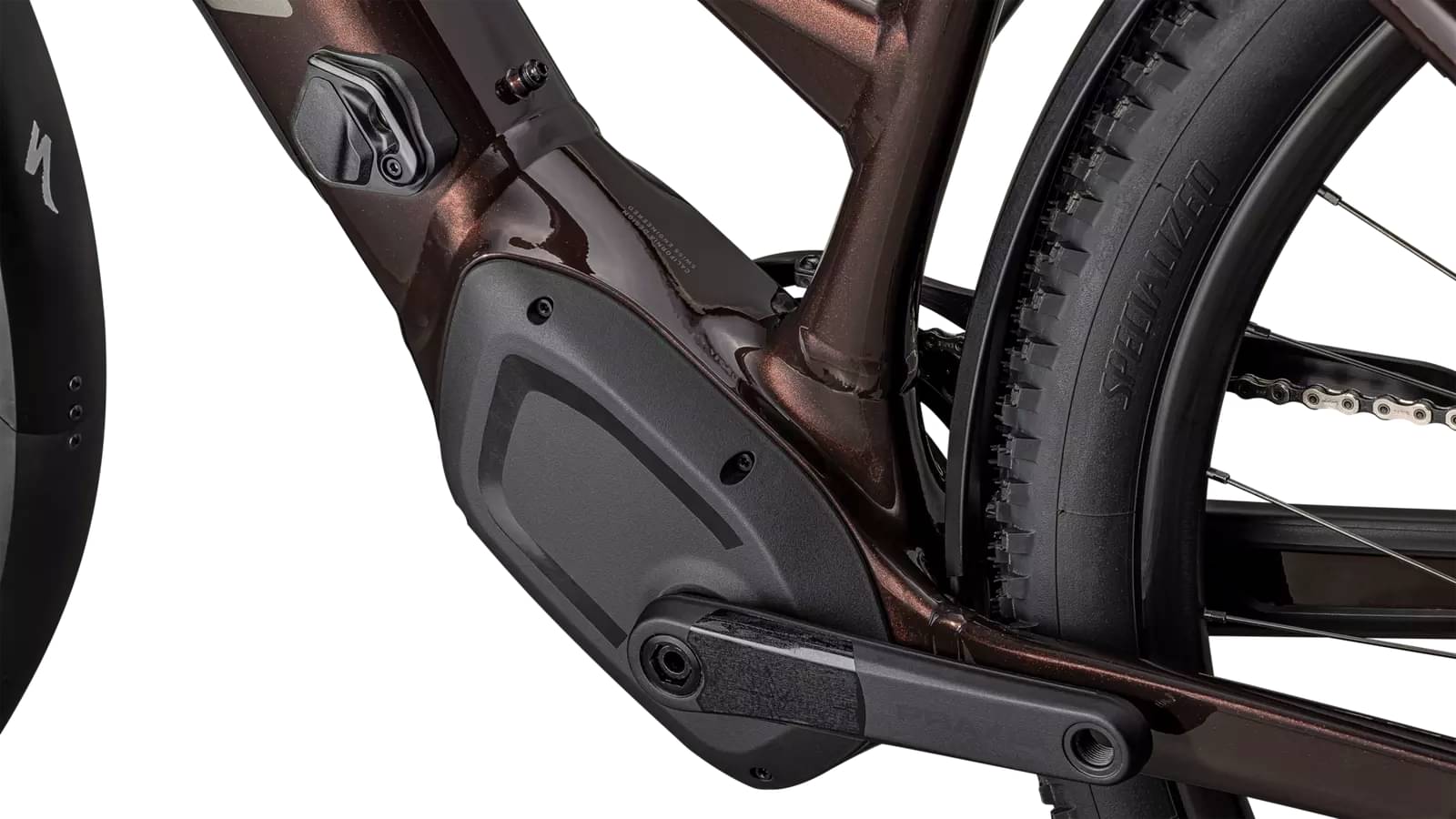

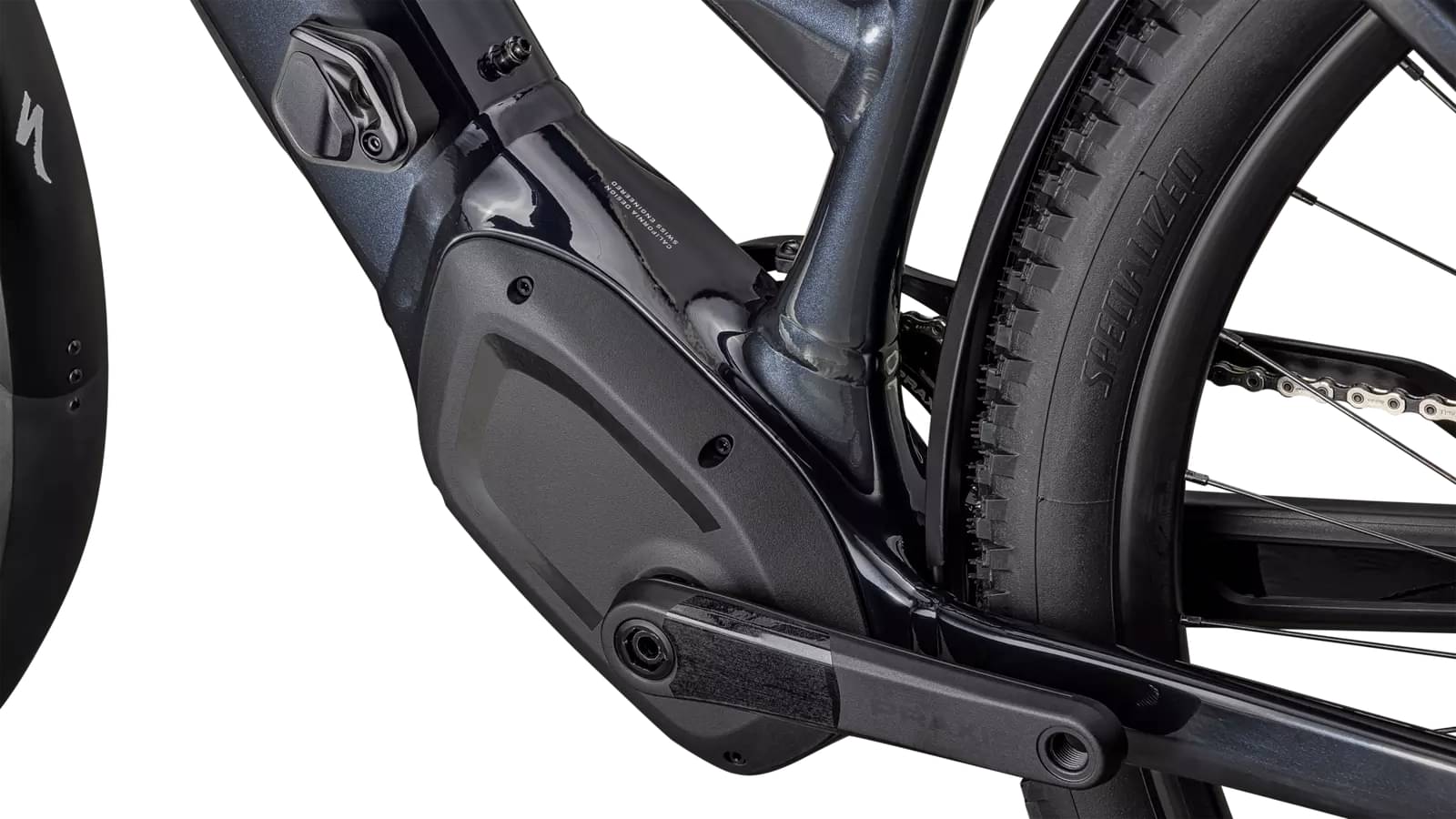

Motor
Specialized 2.2, 90Nm torque, custom tuned motor, 250W nominal
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.573 mm | 1.528 mm | 1.489 mm | 1.487 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 761 mm | 787 mm | 708 mm | 735 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 63 mm | 64 mm | 169 mm | 168 mm |
| Stack | 637 mm | 651 mm | 664 mm | 687 mm |
| Reach | 405 mm | 426 mm | 446 mm | 462 mm |
| Top Tube Length | 589 mm | 620 mm | 650 | 680 mm |
| Head Tube Angle | 66.4 ° | 66.4 ° | 66.4 ° | 66.4 ° |
| Head Tube Length | 135 mm | 150 mm | 165 mm | 190 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1226 mm | 1252 mm | 1173 mm | 1200 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 57 mm | 57 mm |
| Standover Height | 658 mm | 655 mm | 655 mm | 664 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
