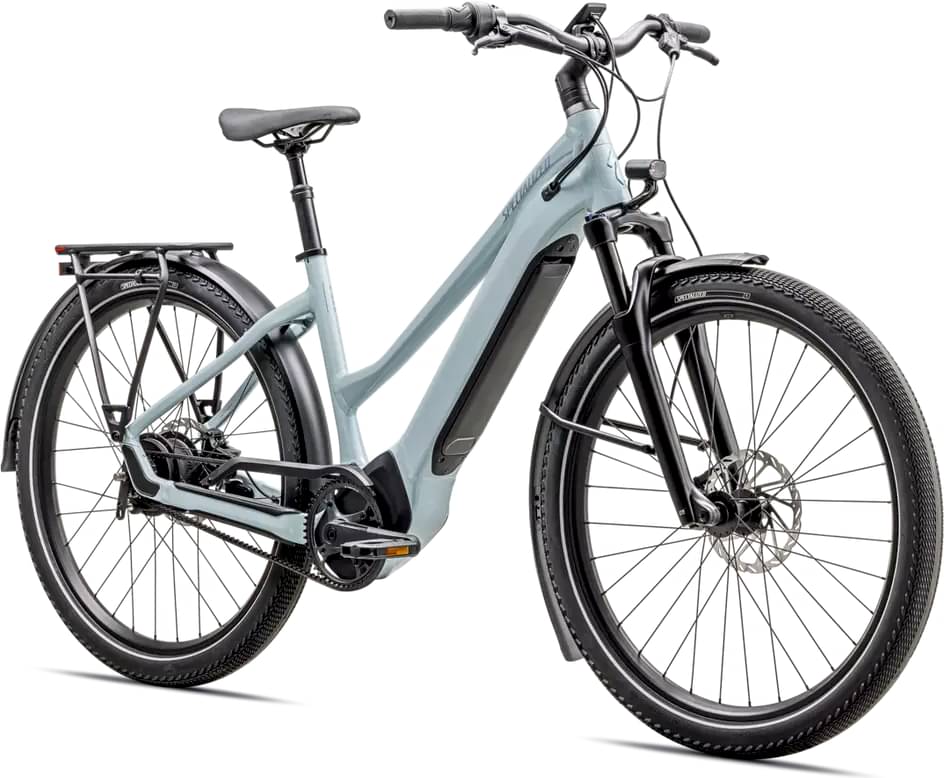

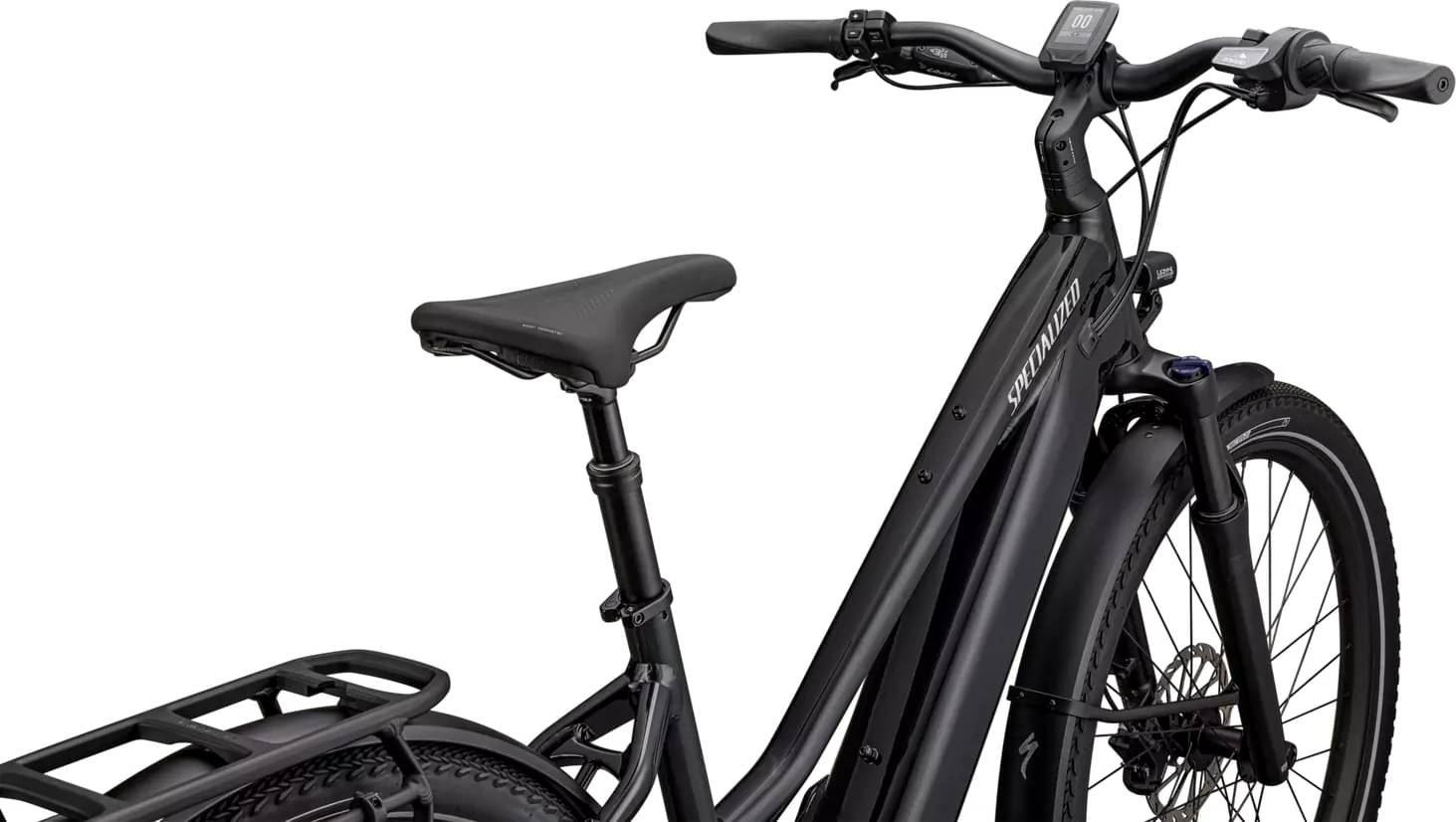

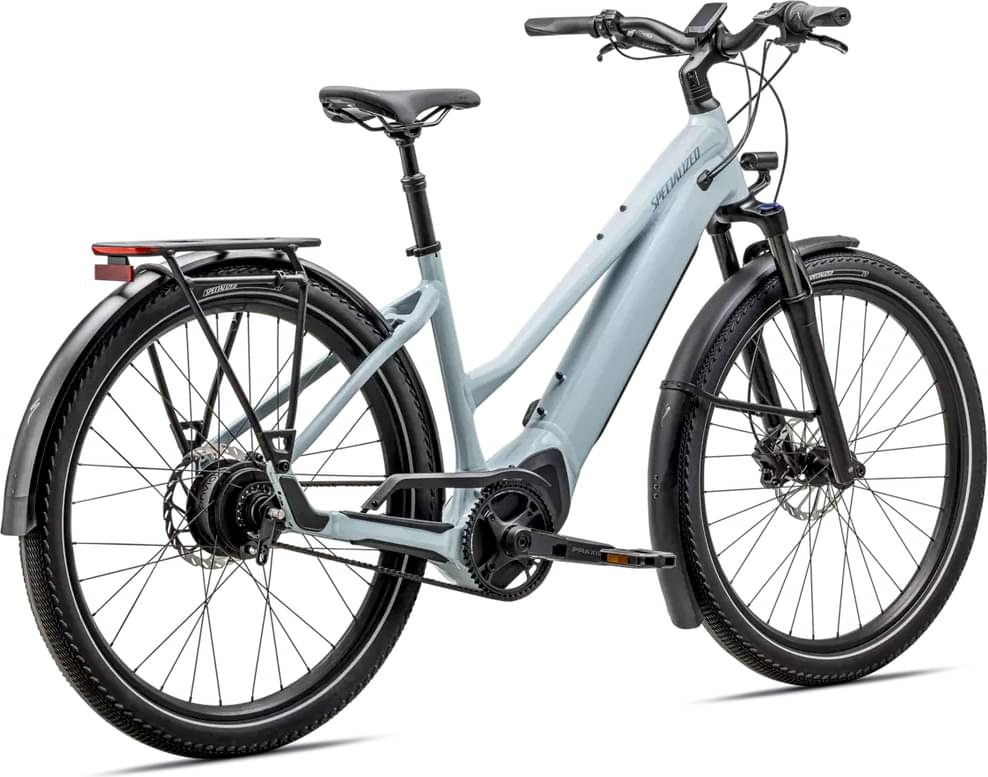

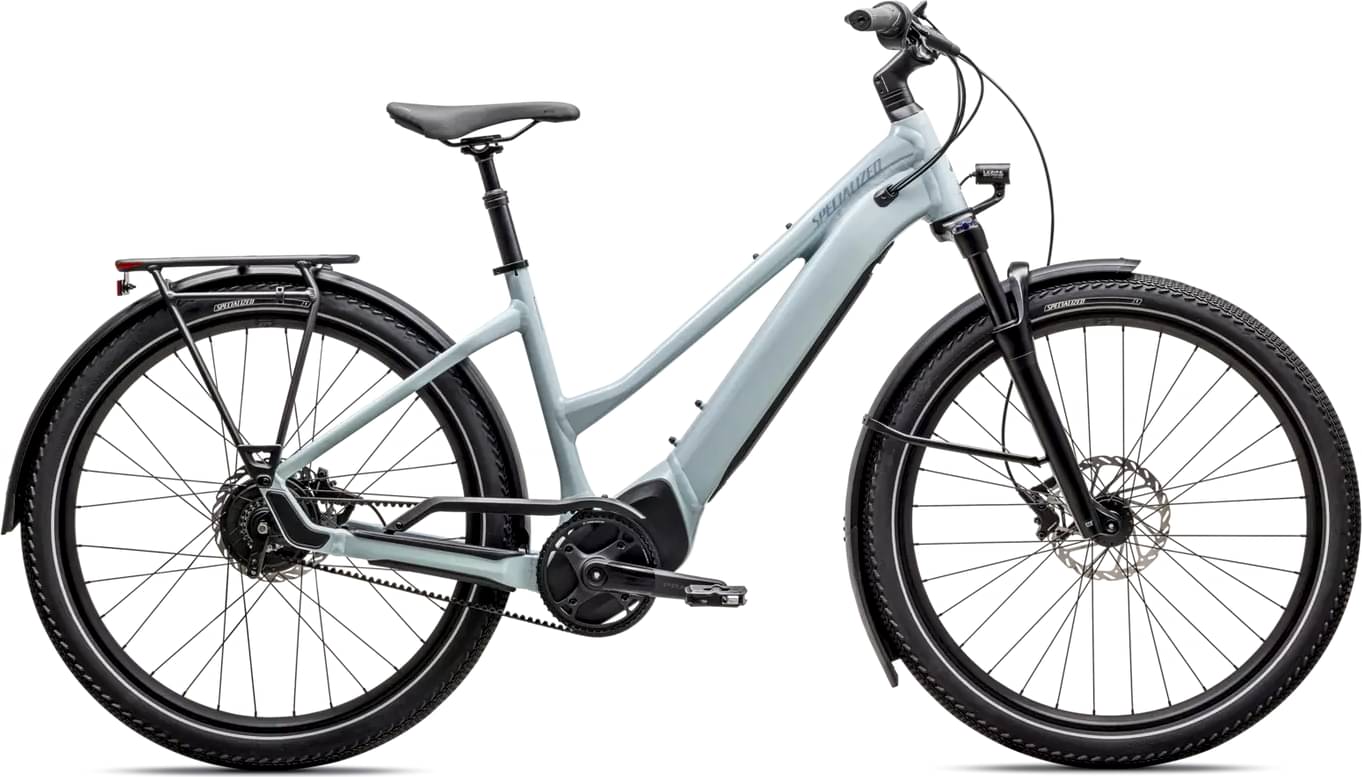

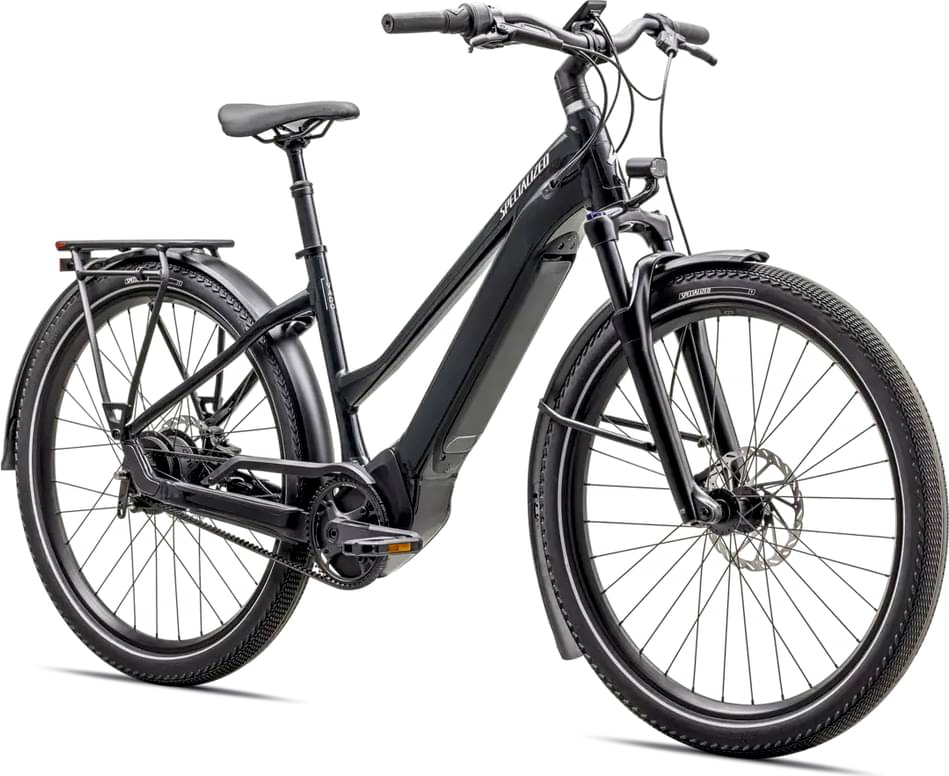

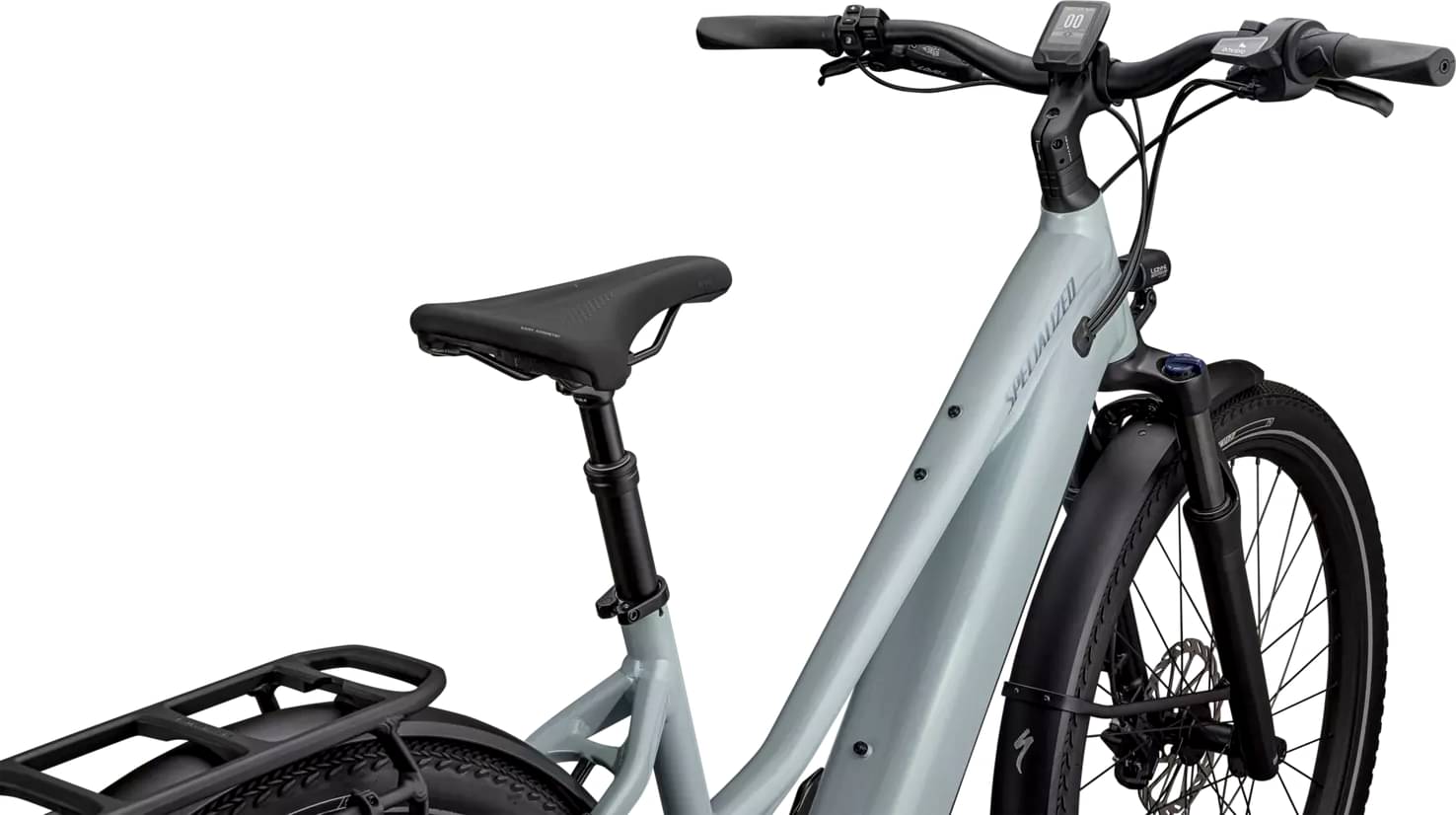

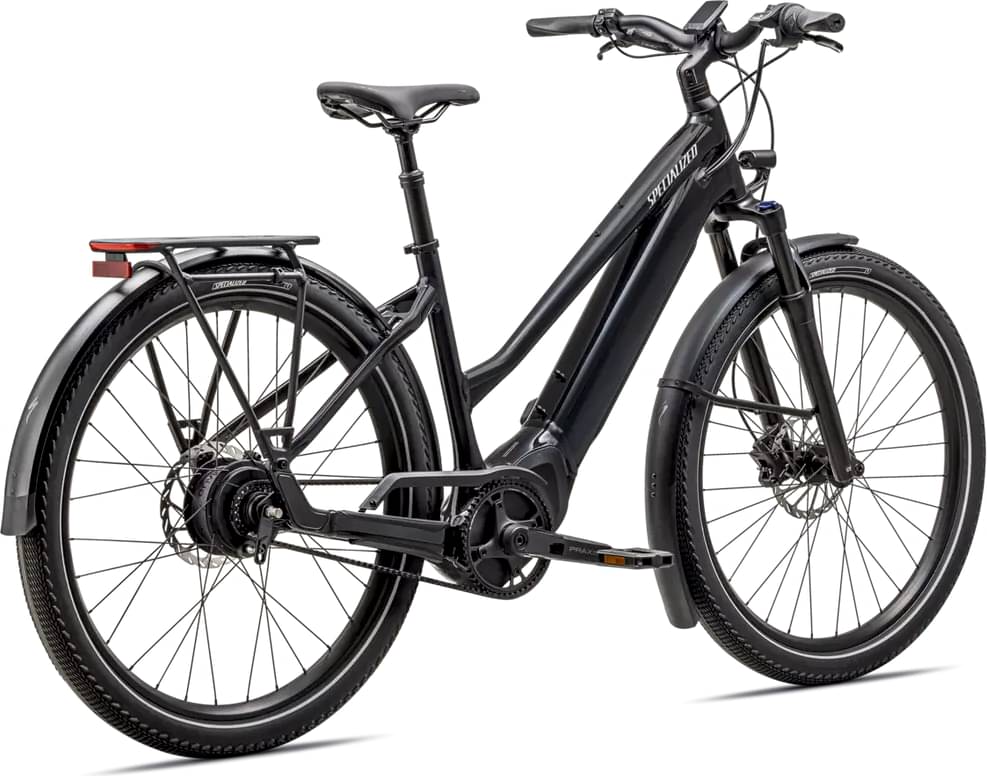

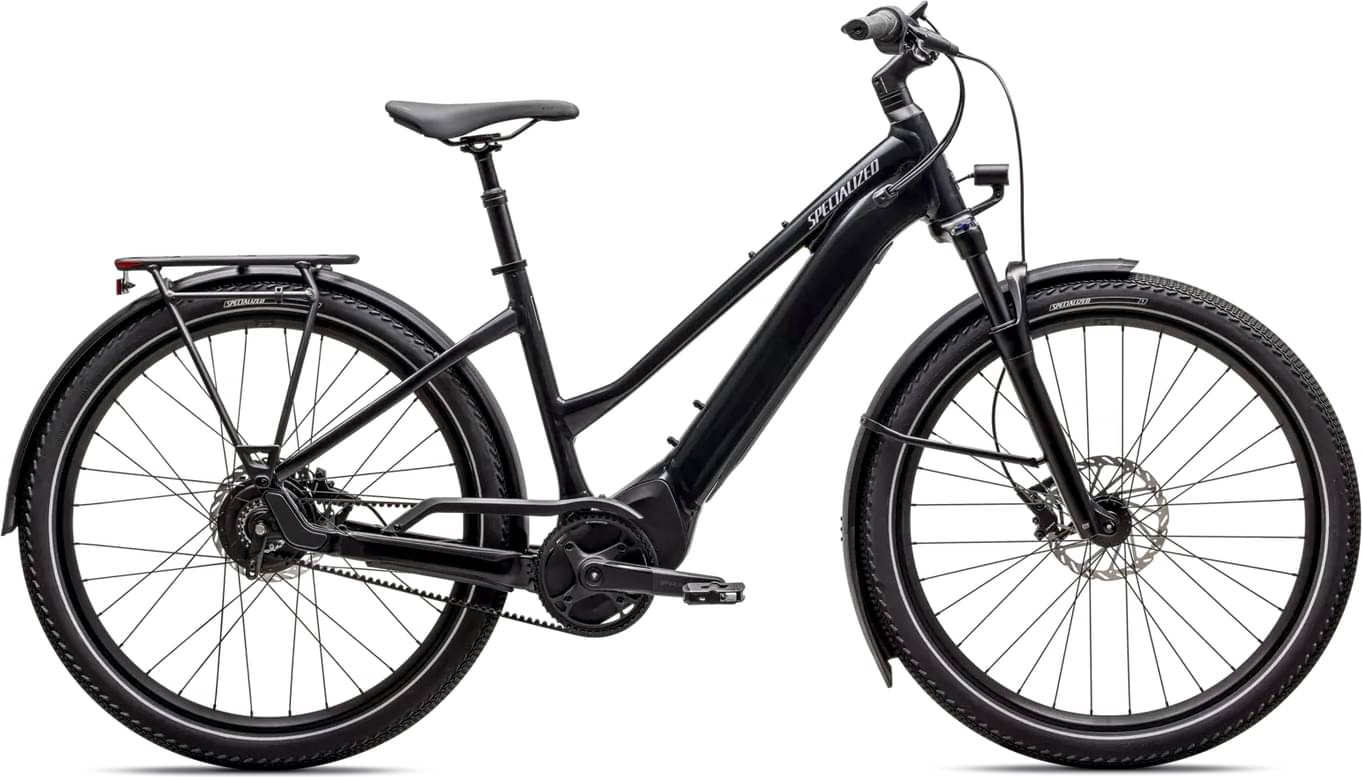

Specialized Turbo Vado 4.0 IGH Step-Through 2025
2025 E-bike
Estimate price |
4,770$
Weight | 28.25 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour MOBIE
-
Groupset Gates CDX -
Suspension Hardtail -
Motor Specialized 250W 70Nm mid-drive -
Battery Specialized U2-710, alloy casing, state of charge display, 710Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E5 Aluminum, bottom bracket motor mount, fully integrated &lockable downtube battery, internal cable routing, lock and front rack mount, sliding dropout
Suspension Fork
SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount
Drivetrain
Shift Levers
enviolo Twist Display Pure
Cassette
Gates Carbon Drive CDX 22t sprocket, silver
Crank
Custom alloy forged crankarms, 170mm, Gates Carbon Drive CDX 50T chainring, black
Chain
Gates Carbon Drive CDX 122t belt, black
Pedals
Specialized Commuter w/ grip tape & reflectors
Wheels
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear Hub
enviolo Trekking, 380% range, 6-bolt, 10x135mm, 32h
Rims
650b disc, double-wall alloy, pinned, 32h
Spokes
DT Swiss Industry
Tires
Front: Pathfinder Sport Reflect, 650Bx2.3, Rear: Pathfinder Sport Reflect, 650Bx2.3
Brakes
Brakes
Front: SRAM Level, 2-piston caliper, hydraulic disc, 180mm, Rear: SRAM Level, 2-piston caliper, hydraulic disc, 180mm

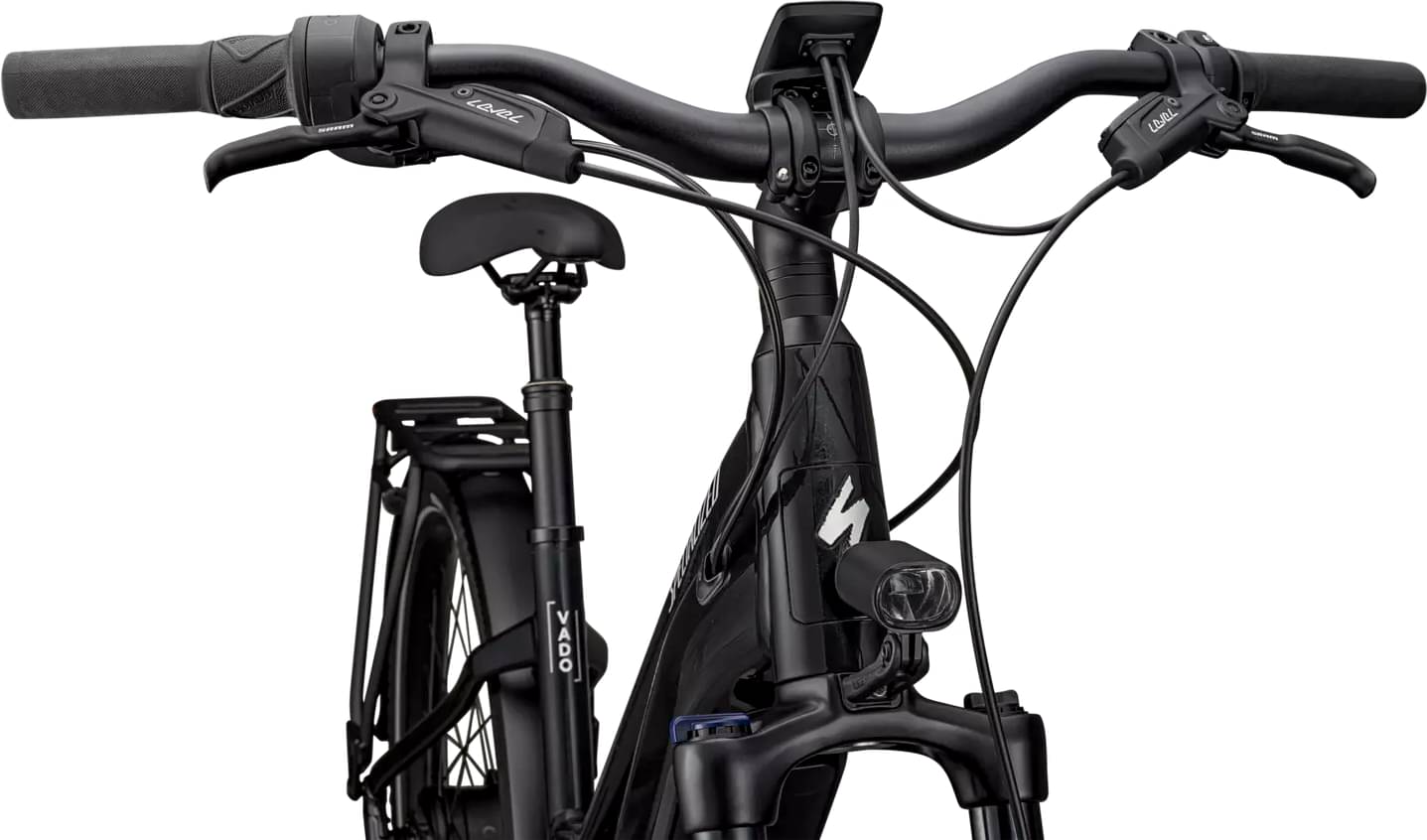

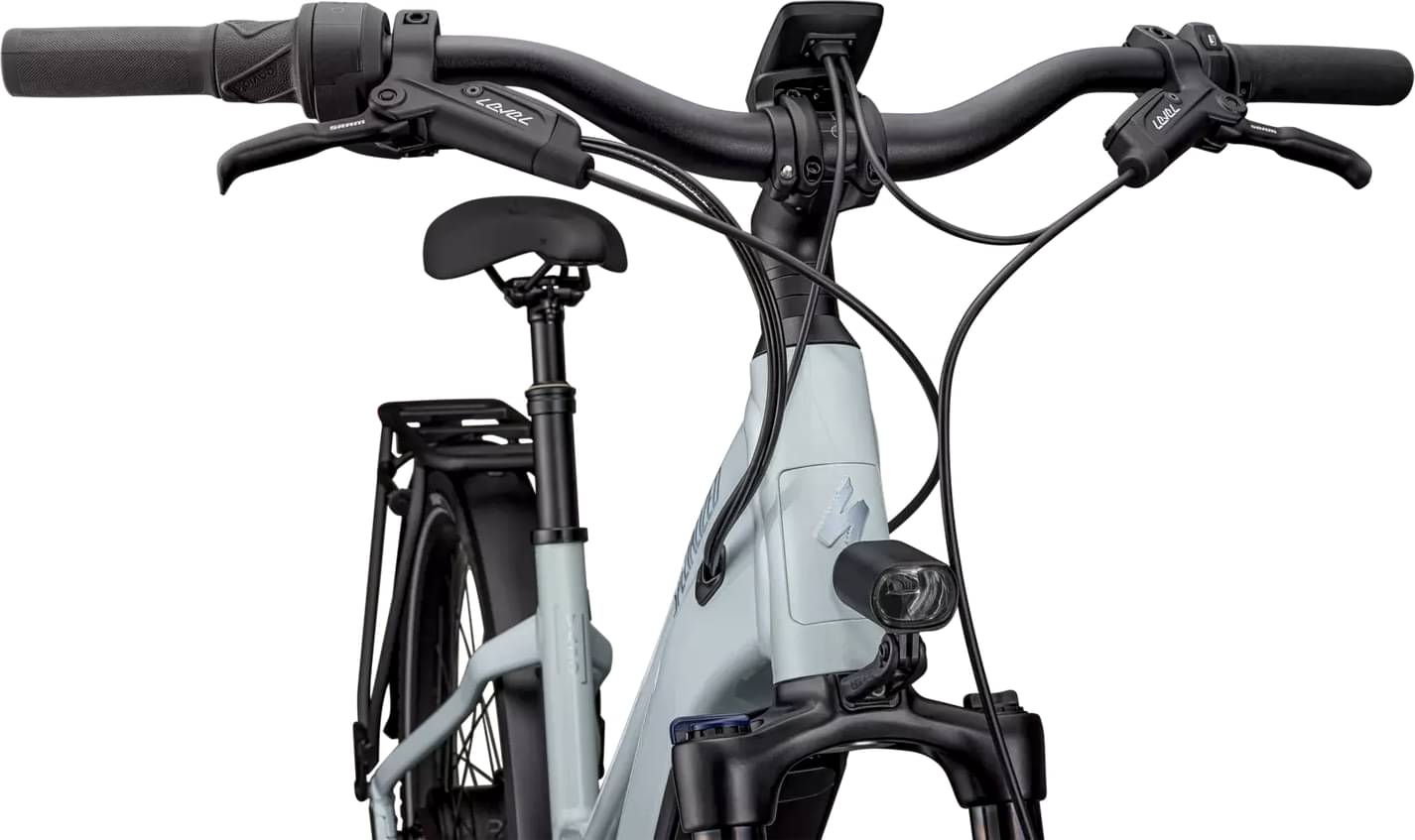

Cockpit
Stem
Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
Handlebar
Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
Grips
Specialized Body Geometry Contour, lock-on
Seat
Saddle
Bridge Sport, Steel rails, 155mm
Seatpost
Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve

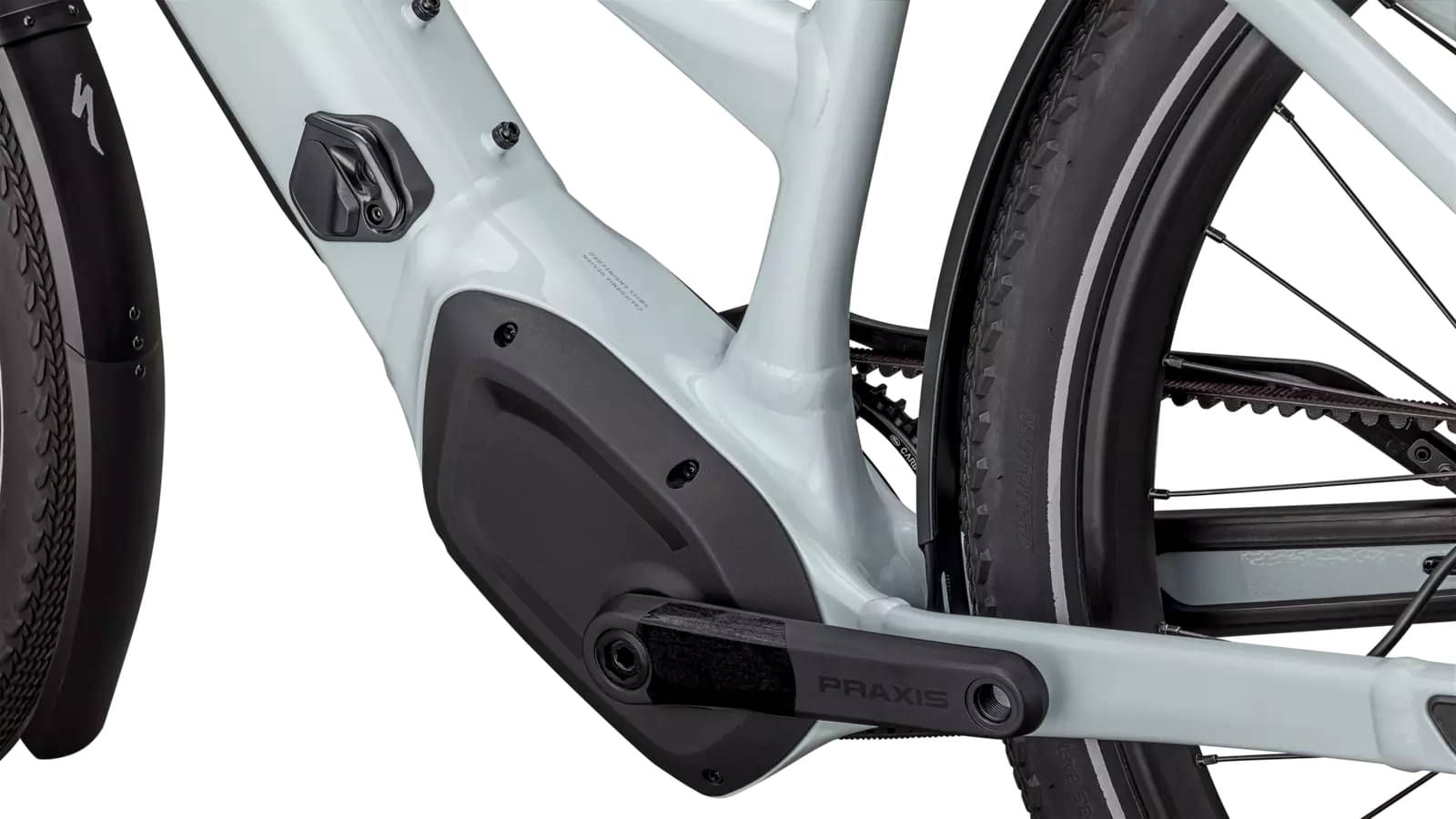

Motor & Battery

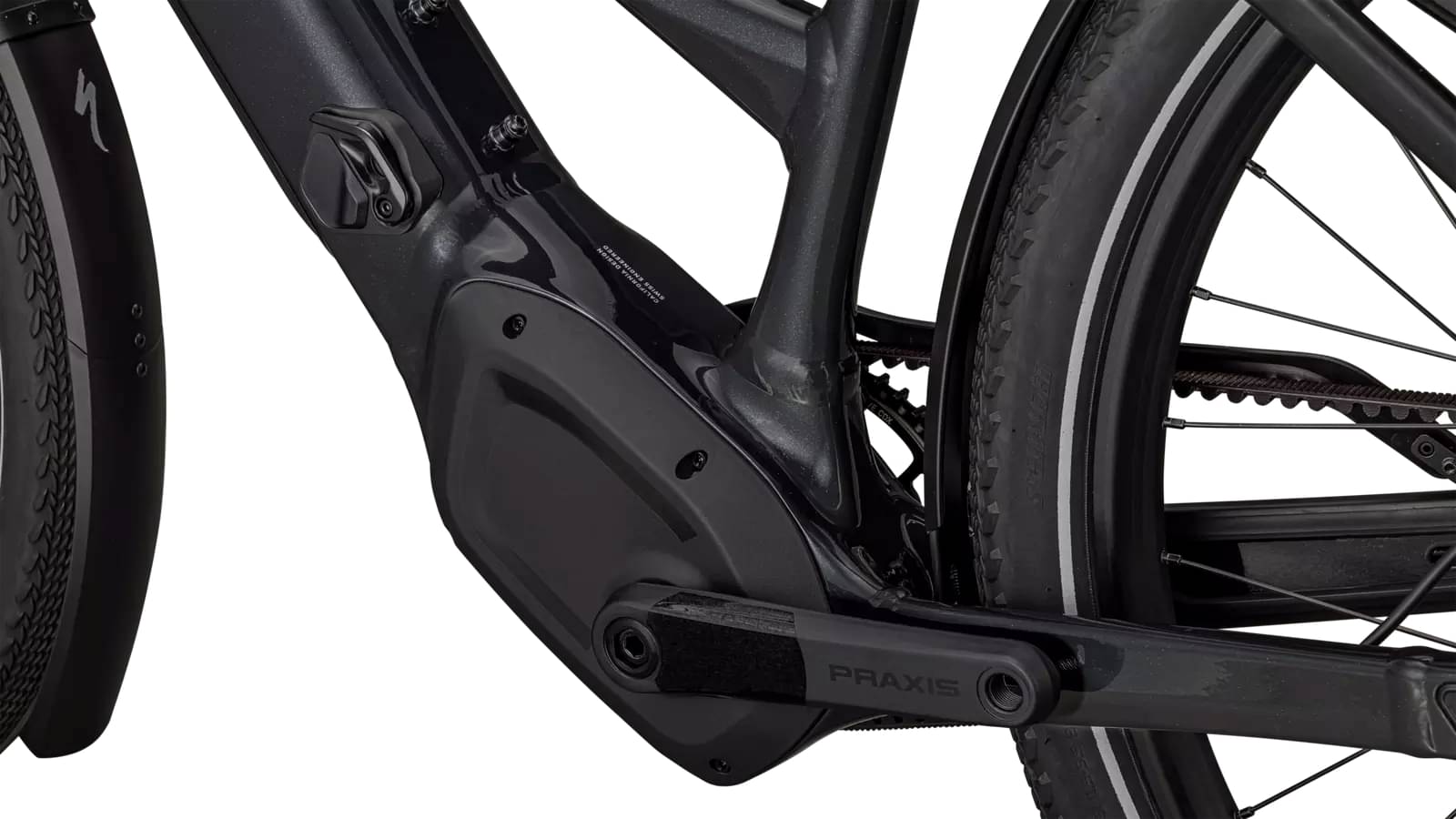

Motor
Specialized 2.0, 70Nm torque, custom tuned motor, 250W nominal
Battery
Specialized U2-710, alloy casing, state of charge display, 710Wh
Remote
MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.478 mm | 1.439 mm | 1.405 mm | 1.405 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 699 mm | 725 mm | 751 mm | 777 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 85 mm | 86 mm | 85 mm | 85 mm |
| Stack | 625 mm | 639 mm | 652 mm | 676 mm |
| Reach | 423 mm | 444 mm | 464 mm | 481 mm |
| Top Tube Length | 585 mm | 615 mm | 645 mm | 675 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 135 mm | 150 mm | 165 mm | 190 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1160 mm | 1186 mm | 1212 mm | 1239 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 618 mm | 617 mm | 617 mm | 626 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
