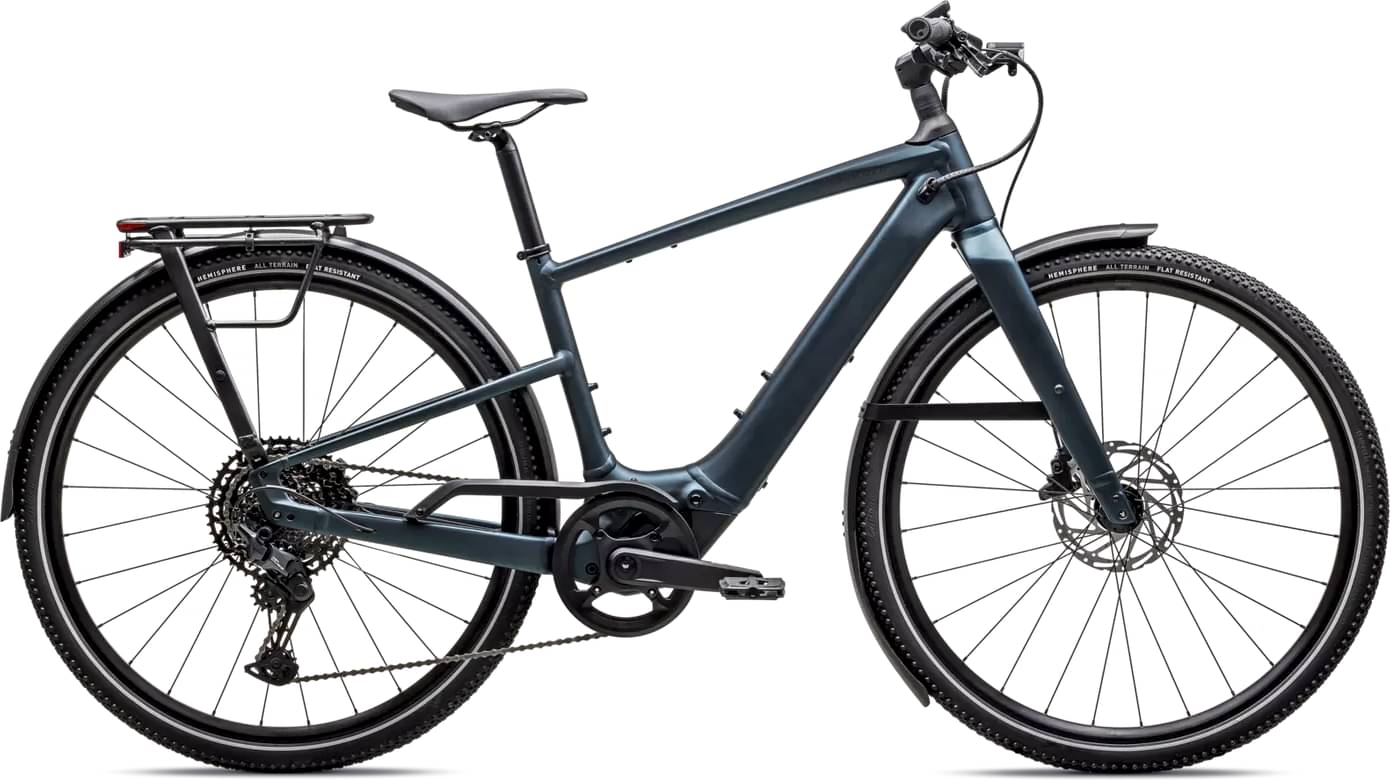

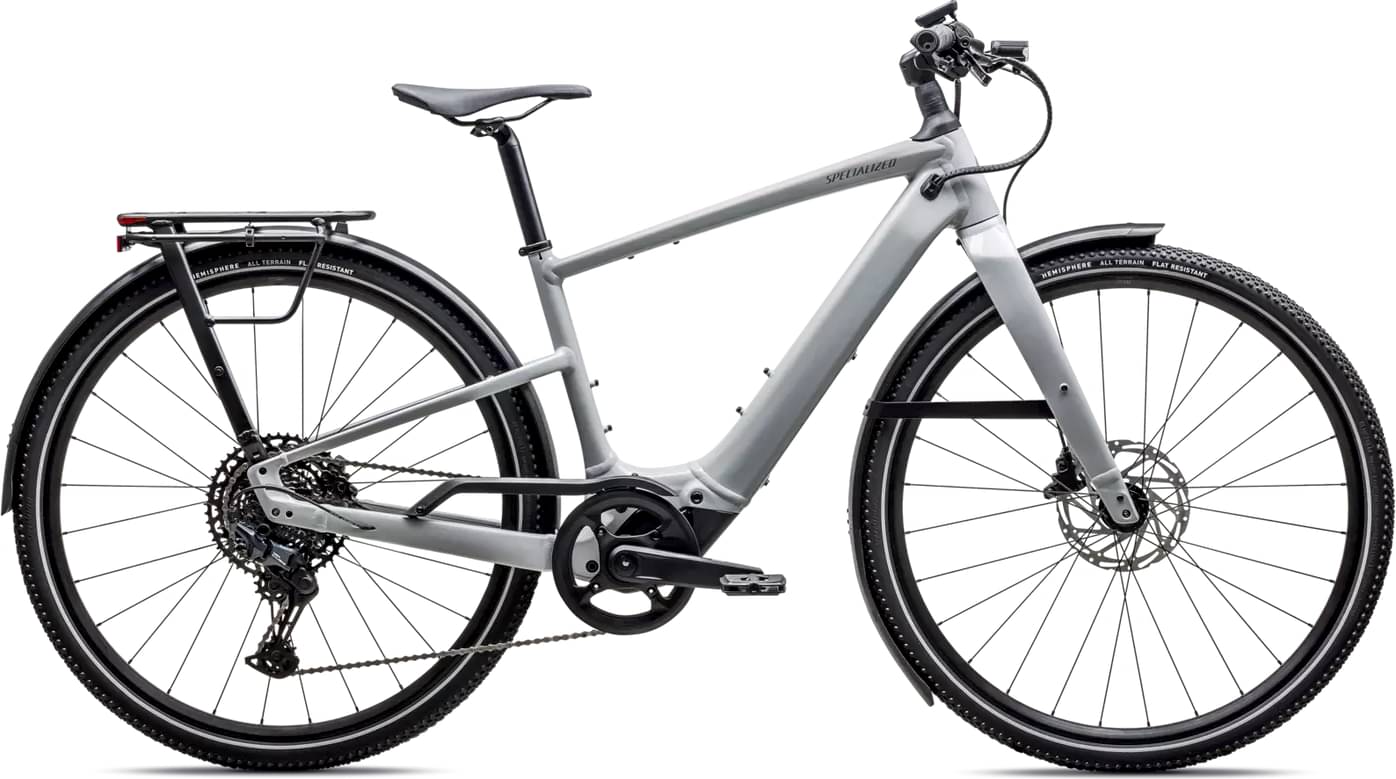

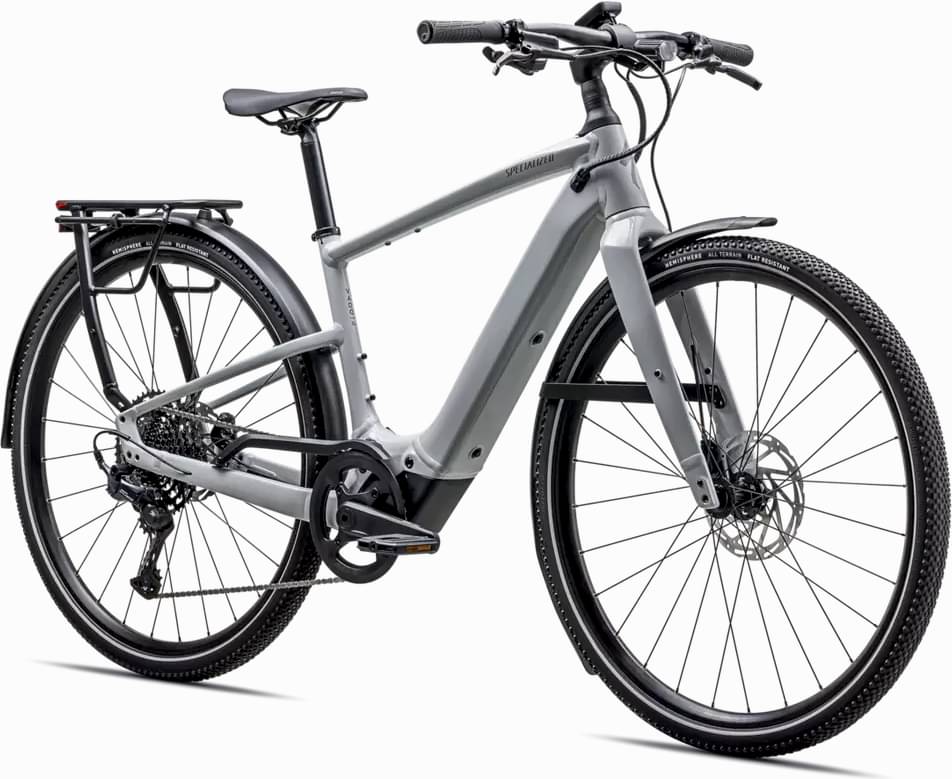

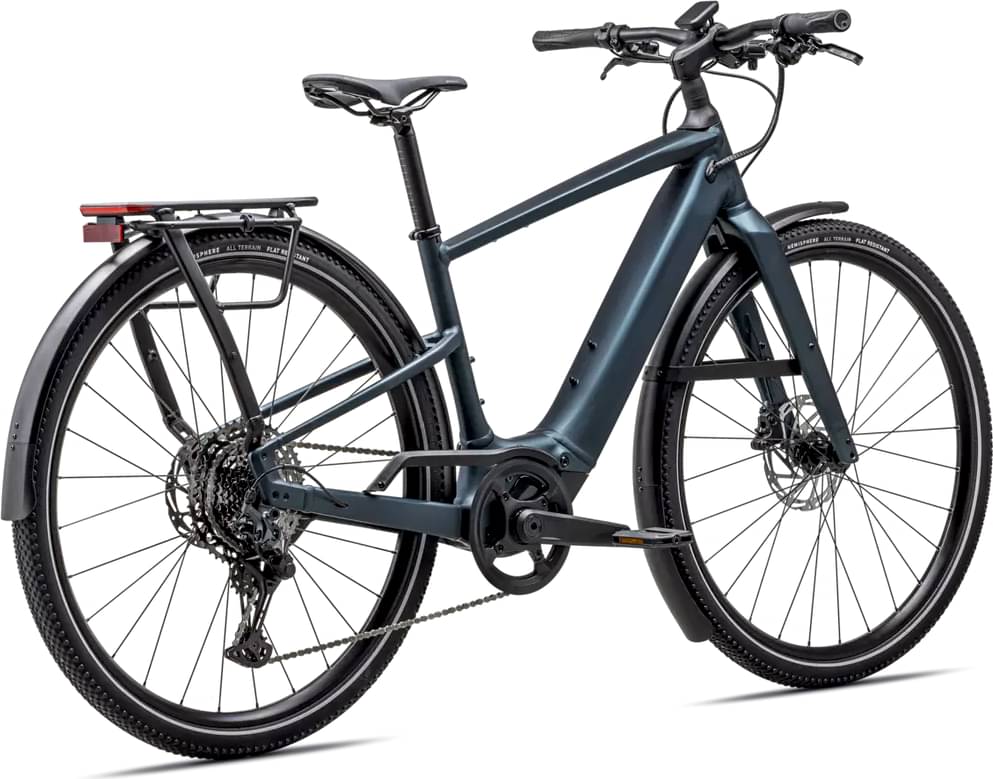

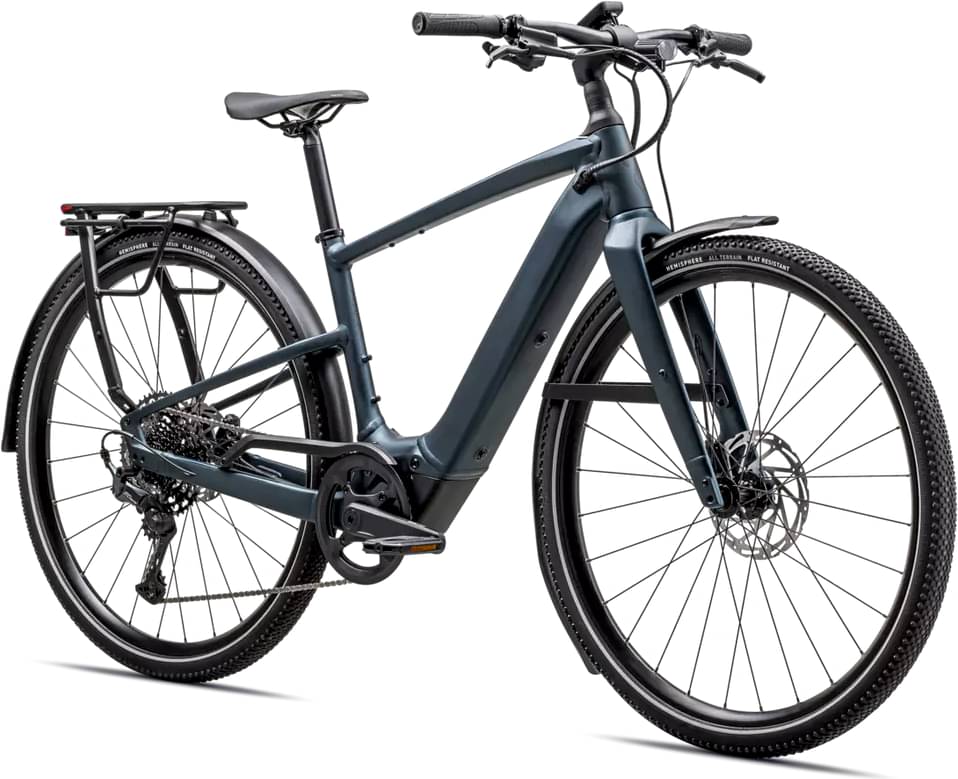

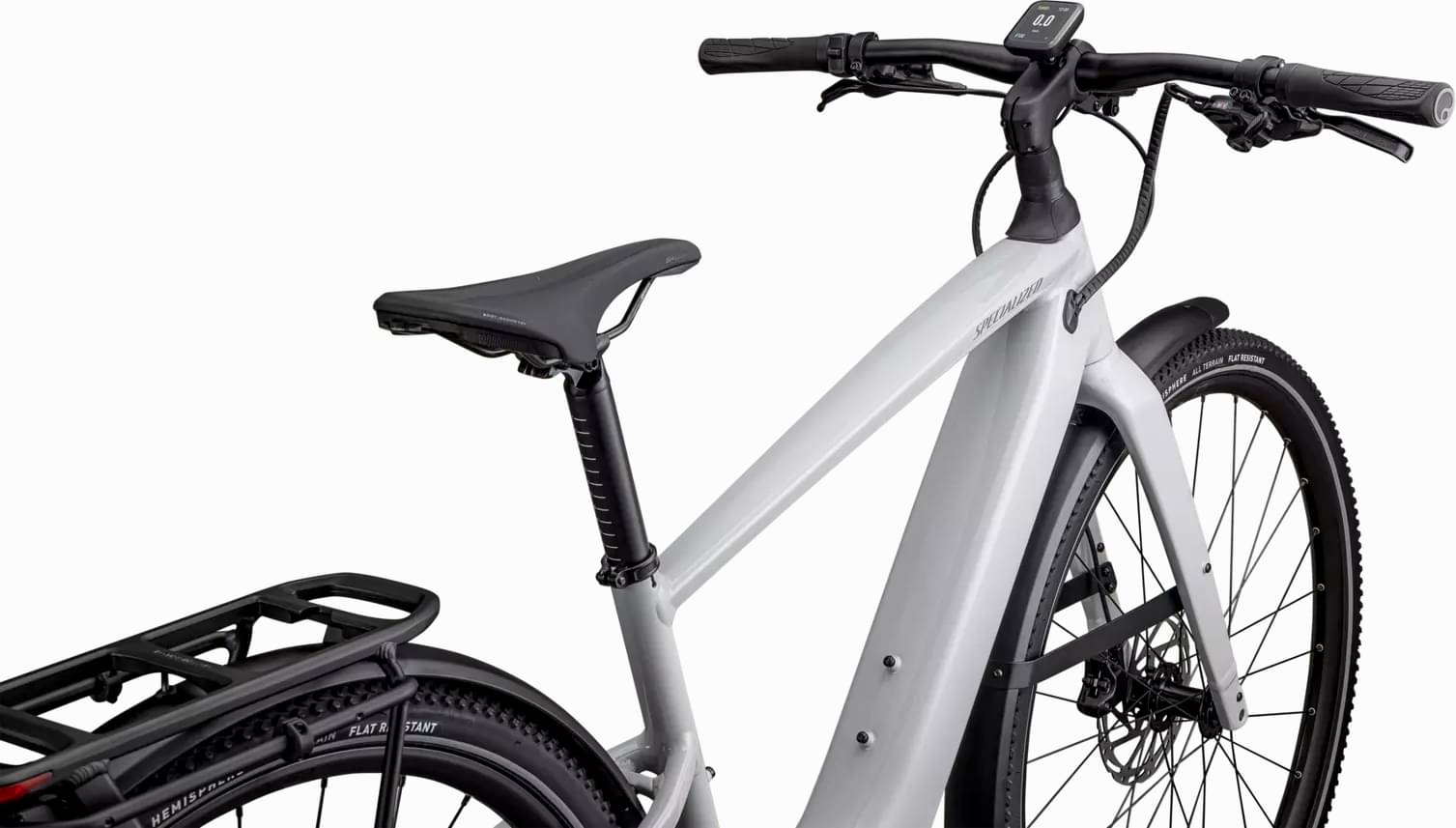

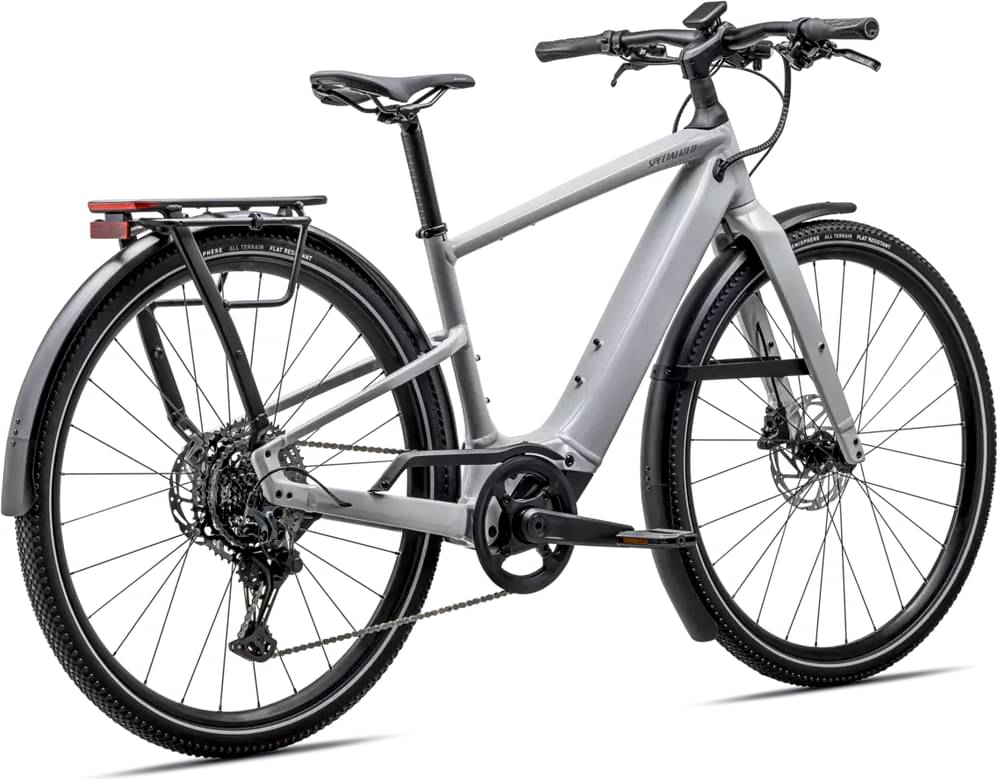

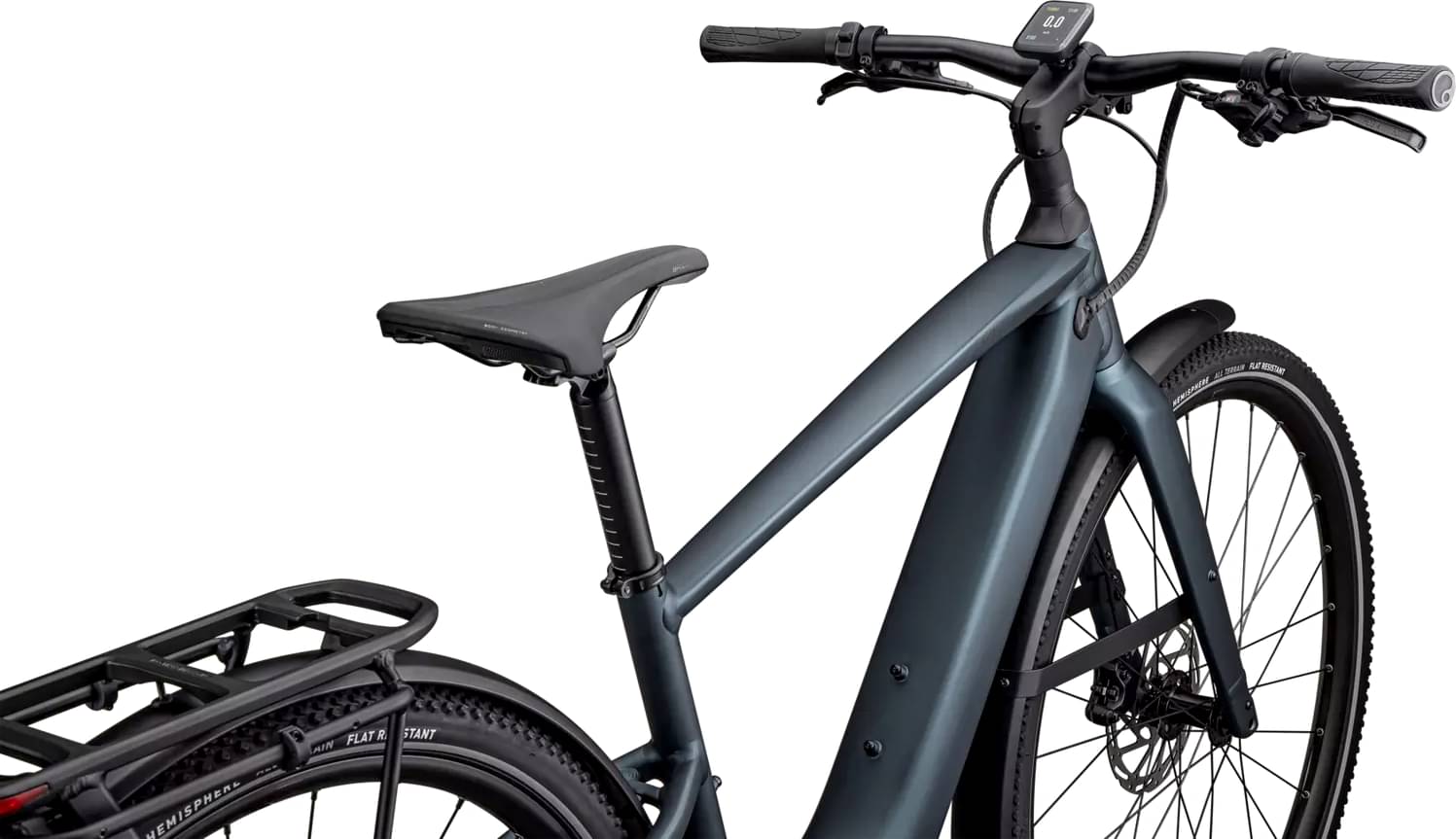

Specialized Turbo Vado SL 2 5.0 2026
2026 E-bike
Estimate price |
5,293$
Weight | 20 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Motor Specialized 320W 50Nm mid-drive -
Battery Specialized SL2-520, Fully Integrated, 520Wh -
Drivetrain 1 × 11 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

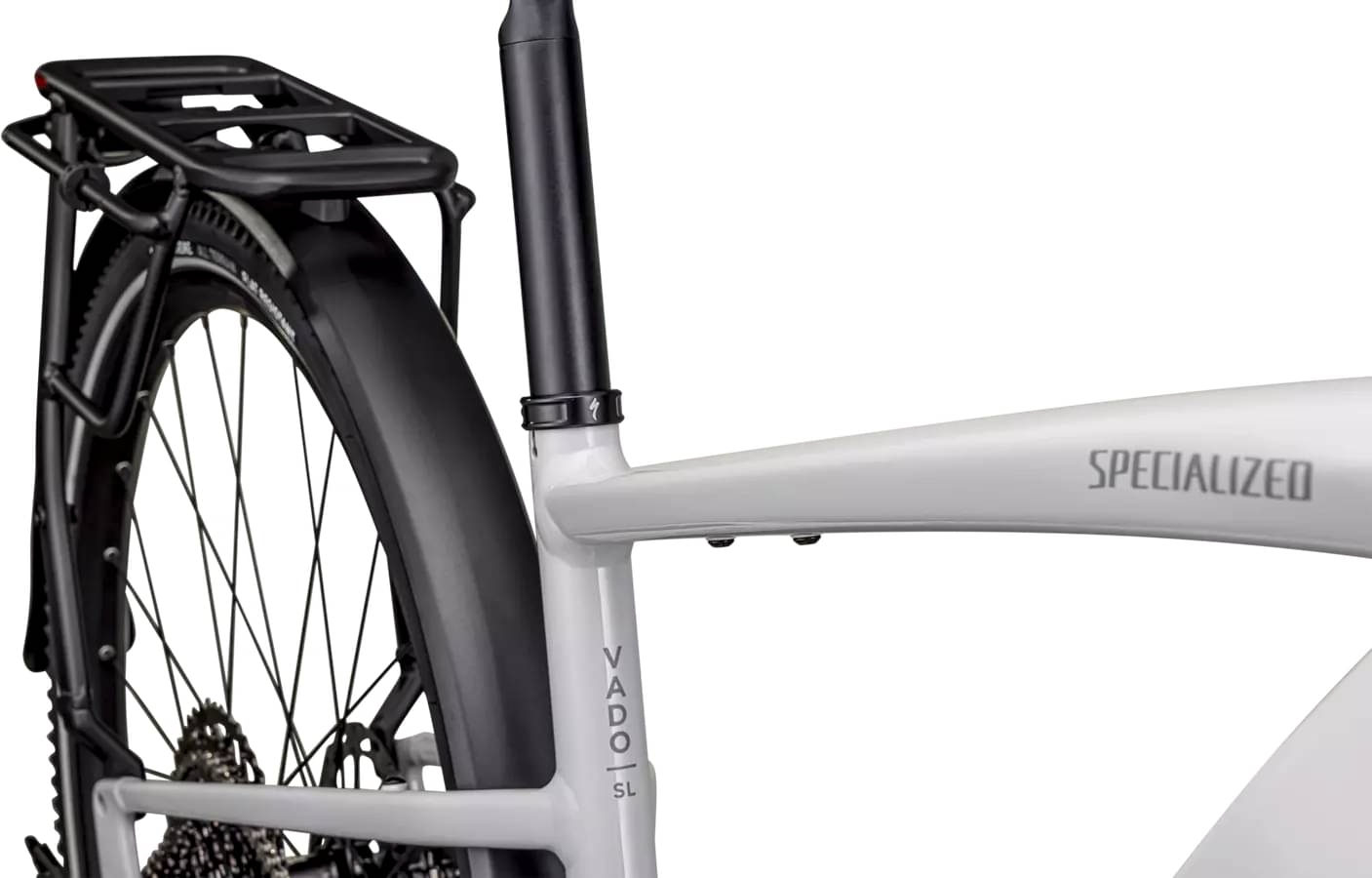

Frame
Frame
2024 Vado SL
Suspension Fork
2024 Vado SL
Drivetrain
Rear Derailleur
Shimano Cues 11-speed, RD-U8000
Shift Levers
Shimano Cues 11-speed, SL-U8000
Cassette
Shimano Cues 11-speed, Linkglide 11-50T, CS-LG700
Crank
SRAM FC S699 Alloy S-165mm / M-L-170mm / XL-175mm, Praxis, Cl 49.8mm, NW, 44T, Bcd 104mm
Chain
Shimano 11-speed
Pedals
Specialized Commuter w/ grip tape & reflectors
Wheels
Front Hub
Alloy 6 Bolt 28H 12x100mm thru-axle
Rear Hub
Alloy 6 Bolt 28H 12mm Axle 142mm Spacing
Rims
700c Double-wall Alloy 27mm internal width
Spokes
DT Swiss J-Bend
Tires
Front: Specialized Hemisphere flat protection, Reflective side walls, Wirebead, All terrain tire, 700x47c, Rear: Specialized Hemisphere flat protection, Reflective side walls, Wirebead, All terrain tire, 700x47c
Brakes
Brakes
Front: Tektro HD-R510, hydraulic disc, 160mm, Rear: Tektro HD-R510, hydraulic disc, 160mm

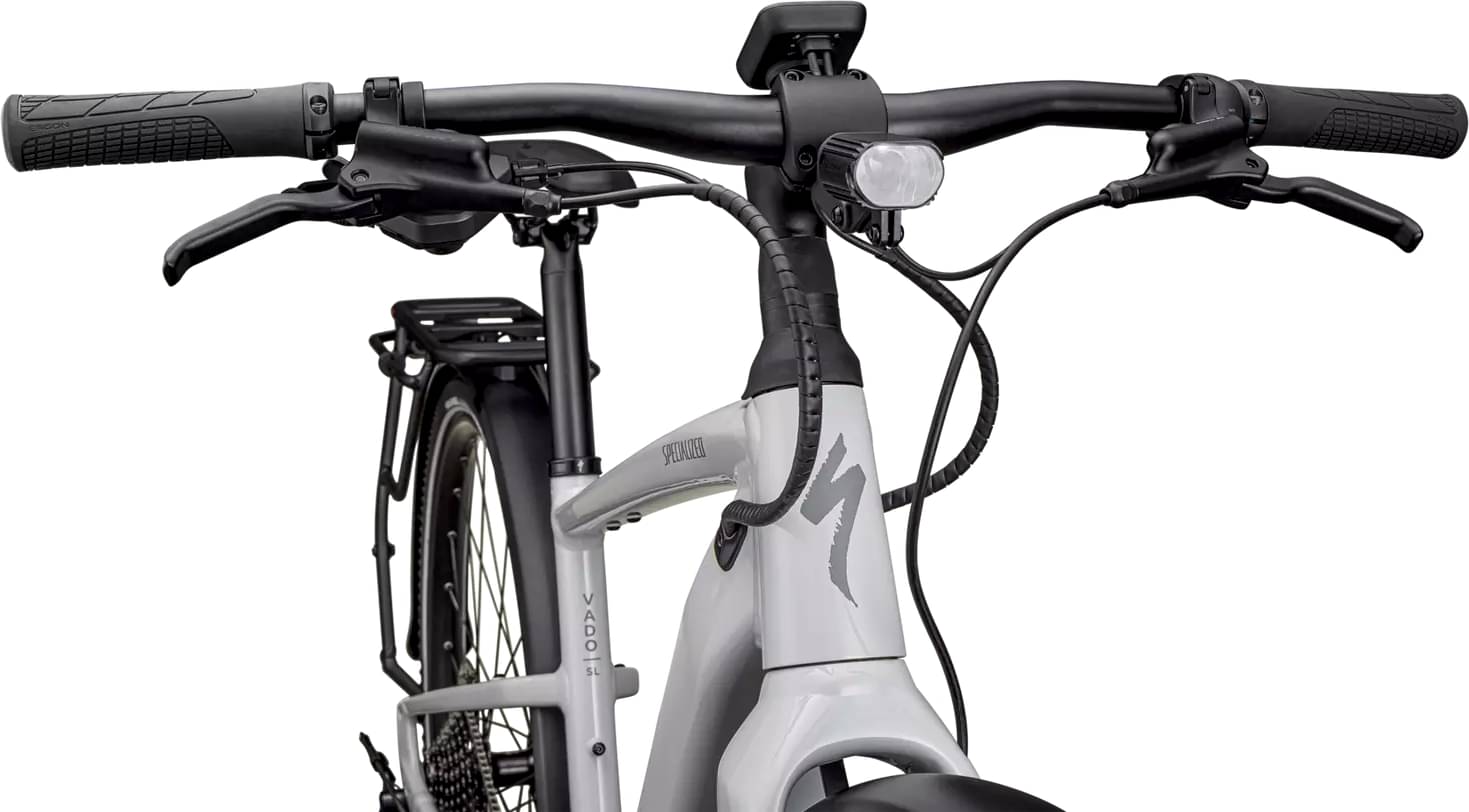

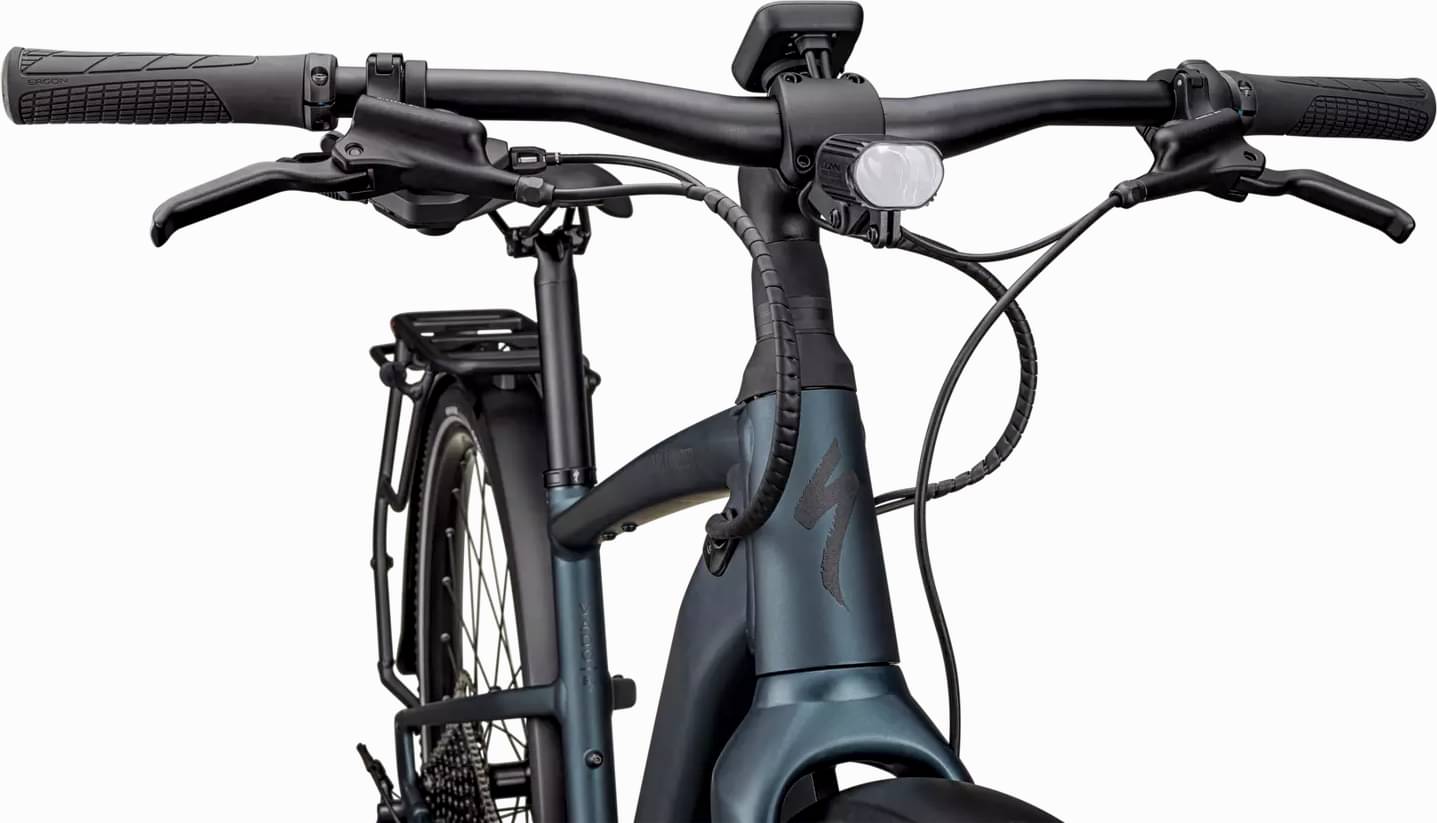

Cockpit
Stem
Specialized Stealth Stem, Alloy, 31.8mm, Integrated Display And Light Mount, Size S/M : 60mm 17 Deg, L/XL : 75mm 15.5 Deg
Handlebar
Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Grips
ERGON, GA30-S Custom, 134.8mm Length
Seat
Saddle
Bridge Sport, hollow cr-mo rails, 155mm
Seatpost
Specialized Alloy, Single Bolt, 30.9mm

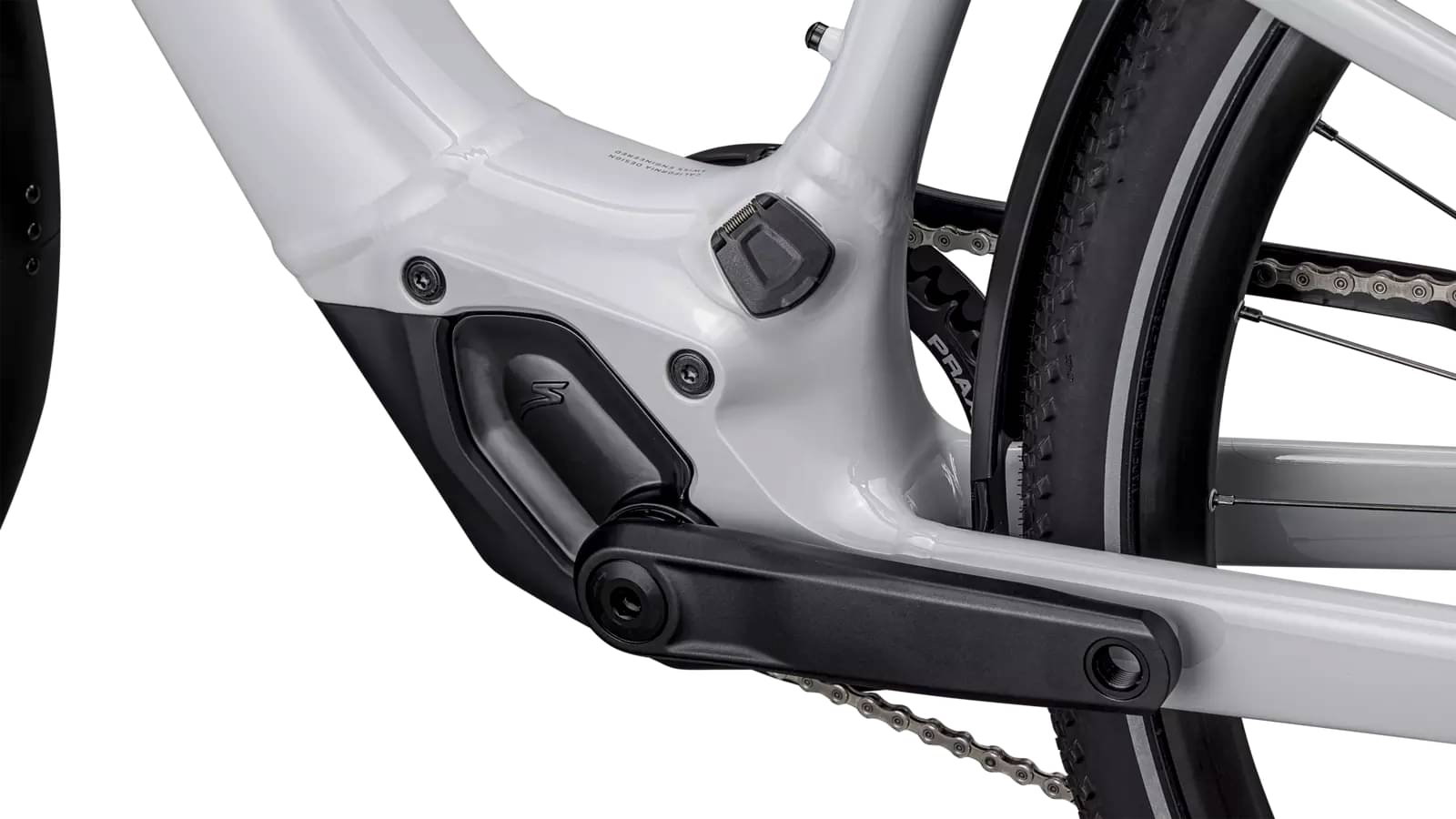

Motor & Battery

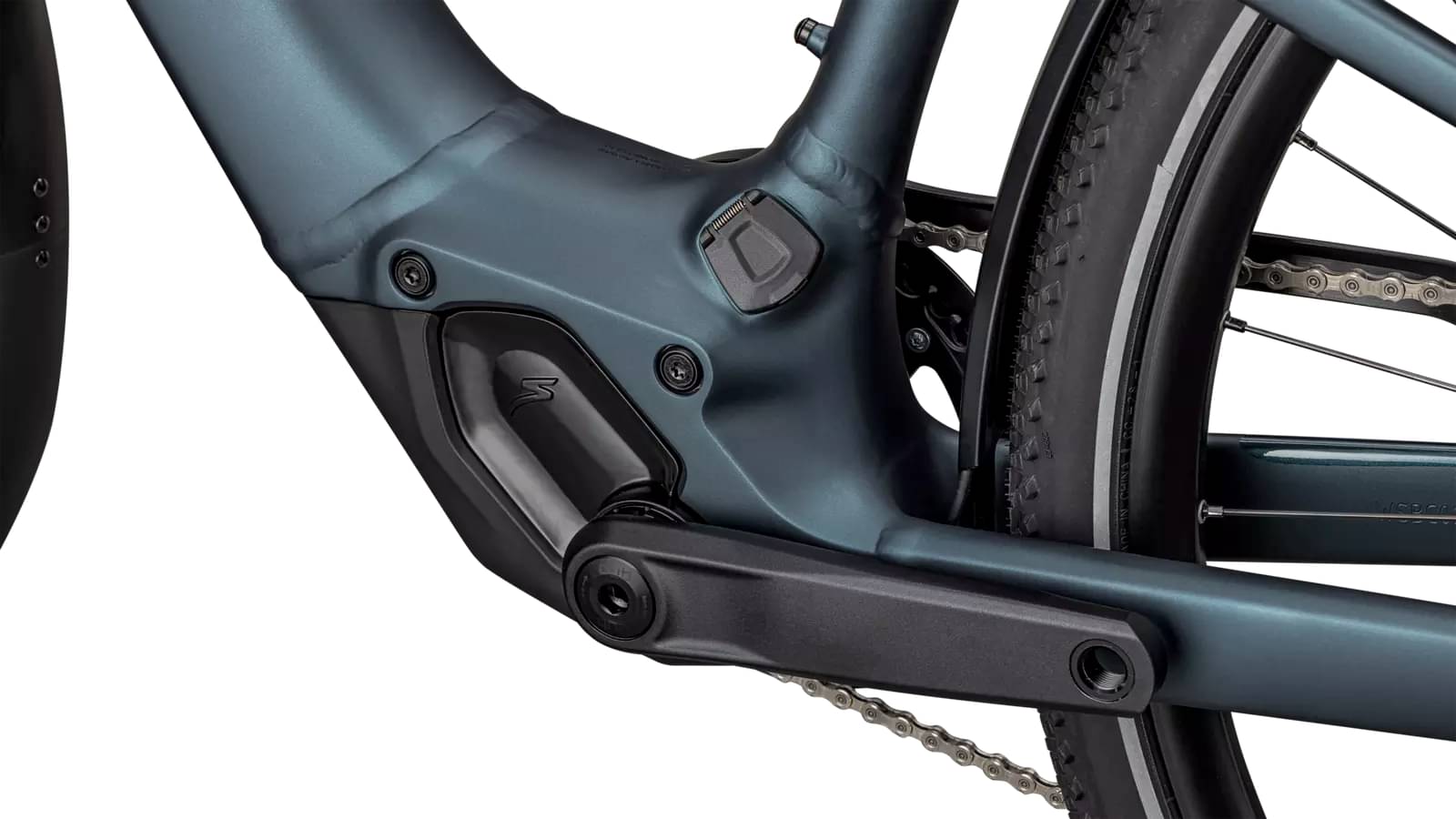

Motor
Specialized 1.2 SL System
Battery
Specialized SL2-520, Fully Integrated, 520Wh
Remote
Mastermind H3, W/Handlebar Remote, Ant+/Bluetooth®, Built-In System Lock Feature, Integrated Apple Find My, Customizable Display Pages, 2.1"
Charger
Custom charger, 48V System w/ SL system charger plug
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.637 mm | 1.538 mm | 1.526 mm | 1.54 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 641 mm | 674 mm | 712 mm | 746 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 85 mm | 85 mm | 85 mm | 85 mm |
| Stack | 614 mm | 623 mm | 656 mm | 693 mm |
| Reach | 375 mm | 405 mm | 430 mm | 450 mm |
| Top Tube Length | 617 mm | 618 mm | 646 mm | 665 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 115 mm | 125 mm | 160 mm | 200 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1103 mm | 1136 mm | 1174 mm | 1208 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 737 mm | 762 mm | 801 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
