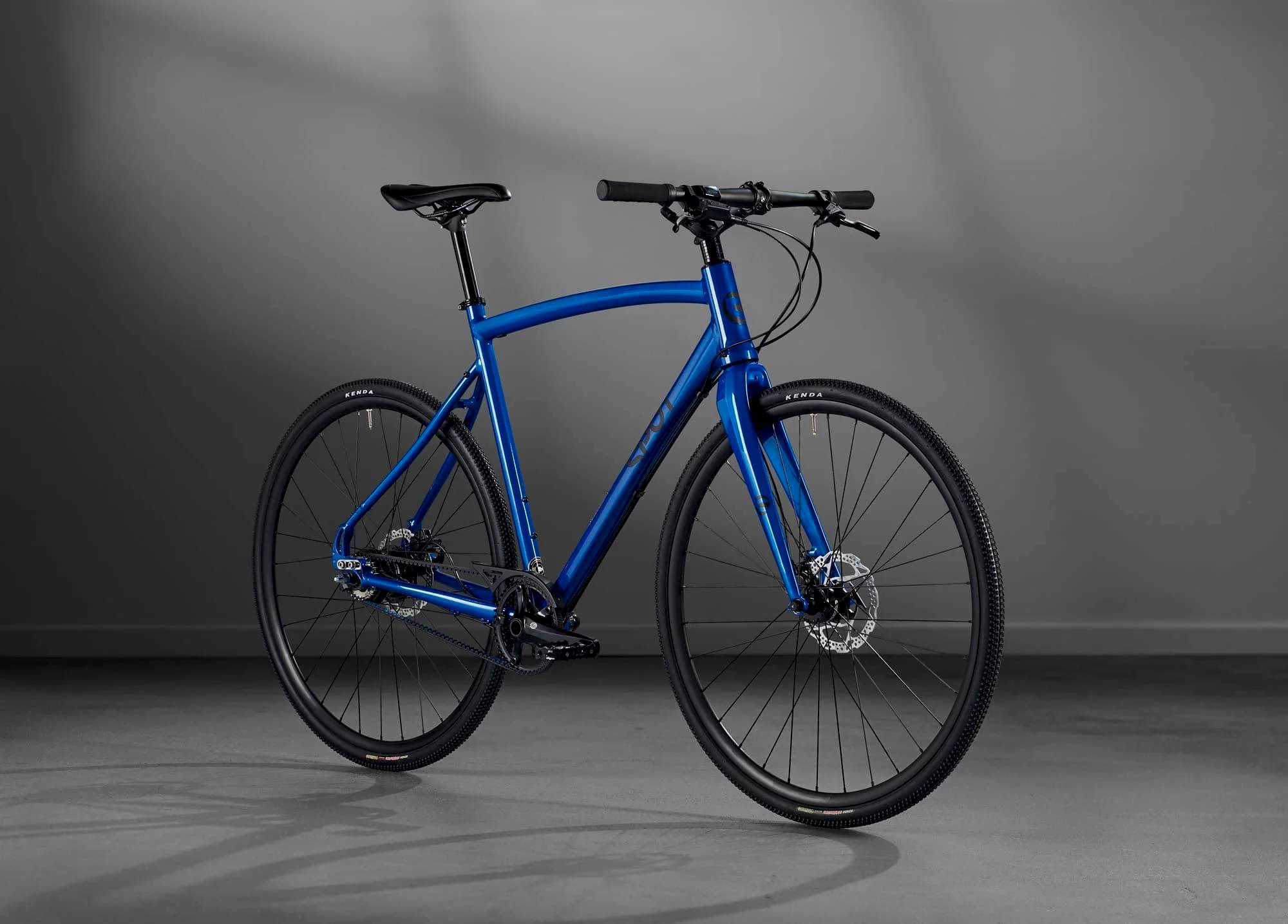

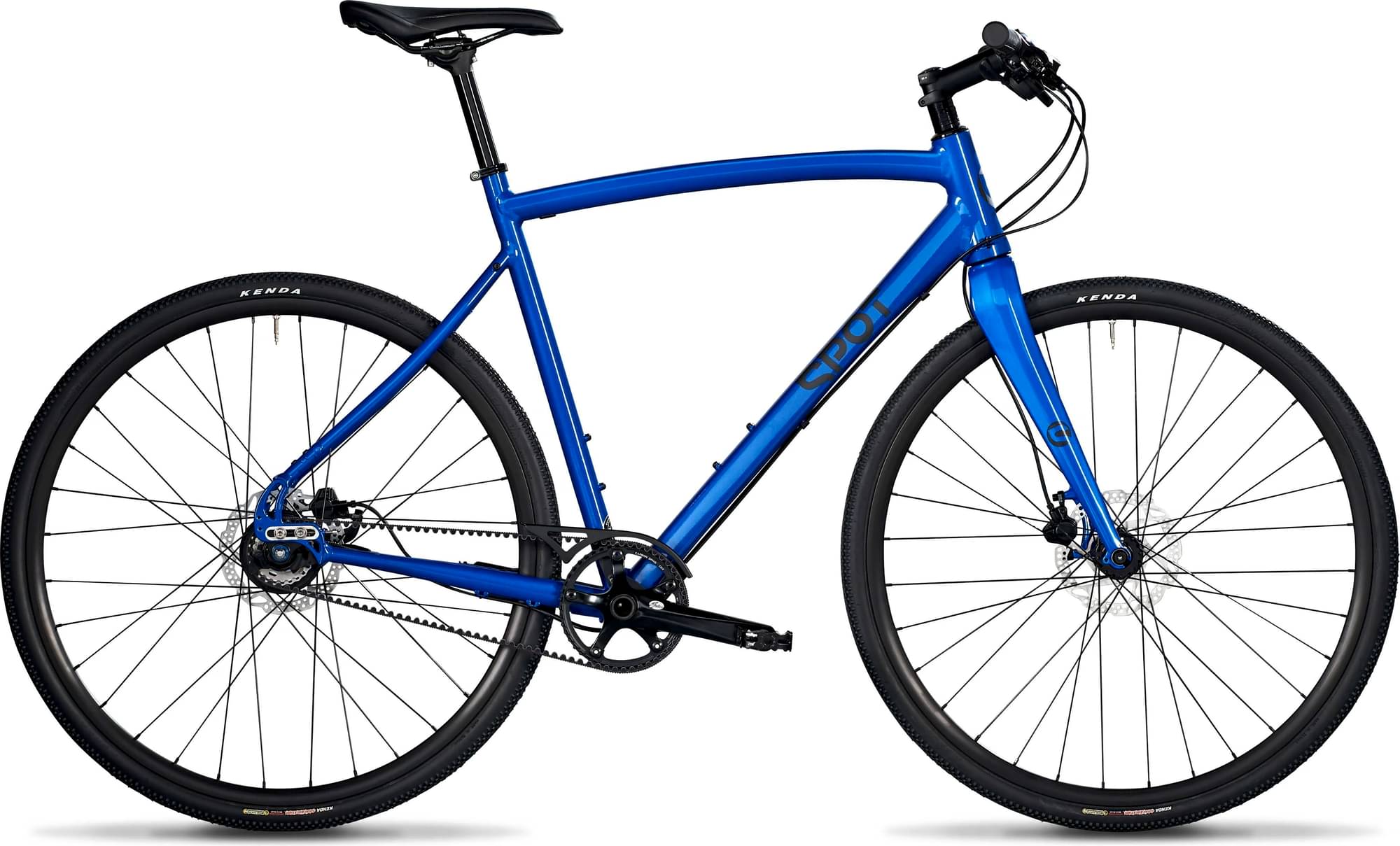

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Alfine, SRAM -
Suspension Rigid -

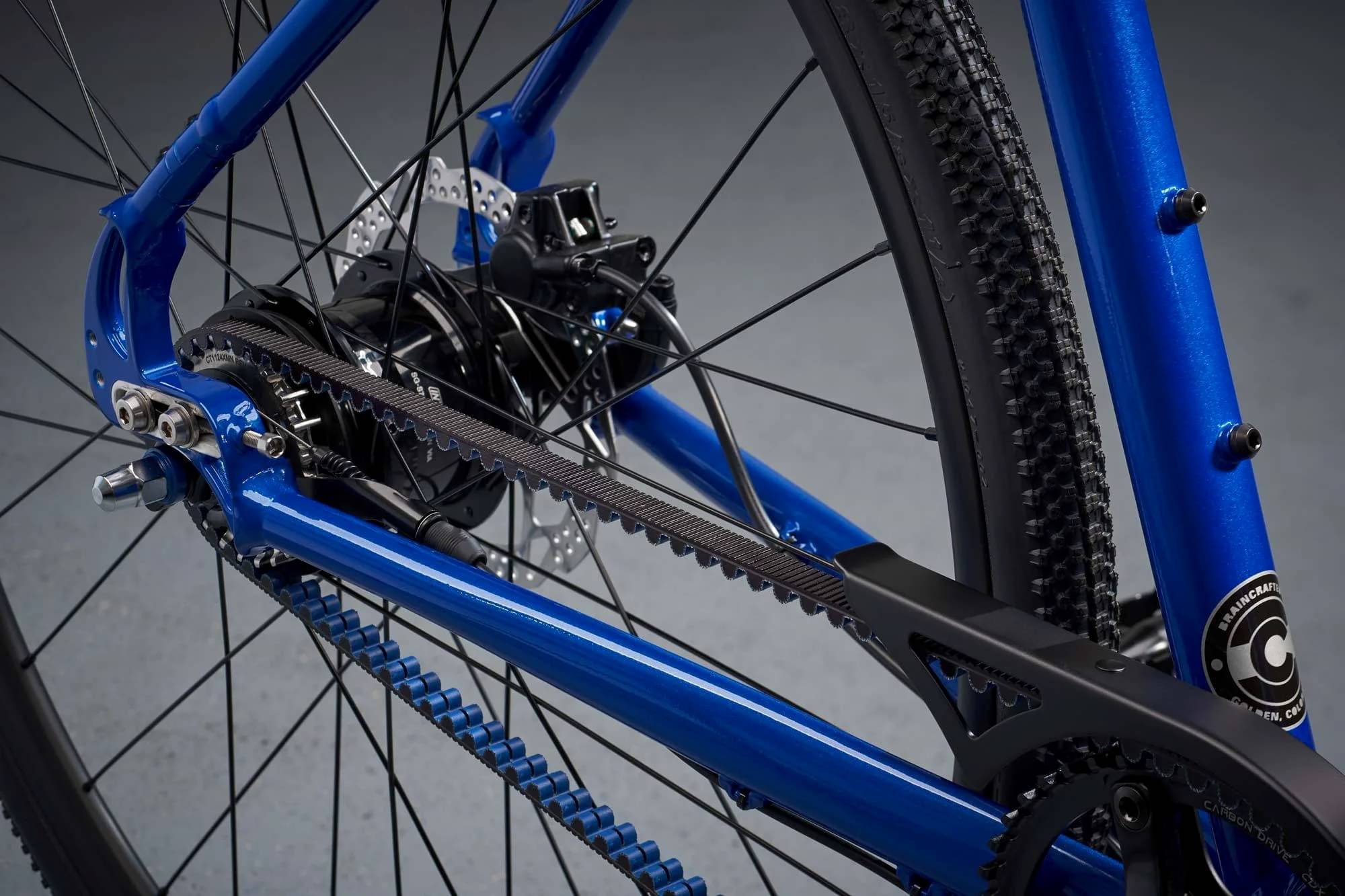

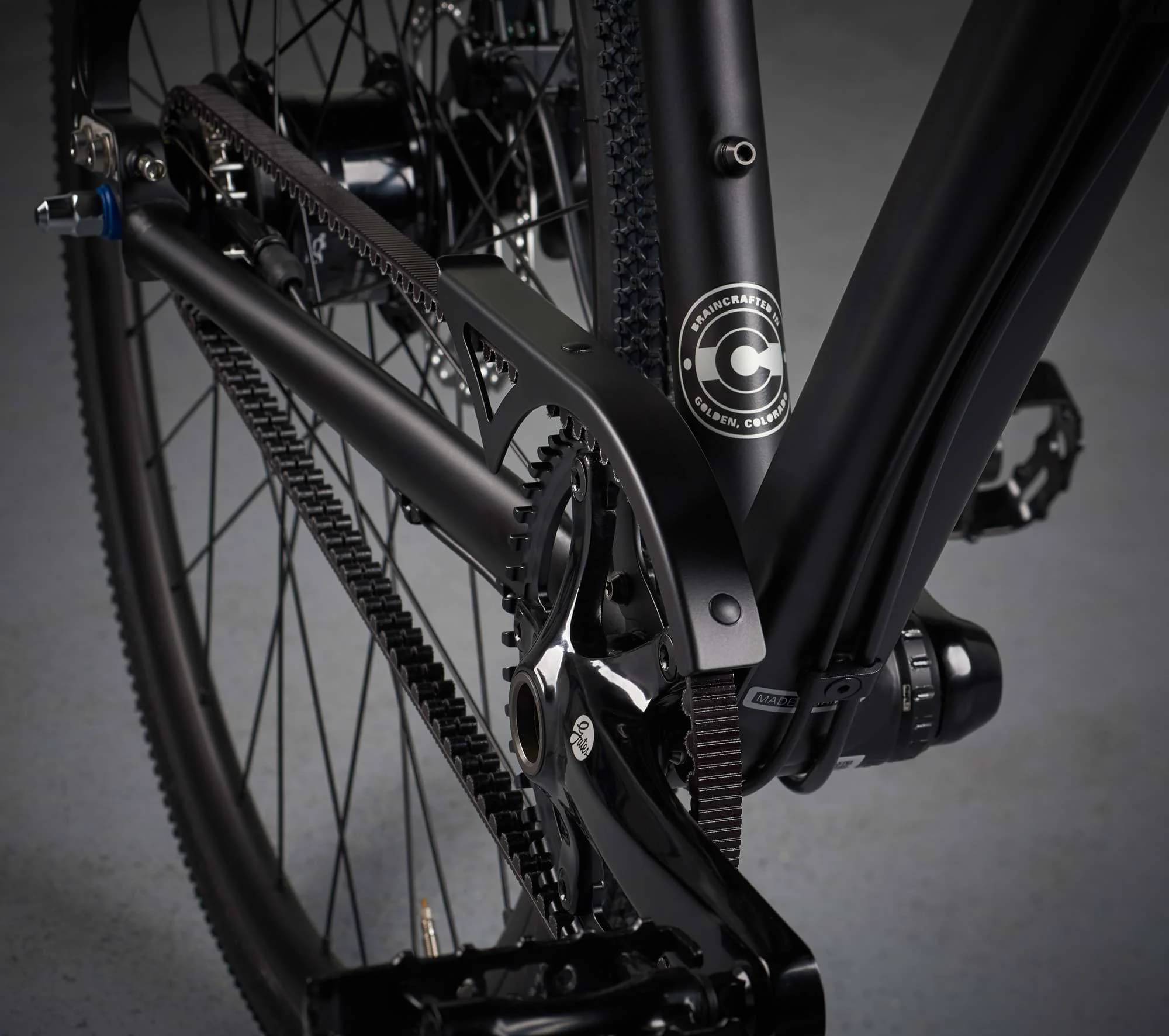

Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50cm
162cm - 172cm
52cm
170cm - 177cm
Open
147cm - 172cm
55cm
175cm - 182cm
57cm
180cm - 188cm
60cm
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Carbon Disc w/ carbon tapered steerer, 1 1/8" - 1 1/2"
Drivetrain
Shift Levers
Alfine 11-speed, RapidFire Plus
Crank
SRAM S300, 50/52 = 170mm, 55/57/60 = 175mm
Pedals
Black body/Black cage
Wheels

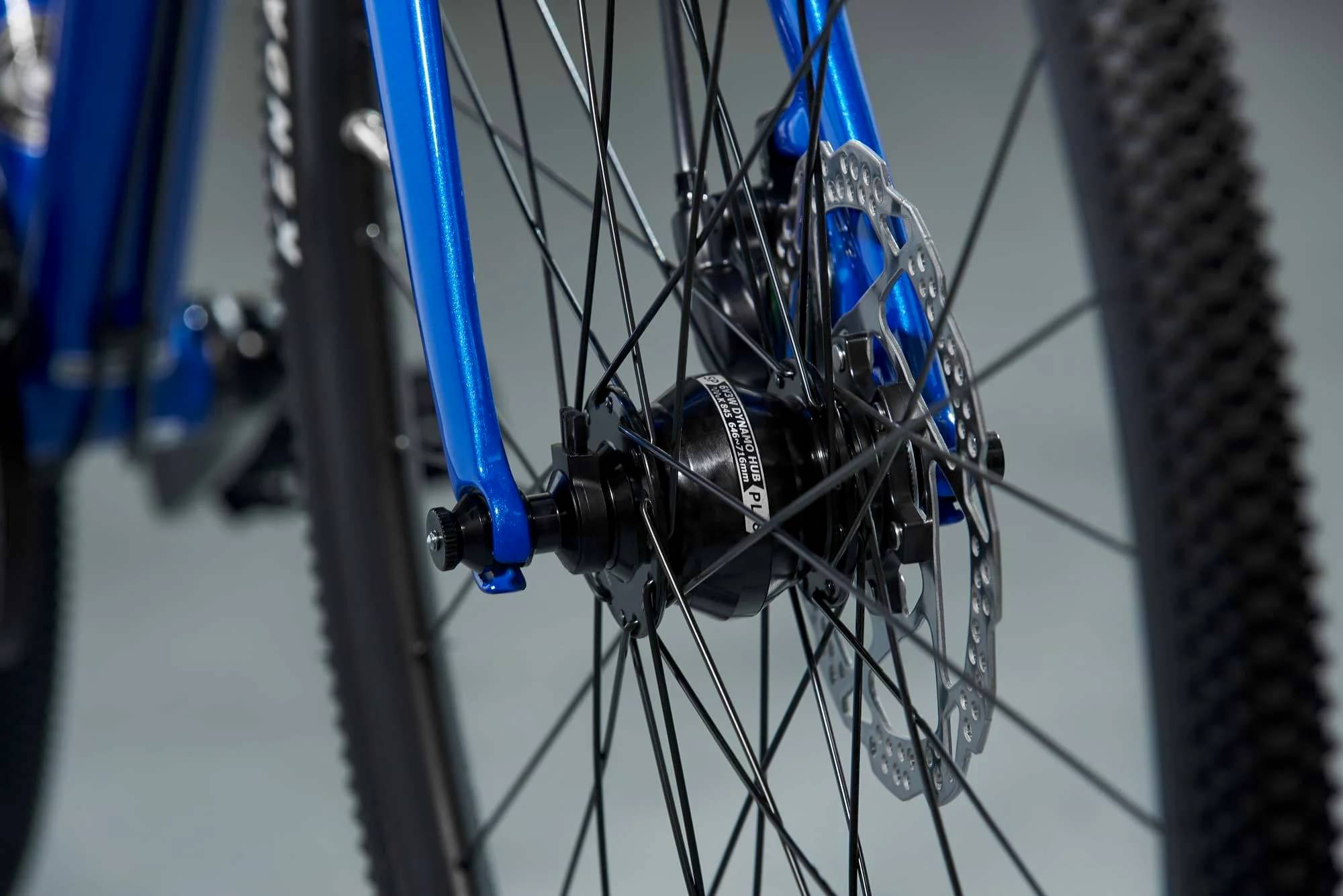

Front Hub
Dynamo, PL-8, 6V-3W, 32h, Disc front, 6-bolt
Rear Hub
Alfine 11-speed Black, disc, 32h
Rims
Black, 700c, ATD470, 32º, aero profile, presta valve
Spokes
14g, stainless, black
Tires
Small Block Eight, 700x32C, Presta
Brakes
Brakes
SRAM Level hydraulic disc
Cockpit
Stem
Alloy, 31.8 clamp, +/-6 degree, 50/52cm = 100mm, 55/57cm = 110mm, 60cm = 120mm
Handlebar
Alloy, 31.8mm, 620mm width, 9 deg sweep
Grips
Spot performance fit, dual density rubber, black
Headset
10-Series, zS56 Bottom, 10, ZS44 Short
Seat
Saddle
Spot performance fit, black with grey accent
Seatpost
Spot black alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | Open | 55cm | 57cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.42 mm | 1.35 mm | 1.44 mm | 1.45 mm | 1.41 mm |
| Front Center | 599 mm | 612 mm | 622 mm | 612 mm | 627 mm | 657 mm |
| Rake | 45 mm | 48 mm | 48 mm | 47 mm | 48 mm | 47 mm |
| Trail | 79 mm | 69 mm | 69 mm | 64 mm | 60 mm | 61 mm |
| Stack | 531 mm | 544 mm | 534 mm | 562 mm | 582 mm | 603 mm |
| Reach | 369 mm | 384 mm | 397 mm | 389 mm | 402 mm | 427 mm |
| Top Tube Length | 524 mm | 544 mm | 552 mm | 562 mm | 582 mm | 613 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 495 mm | 521 mm | 419 mm | 551 mm | 569 mm | 599 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 114 mm | 124 mm | 114 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 996 mm | 1009 mm | 1019 mm | 1009 mm | 1024 mm | 1055 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 719 mm | 745 mm | 567 mm | 783 mm | 803 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 170 cm | 147 cm | 175 cm | 180 cm | 185 cm |
| Rider Max Height | 172 cm | 177 cm | 172 cm | 182 cm | 188 cm | 195 cm |
Model Overview
Acme belongs to the Spotbrand Acme model. Spot launched 3 bikes of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Fitness bikes average price
If you want to purchase a solid Fitness bike, it is important to know that the average cost is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Spot Acme price was 2199$. Comparing this to the average Fitness bike price, we see that the price is 235.21% higher.
Overview of components

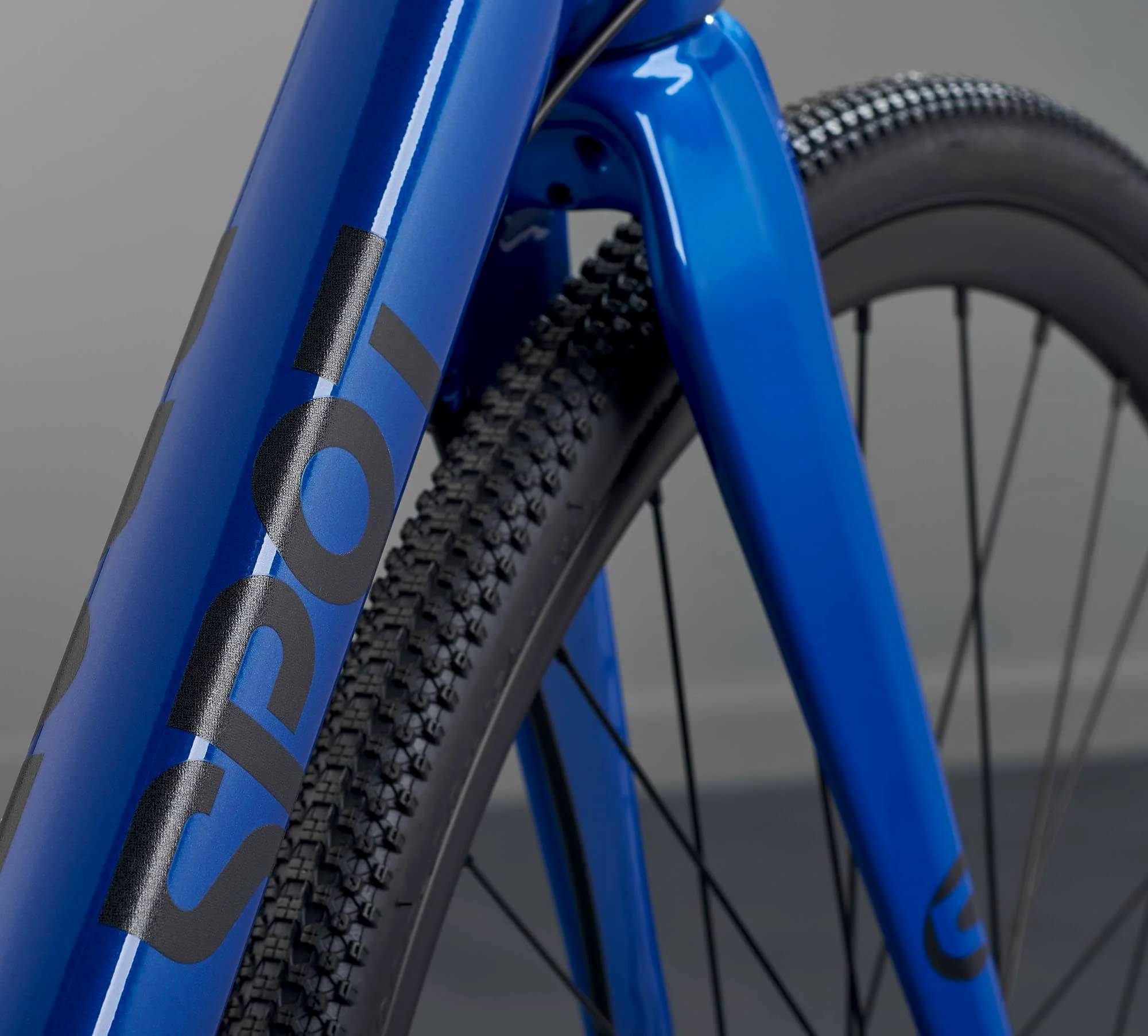

Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Acme model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Acme has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Spot Acme bike has 6 sizes, in the range of 162 cm – 195 cm (5.31 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
