Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

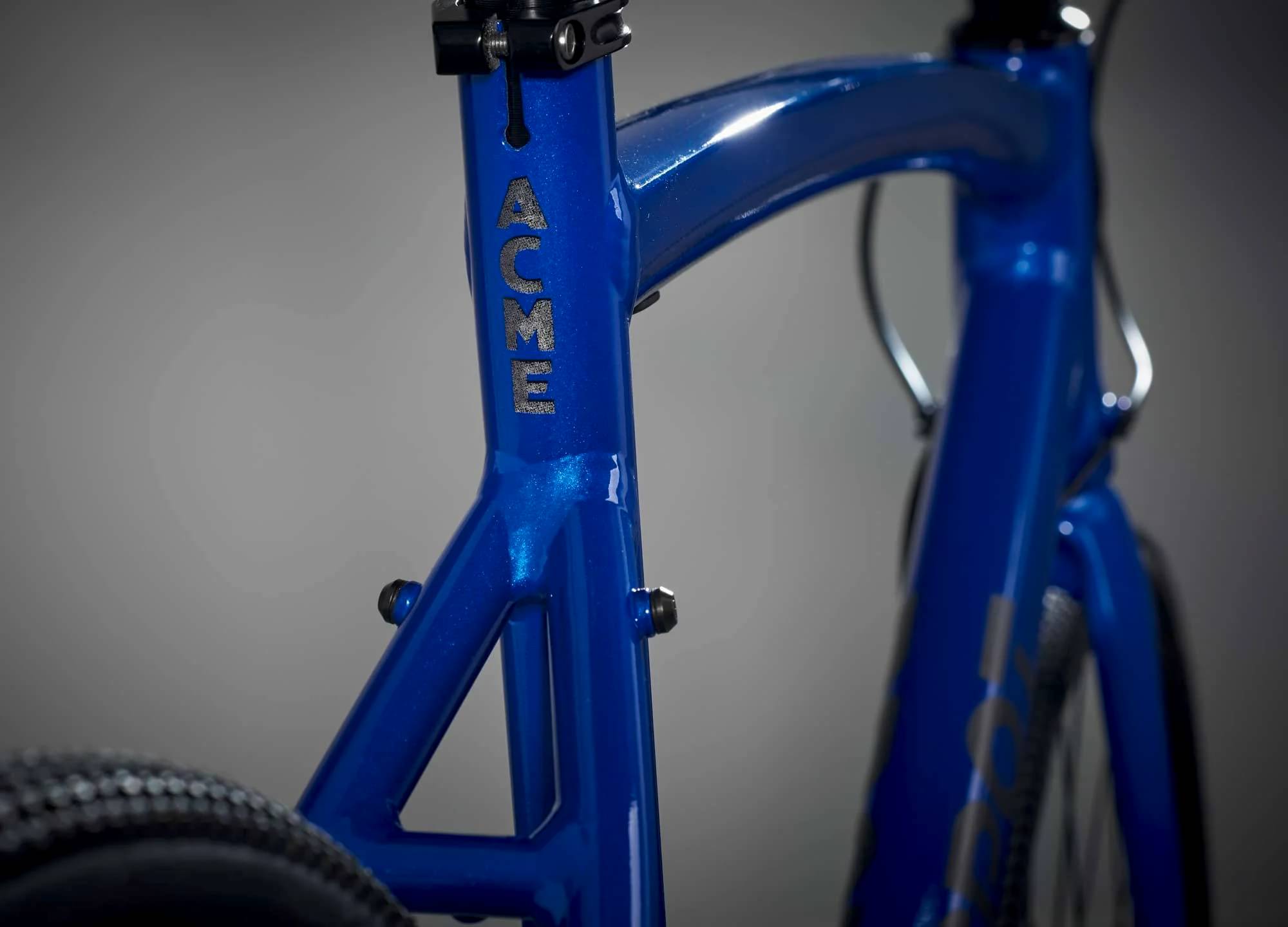

Frame Aluminum -
Groupset Alfine -
Suspension Rigid -

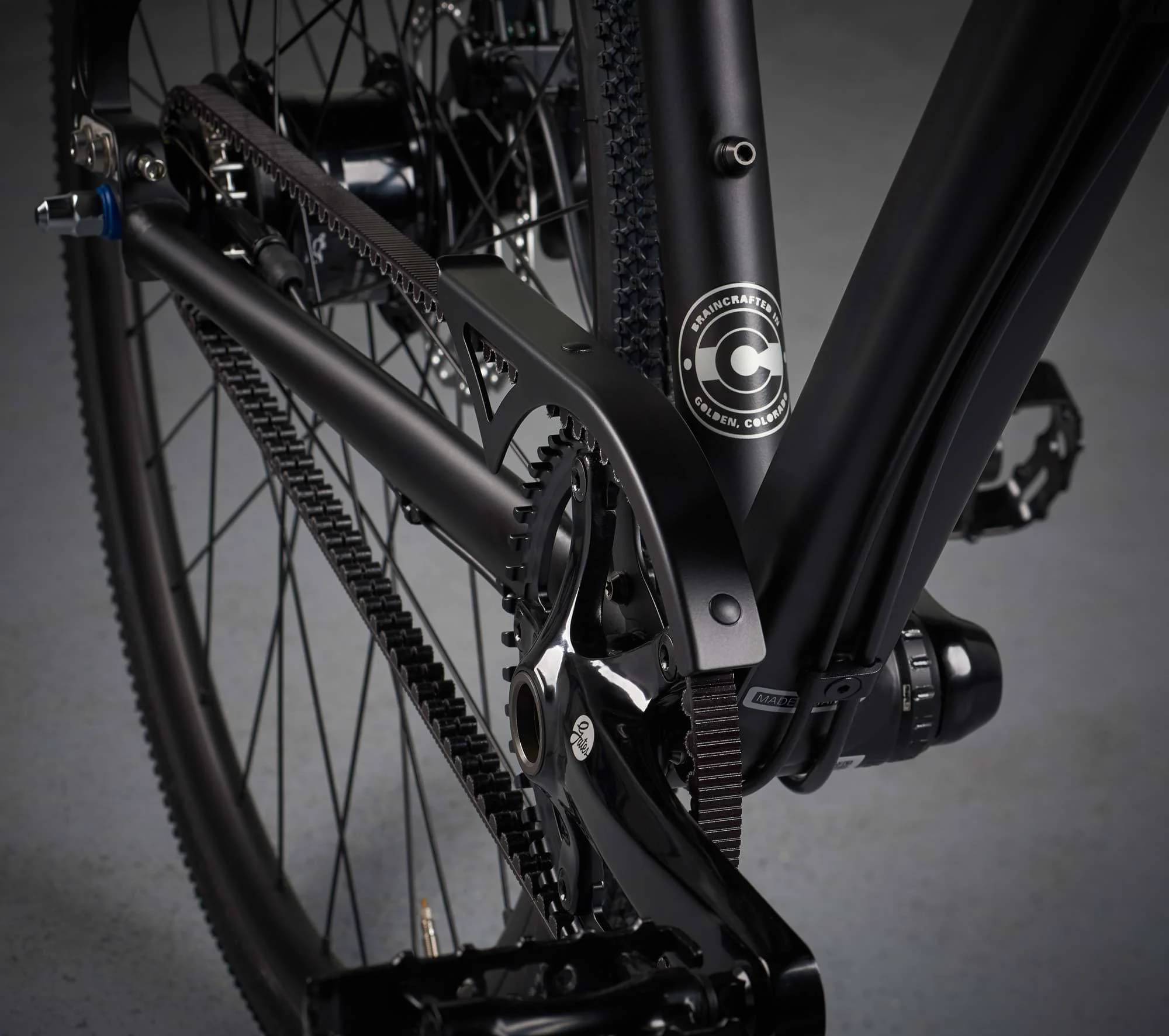

Drivetrain Internally Geared Hub -
Brakes SRAM Level Hydraulic Disc
Sizing
Recommended size guide.
50cm
162cm - 172cm
52cm
170cm - 177cm
Open
147cm - 172cm
55cm
175cm - 182cm
57cm
180cm - 188cm
60cm
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Carbon Disc w/ carbon tapered steerer, 1 1/8" - 1 1/2"
Drivetrain
Shift Levers
Alfine 11-speed, RapidFire Plus
Crank
SRAM S300, 50/52 = 170mm, 55/57/60 = 175mm
Pedals
Black body/Black cage
Wheels
Front Hub

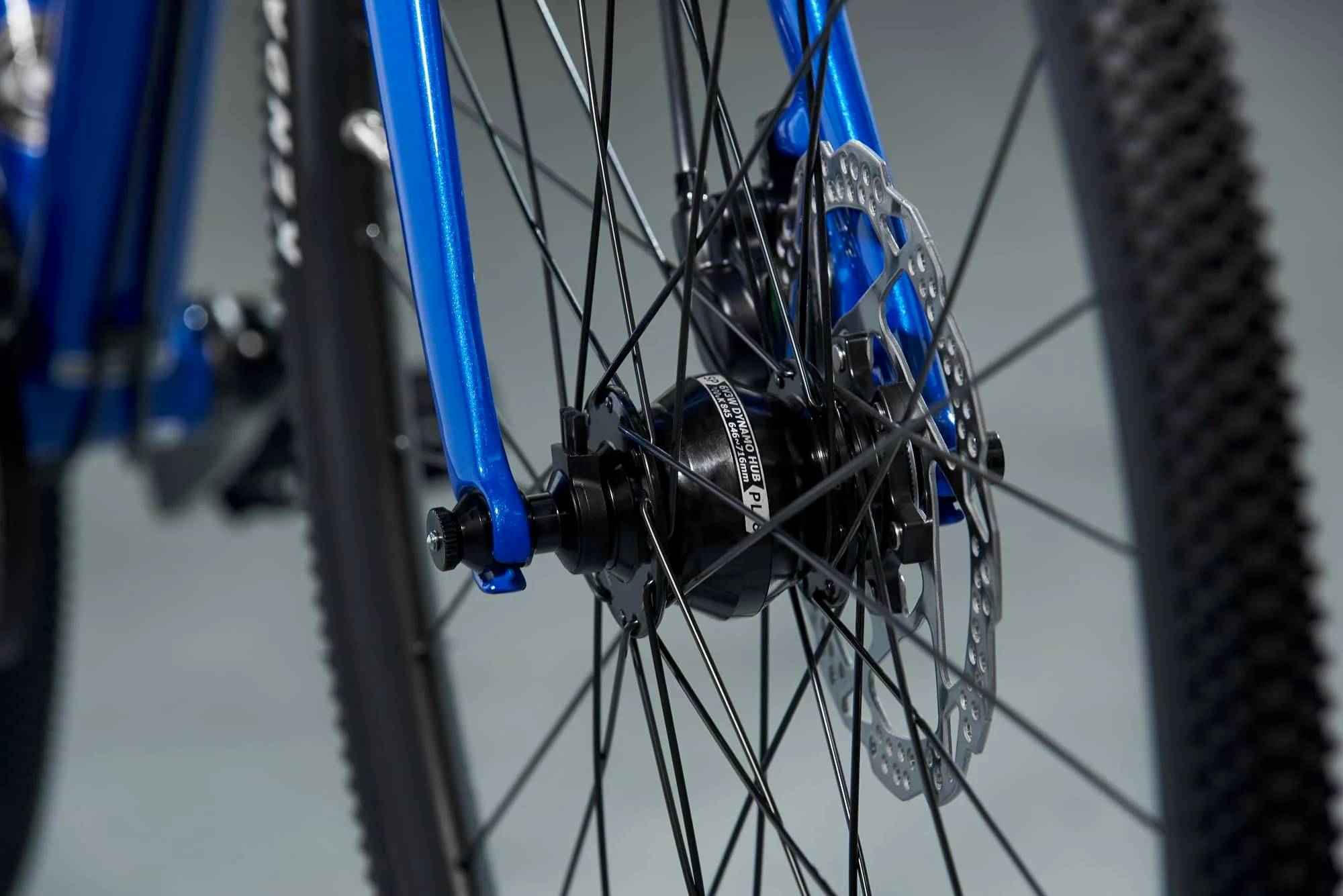

Dynamo, PL-8, 6V-3W, 32h, Disc front, Centerlock
Rear Hub

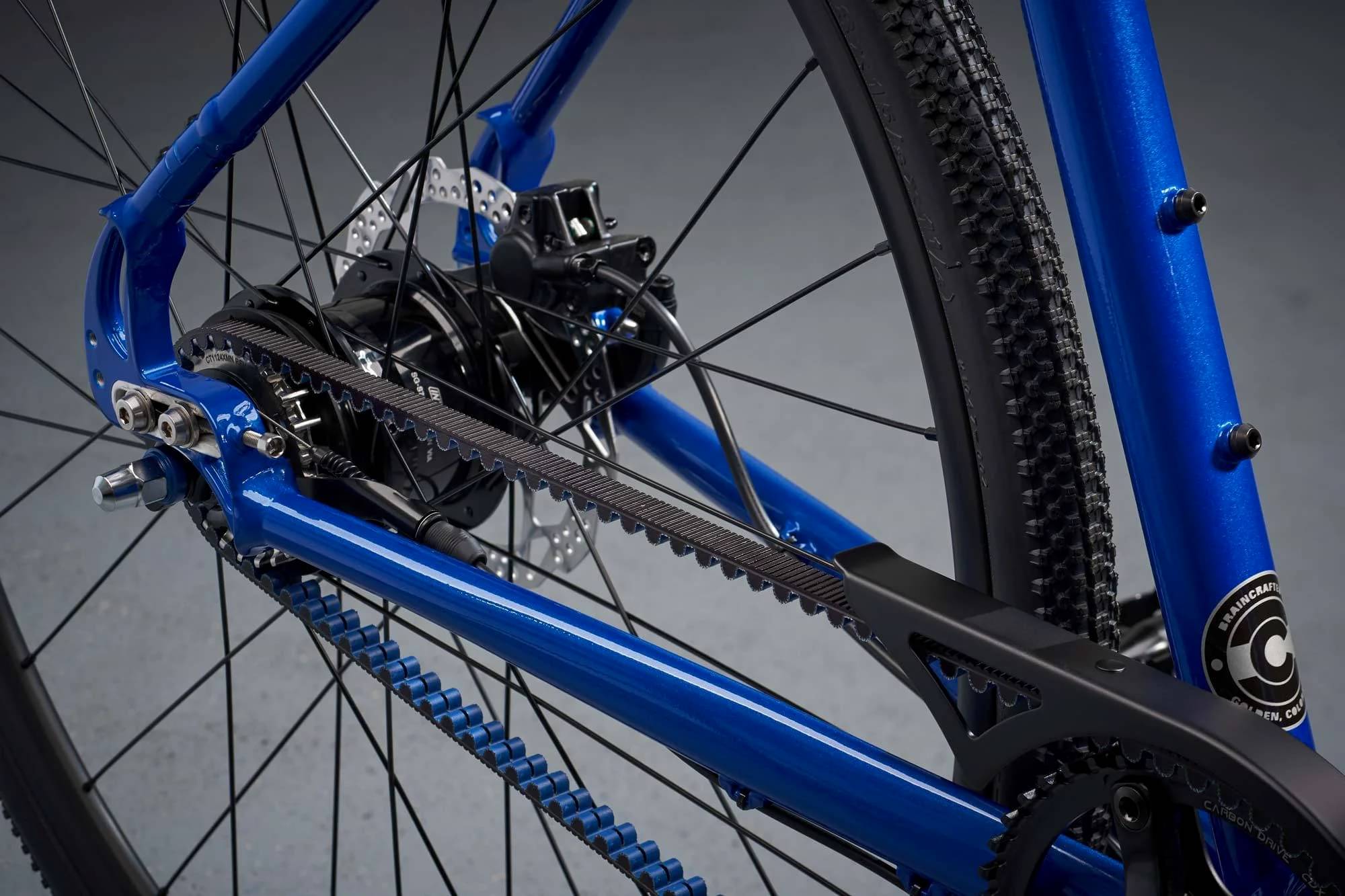

Alfine 11-speed Black, disc, 32h
Rims
Black, 700c, ATD470, 32º, aero profile, presta valve
Spokes
14g, stainless, black
Tires
Small Block Eight, 700x32C, Presta
Brakes
Brakes
SRAM Level hydraulic disc
Cockpit
Stem
Alloy, 31.8 clamp, +/-6 degree, 50/52cm = 100mm, 55/57cm = 110mm, 60cm = 120mm
Handlebar
Alloy, 31.8mm, 620mm width, 9 deg sweep
Grips
Spot performance fit, dual density rubber, black
Headset
10-Series, zS56 Bottom, 10, ZS44 Short
Seat
Saddle
Spot performance fit, black with grey accent
Seatpost
Spot black alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | Open | 55cm | 57cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.431 mm | 1.409 mm | 1.339 mm | 1.437 mm | 1.44 mm | 1.406 mm |
| Front Center | 599 mm | 612 mm | 622 mm | 612 mm | 627 mm | 657 mm |
| Rake | 45 mm | 48 mm | 48 mm | 47 mm | 48 mm | 47 mm |
| Trail | 79 mm | 69 mm | 69 mm | 64 mm | 60 mm | 61 mm |
| Stack | 538 mm | 551 mm | 541 mm | 569 mm | 589 mm | 610 mm |
| Reach | 376 mm | 391 mm | 404 mm | 396 mm | 409 mm | 434 mm |
| Top Tube Length | 531 mm | 551 mm | 559 mm | 569 mm | 589 mm | 620 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 495 mm | 521 mm | 419 mm | 551 mm | 569 mm | 599 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 114 mm | 124 mm | 114 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 1003 mm | 1016 mm | 1026 mm | 1016 mm | 1031 mm | 1062 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 726 mm | 752 mm | 574 mm | 790 mm | 810 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 170 cm | 147 cm | 175 cm | 180 cm | 185 cm |
| Rider Max Height | 172 cm | 177 cm | 172 cm | 182 cm | 188 cm | 195 cm |
