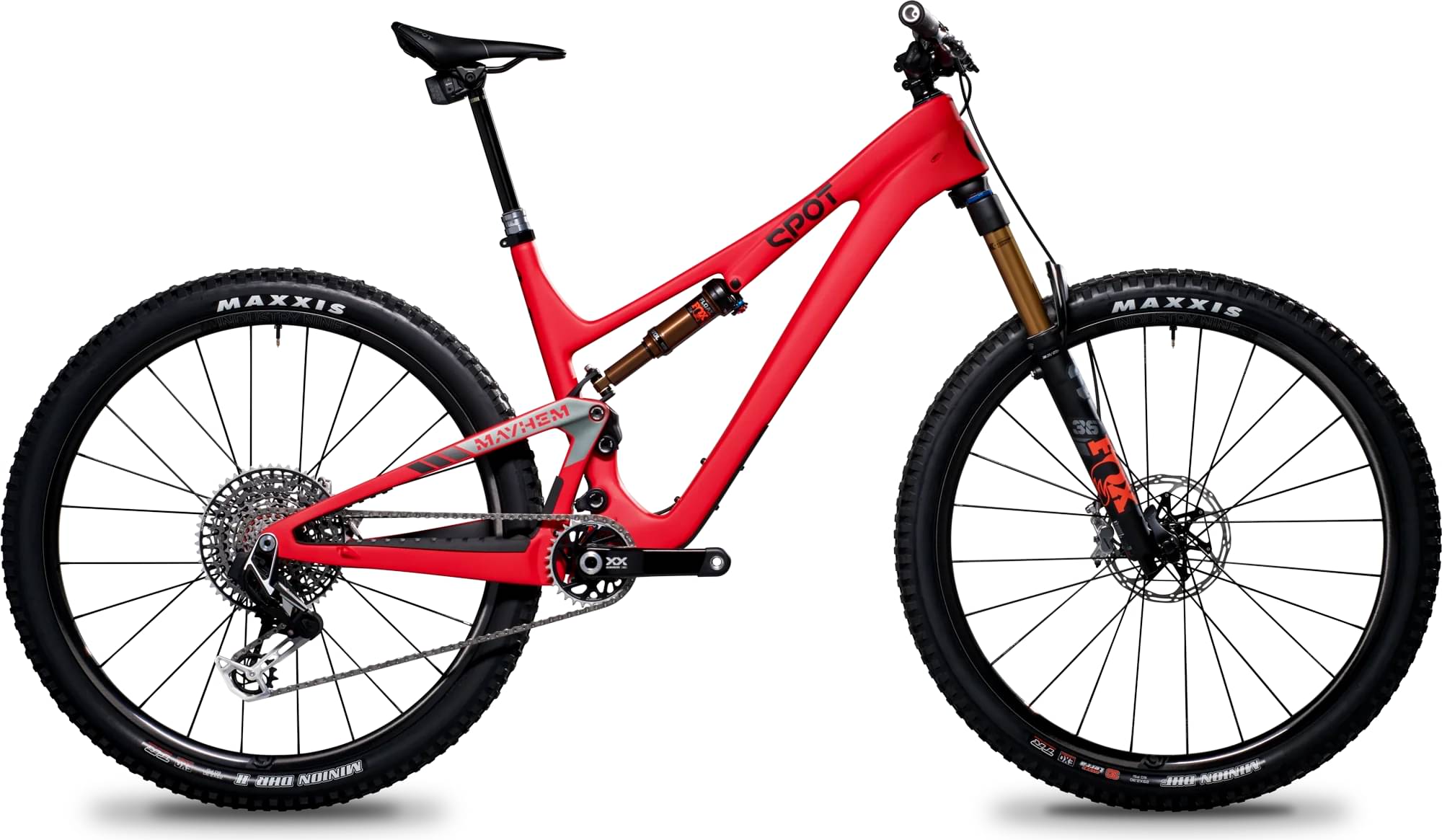

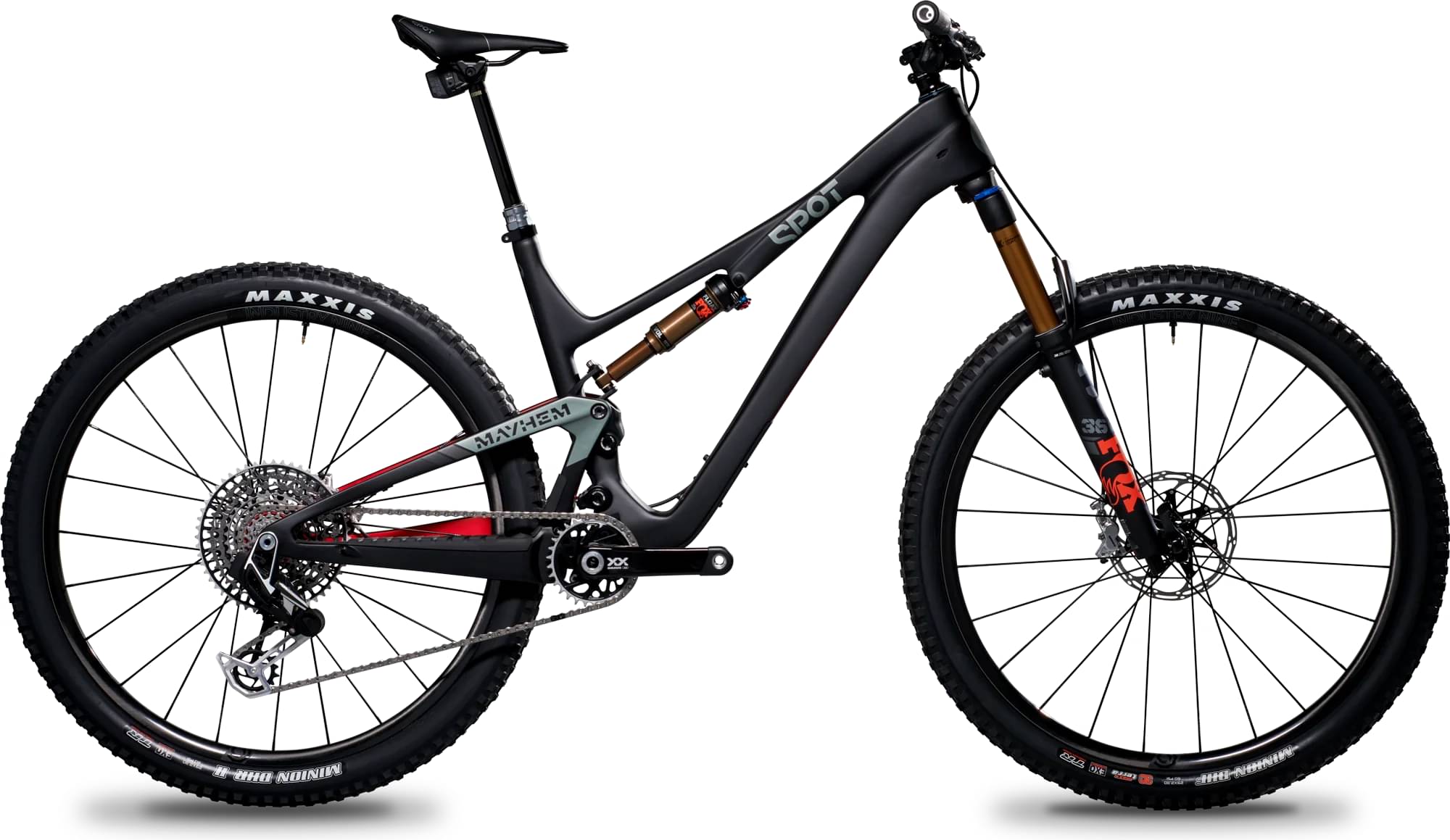

Spot Brand Spot Mayhem 130 6-Star AXS 2024
2024 Mountain
Estimate price |
9,399$
Weight | 12.75 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

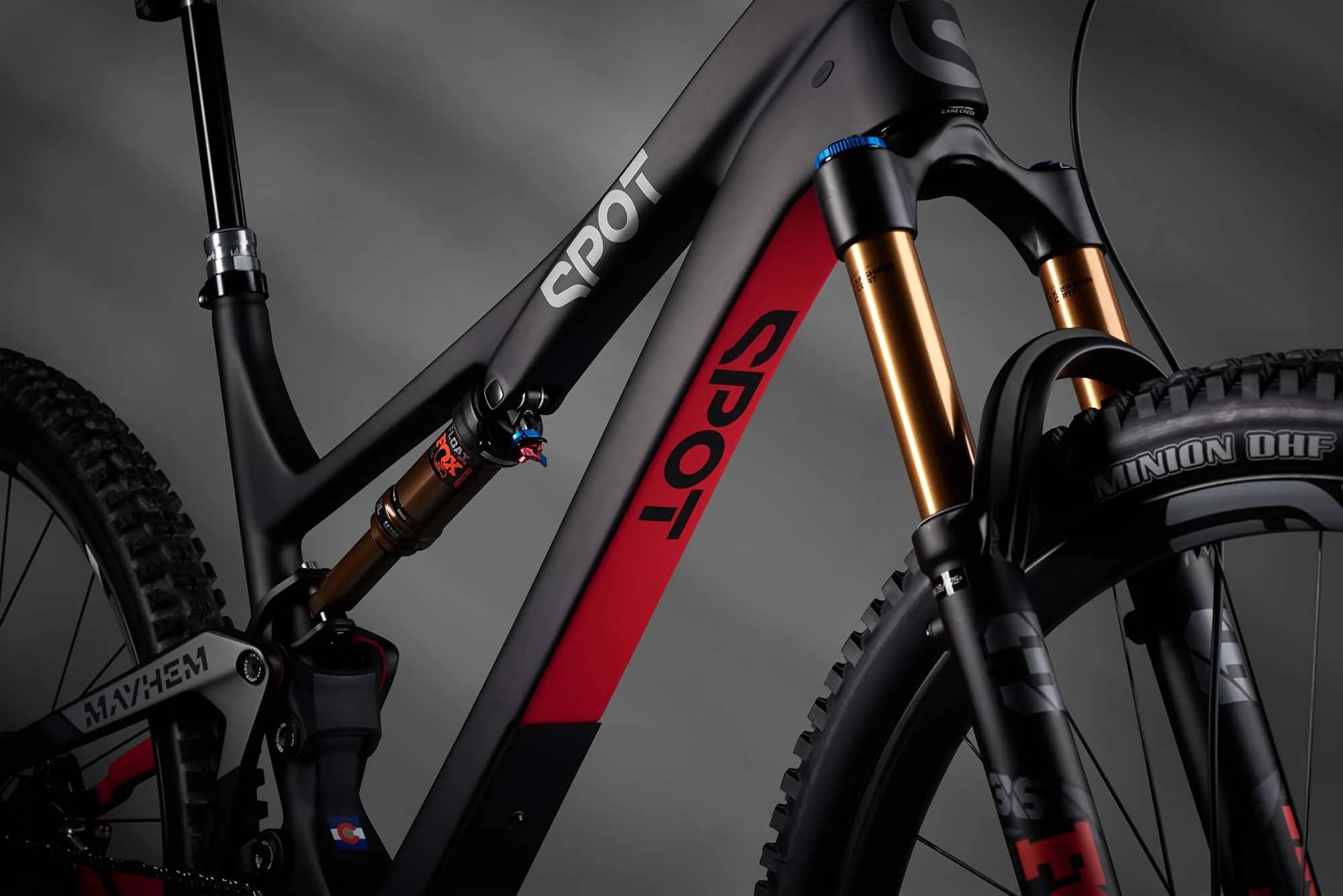

Suspension Fork
Fox Factory 36 Float, 29, Grip 2, HSC, LSC, HSR, LSR, 140mm, 44mm rake, Boost

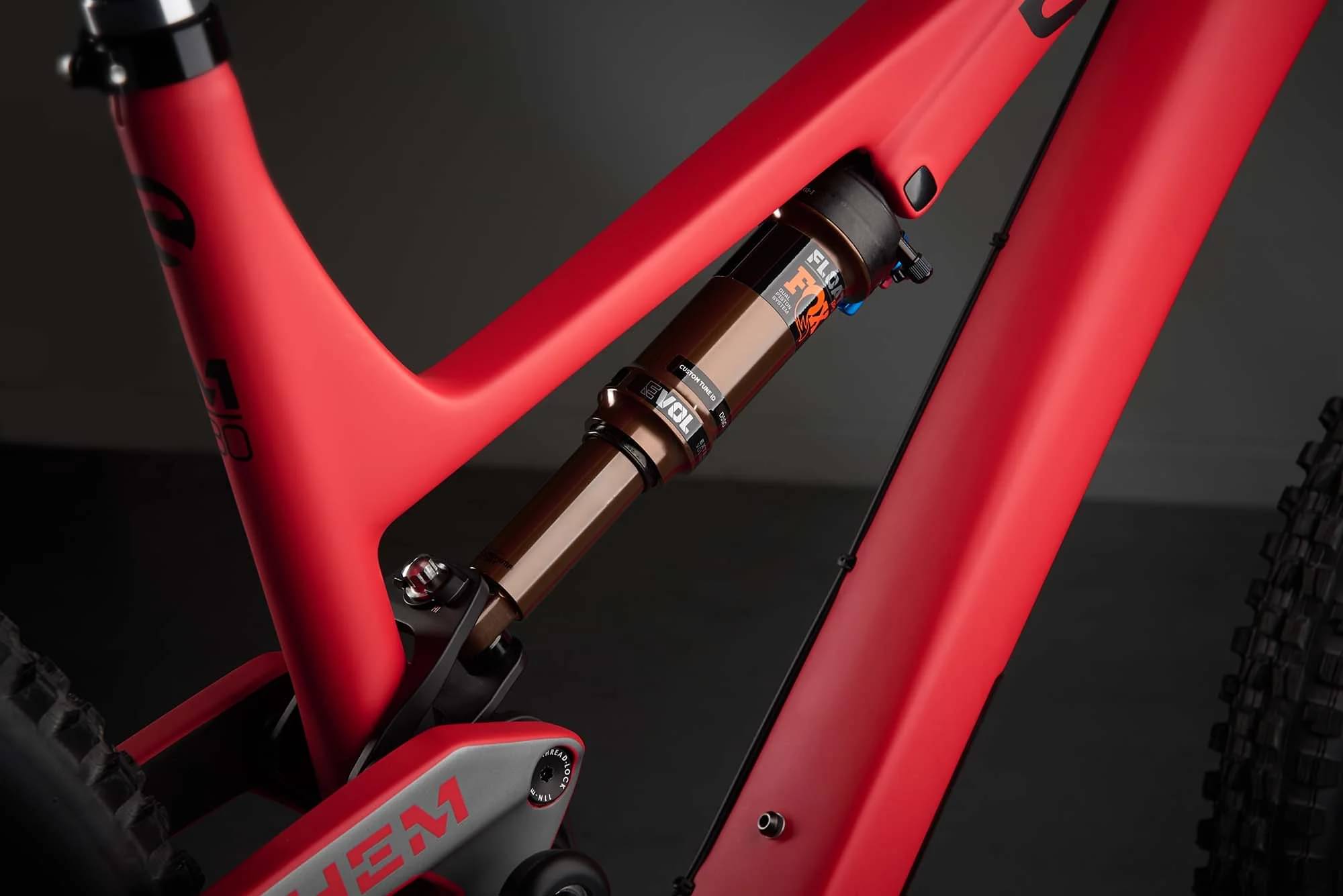

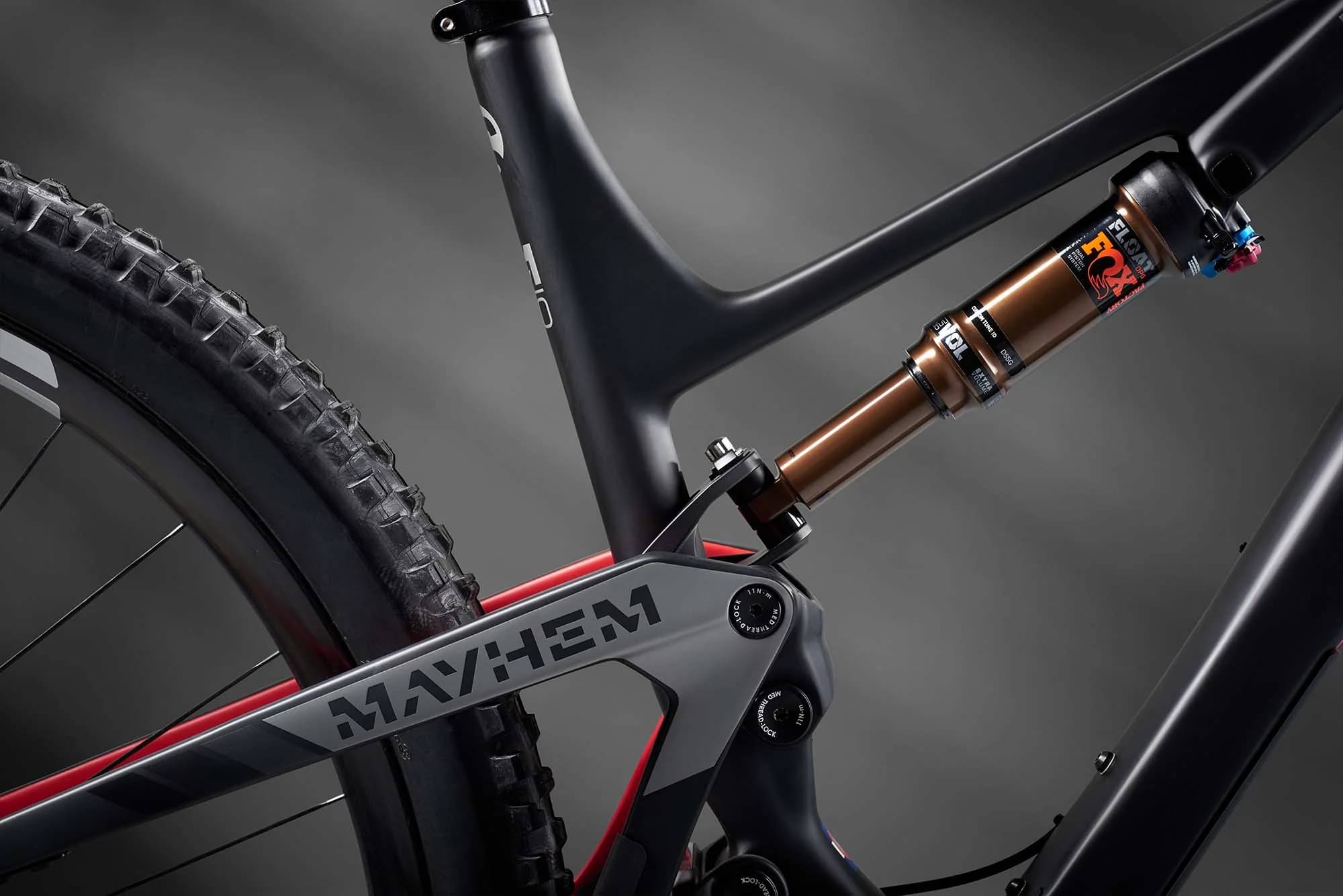

Rear Shock
Fox Factory Float DPS EVOL LV, 3 Pos. Adj. 230x57.5
Drivetrain
Rear Derailleur
SRAM XX Eagle AXS, Hangerless, Wireless, 12-speed
Shift Levers
SRAM AXS Pod Controller, 12-speed
Cassette
SRAM XX 1297, 12-speed, 10-52t, Black
Crank
SRAM XX Carbon Eagle, B148, 170mm, 30t
Bottom Bracket
SRAM DUB BSA 73mm threaded

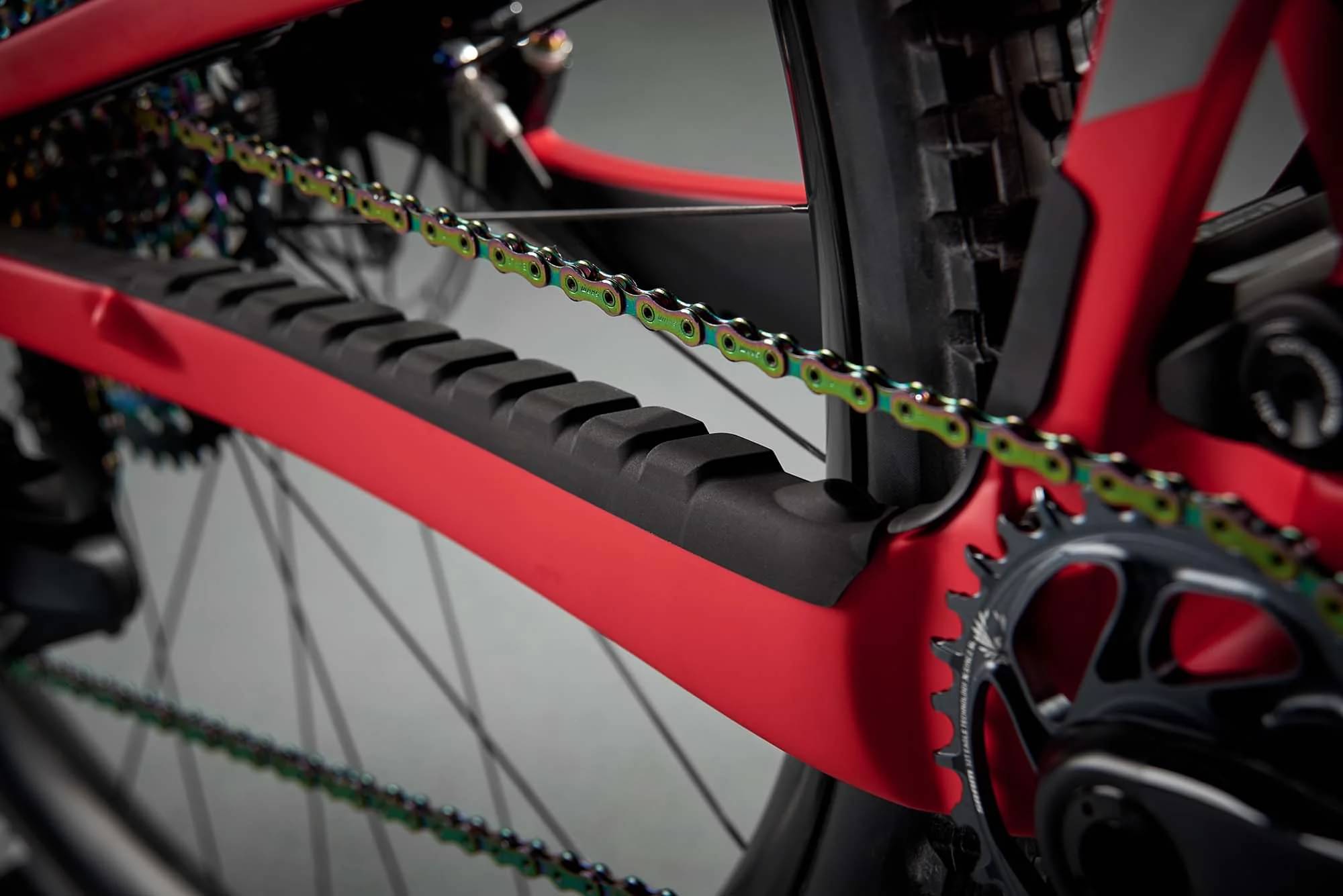

Chain
SRAM XX Eagle, Flattop, Silver
Wheels
Rims
Front: 29: Industry Nine TR300/290 DUO 29, 24h, Tubeless, 6-Bolt, Boost 15x110, 27.5+: Industry Nine EN355 27.5, Tubeless, 6-Bolt, Boost 15x110, Rear: 29: Industry Nine TR300/290 DUO 29, 24h, Tubeless, XD, 6-Bolt, Boost 12x148, 27.5+: Industry Nine EN355 27.5, XD, Tubeless, 6-Bolt, Boost 12x148

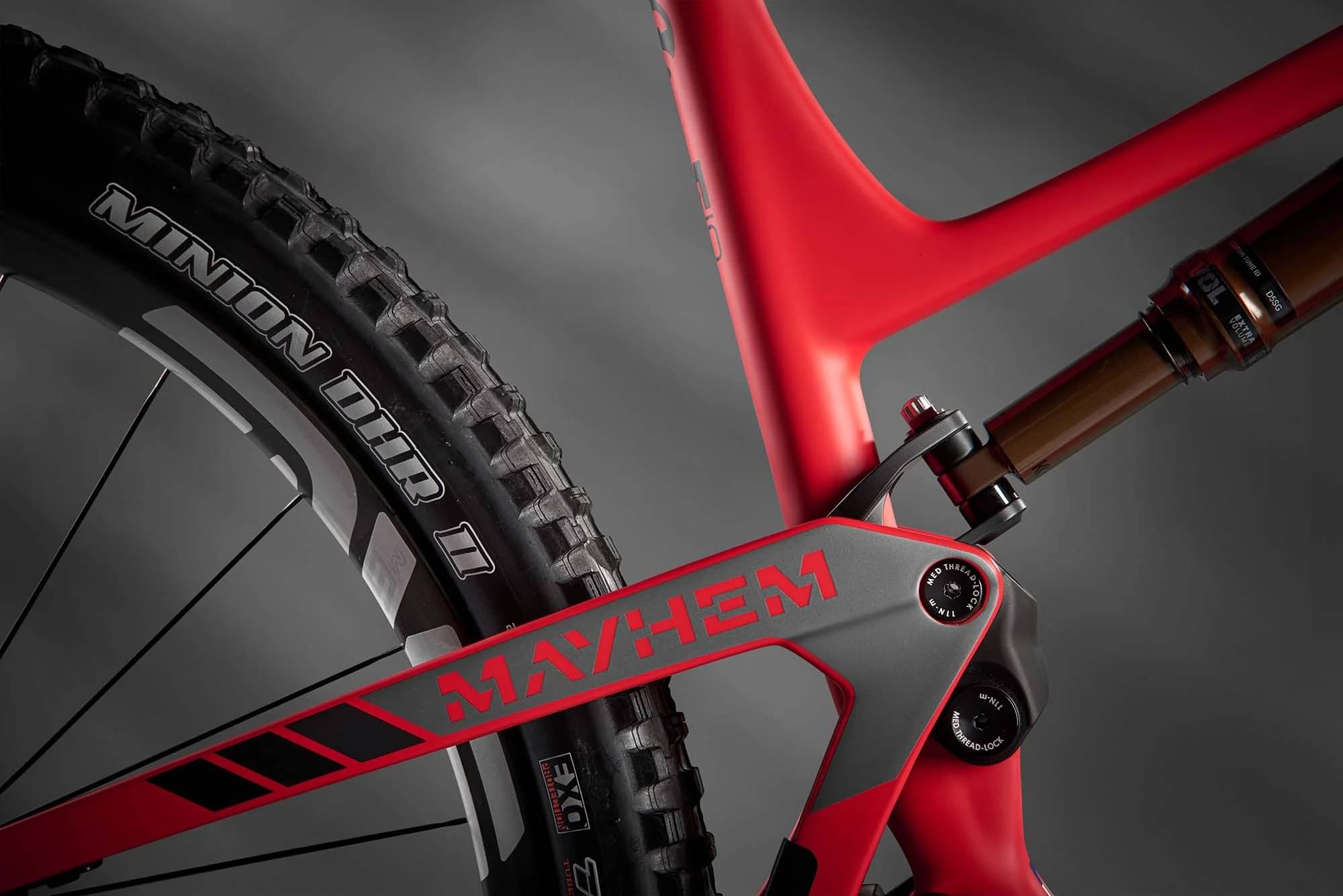

Tires
Front: Maxxis Minion DHF 29x2.3, 60tpi, 3C Maxx Terra, 27.5+: Maxxis Rekon Plus 27.5x2.8 60tpi Dual EXO/TR, Rear: 29: Maxxis Minion DHR 2 29x2.3, 60tpi, Dual EXO/TR, 27.5+: Maxxis Rekon Plus 27.5x2.8 60tpi Dual EXO/TR
Brakes
Brakes
Front: SRAM G2 Ultimate, 4-piston, 180mm, Centerline X, 6-bolt rotor, Rear: SRAM G2 Ultimate, 4-piston, 180mm, Centerline X, 6-bolt rotor

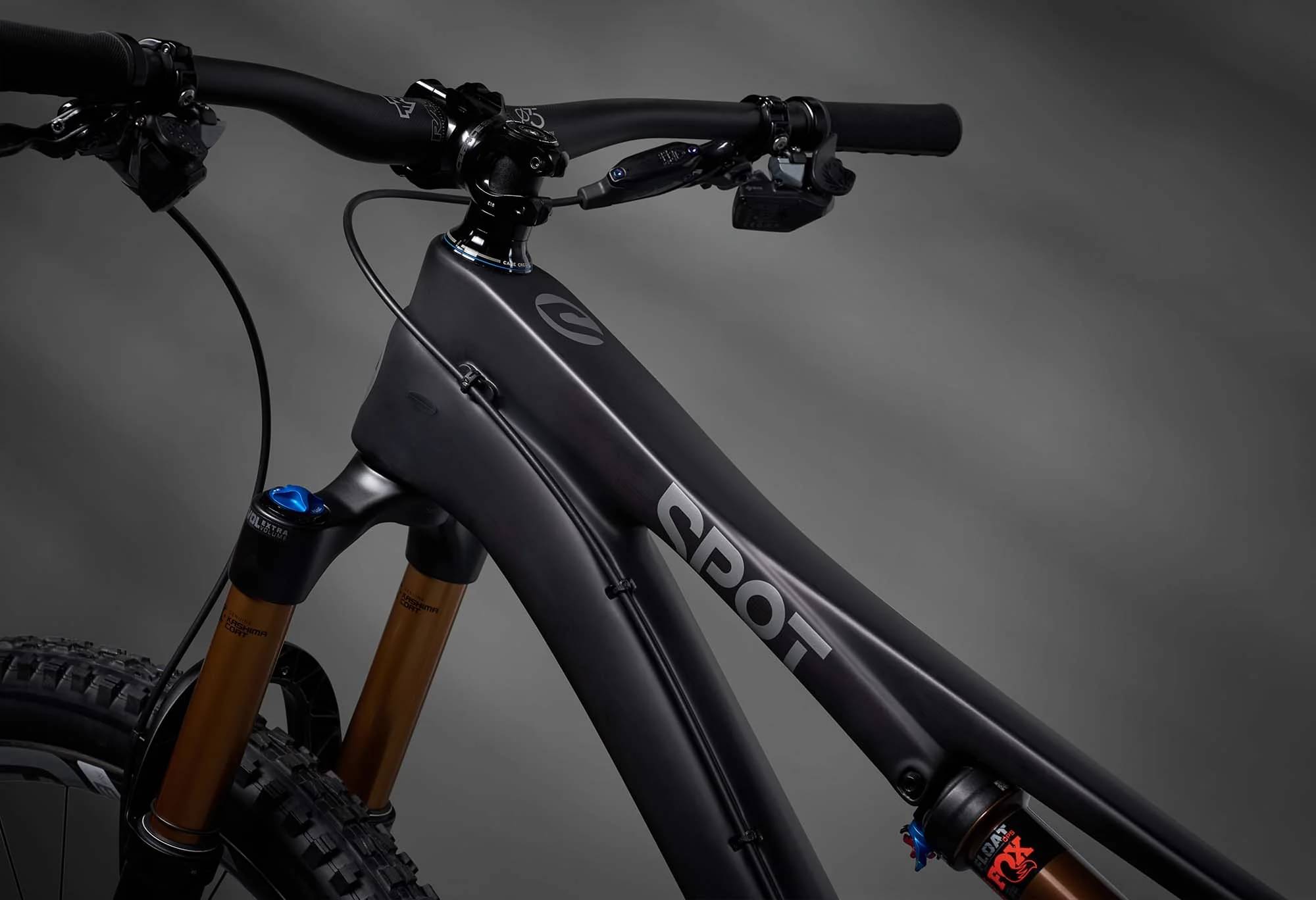

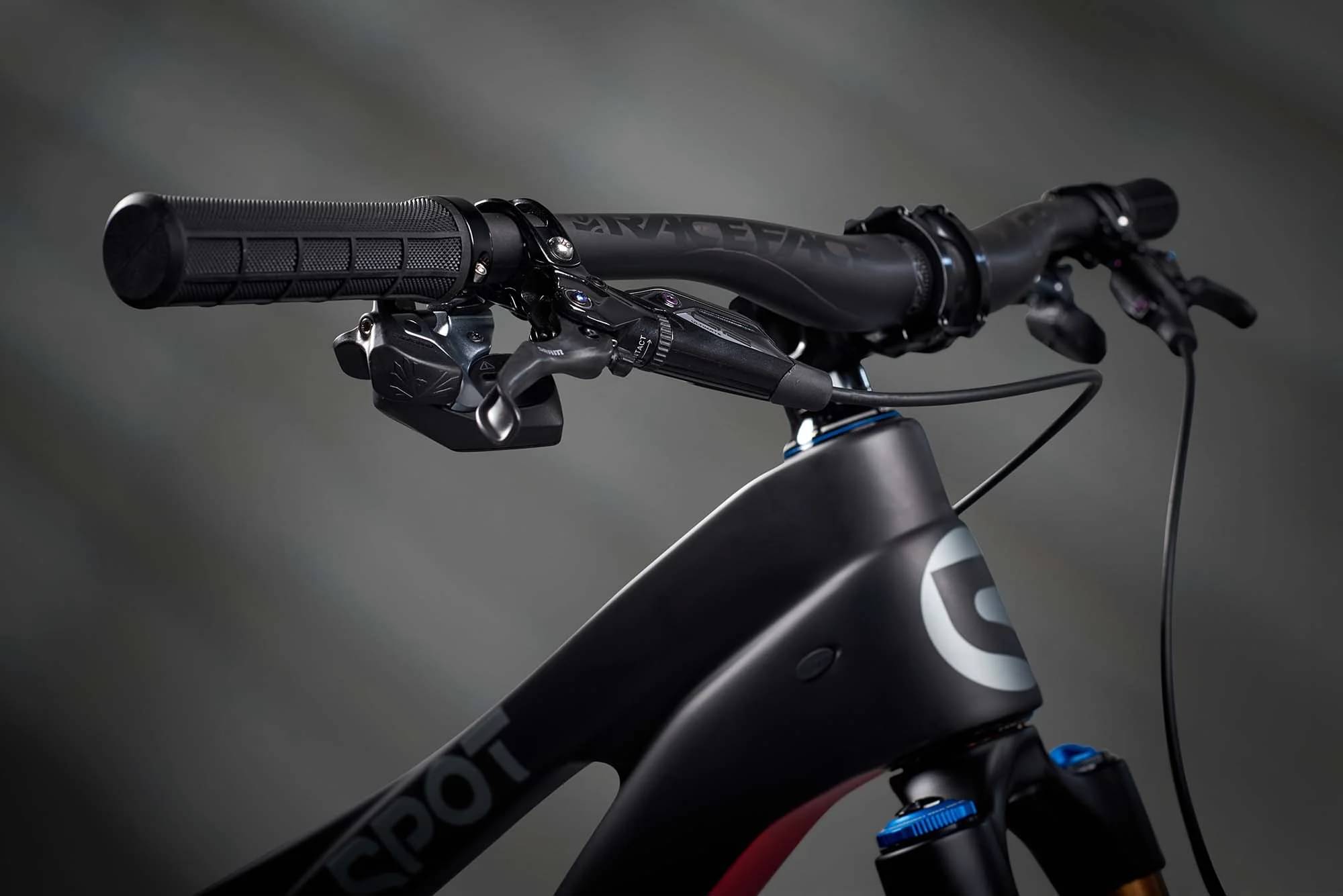

Cockpit
Stem
Race Face Turbine R, 35 x 50mm
Handlebar
OneUp, 35mm, XL 800mm, LG 780mm, MD 760mm, SM 750mm, 20mm rise, Carbon
Grips
Ergon GXR, Black
Headset
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Seat
Saddle
SDG Bel-Air V3
Seatpost
SRAM AXS Wireless 170mm for XL and Large, 150mm for Medium, 125mm for Small, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.439 mm | 1.439 mm | 1.391 mm | 1.391 mm | 1.346 mm | 1.346 mm | 1.296 mm | 1.296 mm |
| Bottom Bracket Height | 336 mm | 344 mm | 336 mm | 344 mm | 336 mm | 344 mm | 336 mm | 344 mm |
| Front Center | 719 mm | 719 mm | 750 mm | 750 mm | 782 mm | 782 mm | 811 mm | 811 mm |
| Rake | 45 mm | 45 mm | 44 mm | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 111 mm | 120 mm | 112 mm | 121 mm | 111 mm | 120 mm | 111 mm | 120 mm |
| Stack | 597 mm | 597 mm | 612 mm | 612 mm | 626 mm | 626 mm | 635 mm | 635 mm |
| Reach | 415 mm | 415 mm | 440 mm | 440 mm | 465 mm | 465 mm | 490 mm | 490 mm |
| Top Tube Length | 569 mm | 569 mm | 593 mm | 593 mm | 615 mm | 615 mm | 637 mm | 637 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 76 ° | 76 ° | 76.5 ° | 76.5 ° | 77 ° | 77 ° |
| Seat Tube Length | 356 mm | 356 mm | 407 mm | 407 mm | 457 mm | 457 mm | 495 mm | 495 mm |
| Head Tube Angle | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 105 mm | 120 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1154 mm | 1154 mm | 1185 mm | 1185 mm | 1217 mm | 1217 mm | 1246 mm | 1246 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 707 mm | 707 mm | 707 mm | 707 mm | 707 mm | 707 mm | 707 mm | 707 mm |
| Wheels | 27" | 29" | 27" | 29" | 27" | 29" | 27" | 29" |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 168 cm | 178 cm | 178 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 199 cm | 199 cm |
