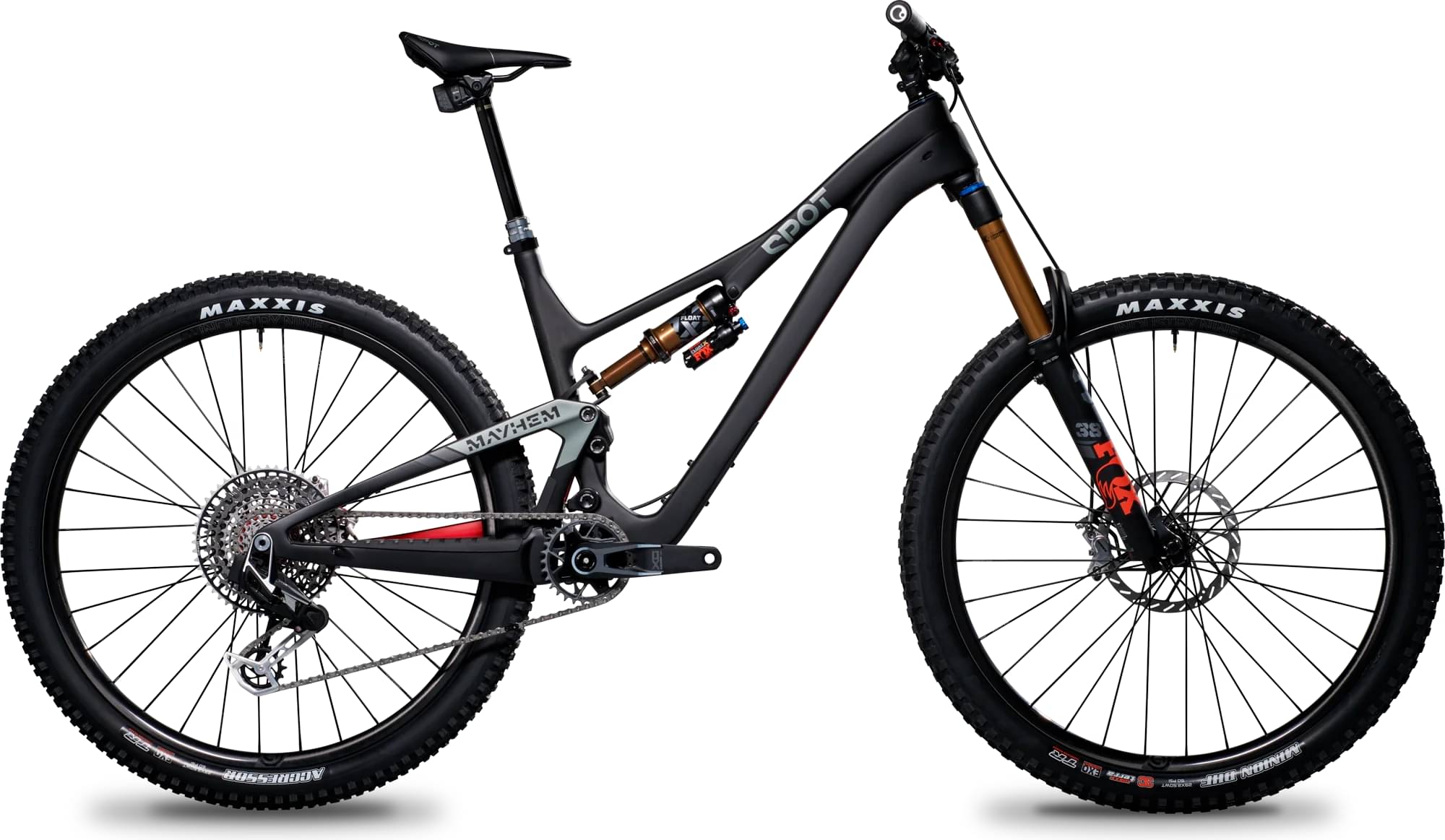

Spot Brand Spot Mayhem 150 6-Star AXS 2024
2024 Mountain
Estimate price |
9,599$
Weight | 13.47 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle AXS, X0 -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox Factory 36 Float, 29, Grip 2, HSC, LSC, HSR, LSR, 160mm, 44mm rake, Boost

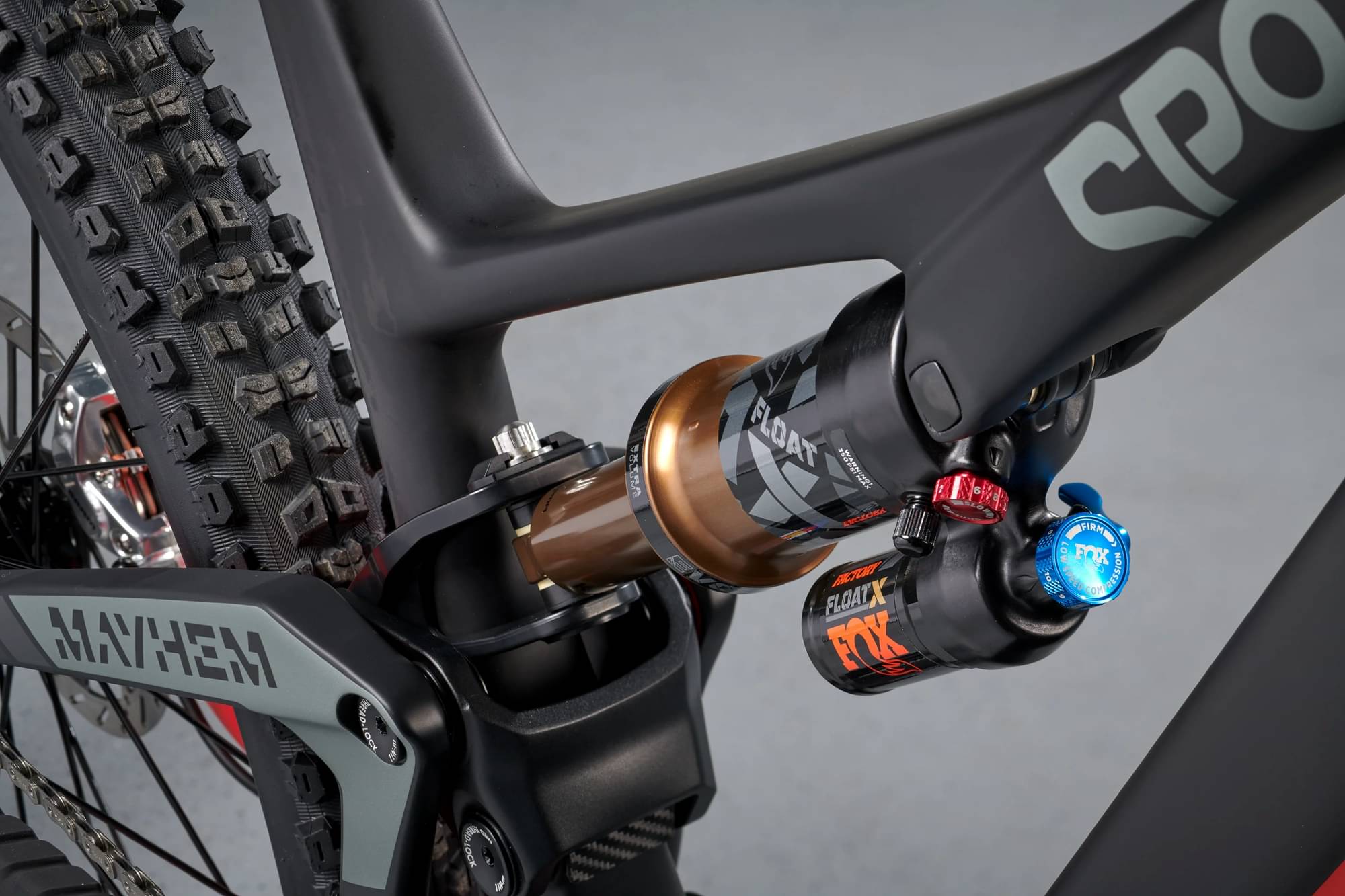

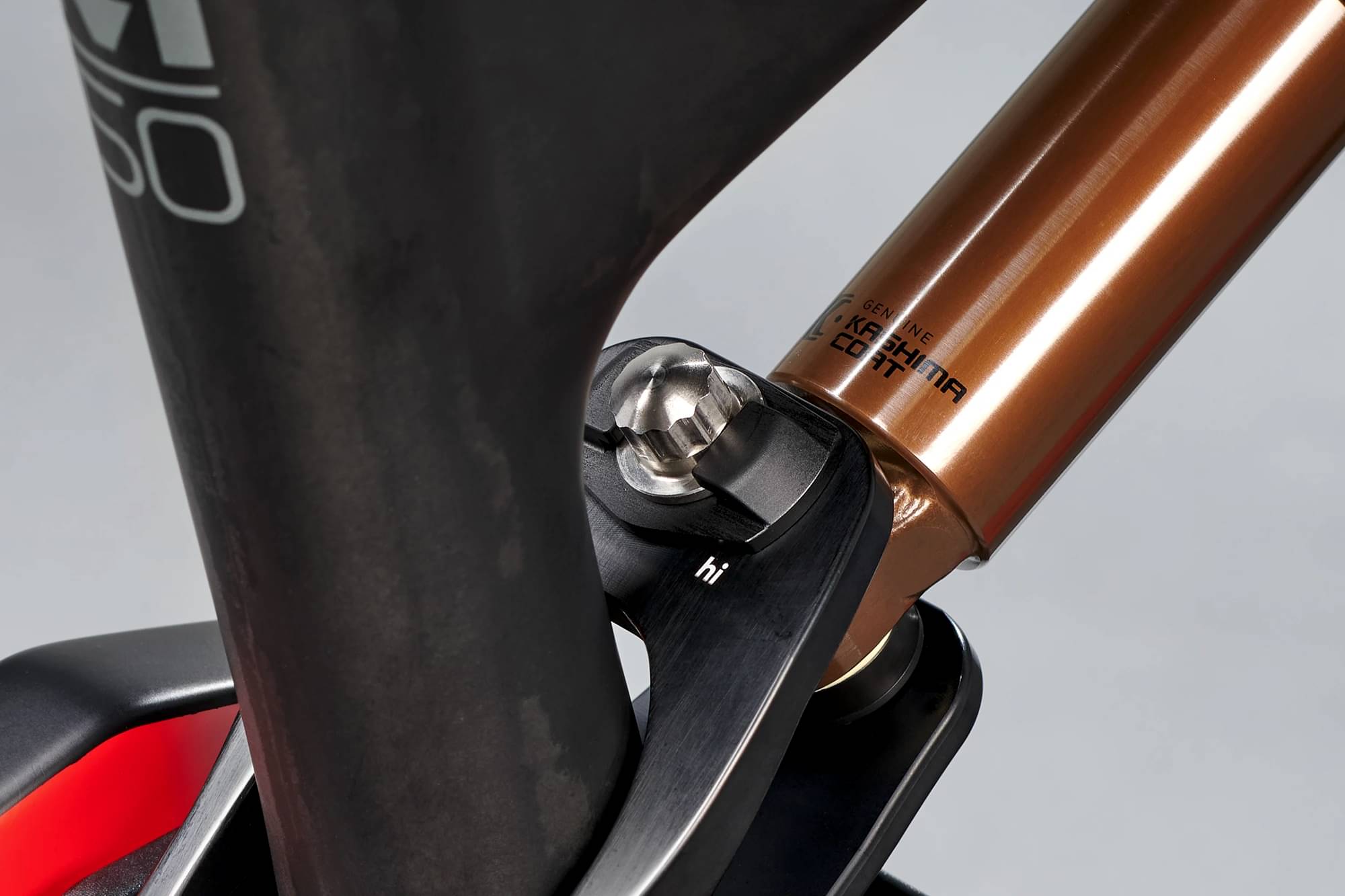

Rear Shock
Fox Factory Float X, 2 Pos. Adj. 230x65
Drivetrain
Rear Derailleur
SRAM X0 Eagle AXS Wireless, Hangerless, 12-speed
Shift Levers
SRAM AXS Pod Controller, 12-speed
Cassette
SRAM X0 1295, 12-speed, 10-52t, Black
Crank
SRAM X0 Eagle, B148, 170mm, 30t
Bottom Bracket
SRAM DUB BSA 73mm threaded
Chain
SRAM X0 Eagle, Flattop, Black
Wheels
Rims
Front: Industry Nine EN325/310 DUO 29, 32H, Tubeless, 6-Bolt, Boost 15x110, Rear: Industry Nine EN325/310 DUO 29, 32H, Tubeless, 6-Bolt, Boost 12x148, XD
Tires
Front: Maxxis Minion DHF 29x2.5 WT, 60tpi, 3C Maxx Terra, Rear: Maxxis Agressor 29x2.5 WT, 60tpi, EXO/TR
Brakes

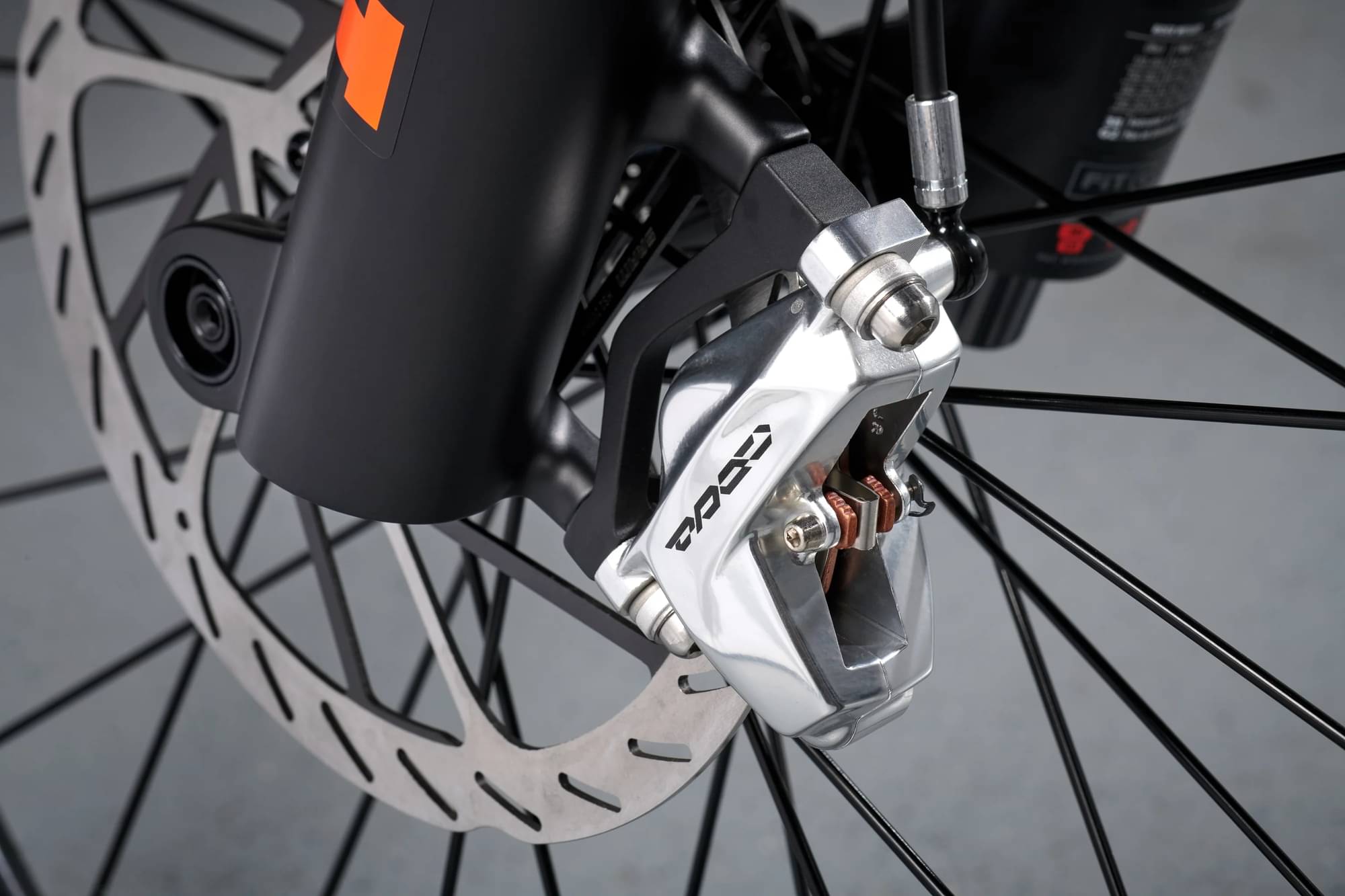

Brakes
Front: SRAM CODE Ultimate Stealth, 4-piston, 200mm, HS2, 6-bolt rotor, Rear: SRAM CODE Ultimate Stealth, 4-piston, 180mm, HS2, 6-bolt rotor

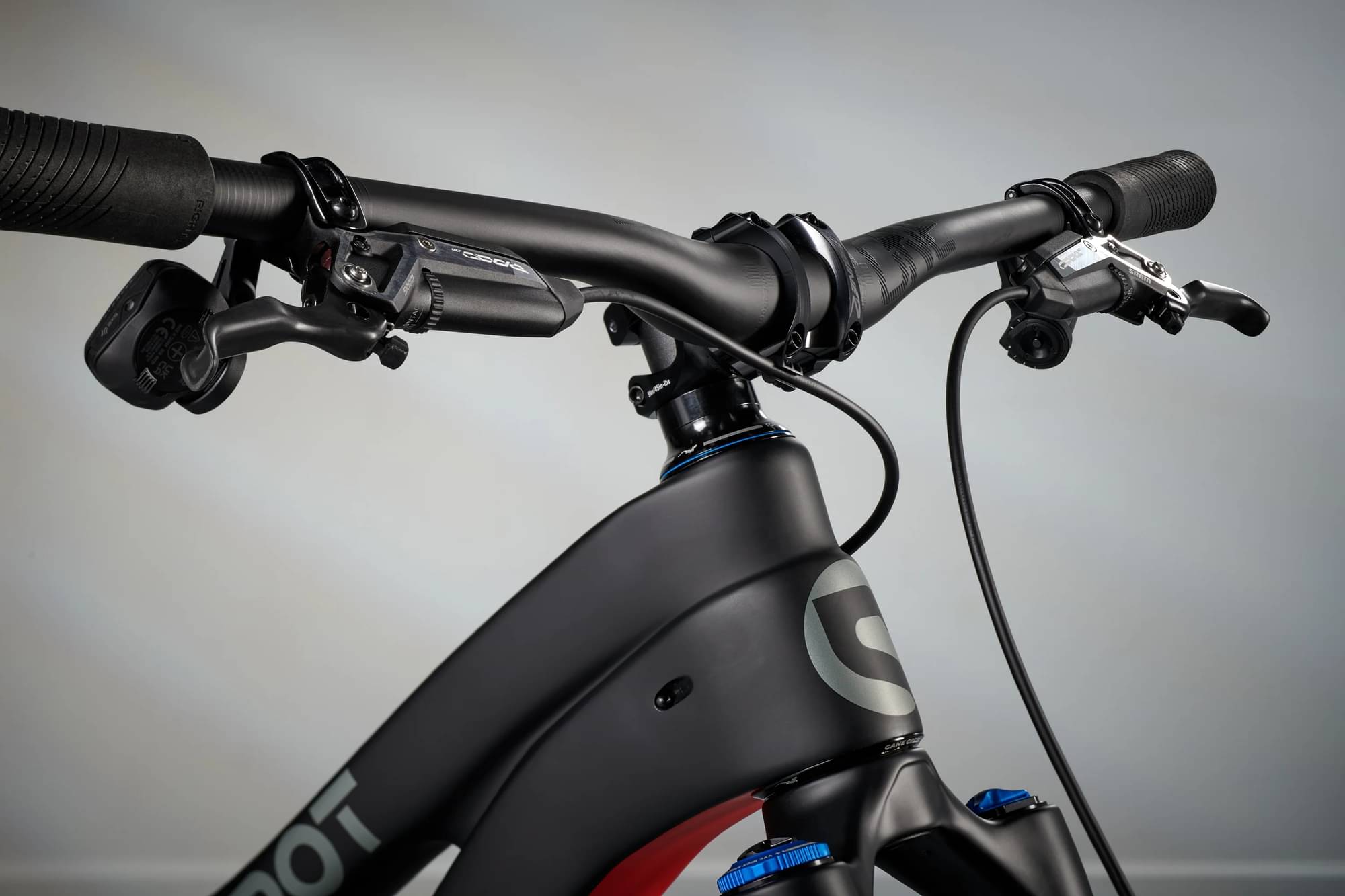

Cockpit
Stem
Race Face Turbine R, 35 x 40mm
Handlebar
>OneUp, 35mm, XL/LG 800mm, MD 780mm, SM 760mm, 20mm rise, Carbon
Grips
Ergon GXR, Black

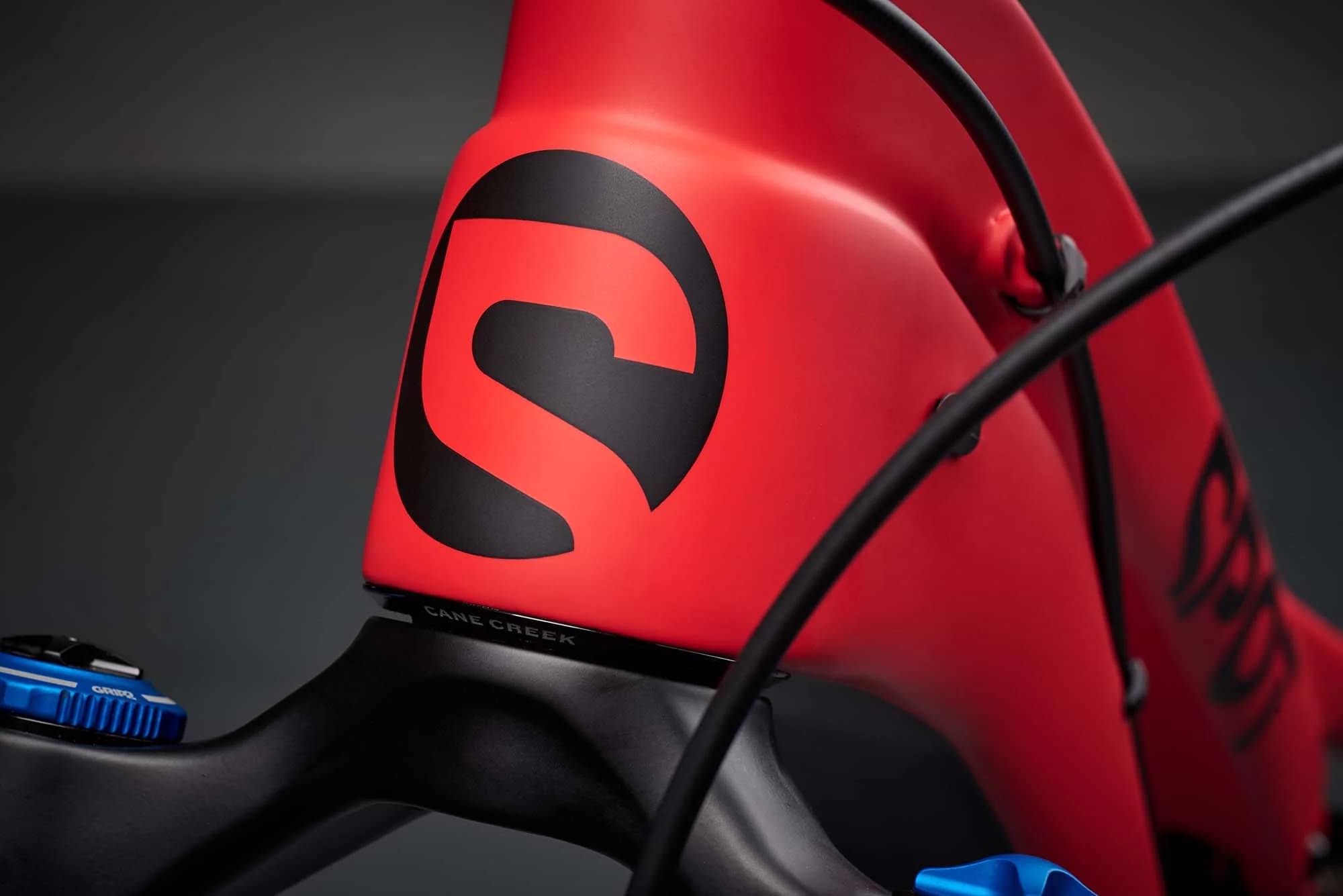

Headset
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Seat
Saddle
SDG Bel-Air V3
Seatpost
SRAM AXS Wireless 170mm for XL and Large, 150mm for Medium, 125mm for Small, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.409 mm | 1.34 mm | 1.276 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 731 mm | 765 mm | 798 mm | 834 mm |
| Rake | 45 mm | 45 mm | 43 mm | 45 mm |
| Trail | 125 mm | 125 mm | 127 mm | 125 mm |
| Stack | 611 mm | 620 mm | 630 mm | 638 mm |
| Reach | 410 mm | 440 mm | 470 mm | 500 mm |
| Top Tube Length | 545 mm | 577 mm | 610 mm | 642 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 350 mm | 400 mm | 450 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1171 mm | 1205 mm | 1238 mm | 1274 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 705 mm | 705 mm | 705 mm | 705 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
