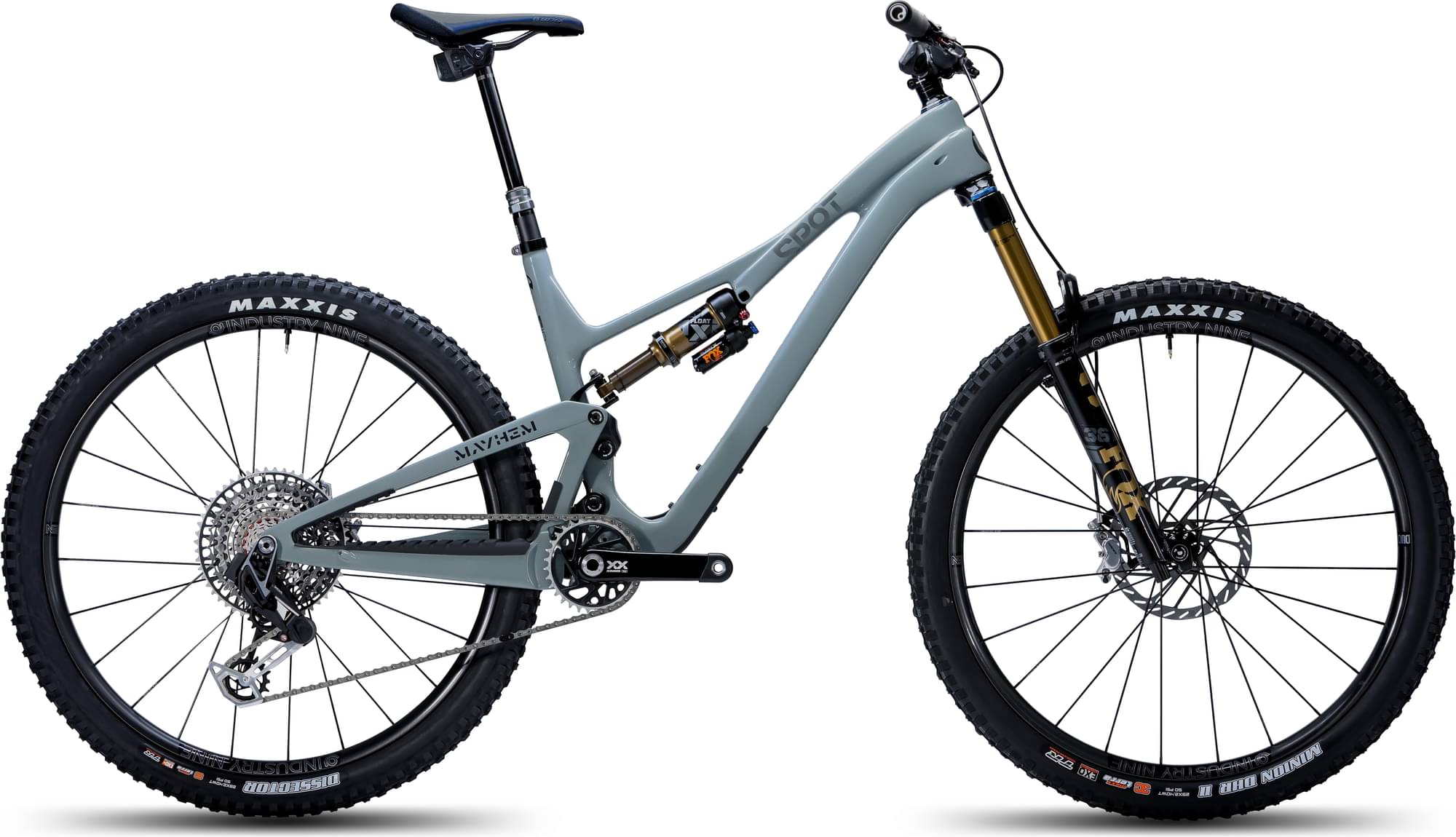

Spot Brand Spot Mayhem 150 Limited Edition 5-Star AXS 2024
2024 Mountain
Estimate price |
7,199$
Weight | 13.88 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle AXS, GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
2025 Fox Factory 36 Grip X2, 160mm, 44mm rake, Boost

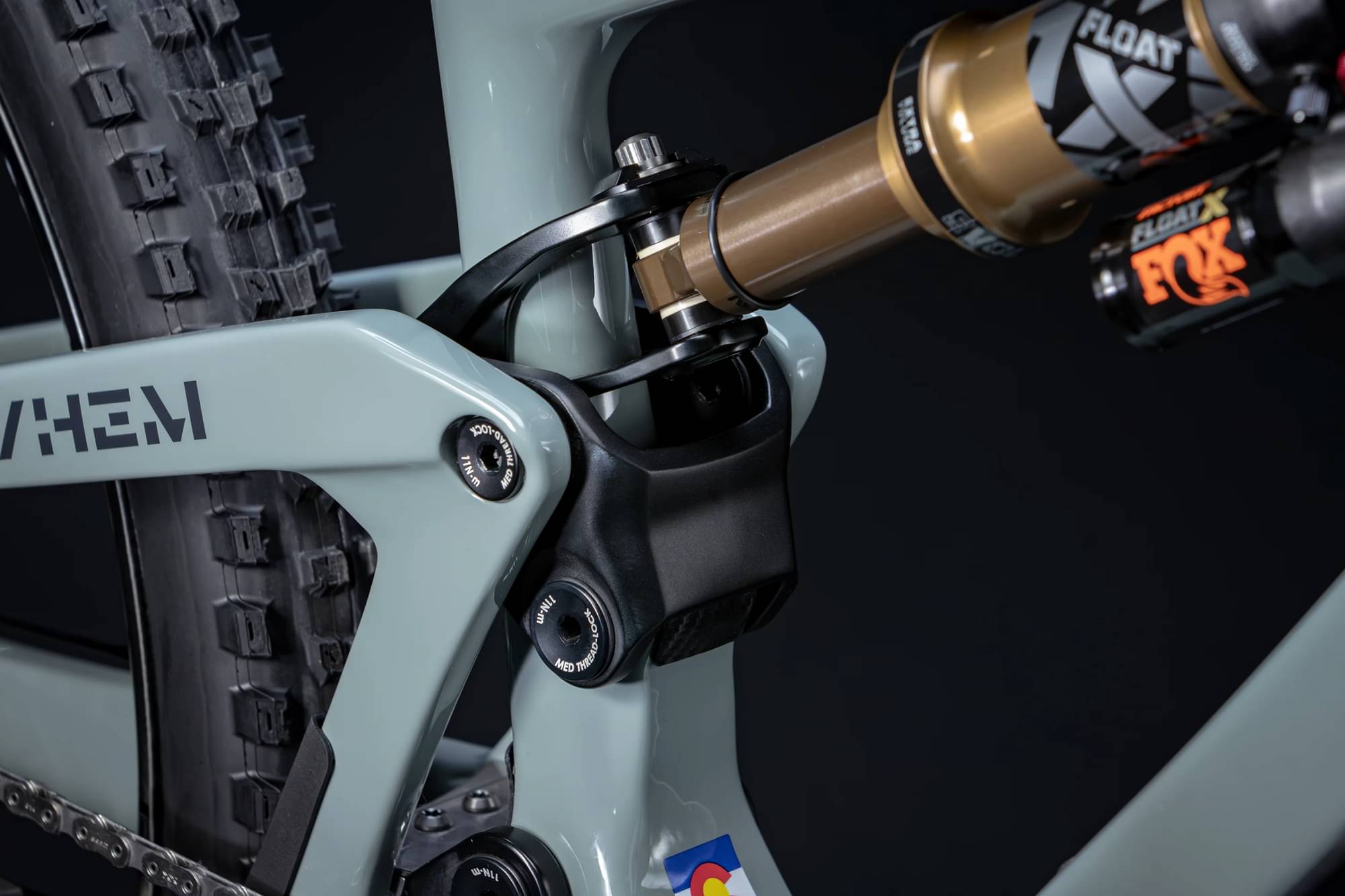

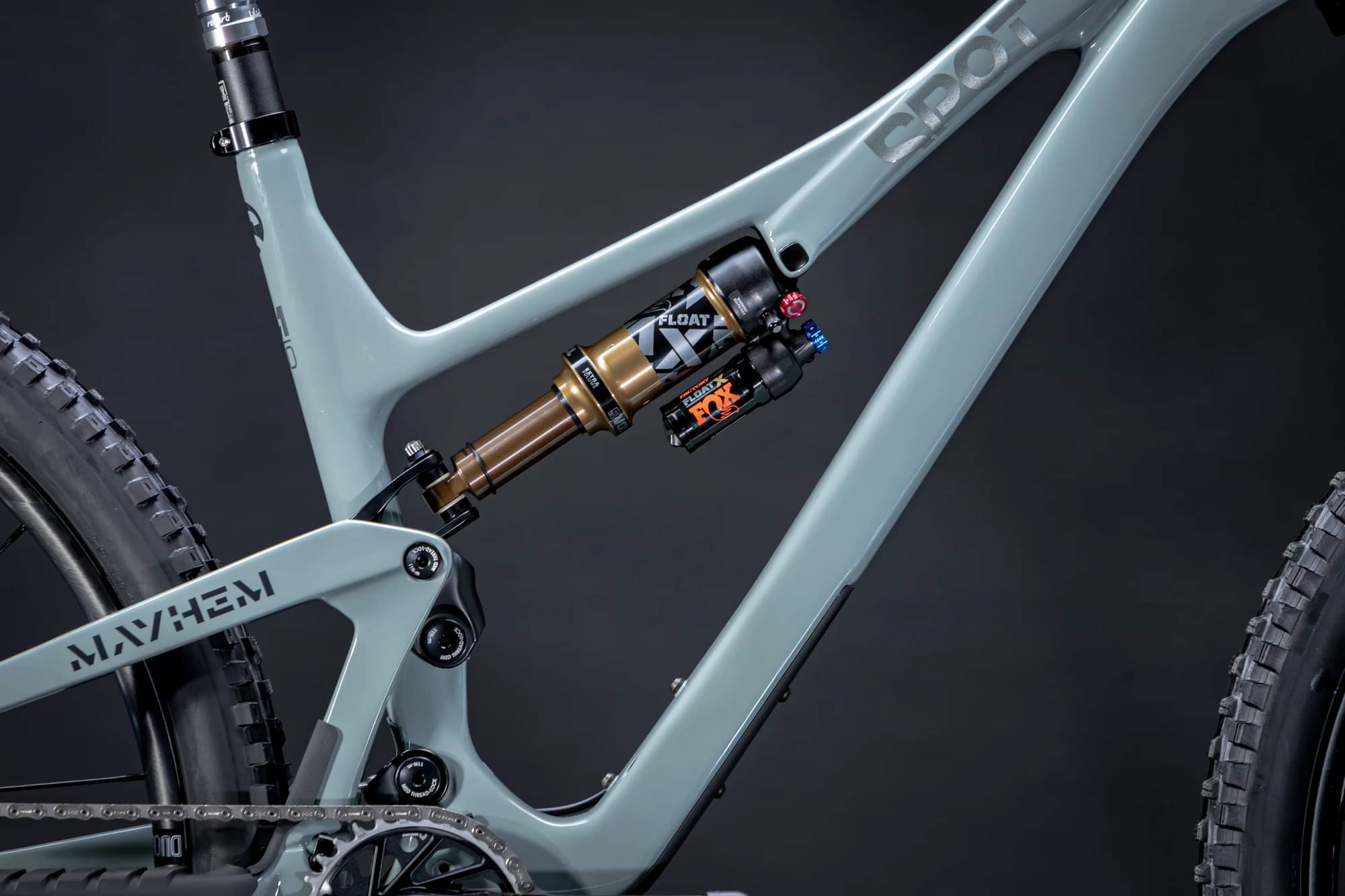

Rear Shock
Fox Factory Float X, 2 Pos. Adj. 230x65
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS Transmission, Wireless, Hangerless, 12-speed
Shift Levers
SRAM Eagle AXS Rocker Controller, 12-speed
Cassette
SRAM GX Transmission 1275, 12-speed, 10-52t
Crank
SRAM GX Eagle Transmission, B148, 170mm, 32t
Bottom Bracket
SRAM DUB BSA 73mm threaded
Chain
SRAM GX Eagle, Flattop, Silver
Wheels
Rims
Front: Industry Nine Enduro S 29, 1/1 hub, Tubeless, Boost 15x110, 6-bolt, Rear: Industry Nine Enduro S 29, 1/1 hub, Tubeless, Boost 12x148, XD, 6-bolt
Tires
Front: Maxxis Minion DHR II 29x2.4 WT, 60tpi, 3C Maxx Terra EXO, Rear: Maxxis Dissector 29x2.4 WT, 60tpi, 3C Maxx Terra EXO+
Brakes
Brakes
Front: SRAM Code Silver Stealth, 200mm, Centerline, 6-bolt rotor, Rear: SRAM Code Silver Stealth, 180mm, Centerline, 6-bolt rotor
Cockpit
Stem
Race Face Turbine R, 35 x 40mm
Handlebar
OneUp, 35mm, XL/LG 800mm, MD 780mm, SM 760mm, 20mm rise, Carbon
Grips
Ergon GXR, Black
Headset
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Seat
Saddle
SDG Bel-Air V3
Seatpost
BikeYoke Revive 185mm for XL and Large, 160mm for Medium, 125mm for Small, Internal, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.409 mm | 1.34 mm | 1.276 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 731 mm | 765 mm | 798 mm | 834 mm |
| Rake | 45 mm | 45 mm | 43 mm | 45 mm |
| Trail | 125 mm | 125 mm | 127 mm | 125 mm |
| Stack | 611 mm | 620 mm | 630 mm | 638 mm |
| Reach | 410 mm | 440 mm | 470 mm | 500 mm |
| Top Tube Length | 545 mm | 577 mm | 610 mm | 642 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 350 mm | 400 mm | 450 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1171 mm | 1205 mm | 1238 mm | 1274 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 705 mm | 705 mm | 705 mm | 705 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
