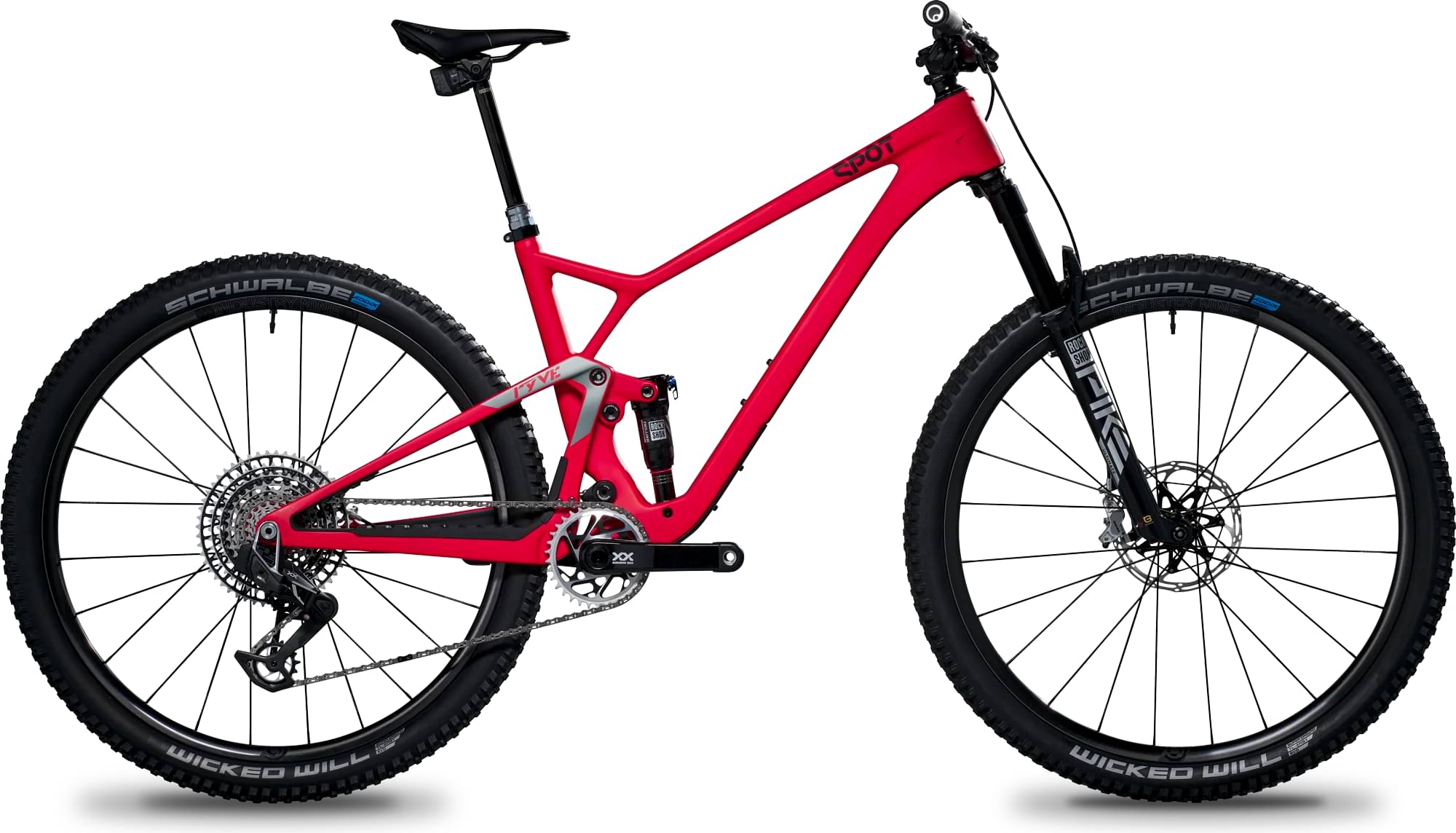

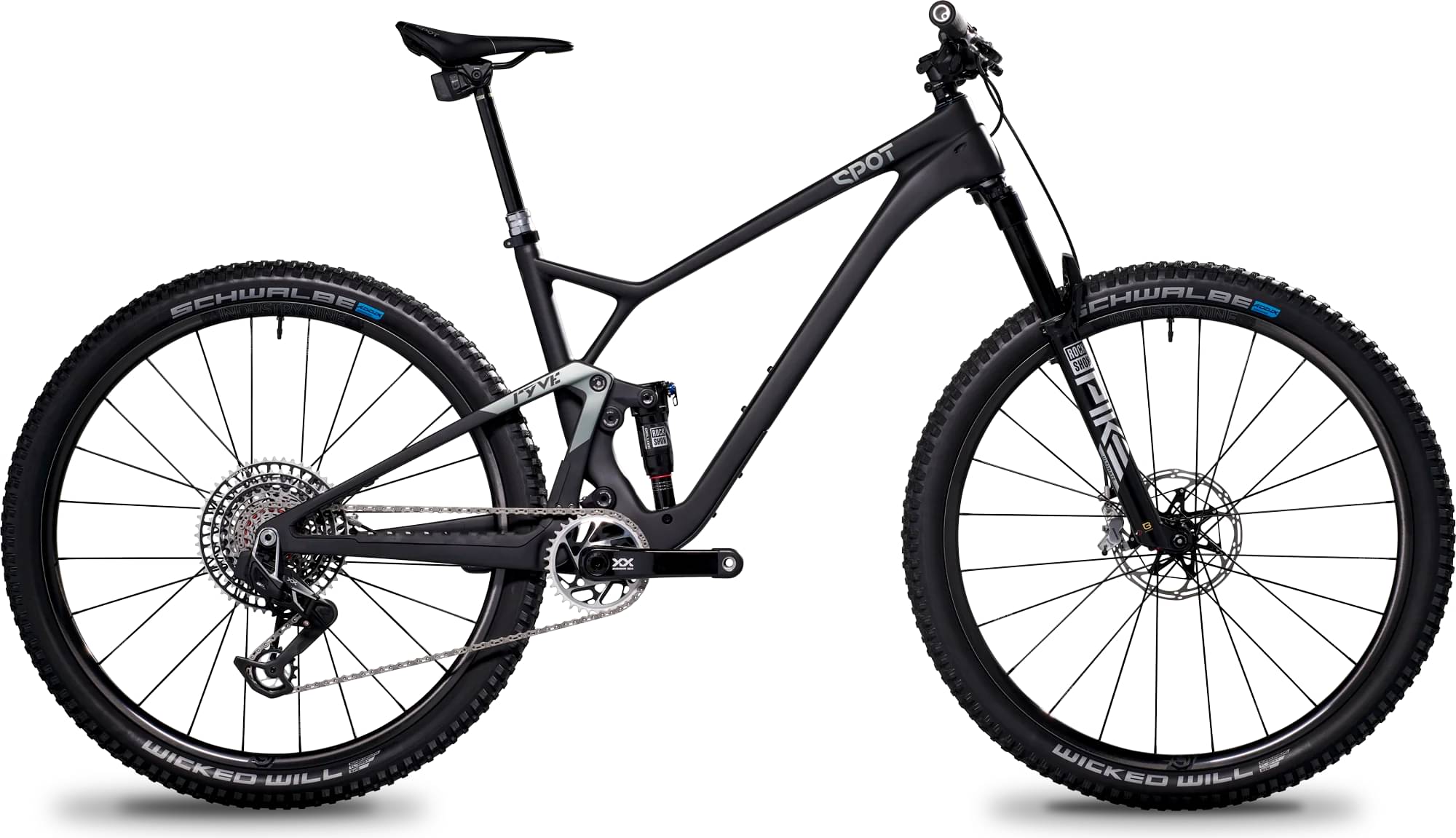

Spot Brand Spot Ryve 115 6-Star XTR 2024
2024 Mountain
Estimate price |
9,199$
Weight | 12.16 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 115mm -
Fork Fox Factory Float 34
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox Factory Float 34 29, 130mm, Grip 2, HSC, LSC, HSR, LSR, 44mm Rake, Boost 15QRx110
Rear Shock
Fox Factory Float DPS EVOL LV, 3 Pos. Adj, Trunnion, 0.4 VS, 165x45
Drivetrain
Rear Derailleur
Shimano M9100 XTR, 12-speed
Shift Levers
Shimano M9100 XTR 12-speed
Cassette
Shimano M9100 XTR, 12-speed, 10-51t
Crank
Shimano M9120 XTR, 170mm, 32t
Bottom Bracket
Shimano SM-BB93 73 mm threaded
Chain
Shimano 9100 XTR
Wheels
Rims
Front: Industry Nine UL300 29, 24h, Tubeless, 6-Bolt, Boost 15x110, Rear: Industry Nine UL300 29, 24h, Tubeless, Microspline, 6-Bolt, Boost 12x148
Tires
Front: Schwalbe Wicked Will 29x2.40, Rear: Schwalbe Wicked Will 29x2.40

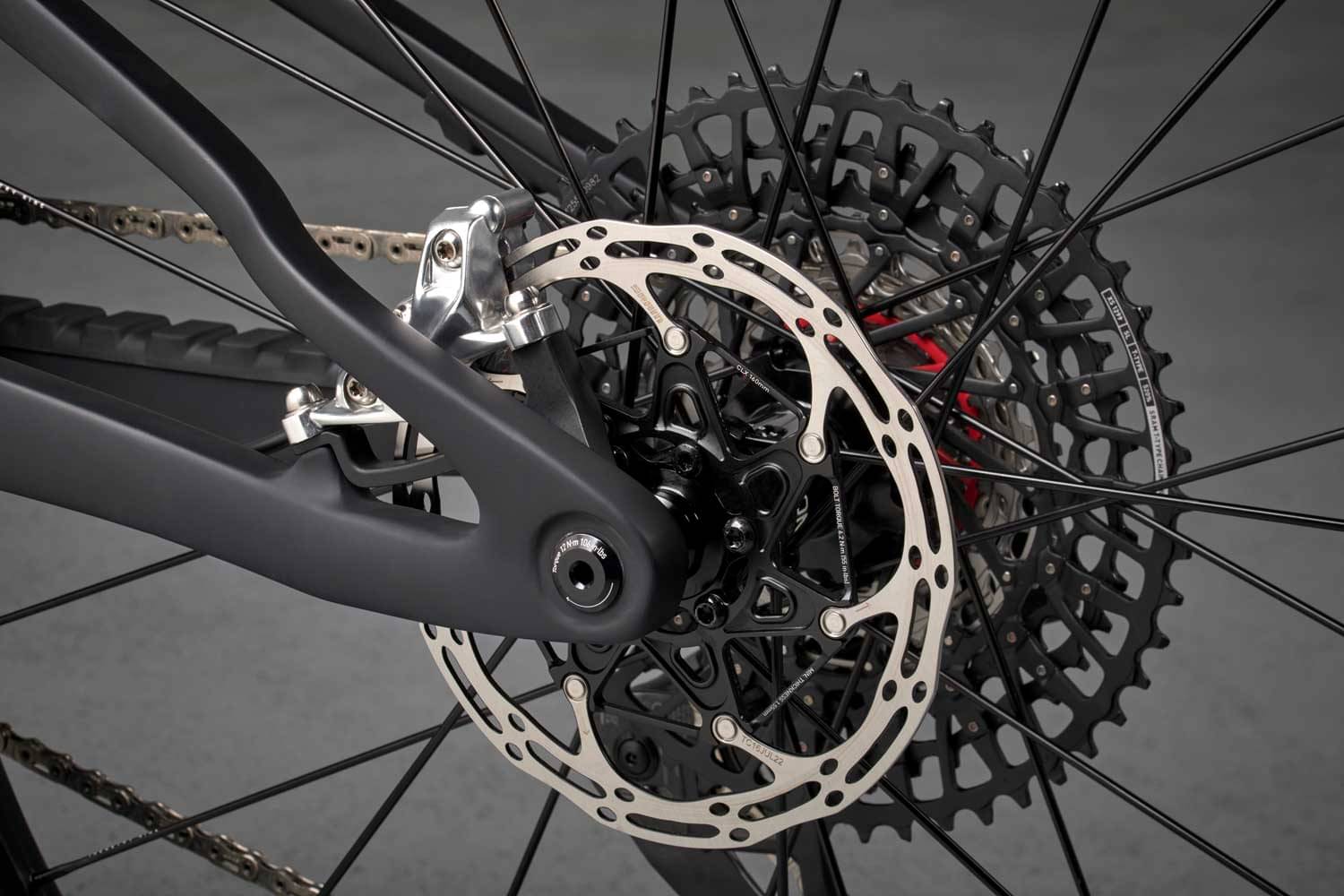

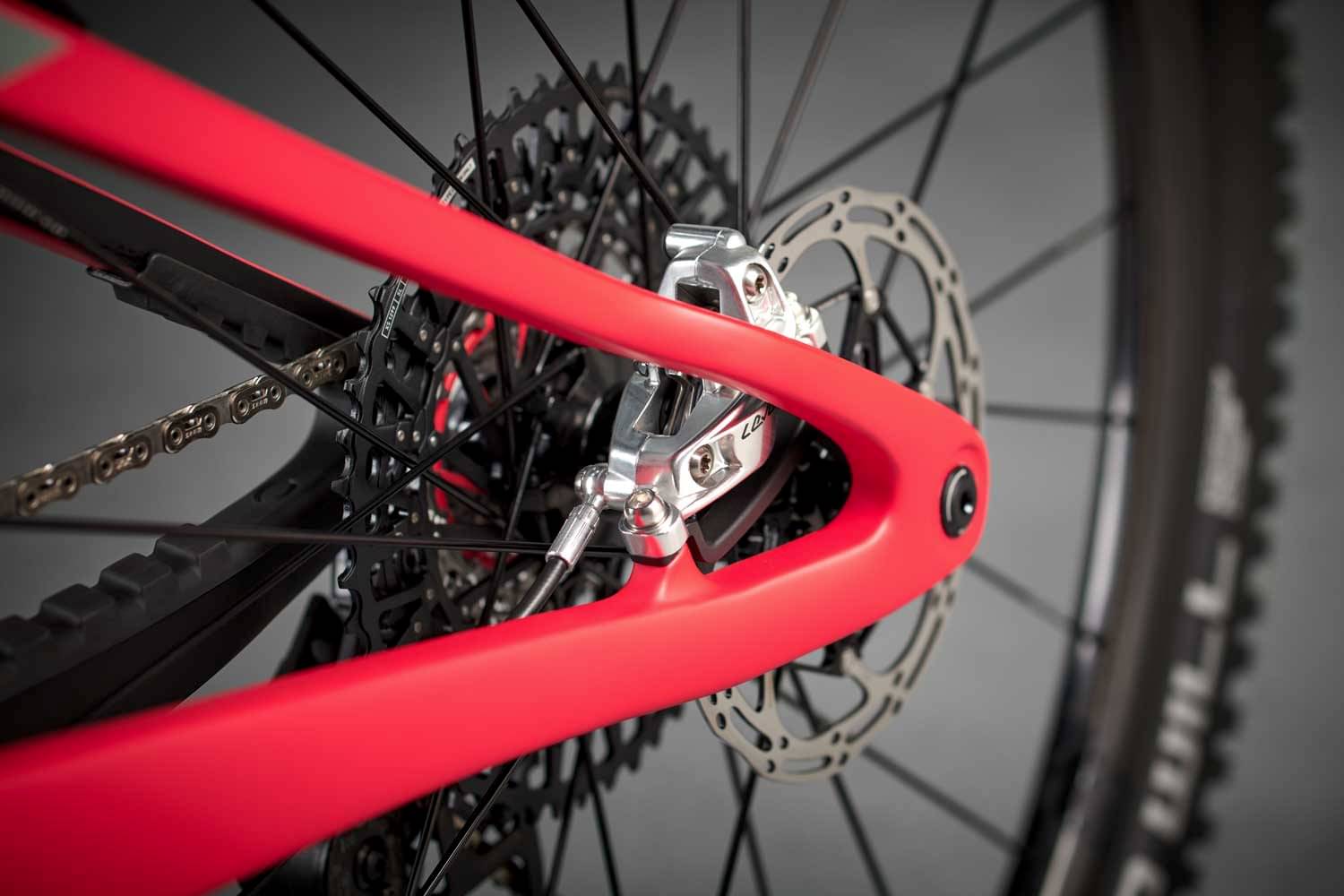

Brakes

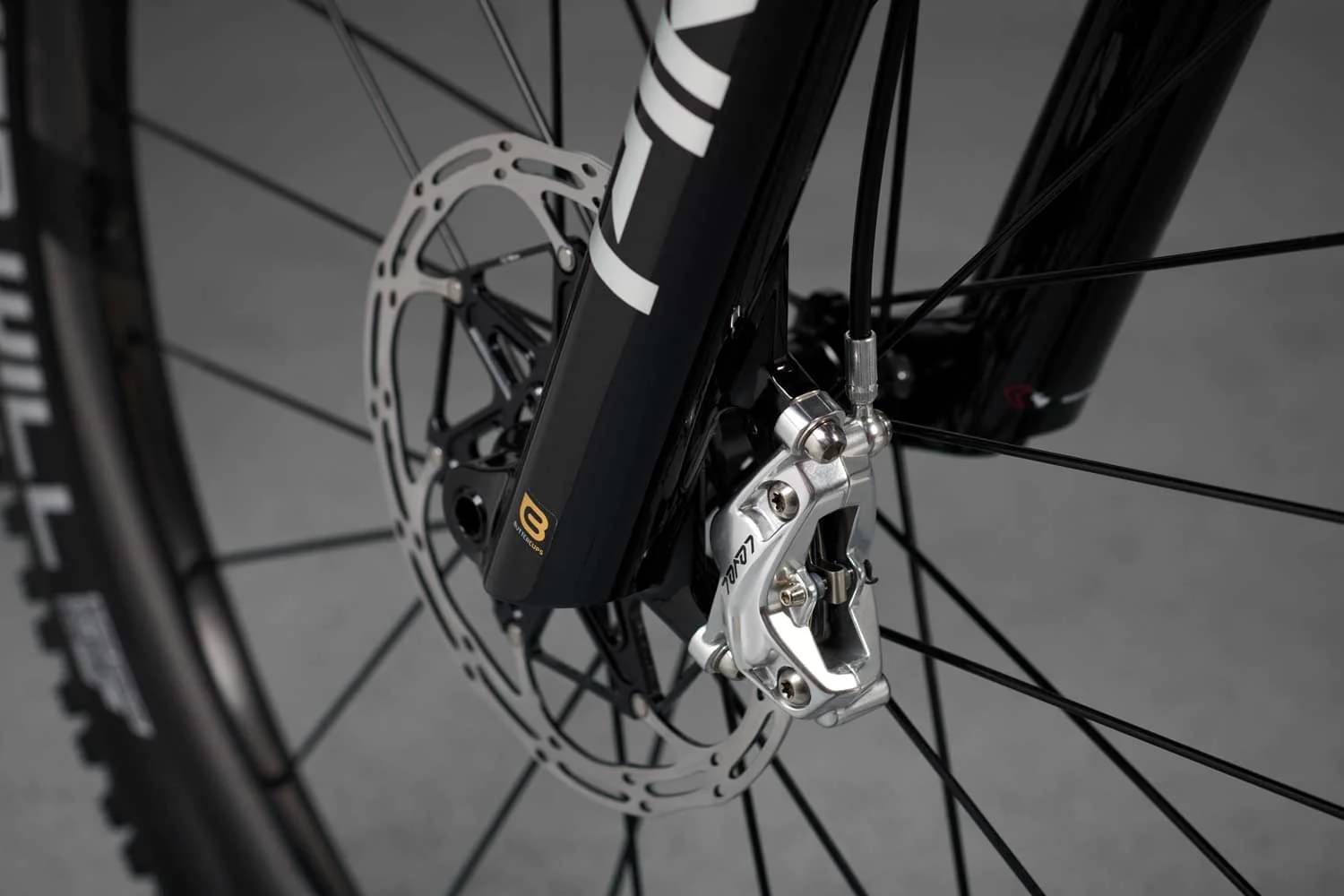

Brakes
Front: Shimano M9120 XTR, 4-piston, 180mm rotor, 6-bolt, Rear: Shimano M9120 XTR, 4-piston, 160mm rotor, 6-bolt
Cockpit
Stem
Race Face Turbine R, 35.0 mm x 50mm
Handlebar
OneUp Carbon, XL 800 mm, LG 780mm, MD/SM 760mm, 20 mm rise, 35.0 mm clamp, Sweep 8 deg back 5 deg up
Grips
Ergon GXR, Black

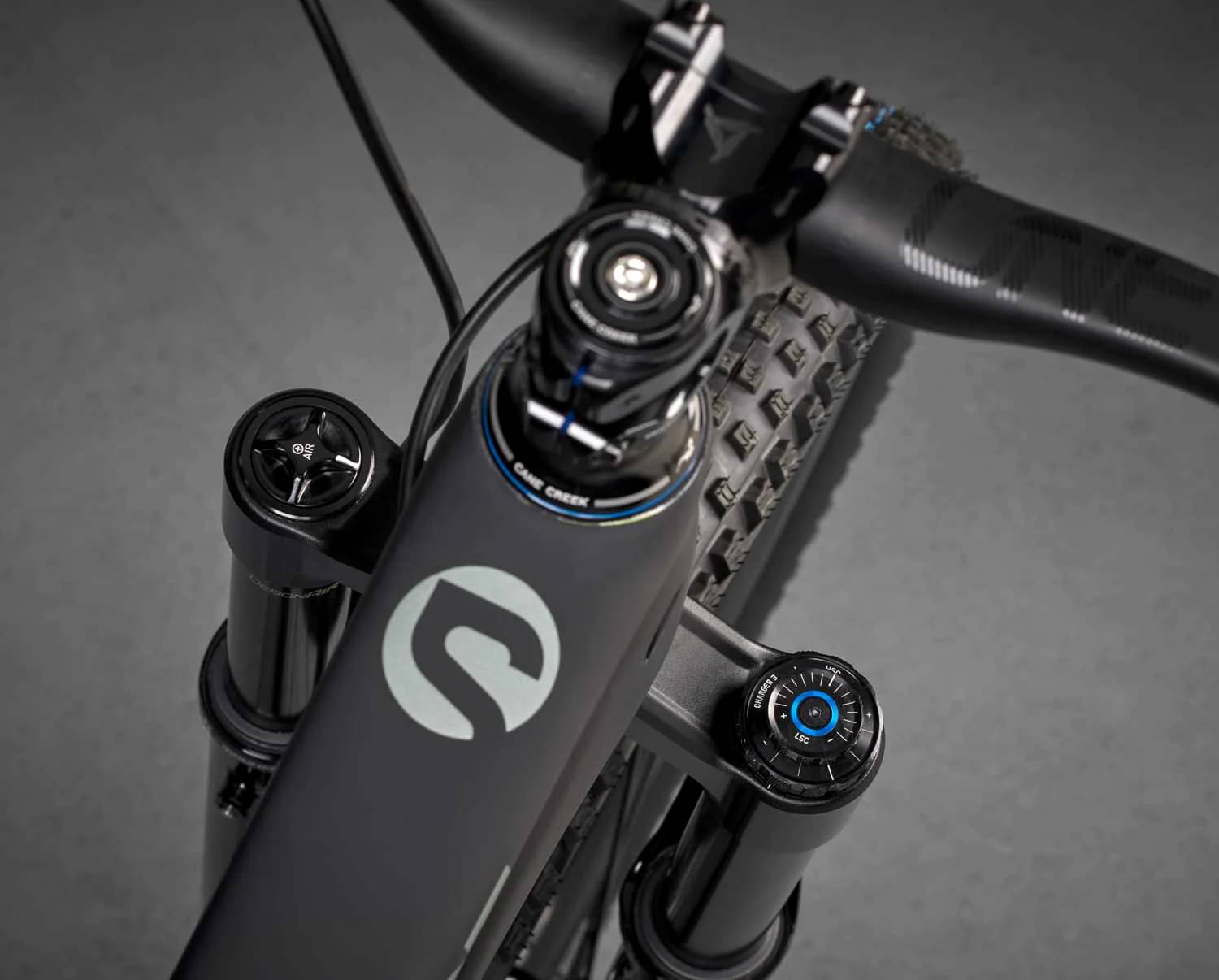

Headset
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Seat
Saddle
SDG Bel-Air V3
Seatpost
BikeYoke Revive 185 mm for XL and Large, 160 mm for Medium, 125 mm for Small, Internal, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.421 mm | 1.362 mm | 1.297 mm | 1.238 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 717 mm | 746 mm | 780 mm | 813 mm |
| Rake | 46 mm | 46 mm | 45 mm | 45 mm |
| Trail | 115 mm | 115 mm | 116 mm | 116 mm |
| Stack | 597 mm | 606 mm | 616 mm | 625 mm |
| Reach | 420 mm | 445 mm | 475 mm | 505 mm |
| Top Tube Length | 580 mm | 607 mm | 628 mm | 646 mm |
| Seat Tube Angle | 75 ° | 75 ° | 76 ° | 77.3 ° |
| Seat Tube Length | 360 mm | 400 mm | 450 mm | 490 mm |
| Head Tube Angle | 66.2 ° | 66.2 ° | 66.2 ° | 66.2 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1152 mm | 1181 mm | 1215 mm | 1248 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 718 mm | 725 mm | 723 mm | 721 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
