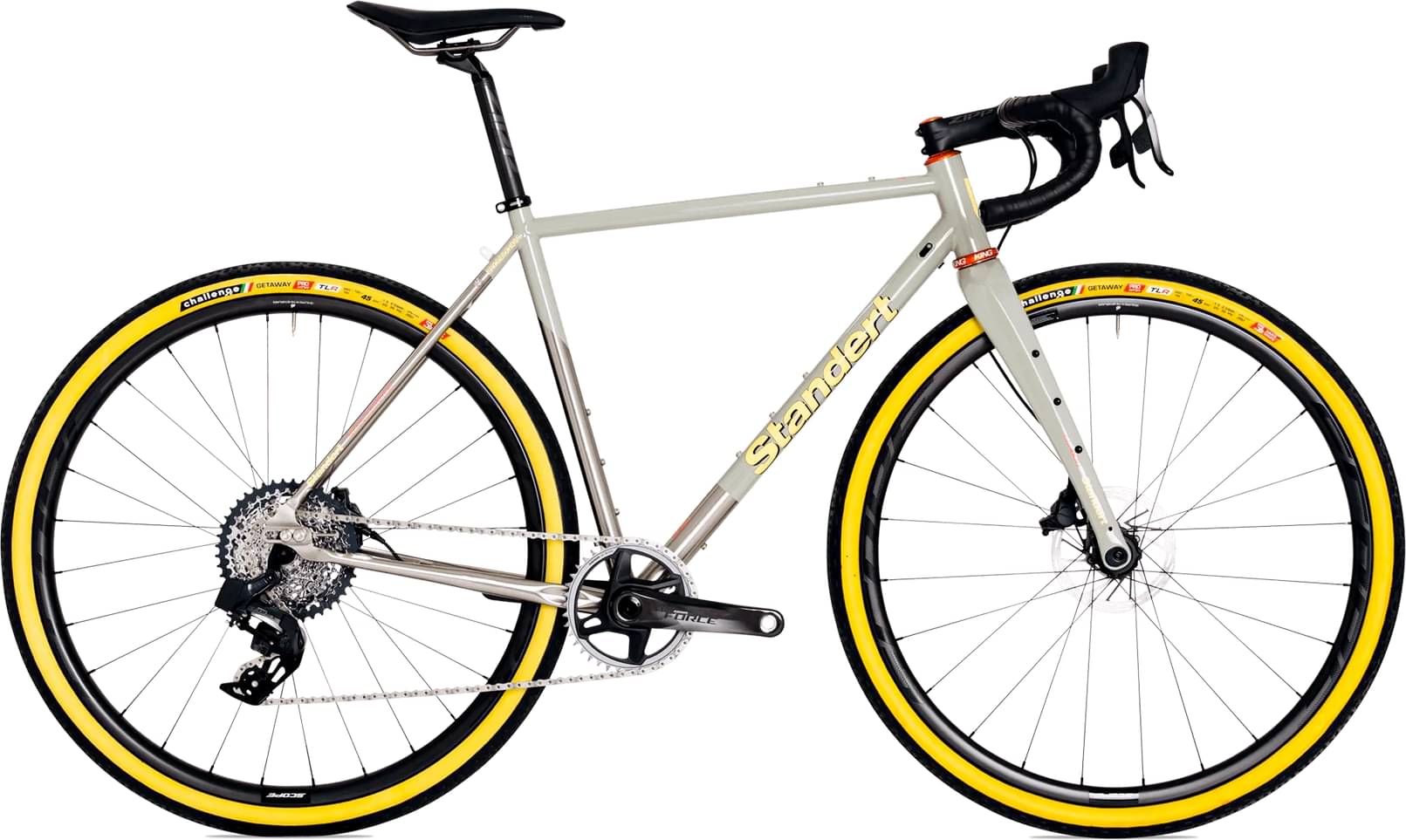

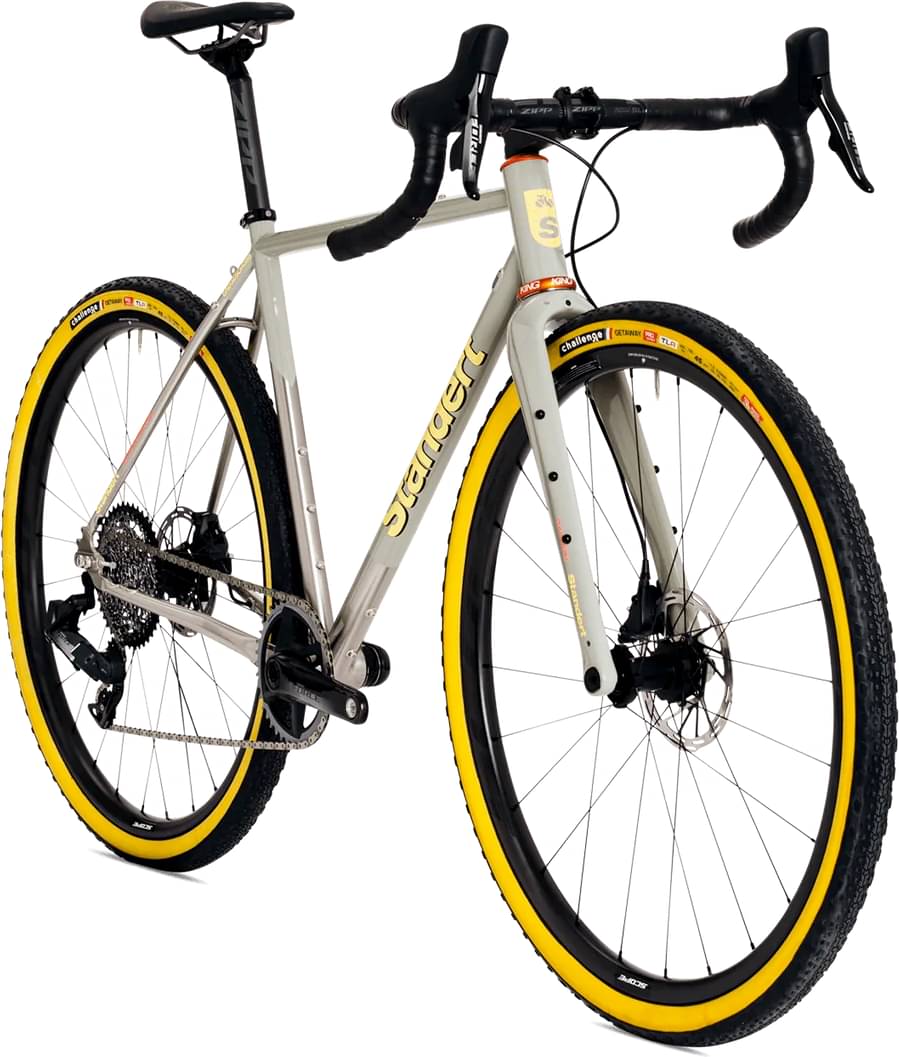

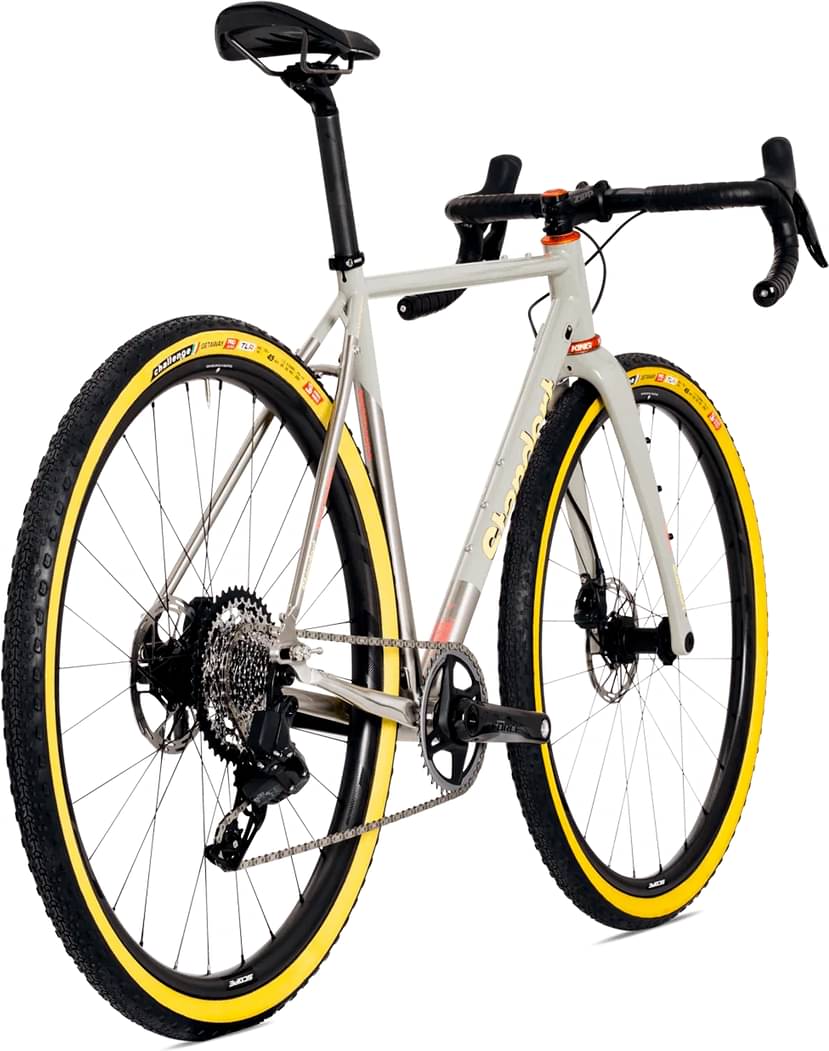

Standert Erdgeschoss Stainless Ka-Pow! Khaki 2024
2024 Road
Estimate price |
5,467$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset GRX 800, Force -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
54cm
170cm - 180cm
56cm
175cm - 185cm
58cm
182cm - 192cm
60cm
188cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Standert Erdgeschoss Stainless Steel
Suspension Fork
Columbus Cross+ Carbon 1?"-1½"
Drivetrain
Rear Derailleur
Shimano GRX 810, SRAM Rival eTap AXS, SRAM Force XPLR eTap AXS
Front Derailleur
Shimano GRX 810, N/A, N/A
Cassette
Shimano M800 11-34, SRAM Rival XG 1251 10-36, SRAM Force XG 1271 10-44
Crank
Shimano GRX 810 48-31, SRAM Force 1 DUB 40t, SRAM Force 1 DUB 40t
Bottom Bracket
Standert T47
Chain
Shimano HG601, SRAM Rival AXS 12speed, SRAM Force AXS 12speed
Brakes
Brakes
Shimano GRX 810, SRAM Rival eTap AXS, SRAM Force eTap AXS
Cockpit
Stem
Zipp Service Course SL
Handlebar
Zipp Service Course SL XPLR
Headset
Chris King Inset 7
Seat
Seatpost
Zipp Service Course SL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48PC™ | 50PC™ | 52PC™ | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.391 mm | 1.388 mm | 1.404 mm | 1.427 mm | 1.453 mm | 1.495 mm | 1.533 mm |
| Stack | 519 mm | 529 mm | 539 mm | 551 mm | 568 mm | 589 mm | 610 mm |
| Reach | 373 mm | 381 mm | 384 mm | 386 mm | 391 mm | 394 mm | 398 mm |
| Top Tube Length | 500 mm | 520 mm | 530 mm | 545 mm | 560 mm | 575 mm | 585 mm |
| Seat Tube Angle | 76.5 ° | 75.5 ° | 75 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 71.25 ° | 71.25 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 89 mm | 100 mm | 110 mm | 122 mm | 138 mm | 160 mm | 180 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 996 mm | 1008 mm | 1012 mm | 1018 mm | 1024 mm | 1034 mm | 1039 mm |
| Standover Height | 746 mm | 760 mm | 774 mm | 789 mm | 805 mm | 826 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
